plt_es_rsp_ - BS01

REVISION DATE: 24-Oct-2018 14:25:26

This is Mikes Es system response data for Es on the BS01 after the Es Heads are on, shutters in place and the iris adjusted. I used the F600c3.txt file from Mike as the lamp file.

I have used the new day 08 pen lamp wavecal to interpolate the lamp data. You can get an ASCII text file of the rsp here.


5 lites and 5 Backgrounds meaned for Es Track

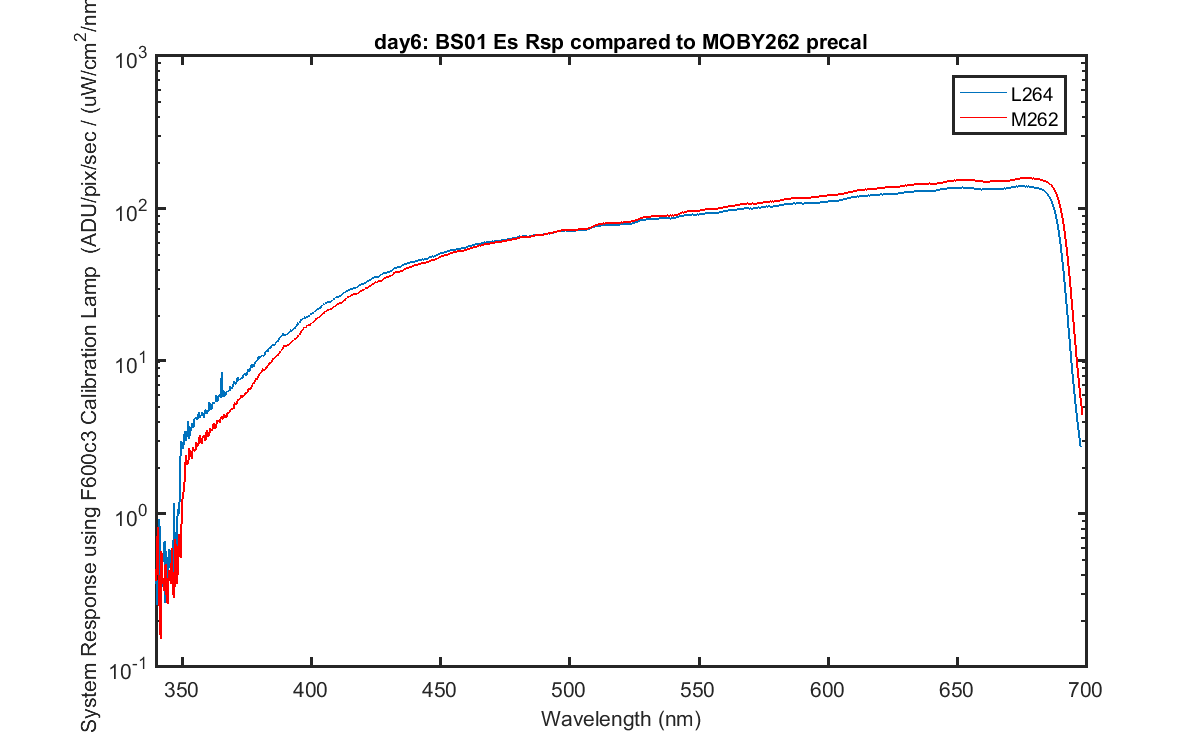

Figure 1


Net signal (ADU/pix/sec) - dark subtracted

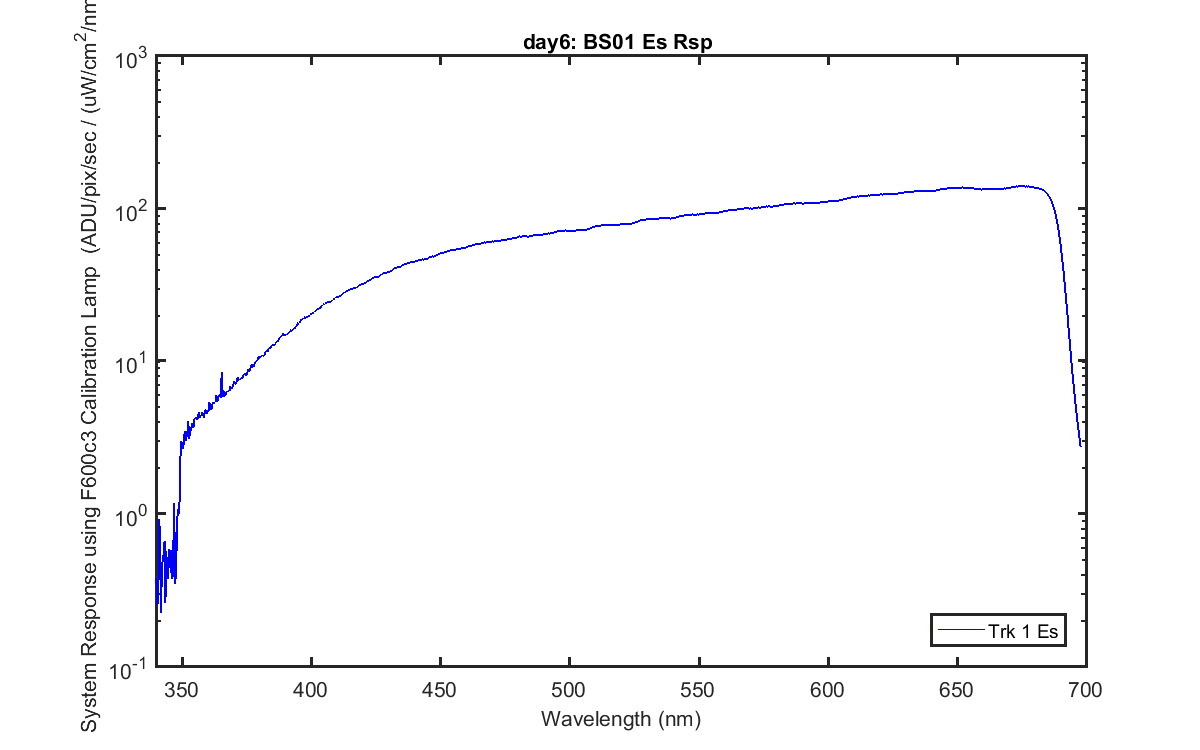

Figure 2


Net signals divided by the F601c3.txt Es cal lamp data (interpolated to BS03 wavelengths)

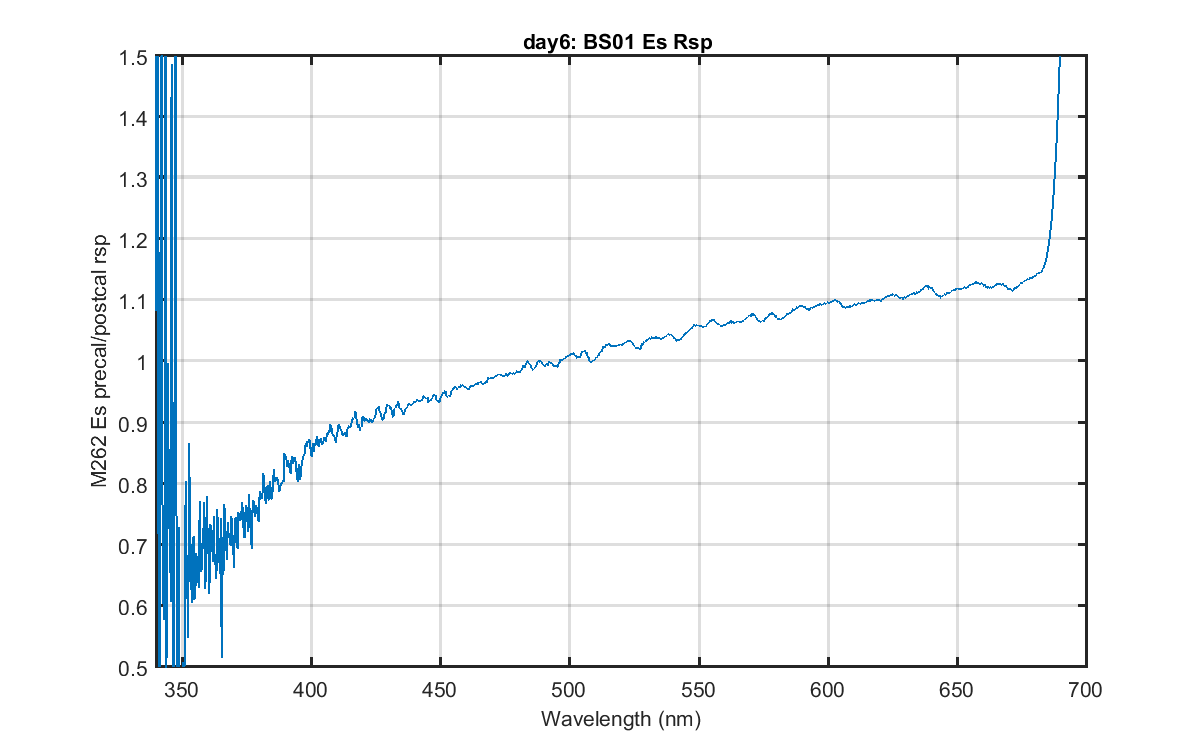

Figure 3


Trying to figure out exposure times, not sure I am thinking about this correctly. But I multiplied Mikes rough response by a in-water (good) M260 Es data set and got the below graph for Es. I think the units are now ADU/pix/sec. So what int time will get the data to 50K. The below table shows the max int time for the Es track, if I did my math right. Help please Mike.

Trk  Max ADU   Exposure to get 50K ADU
 1    1288     38.8

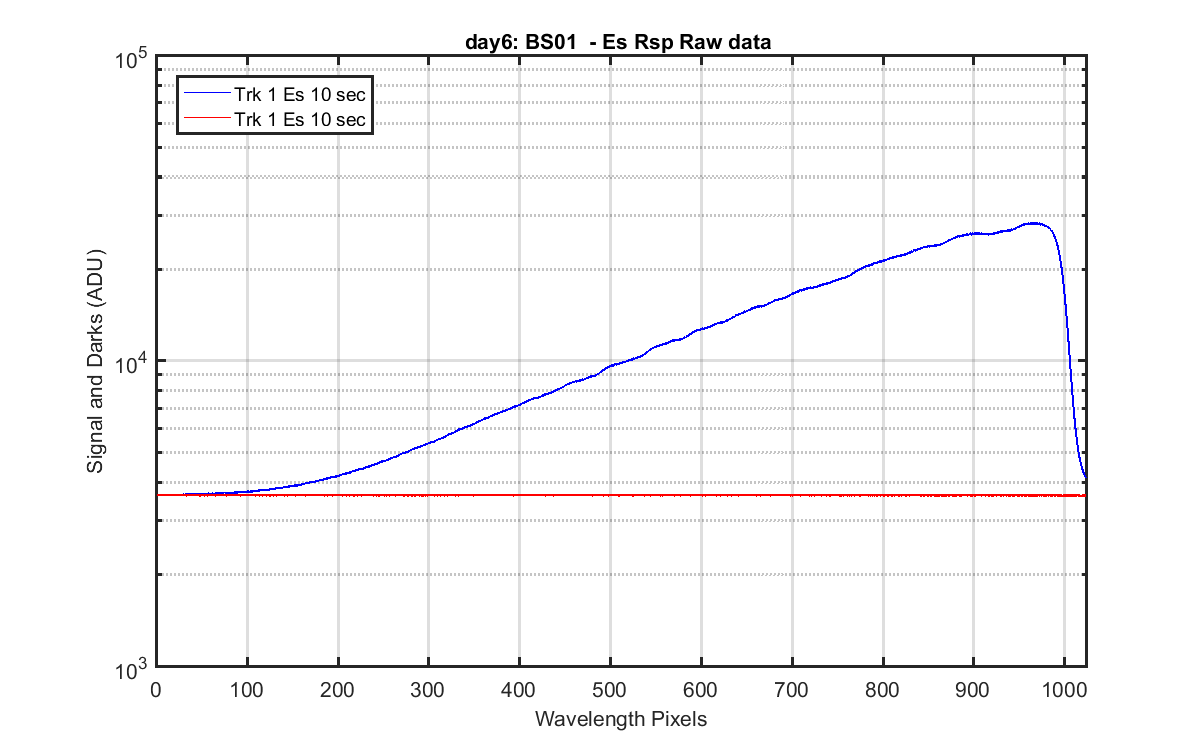

Figure 4

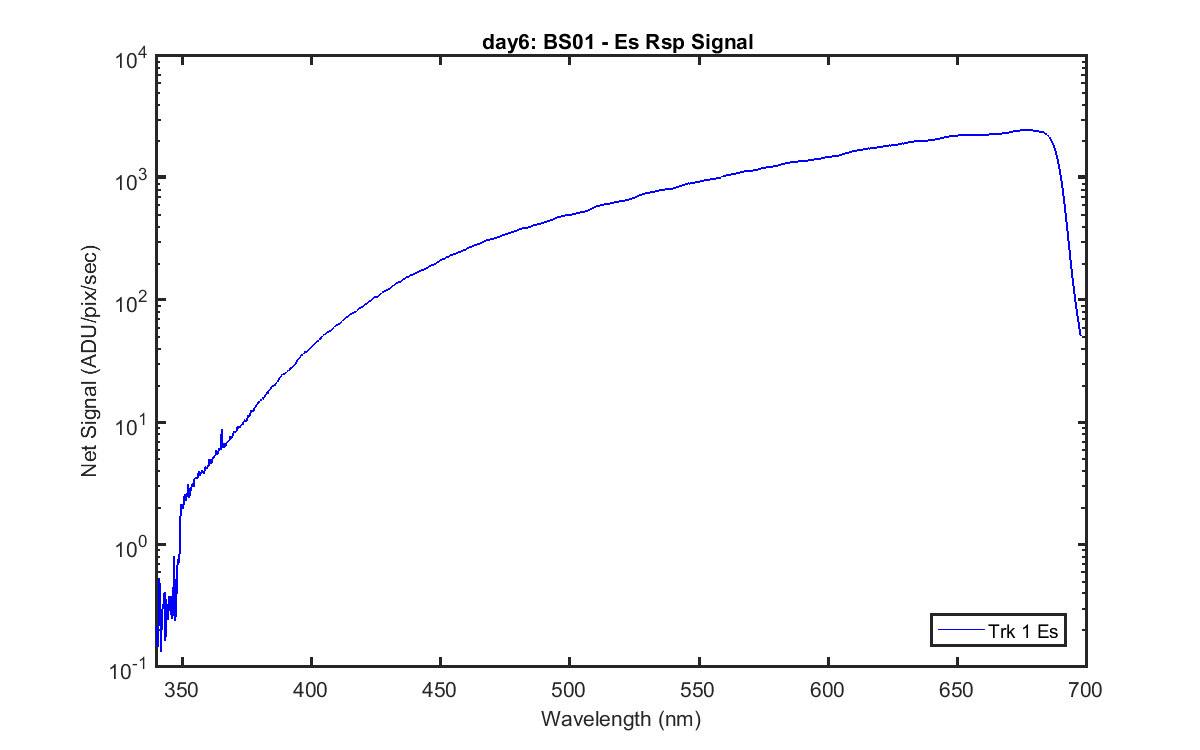

Figure 5


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\MOBY-L264\bs1cal\day06
Date: 24-Oct-2018 14:25:26
Created from plt_es_rsp_(1)
