Day09 Lu system response using the OL425(L10) W6D100 - 6 inch distance between the sphere and Lu head. The PD monitor fL values = yes.

Mikes Lu system response data for LuTop, LuMid and LuBot post the MOBY262 deployment.


4 lites and 5 backgrounds meaned for each Lu Track

Figure 1

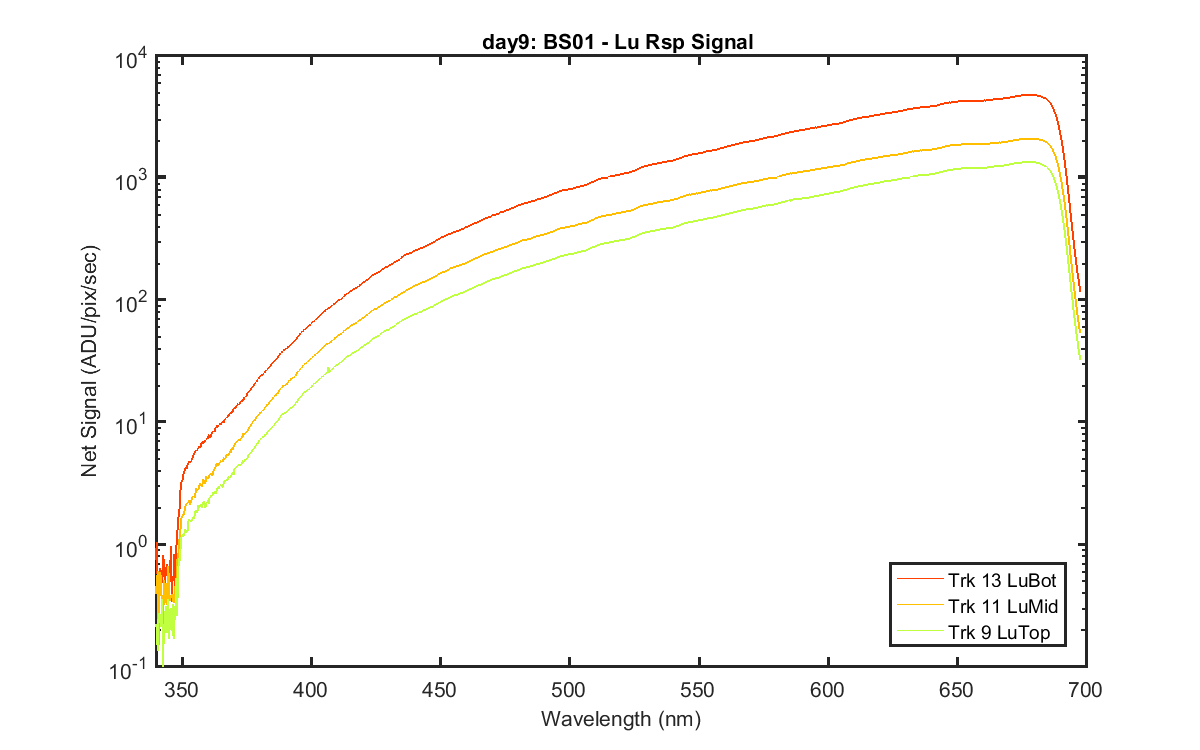

Net signal (ADU/pix/sec) - dark subtracted .

Figure 2

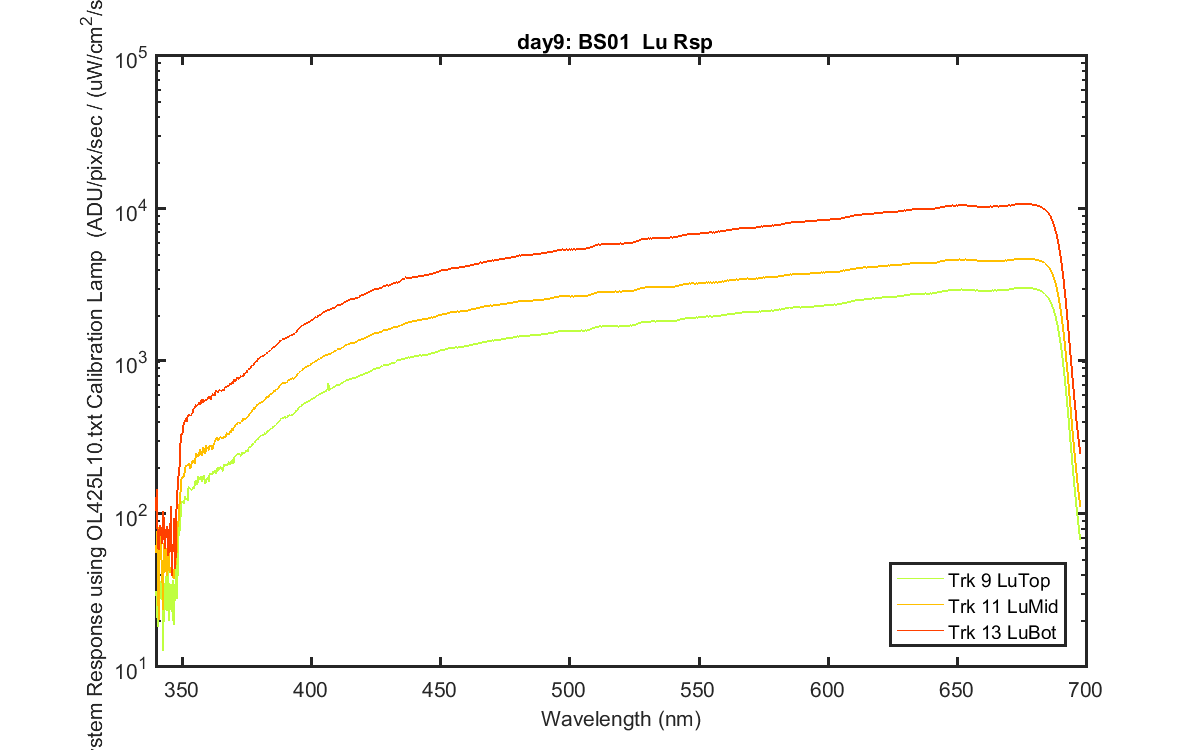

Net signals divided by the OL425L10.txt cal lamp data (interpolated to BS01 wavelengths)

Figure 3

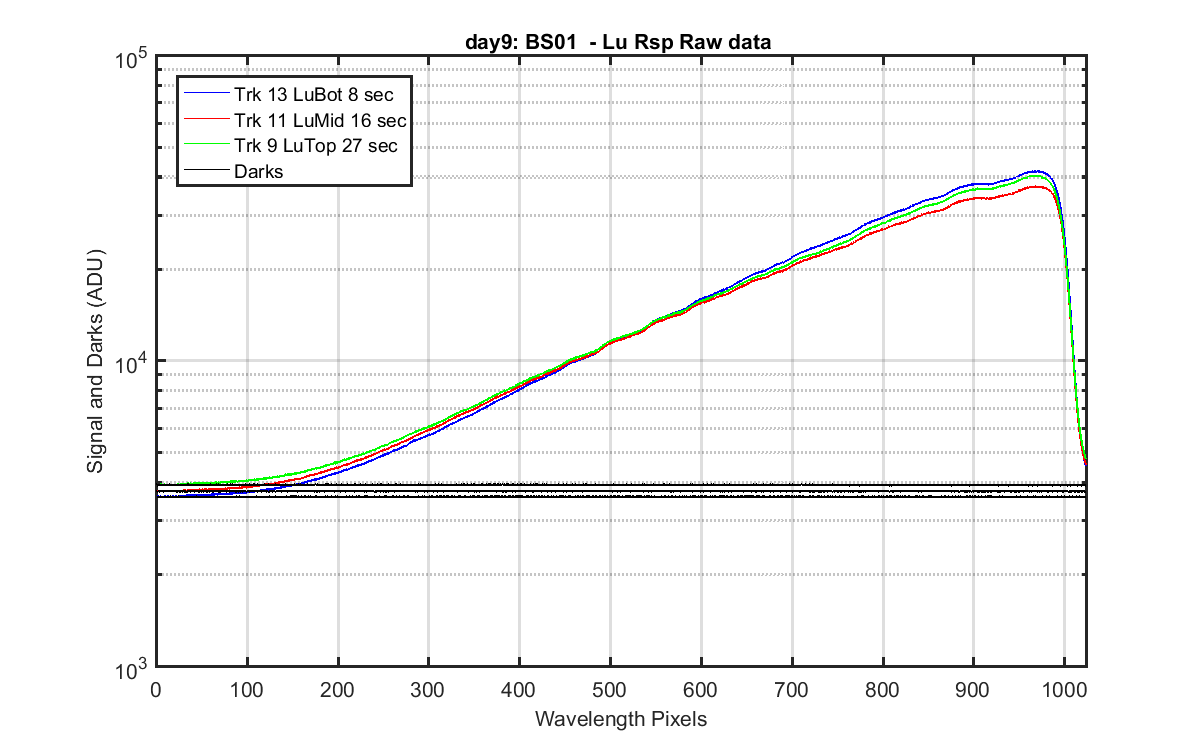

Trying to figure out exposure times. I multiplied Mikes Lu response by a in-water (good) LuTop, Mid or Bot data set and got the below graph for each Track. I think the units are now ADU/pix/sec. So what int time will get the data to 50K. The below table shows the max int time for each Lu track, if I did my math right. The are very similar to the one calculated from the rough cal on day 3.

Trk  Max ADU   Exposure to get 50K ADU
 9      6729        7.4
11      3880       12.8
13      5150        9.7

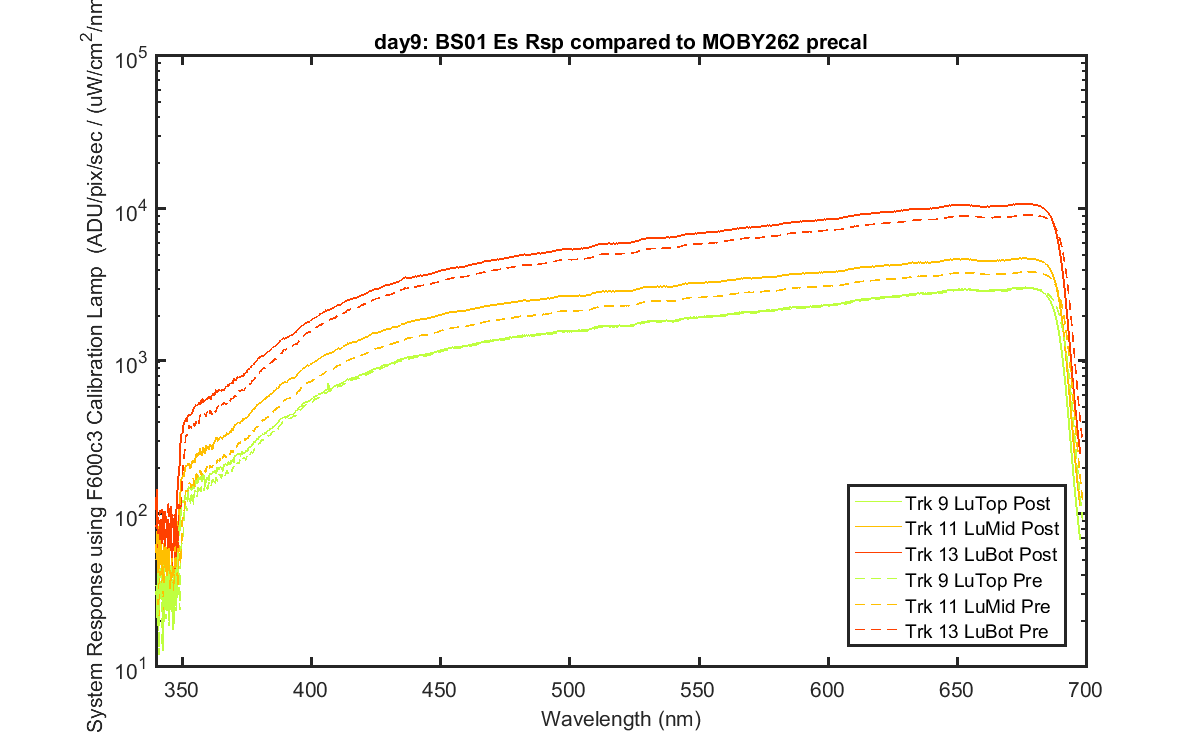

Figure 4


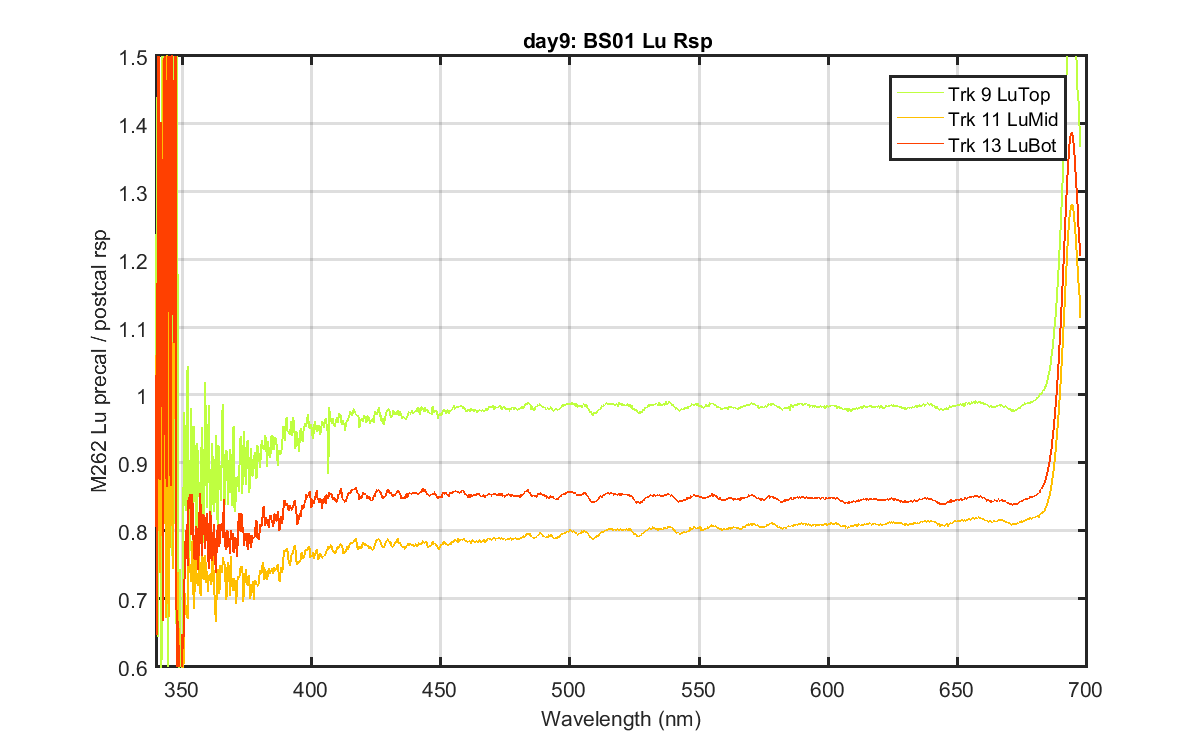

Figure 5
