plt_es_rsp_ - BS04

REVISION DATE: 17-Jan-2018 10:41:17

This is Mikes Es system response data for Es on the BS04 after the Es Heads are on, shutters in place and the iris adjusted. I used the F600c3.txt file from Mike as the lamp file.


5 lites and 5 Backgrounds meaned for Es Track

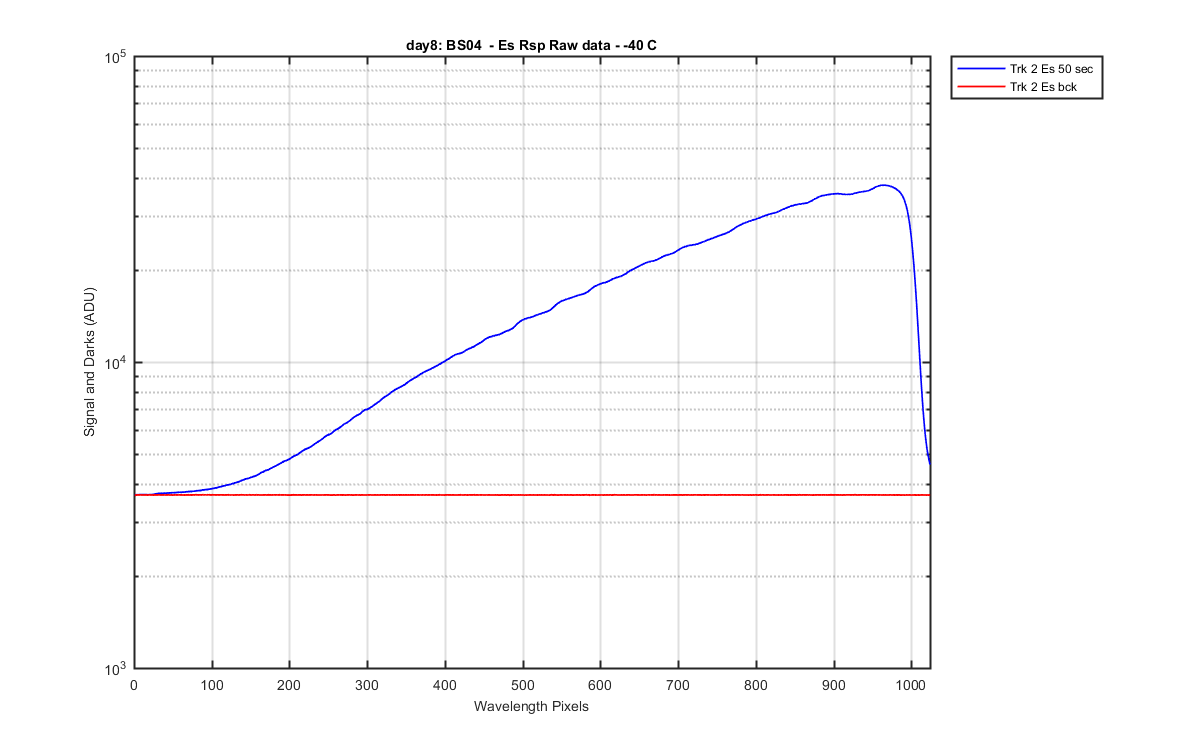

Figure 1


Net signal (ADU/pix/sec) - dark subtracted

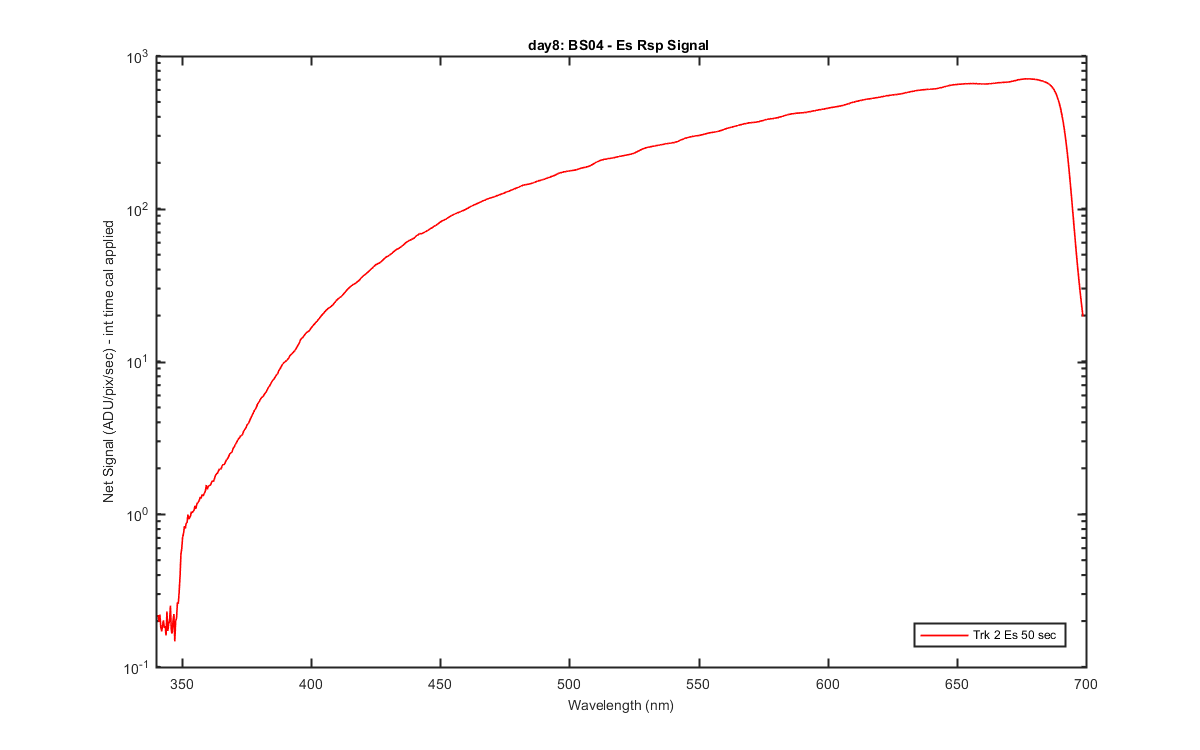

Figure 2


Net signals divided by the F601c3.txt Es cal lamp data (interpolated to BS03 wavelengths)

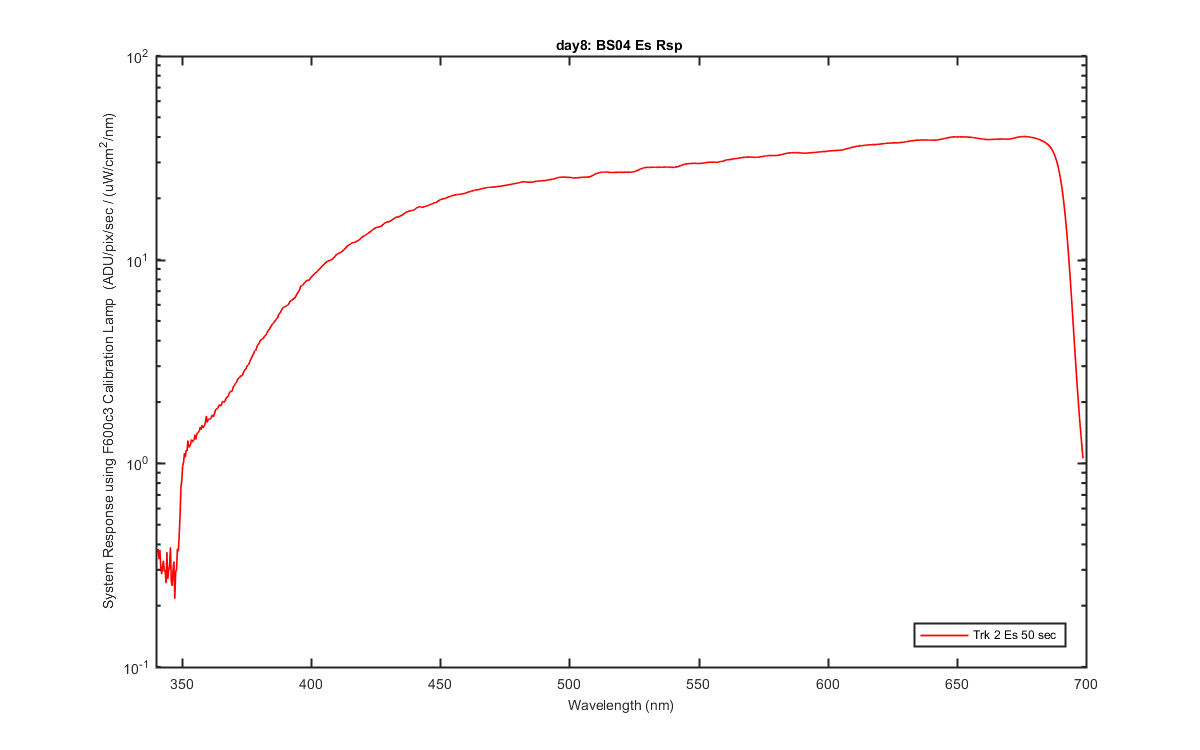

Figure 3


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\MOBY-L267\bs4cal\day08
Date: 17-Jan-2018 10:41:17
Created from plt_es_rsp_(1)
