Mike did a quick exposure time cal. Using Mike detailed email and the int cal from MOBY-L267 day 7 I calculated a calibrated integration times. My method differed from Mikes in that I meaned all the 1 sec and 10 sec data so I normalized by the mean a 1 sec etc. See explainations below for more details about each step. Note: Data are in ADU/pix (the per pixel is because this is a track mean). They are all NET signals (lite - backgrounds) I finally got the Dimmer data included

This data set is normalized to 1 sec. predint = Prediction intervals for a fit at 95% confidence level New graph added to the bottom. Fit was forced through 1 seconds .

Data listing M264pre_inttimecal.txt


L267
Nominal
(sec)
Measred
(sec)
predint (min)
(sec)
predint (max)
(sec)
0.0500 0.0987 -0.0380 0.2191
0.0700 0.1168 0.0076 0.2142
0.1000 0.1451 0.0594 0.2216
0.2000 0.2382 0.1881 0.2860
0.3000 0.3338 0.2967 0.3687
0.5000 0.5226 0.4979 0.5491
0.7000 0.7134 0.6919 0.7364
1.0000 1.0000 0.9789 1.0215
2.0000 1.9530 1.9317 1.9786
3.0000 2.9081 2.8862 2.9371
5.0000 4.8259 4.8000 4.8561
7.0000 6.7544 6.7173 6.7774
10.0000 9.6545 9.5974 9.6630
20.0000 19.2499 19.2187 19.3023
30.0000 28.8712 28.8606 28.9603
50.0000 48.2035 48.1838 48.3074
70.0000 67.6464 67.5427 67.6809
100.0000 96.7246 96.6259 96.7753
200.0000 193.7622 193.7774 193.9683
300.0000 291.2876 291.0648 291.4214


Figure 1

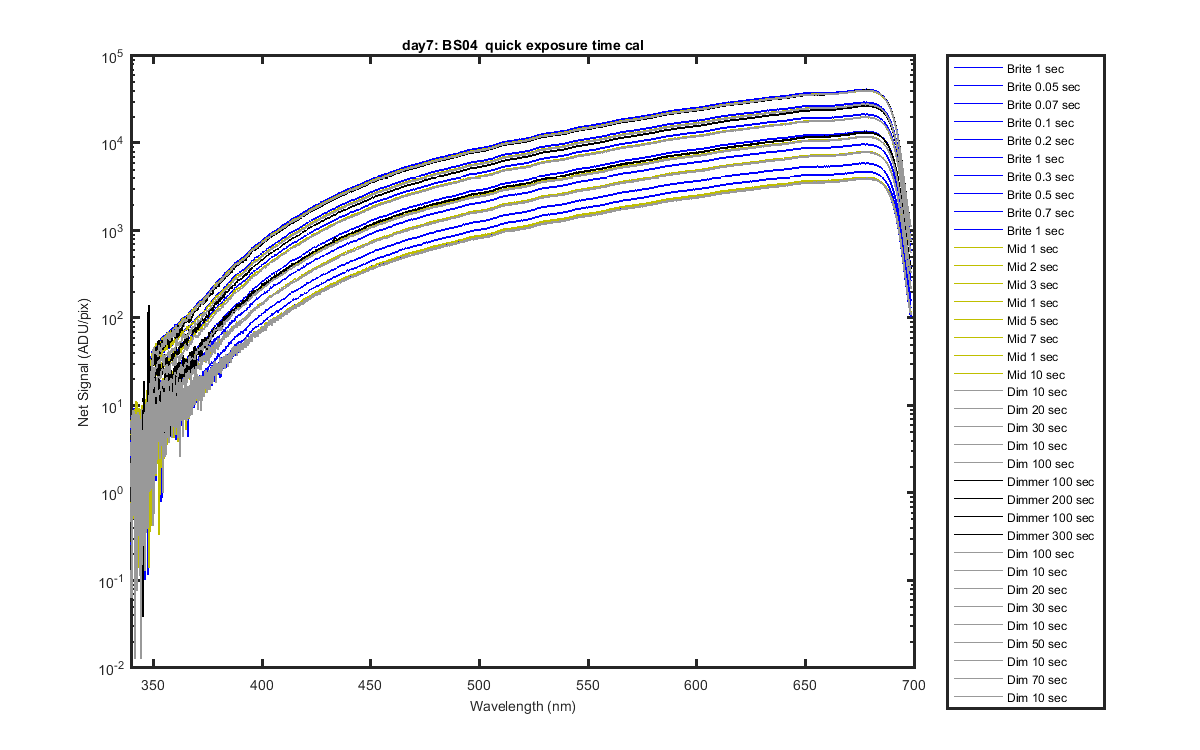

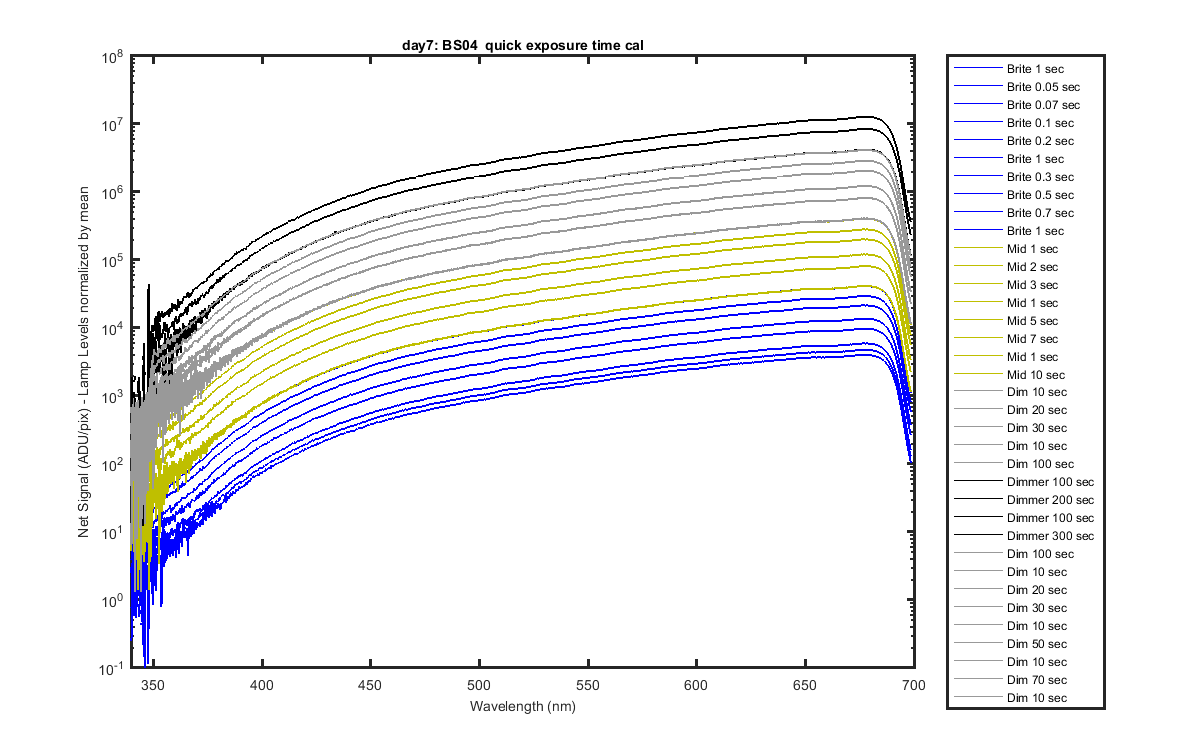

The data where collected a three different lamp levels ("Brite", "Mid", and "Dim") to be able to get a full range of integration times. You can see all the levels here.



Figure 2

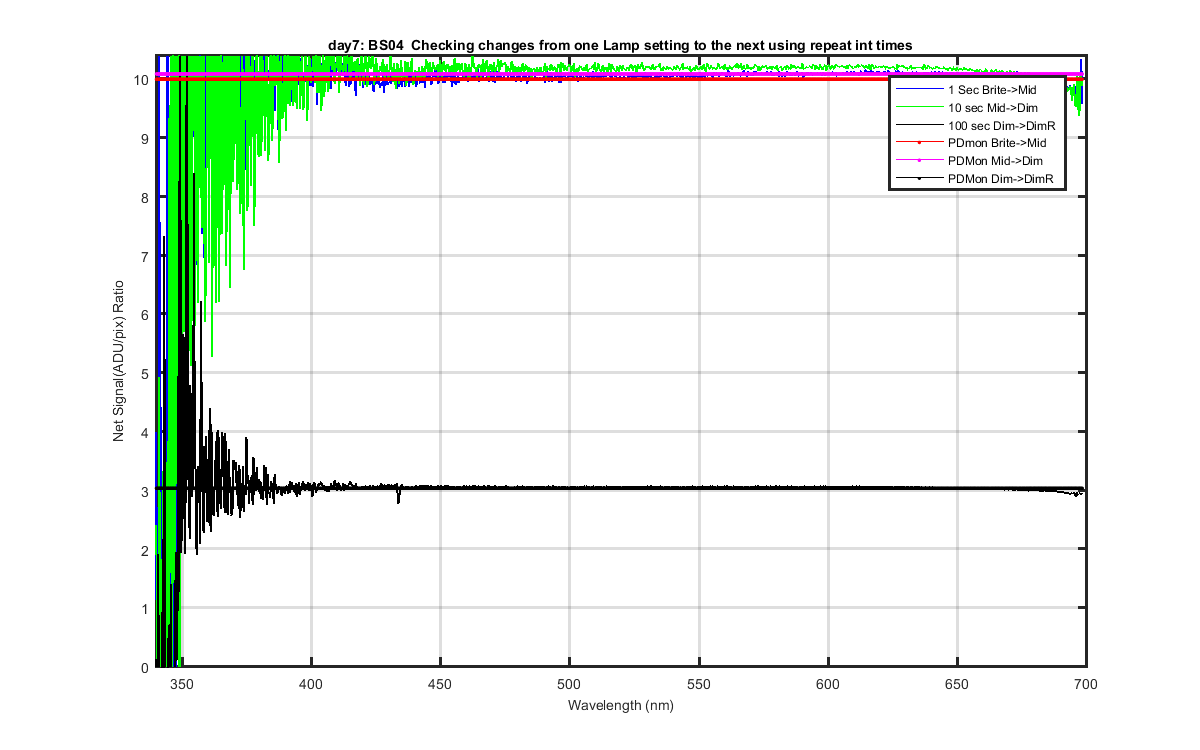

Track 1 data normalized using the step down ratios. So the 1 sec repeats from Bright to Mid and the 10 sec repeats from Mid to Dim plot on top of each other.



Figure 3

I am not totally sure what this graph is showing but I copied it from Mikes email. Email section below: I checked the Net Sig repeats at 1 sec for the Brite lamp (+/- 0.5%), and at 1 sec for the Mid lamp (+/- 1%), and at 10 sec for the Dim lamp (+/- 1.5%).Since they seemed OK, and the PD mon repeats were essentially 1, I did my Net Sig "normalizing" to the nearest-in-time 1 sec exposure Net Sig at Brite & Mid lamp settings, and to the nearest-in-time 10 sec net at Dim lamp setting(hopefully this will make sense below!). Yea, it looks the same as Mikes, now I need to understand what we are checking for here.



Figure 4

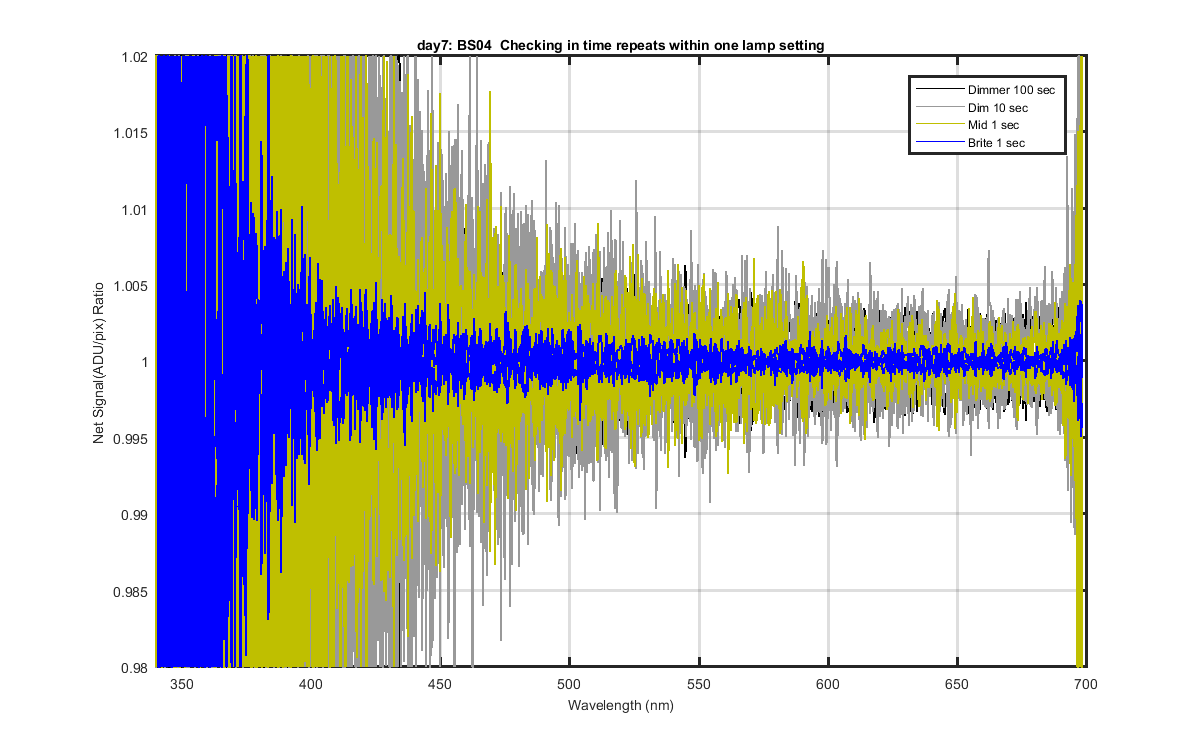

Checking the integration time repeatability within each lamp level. So I found all the Brite 1 sec and divided by the mean to get the variation about the mean. I did the same for the 1 sec Mid and 10 sec Dim data. This looked really good.



Figure 5

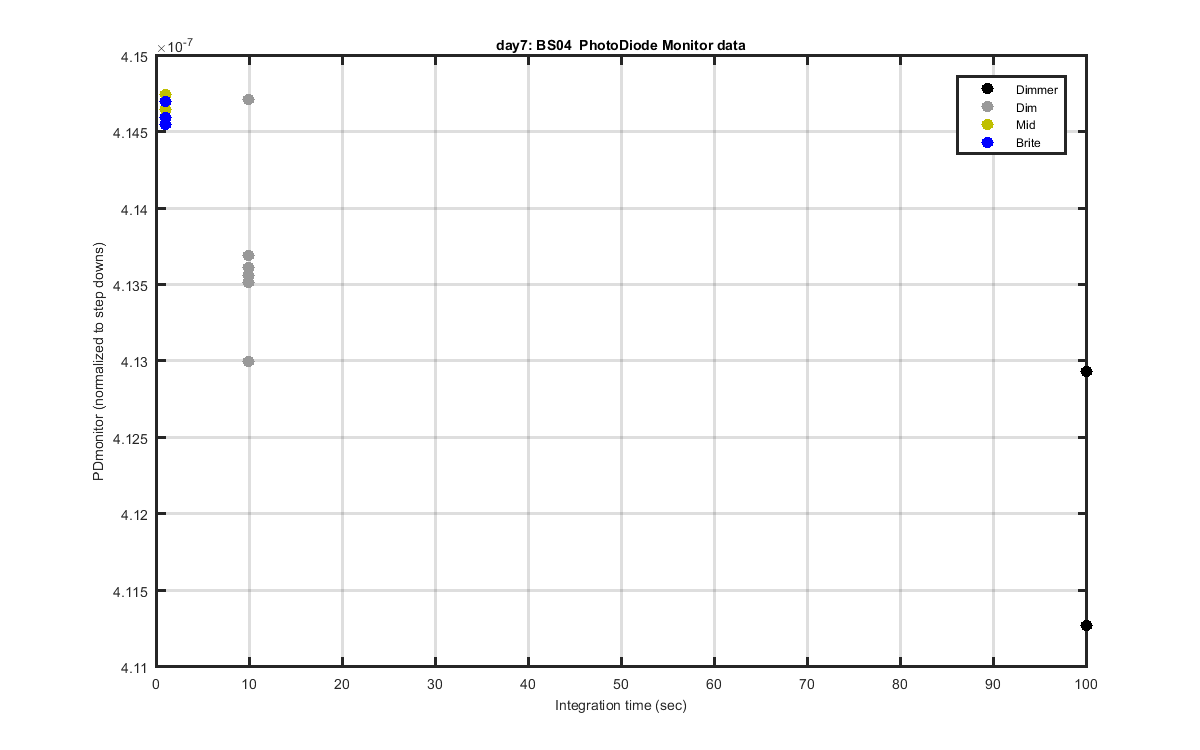

The Photodiode data normalized to the level changes using PDmonitor data.



Figure 6

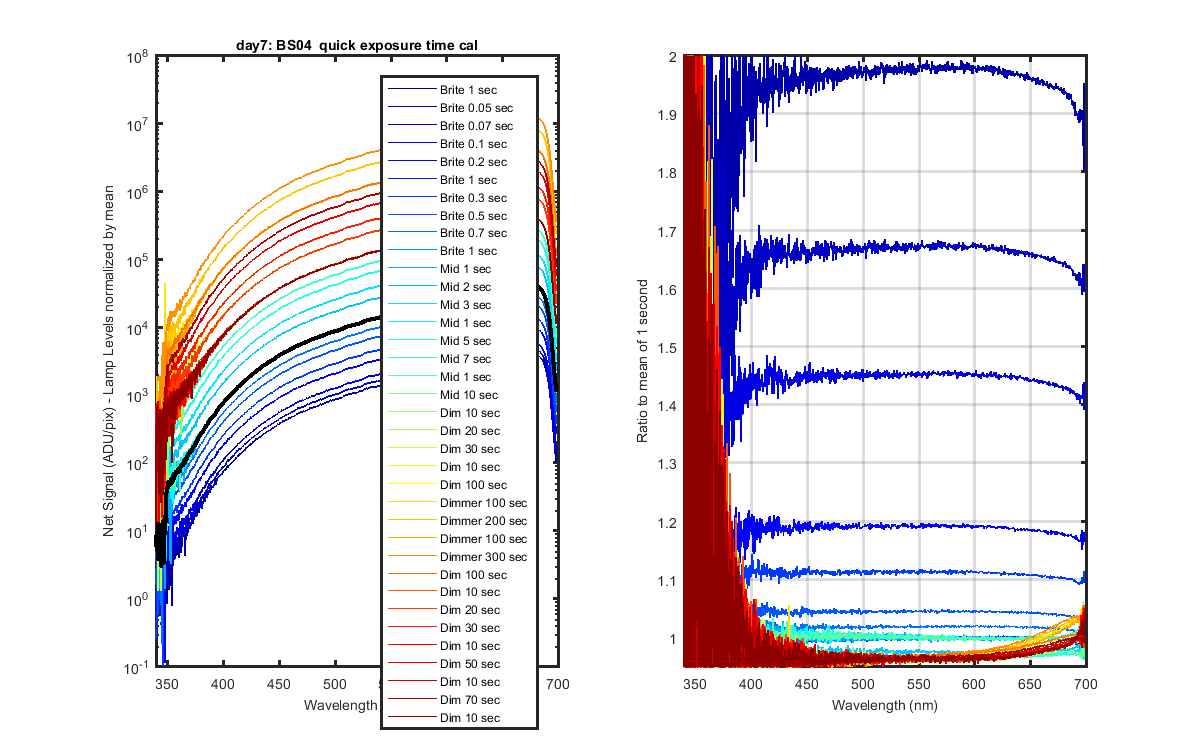

The left panel is the Same data from Figure 2. The right panel is each int time divided by the mean 1 sec data and integration time. I then calculated the mean for each ratio from pixels 300-900 and a std.



Figure 7

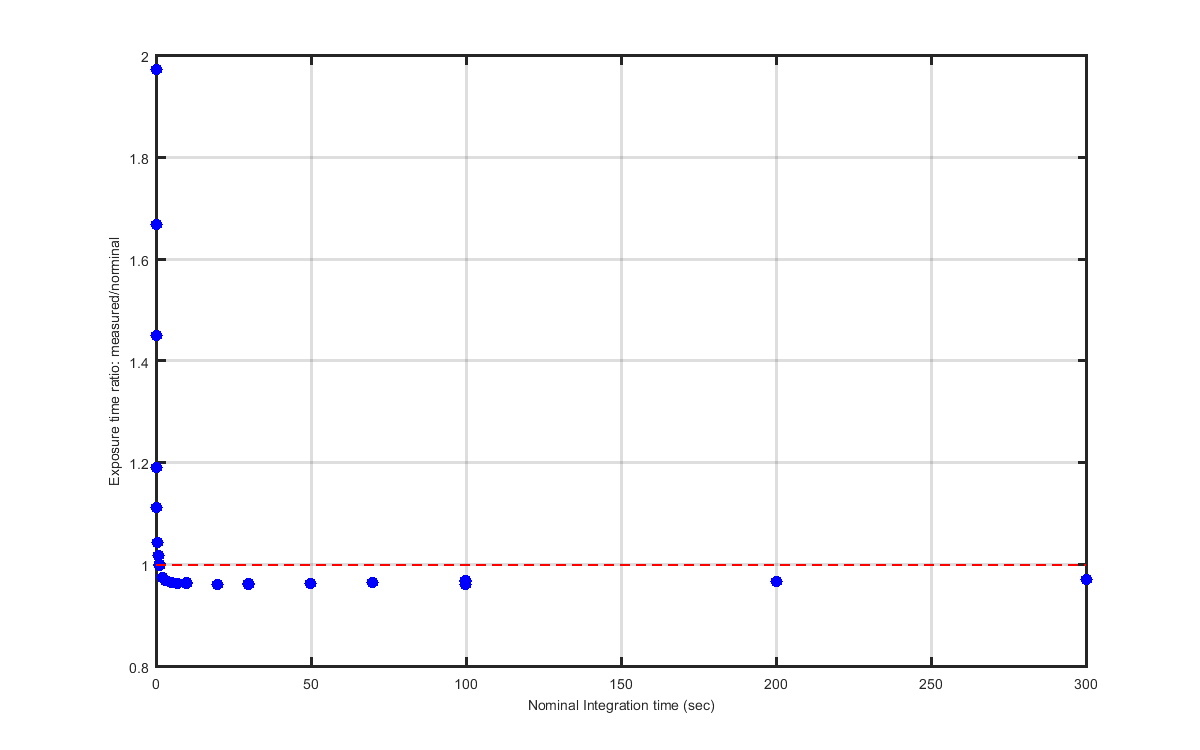

A plot of the ratio of measured over nominal Exposure time.



Figure 8

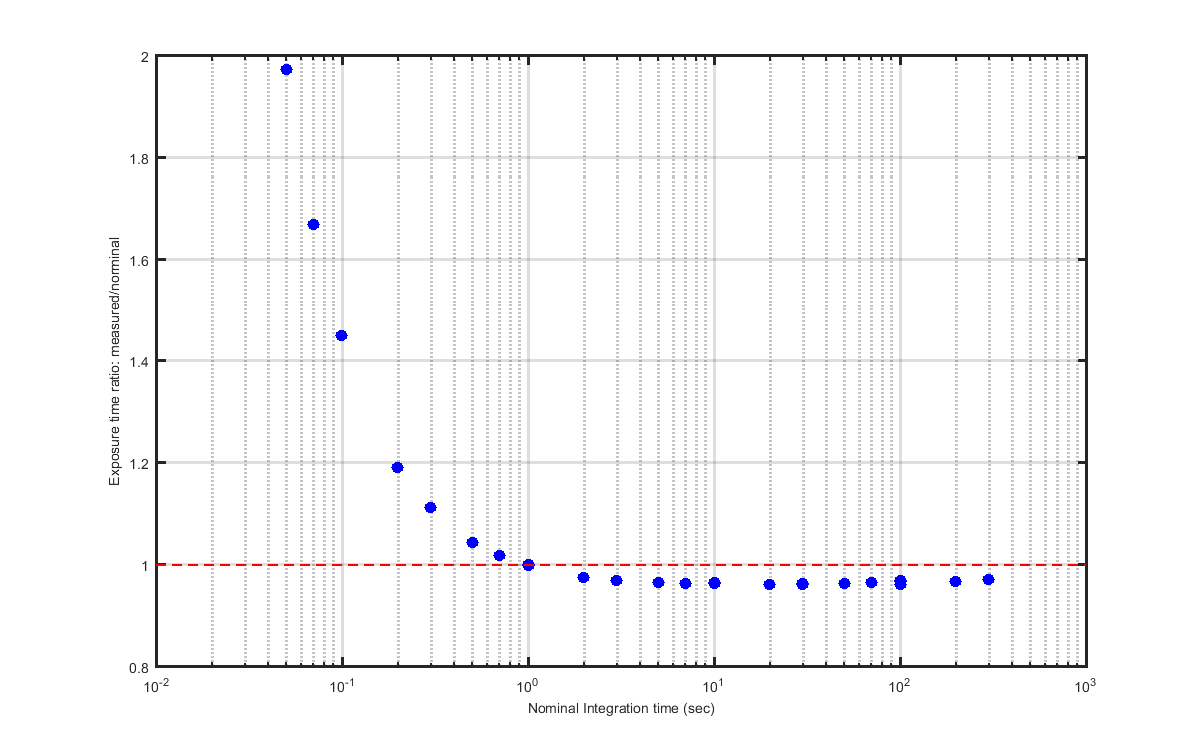

A plot of the ratio of measured over nominal Exposure time but with the x-axis in log scale.



Figure 9

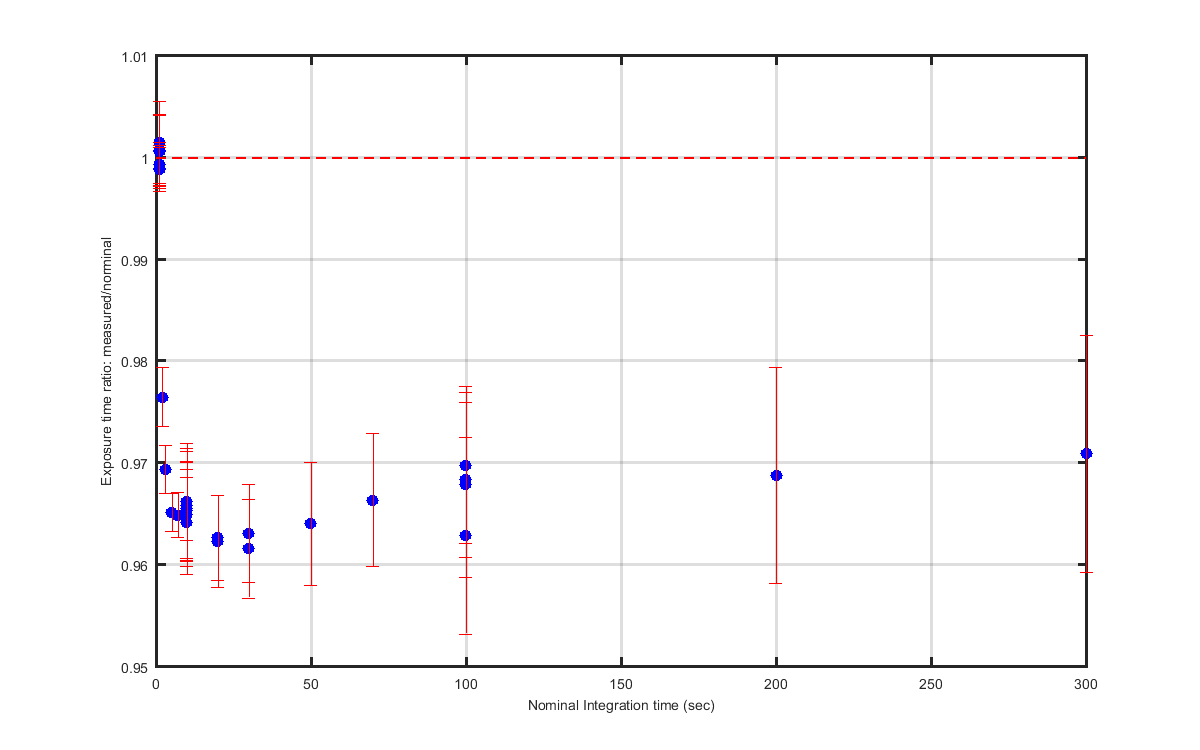

Zoomed in to the higher int time numbers with error bars.



Figure 10

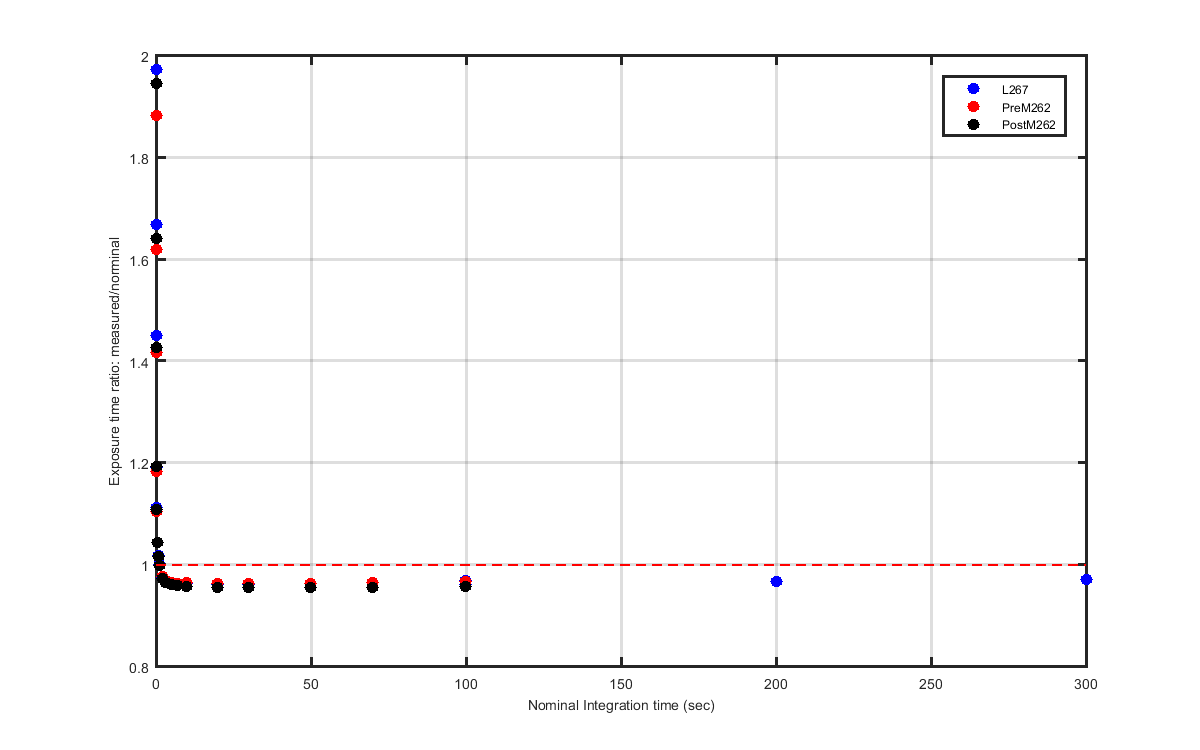

Comparison of MOBY262 pre and post int cal and the MBOY264 int cal



Figure 11

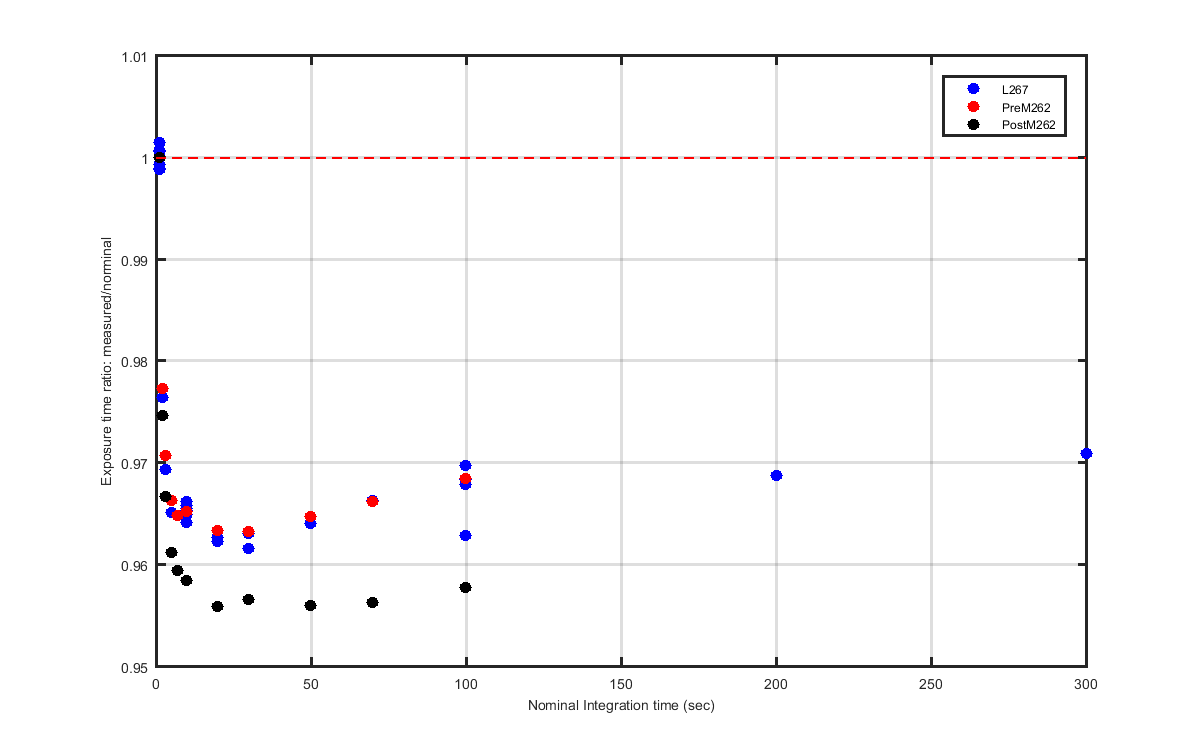

Same graphs as above but zoomed in



Figure 12

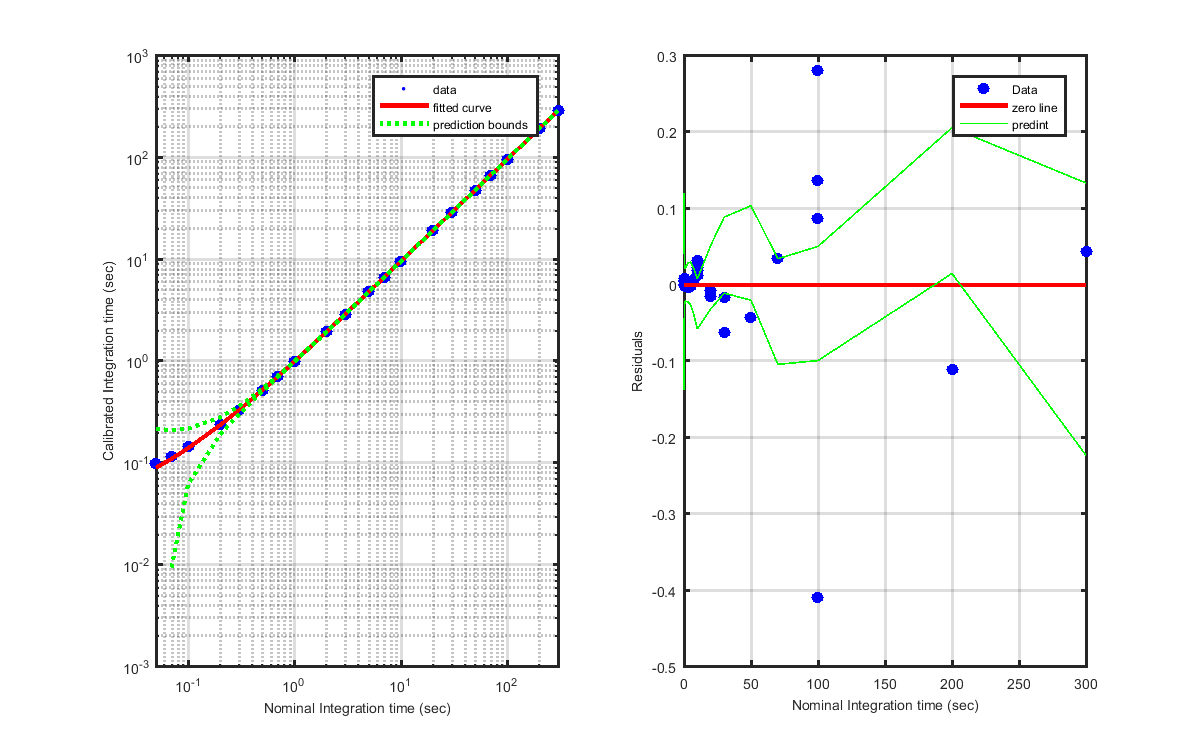

Graphs of the fit to the data with residuals and 95% conf interval.
