plt_lu_rsp_ - BS04

REVISION DATE: 17-Jan-2018 10:49:56

Day08 Lu system response using the OL425(L10) W6D100 - 6 inch distance between the sphere and Lu head. The PD monitor fL values = yes.

Mikes Lu system response data for LuTop, LuMid and LuBot pre the MOBY264 deployment, experiment number MOBY-L267.


4 lites and 5 backgrounds meaned for each Lu Track

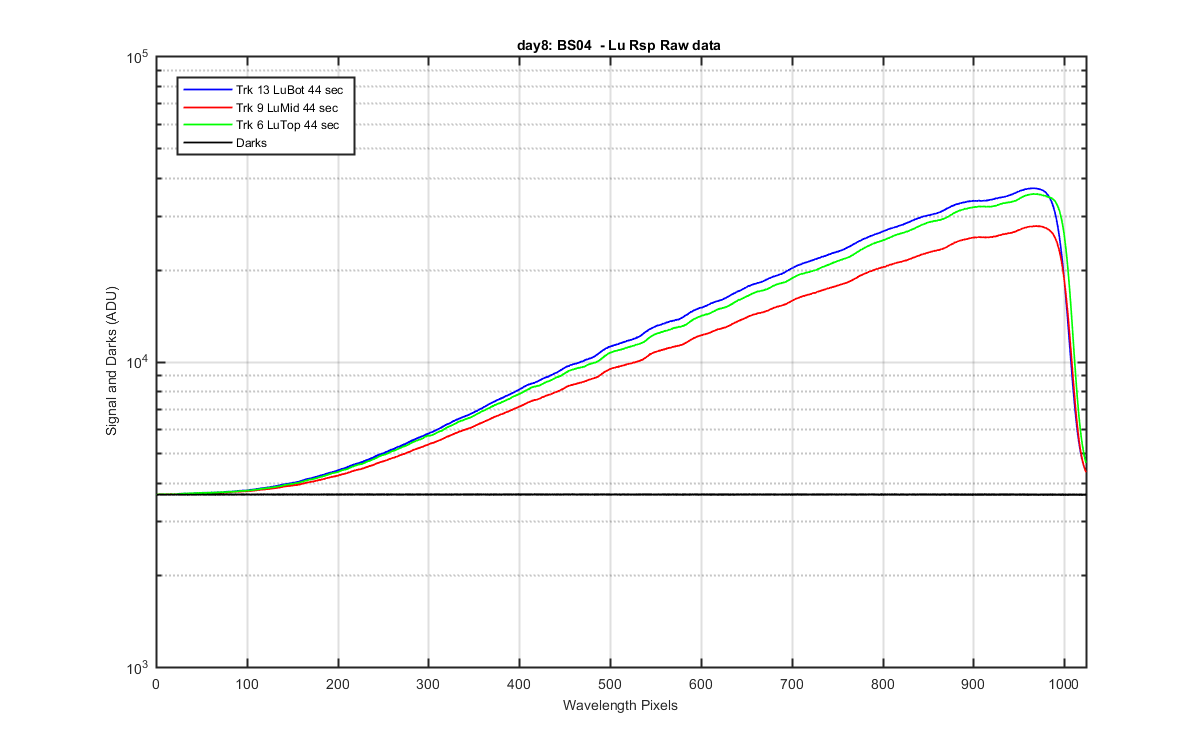

Figure 1

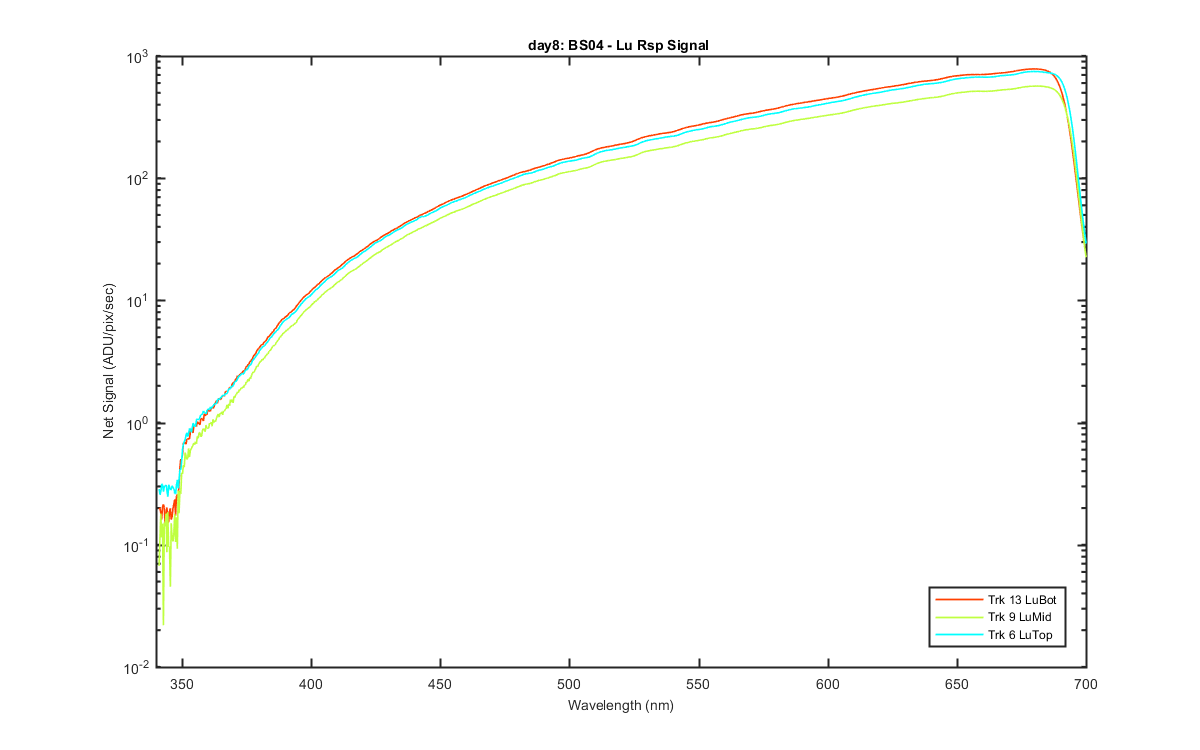

Net signal (ADU/pix/sec) - dark subtracted .

Figure 2

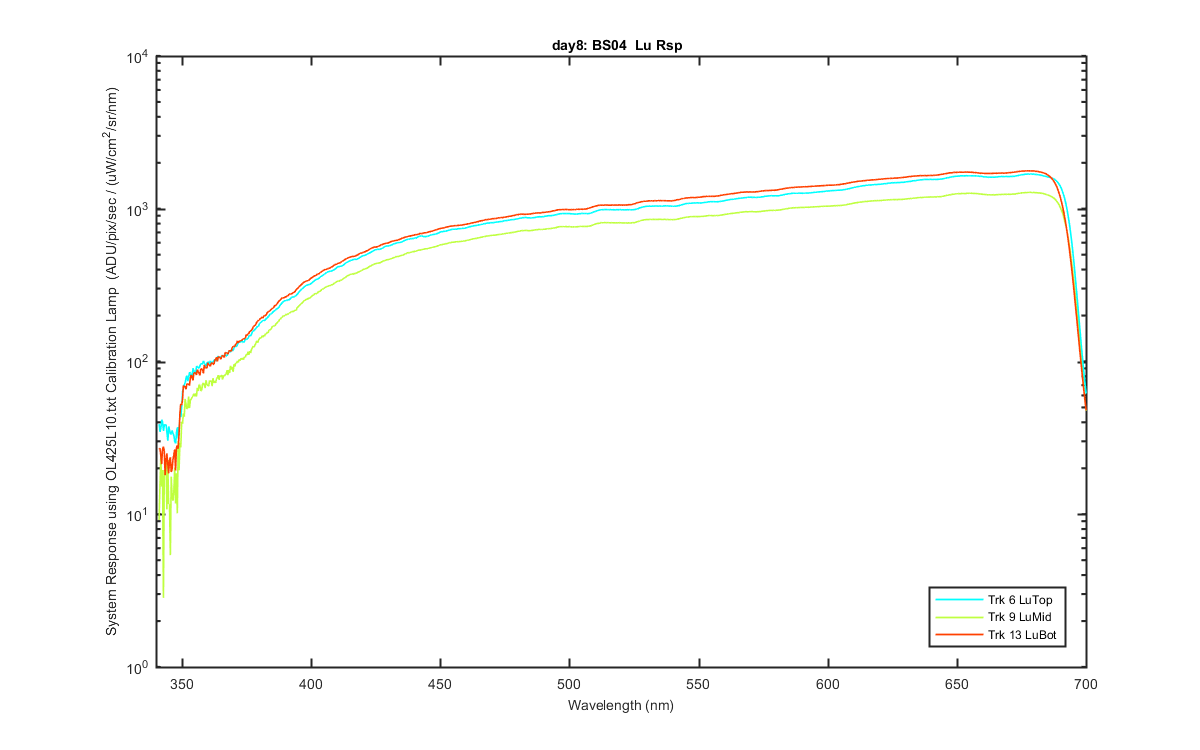

Net signals divided by the OL425L10.txt cal lamp data (interpolated to BS01 wavelengths)

Figure 3

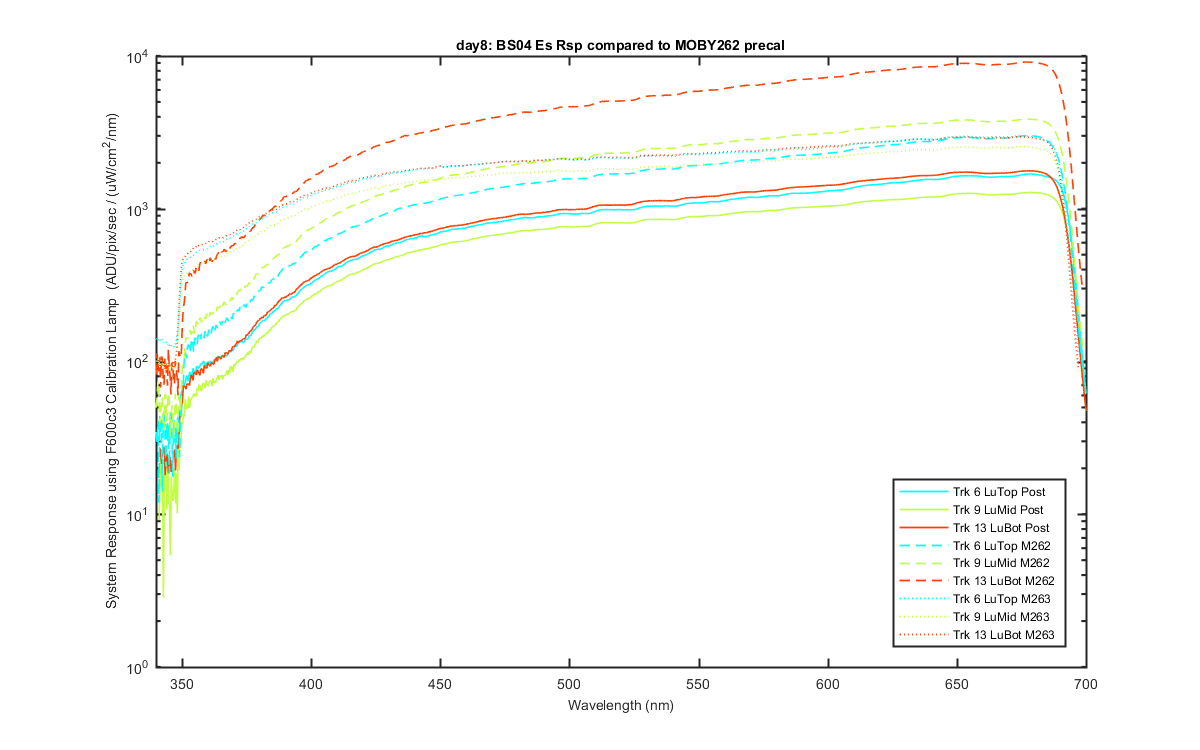

Figure 4


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\MOBY-L267\bs4cal\day08
Date: 17-Jan-2018 10:49:56
Created from plt_lu_rsp_(1)
