plt_ol455_temps_ - BS04

REVISION DATE: 06-Dec-2017 15:56:54

Comparing the OL455 and temperature data for the 5 days of data. Mike suggested just showing the position of the first file taken in each of th 5 data sets collected on the 5 days. So the cirlces are the position of the first file in each set or group. The table shows the dat for the circles and the Group = all is the mean for that day.

Day Group OL455 monitor Internal Slit
Thermistor
(degC)		 Internal Near
camera Thermistor
(degC)		 Internal Under
cap Thermistor
(degC)		 Ambient
Thermistor
(degC)		 External
Thermistor
degC)		 Internal
Humidity Sensor
(%)		 Ambient
Humidity Sensor
(%)
1 1 2.39100e-08 22.175 22.527 23.746 21.522 21.031 52.576 52.503
1 2 2.38900e-08 22.205 22.569 23.798 21.331 20.752 51.786 51.141
1 3 2.38600e-08 22.227 22.604 23.840 21.320 20.920 51.229 55.235
1 4 2.38600e-08 22.255 22.634 23.880 21.367 20.989 50.890 57.809
1 5 2.38500e-08 22.300 22.681 23.954 21.435 21.081 50.720 60.224
1 All 2.38740e-08 22.232 22.603 23.844 21.395 20.955 51.440 55.382
2 1 2.39200e-08 22.300 22.678 24.202 22.338 22.108 55.310 63.819
2 2 2.39000e-08 22.412 22.813 24.344 22.353 22.124 55.182 63.998
2 3 2.38900e-08 22.532 22.947 24.486 22.380 22.143 55.125 63.942
2 4 2.38800e-08 22.622 23.050 24.591 22.399 22.162 54.982 63.930
2 5 2.38800e-08 22.721 23.156 24.694 22.417 22.177 54.859 63.973
2 All 2.38940e-08 22.517 22.929 24.463 22.377 22.143 55.092 63.932
3 1 2.39100e-08 21.715 22.001 23.240 21.466 21.020 54.128 53.589
3 2 2.38900e-08 21.746 22.056 23.333 21.410 20.914 53.669 53.179
3 3 2.38800e-08 21.786 22.125 23.434 21.327 20.817 53.195 52.872
3 4 2.38800e-08 21.833 22.194 23.528 21.285 20.815 52.645 52.511
3 5 2.38700e-08 21.868 22.244 23.586 21.283 20.834 52.288 52.135
3 All 2.38860e-08 21.789 22.124 23.424 21.354 20.880 53.185 52.857
4 1 2.39300e-08 22.162 22.487 23.827 22.087 21.665 54.489 54.266
4 2 2.39200e-08 22.229 22.587 23.934 21.986 21.535 53.893 52.826
4 3 2.39000e-08 22.283 22.658 24.013 21.892 21.430 53.220 52.515
4 4 2.38900e-08 22.336 22.730 24.090 21.808 21.306 52.583 52.184
4 5 2.38900e-08 22.388 22.788 24.141 21.729 21.267 51.888 51.753
4 All 2.39060e-08 22.279 22.650 24.001 21.900 21.441 53.214 52.709
5 1 2.39000e-08 21.790 22.177 23.752 21.931 21.719 54.444 61.027
5 2 2.38900e-08 21.930 22.340 23.933 21.971 21.748 54.238 61.049
5 3 2.38800e-08 22.062 22.492 24.103 22.000 21.786 54.139 61.033
5 4 2.38700e-08 22.175 22.614 24.230 22.028 21.818 53.970 60.982
5 5 2.38600e-08 22.301 22.758 24.375 22.074 21.863 53.822 60.926
5 All 2.38800e-08 22.051 22.476 24.079 22.001 21.787 54.122 61.003

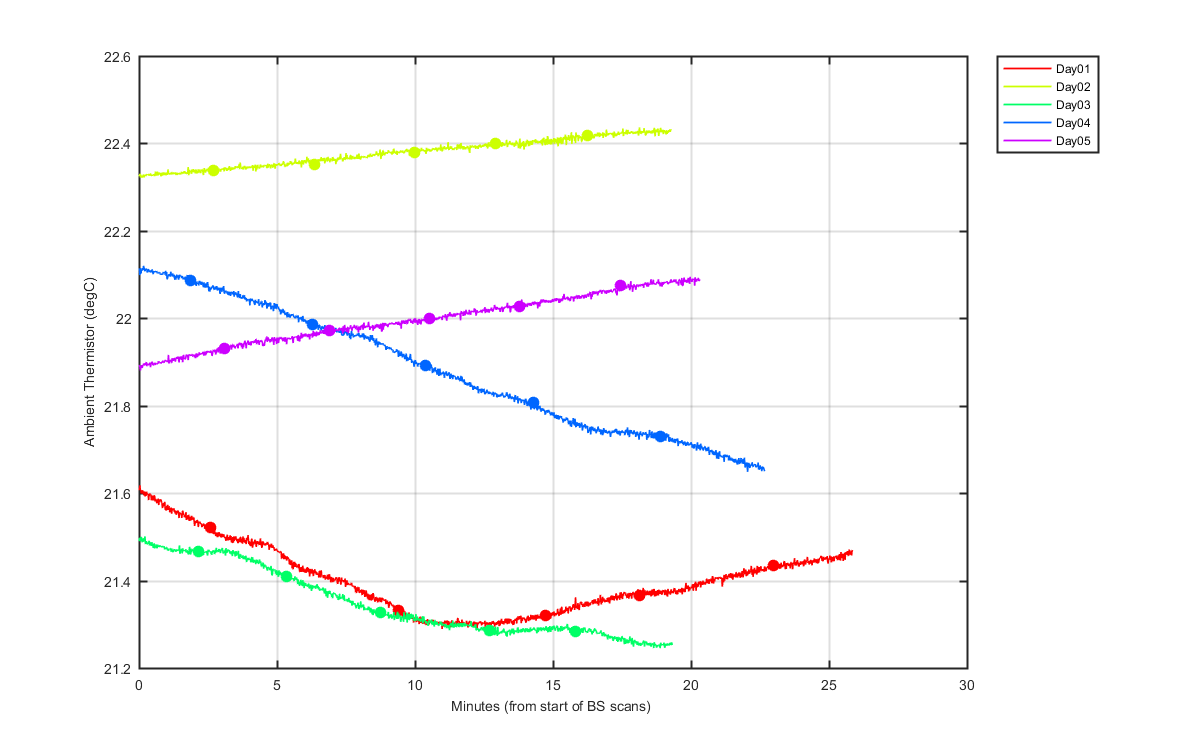

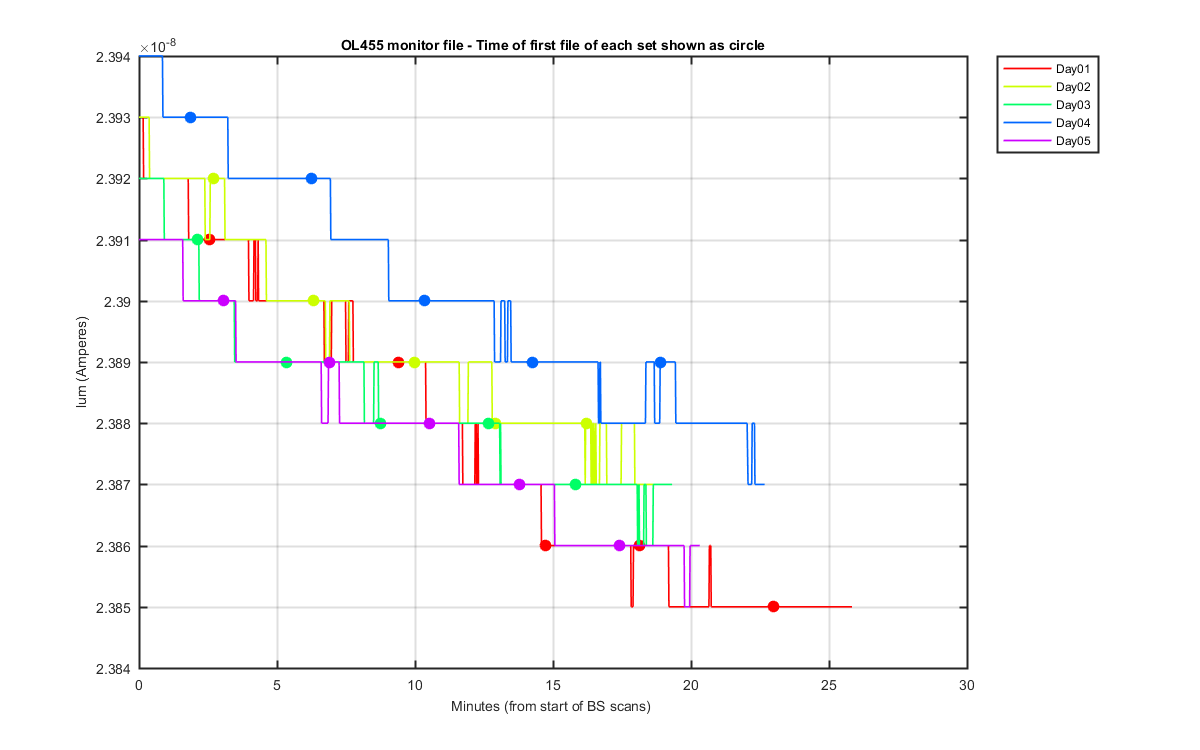

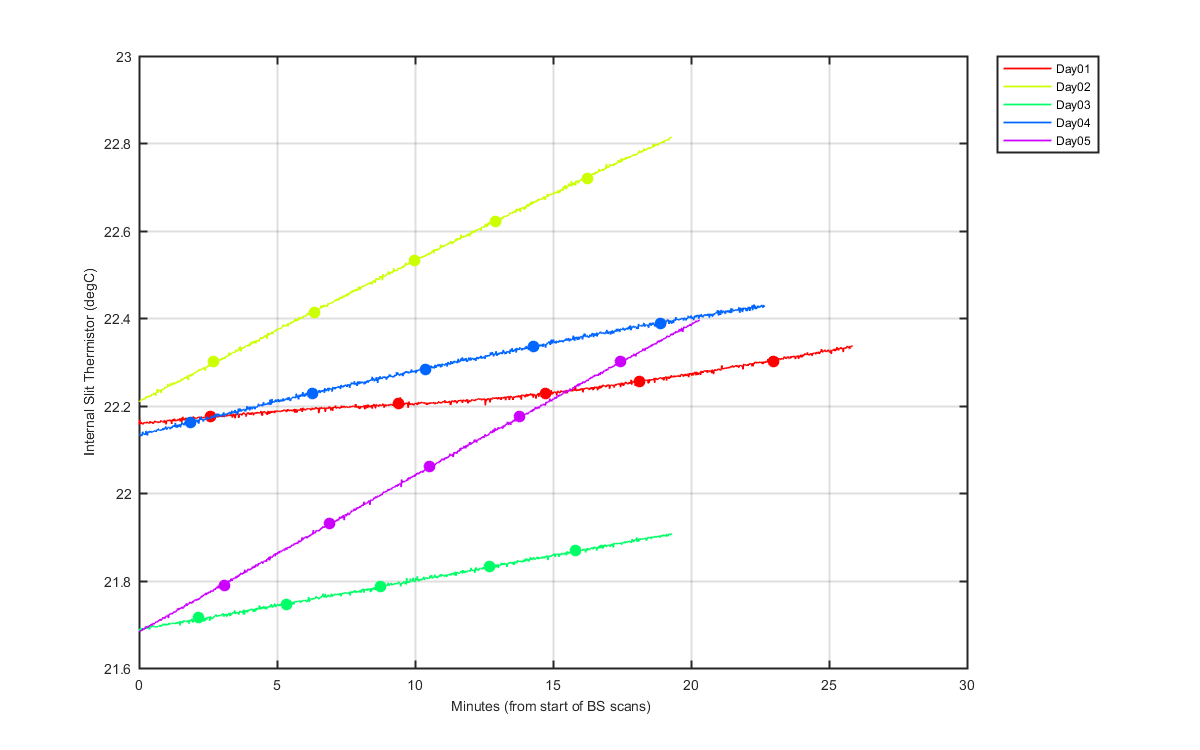

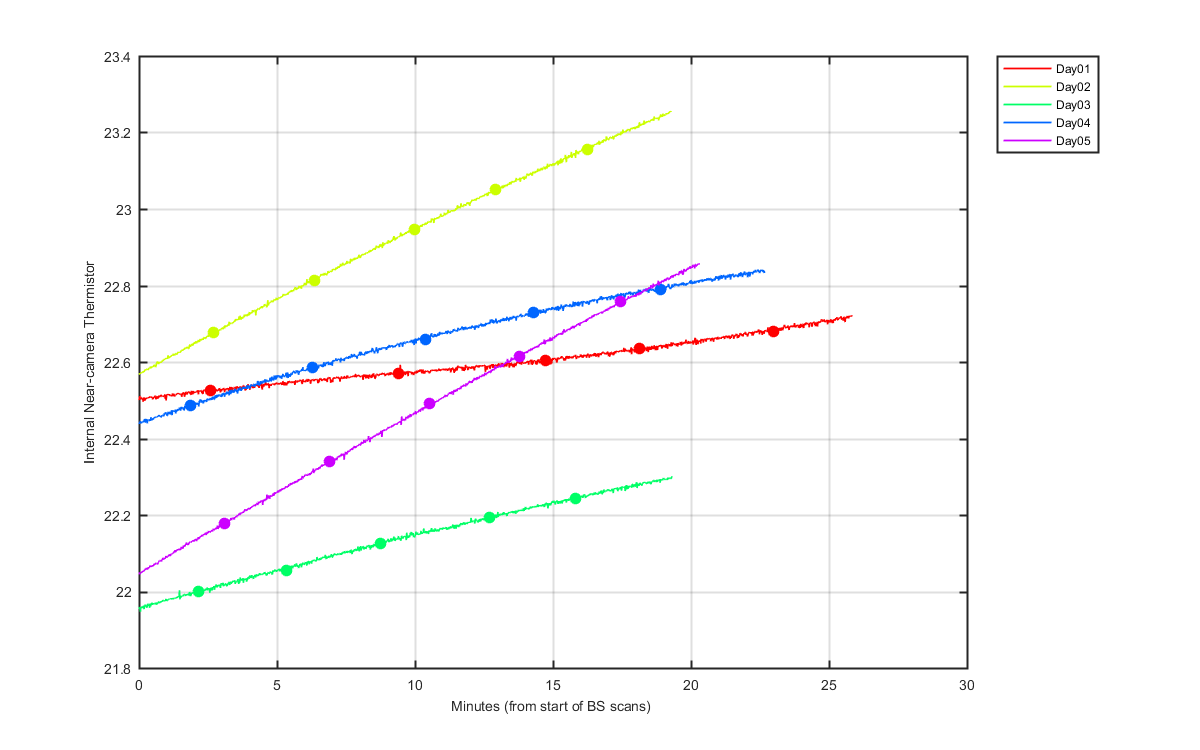

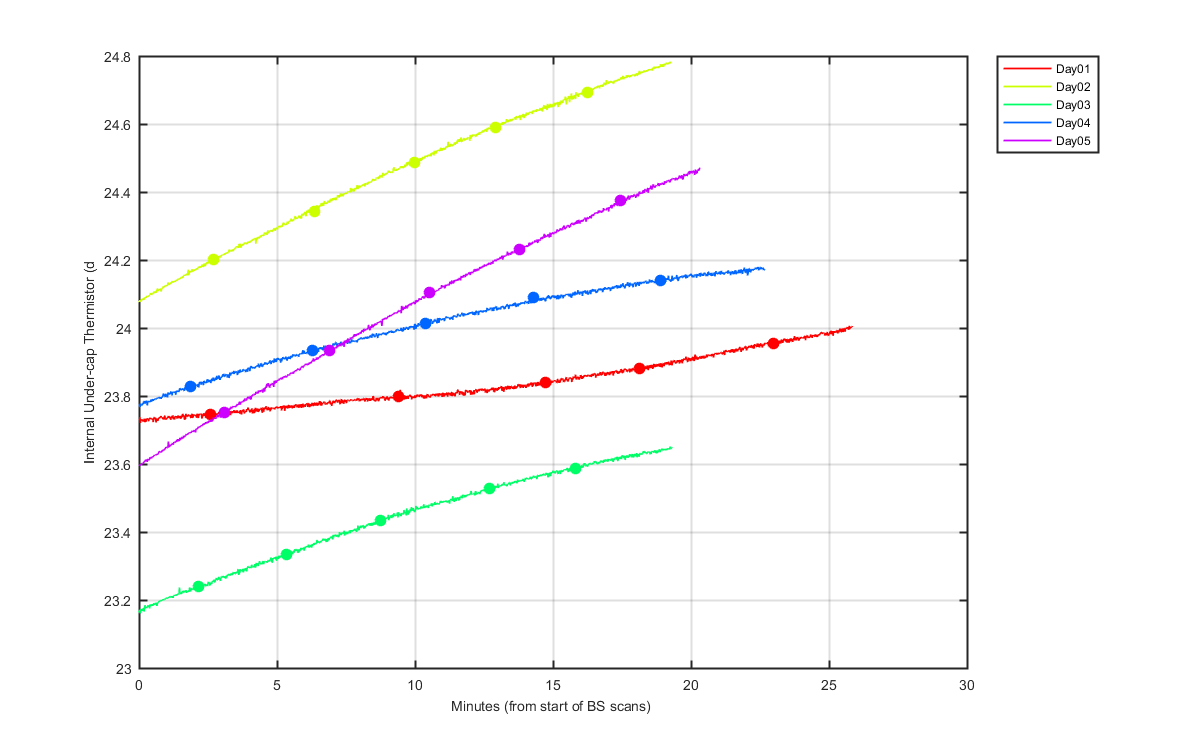

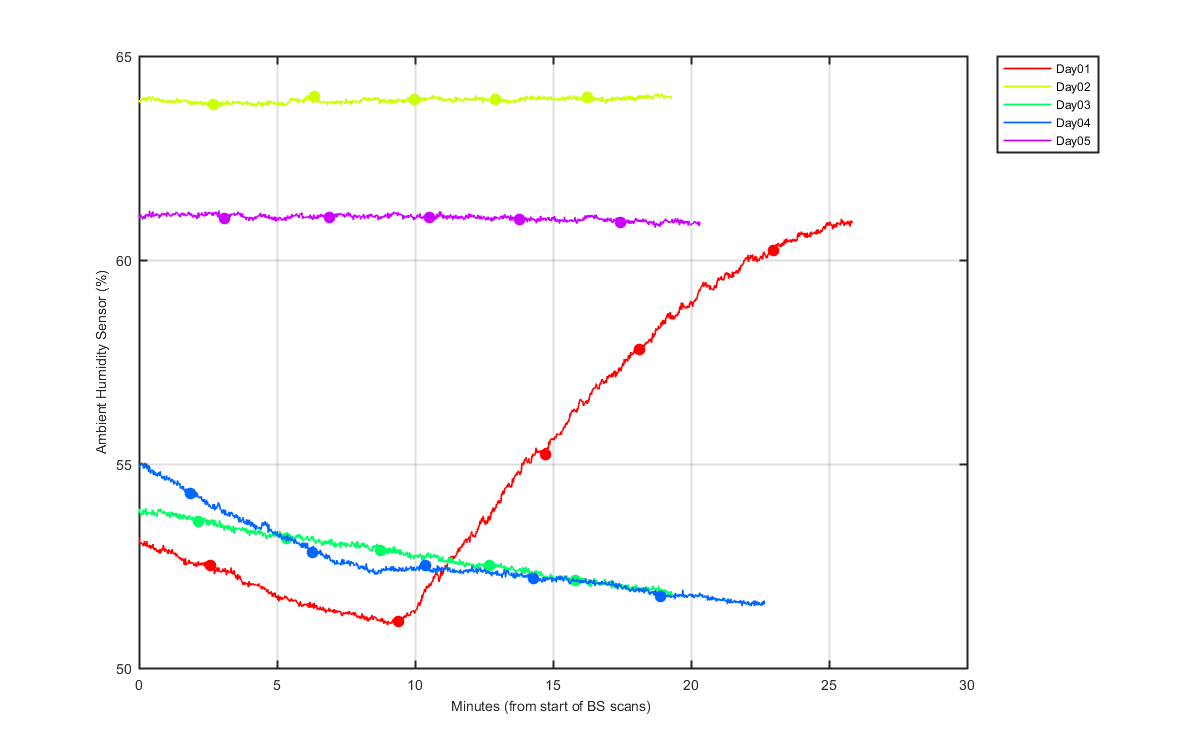

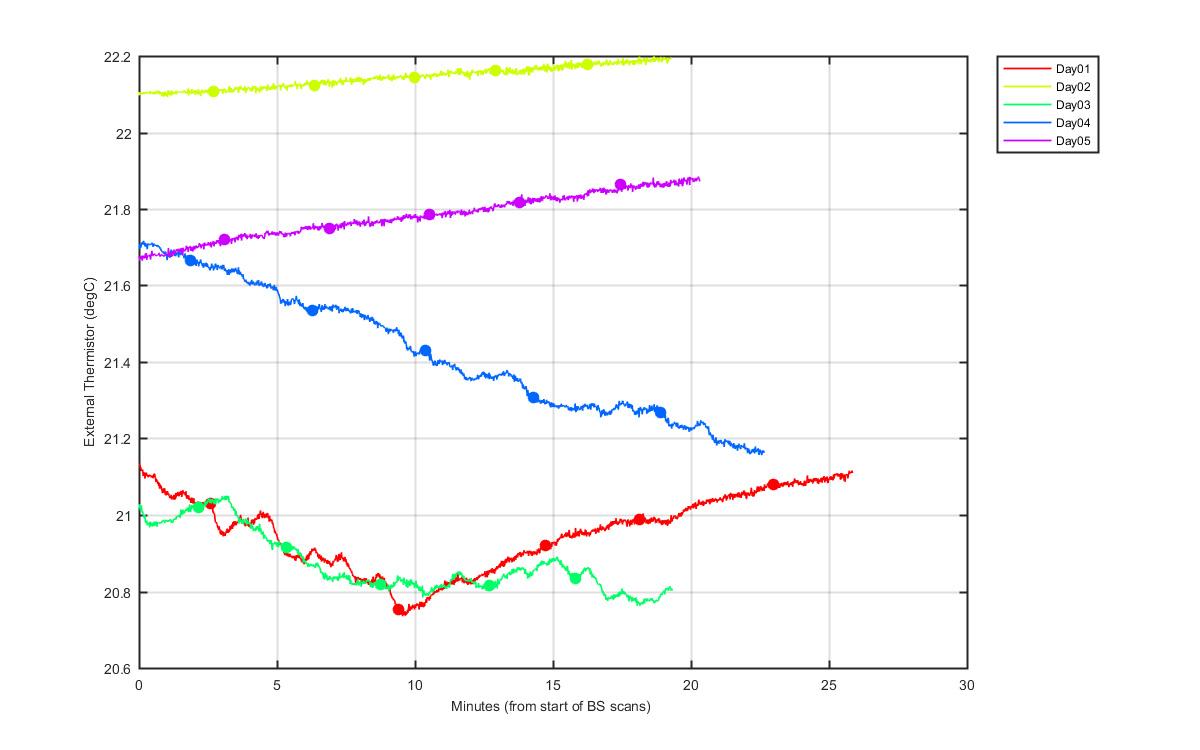

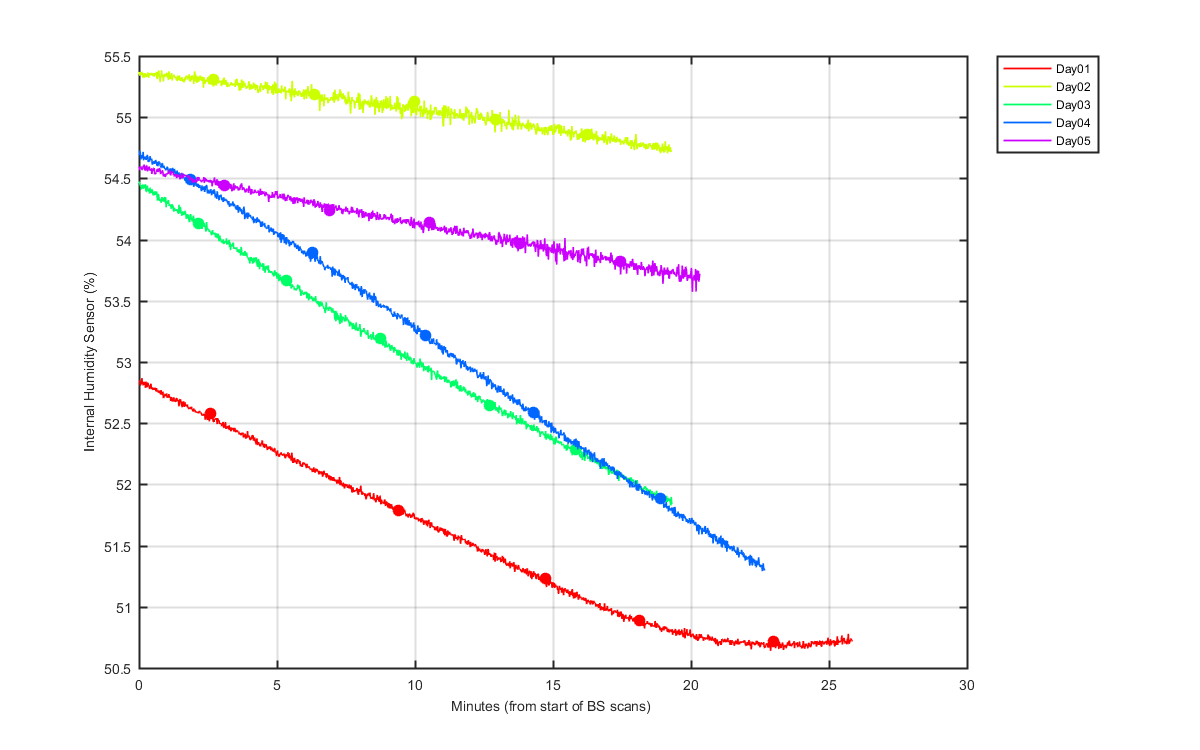

Figure 1


Figure 2


Figure 3


Figure 4


Figure 5


Figure 6


Figure 7


Figure 8


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\MOBY-L267\bs4cal
Date: 06-Dec-2017 15:56:54
Created from plt_ol455_temps_(1)
