plt_stablity_backgrounds_ - BS04

REVISION DATE: 06-Dec-2017 14:06:22

This is looking at the background stability of the lamp data Mike is collecting in Hawaii over a number of days.

The table shows the mean of the 8 banckgrounds and their percent standard deviation for each day and track. The Backgrounds have units of ADU/pix and so are not divided by integration time. The data are NOT normalized to the ol455 monitor data.


Track Day CPIX 360
Mean / %std
CPIX 600
Mean / %std
CPIX 940
Mean / %std
1 1 3554.51 / 0.0147 3554.31 / 0.0209 3553.54 / 0.0119
1 2 3554.33 / 0.0145 3554.10 / 0.0104 3553.47 / 0.0159
1 3 3548.67 / 0.0163 3548.70 / 0.0046 3547.67 / 0.0187
1 4 3547.63 / 0.0154 3548.27 / 0.0175 3547.12 / 0.0133
1 5 3549.79 / 0.0047 3550.32 / 0.0153 3548.80 / 0.0106
2 1 3555.95 / 0.0170 3554.94 / 0.0145 3554.39 / 0.0162
2 2 3555.83 / 0.0236 3554.99 / 0.0187 3554.58 / 0.0246
2 3 3549.32 / 0.0127 3548.82 / 0.0110 3548.49 / 0.0105
2 4 3549.01 / 0.0162 3548.42 / 0.0182 3548.04 / 0.0107
2 5 3551.09 / 0.0086 3550.67 / 0.0126 3549.97 / 0.0096
3 1 3554.59 / 0.0134 3554.99 / 0.0211 3554.32 / 0.0120
3 2 3554.56 / 0.0094 3555.94 / 0.0062 3554.13 / 0.0134
3 3 3548.28 / 0.0109 3549.50 / 0.0184 3548.30 / 0.0134
3 4 3547.92 / 0.0137 3548.36 / 0.0195 3547.41 / 0.0177
3 5 3550.19 / 0.0113 3551.12 / 0.0135 3549.64 / 0.0090
4 1 3554.99 / 0.0126 3555.26 / 0.0134 3554.43 / 0.0129
4 2 3555.02 / 0.0268 3555.51 / 0.0139 3553.96 / 0.0127
4 3 3549.05 / 0.0095 3549.17 / 0.0118 3547.43 / 0.0199
4 4 3548.44 / 0.0193 3549.07 / 0.0254 3547.05 / 0.0152
4 5 3550.30 / 0.0159 3551.15 / 0.0072 3549.35 / 0.0076
5 1 3557.42 / 0.0094 3556.25 / 0.0174 3555.23 / 0.0204
5 2 3557.31 / 0.0181 3556.77 / 0.0129 3555.36 / 0.0158
5 3 3551.43 / 0.0145 3550.39 / 0.0134 3549.08 / 0.0126
5 4 3551.30 / 0.0190 3549.76 / 0.0172 3548.59 / 0.0245
5 5 3553.20 / 0.0034 3552.13 / 0.0155 3550.89 / 0.0073
6 1 3562.06 / 0.0153 3562.29 / 0.0127 3559.67 / 0.0084
6 2 3562.33 / 0.0162 3562.45 / 0.0087 3559.55 / 0.0188
6 3 3555.62 / 0.0151 3555.51 / 0.0173 3553.26 / 0.0158
6 4 3555.80 / 0.0196 3556.26 / 0.0138 3553.53 / 0.0204
6 5 3558.75 / 0.0097 3558.83 / 0.0135 3555.75 / 0.0136
7 1 3565.18 / 0.0211 3564.04 / 0.0183 3562.82 / 0.0211
7 2 3564.13 / 0.0083 3564.11 / 0.0234 3562.84 / 0.0165
7 3 3558.31 / 0.0138 3557.89 / 0.0068 3556.15 / 0.0053
7 4 3558.63 / 0.0308 3558.08 / 0.0231 3556.63 / 0.0283
7 5 3560.55 / 0.0113 3560.43 / 0.0066 3558.57 / 0.0092
8 1 3564.60 / 0.0124 3564.90 / 0.0069 3562.40 / 0.0180
8 2 3564.48 / 0.0245 3564.84 / 0.0201 3562.53 / 0.0212
8 3 3558.36 / 0.0224 3558.79 / 0.0083 3556.92 / 0.0161
8 4 3558.25 / 0.0204 3559.06 / 0.0243 3556.46 / 0.0206
8 5 3561.07 / 0.0048 3560.90 / 0.0100 3558.34 / 0.0167
9 1 3564.97 / 0.0126 3565.00 / 0.0078 3564.52 / 0.0200
9 2 3564.71 / 0.0089 3564.98 / 0.0041 3564.90 / 0.0154
9 3 3558.78 / 0.0162 3559.31 / 0.0209 3558.48 / 0.0249
9 4 3558.57 / 0.0193 3558.80 / 0.0216 3558.28 / 0.0188
9 5 3561.18 / 0.0084 3561.32 / 0.0172 3561.13 / 0.0089
10 1 3565.64 / 0.0151 3565.10 / 0.0169 3564.22 / 0.0168
10 2 3565.90 / 0.0185 3564.85 / 0.0170 3563.68 / 0.0106
10 3 3559.61 / 0.0170 3559.16 / 0.0062 3557.71 / 0.0207
10 4 3559.76 / 0.0135 3559.24 / 0.0140 3557.78 / 0.0273
10 5 3561.70 / 0.0077 3561.32 / 0.0142 3560.44 / 0.0071
11 1 3564.15 / 0.0081 3566.30 / 0.0146 3564.73 / 0.0060
11 2 3564.54 / 0.0195 3566.26 / 0.0254 3564.79 / 0.0290
11 3 3558.50 / 0.0150 3560.04 / 0.0084 3558.68 / 0.0248
11 4 3557.82 / 0.0077 3559.88 / 0.0166 3558.60 / 0.0190
11 5 3560.09 / 0.0076 3562.58 / 0.0058 3560.33 / 0.0101
12 1 3565.53 / 0.0195 3565.25 / 0.0197 3563.53 / 0.0200
12 2 3565.07 / 0.0204 3565.31 / 0.0191 3563.70 / 0.0144
12 3 3558.80 / 0.0286 3559.05 / 0.0094 3557.56 / 0.0157
12 4 3558.77 / 0.0190 3559.15 / 0.0190 3557.97 / 0.0201
12 5 3561.17 / 0.0120 3561.45 / 0.0189 3560.00 / 0.0075
13 1 3565.01 / 0.0161 3562.90 / 0.0207 3560.99 / 0.0199
13 2 3564.80 / 0.0129 3563.00 / 0.0040 3561.06 / 0.0063
13 3 3558.70 / 0.0253 3556.97 / 0.0082 3554.71 / 0.0234
13 4 3558.90 / 0.0222 3557.01 / 0.0213 3554.97 / 0.0244
13 5 3561.23 / 0.0048 3558.52 / 0.0110 3556.77 / 0.0143
14 1 3559.15 / 0.0186 3558.78 / 0.0130 3557.27 / 0.0202
14 2 3559.03 / 0.0028 3558.28 / 0.0050 3556.81 / 0.0153
14 3 3552.85 / 0.0119 3552.32 / 0.0167 3551.03 / 0.0118
14 4 3553.11 / 0.0141 3551.89 / 0.0176 3550.64 / 0.0211
14 5 3554.85 / 0.0078 3554.11 / 0.0097 3552.94 / 0.0176

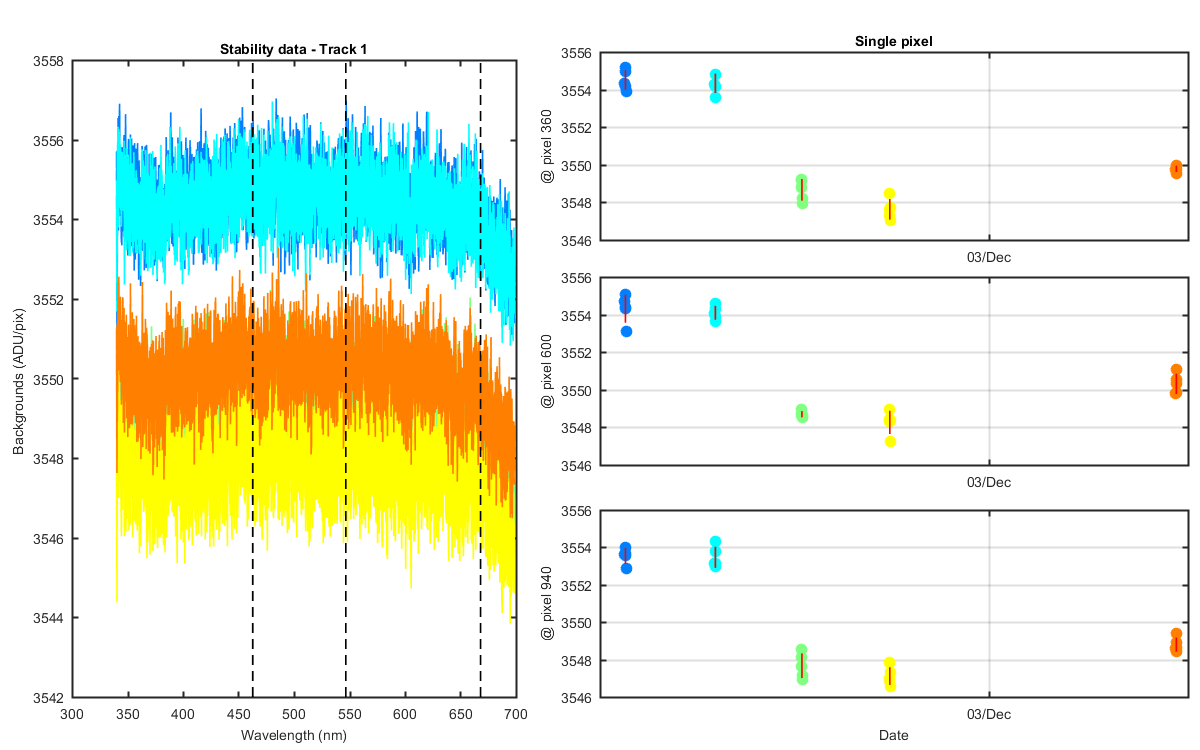

Track 1: showing each of the 5 backgrounds scans for each days data. The Backgrounds have units of ADU/pix and so are not divided by integration time. The data are NOT normalized to the ol455 monitor data. The black dashed lines show the pixel locations of the data on the graphs to the right. The right 3 stacked panels shows a single pixel for each dark/day combo. The red line is the standard deviation of the 8 points from each day.

Figure 1

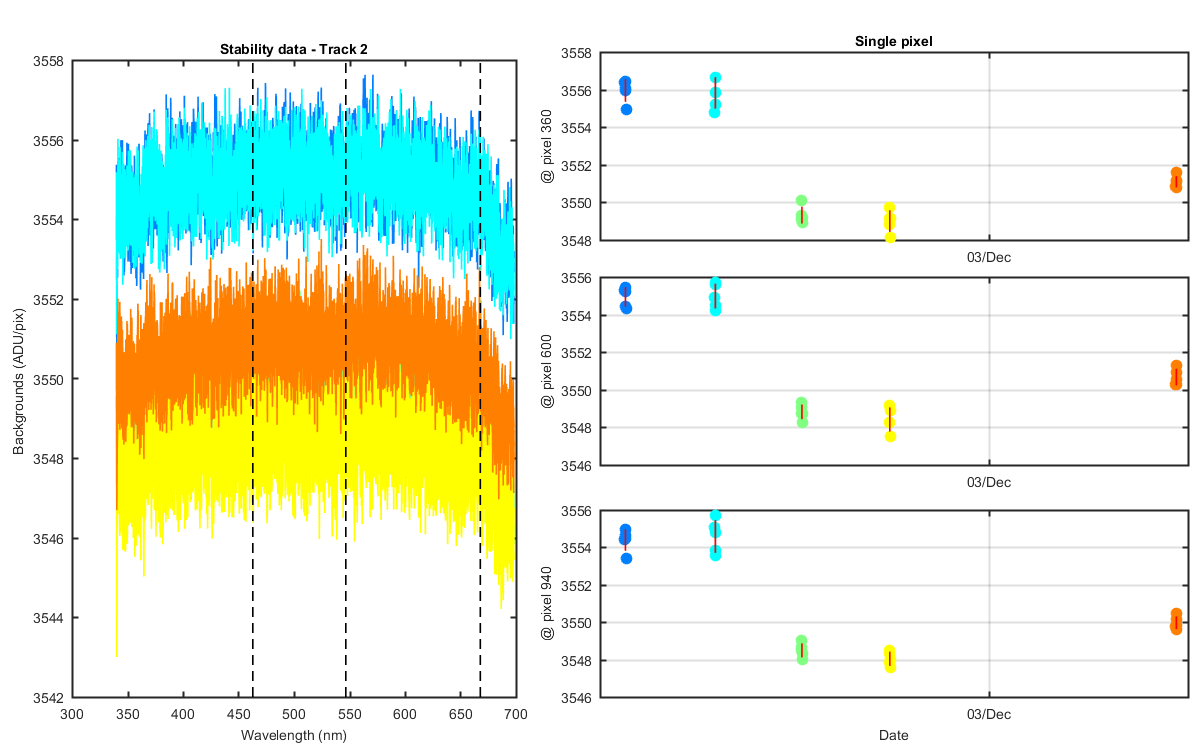

Track 2: showing each of the 5 backgrounds scans for each days data. The Backgrounds have units of ADU/pix and so are not divided by integration time. The data are NOT normalized to the ol455 monitor data. The black dashed lines show the pixel locations of the data on the graphs to the right. The right 3 stacked panels shows a single pixel for each dark/day combo. The red line is the standard deviation of the 8 points from each day.

Figure 2


Track 3: showing each of the 5 backgrounds scans for each days data. The Backgrounds have units of ADU/pix and so are not divided by integration time. The data are NOT normalized to the ol455 monitor data. The black dashed lines show the pixel locations of the data on the graphs to the right. The right 3 stacked panels shows a single pixel for each dark/day combo. The red line is the standard deviation of the 8 points from each day.

Figure 3


Track 4: showing each of the 5 backgrounds scans for each days data. The Backgrounds have units of ADU/pix and so are not divided by integration time. The data are NOT normalized to the ol455 monitor data. The black dashed lines show the pixel locations of the data on the graphs to the right. The right 3 stacked panels shows a single pixel for each dark/day combo. The red line is the standard deviation of the 8 points from each day.

Figure 4


Track 5: showing each of the 5 backgrounds scans for each days data. The Backgrounds have units of ADU/pix and so are not divided by integration time. The data are NOT normalized to the ol455 monitor data. The black dashed lines show the pixel locations of the data on the graphs to the right. The right 3 stacked panels shows a single pixel for each dark/day combo. The red line is the standard deviation of the 8 points from each day.

Figure 5


Track 6: showing each of the 5 backgrounds scans for each days data. The Backgrounds have units of ADU/pix and so are not divided by integration time. The data are NOT normalized to the ol455 monitor data. The black dashed lines show the pixel locations of the data on the graphs to the right. The right 3 stacked panels shows a single pixel for each dark/day combo. The red line is the standard deviation of the 8 points from each day.

Figure 6


Track 7: showing each of the 5 backgrounds scans for each days data. The Backgrounds have units of ADU/pix and so are not divided by integration time. The data are NOT normalized to the ol455 monitor data. The black dashed lines show the pixel locations of the data on the graphs to the right. The right 3 stacked panels shows a single pixel for each dark/day combo. The red line is the standard deviation of the 8 points from each day.

Figure 7

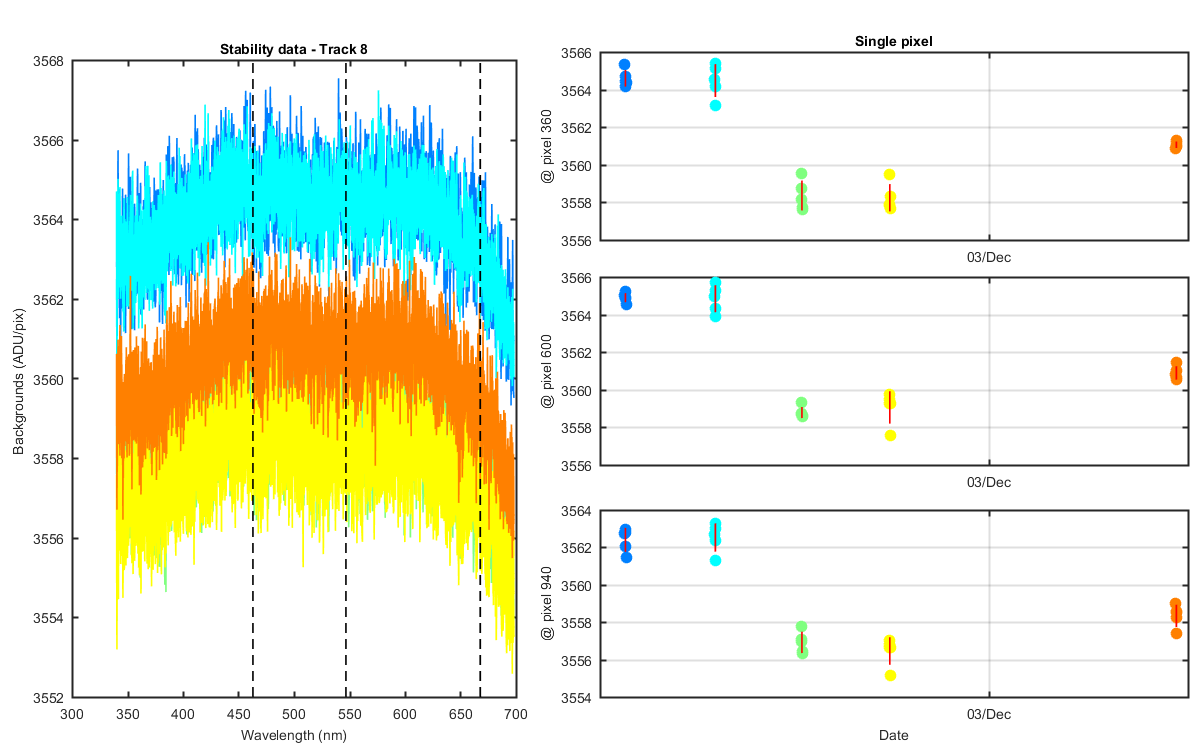

Track 8: showing each of the 5 backgrounds scans for each days data. The Backgrounds have units of ADU/pix and so are not divided by integration time. The data are NOT normalized to the ol455 monitor data. The black dashed lines show the pixel locations of the data on the graphs to the right. The right 3 stacked panels shows a single pixel for each dark/day combo. The red line is the standard deviation of the 8 points from each day.

Figure 8


Track 9: showing each of the 5 backgrounds scans for each days data. The Backgrounds have units of ADU/pix and so are not divided by integration time. The data are NOT normalized to the ol455 monitor data. The black dashed lines show the pixel locations of the data on the graphs to the right. The right 3 stacked panels shows a single pixel for each dark/day combo. The red line is the standard deviation of the 8 points from each day.

Figure 9

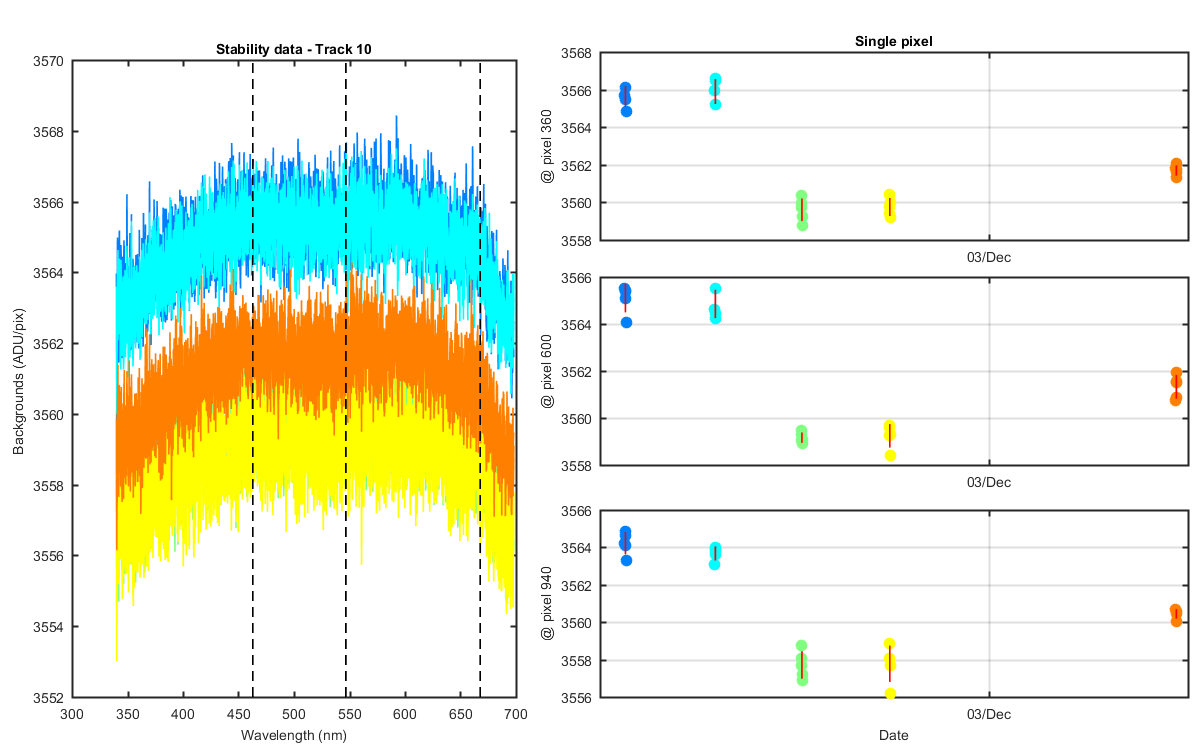

Track 10: showing each of the 5 backgrounds scans for each days data. The Backgrounds have units of ADU/pix and so are not divided by integration time. The data are NOT normalized to the ol455 monitor data. The black dashed lines show the pixel locations of the data on the graphs to the right. The right 3 stacked panels shows a single pixel for each dark/day combo. The red line is the standard deviation of the 8 points from each day.

Figure 10


Track 11: showing each of the 5 backgrounds scans for each days data. The Backgrounds have units of ADU/pix and so are not divided by integration time. The data are NOT normalized to the ol455 monitor data. The black dashed lines show the pixel locations of the data on the graphs to the right. The right 3 stacked panels shows a single pixel for each dark/day combo. The red line is the standard deviation of the 8 points from each day.

Figure 11

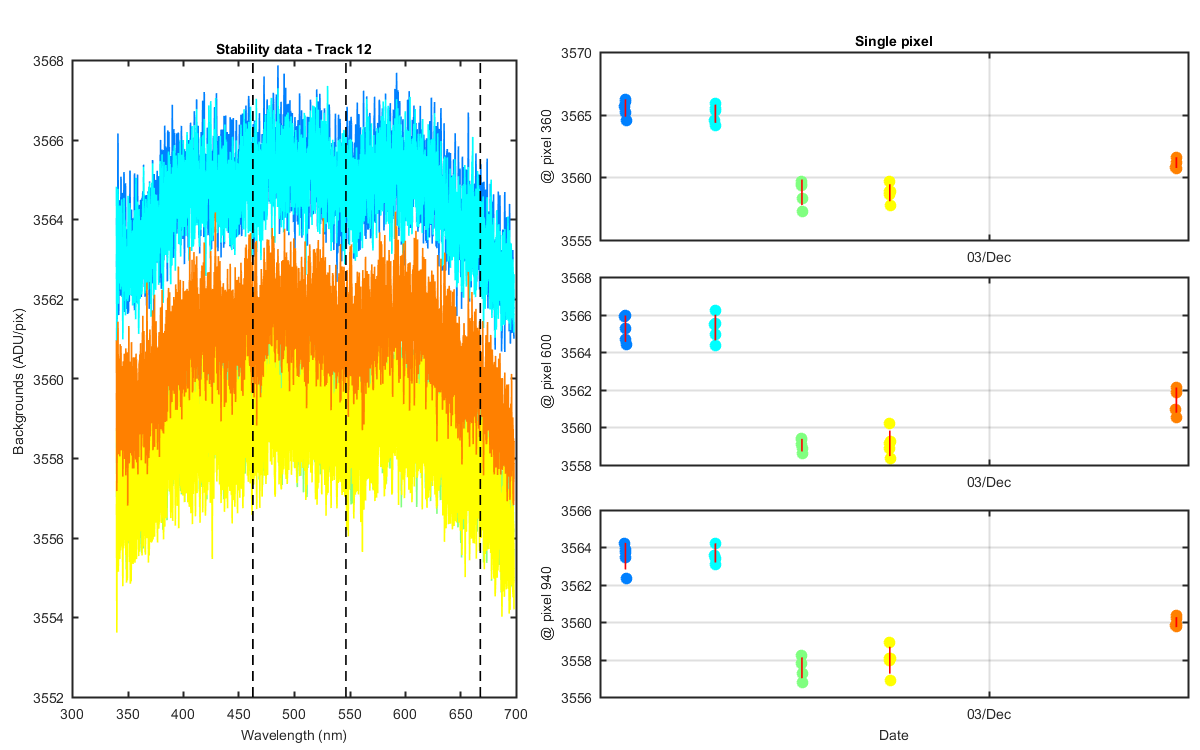

Track 12: showing each of the 5 backgrounds scans for each days data. The Backgrounds have units of ADU/pix and so are not divided by integration time. The data are NOT normalized to the ol455 monitor data. The black dashed lines show the pixel locations of the data on the graphs to the right. The right 3 stacked panels shows a single pixel for each dark/day combo. The red line is the standard deviation of the 8 points from each day.

Figure 12


Track 13: showing each of the 5 backgrounds scans for each days data. The Backgrounds have units of ADU/pix and so are not divided by integration time. The data are NOT normalized to the ol455 monitor data. The black dashed lines show the pixel locations of the data on the graphs to the right. The right 3 stacked panels shows a single pixel for each dark/day combo. The red line is the standard deviation of the 8 points from each day.

Figure 13

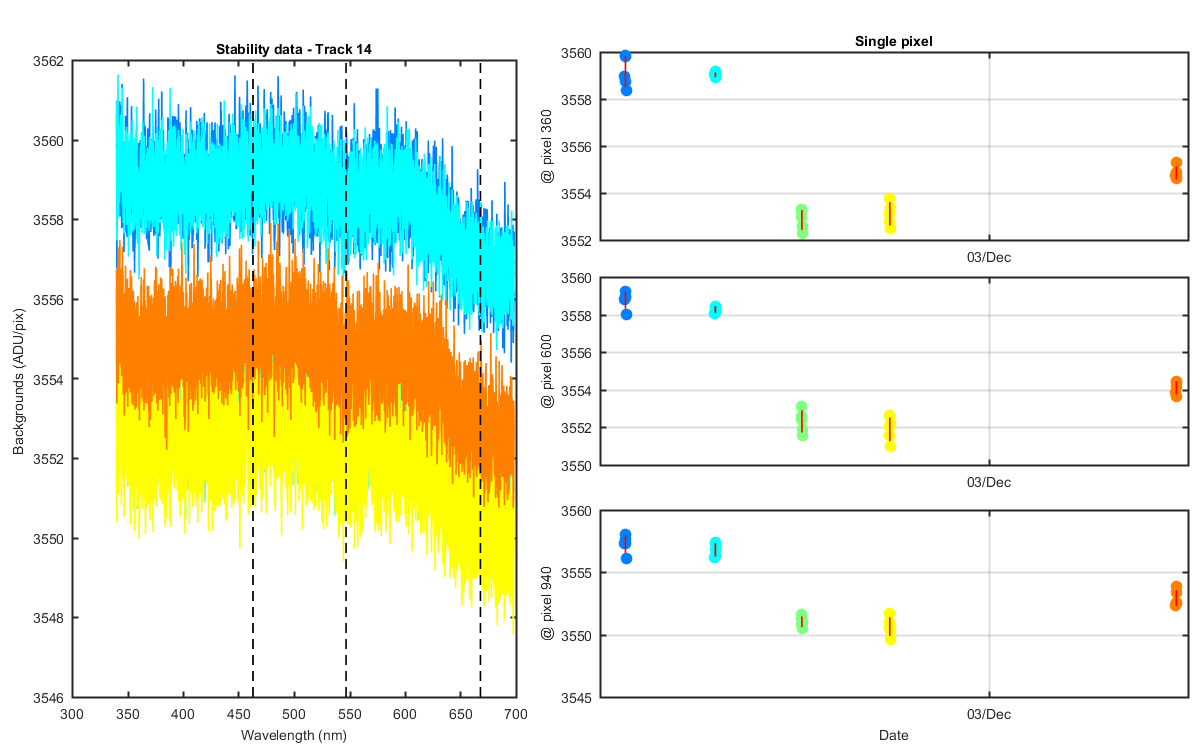

Track 14: showing each of the 5 backgrounds scans for each days data. The Backgrounds have units of ADU/pix and so are not divided by integration time. The data are NOT normalized to the ol455 monitor data. The black dashed lines show the pixel locations of the data on the graphs to the right. The right 3 stacked panels shows a single pixel for each dark/day combo. The red line is the standard deviation of the 8 points from each day.
