REVISION DATE: 06-Dec-2017 12:57:31
Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.
| Previous | HOME | NEXT | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Filename | Type | Rotaton (deg) |
Wavelength (nm)(deg) | Total Exposure Time | Acquisition mode | Temperature | Gain | Baseline Clamp | file creation date | Pre Amplifier Gain | Readout mode | Matrix Max (ADU) | Matrix Mean (ADU) | Matrix % std |
| s2017113023_img | Signal | NaN | NaN | 5 | Single Scan | -40 | 0 | F | 2017-11-30T02:54:48 | 4 | Image | 47402 | 13148.49 | 78.15 |

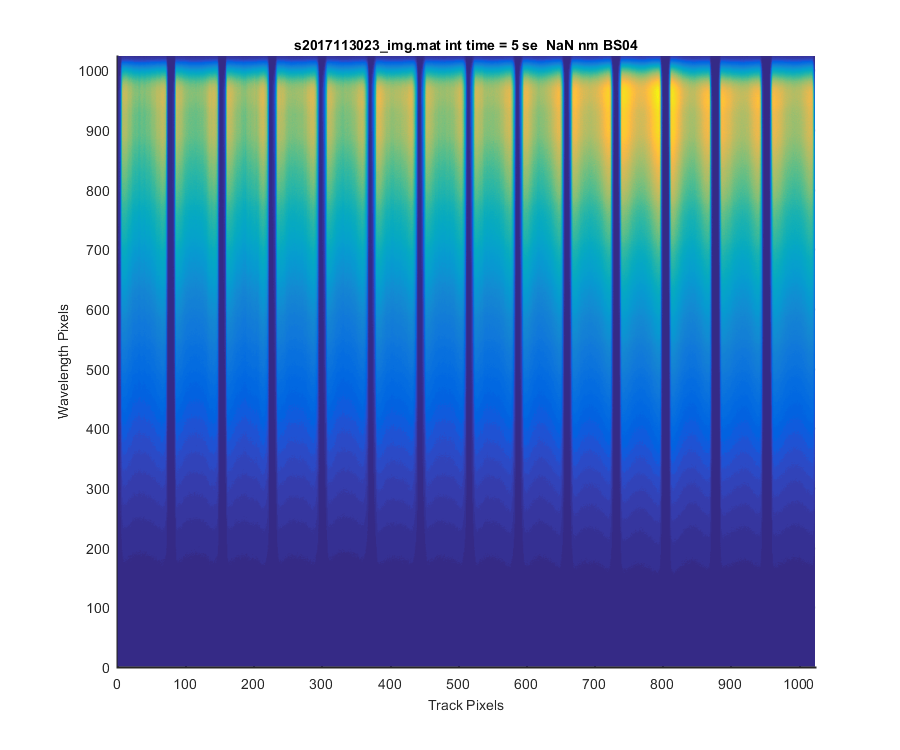

Figure 1

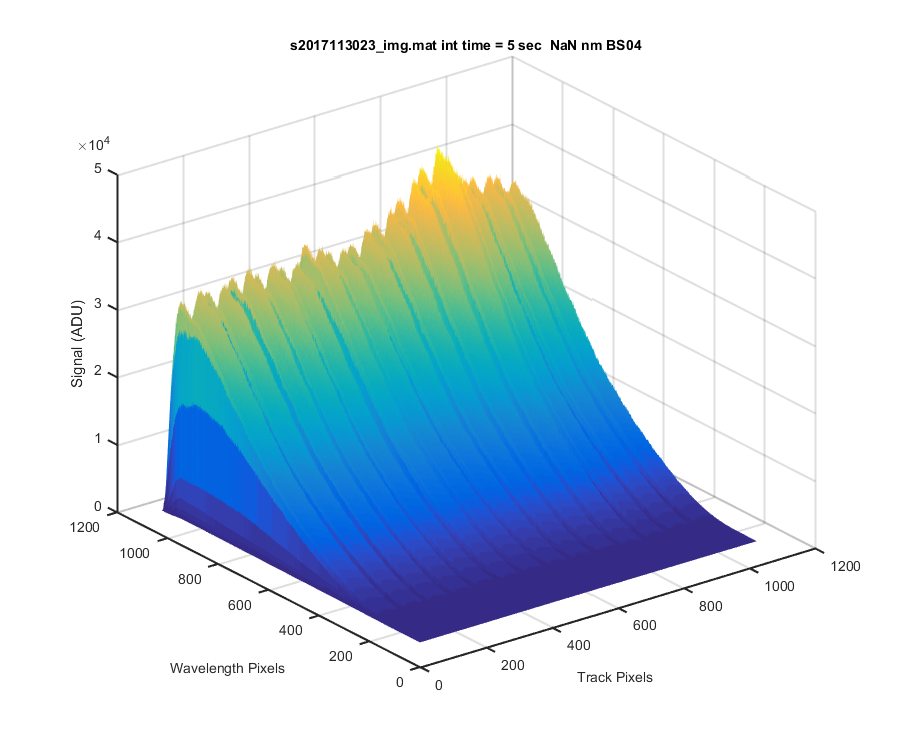

Figure 2

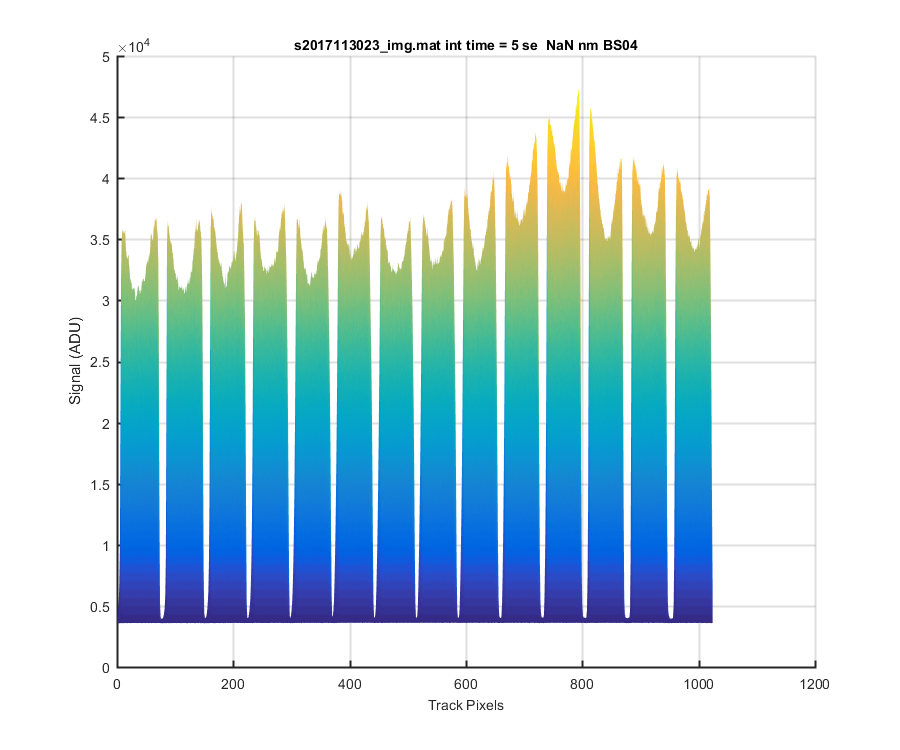

Figure 3

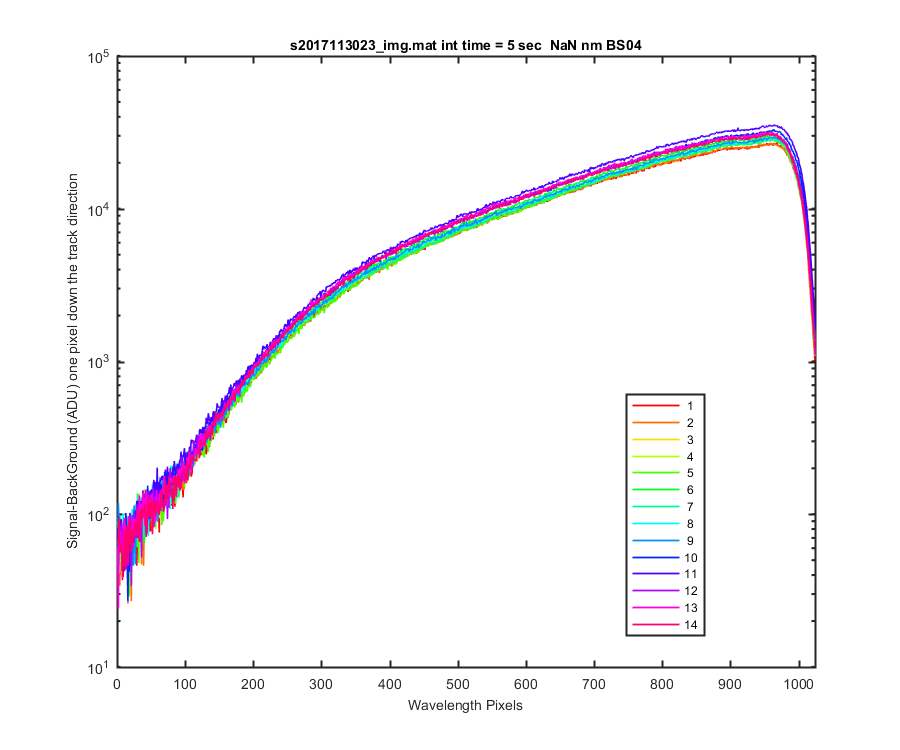

Figure 4

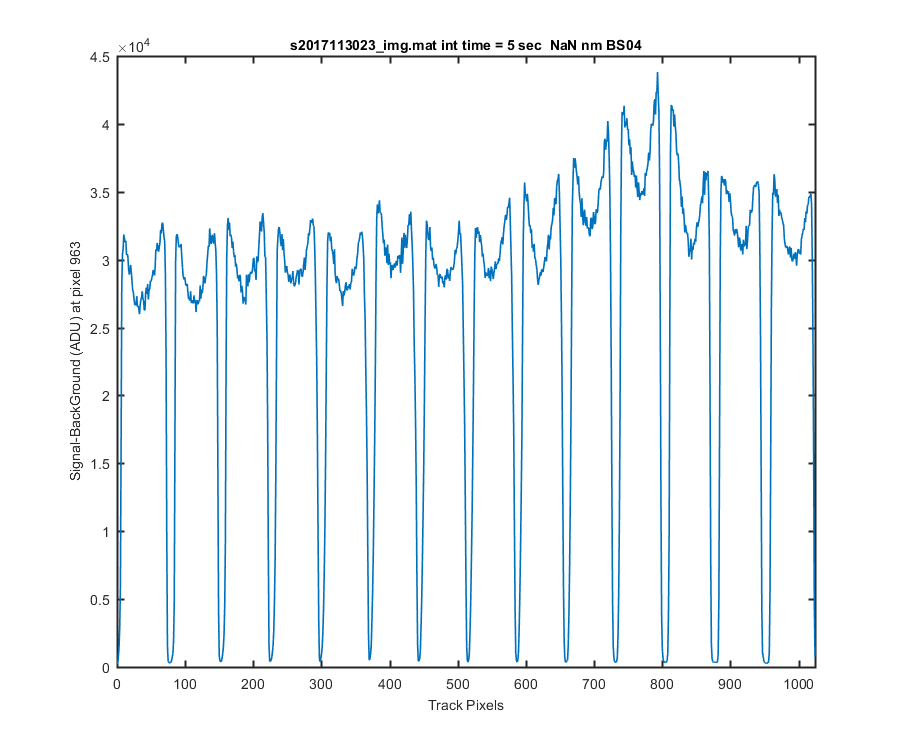

Figure 5

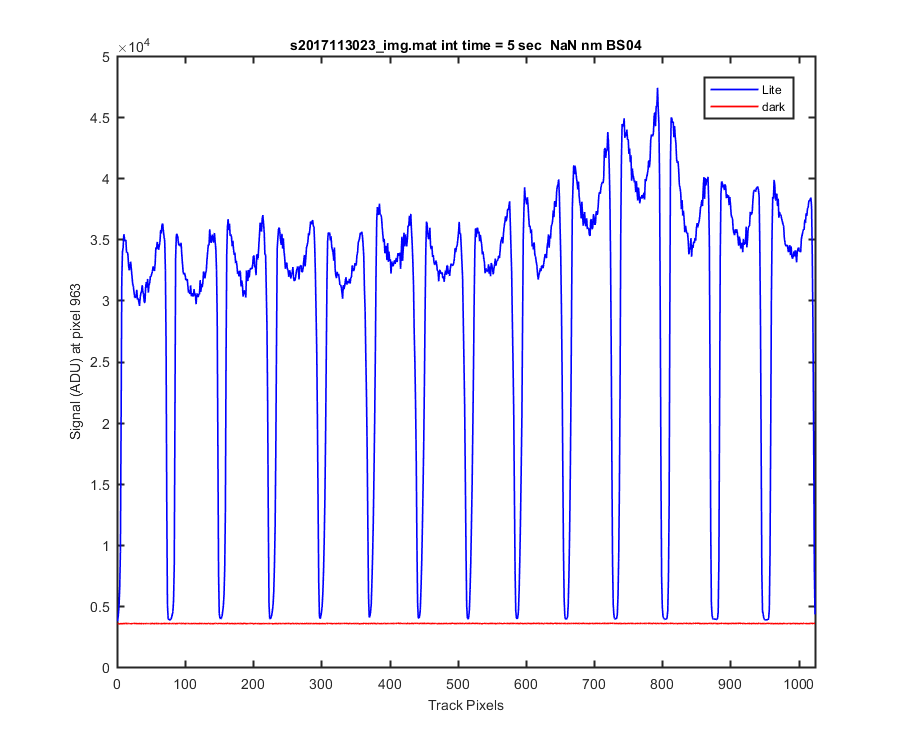

Figure 6
