REVISION DATE: 14-Dec-2017 12:36:07
Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.
| Previous | HOME | NEXT | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Filename | Type | Rotaton (deg) |
Wavelength (nm)(deg) | Total Exposure Time | Acquisition mode | Temperature | Gain | Baseline Clamp | file creation date | Pre Amplifier Gain | Readout mode | Matrix Max (ADU) | Matrix Mean (ADU) | Matrix % std |
| s2017121405_img | Signal | NaN | NaN | 3.5 | Single Scan | -40 | 0 | F | 2017-12-14T07:40:41 | 4 | Image | 5470 | 3581.30 | 5.61 |

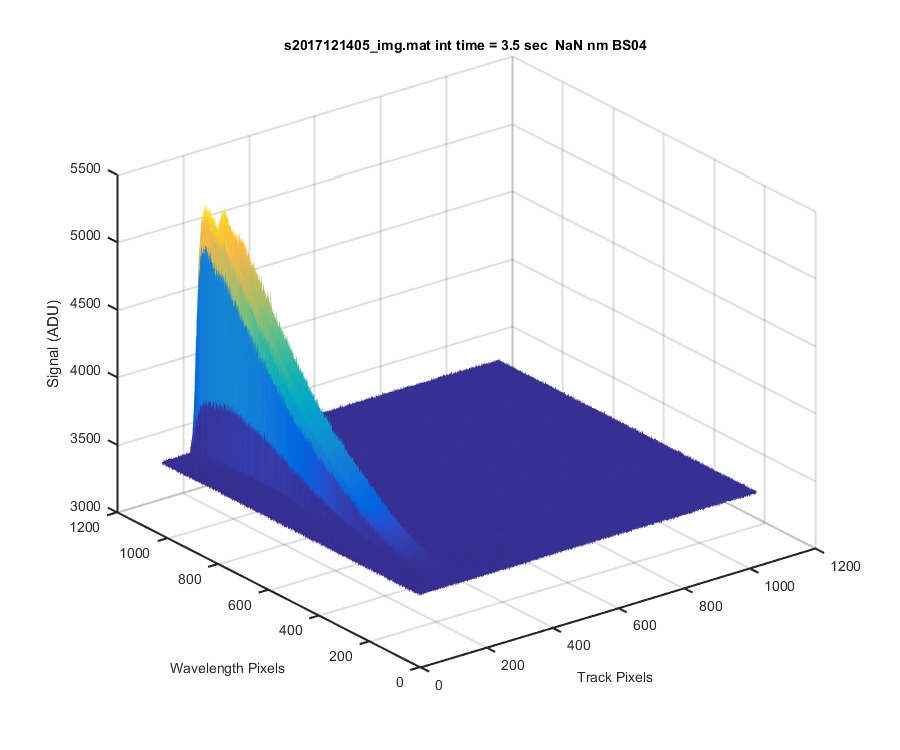

Figure 1

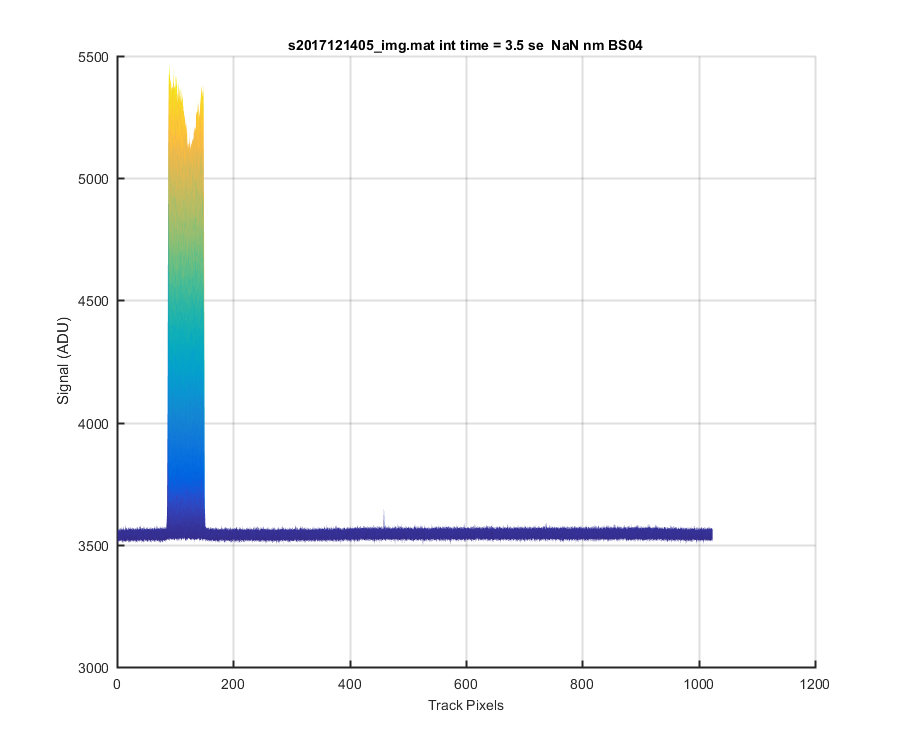

Figure 2
Figure 3

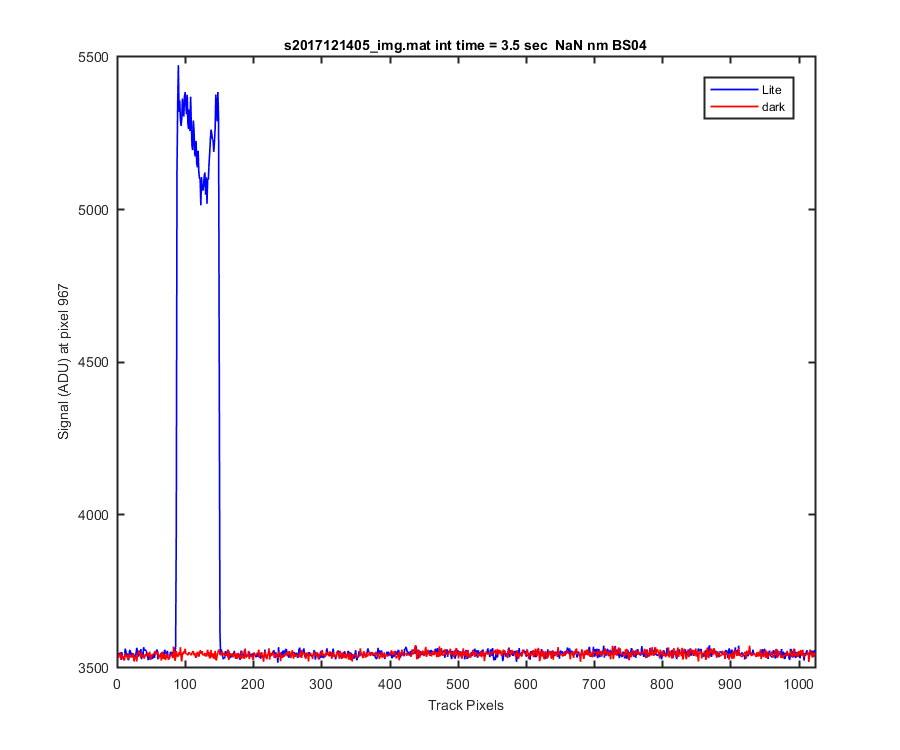

Figure 4
Figure 5

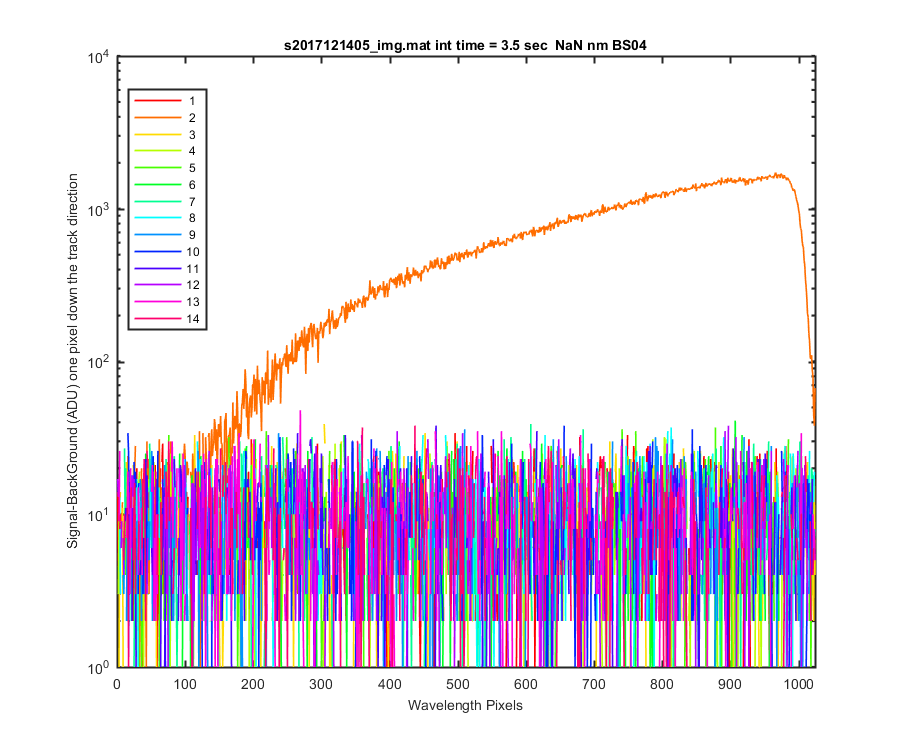

Figure 6
