plttrkmove_ - BS04

REVISION DATE: 03-Aug-2018 12:03:42

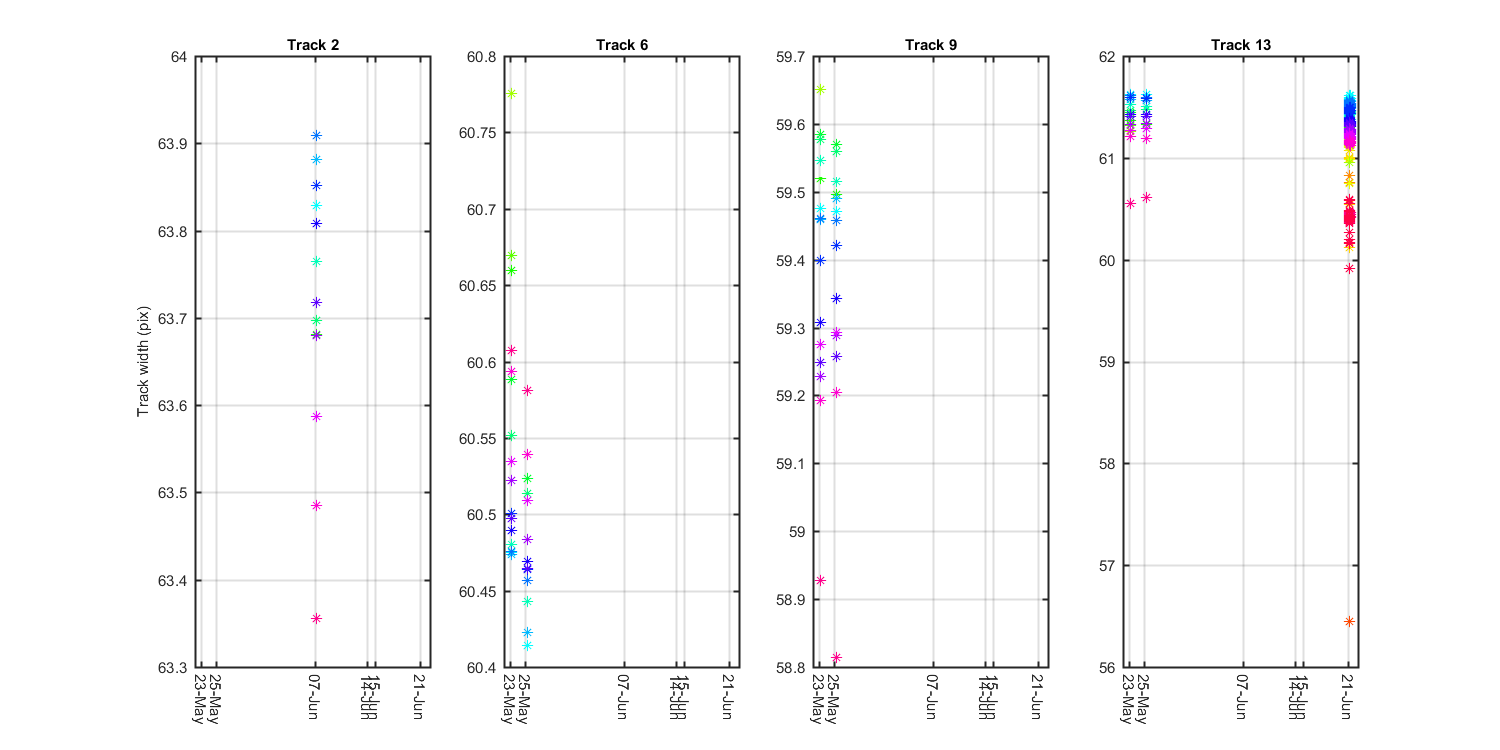

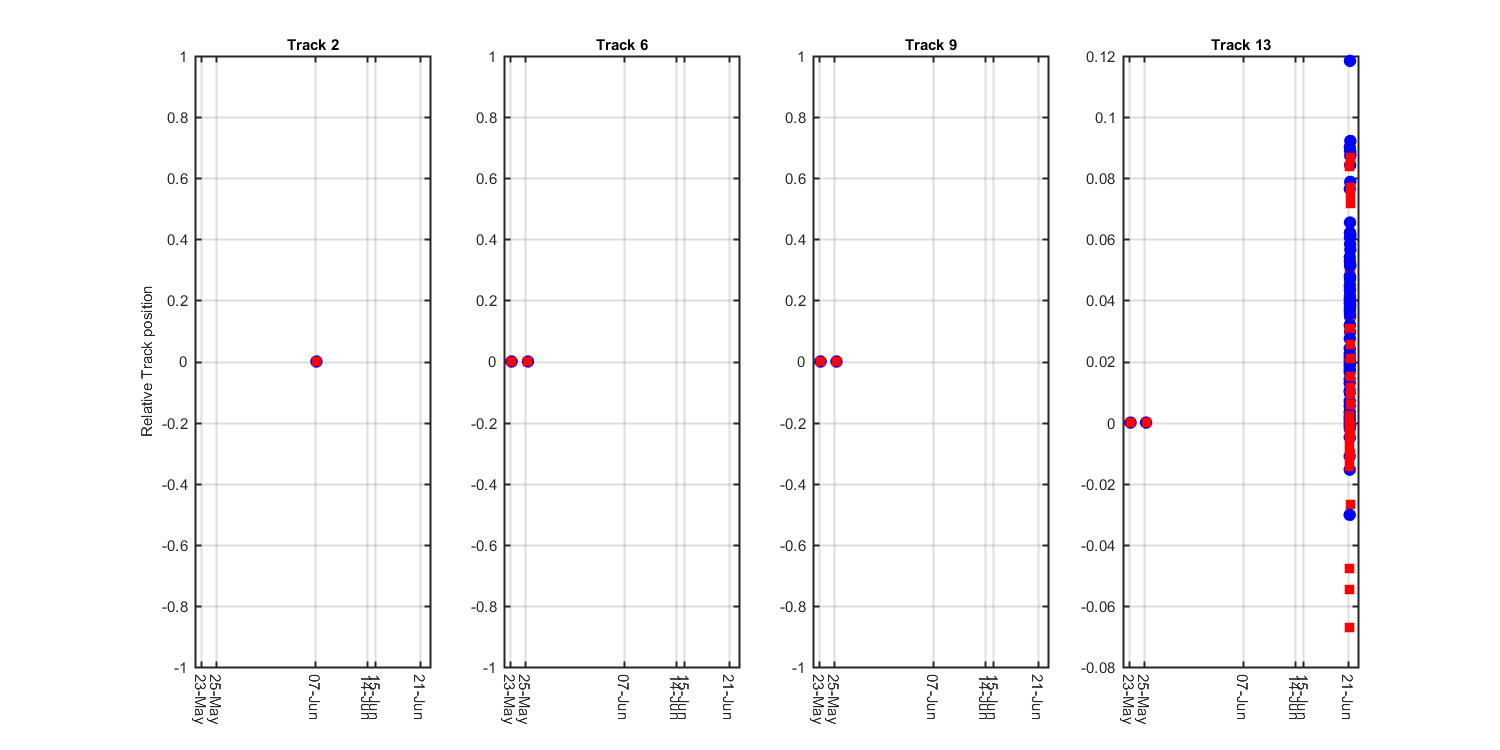

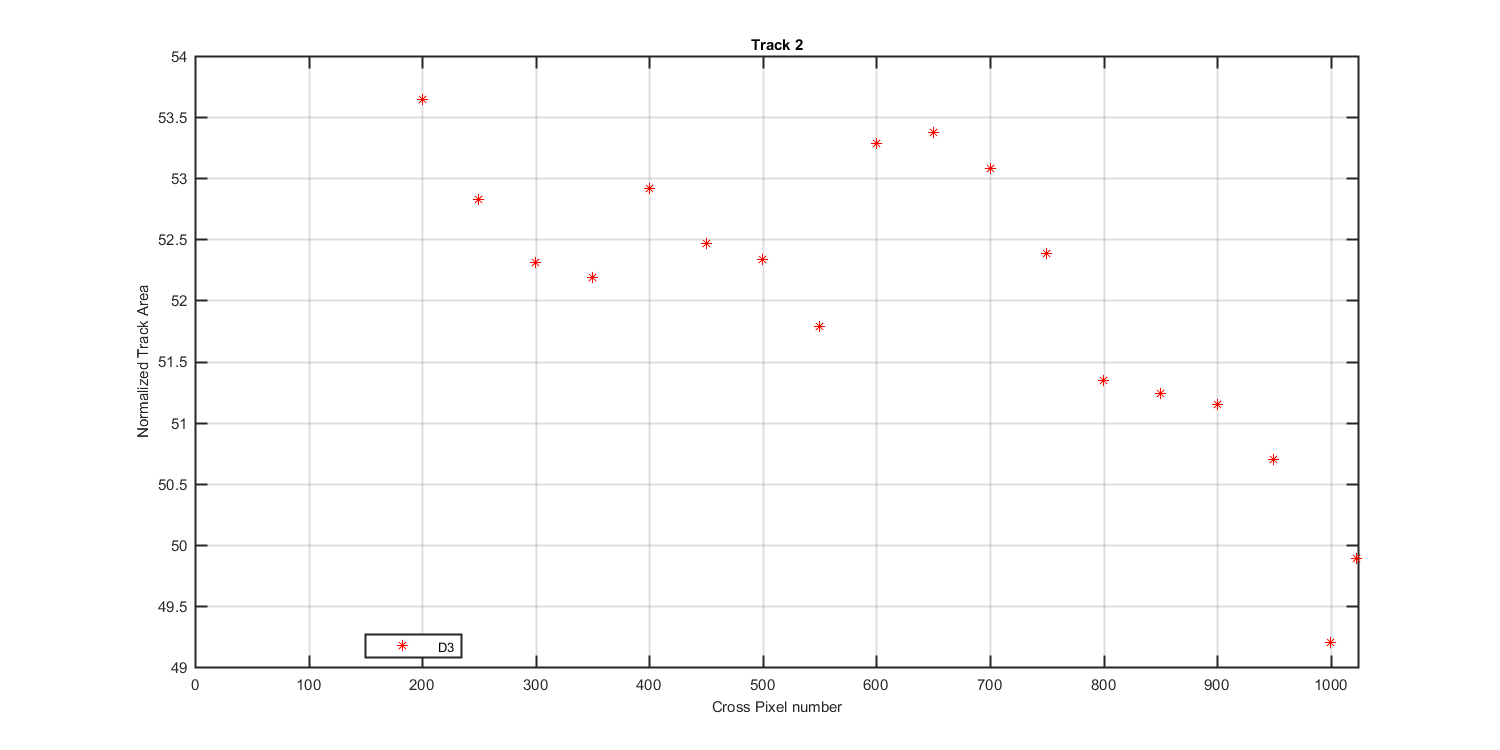

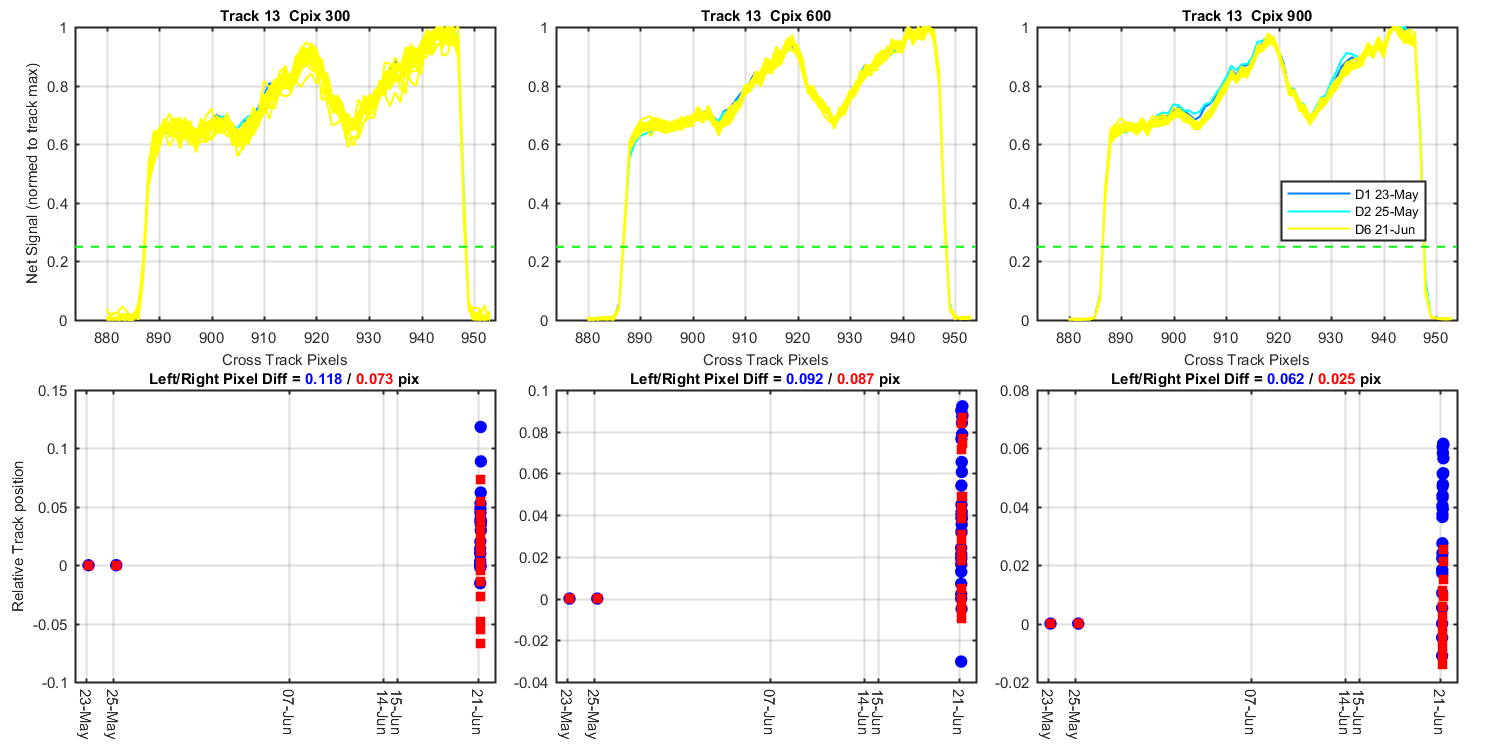

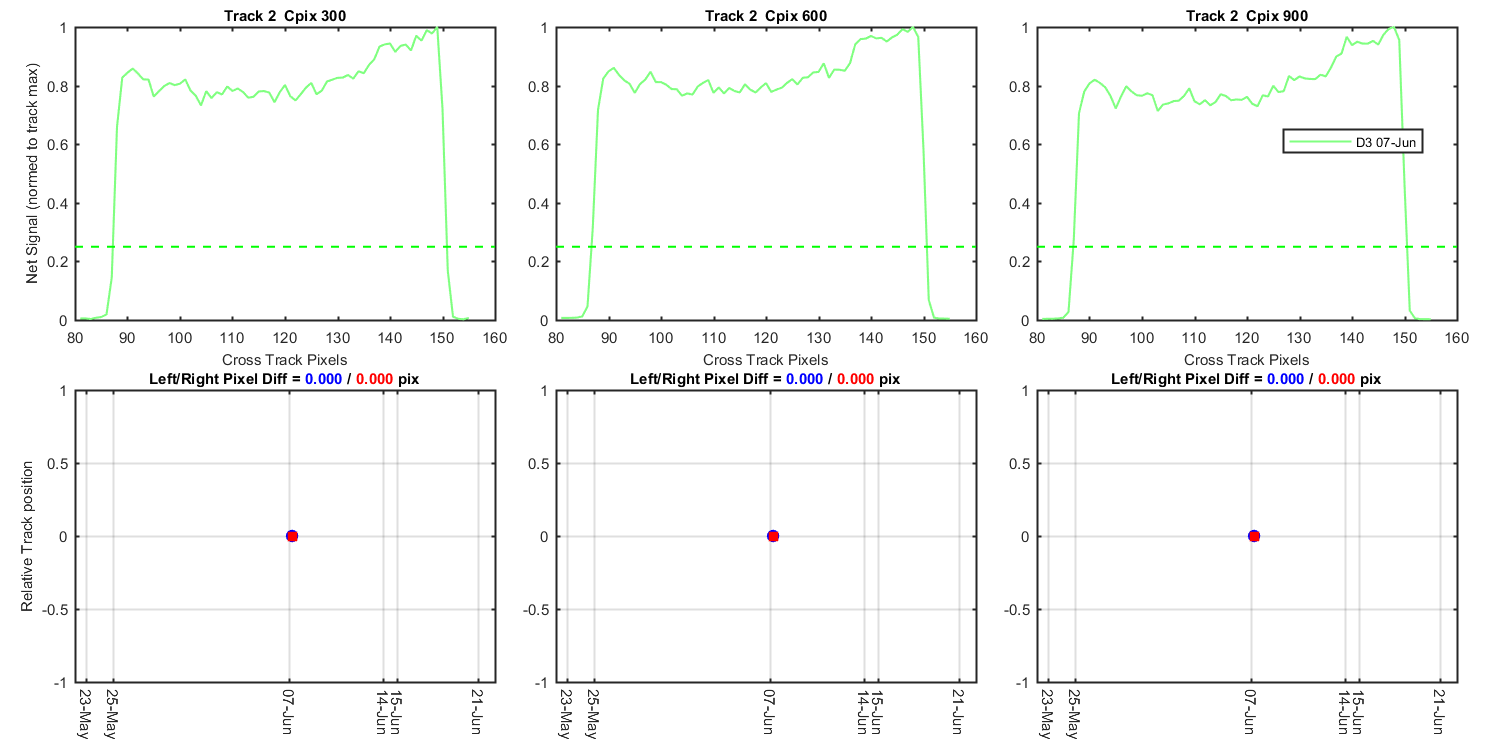

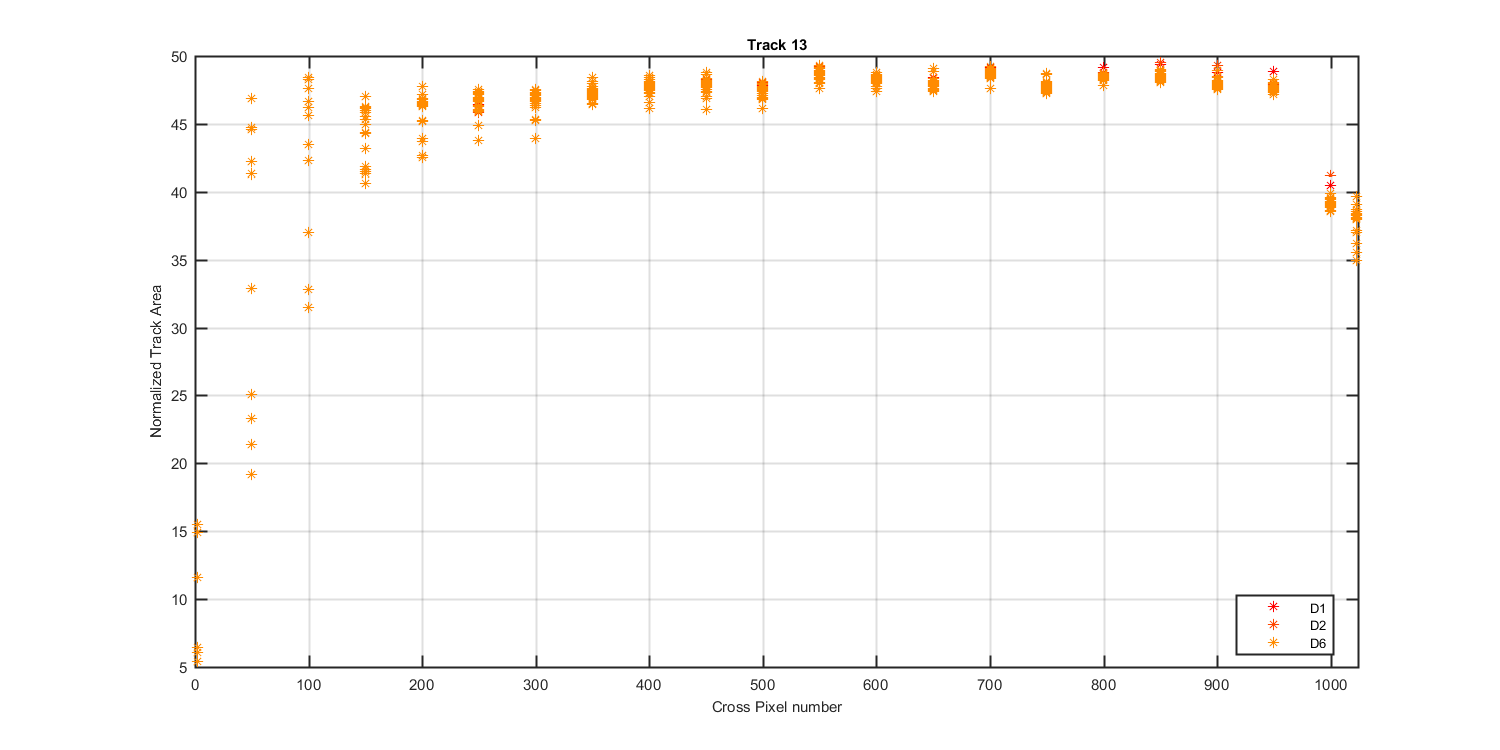

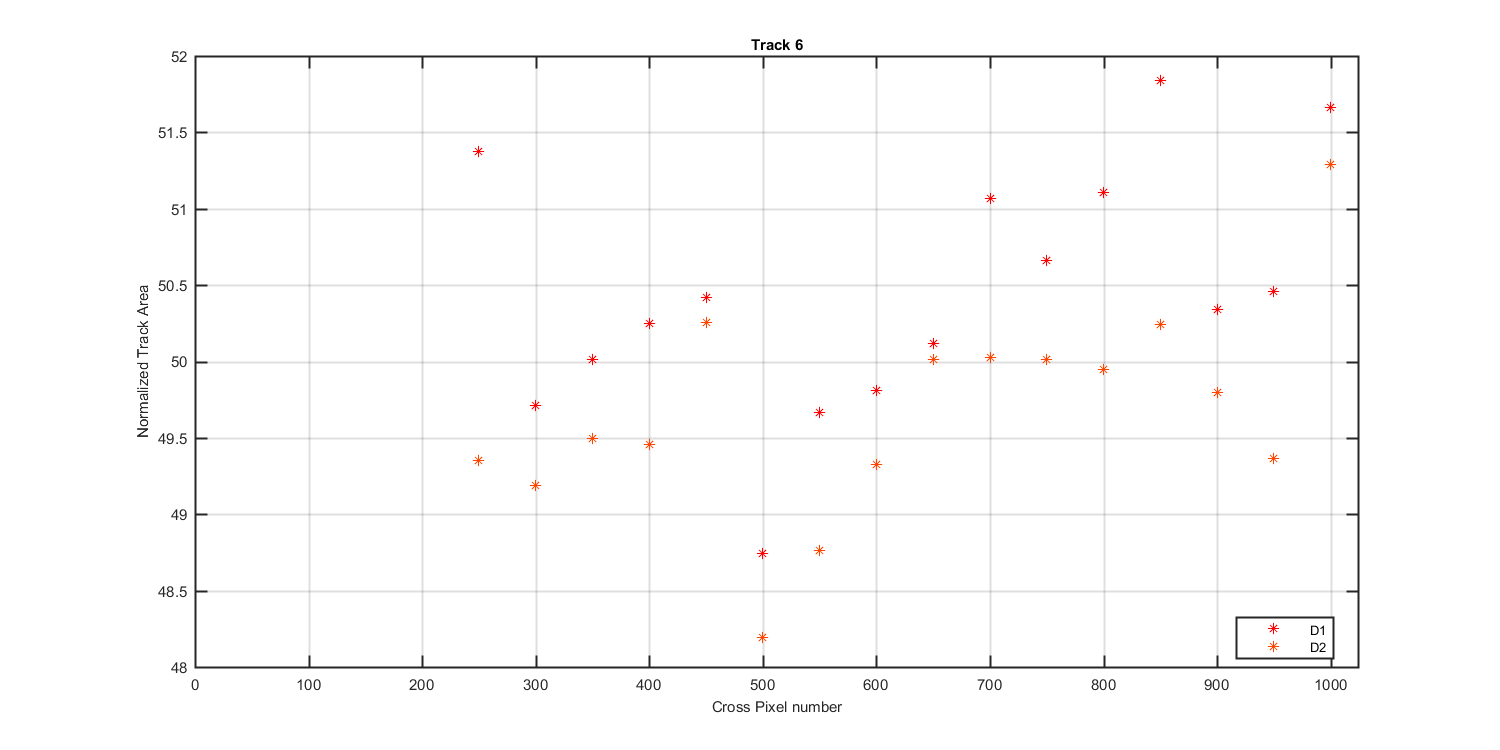

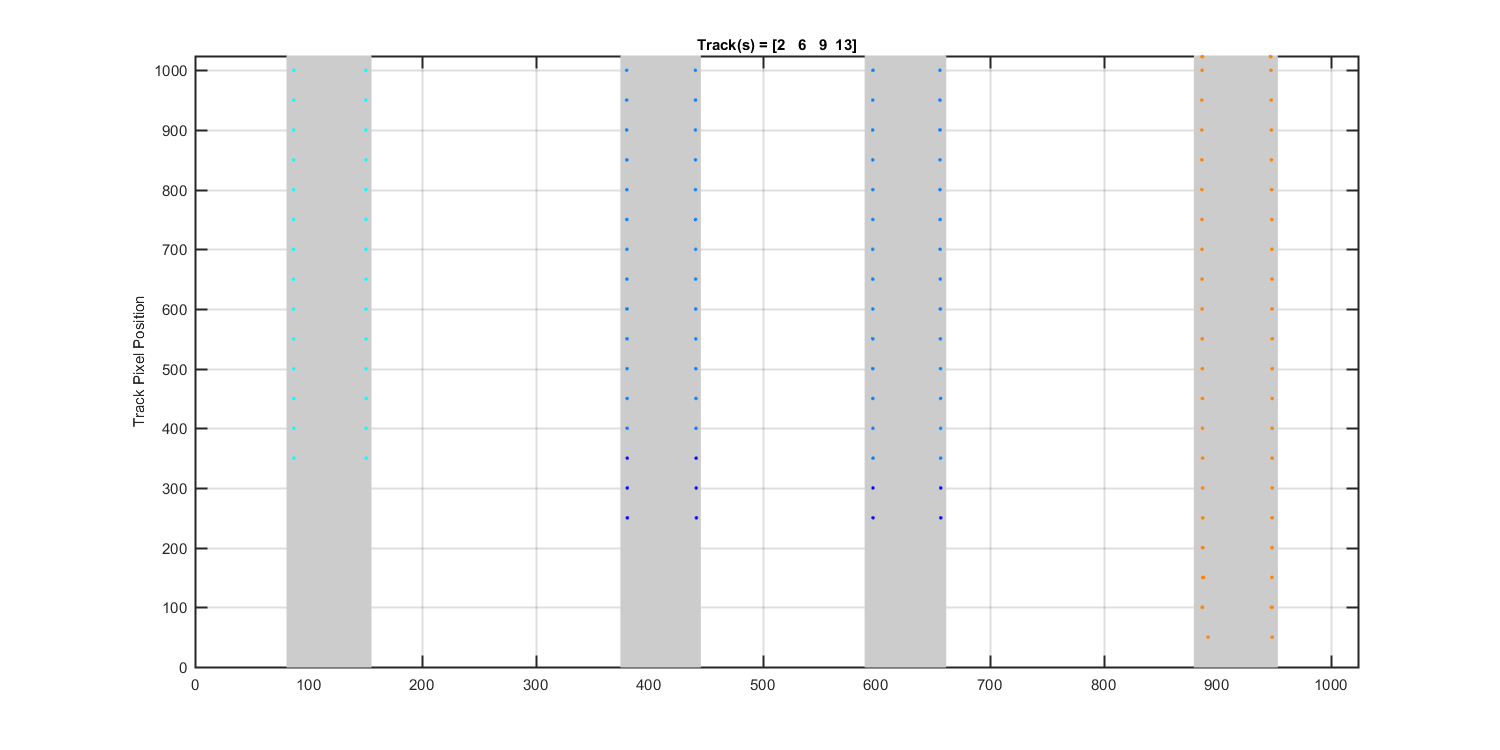

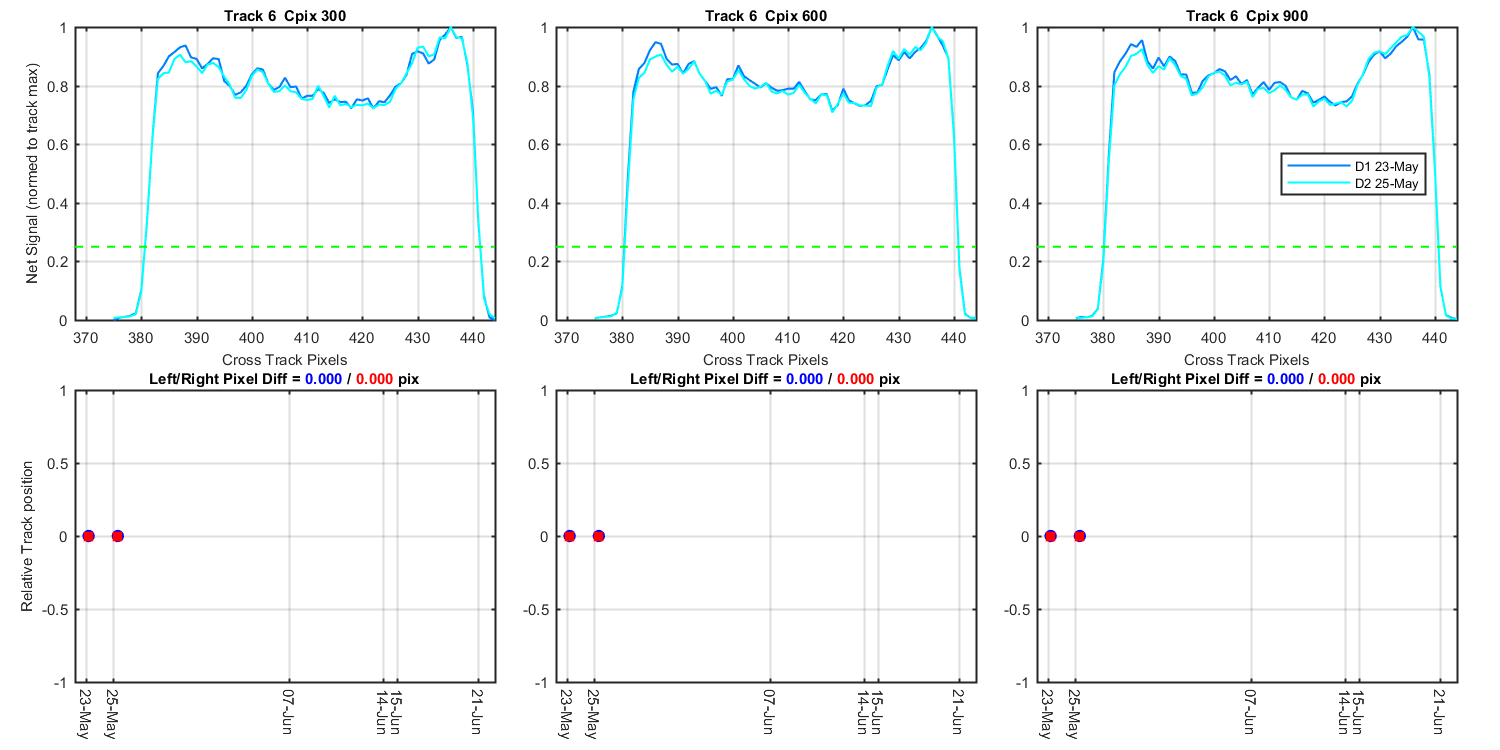

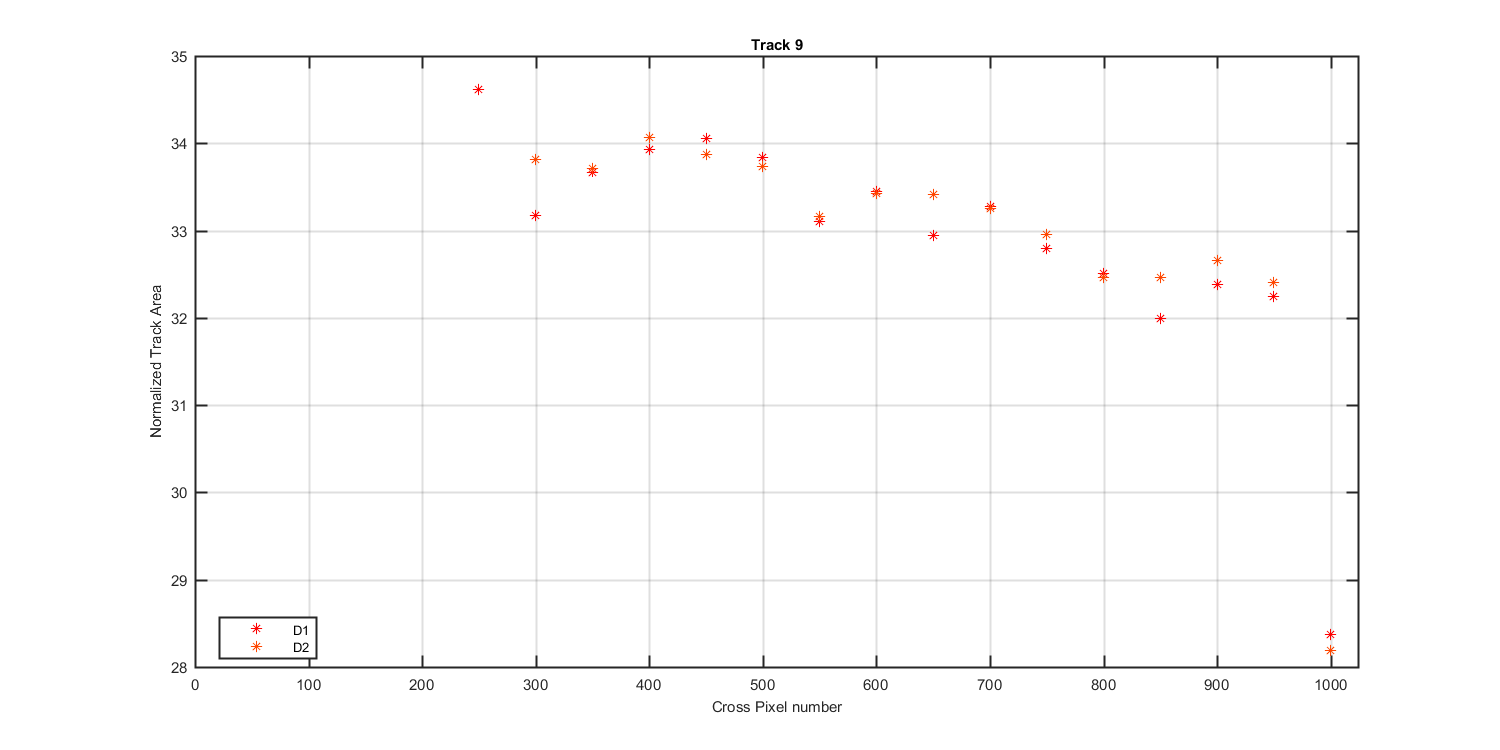

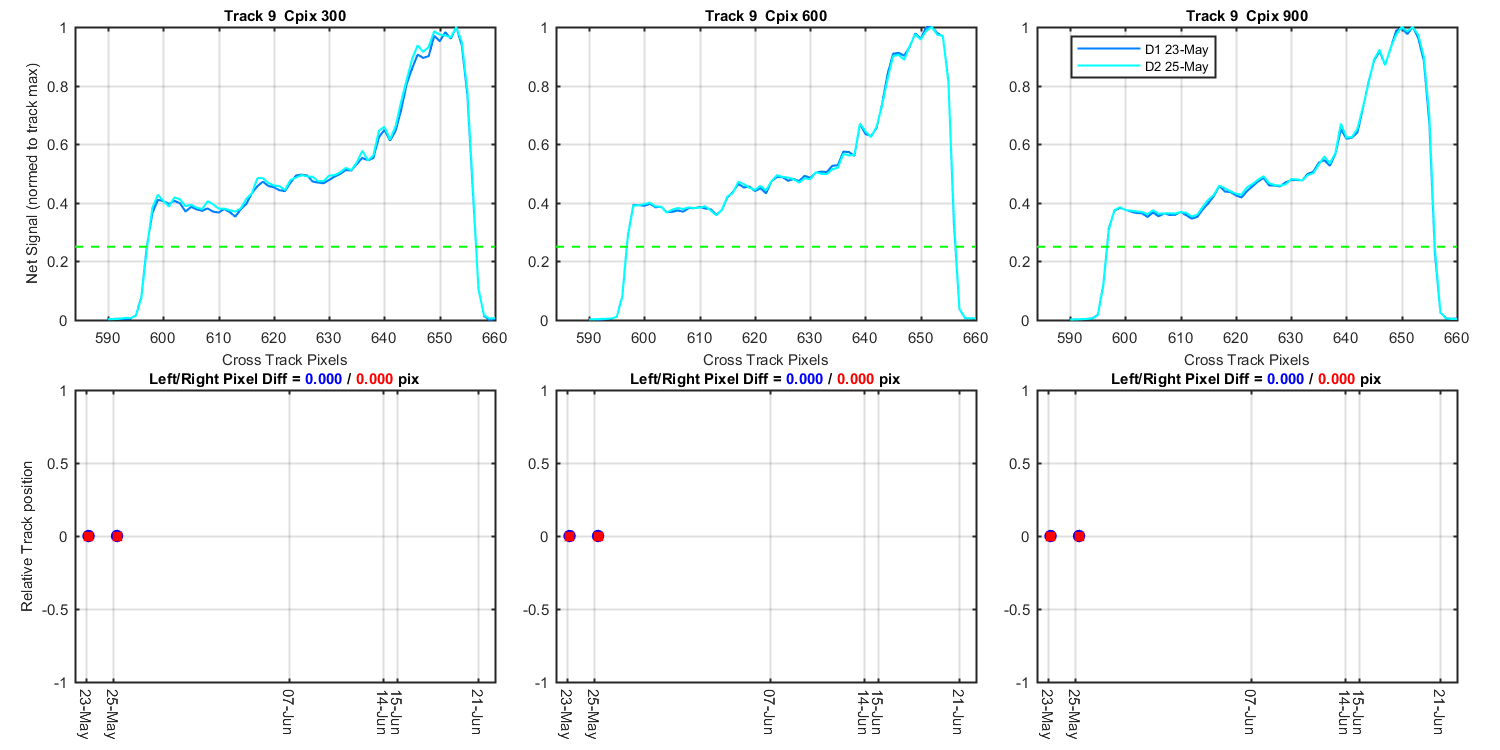

Looks at track movement for experiment data. For each file and track I normalized the track to its max value and plotted this for each file. Then I found where the right and left edge of each track crossed the 25% line. Track width is also shows This only includes broad band sources (laser and wavelnegth cal data are excluded)


Figure 1


Figure 2


Figure 3


Figure 4


Figure 5


Figure 6


Figure 7


Figure 8


Figure 9


Figure 10


Figure 11


pwd: E:\zflora\mldata2\mobyrefresh\characterization\moby-L271\bs4cal
Date: 03-Aug-2018 12:03:42
Created from plttrkmove_(1)
