BS_20180525_053314_raw01

REVISION DATE: 23-Jul-2018 19:20:01

Exerimental BS or RS data starting to put data into new Vaux setup.

Table caption: BS04 Data
Filename Type file creation date Total Exposure Time Tracks on Temperature Gain Pre Amplifier Gain Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
BS_20180525_053314_raw01 Dark 25-May-2018 05:33:14 44 13 -60 0 4 4957 3681.1951 0.27381
BS_20180525_053314_raw01 Dark 25-May-2018 05:35:17 44 13 -60 0 4 13815 3680.5316 0.45692
BS_20180525_053314_raw01 Dark 25-May-2018 05:43:07 44 13 -60 0 4 3739 3681.1608 0.27113
BS_20180525_053314_raw01 Dark 25-May-2018 05:45:04 44 13 -60 0 4 4701 3681.0832 0.27401
BS_20180525_053314_raw01 Lite 25-May-2018 05:37:14 44 13 -60 0 4 54381 4465.203 98.7354
BS_20180525_053314_raw01 Lite 25-May-2018 05:38:39 44 13 -60 0 4 54301 4466.5366 98.7964
BS_20180525_053314_raw01 Lite 25-May-2018 05:40:11 44 13 -60 0 4 54436 4466.8753 98.8096
BS_20180525_053314_raw01 Lite 25-May-2018 05:41:14 44 13 -60 0 4 54396 4468.34 98.8068
BS_20180525_053314_raw01 Dark 25-May-2018 06:59:55 44 9 -60 0 4 3753 3682.3003 0.26547
BS_20180525_053314_raw01 Dark 25-May-2018 07:01:46 44 9 -60 0 4 4329 3682.3534 0.26722
BS_20180525_053314_raw01 Dark 25-May-2018 07:10:32 44 9 -60 0 4 5851 3682.3786 0.27521
BS_20180525_053314_raw01 Dark 25-May-2018 07:11:57 44 9 -60 0 4 3755 3682.8884 0.26621
BS_20180525_053314_raw01 Lite 25-May-2018 07:03:31 44 9 -60 0 4 58741 4261.1962 80.5834
BS_20180525_053314_raw01 Lite 25-May-2018 07:04:56 44 9 -60 0 4 58286 4261.5928 80.6098
BS_20180525_053314_raw01 Lite 25-May-2018 07:06:18 44 9 -60 0 4 58703 4262.4579 80.6815
BS_20180525_053314_raw01 Lite 25-May-2018 07:08:23 44 9 -60 0 4 58645 4261.891 80.6635
BS_20180525_053314_raw01 Dark 25-May-2018 08:27:26 44 6 -60 0 4 3751 3682.4453 0.26905
BS_20180525_053314_raw01 Dark 25-May-2018 08:28:47 44 6 -60 0 4 3754 3682.3379 0.26752
BS_20180525_053314_raw01 Dark 25-May-2018 08:37:04 44 6 -60 0 4 6533 3681.5528 0.30002
BS_20180525_053314_raw01 Dark 25-May-2018 08:38:19 44 6 -60 0 4 5260 3682.213 0.27699
BS_20180525_053314_raw01 Lite 25-May-2018 08:30:26 44 6 -60 0 4 46761 4349.1061 85.8881
BS_20180525_053314_raw01 Lite 25-May-2018 08:31:58 44 6 -60 0 4 46398 4349.5306 85.9275
BS_20180525_053314_raw01 Lite 25-May-2018 08:33:20 44 6 -60 0 4 46636 4349.8859 85.9431
BS_20180525_053314_raw01 Lite 25-May-2018 08:35:02 44 6 -60 0 4 46545 4350.0345 85.9997

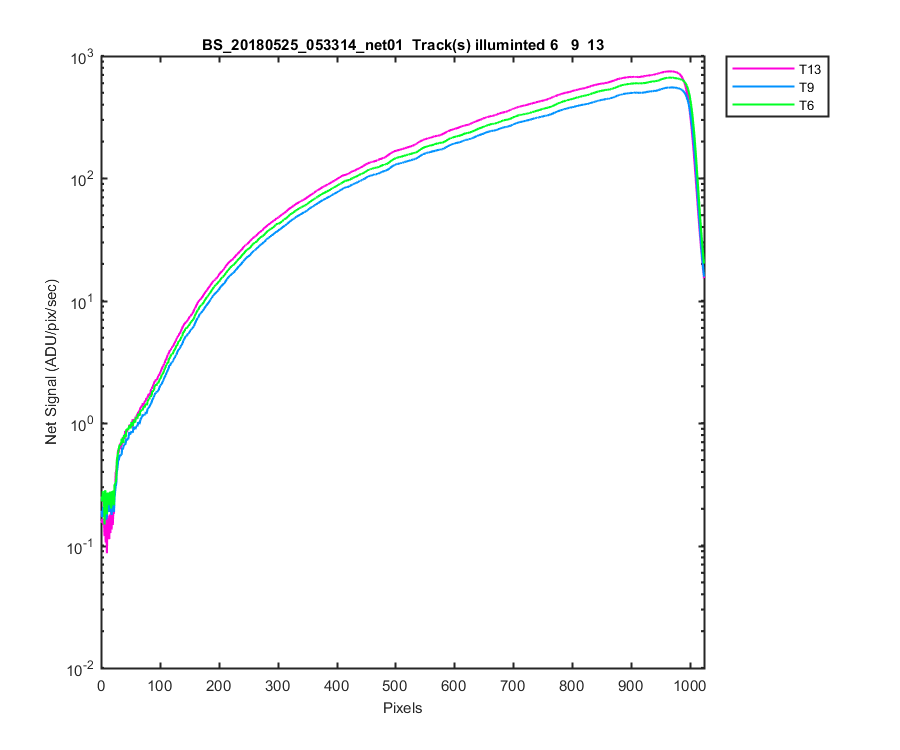

Figure 1

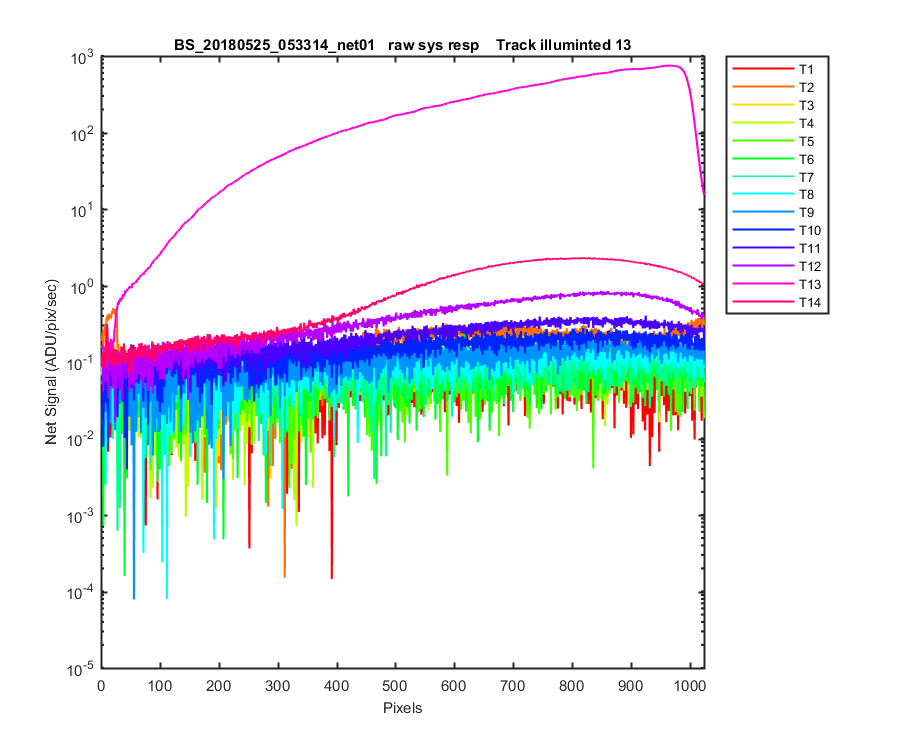

Figure 2

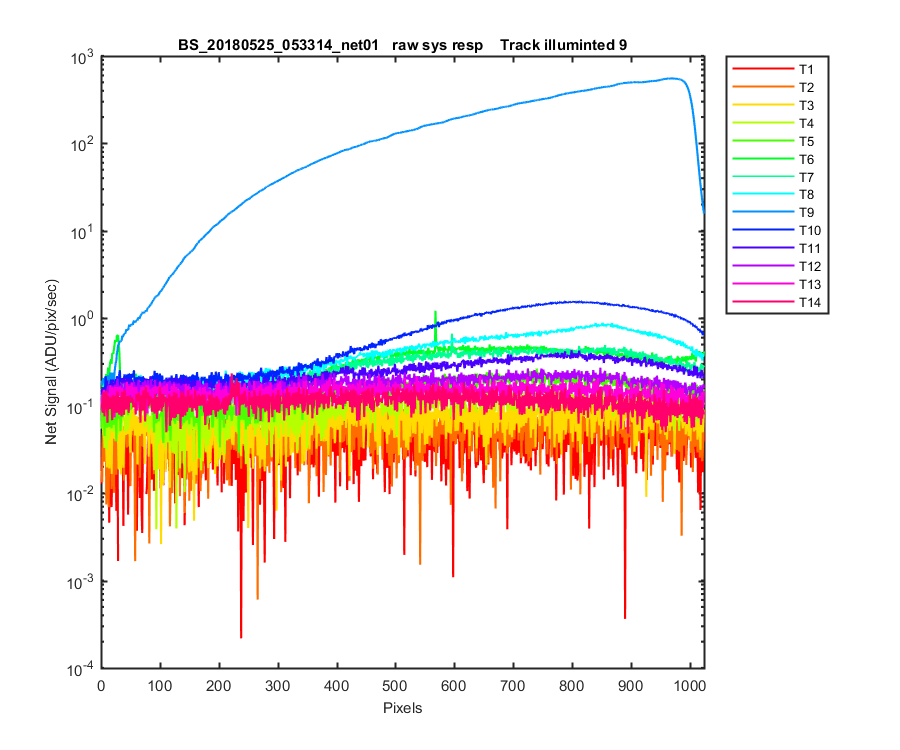

Figure 3

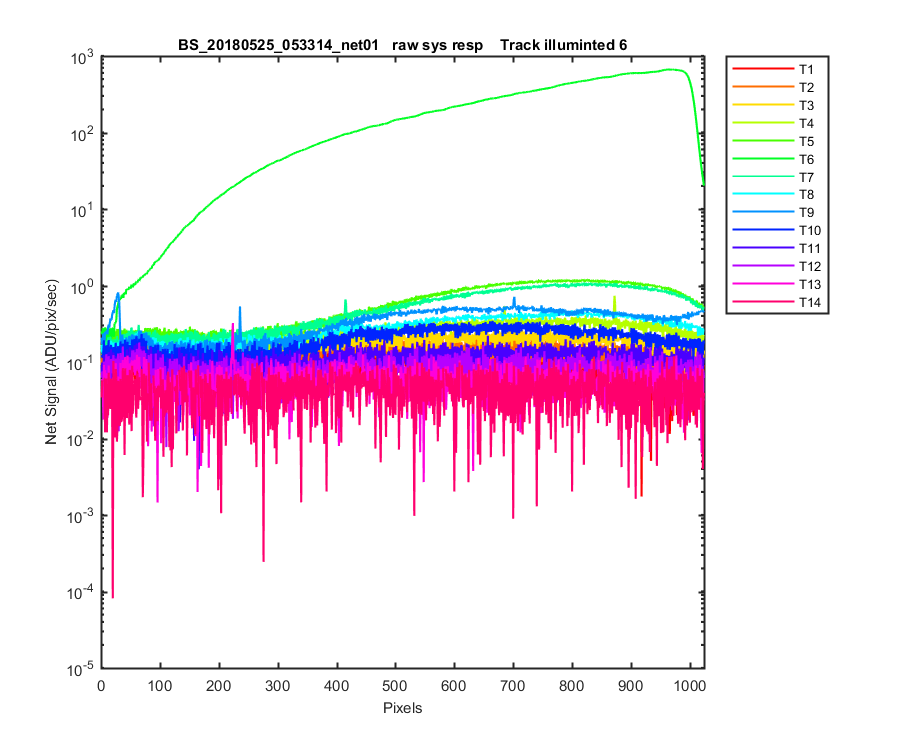

Figure 4


pwd: E:\zflora\mldata2\mobyrefresh\characterization\moby-L271\bs4cal
Date: 23-Jul-2018 19:20:02
Created from mkhtml2_(1)
