BS_20180614_052741_raw01

REVISION DATE: 23-Jul-2018 19:24:20

Exerimental BS or RS data starting to put data into new Vaux setup.

Table caption: BS04 Data
Filename Type file creation date Total Exposure Time Tracks on Temperature Gain Pre Amplifier Gain Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
BS_20180614_052741_raw01 Dark 14-Jun-2018 05:27:41 30 13 -60 0 4 3727 3676.4893 0.25975
BS_20180614_052741_raw01 Dark 14-Jun-2018 05:28:14 30 13 -60 0 4 6091 3678.3504 0.27359
BS_20180614_052741_raw01 Dark 14-Jun-2018 05:31:17 30 13 -60 0 4 5103 3678.539 0.27642
BS_20180614_052741_raw01 Dark 14-Jun-2018 05:31:50 30 13 -60 0 4 7288 3679.2426 0.28786
BS_20180614_052741_raw01 Lite 14-Jun-2018 05:28:56 30 13 -60 0 4 41626 3695.8038 7.2107
BS_20180614_052741_raw01 Lite 14-Jun-2018 05:29:29 30 13 -60 0 4 41899 3696.5322 7.2052
BS_20180614_052741_raw01 Lite 14-Jun-2018 05:30:02 30 13 -60 0 4 41646 3696.6419 7.2179
BS_20180614_052741_raw01 Lite 14-Jun-2018 05:30:34 30 13 -60 0 4 41542 3696.9078 7.2086
BS_20180614_052741_raw01 Dark 14-Jun-2018 05:46:55 0.4 13 -60 0 4 3687 3645.1891 0.2165
BS_20180614_052741_raw01 Dark 14-Jun-2018 05:46:58 0.4 13 -60 0 4 3685 3646.3874 0.21806
BS_20180614_052741_raw01 Dark 14-Jun-2018 05:47:31 0.4 13 -60 0 4 3685 3645.8038 0.2169
BS_20180614_052741_raw01 Dark 14-Jun-2018 05:47:34 0.4 13 -60 0 4 3687 3647.0437 0.21782
BS_20180614_052741_raw01 Lite 14-Jun-2018 05:47:11 0.4 13 -60 0 4 53775 3658.7716 13.3799
BS_20180614_052741_raw01 Lite 14-Jun-2018 05:47:13 0.4 13 -60 0 4 53591 3659.9247 13.381
BS_20180614_052741_raw01 Lite 14-Jun-2018 05:47:16 0.4 13 -60 0 4 53702 3660.5754 13.3779
BS_20180614_052741_raw01 Lite 14-Jun-2018 05:47:18 0.4 13 -60 0 4 53423 3660.8849 13.351
BS_20180614_052741_raw01 Dark 14-Jun-2018 05:58:24 0.05 13 -60 0 4 3681 3643.0715 0.21466
BS_20180614_052741_raw01 Dark 14-Jun-2018 05:58:27 0.05 13 -60 0 4 3681 3643.0679 0.21456
BS_20180614_052741_raw01 Dark 14-Jun-2018 05:59:00 0.05 13 -60 0 4 3682 3643.3005 0.21463
BS_20180614_052741_raw01 Dark 14-Jun-2018 05:59:03 0.05 13 -60 0 4 5017 3643.2857 0.22881
BS_20180614_052741_raw01 Lite 14-Jun-2018 05:58:40 0.05 13 -60 0 4 54928 3677.7557 18.4737
BS_20180614_052741_raw01 Lite 14-Jun-2018 05:58:42 0.05 13 -60 0 4 54938 3677.7252 18.4124
BS_20180614_052741_raw01 Lite 14-Jun-2018 05:58:45 0.05 13 -60 0 4 54734 3677.8351 18.4442
BS_20180614_052741_raw01 Lite 14-Jun-2018 05:58:48 0.05 13 -60 0 4 55208 3678.028 18.5095
BS_20180614_052741_raw01 Dark 14-Jun-2018 06:10:18 17 13 -60 0 4 3715 3670.6137 0.24477
BS_20180614_052741_raw01 Dark 14-Jun-2018 06:10:38 17 13 -60 0 4 9989 3673.446 0.30753
BS_20180614_052741_raw01 Dark 14-Jun-2018 06:12:37 17 13 -60 0 4 3720 3674.1496 0.25733
BS_20180614_052741_raw01 Dark 14-Jun-2018 06:12:56 17 13 -60 0 4 5270 3675.3688 0.25973
BS_20180614_052741_raw01 Lite 14-Jun-2018 06:11:08 17 13 -60 0 4 52715 3692.2647 13.4775
BS_20180614_052741_raw01 Lite 14-Jun-2018 06:11:27 17 13 -60 0 4 53076 3694.0476 13.4677
BS_20180614_052741_raw01 Lite 14-Jun-2018 06:11:47 17 13 -60 0 4 52959 3694.5785 13.4641
BS_20180614_052741_raw01 Lite 14-Jun-2018 06:12:07 17 13 -60 0 4 53105 3694.8628 13.4606
BS_20180614_052741_raw01 Dark 14-Jun-2018 06:25:46 100 13 -60 0 4 7030 3714.9449 0.34233
BS_20180614_052741_raw01 Dark 14-Jun-2018 06:27:29 100 13 -60 0 4 6078 3715.378 0.35248
BS_20180614_052741_raw01 Dark 14-Jun-2018 06:36:22 100 13 -60 0 4 5118 3715.0386 0.32915
BS_20180614_052741_raw01 Dark 14-Jun-2018 06:38:05 100 13 -60 0 4 5584 3715.2978 0.32866
BS_20180614_052741_raw01 Lite 14-Jun-2018 06:29:22 100 13 -60 0 4 37087 3747.5343 9.2517
BS_20180614_052741_raw01 Lite 14-Jun-2018 06:31:04 100 13 -60 0 4 36932 3747.7292 9.2533
BS_20180614_052741_raw01 Lite 14-Jun-2018 06:32:47 100 13 -60 0 4 37144 3747.8012 9.2551
BS_20180614_052741_raw01 Lite 14-Jun-2018 06:34:30 100 13 -60 0 4 37394 3747.752 9.2655

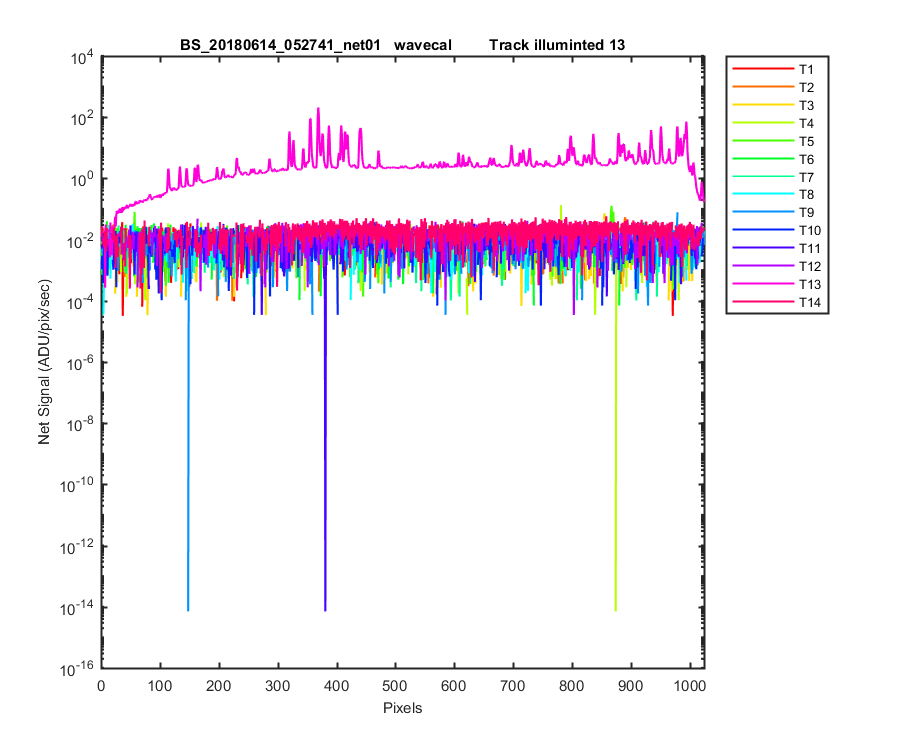

Figure 1

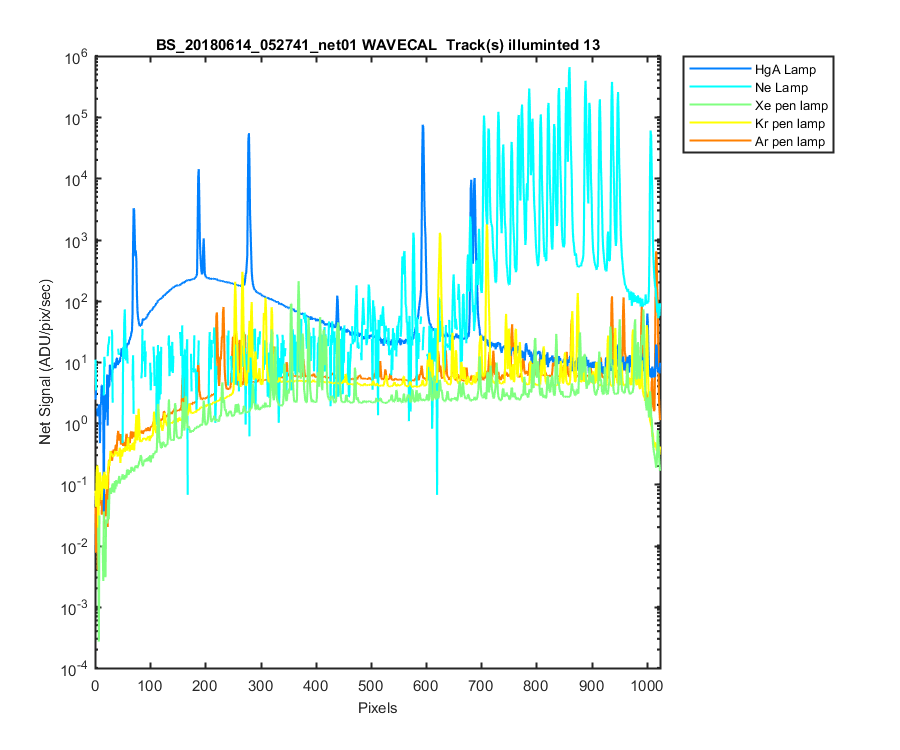

Figure 2

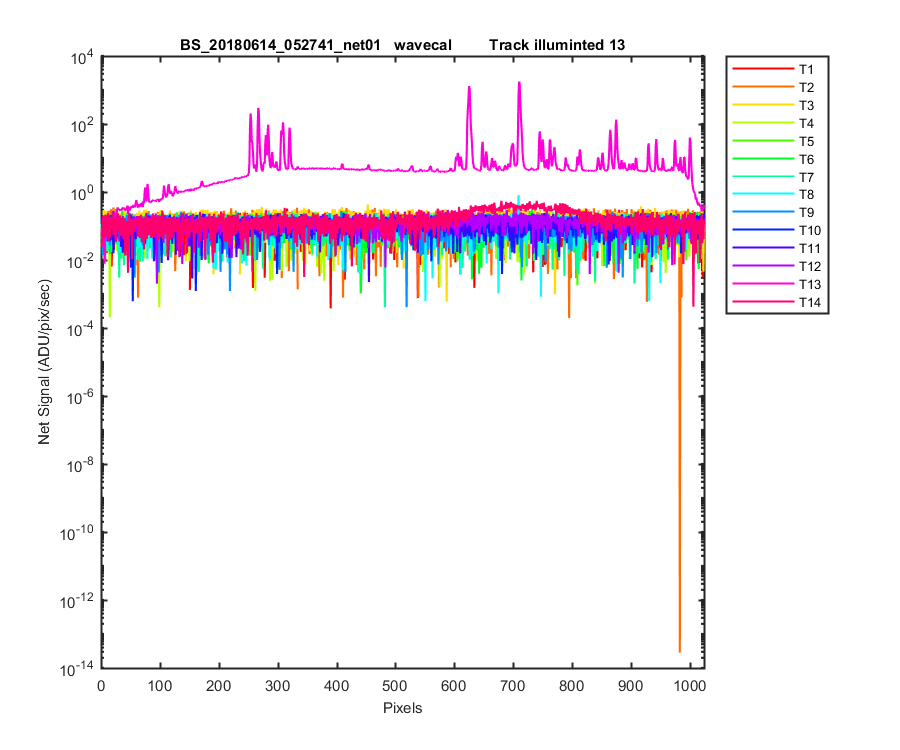

Figure 3

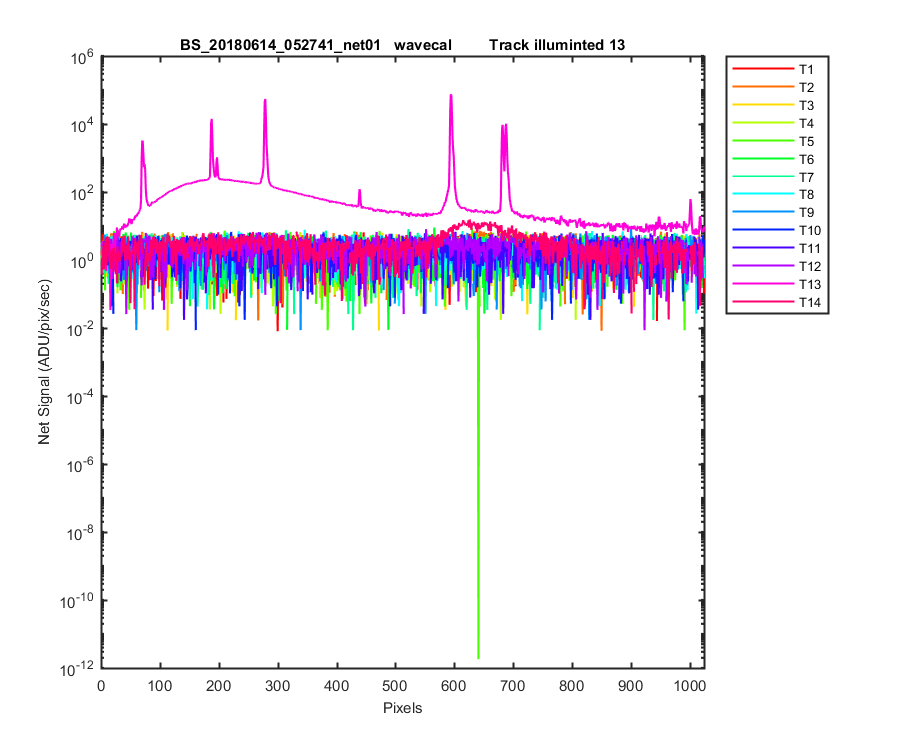

Figure 4

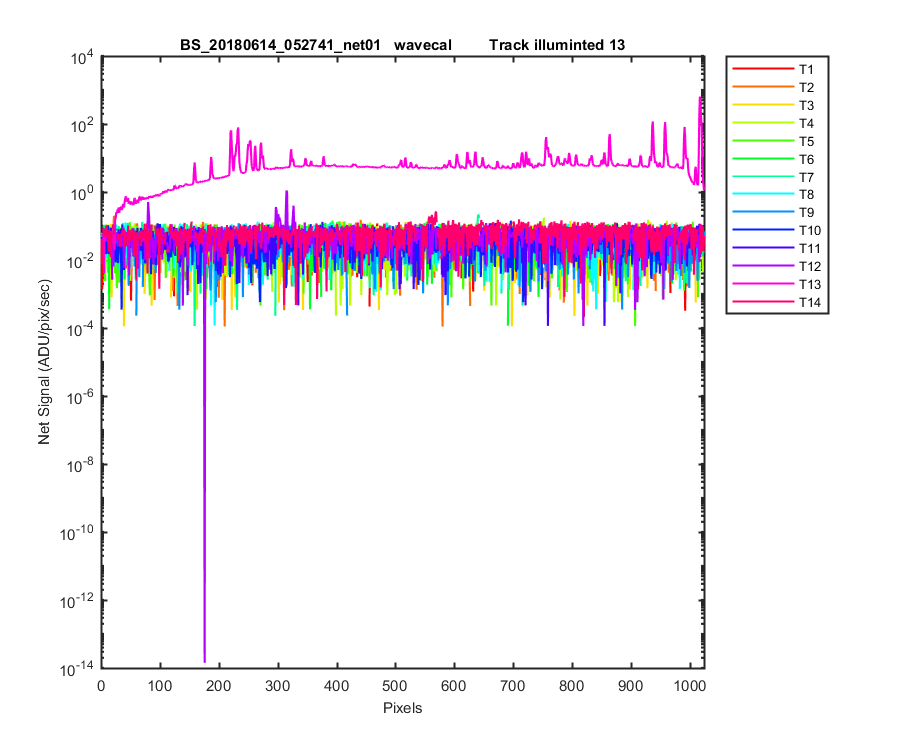

Figure 5

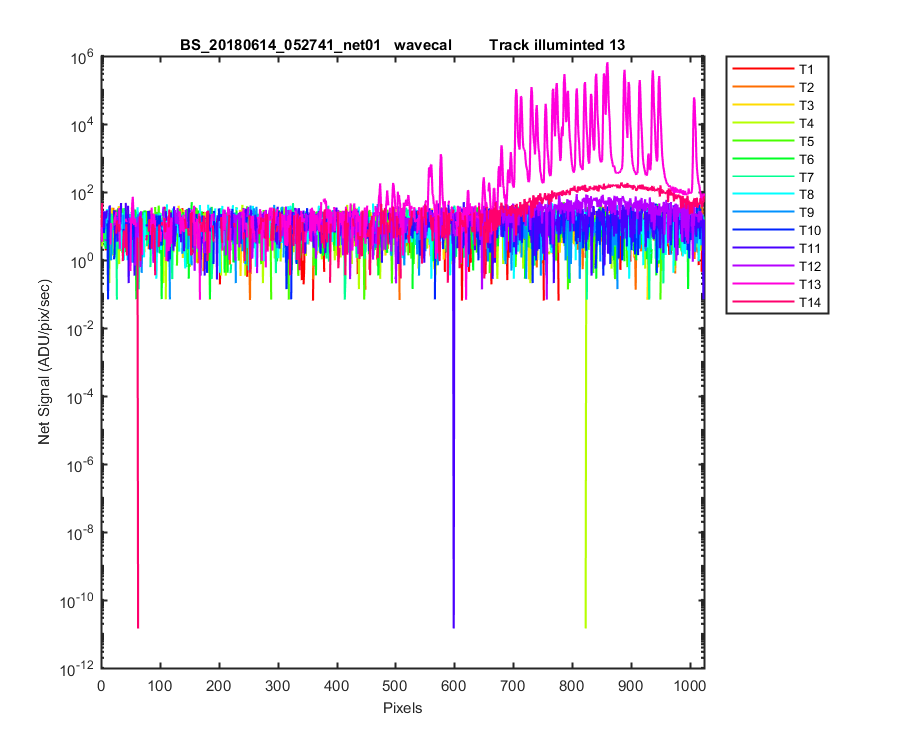

Figure 6


pwd: E:\zflora\mldata2\mobyrefresh\characterization\moby-L271\bs4cal
Date: 23-Jul-2018 19:24:21
Created from mkhtml2_(1)
