REVISION DATE: 23-Jul-2018 19:33:32
Exerimental BS or RS data starting to put data into new Vaux setup.
| Previous | HOME | NEXT | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Filename | Type | file creation date | Total Exposure Time | Tracks on | Temperature | Gain | Pre Amplifier Gain | Matrix Max (ADU) | Matrix Mean (ADU) | Matrix % std |
| bs_20180615_g85_45_02_022 | Lite | 15-Jun-2018 04:27:40 | 4.5 | 2 | -60 | -60 | 4 | 49909 | 3690.9847 | 11.4244 |

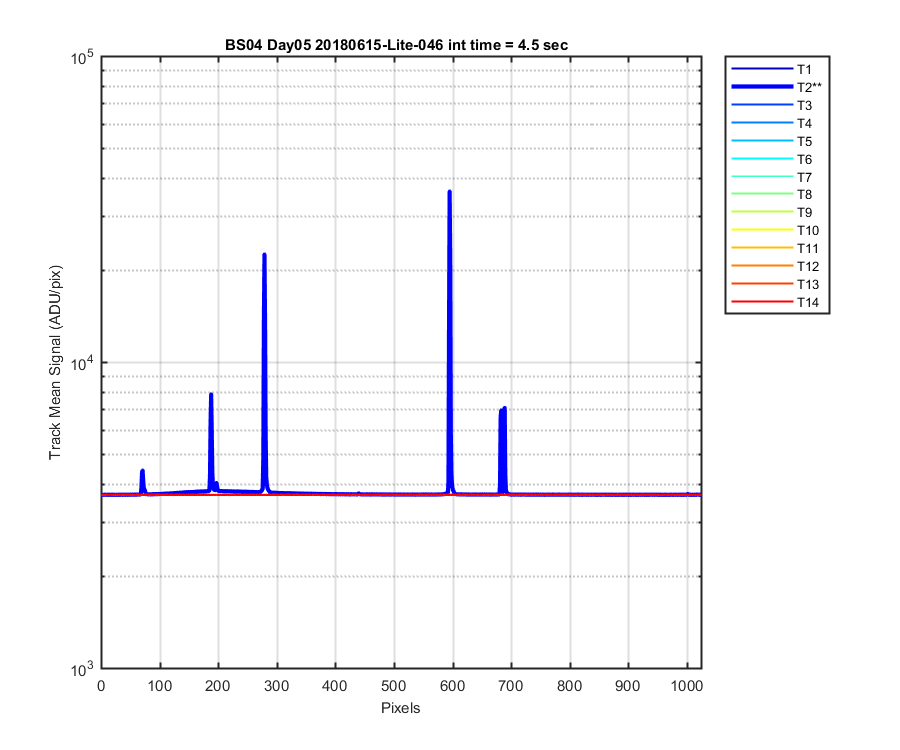

Figure 1

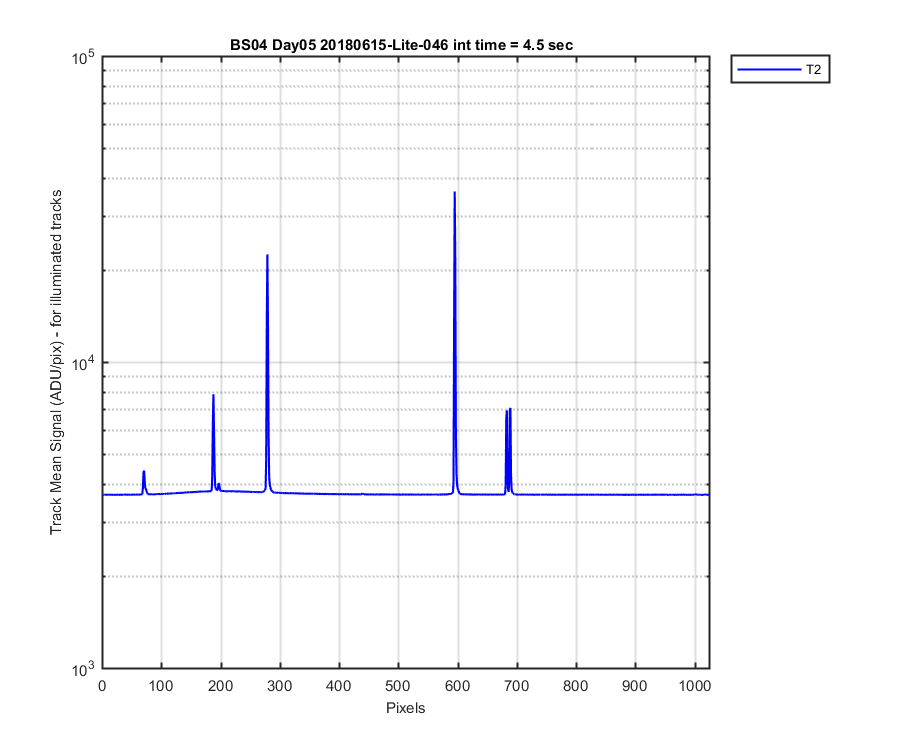

Figure 2

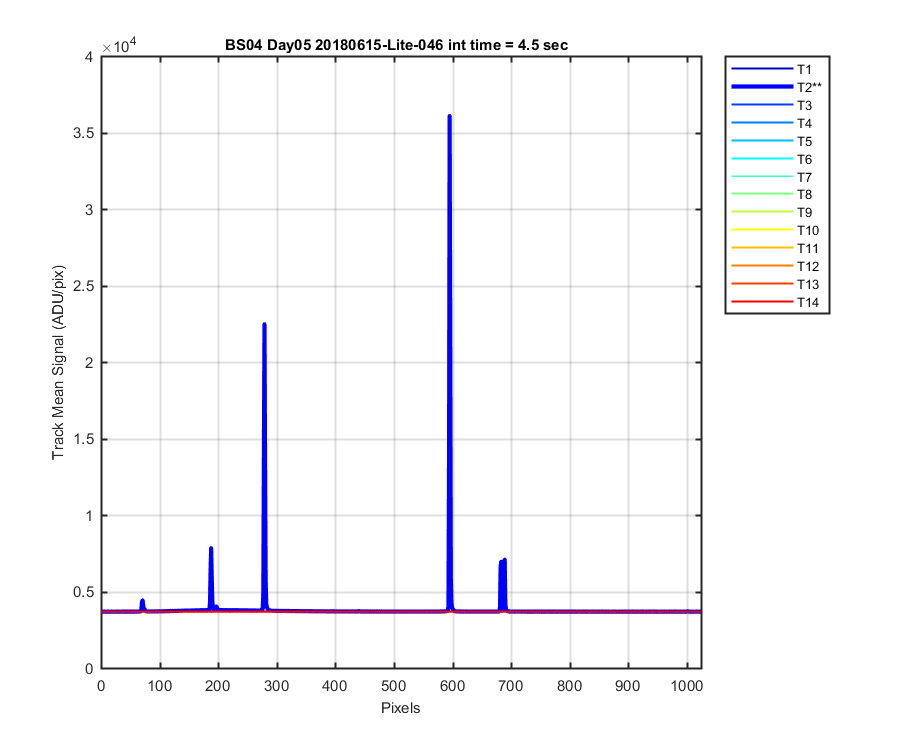

Figure 3

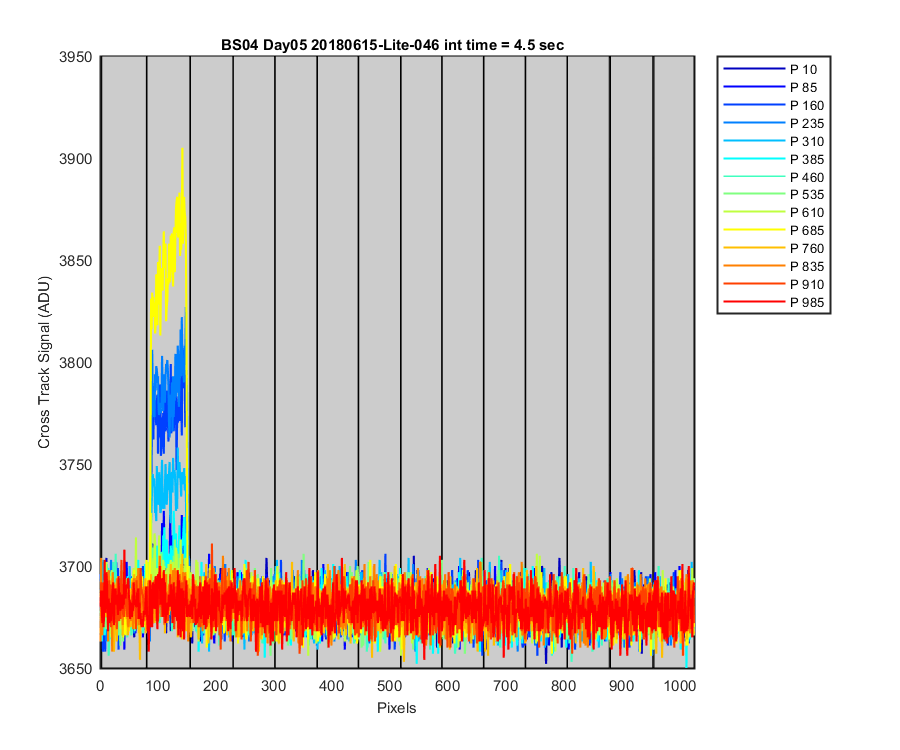

Figure 4

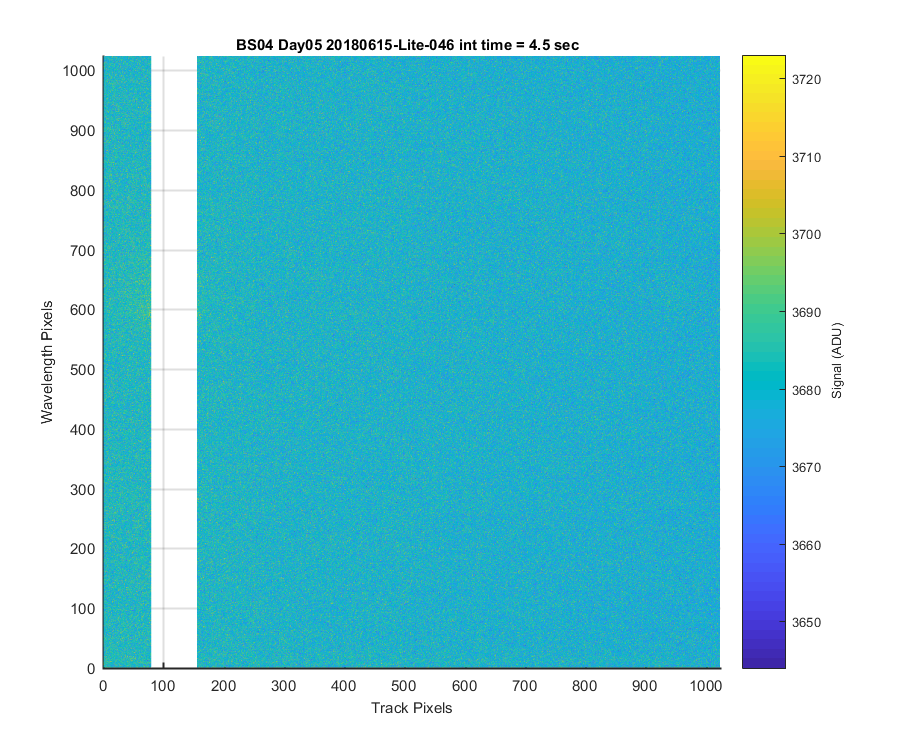

Figure 5

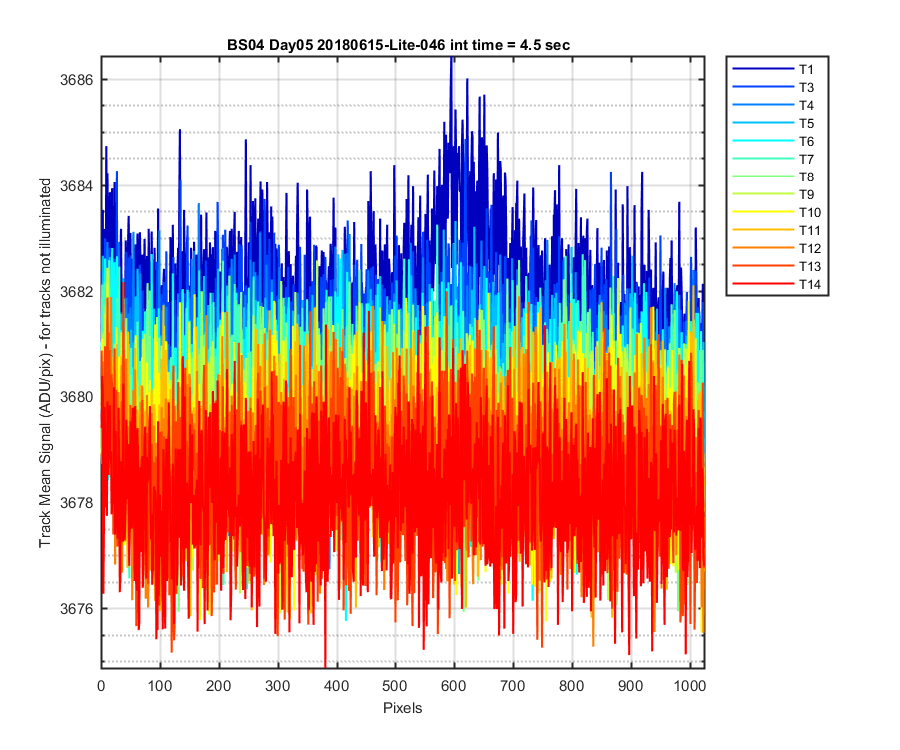

Figure 6
Figure 7
