REVISION DATE: 19-Apr-2018 11:48:55

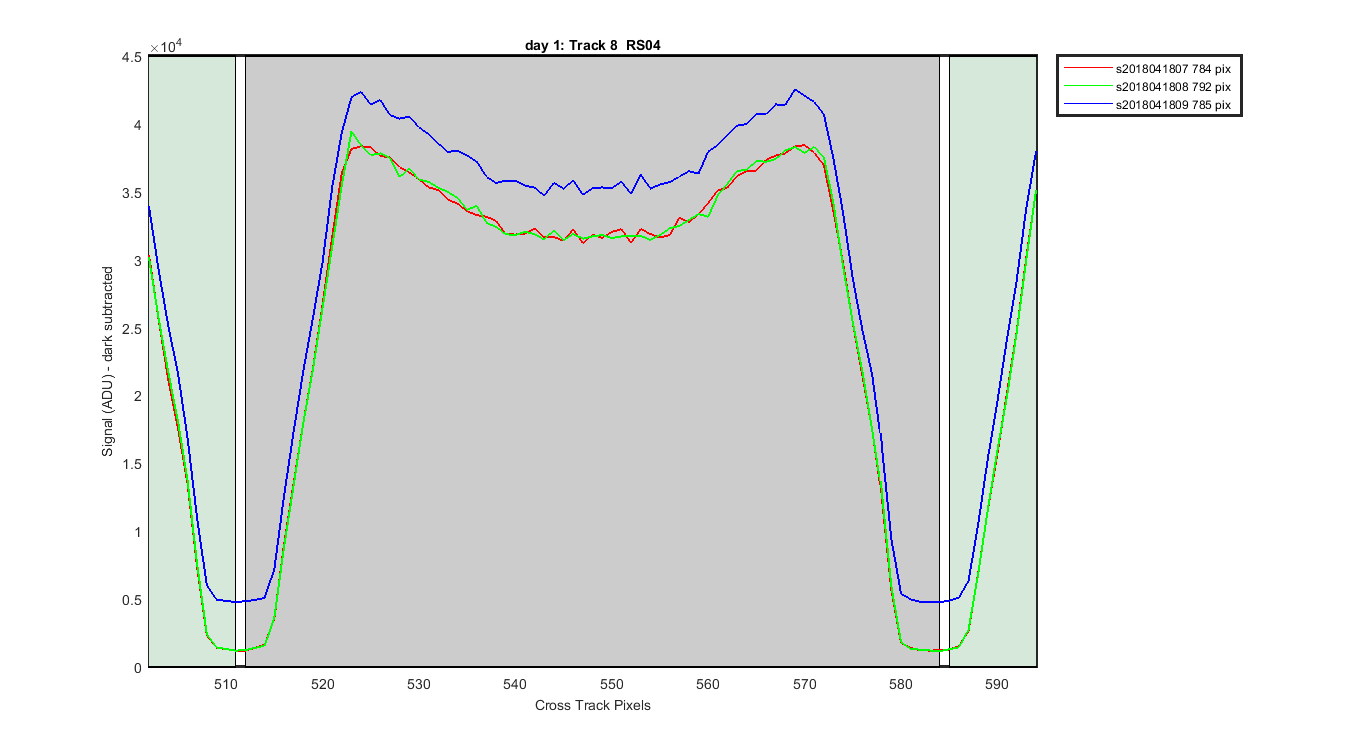

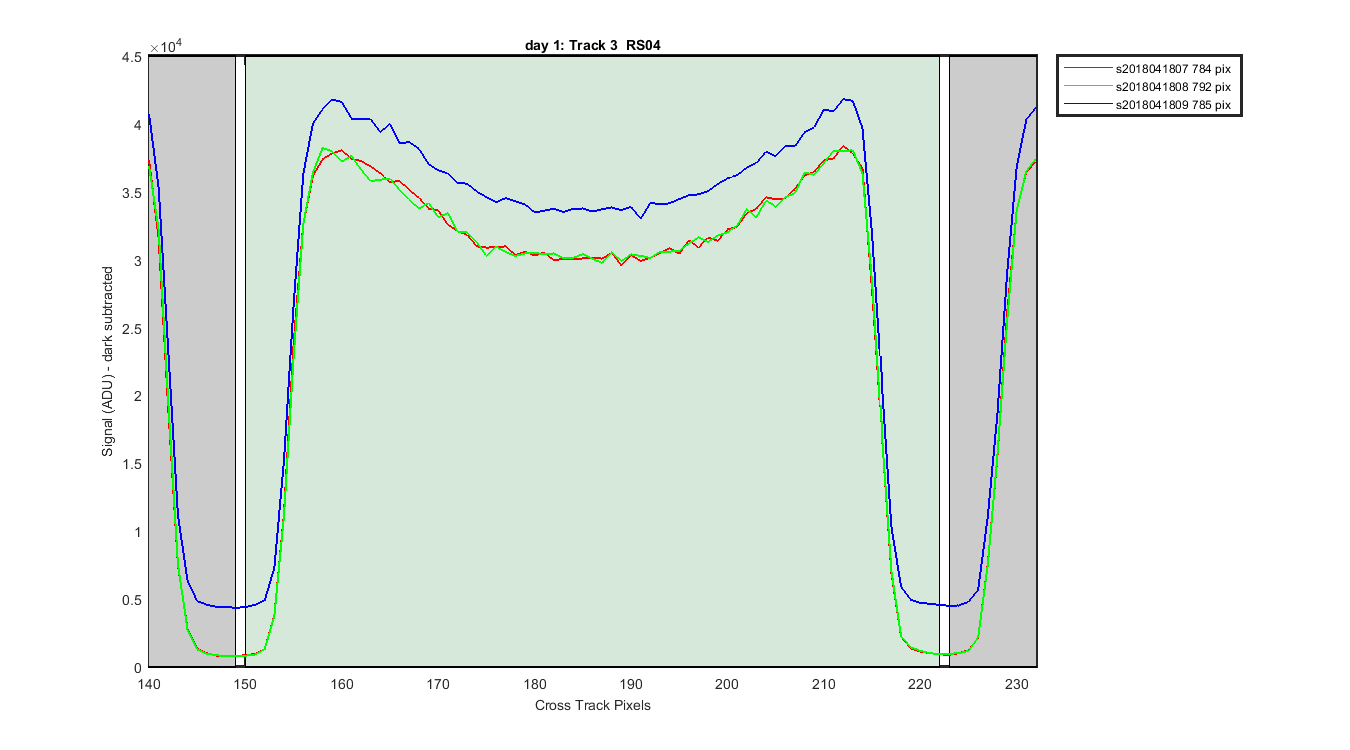

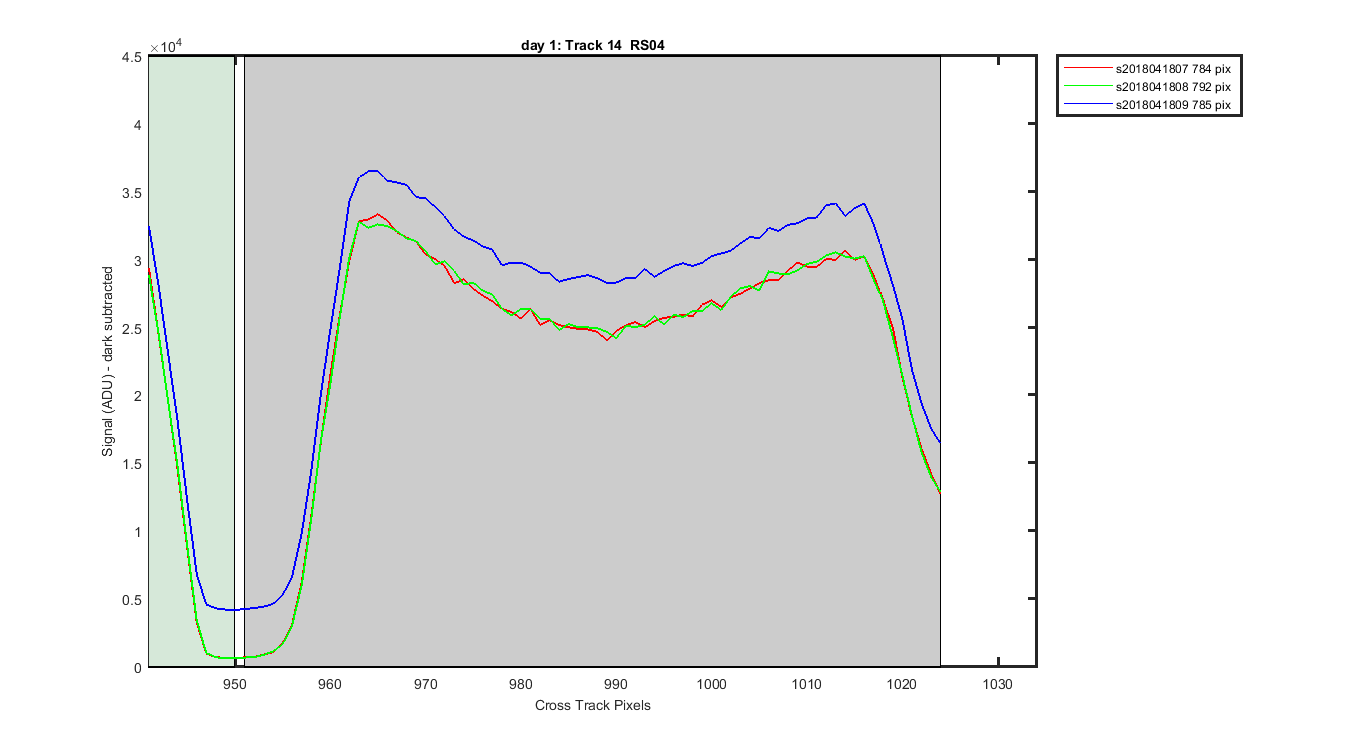

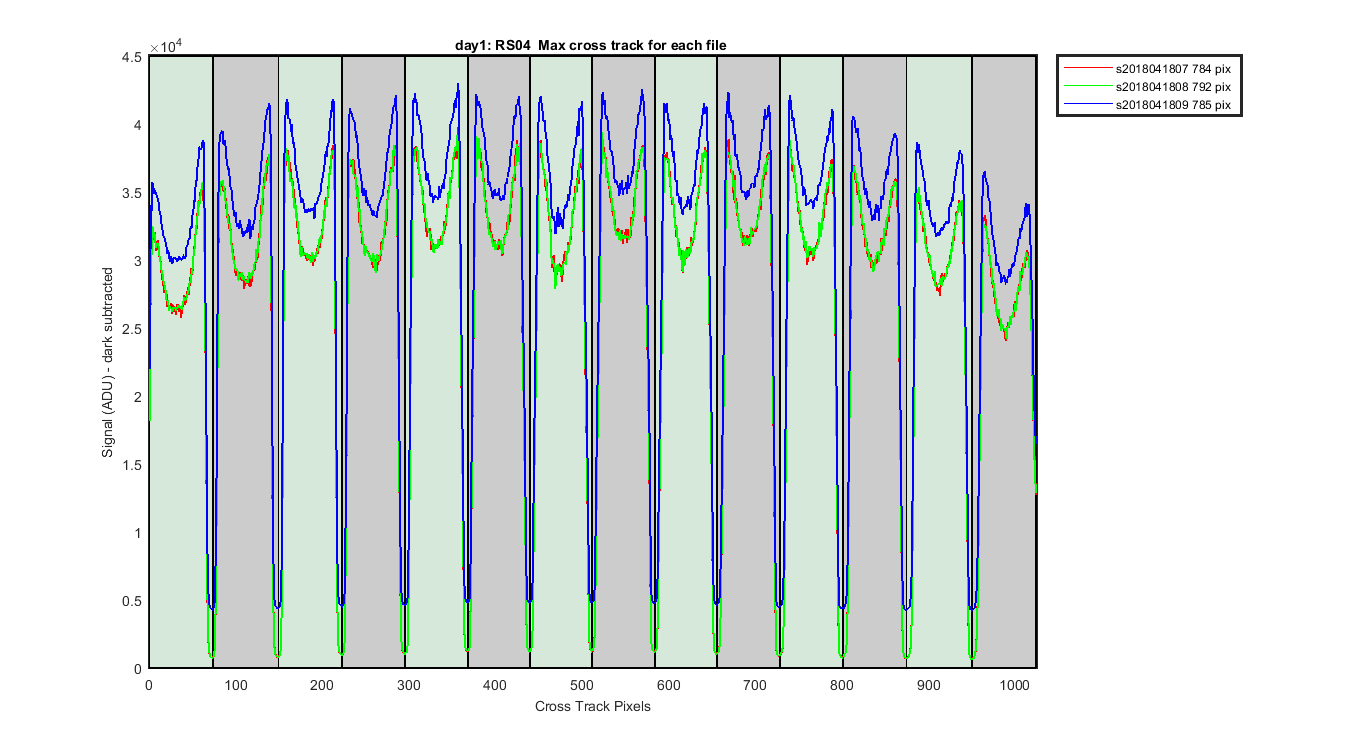

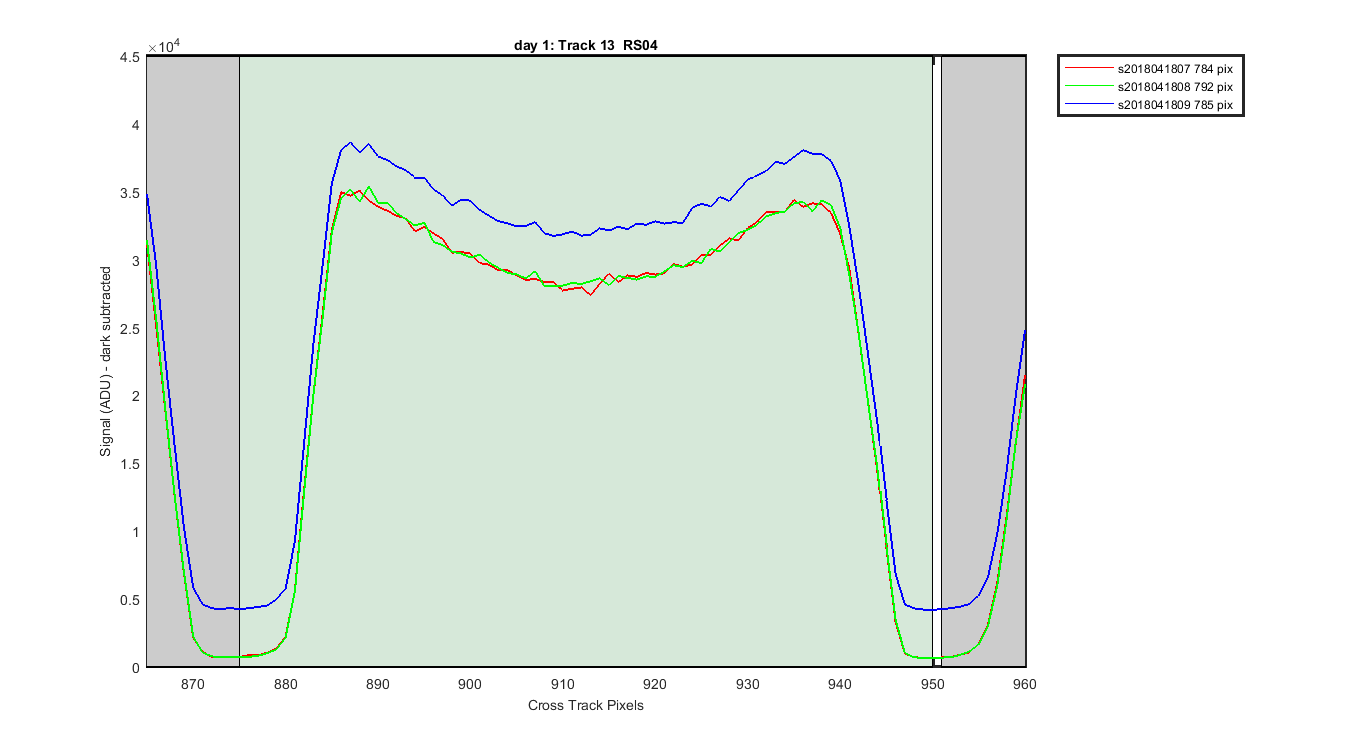

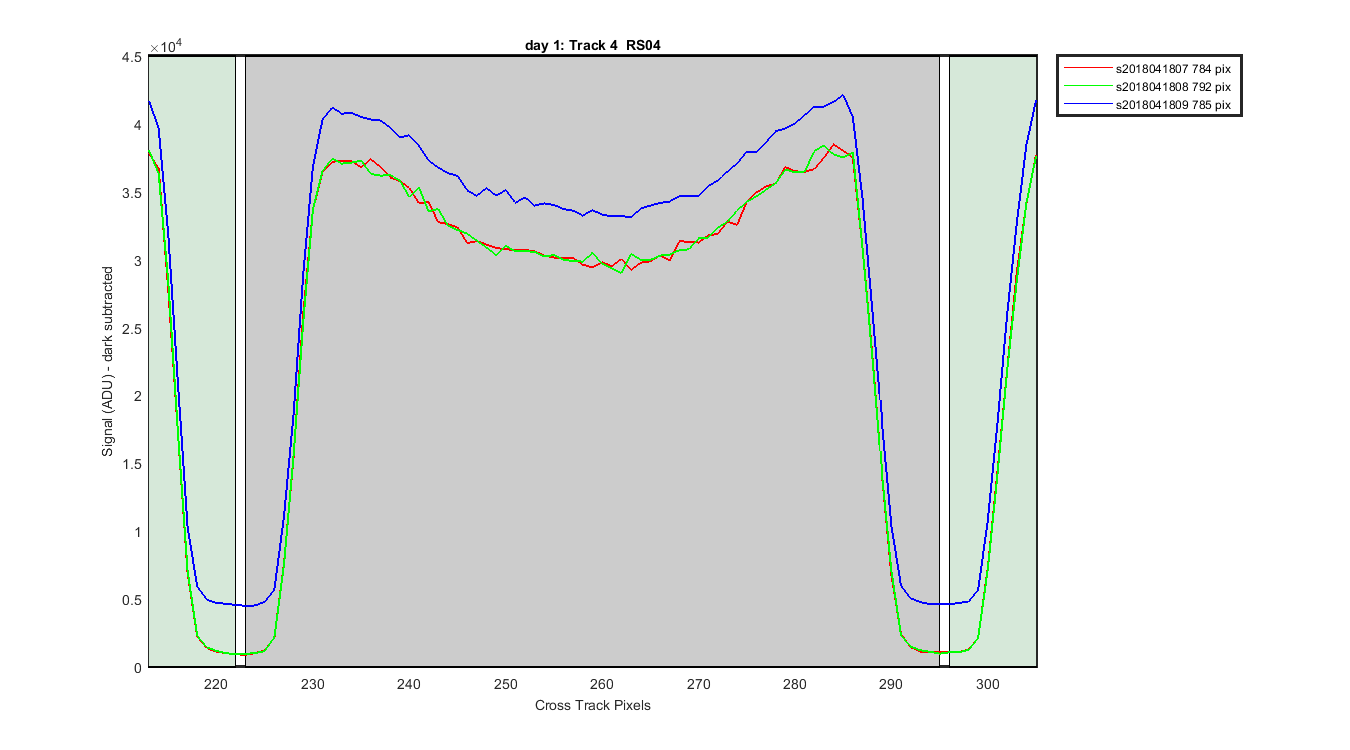

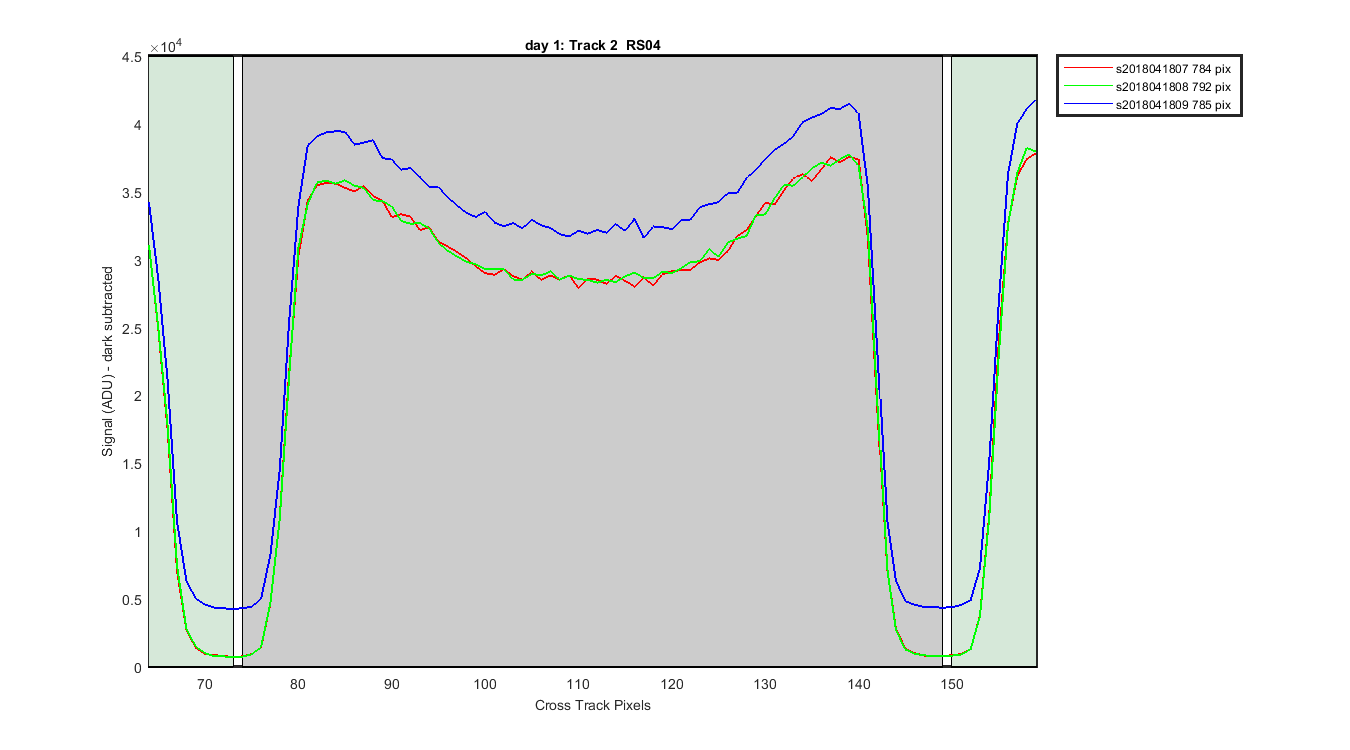

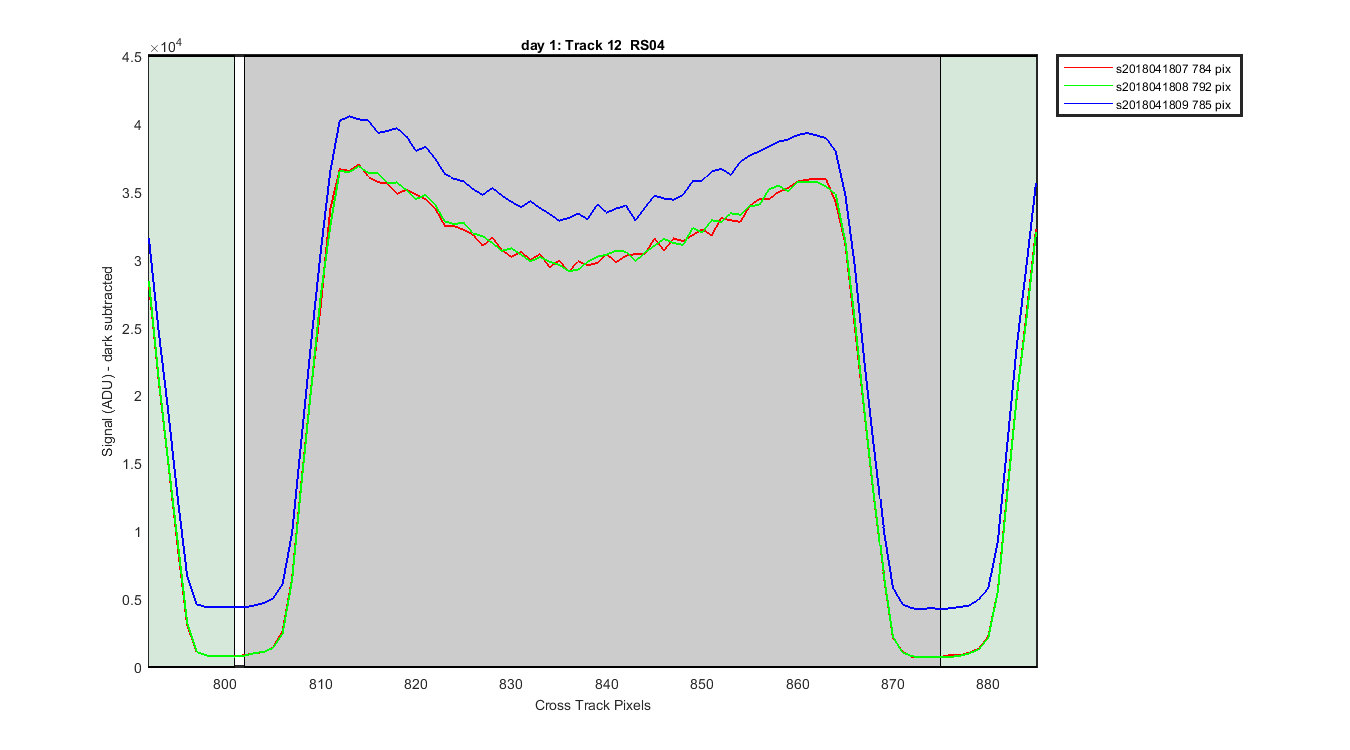

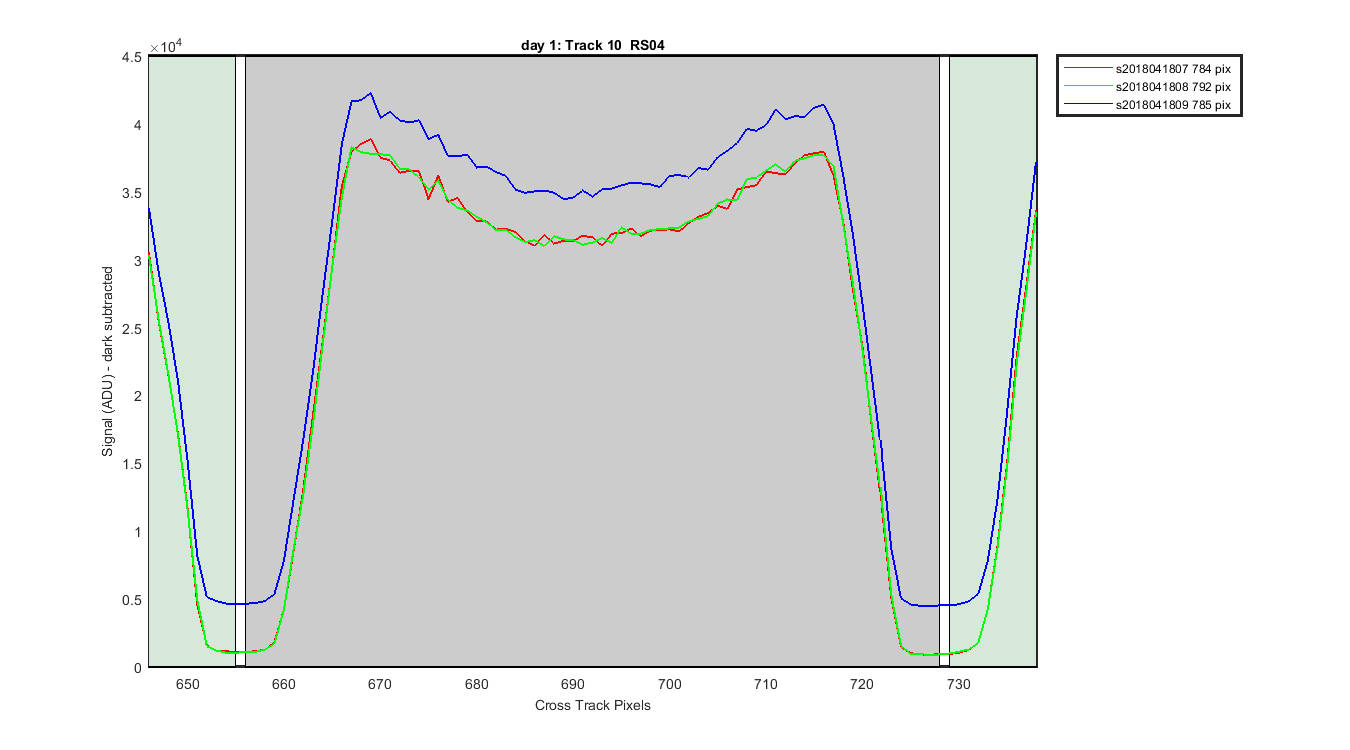

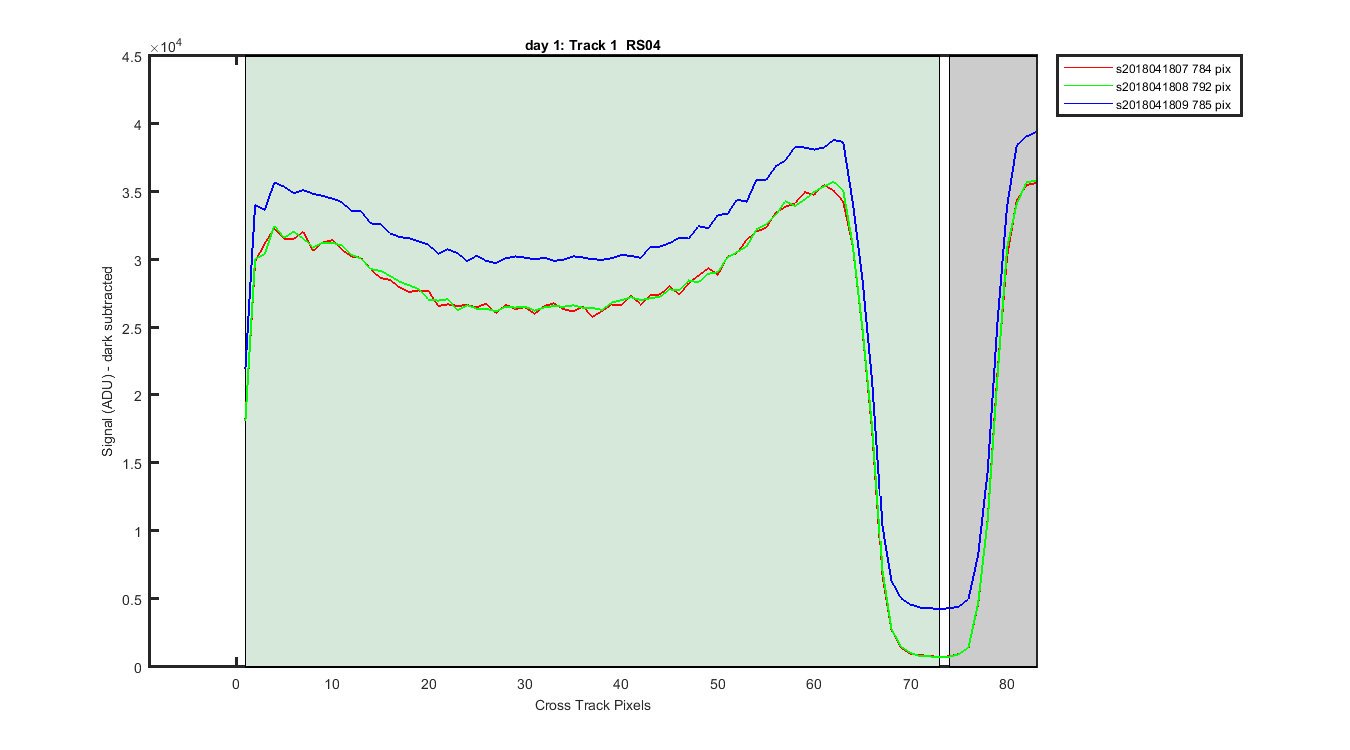

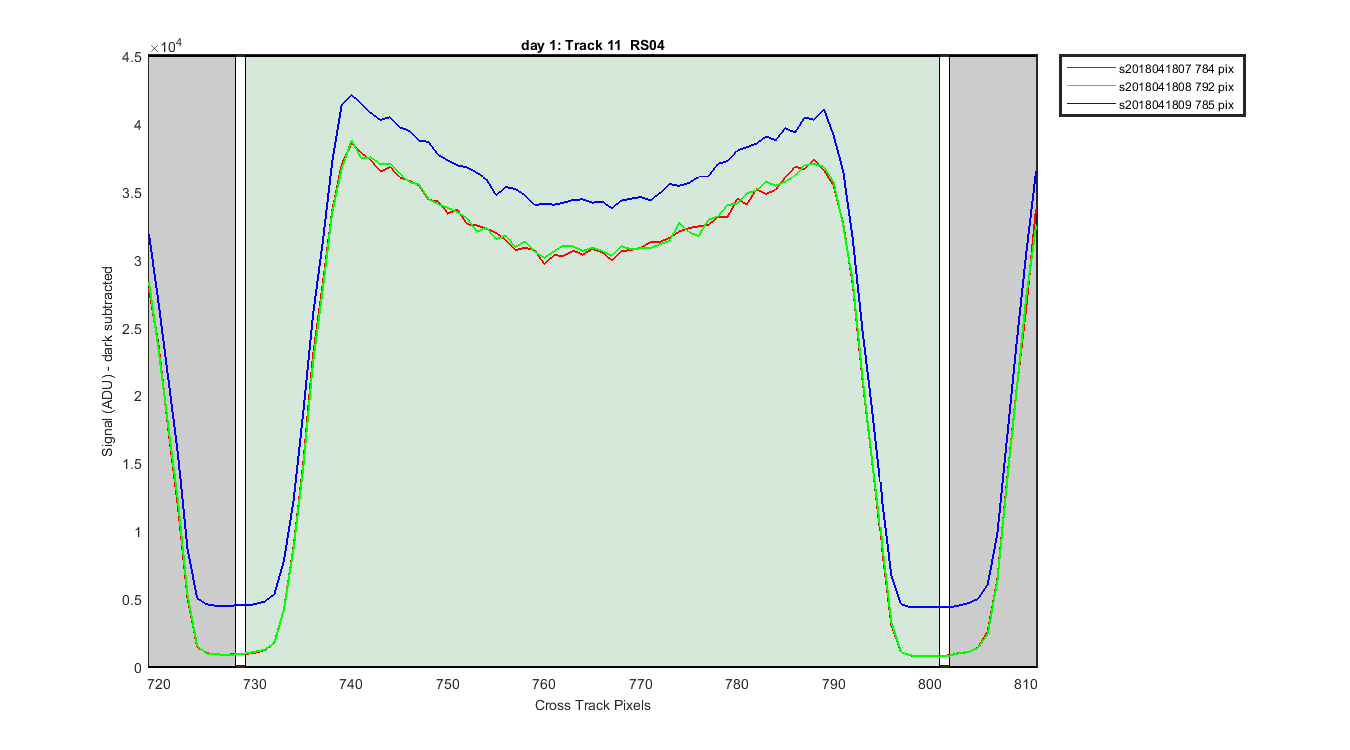

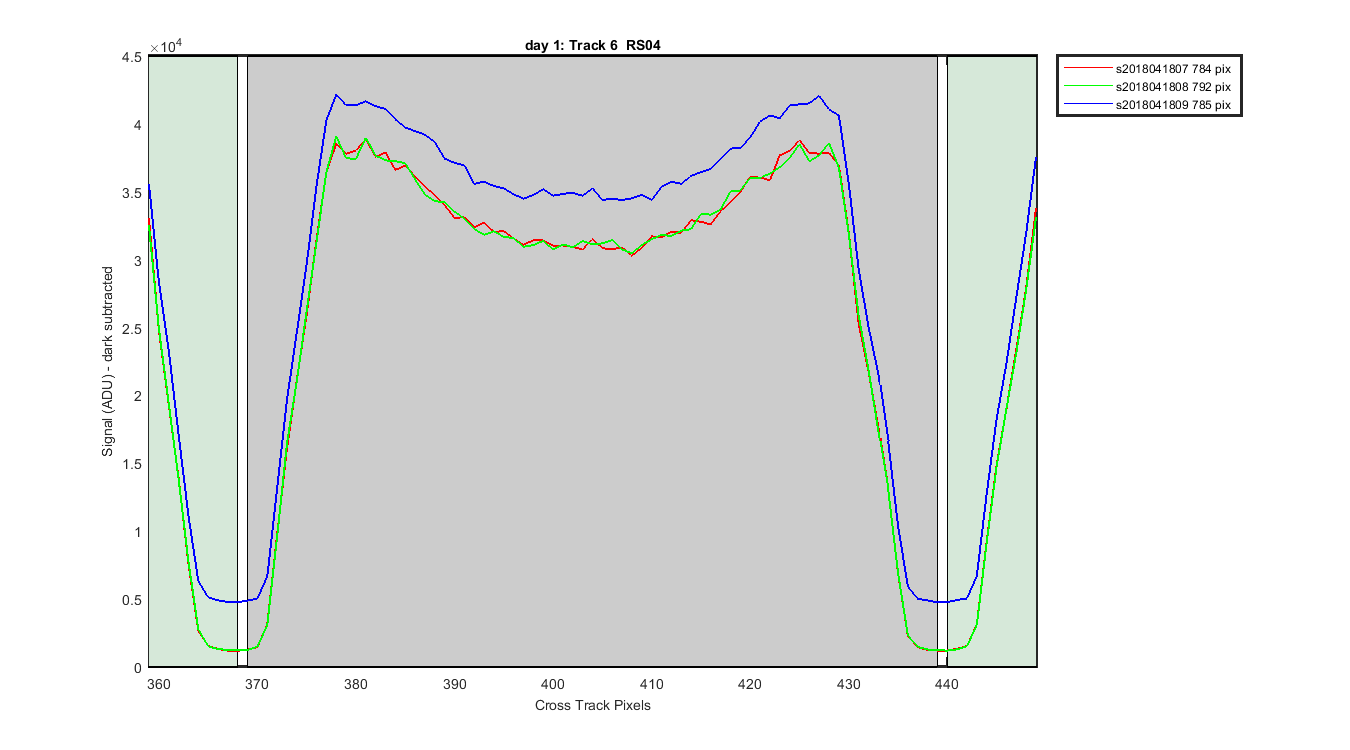

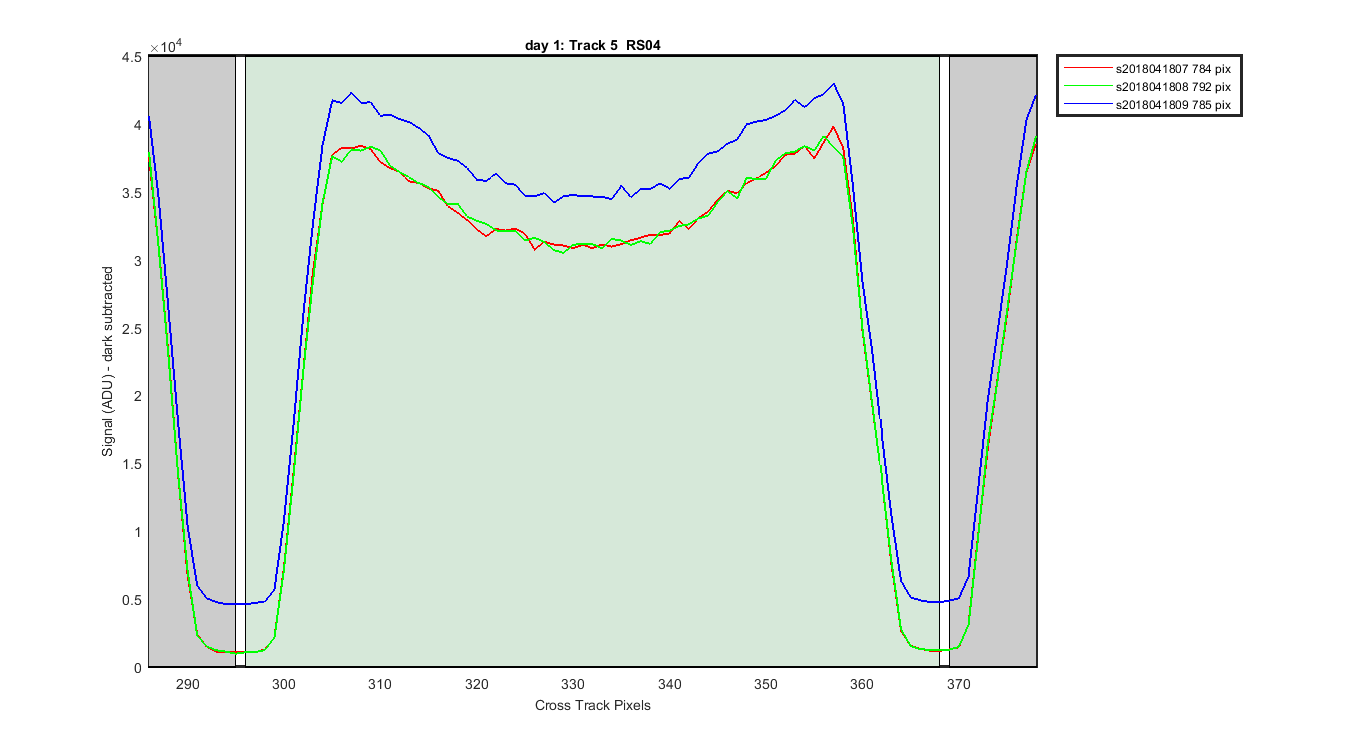

The graphs below show how I defined the tracks. Grey/green patches are what is averaged for each track.


Track pixels:
Track:  1       2       3       4       5       6       7       8       9      10      11      12      13      14
Left:   1      74     150     223     296     369     440     512     585     656     729     802     875     951
Right:  73     149     222     295     368     439     511     584     655     728     801     875     950    1024

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

Figure 10

Figure 11

Figure 12

Figure 13

Figure 14

Figure 15
