Day 6

BS_20181206_035929_raw01

REVISION DATE: 06-Dec-2018 13:09:04

Exerimental BS or RS data starting to put data into new Vaux setup.

Table caption: BS03 Data
Filename / Fit#	Type	file creation date	Total Exposure Time	Tracks on	Temperature	Pre Amplifier Gain	Matrix Max (ADU)	Matrix Mean (ADU)	Matrix % std
BS_20181206_035929_raw01 / 001	Dark	06-Dec-2018 03:58:37	22	6	-60	4	4102	4005.0295	0.22673
BS_20181206_035929_raw01 / 001	Lite	06-Dec-2018 03:59:29	22	6	-60	4	52140	4044.1058	13.4654
BS_20181206_035929_raw01 / 002	Dark	06-Dec-2018 03:59:02	22	6	-60	4	5164	4008.0492	0.23756
BS_20181206_035929_raw01 / 002	Lite	06-Dec-2018 03:59:54	22	6	-60	4	52206	4044.9199	13.4709
BS_20181206_035929_raw01 / 003	Dark	06-Dec-2018 04:01:11	22	6	-60	4	4111	4009.4574	0.23746
BS_20181206_035929_raw01 / 003	Lite	06-Dec-2018 04:00:19	22	6	-60	4	52185	4045.3077	13.4581
BS_20181206_035929_raw01 / 004	Dark	06-Dec-2018 04:01:36	22	6	-60	4	4091	4009.8383	0.23783
BS_20181206_035929_raw01 / 004	Lite	06-Dec-2018 04:00:43	22	6	-60	4	52194	4045.5486	13.4602

BS_20181206_035929_raw01 / 005	Dark	06-Dec-2018 04:05:51	0.26	6	-60	4	4005	3964.8073	0.20476
BS_20181206_035929_raw01 / 005	Lite	06-Dec-2018 04:05:59	0.26	6	-60	4	51421	3986.4292	16.6741
BS_20181206_035929_raw01 / 006	Dark	06-Dec-2018 04:05:53	0.26	6	-60	4	4011	3965.4926	0.20392
BS_20181206_035929_raw01 / 006	Lite	06-Dec-2018 04:06:02	0.26	6	-60	4	51424	3986.9337	16.6765
BS_20181206_035929_raw01 / 007	Dark	06-Dec-2018 04:06:13	0.26	6	-60	4	4006	3965.478	0.20487
BS_20181206_035929_raw01 / 007	Lite	06-Dec-2018 04:06:04	0.26	6	-60	4	51853	3987.2607	16.7159
BS_20181206_035929_raw01 / 008	Dark	06-Dec-2018 04:06:15	0.26	6	-60	4	4007	3965.995	0.20432
BS_20181206_035929_raw01 / 008	Lite	06-Dec-2018 04:06:07	0.26	6	-60	4	51778	3987.2781	16.6823

BS_20181206_035929_raw01 / 009	Dark	06-Dec-2018 04:10:39	0.05	6	-60	4	4009	3962.8821	0.20494
BS_20181206_035929_raw01 / 009	Lite	06-Dec-2018 04:10:48	0.05	6	-60	4	63437	4052.5013	37.8743
BS_20181206_035929_raw01 / 010	Dark	06-Dec-2018 04:10:42	0.05	6	-60	4	4001	3963.1092	0.20495
BS_20181206_035929_raw01 / 010	Lite	06-Dec-2018 04:10:50	0.05	6	-60	4	63435	4052.4875	37.8194
BS_20181206_035929_raw01 / 011	Dark	06-Dec-2018 04:11:02	0.05	6	-60	4	4002	3963.1545	0.20526
BS_20181206_035929_raw01 / 011	Lite	06-Dec-2018 04:10:53	0.05	6	-60	4	63439	4052.5706	37.8148
BS_20181206_035929_raw01 / 012	Dark	06-Dec-2018 04:11:04	0.05	6	-60	4	4004	3963.2248	0.20485
BS_20181206_035929_raw01 / 012	Lite	06-Dec-2018 04:10:56	0.05	6	-60	4	63449	4053.4254	37.9838

BS_20181206_035929_raw01 / 013	Dark	06-Dec-2018 04:16:05	10	6	-60	4	4041	3992.6873	0.2091
BS_20181206_035929_raw01 / 013	Lite	06-Dec-2018 04:16:33	10	6	-60	4	51958	4023.2052	13.7865
BS_20181206_035929_raw01 / 014	Dark	06-Dec-2018 04:16:18	10	6	-60	4	4042	3996.4037	0.21105
BS_20181206_035929_raw01 / 014	Lite	06-Dec-2018 04:16:46	10	6	-60	4	51182	4024.5539	13.7701
BS_20181206_035929_raw01 / 015	Dark	06-Dec-2018 04:17:27	10	6	-60	4	4044	4000.0037	0.2156
BS_20181206_035929_raw01 / 015	Lite	06-Dec-2018 04:16:59	10	6	-60	4	51762	4025.3145	13.7675
BS_20181206_035929_raw01 / 016	Dark	06-Dec-2018 04:17:40	10	6	-60	4	4051	4000.3073	0.2166
BS_20181206_035929_raw01 / 016	Lite	06-Dec-2018 04:17:11	10	6	-60	4	51414	4025.7065	13.7559

BS_20181206_035929_raw01 / 017	Dark	06-Dec-2018 04:29:20	80	6	-60	4	4847	4053.5655	0.31084
BS_20181206_035929_raw01 / 017	Lite	06-Dec-2018 04:32:08	80	6	-60	4	52070	4126.3554	17.9439
BS_20181206_035929_raw01 / 018	Dark	06-Dec-2018 04:30:43	80	6	-60	4	15779	4054.5987	0.46291
BS_20181206_035929_raw01 / 018	Lite	06-Dec-2018 04:33:31	80	6	-60	4	52004	4126.4389	17.9244
BS_20181206_035929_raw01 / 019	Dark	06-Dec-2018 04:37:42	80	6	-60	4	4321	4054.877	0.31359
BS_20181206_035929_raw01 / 019	Lite	06-Dec-2018 04:34:54	80	6	-60	4	52122	4126.3561	17.9234
BS_20181206_035929_raw01 / 020	Dark	06-Dec-2018 04:39:05	80	6	-60	4	5220	4054.8699	0.31825
BS_20181206_035929_raw01 / 020	Lite	06-Dec-2018 04:36:16	80	6	-60	4	51684	4126.5302	17.9119

BS_20181206_035929_raw01 / 021	Dark	06-Dec-2018 04:55:06	0.36	2	-60	4	4012	3964.5829	0.20622
BS_20181206_035929_raw01 / 021	Lite	06-Dec-2018 04:55:14	0.36	2	-60	4	51627	3984.7218	14.4124
BS_20181206_035929_raw01 / 022	Dark	06-Dec-2018 04:55:08	0.36	2	-60	4	4004	3965.2054	0.20696
BS_20181206_035929_raw01 / 022	Lite	06-Dec-2018 04:55:17	0.36	2	-60	4	51300	3985.3227	14.395
BS_20181206_035929_raw01 / 023	Dark	06-Dec-2018 04:55:28	0.36	2	-60	4	4006	3965.4803	0.20683
BS_20181206_035929_raw01 / 023	Lite	06-Dec-2018 04:55:19	0.36	2	-60	4	51409	3985.8507	14.4189
BS_20181206_035929_raw01 / 024	Dark	06-Dec-2018 04:55:30	0.36	2	-60	4	4012	3966.1383	0.20689
BS_20181206_035929_raw01 / 024	Lite	06-Dec-2018 04:55:22	0.36	2	-60	4	51516	3985.87	14.4317

BS_20181206_035929_raw01 / 025	Dark	06-Dec-2018 05:01:08	0.06	2	-60	4	4008	3963.3781	0.20451
BS_20181206_035929_raw01 / 025	Lite	06-Dec-2018 05:01:17	0.06	2	-60	4	51127	4010.3692	20.4378
BS_20181206_035929_raw01 / 026	Dark	06-Dec-2018 05:01:11	0.06	2	-60	4	4004	3963.4884	0.20444
BS_20181206_035929_raw01 / 026	Lite	06-Dec-2018 05:01:19	0.06	2	-60	4	51312	4010.3644	20.43
BS_20181206_035929_raw01 / 027	Dark	06-Dec-2018 05:01:30	0.06	2	-60	4	4004	3963.5277	0.20434
BS_20181206_035929_raw01 / 027	Lite	06-Dec-2018 05:01:22	0.06	2	-60	4	51807	4010.5803	20.4744
BS_20181206_035929_raw01 / 028	Dark	06-Dec-2018 05:01:33	0.06	2	-60	4	4005	3963.7462	0.20457
BS_20181206_035929_raw01 / 028	Lite	06-Dec-2018 05:01:25	0.06	2	-60	4	51248	4010.5285	20.4425

Grouped Image file: BS_20181206_N001_grouped.html
Grouped Image file: BS_20181206_N002_grouped.html
Grouped Image file: BS_20181206_N003_grouped.html
Grouped Image file: BS_20181206_N005_grouped.html
Grouped Image file: BS_20181206_N006_grouped.html
Grouped Image file: BS_20181206_N007_grouped.html
Grouped Image file: BS_20181206_N009_grouped.html
Grouped Image file: BS_20181206_N020_grouped.html
Grouped Image file: BS_20181206_N022_grouped.html

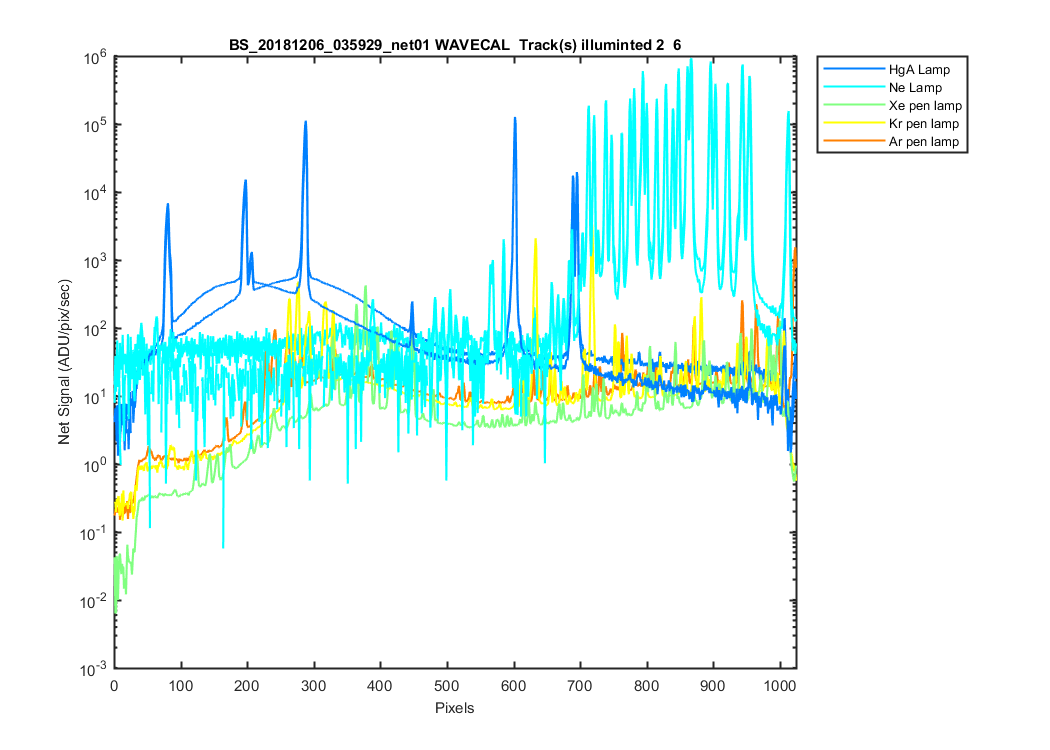

Figure 1

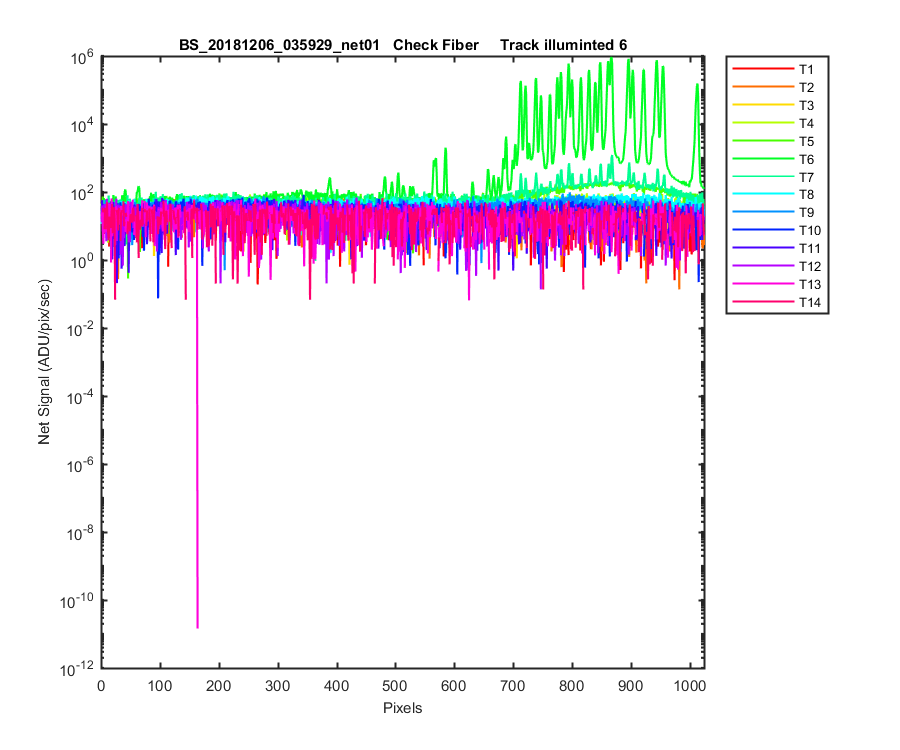

Figure 2

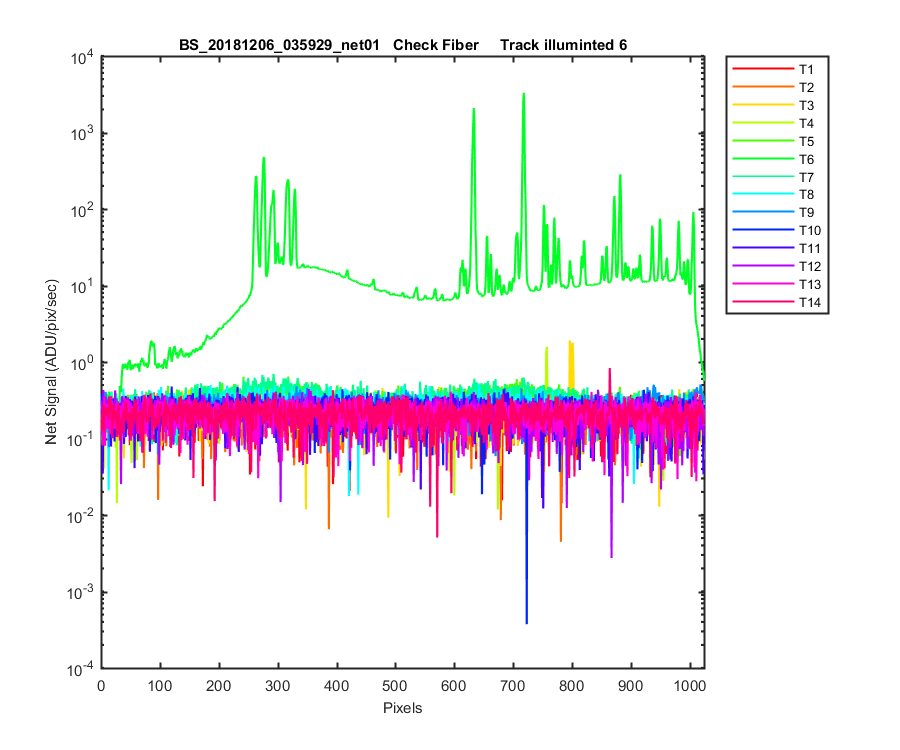

Figure 3

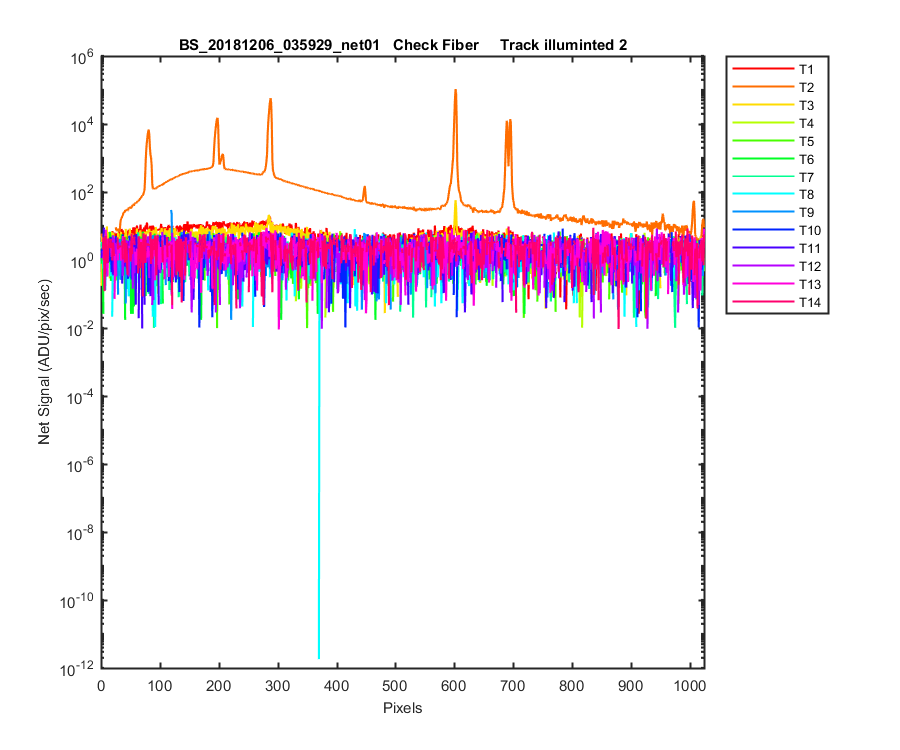

Figure 4

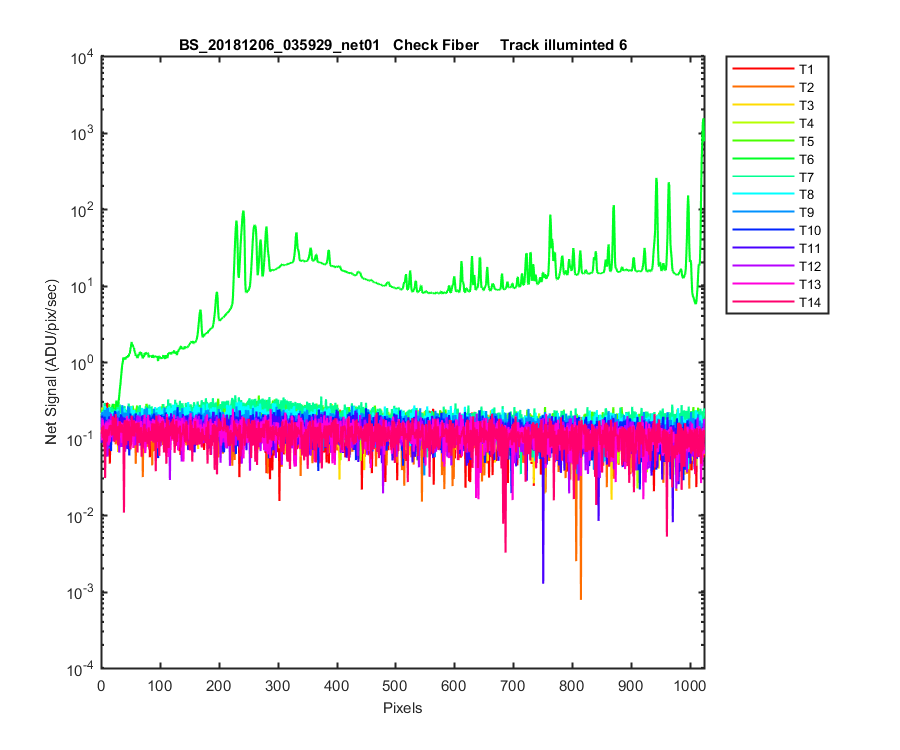

Figure 5

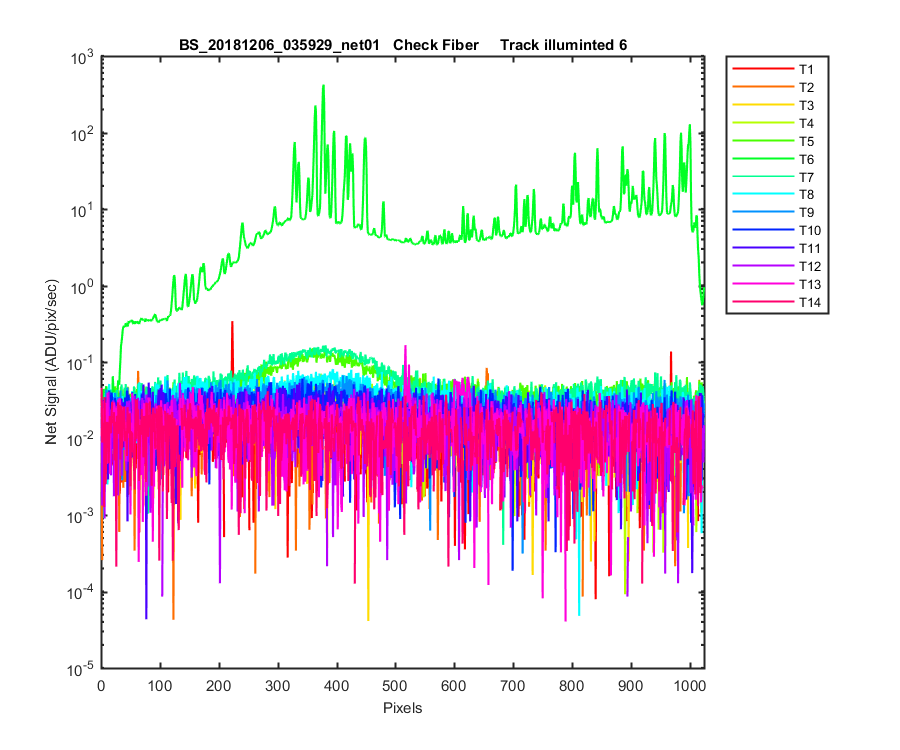

Figure 6

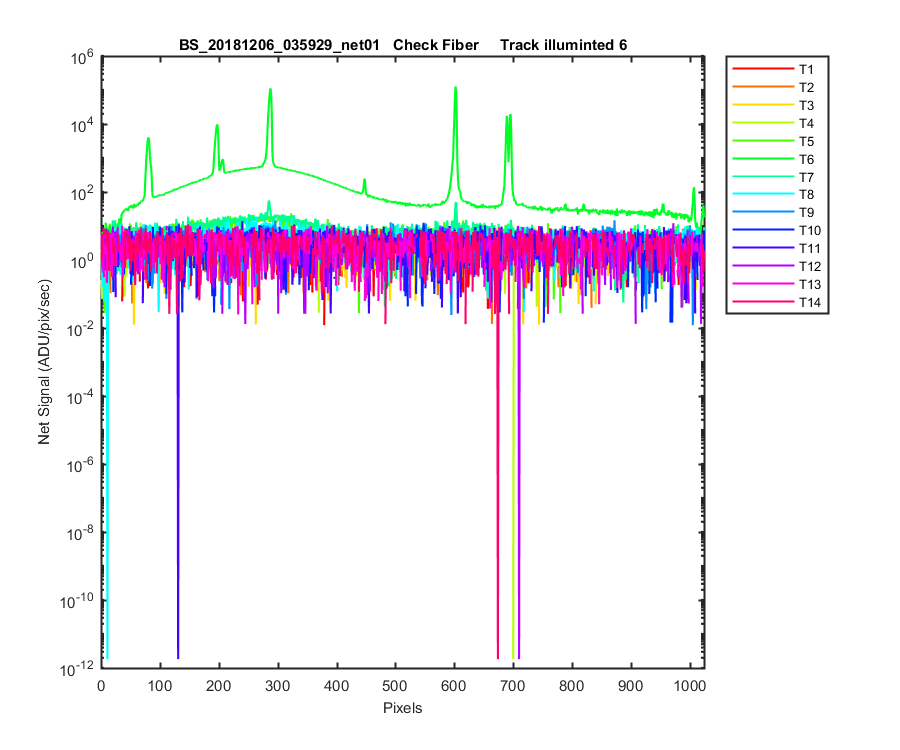

Figure 7

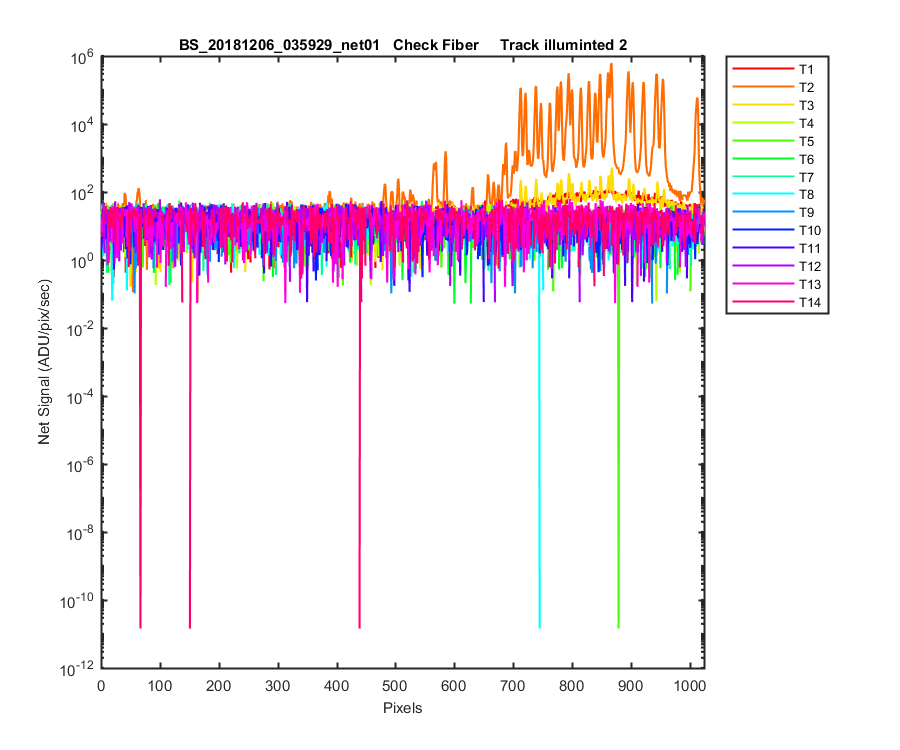

Figure 8
