RS_20181016_041905_raw01

REVISION DATE: 06-Dec-2018 10:31:54

Exerimental BS or RS data starting to put data into new Vaux setup.

Table caption: RS04 Data
Filename / Fit# Type file creation date Total Exposure Time Tracks on Temperature Pre Amplifier Gain Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
RS_20181016_041905_raw01 / 001 Dark 16-Oct-2018 04:18:48 4.5 13 -41 4 5780 3636.9833 0.33926
RS_20181016_041905_raw01 / 001 Lite 16-Oct-2018 04:19:05 4.5 13 -41 4 53944 4486.172 111.1326
RS_20181016_041905_raw01 / 002 Dark 16-Oct-2018 04:19:30 4.5 13 -41 4 4207 3638.3298 0.3264
RS_20181016_041905_raw01 / 002 Lite 16-Oct-2018 04:19:12 4.5 13 -41 4 53345 4486.0075 111.1111
RS_20181016_041905_raw01 / 003 Dark 16-Oct-2018 04:24:46 5.5 9 -41 4 4339 3651.4857 0.35761
RS_20181016_041905_raw01 / 003 Lite 16-Oct-2018 04:25:04 5.5 9 -41 4 51679 4468.8124 108.5978
RS_20181016_041905_raw01 / 004 Dark 16-Oct-2018 04:25:30 5.5 9 -41 4 4317 3652.3699 0.35834
RS_20181016_041905_raw01 / 004 Lite 16-Oct-2018 04:25:12 5.5 9 -41 4 51626 4468.9703 108.5939
RS_20181016_041905_raw01 / 005 Dark 16-Oct-2018 04:33:02 22 6 -41 4 6539 3885.3872 0.93959
RS_20181016_041905_raw01 / 005 Lite 16-Oct-2018 04:33:37 22 6 -41 4 53370 4734.3151 106.2768
RS_20181016_041905_raw01 / 006 Dark 16-Oct-2018 04:34:36 22 6 -41 4 6531 3885.7097 0.94198
RS_20181016_041905_raw01 / 006 Lite 16-Oct-2018 04:34:01 22 6 -41 4 53059 4734.1446 106.243
RS_20181016_041905_raw01 / 007 Dark 16-Oct-2018 04:44:27 2 2 -41 4 3861 3603.4674 0.25937
RS_20181016_041905_raw01 / 007 Lite 16-Oct-2018 04:44:42 2 2 -41 4 51877 4474.831 111.1127
RS_20181016_041905_raw01 / 008 Dark 16-Oct-2018 04:45:01 2 2 -41 4 3849 3604.031 0.25915
RS_20181016_041905_raw01 / 008 Lite 16-Oct-2018 04:44:46 2 2 -41 4 51790 4474.4945 111.0603
Grouped Image file: RS_20181016_N001_grouped.html
Grouped Image file: RS_20181016_N002_grouped.html
Grouped Image file: RS_20181016_N003_grouped.html
Grouped Image file: RS_20181016_N005_grouped.html
Grouped Image file: RS_20181016_N006_grouped.html
Grouped Image file: RS_20181016_N007_grouped.html
Grouped Image file: RS_20181016_N009_grouped.html
Grouped Image file: RS_20181016_N020_grouped.html
Grouped Image file: RS_20181016_N022_grouped.html

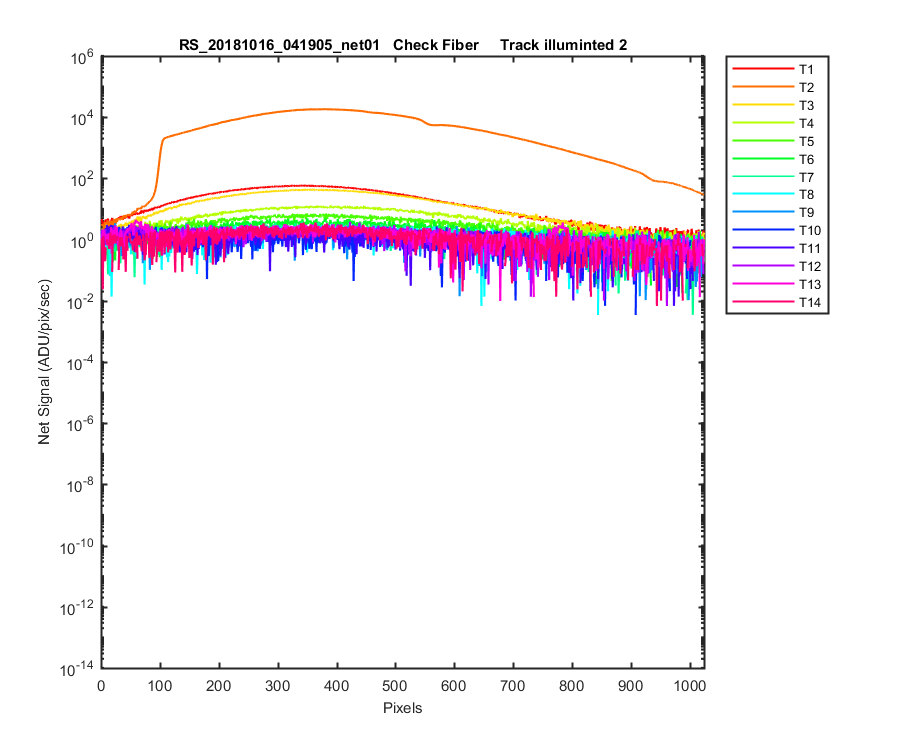

Figure 1

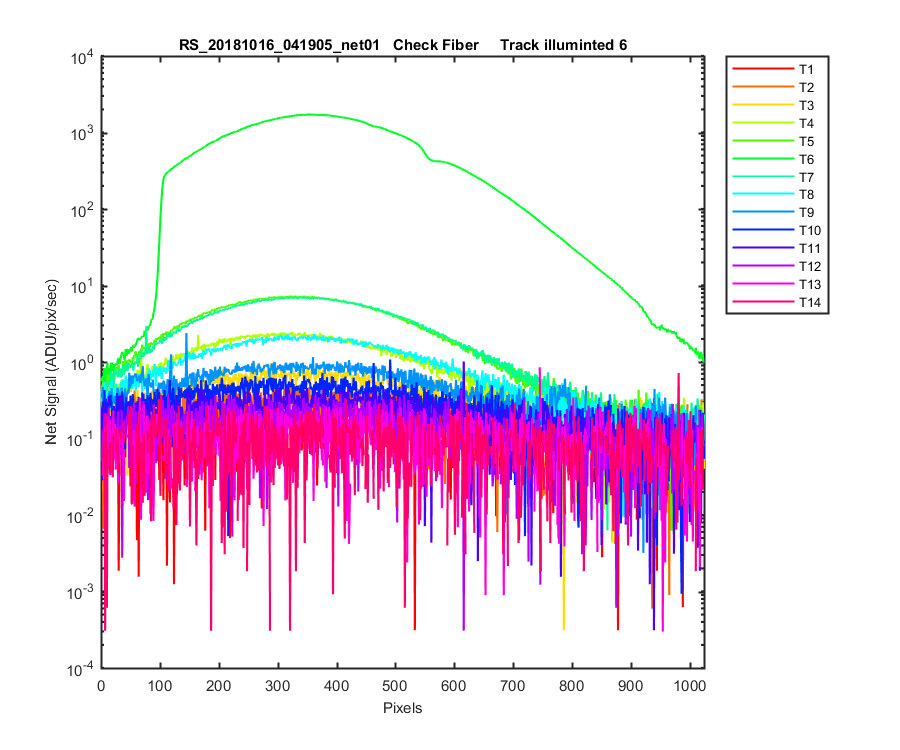

Figure 2

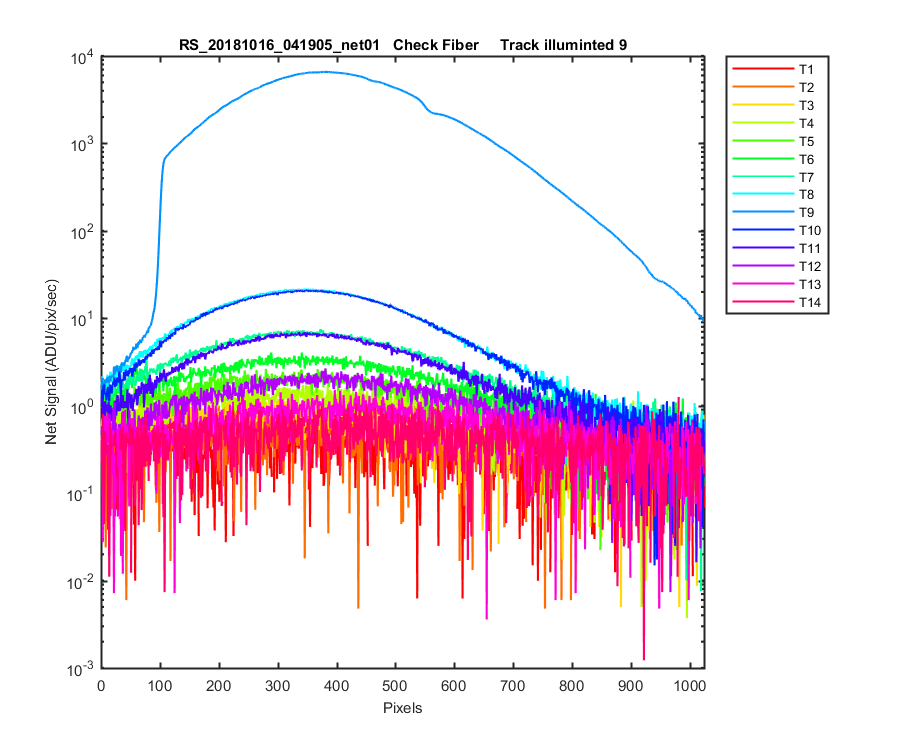

Figure 3

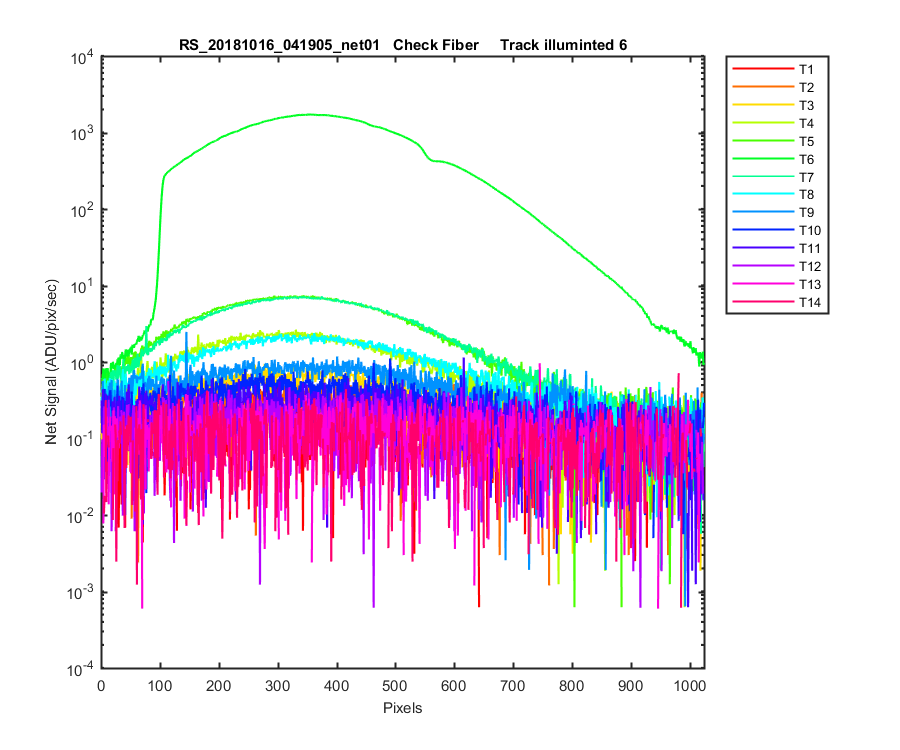

Figure 4

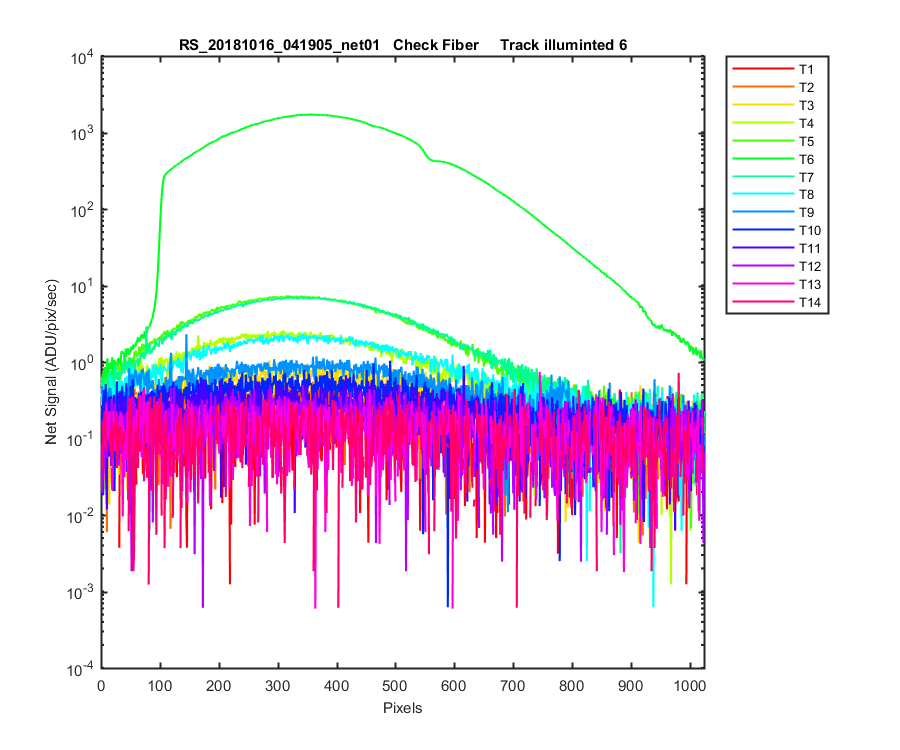

Figure 5

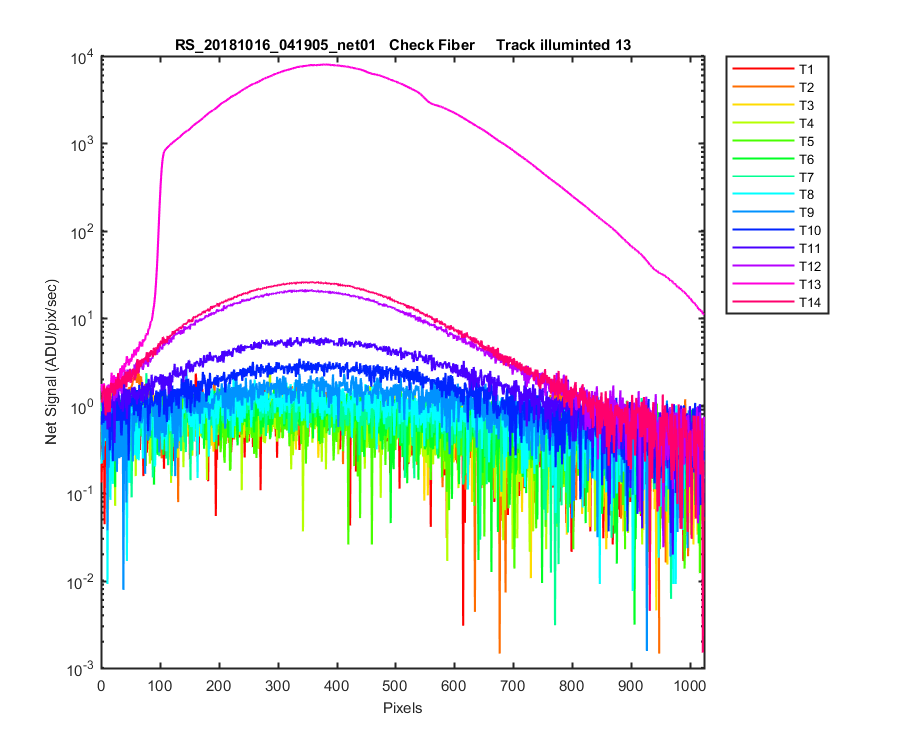

Figure 6

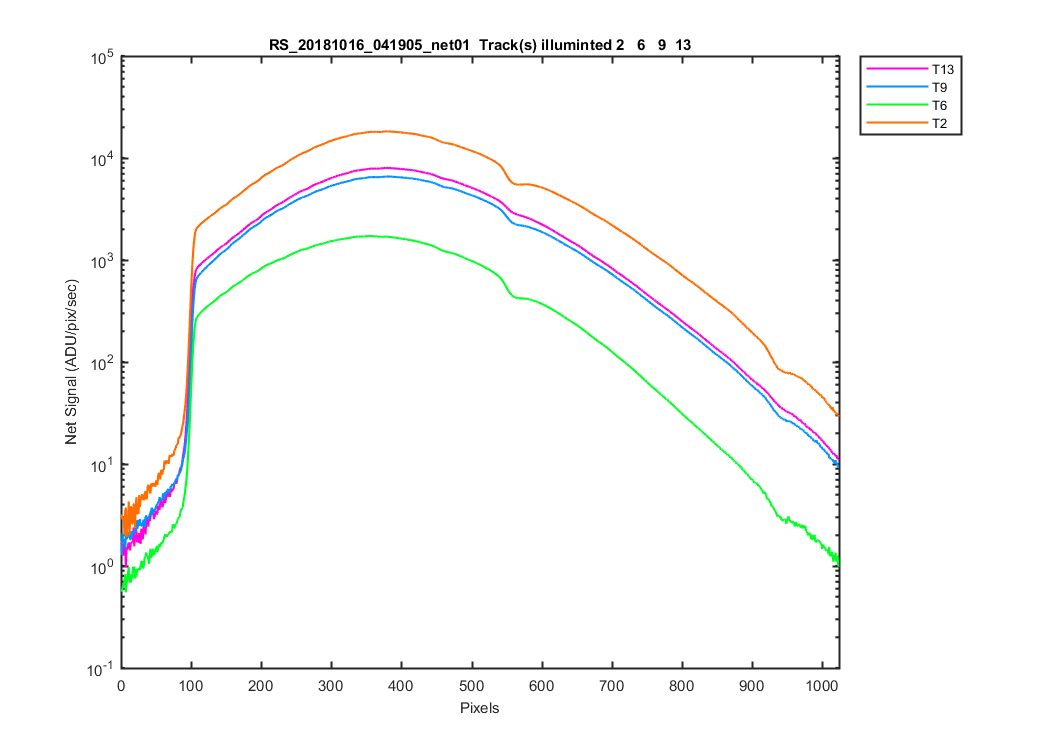

Figure 7

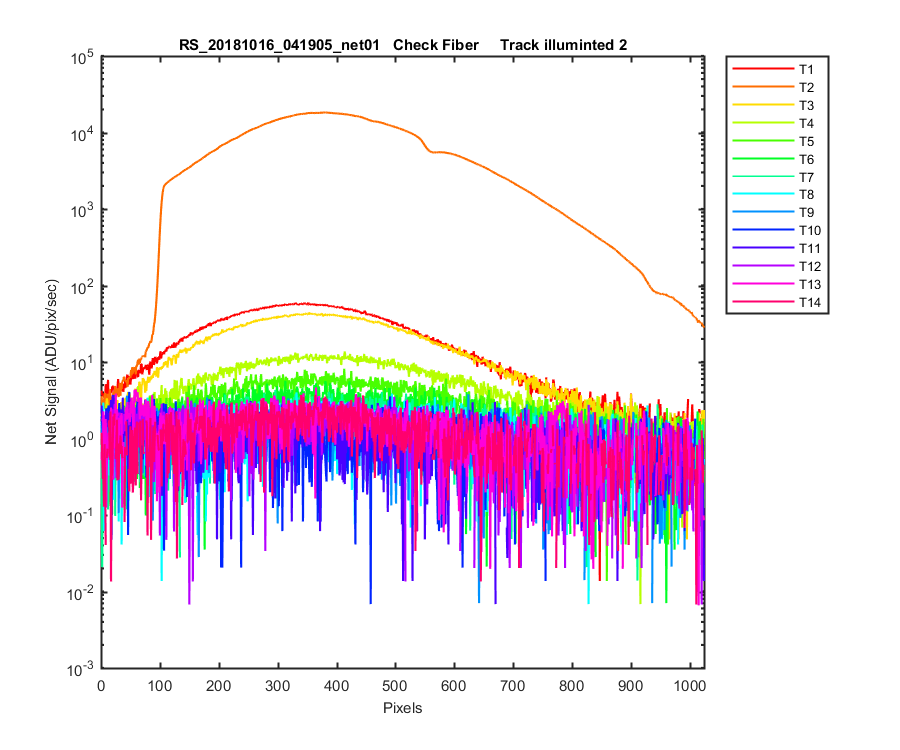

Figure 8


Figure 9
