Day 6

RS_20181206_035842_raw01

REVISION DATE: 06-Dec-2018 11:56:34

Exerimental BS or RS data starting to put data into new Vaux setup.

Table caption: RS04 Data
Filename / Fit#	Type	file creation date	Total Exposure Time	Tracks on	Temperature	Pre Amplifier Gain	Matrix Max (ADU)	Matrix Mean (ADU)	Matrix % std
RS_20181206_035842_raw01 / 001	Dark	06-Dec-2018 03:58:27	0.23	6	-60	4	3700	3660.5966	0.20715
RS_20181206_035842_raw01 / 001	Lite	06-Dec-2018 03:58:42	0.23	6	-60	4	51463	3688.9004	16.9906
RS_20181206_035842_raw01 / 002	Dark	06-Dec-2018 03:58:29	0.23	6	-60	4	3696	3660.576	0.20676
RS_20181206_035842_raw01 / 002	Lite	06-Dec-2018 03:58:45	0.23	6	-60	4	51914	3689.2999	17.1674
RS_20181206_035842_raw01 / 003	Dark	06-Dec-2018 03:59:03	0.23	6	-60	4	3698	3660.8559	0.20693
RS_20181206_035842_raw01 / 003	Lite	06-Dec-2018 03:58:47	0.23	6	-60	4	51627	3689.2992	17.1997
RS_20181206_035842_raw01 / 004	Dark	06-Dec-2018 03:59:05	0.23	6	-60	4	3700	3660.8461	0.20689
RS_20181206_035842_raw01 / 004	Lite	06-Dec-2018 03:58:50	0.23	6	-60	4	51890	3689.3413	17.1638

RS_20181206_035842_raw01 / 005	Dark	06-Dec-2018 04:06:02	2.5	6	-60	4	3703	3664.205	0.20884
RS_20181206_035842_raw01 / 005	Lite	06-Dec-2018 04:06:22	2.5	6	-60	4	50606	3678.3587	12.665
RS_20181206_035842_raw01 / 006	Dark	06-Dec-2018 04:06:06	2.5	6	-60	4	3710	3663.9844	0.20901
RS_20181206_035842_raw01 / 006	Lite	06-Dec-2018 04:06:27	2.5	6	-60	4	50839	3678.1763	12.6717
RS_20181206_035842_raw01 / 007	Dark	06-Dec-2018 04:06:53	2.5	6	-60	4	3705	3665.2852	0.20922
RS_20181206_035842_raw01 / 007	Lite	06-Dec-2018 04:06:33	2.5	6	-60	4	50947	3678.035	12.6679
RS_20181206_035842_raw01 / 008	Dark	06-Dec-2018 04:06:59	2.5	6	-60	4	3702	3664.8869	0.20949
RS_20181206_035842_raw01 / 008	Lite	06-Dec-2018 04:06:37	2.5	6	-60	4	50827	3678.2518	12.6576

RS_20181206_035842_raw01 / 009	Dark	06-Dec-2018 04:10:50	0.05	6	-60	4	3698	3661.6115	0.20679
RS_20181206_035842_raw01 / 009	Lite	06-Dec-2018 04:11:06	0.05	6	-60	4	62998	3725.1118	31.0364
RS_20181206_035842_raw01 / 010	Dark	06-Dec-2018 04:10:53	0.05	6	-60	4	3700	3661.6535	0.20612
RS_20181206_035842_raw01 / 010	Lite	06-Dec-2018 04:11:08	0.05	6	-60	4	62988	3725.1877	31.0775
RS_20181206_035842_raw01 / 011	Dark	06-Dec-2018 04:11:27	0.05	6	-60	4	3698	3661.8239	0.20668
RS_20181206_035842_raw01 / 011	Lite	06-Dec-2018 04:11:11	0.05	6	-60	4	62997	3725.2873	31.0821
RS_20181206_035842_raw01 / 012	Dark	06-Dec-2018 04:11:29	0.05	6	-60	4	3699	3661.8261	0.20631
RS_20181206_035842_raw01 / 012	Lite	06-Dec-2018 04:11:14	0.05	6	-60	4	62992	3725.5363	31.1504

RS_20181206_035842_raw01 / 013	Dark	06-Dec-2018 04:16:04	0.18	6	-60	4	3699	3662.0412	0.20679
RS_20181206_035842_raw01 / 013	Lite	06-Dec-2018 04:16:19	0.18	6	-60	4	51436	3683.7921	16.979
RS_20181206_035842_raw01 / 014	Dark	06-Dec-2018 04:16:06	0.18	6	-60	4	3698	3662.0747	0.20652
RS_20181206_035842_raw01 / 014	Lite	06-Dec-2018 04:16:22	0.18	6	-60	4	51452	3683.804	16.9579
RS_20181206_035842_raw01 / 015	Dark	06-Dec-2018 04:16:40	0.18	6	-60	4	3698	3662.0784	0.20711
RS_20181206_035842_raw01 / 015	Lite	06-Dec-2018 04:16:24	0.18	6	-60	4	51373	3683.8779	17.0051
RS_20181206_035842_raw01 / 016	Dark	06-Dec-2018 04:16:43	0.18	6	-60	4	3698	3662.2122	0.20653
RS_20181206_035842_raw01 / 016	Lite	06-Dec-2018 04:16:27	0.18	6	-60	4	51594	3683.944	16.959

RS_20181206_035842_raw01 / 017	Dark	06-Dec-2018 04:28:10	1	6	-60	4	3702	3663.5188	0.2074
RS_20181206_035842_raw01 / 017	Lite	06-Dec-2018 04:28:27	1	6	-60	4	50994	3679.2337	15.3748
RS_20181206_035842_raw01 / 018	Dark	06-Dec-2018 04:28:14	1	6	-60	4	3700	3663.6696	0.20765
RS_20181206_035842_raw01 / 018	Lite	06-Dec-2018 04:28:31	1	6	-60	4	51165	3679.4663	15.3877
RS_20181206_035842_raw01 / 019	Dark	06-Dec-2018 04:28:52	1	6	-60	4	3703	3664.5396	0.20775
RS_20181206_035842_raw01 / 019	Lite	06-Dec-2018 04:28:35	1	6	-60	4	51038	3679.6908	15.3739
RS_20181206_035842_raw01 / 020	Dark	06-Dec-2018 04:28:56	1	6	-60	4	3701	3664.5824	0.2074
RS_20181206_035842_raw01 / 020	Lite	06-Dec-2018 04:28:38	1	6	-60	4	51130	3679.8162	15.3794

RS_20181206_035842_raw01 / 021	Dark	06-Dec-2018 04:55:18	0.66	13	-60	4	3701	3663.807	0.20707
RS_20181206_035842_raw01 / 021	Lite	06-Dec-2018 04:55:35	0.66	13	-60	4	51661	3683.7611	14.5683
RS_20181206_035842_raw01 / 022	Dark	06-Dec-2018 04:55:21	0.66	13	-60	4	3700	3663.8923	0.20737
RS_20181206_035842_raw01 / 022	Lite	06-Dec-2018 04:55:39	0.66	13	-60	4	51622	3683.9227	14.5692
RS_20181206_035842_raw01 / 023	Dark	06-Dec-2018 04:56:00	0.66	13	-60	4	3702	3664.2076	0.20694
RS_20181206_035842_raw01 / 023	Lite	06-Dec-2018 04:55:42	0.66	13	-60	4	51652	3684.0389	14.5722
RS_20181206_035842_raw01 / 024	Dark	06-Dec-2018 04:56:03	0.66	13	-60	4	3703	3664.3507	0.20712
RS_20181206_035842_raw01 / 024	Lite	06-Dec-2018 04:55:46	0.66	13	-60	4	51735	3684.0491	14.5805

RS_20181206_035842_raw01 / 025	Dark	06-Dec-2018 05:01:20	0.05	13	-60	4	3706	3663.1361	0.20669
RS_20181206_035842_raw01 / 025	Lite	06-Dec-2018 05:01:35	0.05	13	-60	4	64536	3931.2985	86.1174
RS_20181206_035842_raw01 / 026	Dark	06-Dec-2018 05:01:22	0.05	13	-60	4	3697	3663.193	0.20667
RS_20181206_035842_raw01 / 026	Lite	06-Dec-2018 05:01:38	0.05	13	-60	4	64534	3930.8596	86.0732
RS_20181206_035842_raw01 / 027	Dark	06-Dec-2018 05:01:56	0.05	13	-60	4	3699	3663.3553	0.20655
RS_20181206_035842_raw01 / 027	Lite	06-Dec-2018 05:01:41	0.05	13	-60	4	64533	3931.4523	86.1904
RS_20181206_035842_raw01 / 028	Dark	06-Dec-2018 05:01:59	0.05	13	-60	4	3700	3663.2829	0.20691
RS_20181206_035842_raw01 / 028	Lite	06-Dec-2018 05:01:43	0.05	13	-60	4	64526	3930.3732	85.959

Grouped Image file: RS_20181206_N001_grouped.html
Grouped Image file: RS_20181206_N002_grouped.html
Grouped Image file: RS_20181206_N003_grouped.html
Grouped Image file: RS_20181206_N005_grouped.html
Grouped Image file: RS_20181206_N006_grouped.html
Grouped Image file: RS_20181206_N007_grouped.html
Grouped Image file: RS_20181206_N009_grouped.html
Grouped Image file: RS_20181206_N020_grouped.html
Grouped Image file: RS_20181206_N022_grouped.html

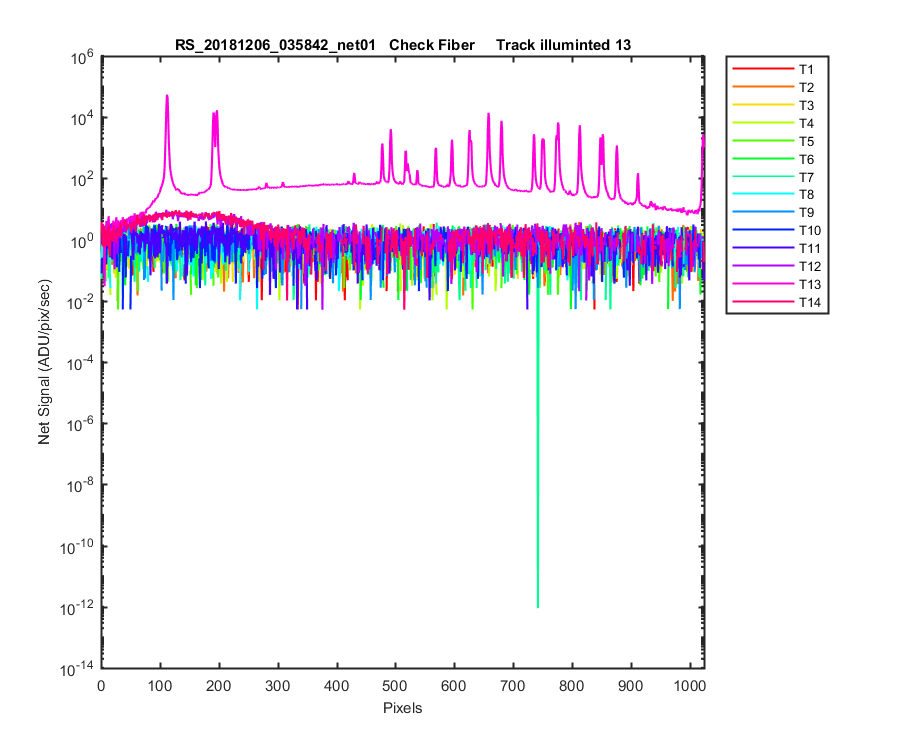

Figure 1

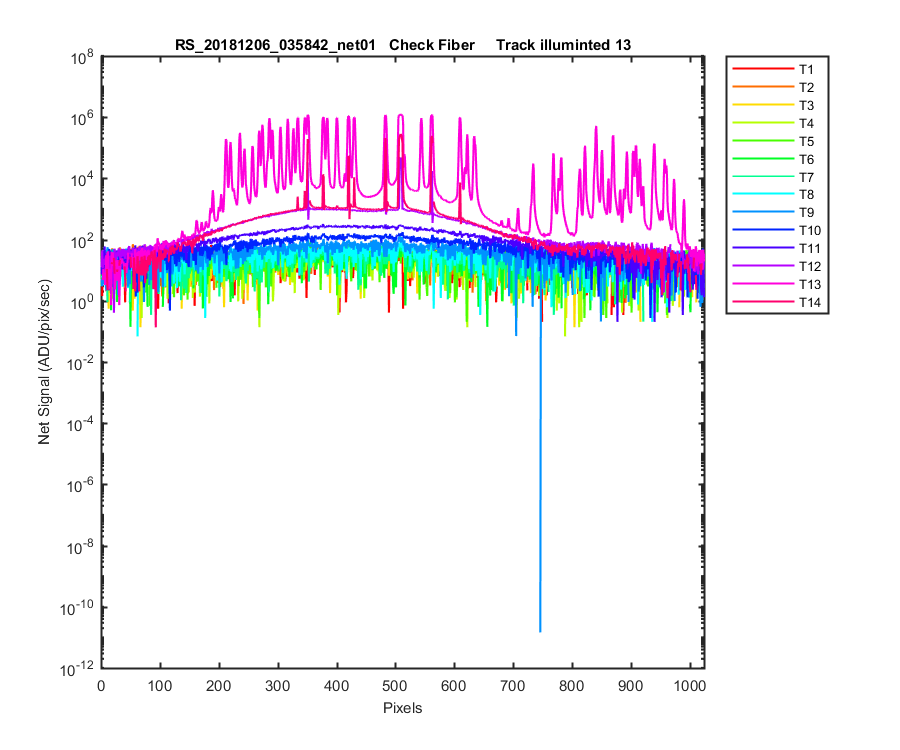

Figure 2

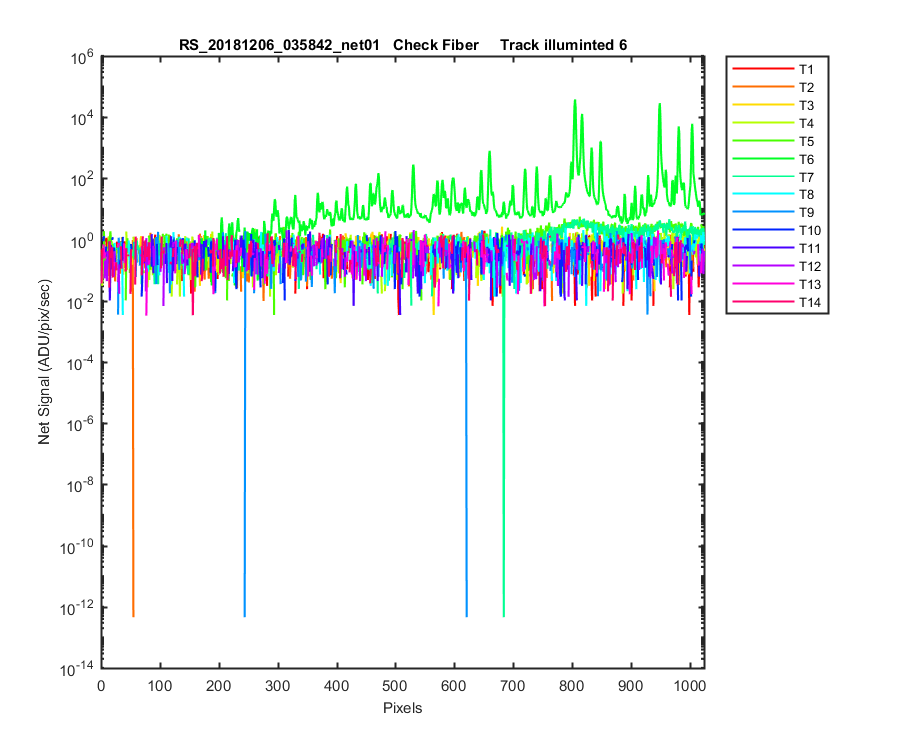

Figure 3

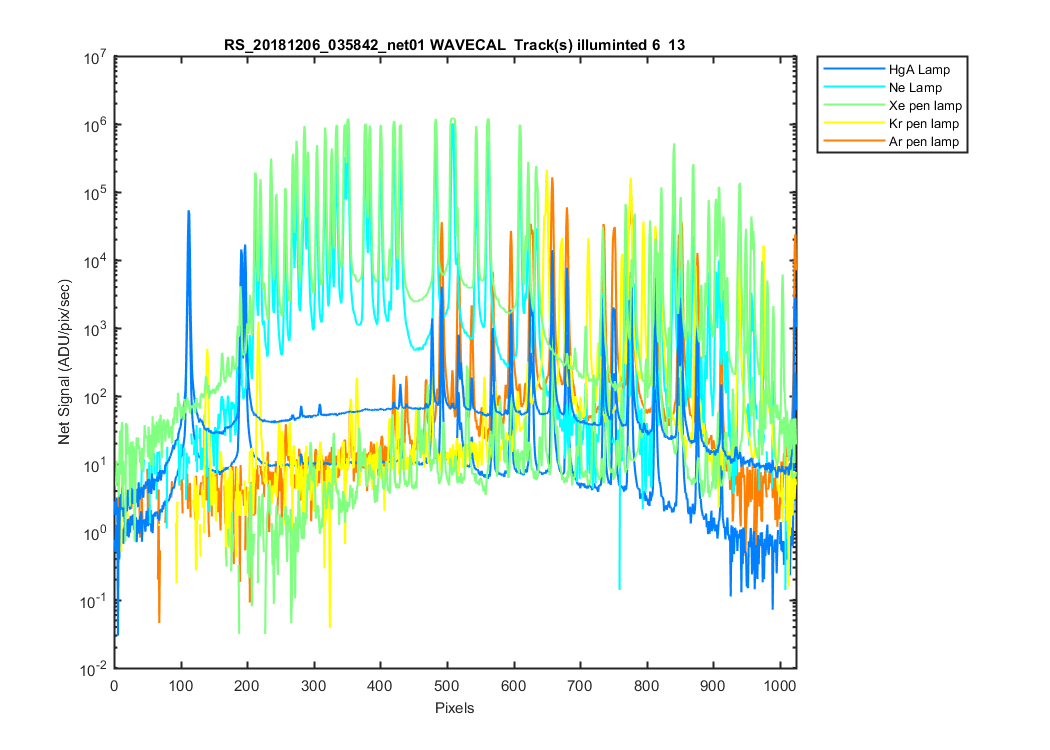

Figure 4

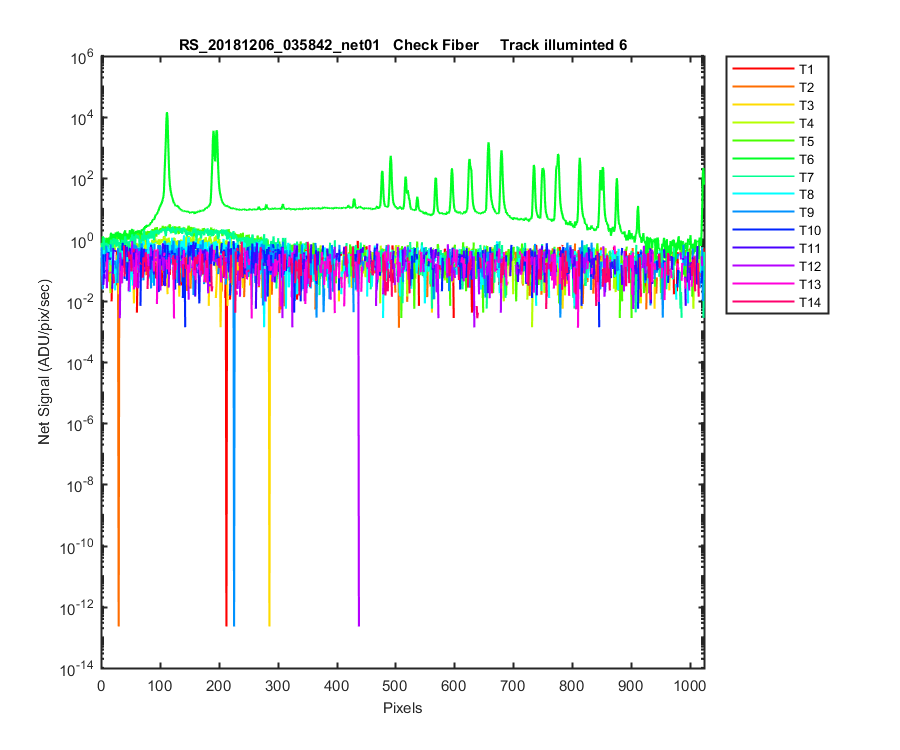

Figure 5

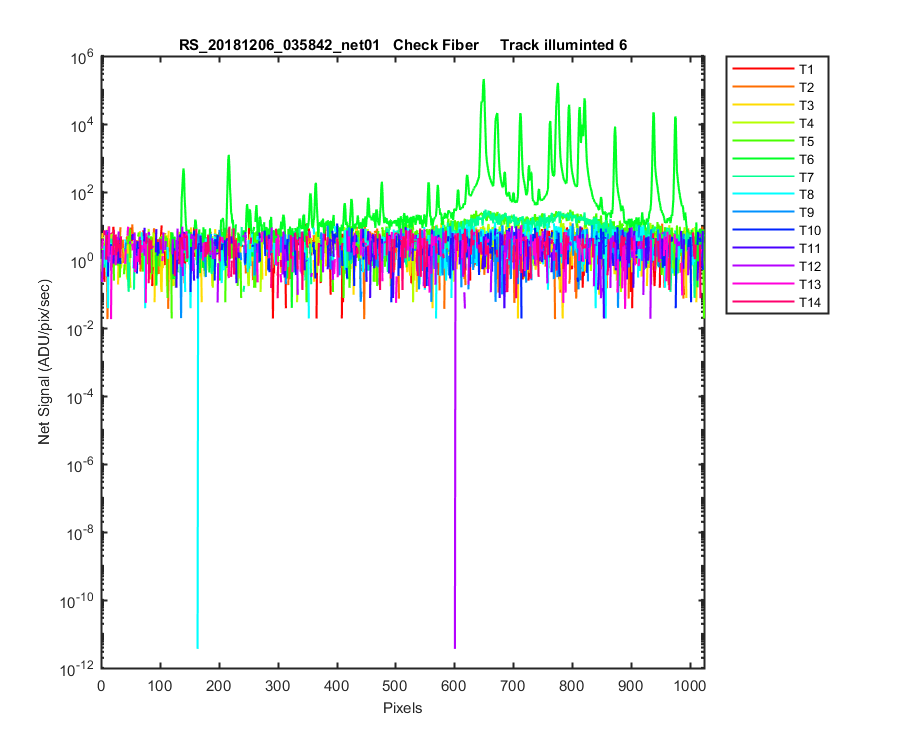

Figure 6

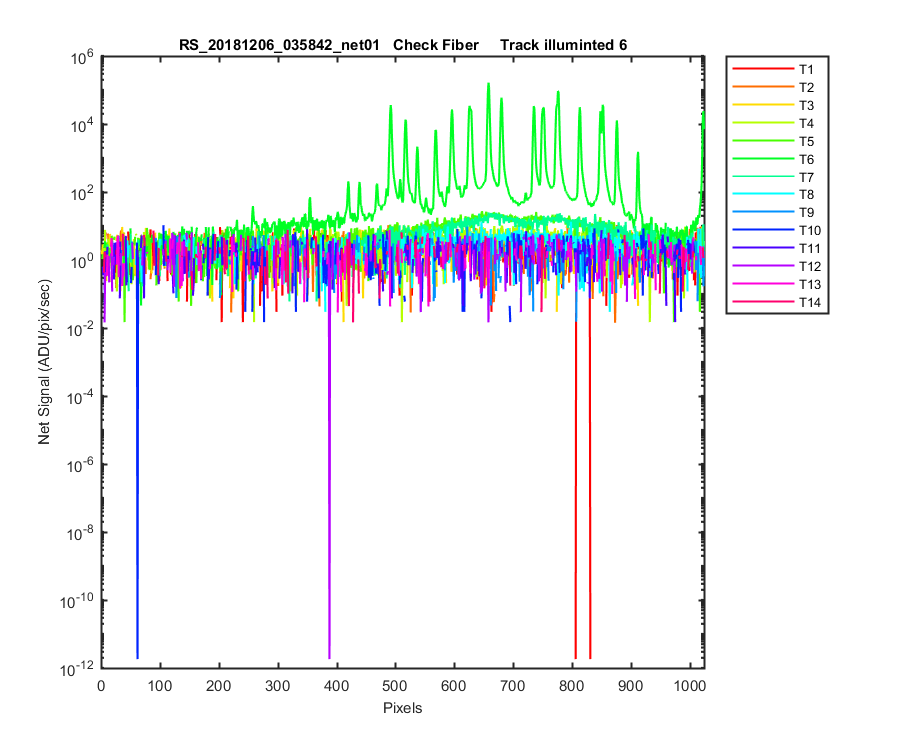

Figure 7

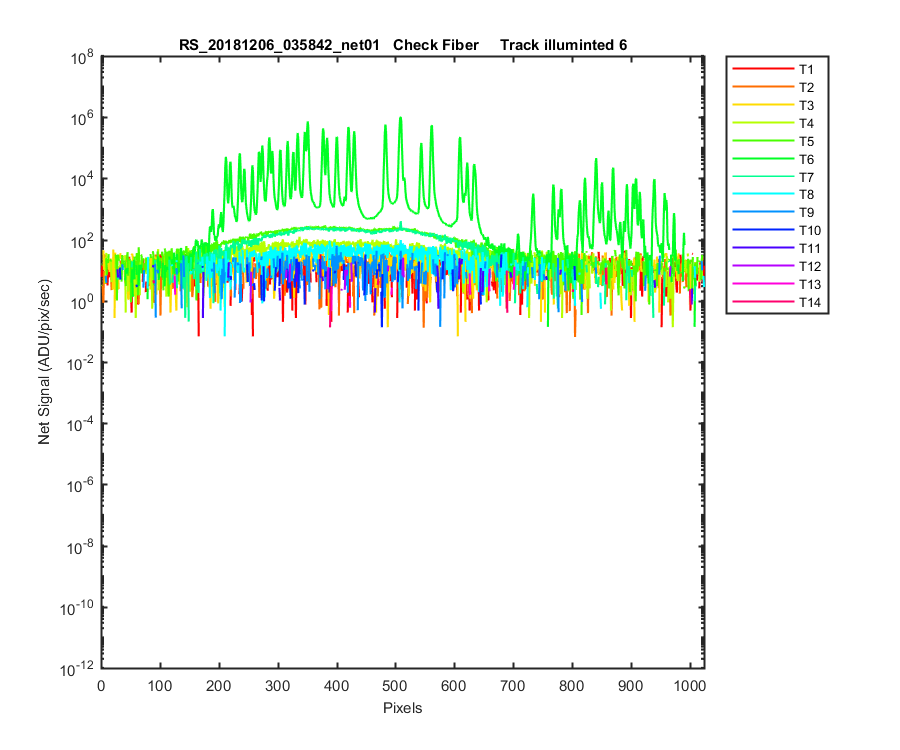

Figure 8
