BS_20190330_064300_raw01 - Day 2

REVISION DATE: 04-Apr-2019 16:50:35

Exerimental BS or RS data starting to put data into new Vaux setup.


Table caption: BS03 Data
Dataset# Filename / Fit# Type file creation date Total Exposure Time Tracks on Temperature Pre Amplifier Gain Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
3 BS_20190330_064300_raw01 / 001 Dark 30-Mar-2019 06:43:00 2 2 -60 4 4054 3994.338 0.22616
3 BS_20190330_064300_raw01 / 002 Dark 30-Mar-2019 06:43:05 2 2 -60 4 4056 3998.3726 0.22354
3 BS_20190330_064300_raw01 / 001 Lite 30-Mar-2019 06:43:21 2 2 -60 4 30728 4455.0614 50.9015
3 BS_20190330_064300_raw01 / 002 Lite 30-Mar-2019 06:43:26 2 2 -60 4 30733 4458.2974 50.8594
3 BS_20190330_064300_raw01 / 003 Lite 30-Mar-2019 06:43:32 2 2 -60 4 30726 4459.4677 50.8425
3 BS_20190330_064300_raw01 / 004 Lite 30-Mar-2019 06:43:37 2 2 -60 4 30659 4460.2501 50.8232
3 BS_20190330_064300_raw01 / 003 Dark 30-Mar-2019 06:43:53 2 2 -60 4 4062 3999.6573 0.22153
3 BS_20190330_064300_raw01 / 004 Dark 30-Mar-2019 06:43:58 2 2 -60 4 4059 4001.393 0.22046

Grouped Image file: BS_20190330_N001_grouped.html
Grouped Image file: BS_20190330_N002_grouped.html
Grouped Image file: BS_20190330_N003_grouped.html
Grouped Image file: BS_20190330_N005_grouped.html
Grouped Image file: BS_20190330_N006_grouped.html
Grouped Image file: BS_20190330_N007_grouped.html
Grouped Image file: BS_20190330_N009_grouped.html
Grouped Image file: BS_20190330_N020_grouped.html
Grouped Image file: BS_20190330_N022_grouped.html

Graphs below are of the Nets for a dataset. A dataset is a group of dark-lite-dark files that Mike says in his logsheet are collected together. One net = darks before and after averaged then , lights averaged, then avg_lite-avg_dark and the avg_net divided by intergration time for each track.

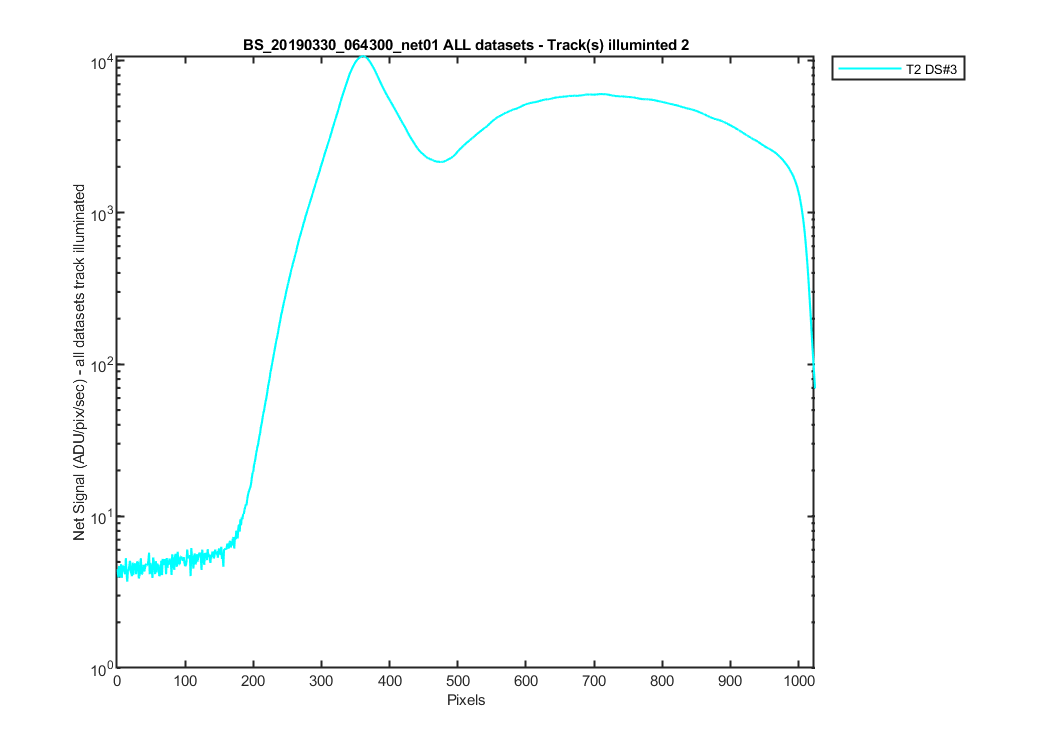

Figure 1 A: All the net data sets with a track illuminated. This shows ALL the net tracks with light on them.

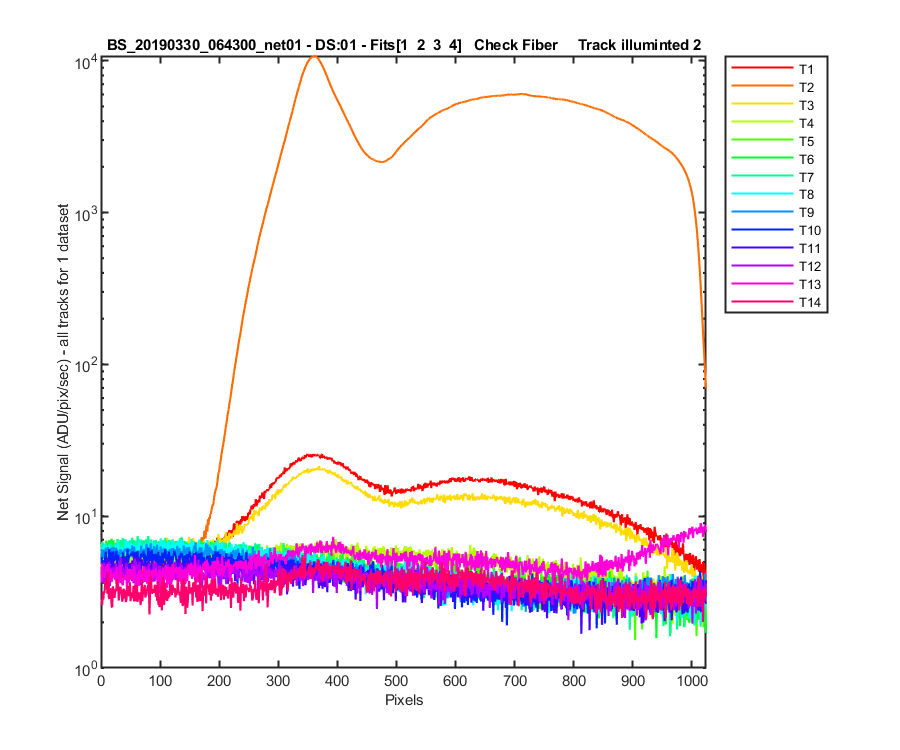

Figure 2 A: The net for one dataset (dark-lite-dark) for all tracks illuminated or not. This allows you to see the straylight on other tracks. The dataset number and fits files used to create this net are in the title of the figure.

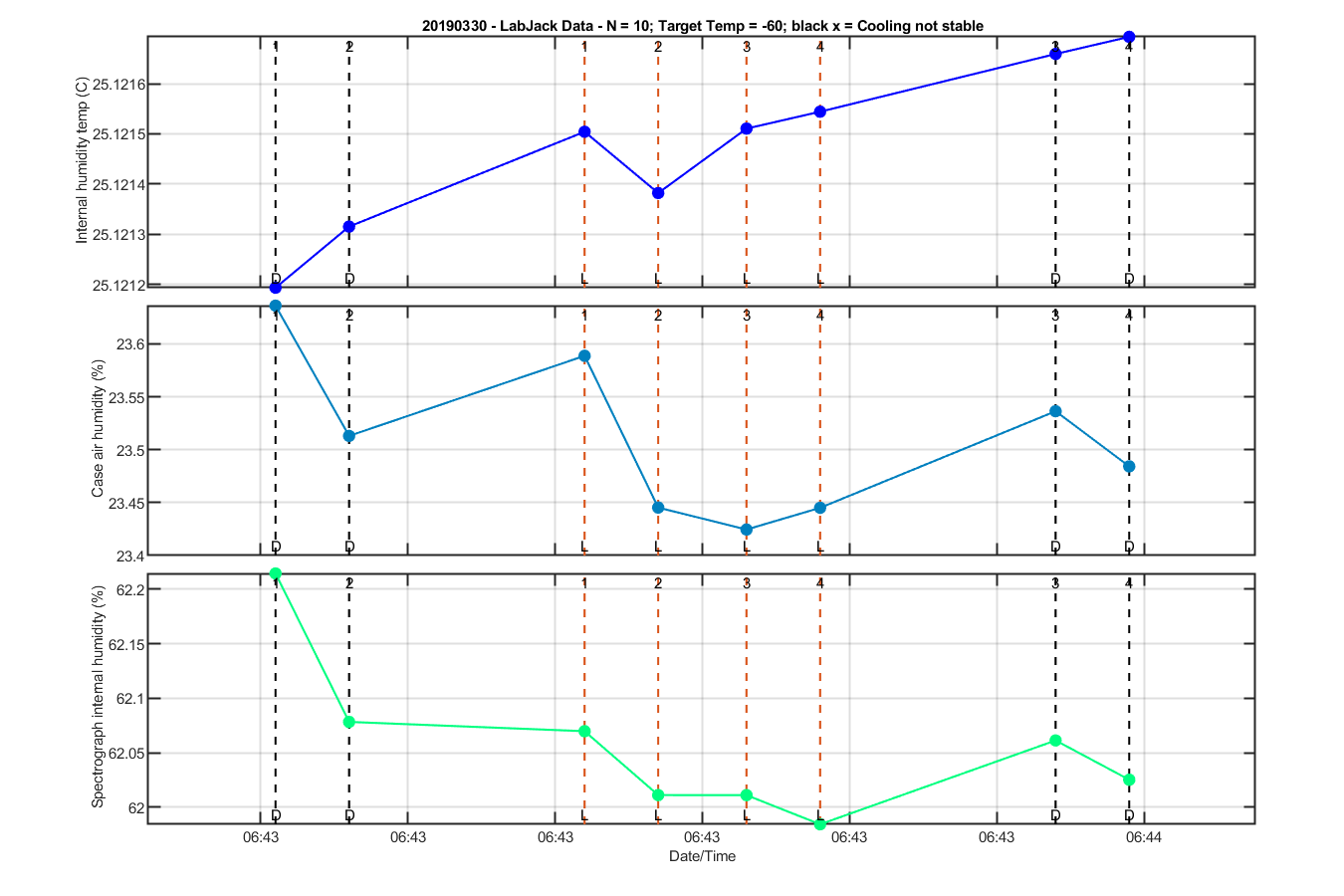

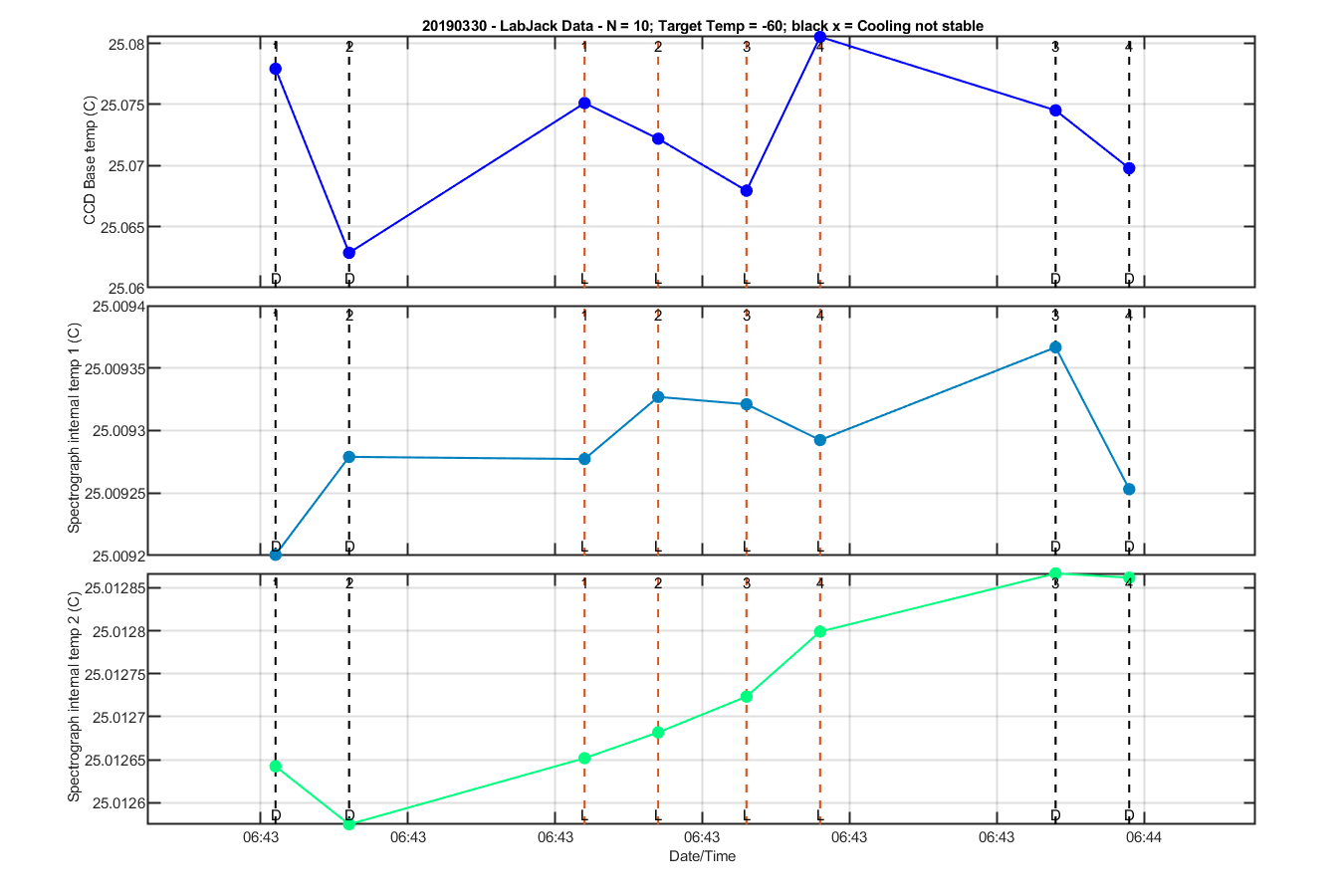

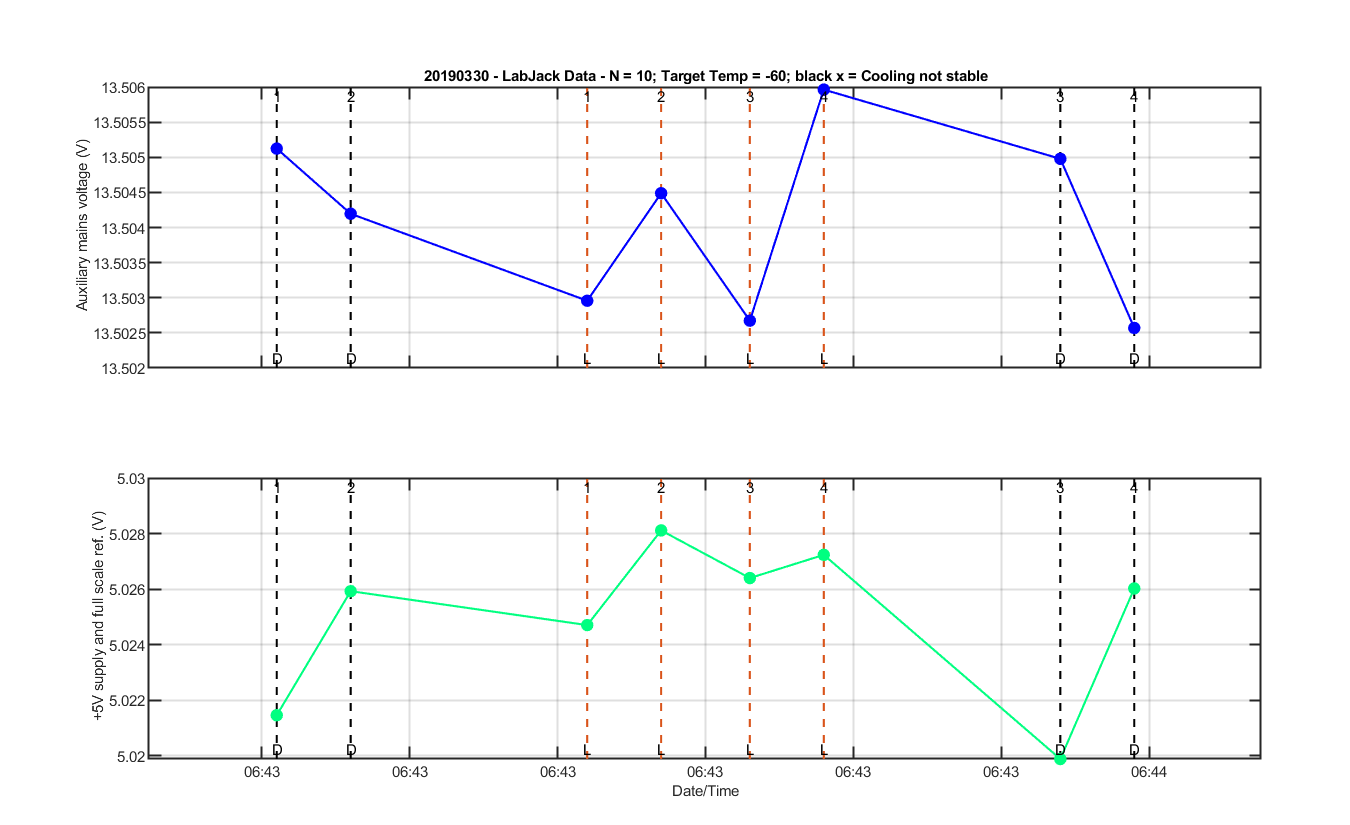

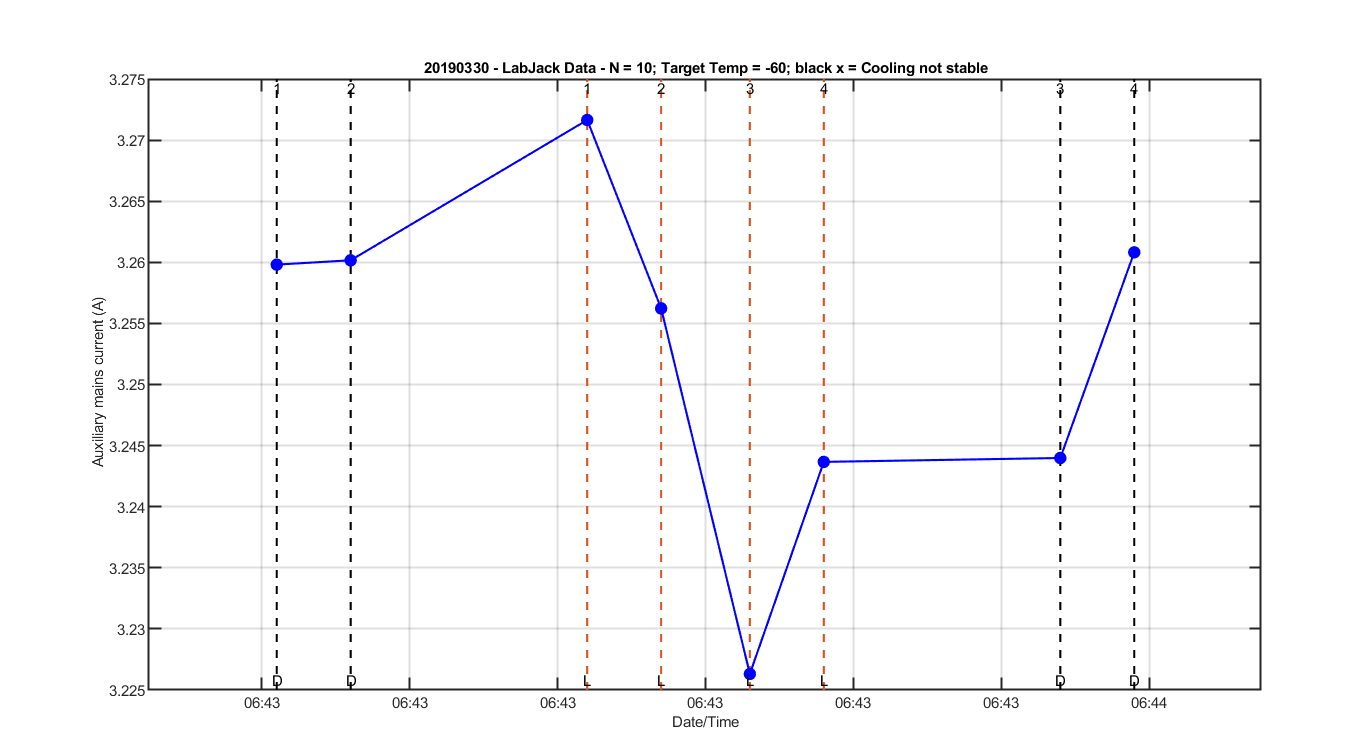

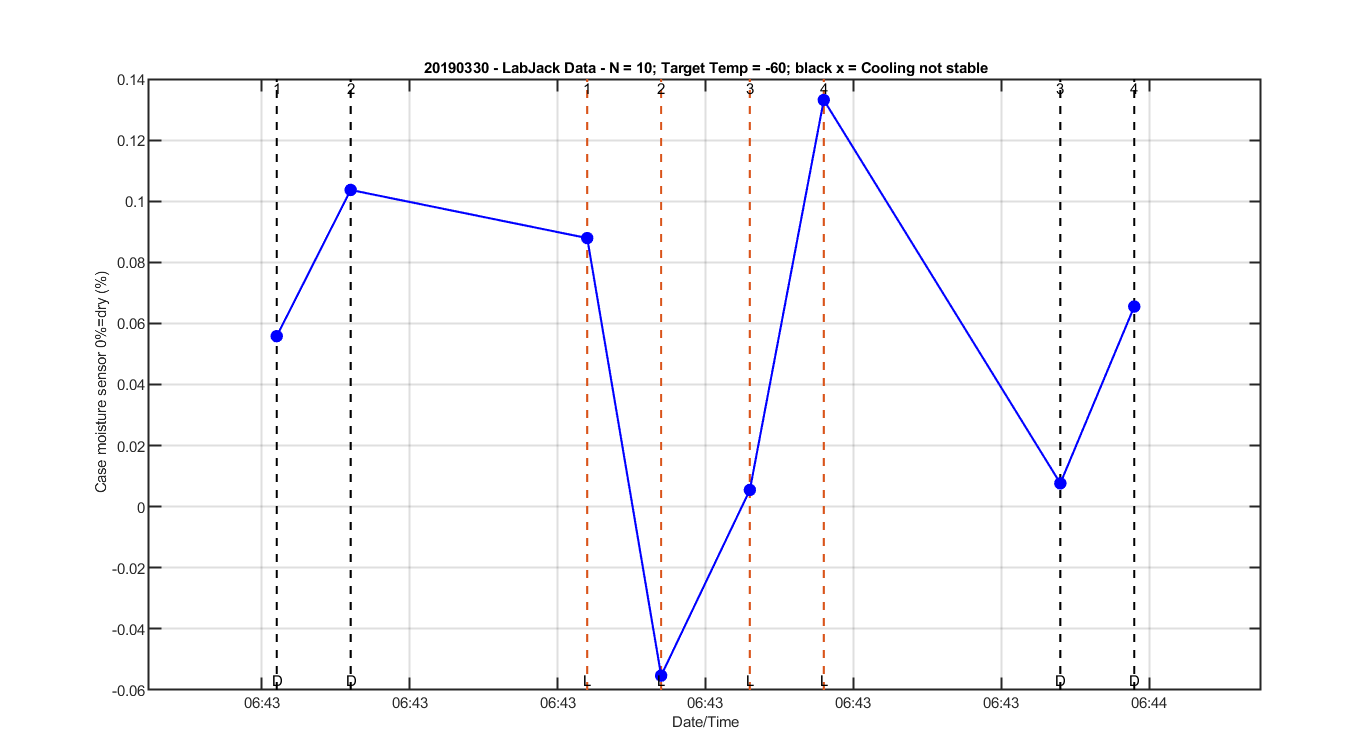

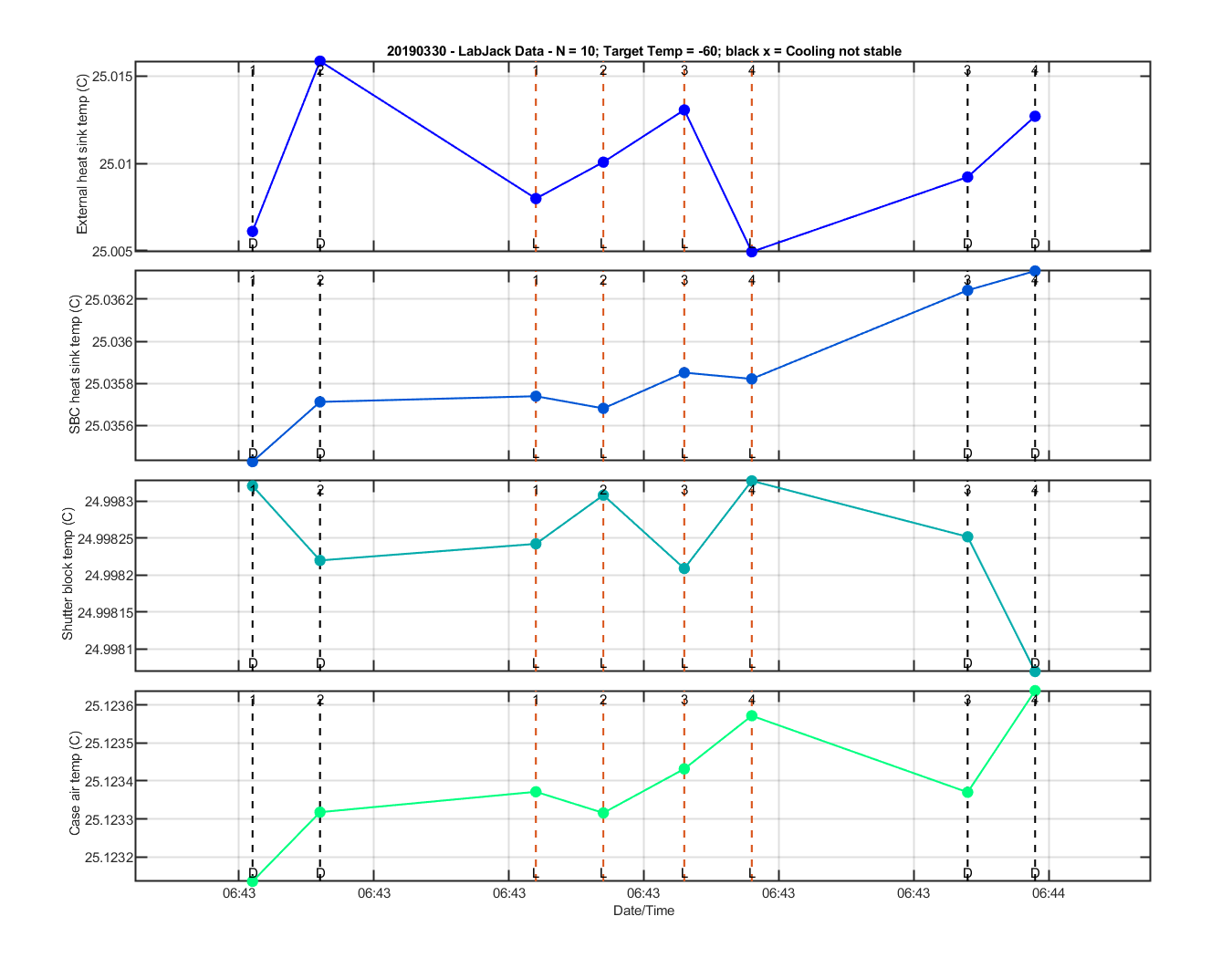

Graphs below are from the labjack temperatures. The dashed lines how where data where collected. D = Dark, L = lite and B = background. The Number is the fits last three numbers in the filename.



Figure 1 C: LabJack Measurements in the h5 file. Internal temperatures etc during data collections



Figure 2 C:



Figure 3 C:



Figure 4 C:



Figure 5 C:



Figure 6 C:



pwd: E:\zflora\mldata2\mobyrefresh\characterization\moby-l279\bs3cal
Date: 04-Apr-2019 16:50:35
