plt_estrackmovement_day1_ - BS1

REVISION DATE: 06-May-2016 12:17:43

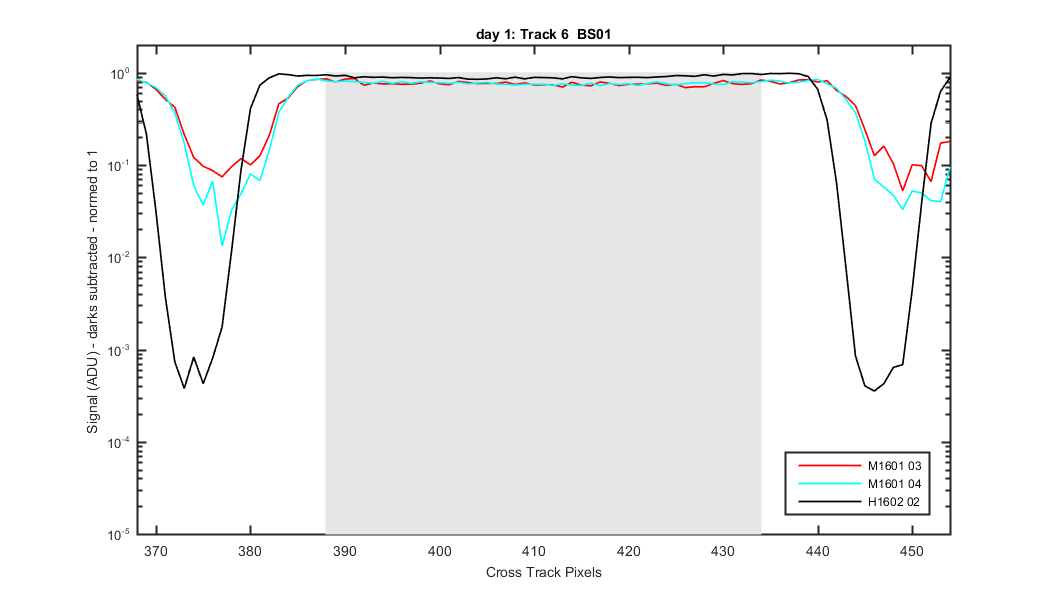

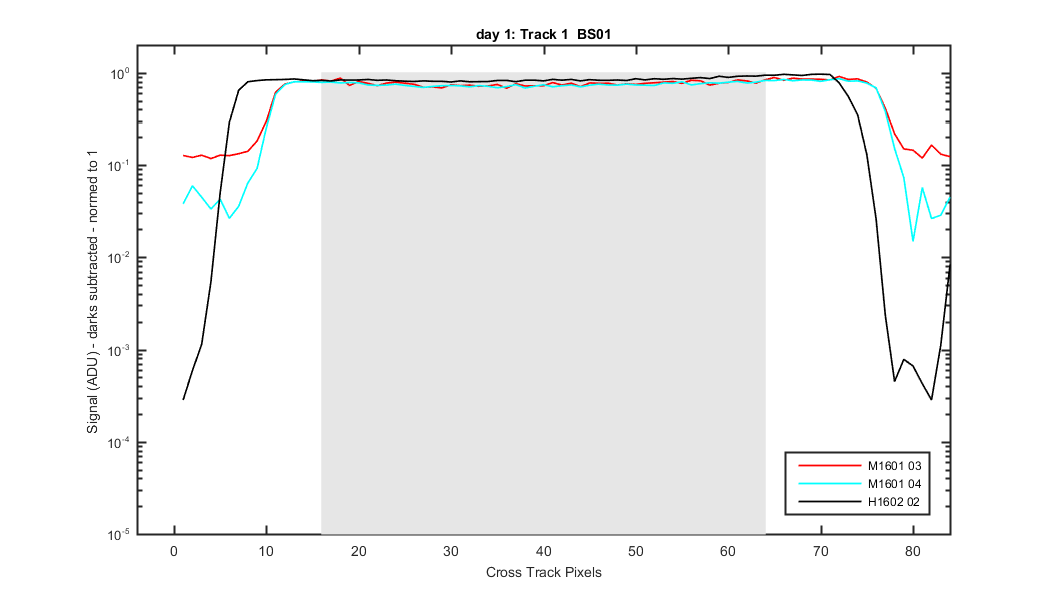

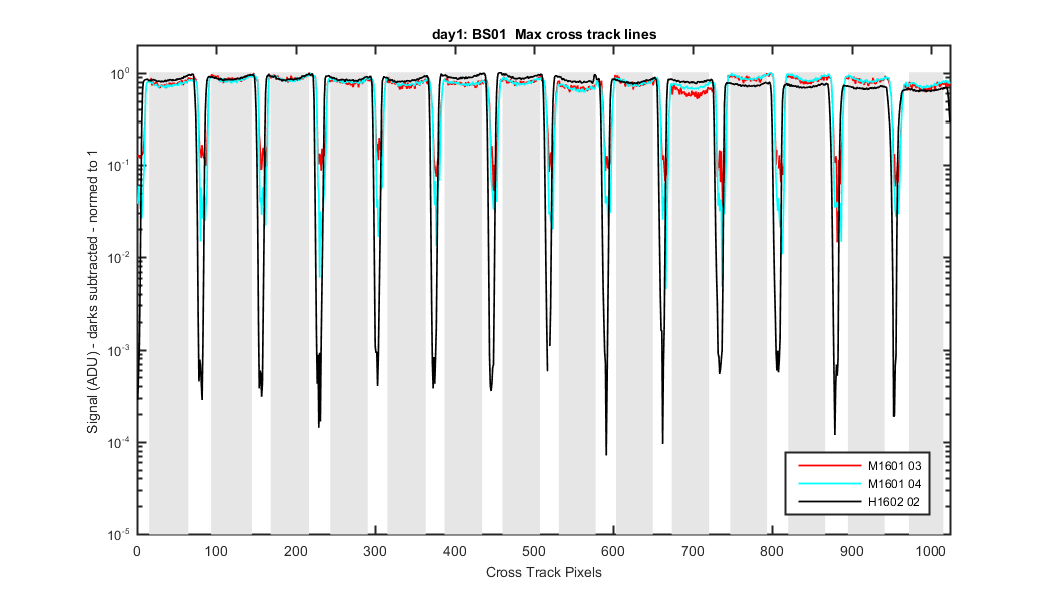

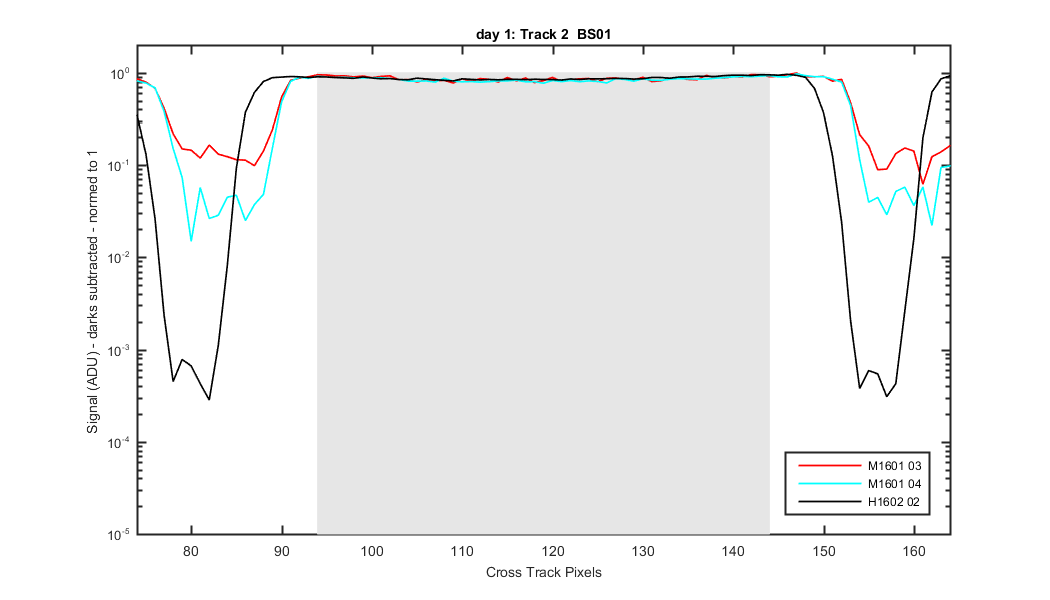

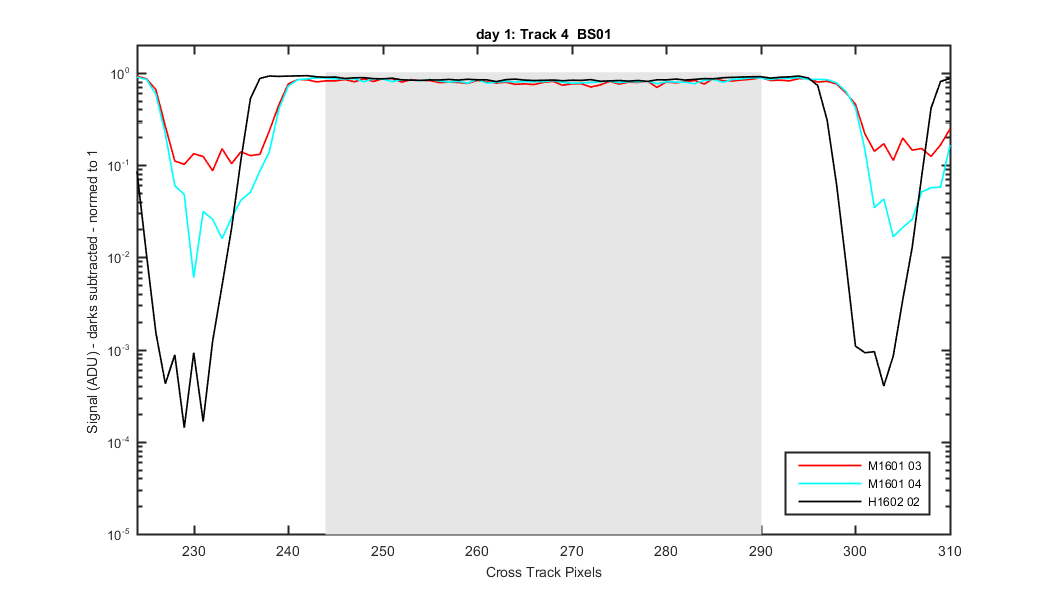

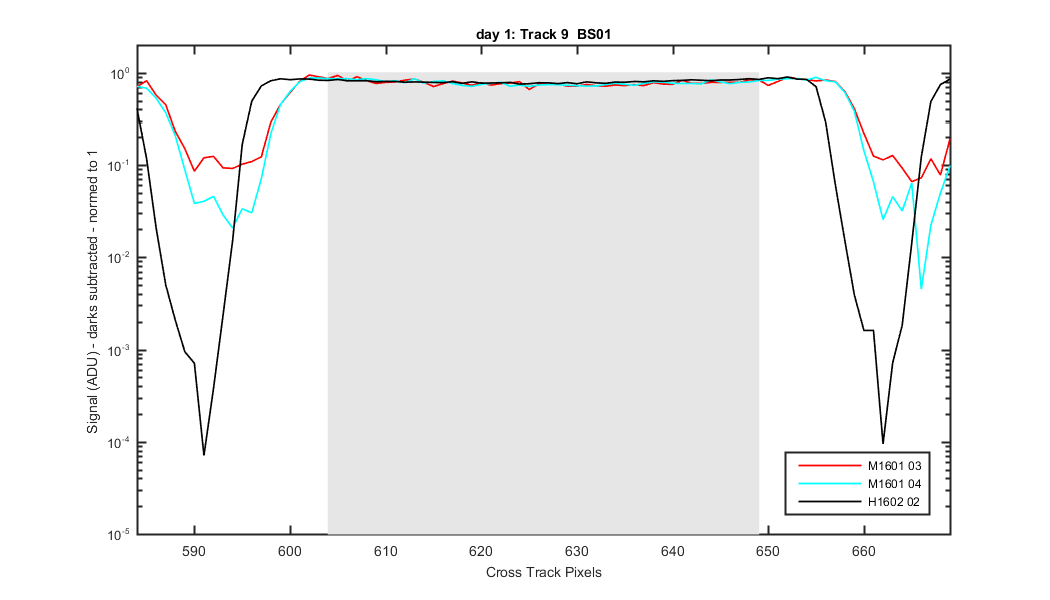

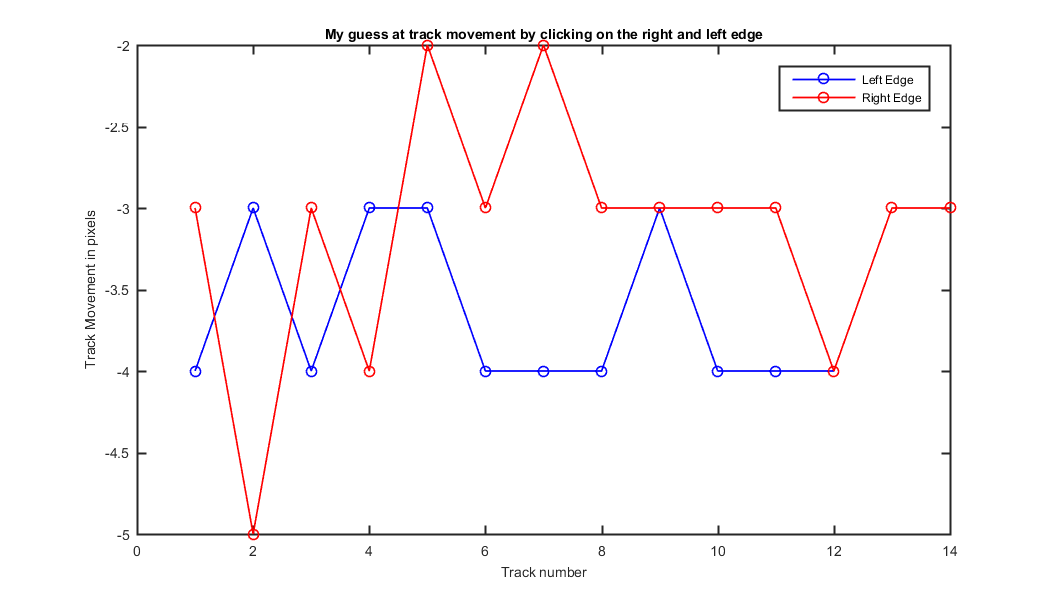

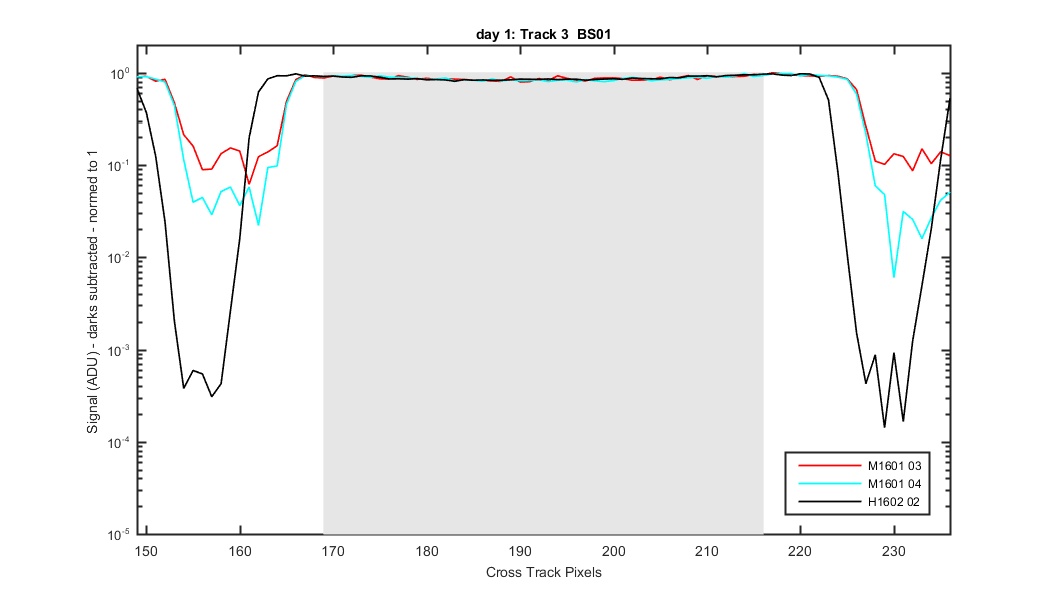

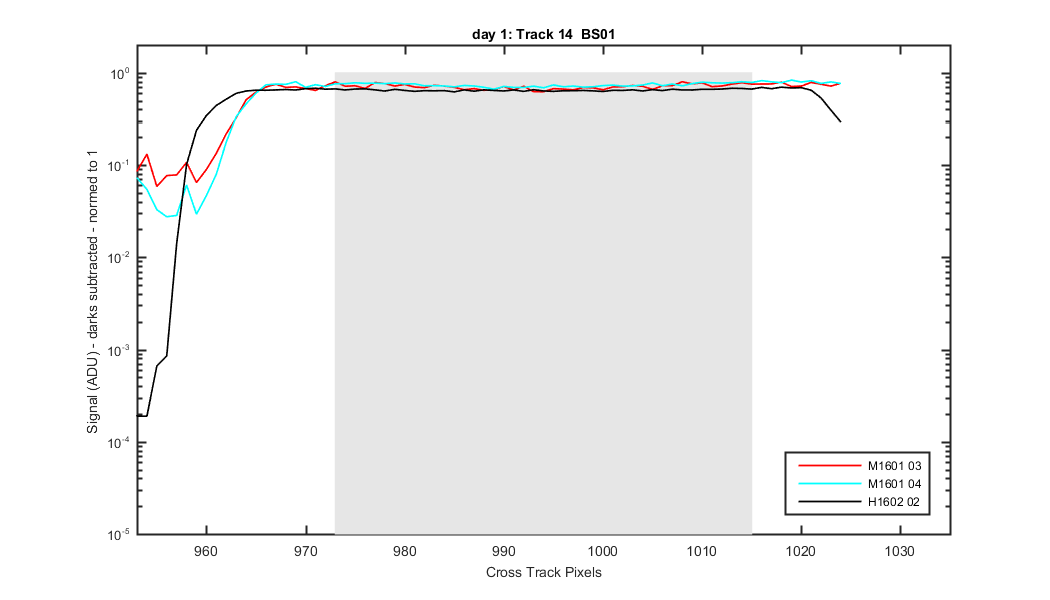

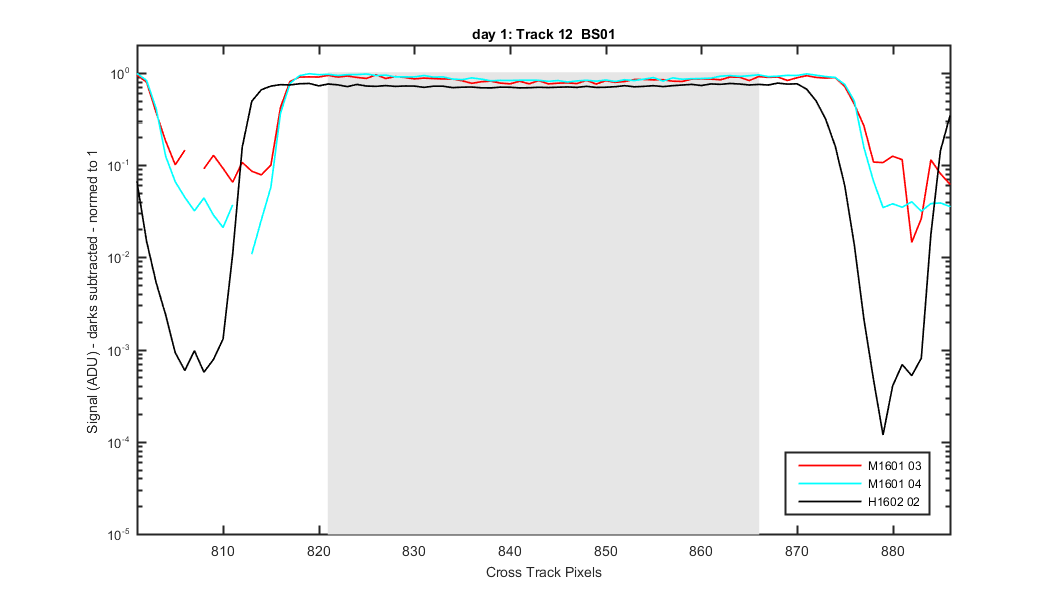

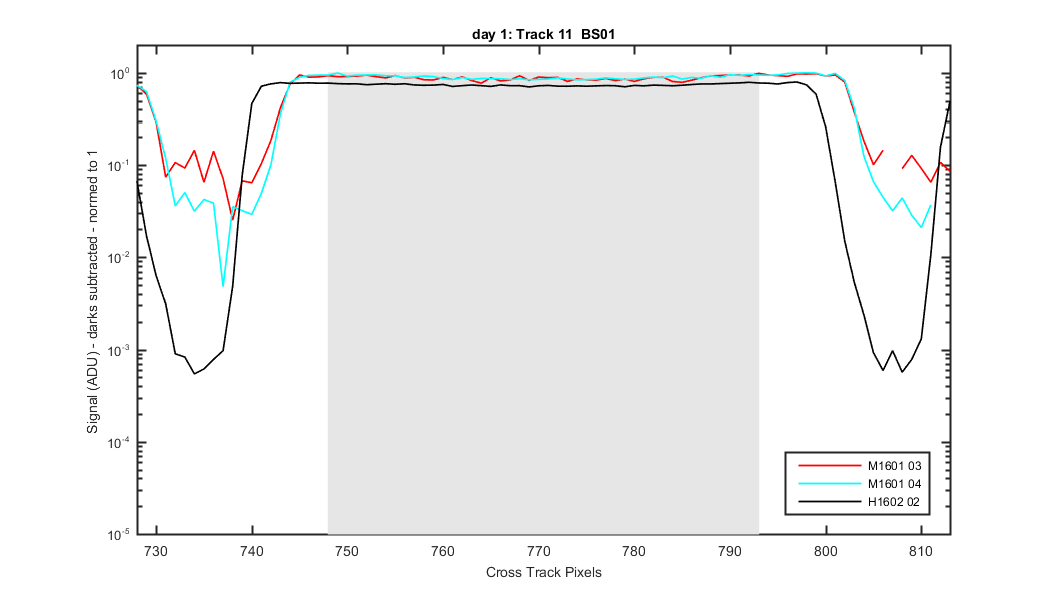

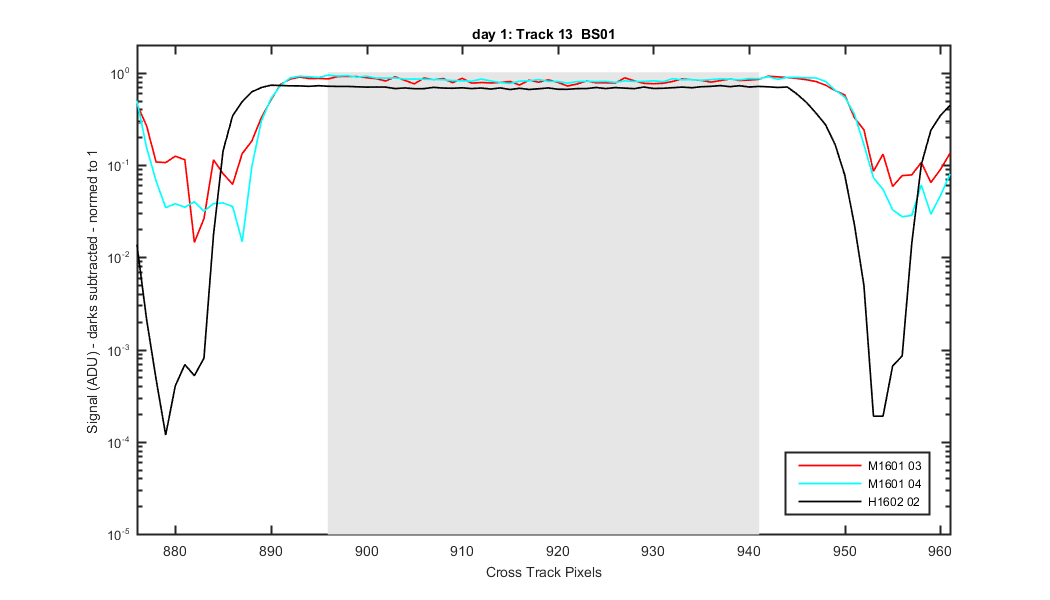

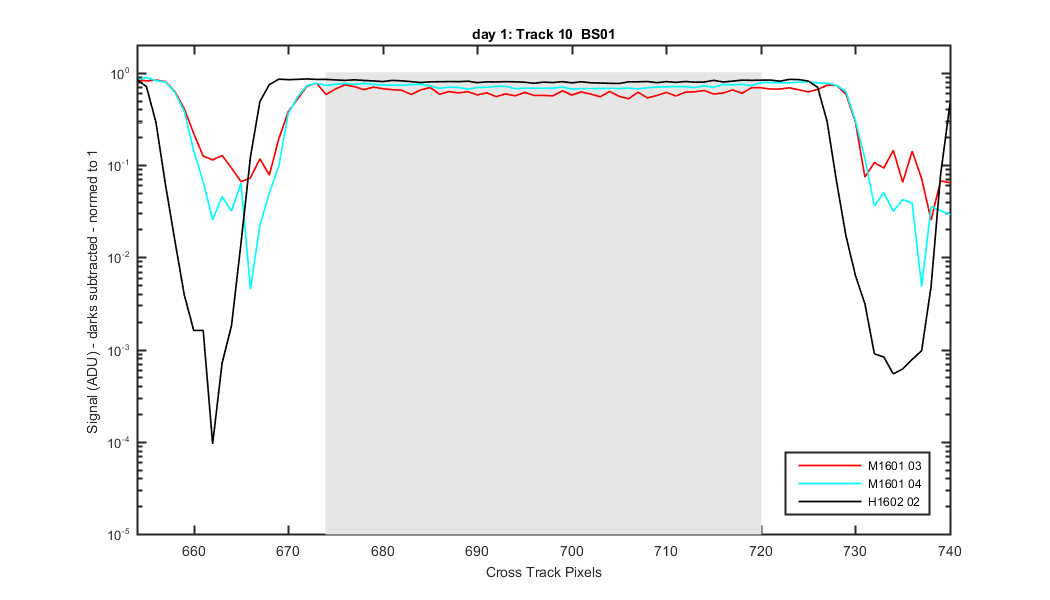

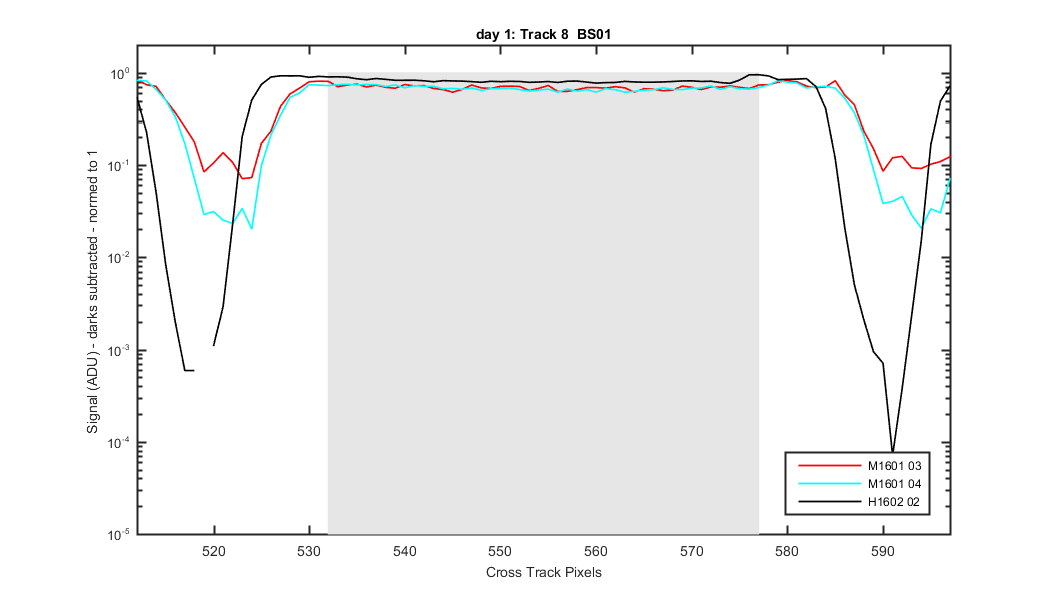

Looking for track mentment when the BS01 was shipped to Maimi. I am using the Solar scans from Miami and Hawaii. The first graphs shows the tracks for the same pixel ("wavelength"). The movement was large-ish. To get a quick idea of how the tracks moved I clicked on the left and right edge (top of track) for the Miami and Hawaii data sets and plotted the difference (bottom graph). Looks like the movement is around 2-3 pixels.

Figure 1


Figure 2


Figure 3


Figure 4


Figure 5


Figure 6


Figure 7


Figure 8


Figure 9


Figure 10


Figure 11


Figure 12


Figure 13


Figure 14


Figure 15


Figure 16


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\Miami-2016-01\fits_test\day01
Date: 06-May-2016 12:17:43
Created from plt_estrackmovement_day1_(1)
