REVISION DATE: 08-Nov-2016 14:26:49

After collecting darks and backgrounds on the MOBY261 buoy we are seeing some odd features and so Art took some data using the RS03 he has in Hawaii using the same automated procedures as on the buoy and with the same wait times. To see if the features still exist. Below are the graphs and a subset of ARts email. I have renamed the files to my naming convention and I had to add a 1 to Arts filenumbers. Two int times where used and Art followed my messed up dark and background filenaming convention.

 Details from Arts email-------------------------------
B = "background" = light shutter (opens/closes) but towel over the fibers.
This is an attempt to simulate the external shutters closed.
Note: I can see some tracks in the longer exposed versions of these
so maybe my towel was not such a great external shutter simulator...

D = "dark" = shutter stays closed during exposure.

#0-4 = exposure time = 1.5 sec
#5-9 = exposure time = 0.1 sec

for all:
VSS = 4.250 us
HSS = 3.000 MHz
PAG = 2x
Cooling stable at -40C
which are the same settings as days 7/8 from the other system.

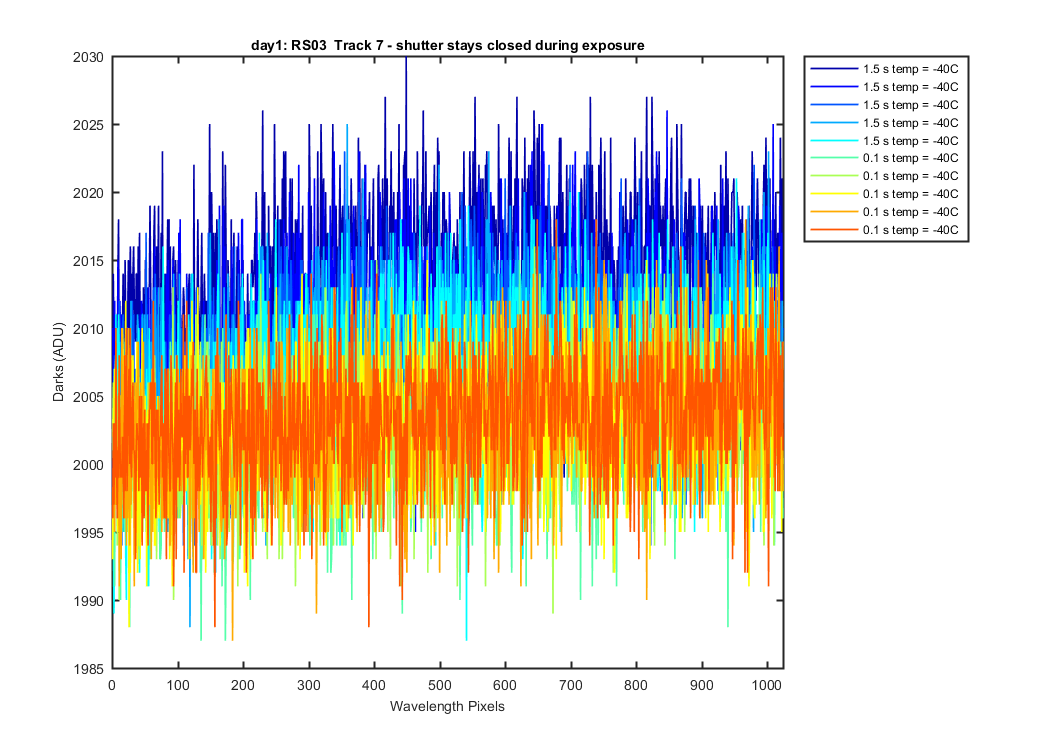

Track 7 all the dark files, two int times.

Figure 1

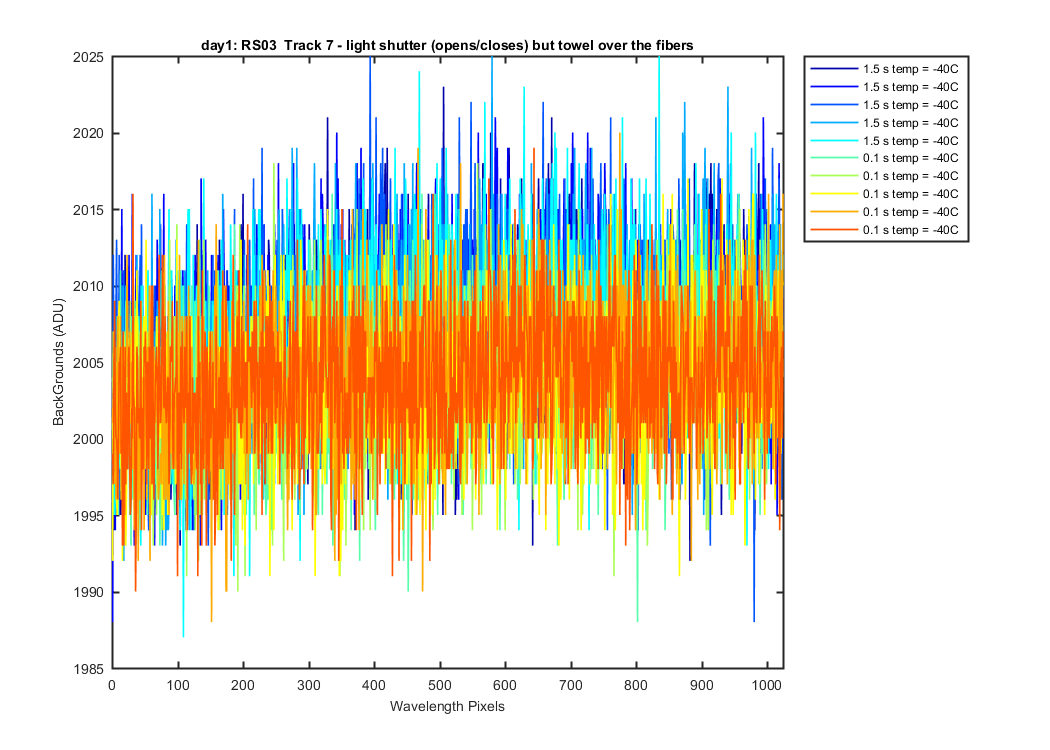

Track 7 all the background files, two int times.

Figure 2

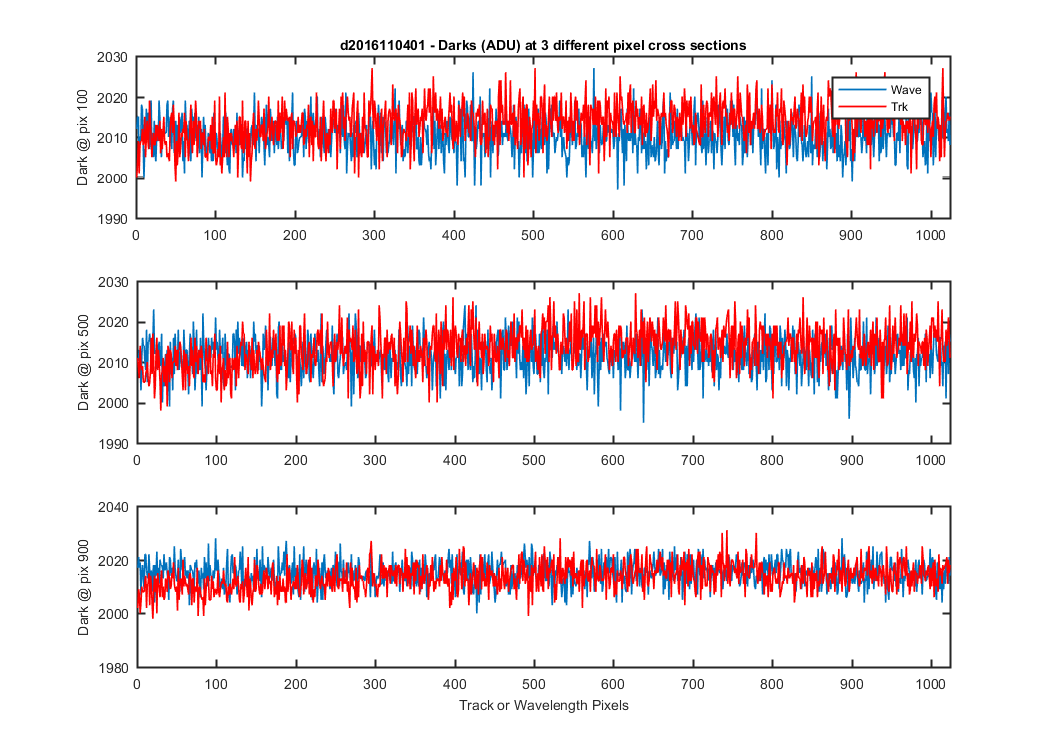

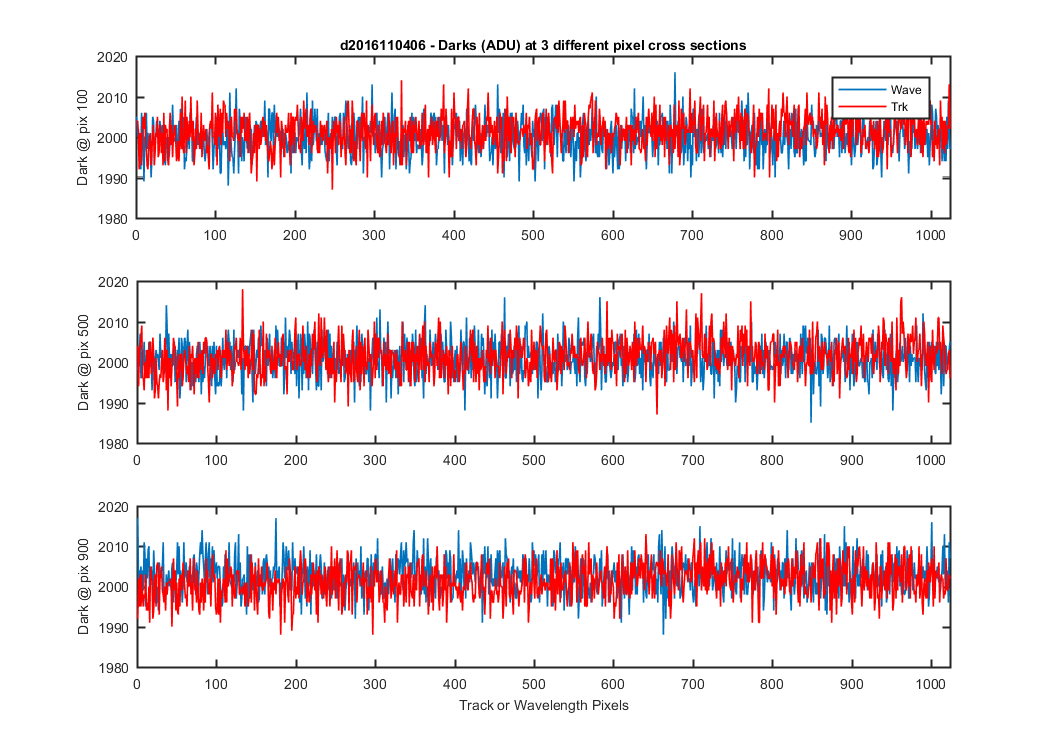

Darks showing for pixel x in the track and wavelength direction (every 5th dark file)

Figure 3

Figure 4

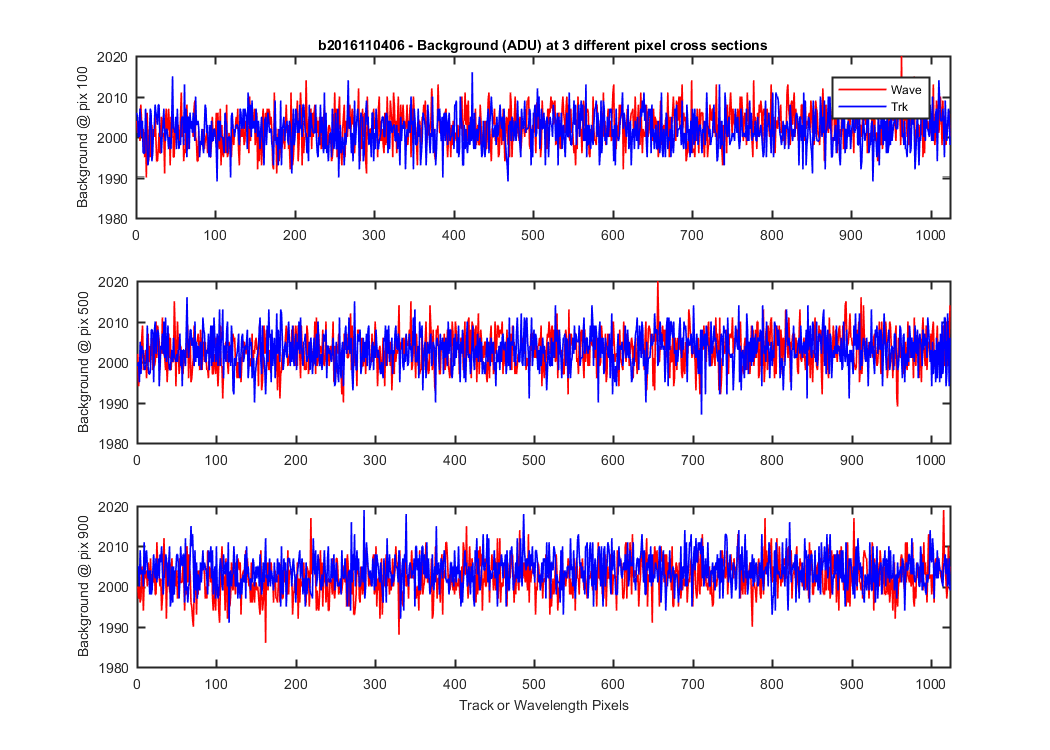

Background showing for pixel x in the track and wavelength direction (every 5th dark file)

Figure 5

Figure 6

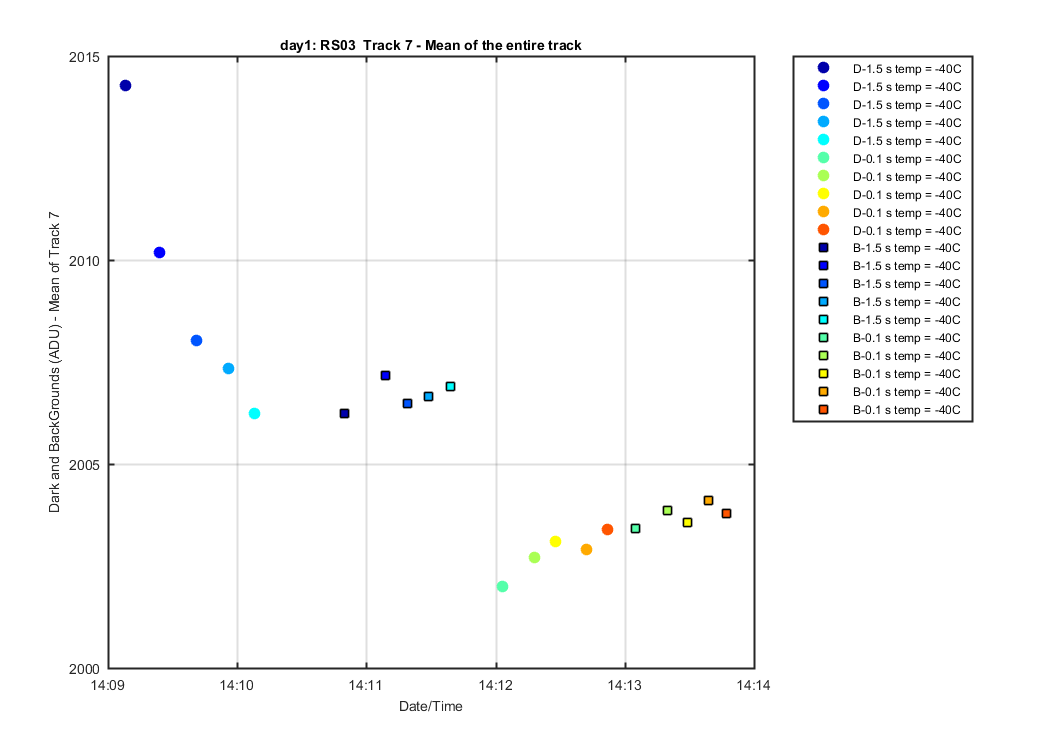

track 7 mean for every third file against time

Figure 7

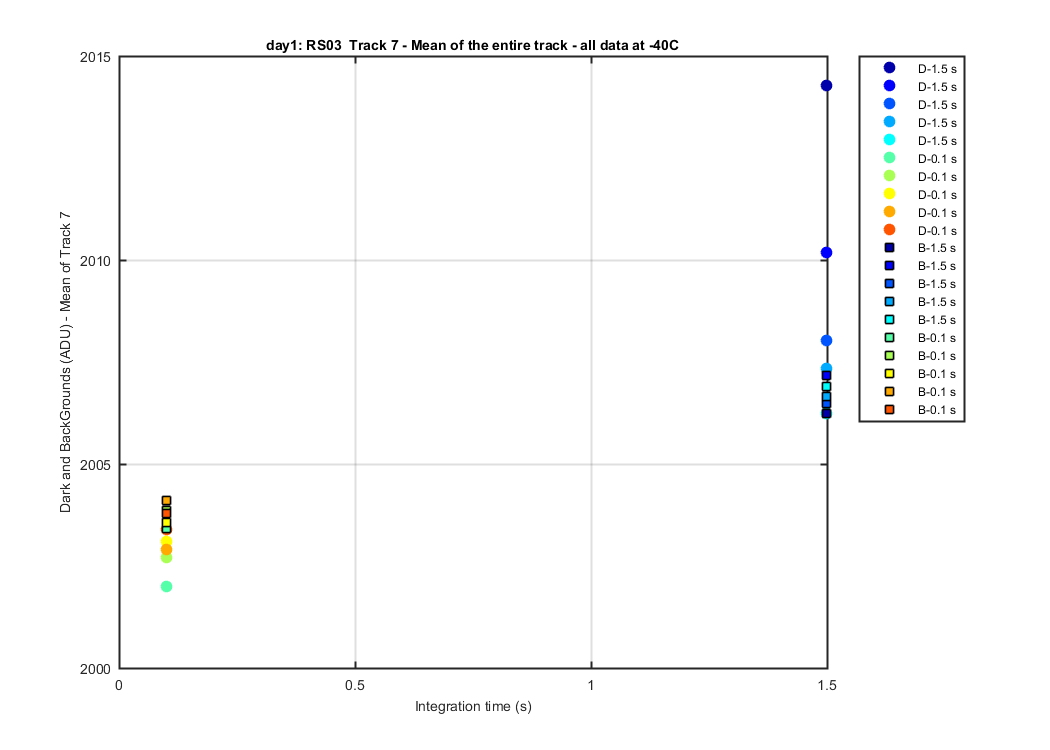

The same data verses int time

Figure 8

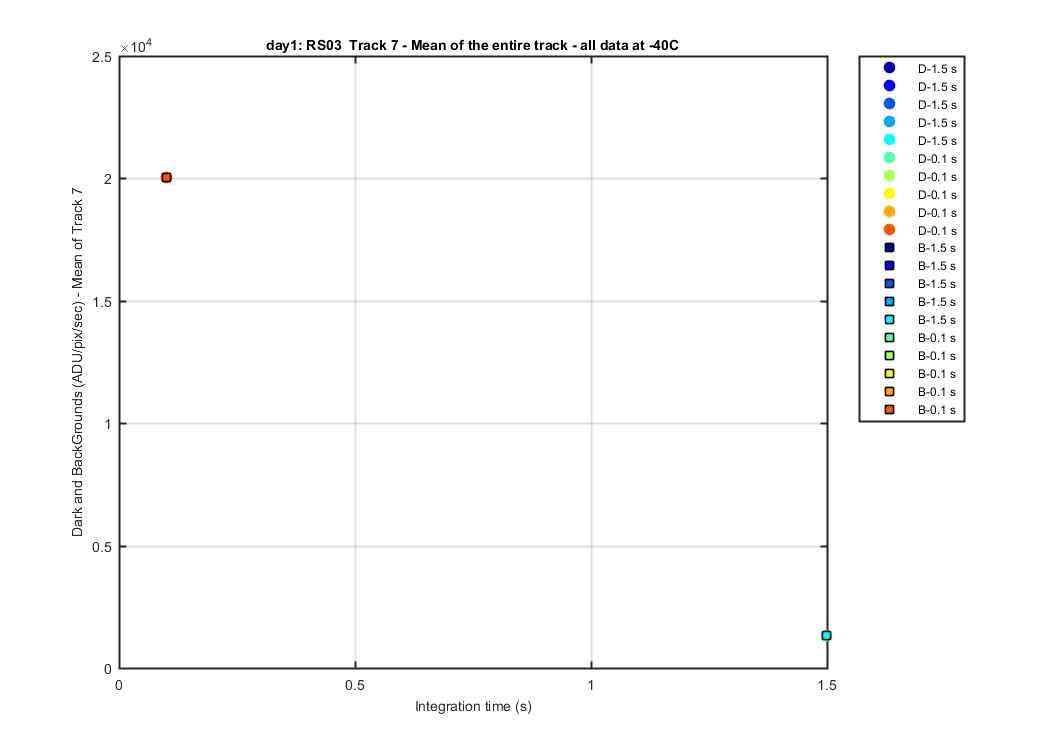

The same data divided by int time

Figure 9

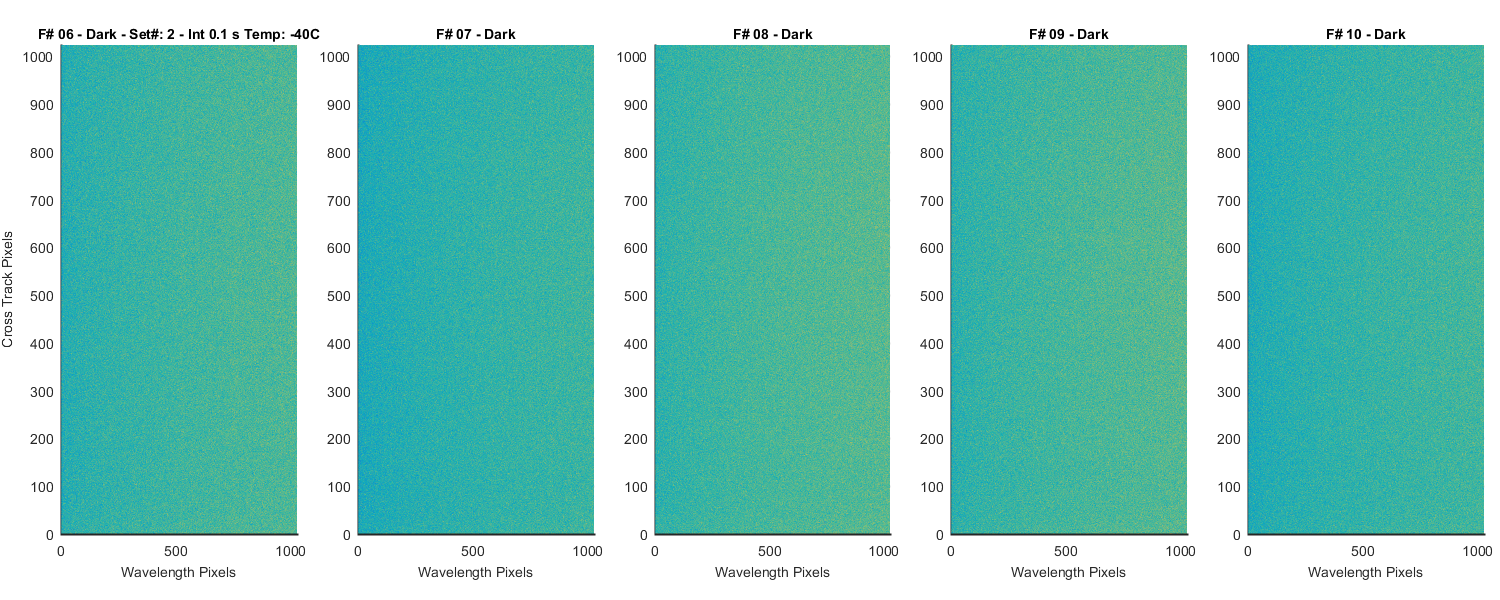

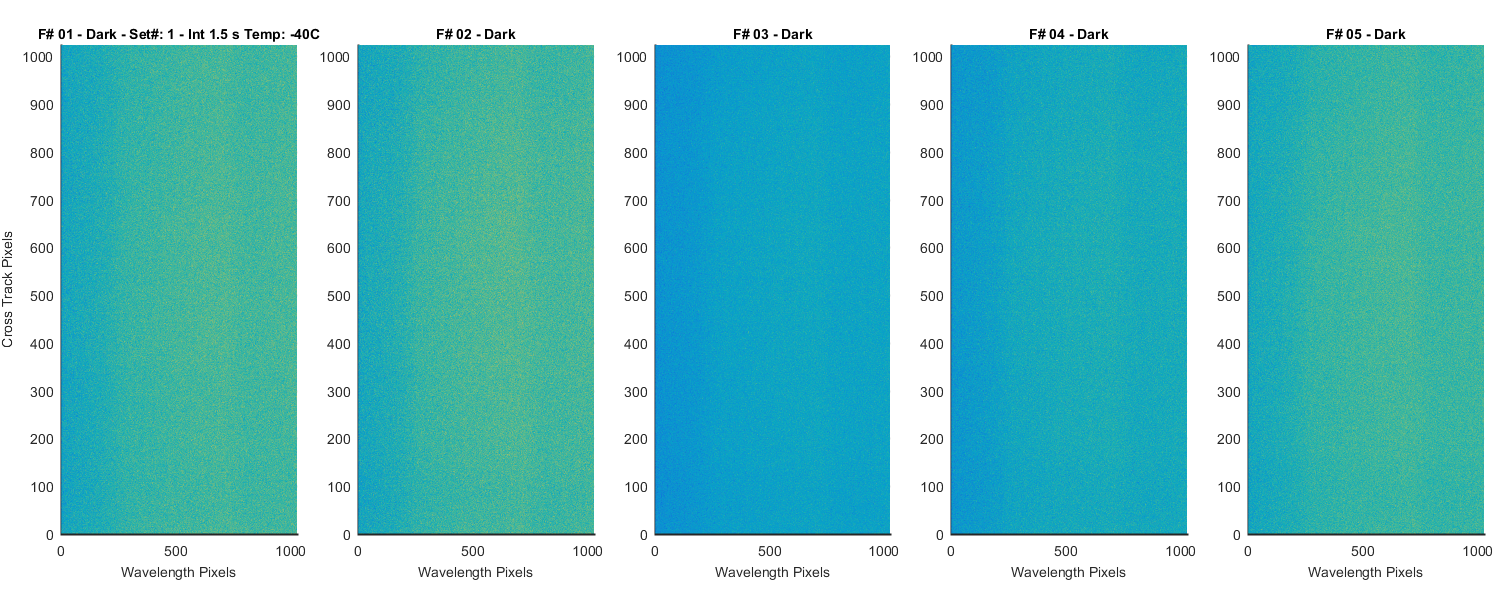

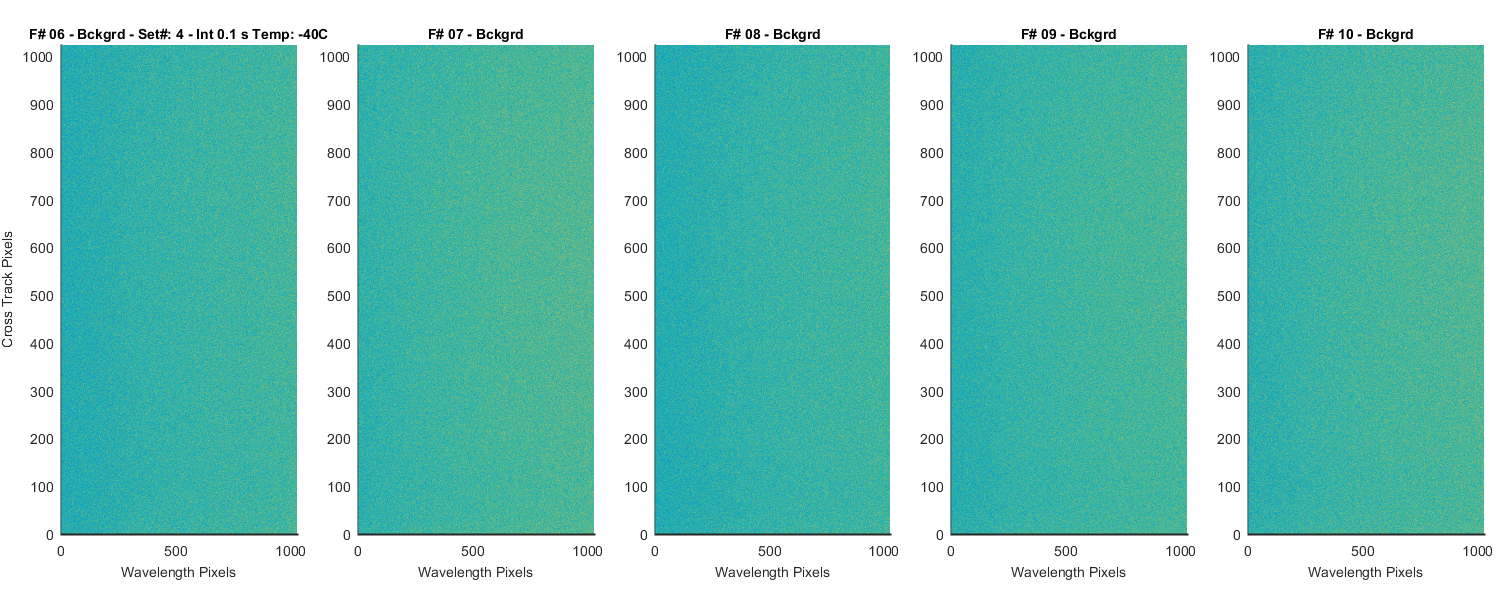

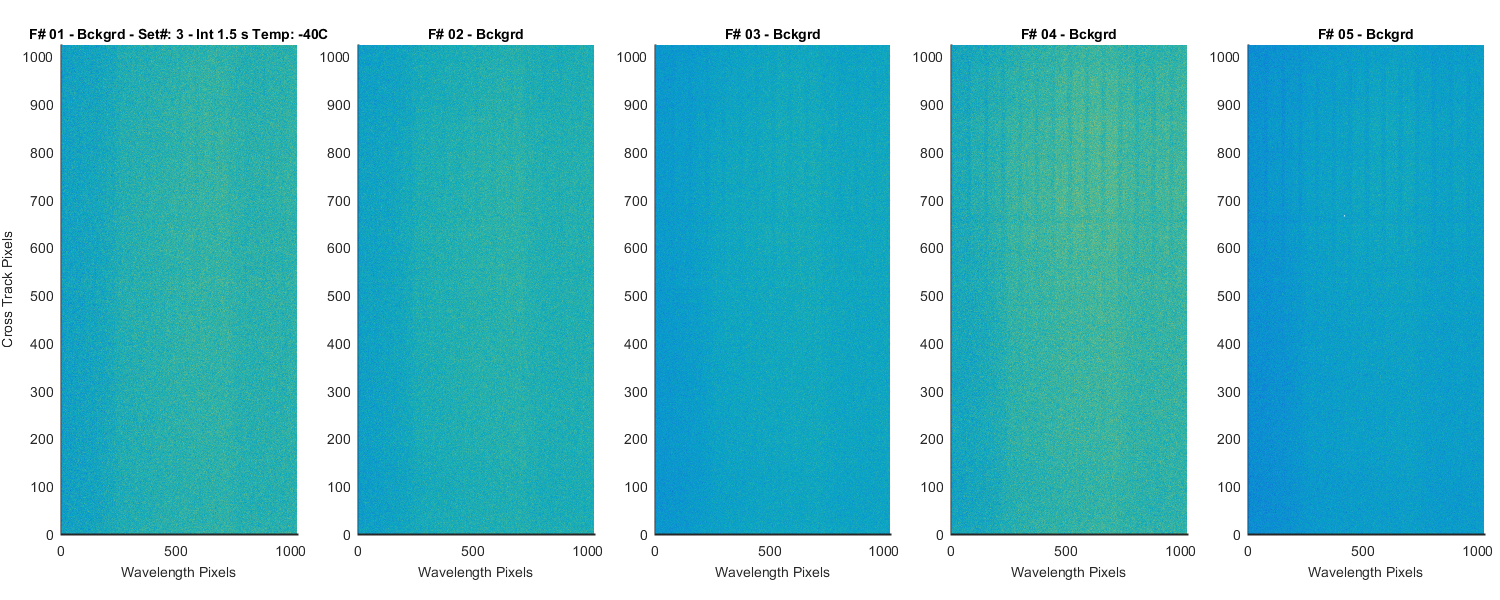

Images of the dark and background repeats for this data set. All the darks had the temp control flag on.

Figure 1

Figure 2

Figure 3

Figure 4
