REVISION DATE: 20-Jan-2017 11:57:34

The darks collected during BS02s second set of diver calibrations while on MOBY261

The files I am calling darks where taken with the camera shutter closed and external shutter open. Backgournd files where collected with the camera shutter open and the external shutters closed. See Arts email for filename convertsions. /

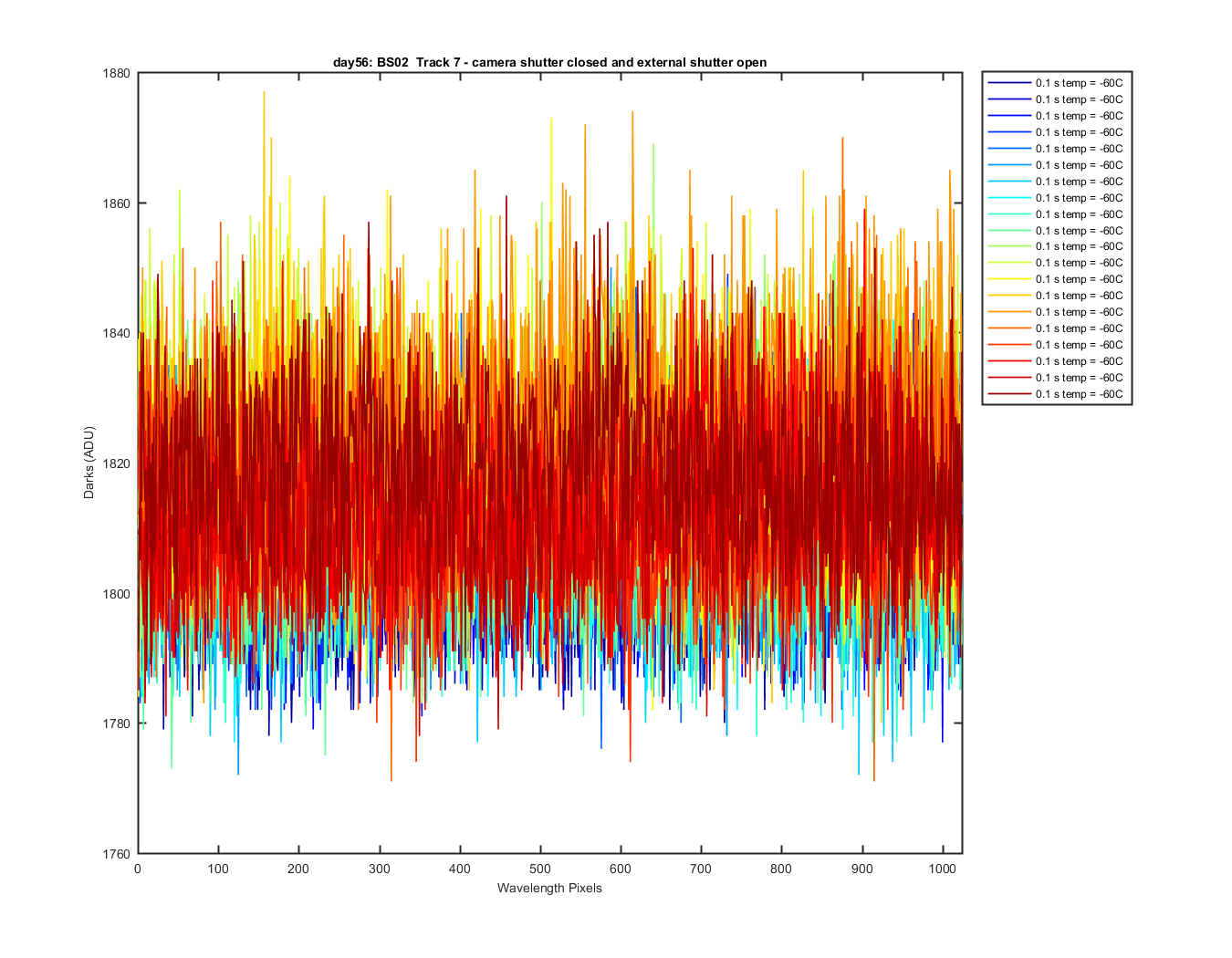

Track 7 all the dark files.

Figure 1

Track 7 all the background files.

Figure 2

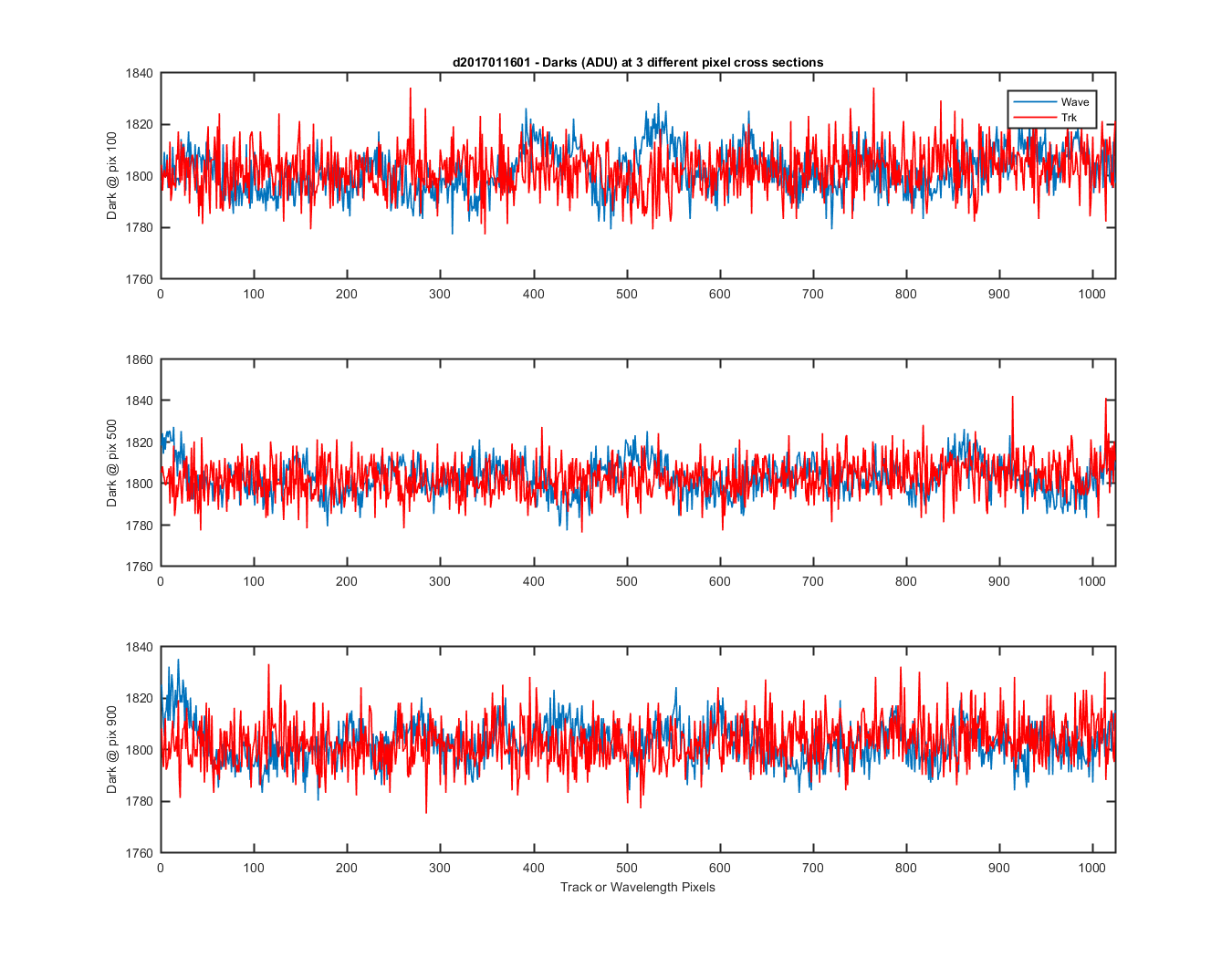

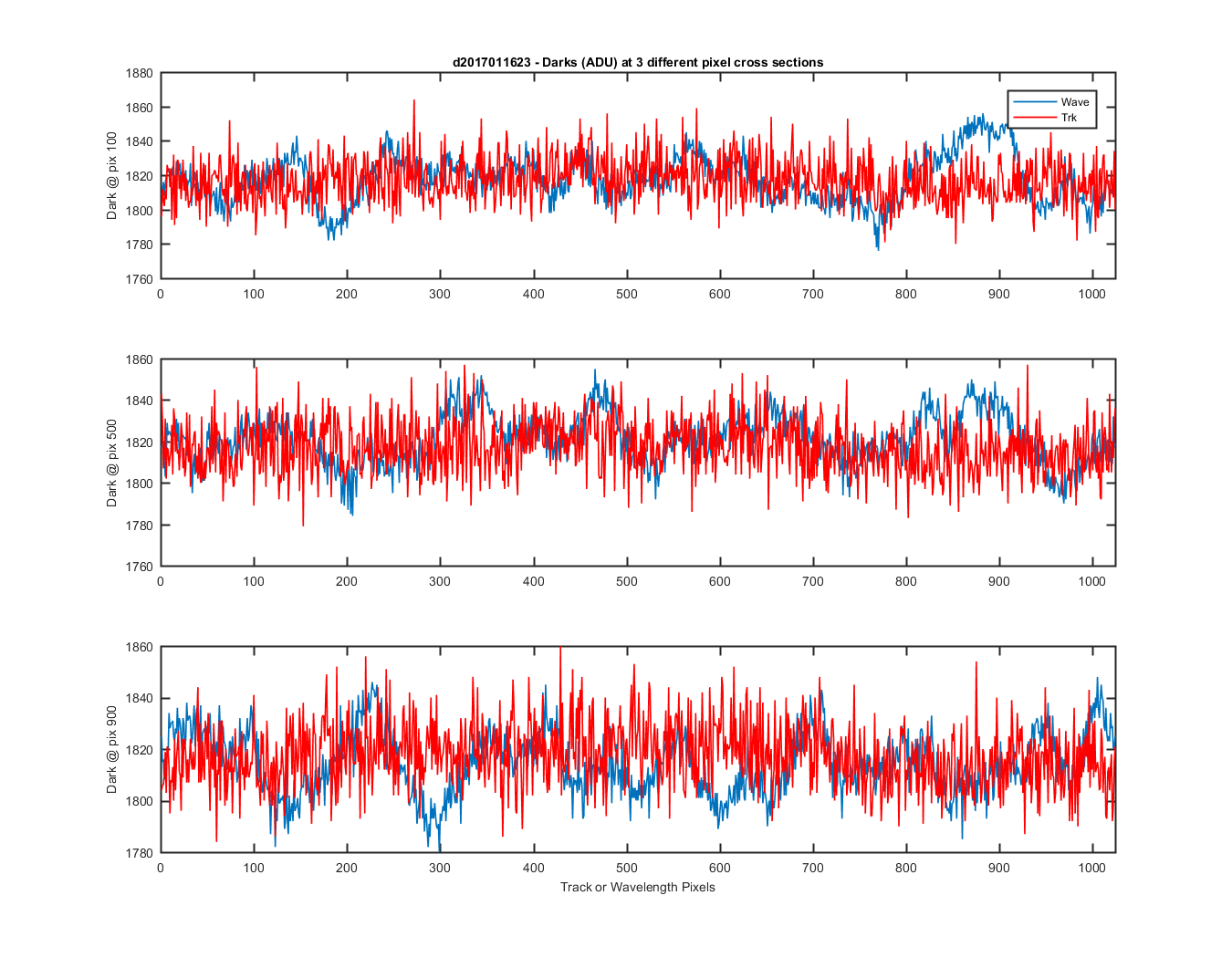

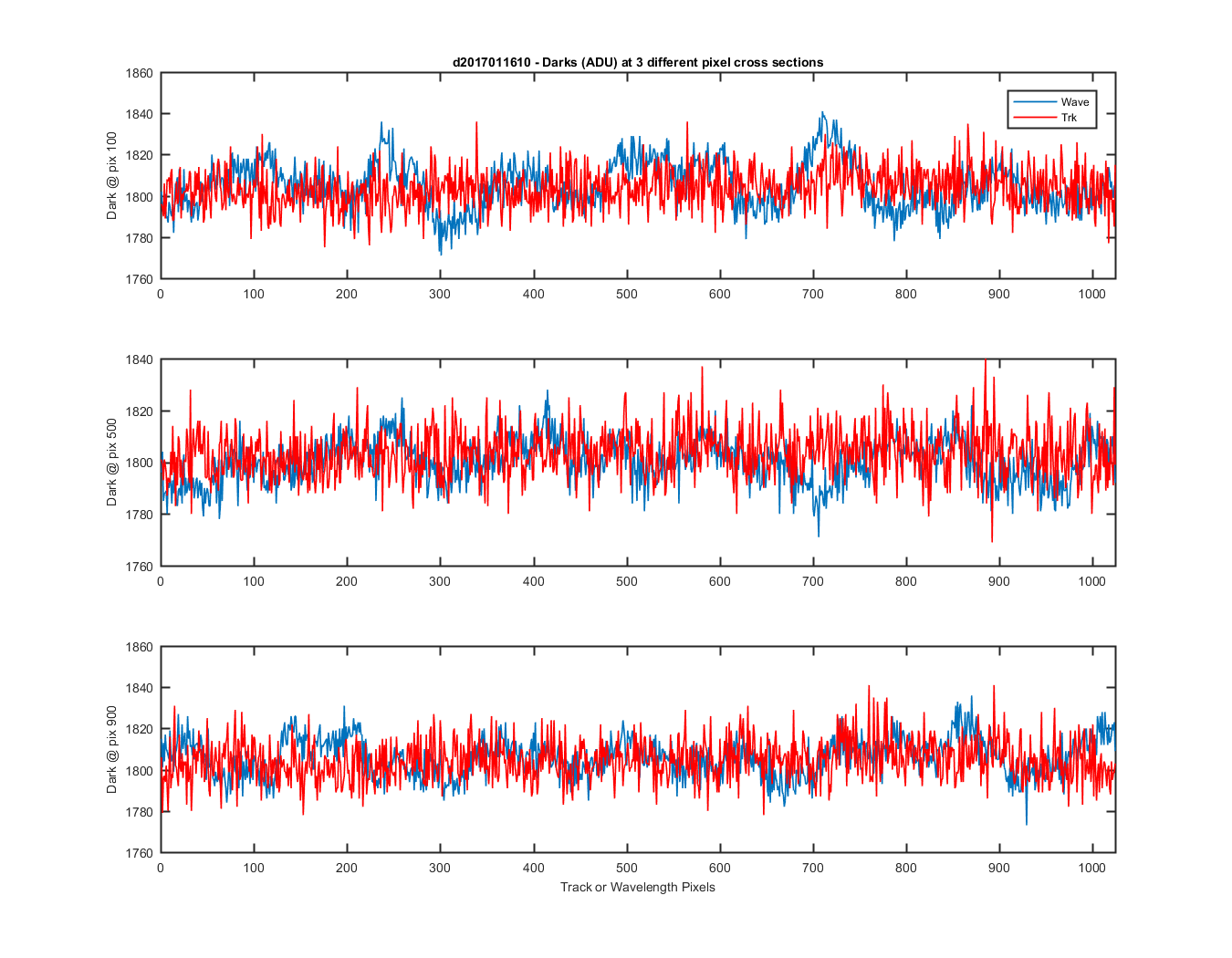

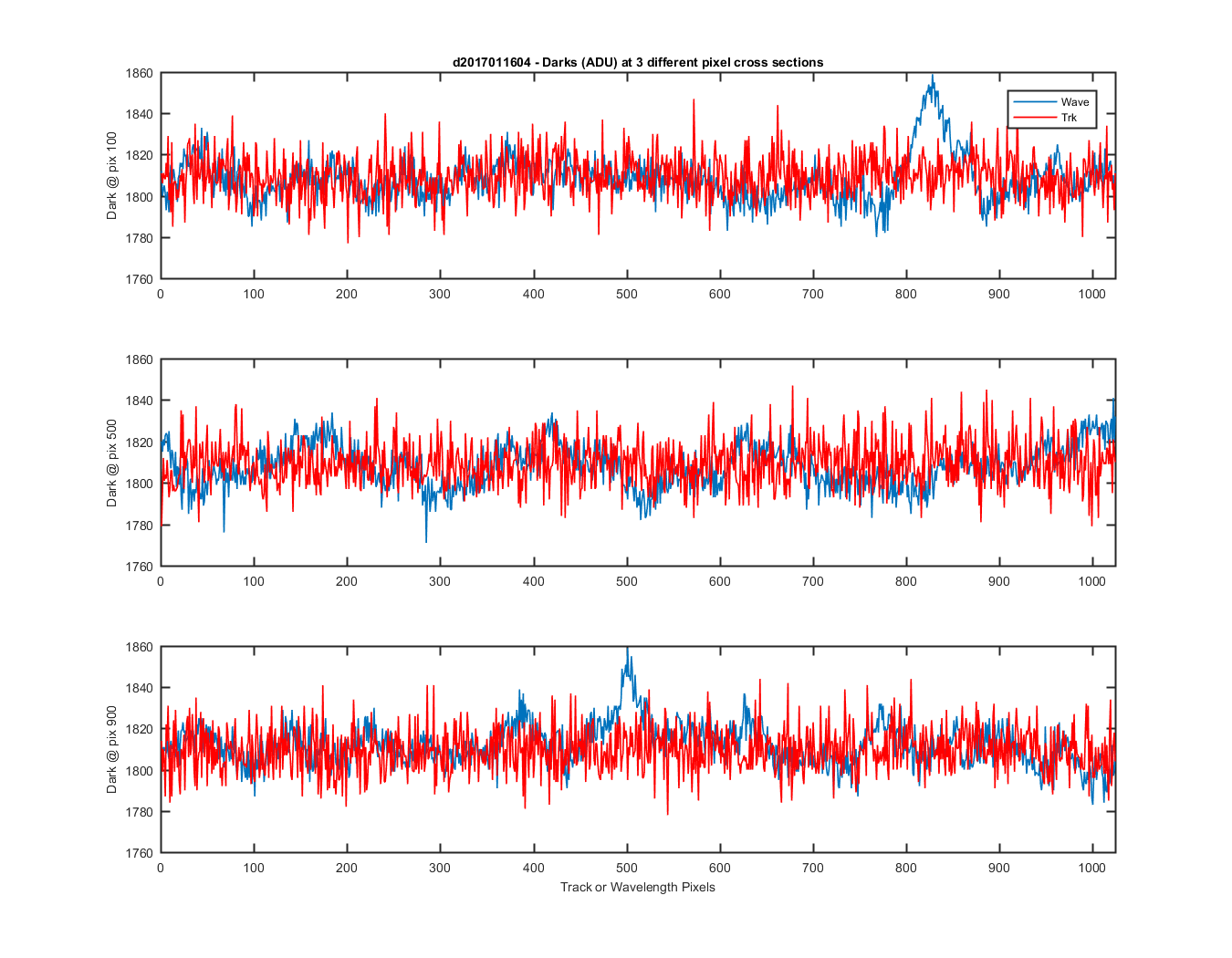

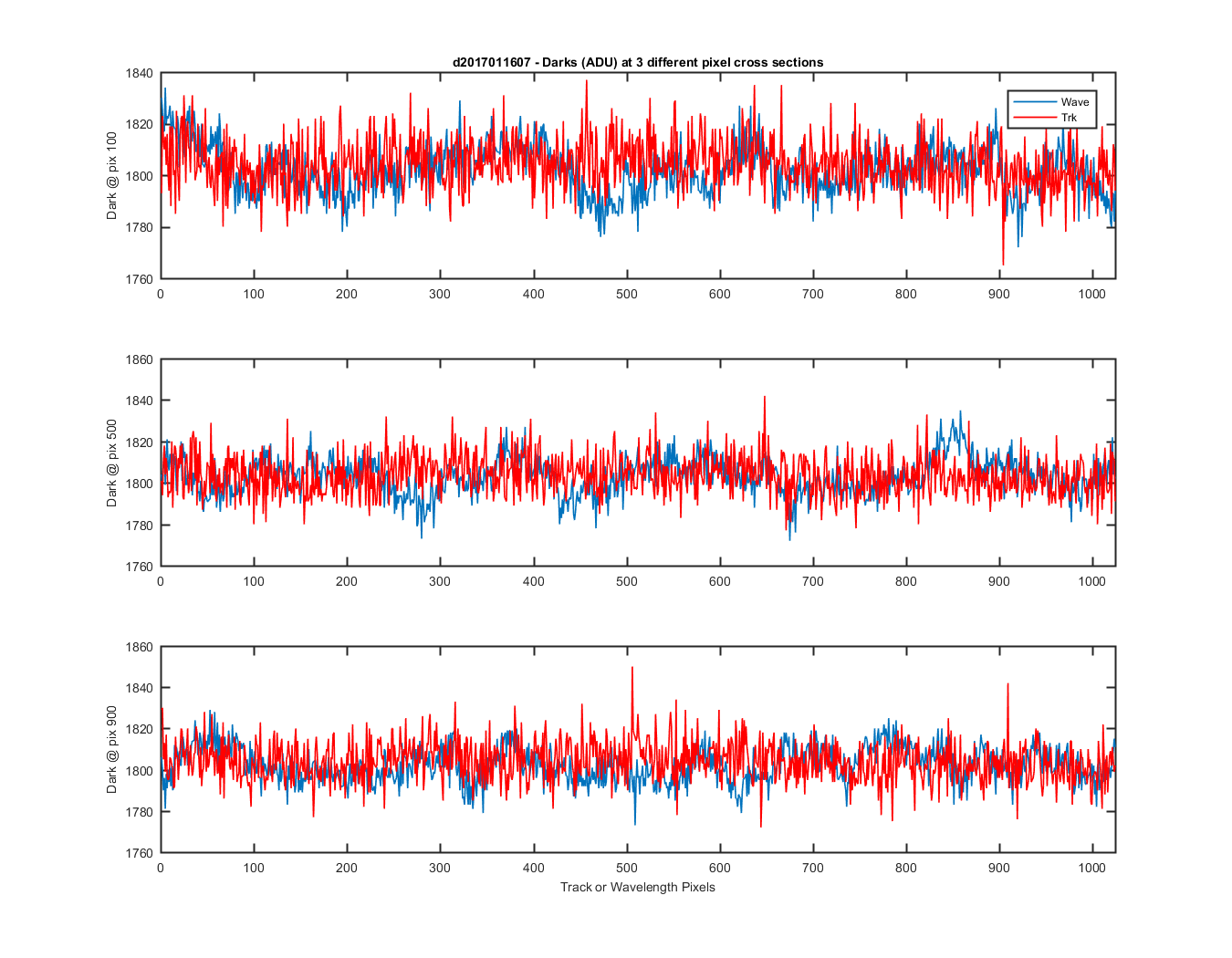

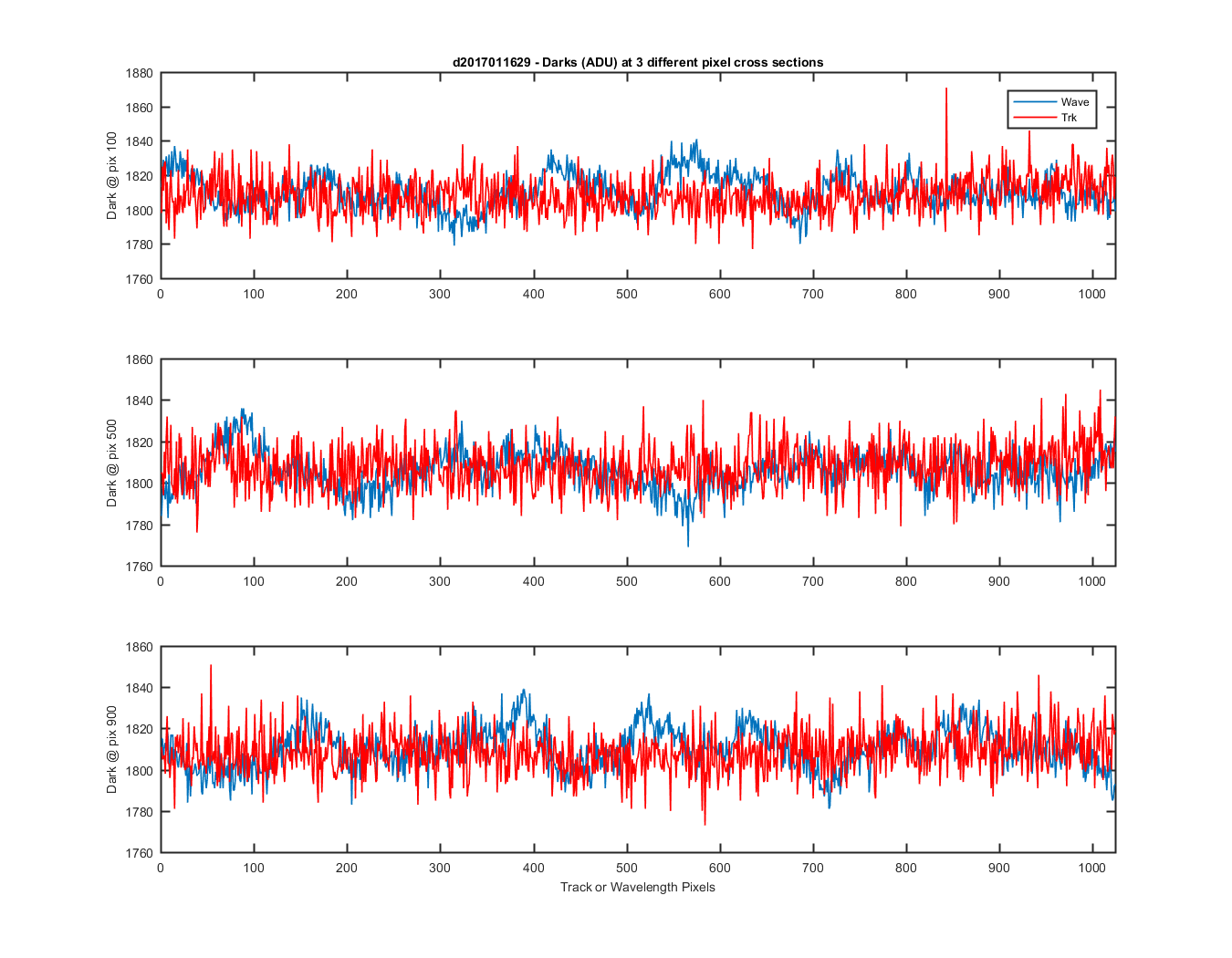

Darks showing for pixel x in the track and wavelength direction (every third dark file)

Figure 3

Figure 4

Figure 5

Figure 6

track 7 mean for every third file against time

Figure 7

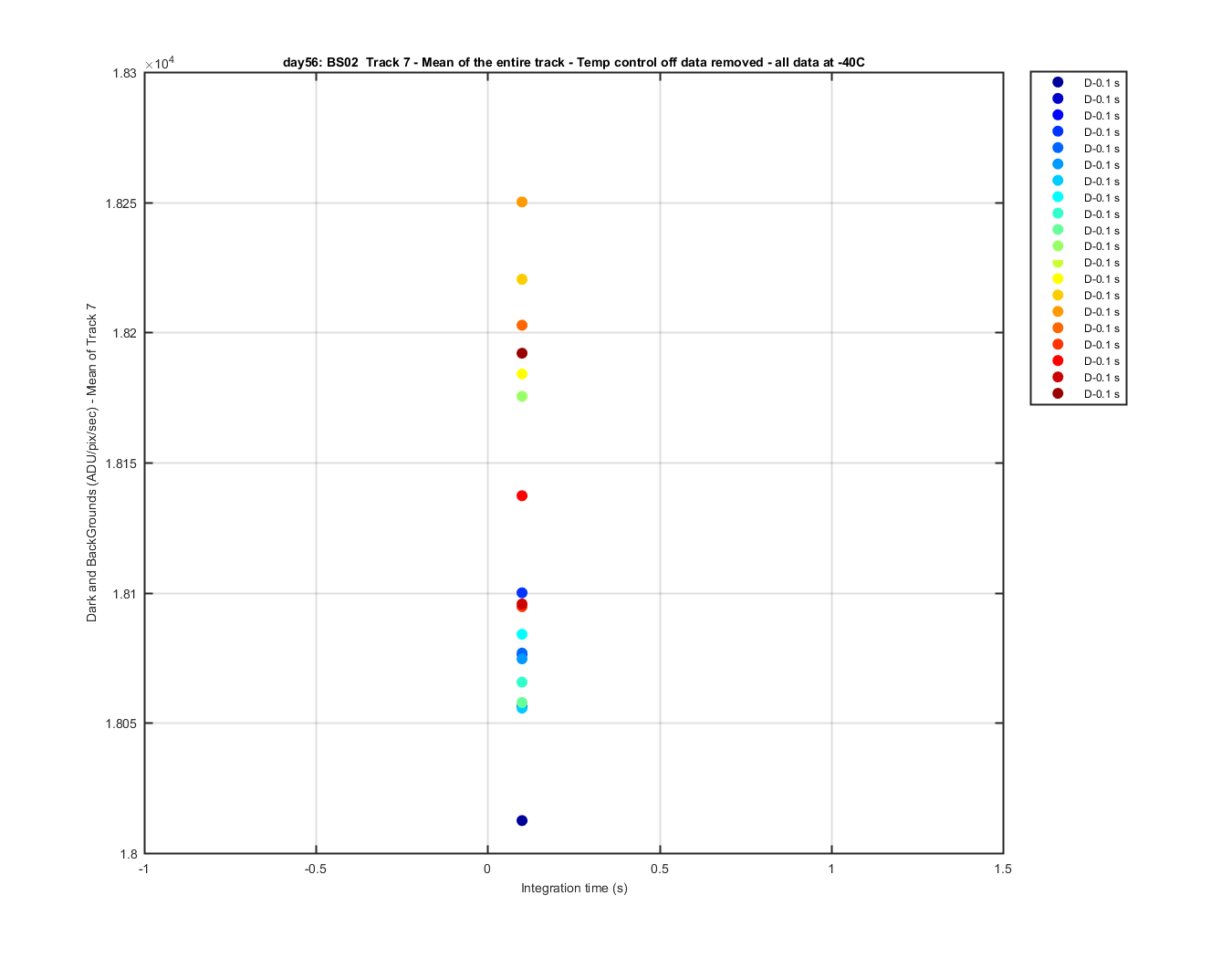

The same data verses int time

Figure 8

The same data divided by int time

Figure 9

Figure 10

Figure 11
