REVISION DATE: 20-Jan-2017 12:54:09

The darks collected during BS02s second set of diver calibrations while on MOBY261

The files I am calling darks where taken with the camera shutter closed and external shutter open. Backgournd files where collected with the camera shutter open and the external shutters closed. See Arts day 56-57 emails for filename conversions. Top arm fell off so there are no LuTop data. /

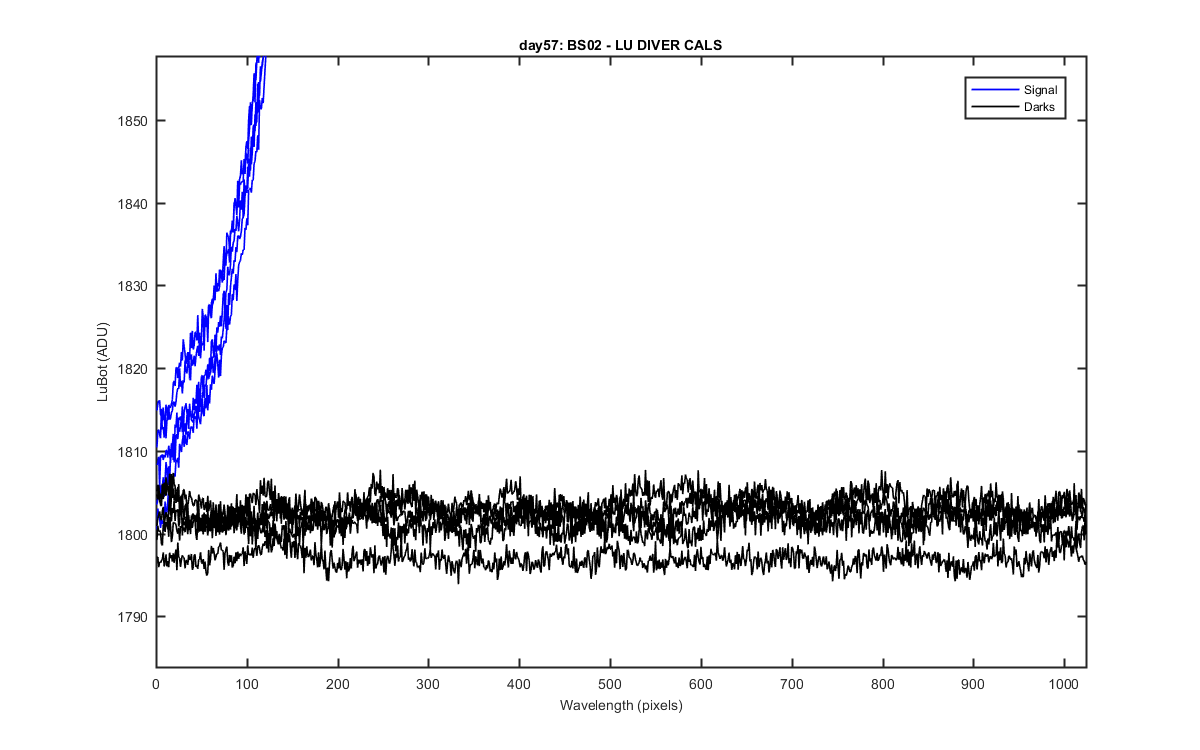

Diver cal lamp LuBot data and the darks taken before and after the data set (if there is before and after).

Figure 1

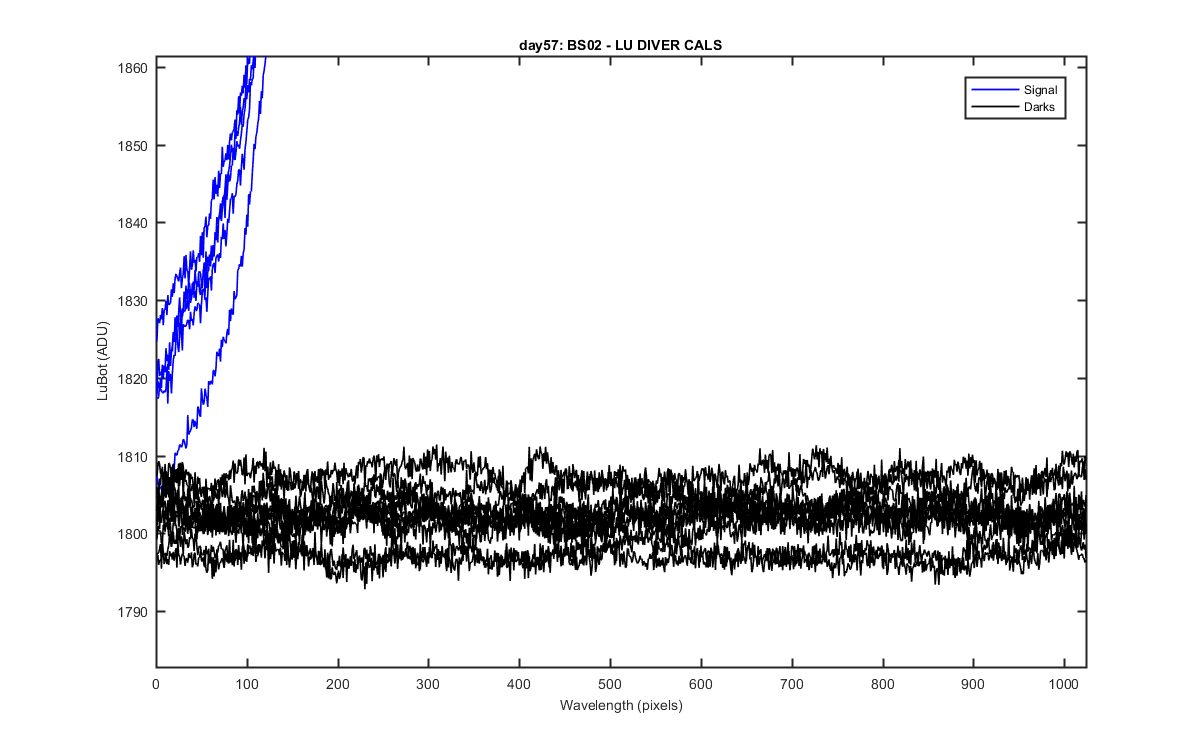

Diver cal lamp LuBot data and the darks taken before and after the data set (if there is before and after).

Figure 2

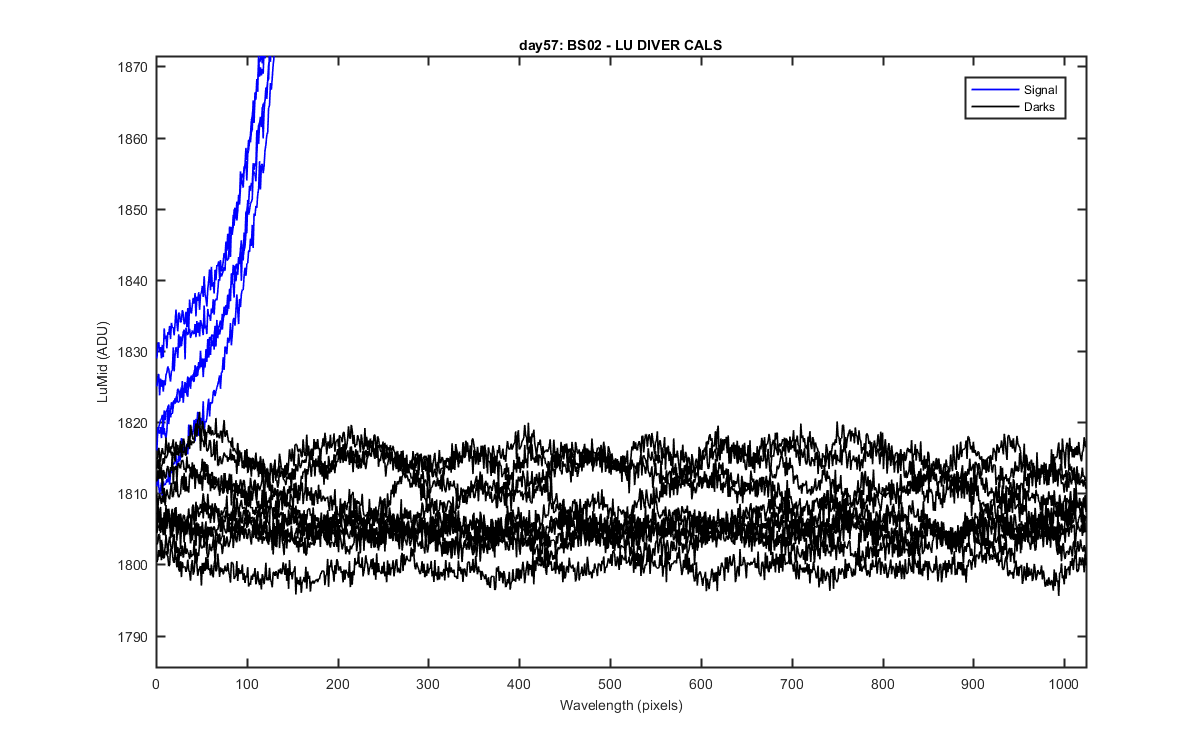

Diver cal lamp LuMid data and the darks taken before and after the data set (if there is before and after).

Figure 3

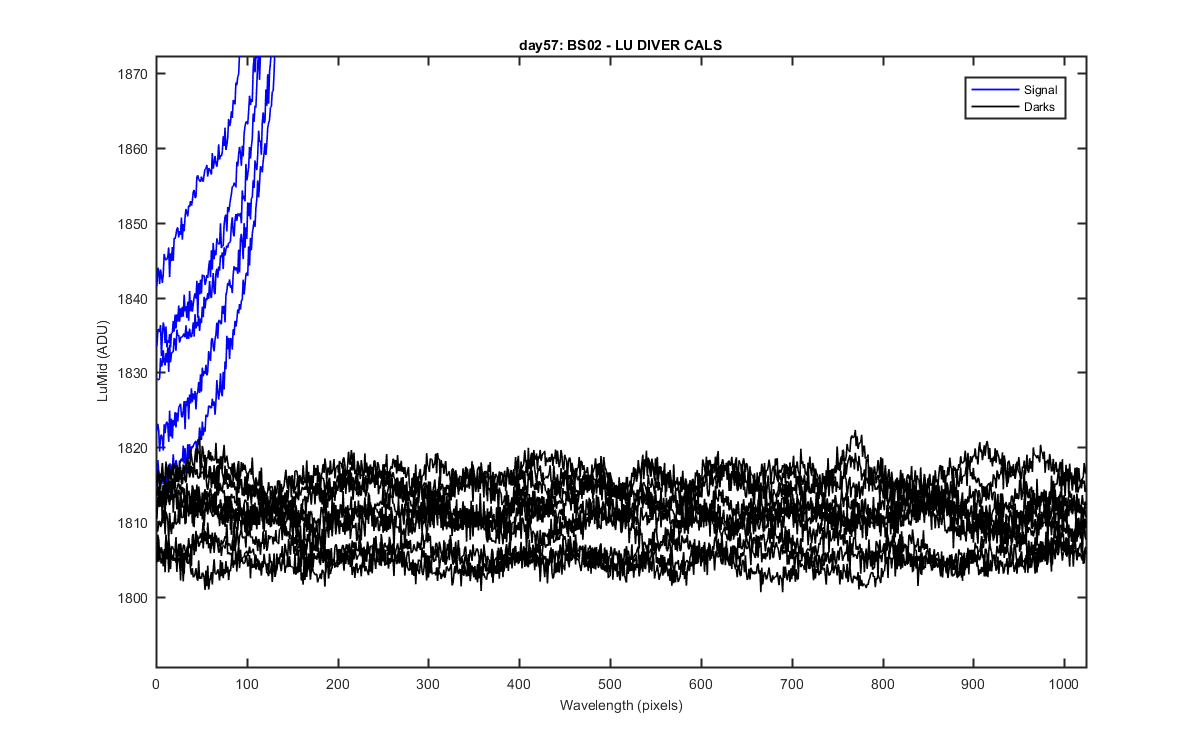

Diver cal lamp LuMid data and the darks taken before and after the data set (if there is before and after).

Figure 4

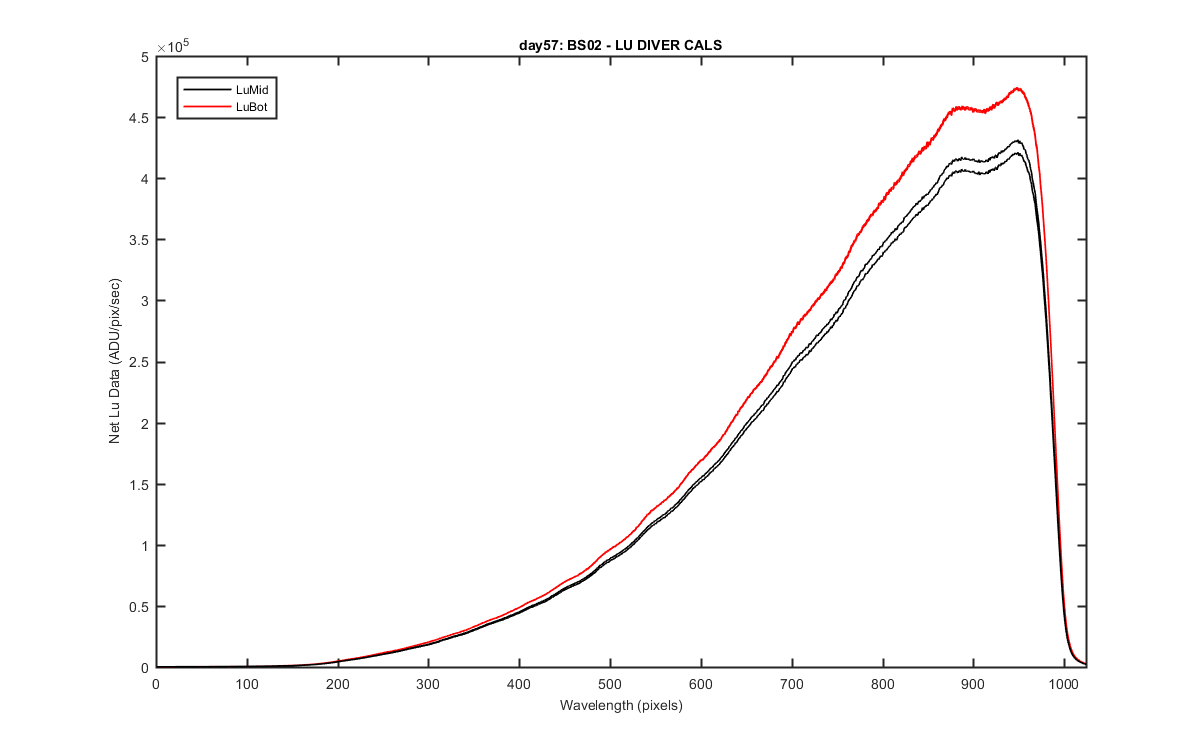

Net signal for each Lu. By net I mean an average of the 5 lites for data set 1 and the darks taken before and after the lites. These where each meaned and then subtracted from each other and divided by int time.

Figure 5

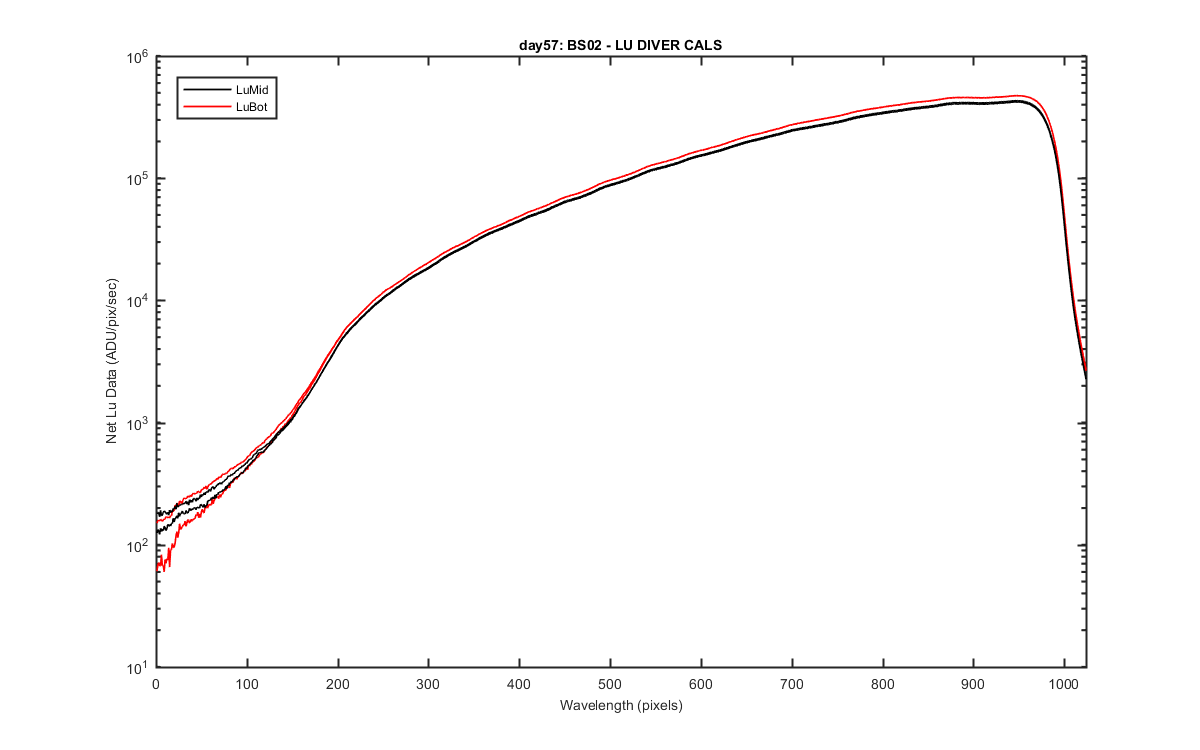

Logged version of the Net data.

Figure 6
