REVISION DATE: 01-Nov-2016 13:26:09
Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.
| Previous | HOME | NEXT | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Filename | Type | Rotaton (deg) |
Wavelength (nm)(deg) | Total Exposure Time | Acquisition mode | Temperature | Gain | Baseline Clamp | file creation date | Pre Amplifier Gain | Readout mode | Matrix Max (ADU) | Matrix Mean (ADU) | Matrix % std |
| s2016102811_img | Signal | NaN | NaN | 8.6106 | Single Scan | -40 | 0 | F | 2016-10-28T17:23:50 | 2 | Image | 19402 | 2940.04 | 89.48 |

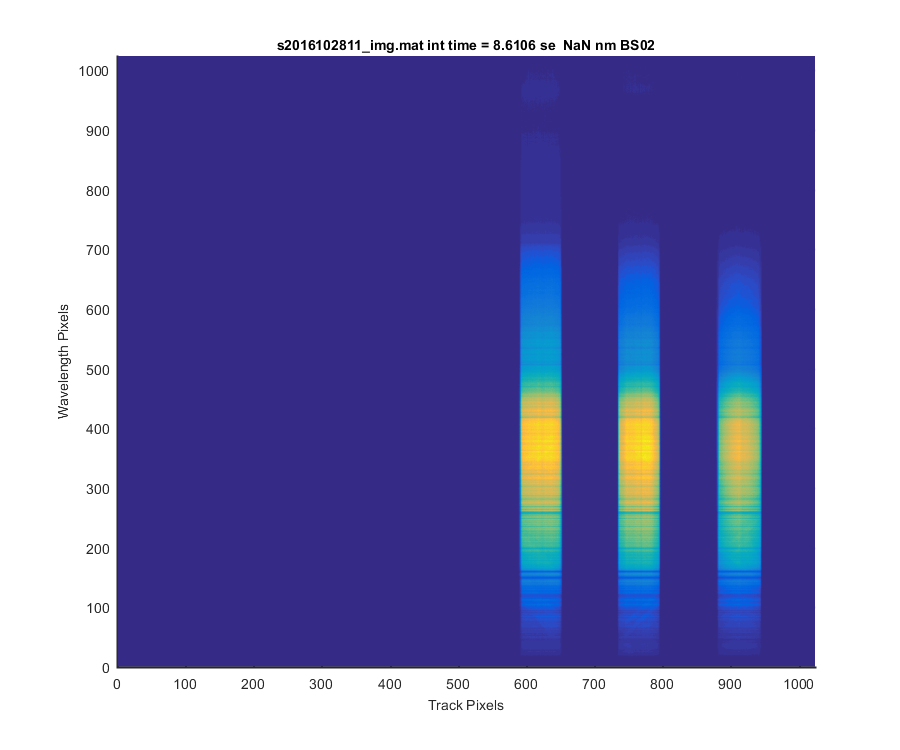

Figure 1

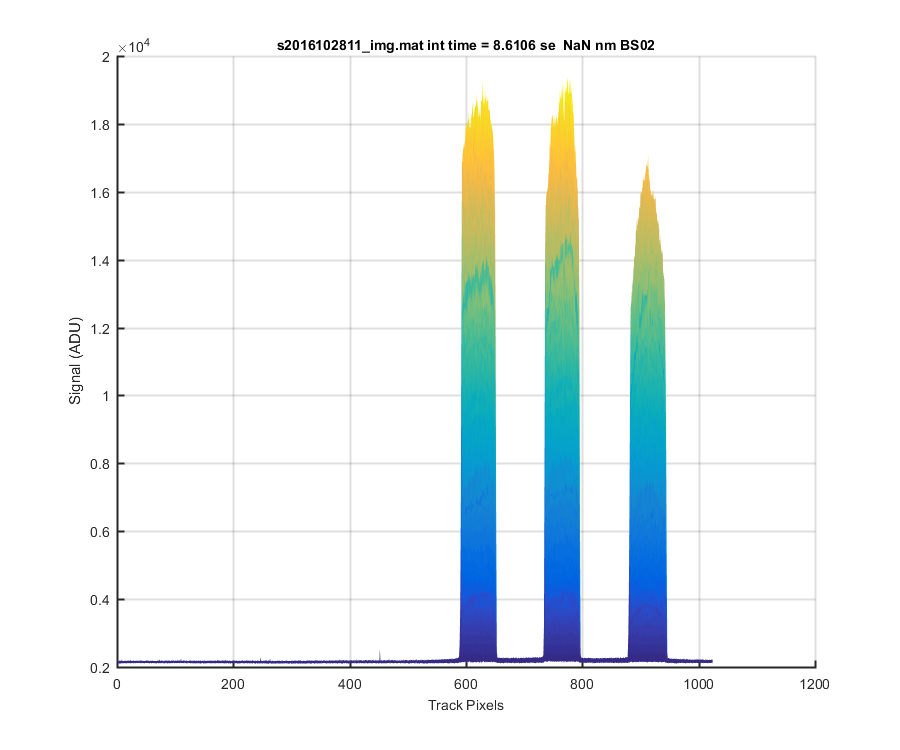

Figure 2

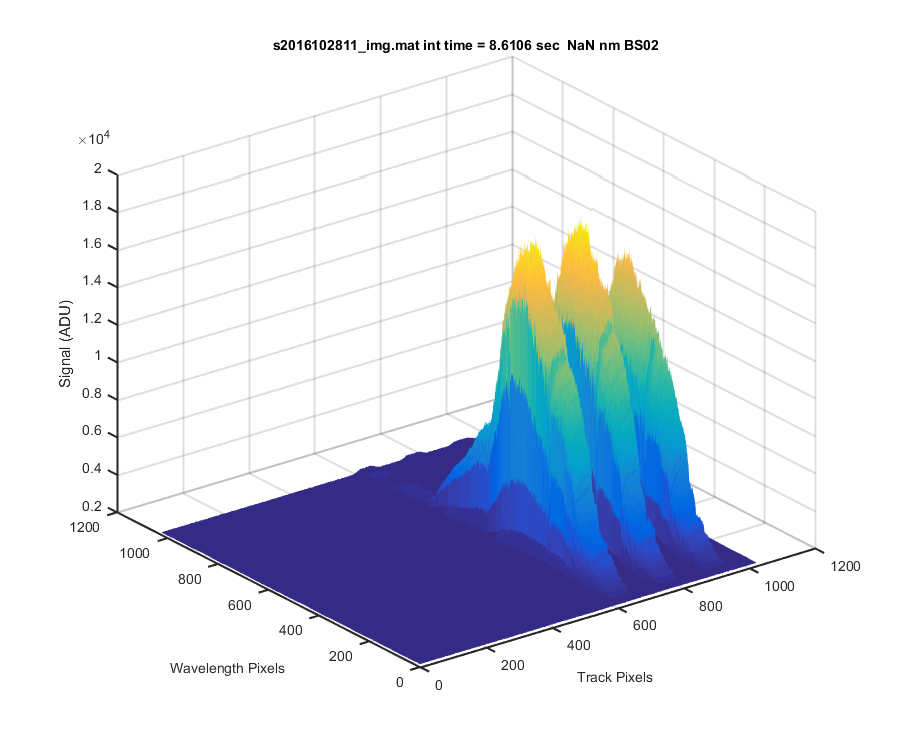

Figure 3

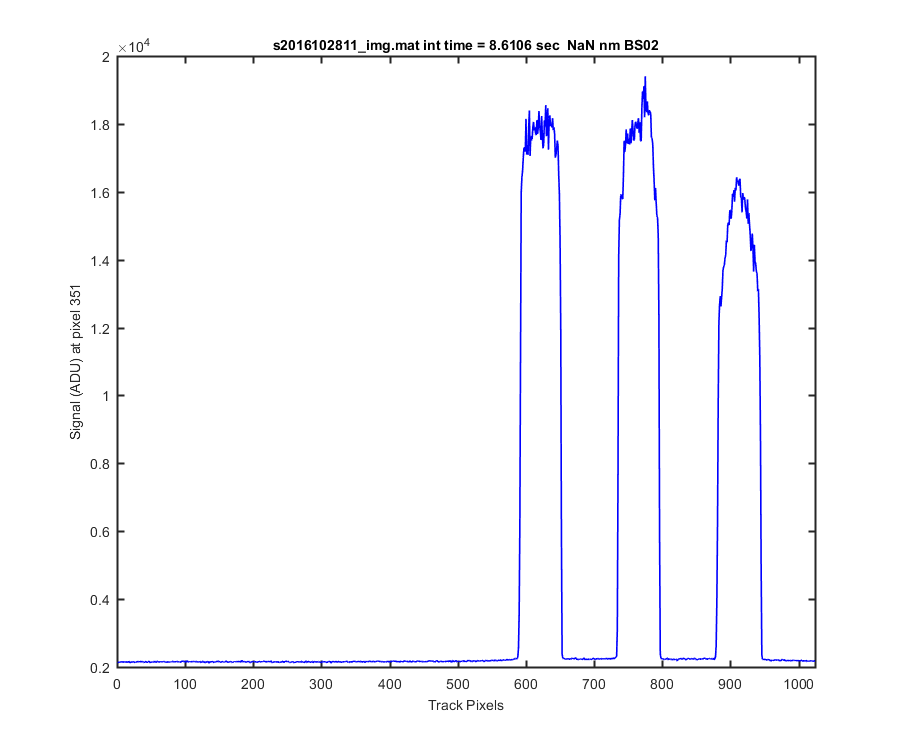

Figure 4
