mr_pltcrosstrack_slc_ - BS01

REVISION DATE: 31-Oct-2017 13:50:22

This show the cross track light got all the files for track 1, 9, 11 and 13. The first 4 graphs show the ratio. For Track 1 three tracks (2,3 and 4) are shown. That ratio is the track 2 ,3 or 4 Net data divided but the illuminated tracks net data. For Track 9 there are three tracks on the left (track 6, 7 and 8) and the one track on the right Track 10. For Track 11 and 13 there are only one track on either side of each track.

The second 4 graphs show the cross track light in ADU/pix/sec. All the Data set types (Es/Lu and Lu only) are shown on the same graphs. There are differences between the two data set types.

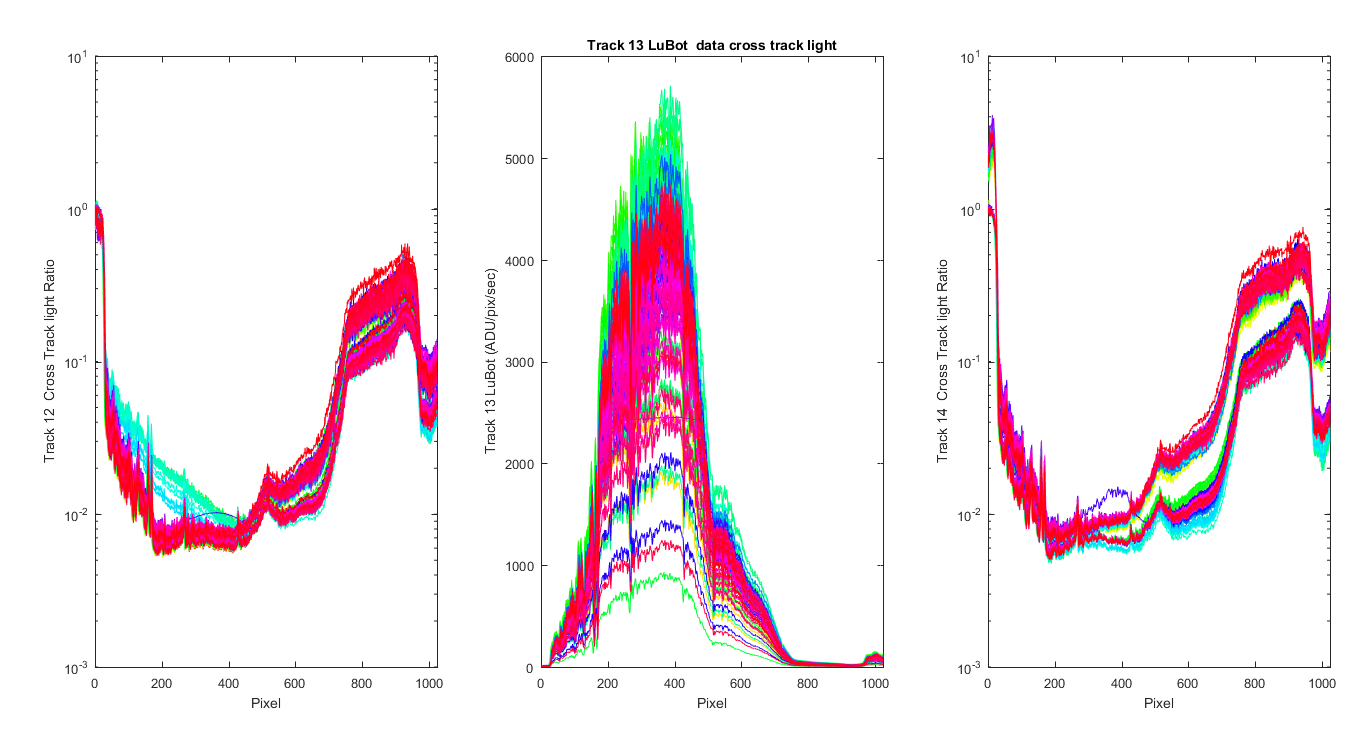

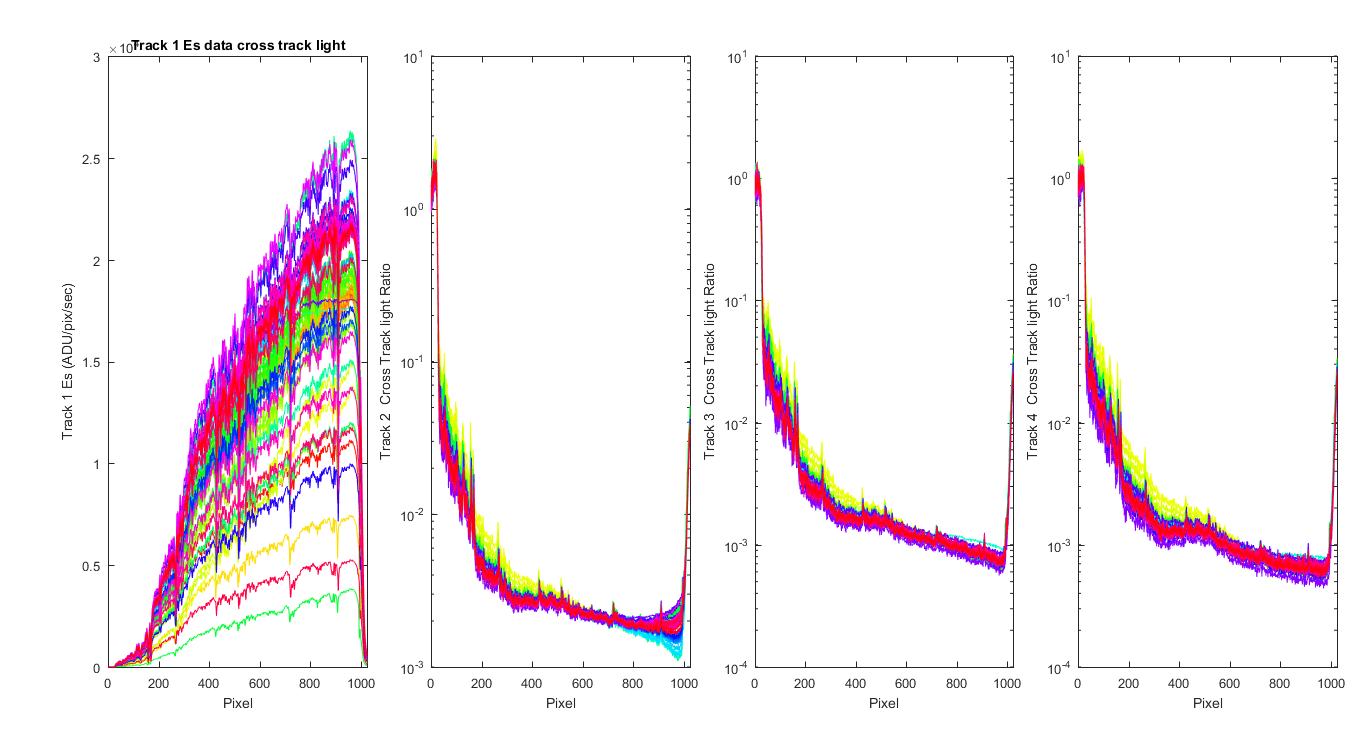

Figure 1

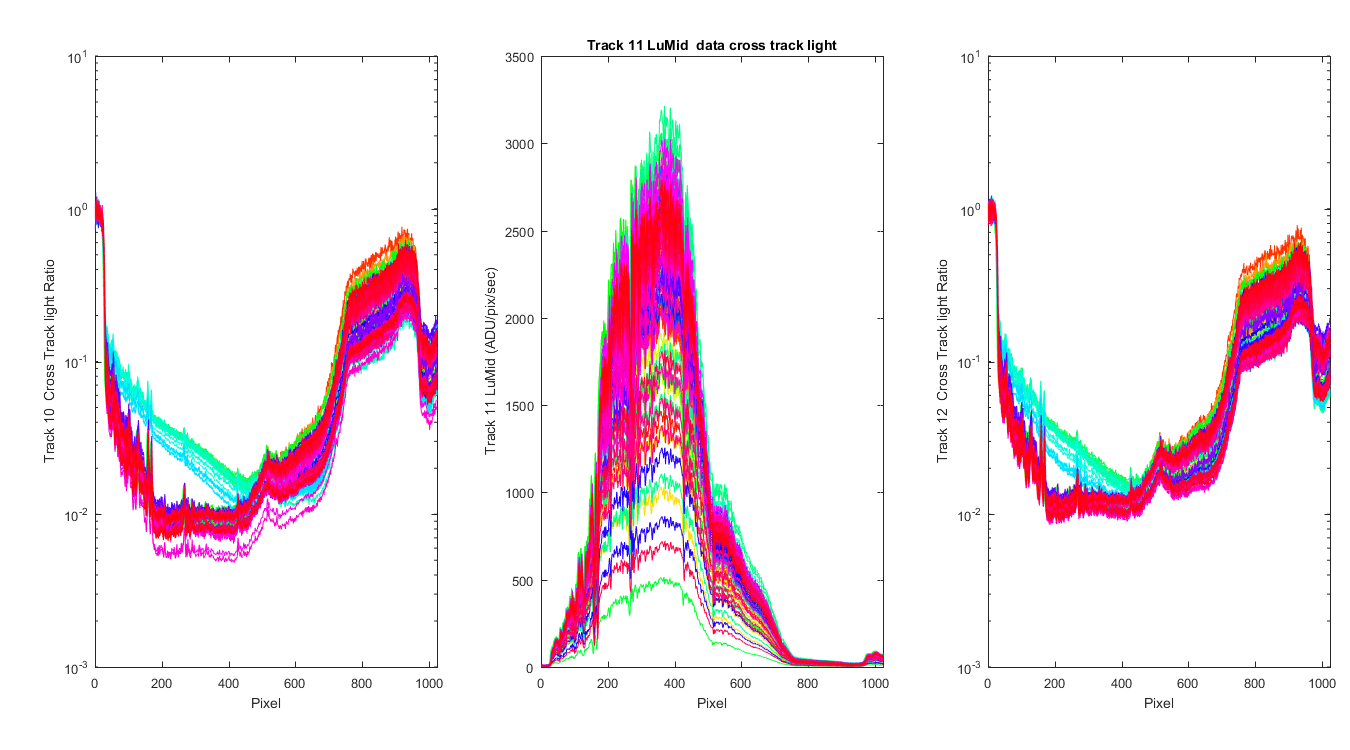

Figure 2

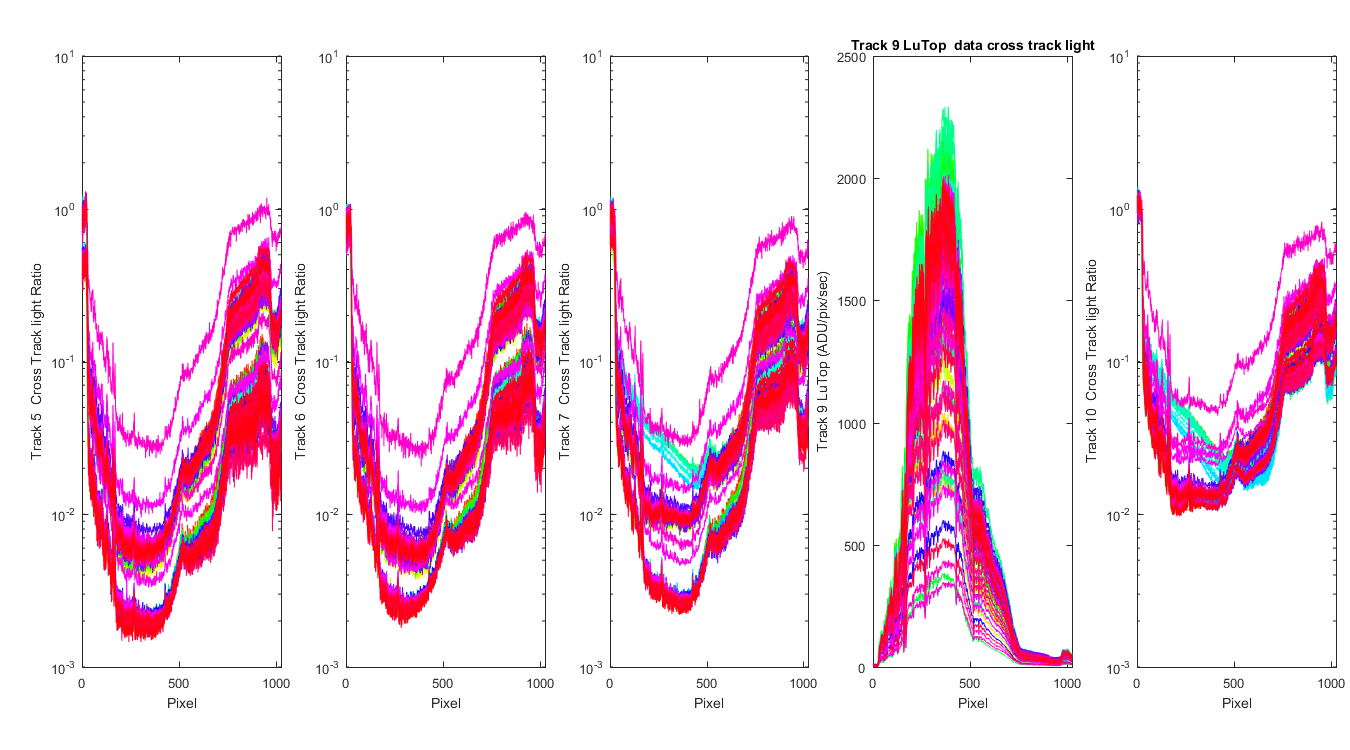

Figure 3


Figure 4

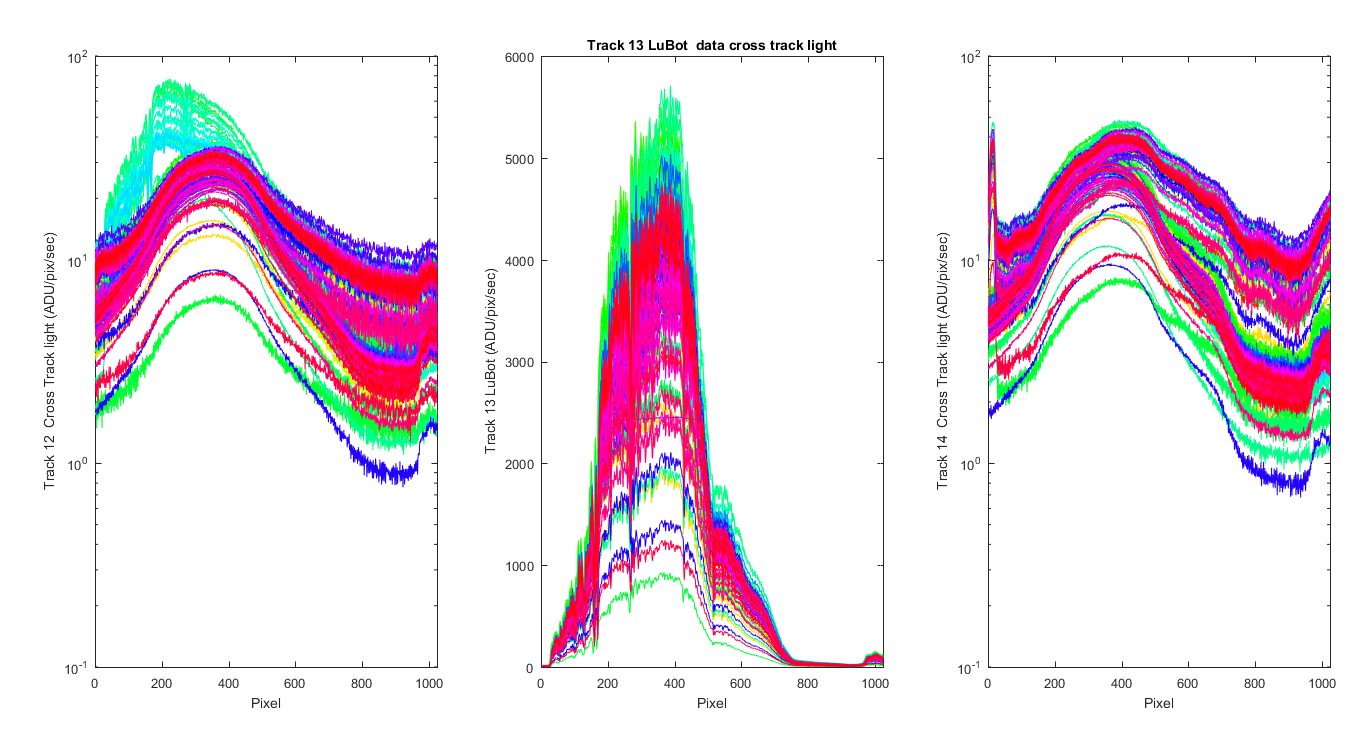

Figure 5

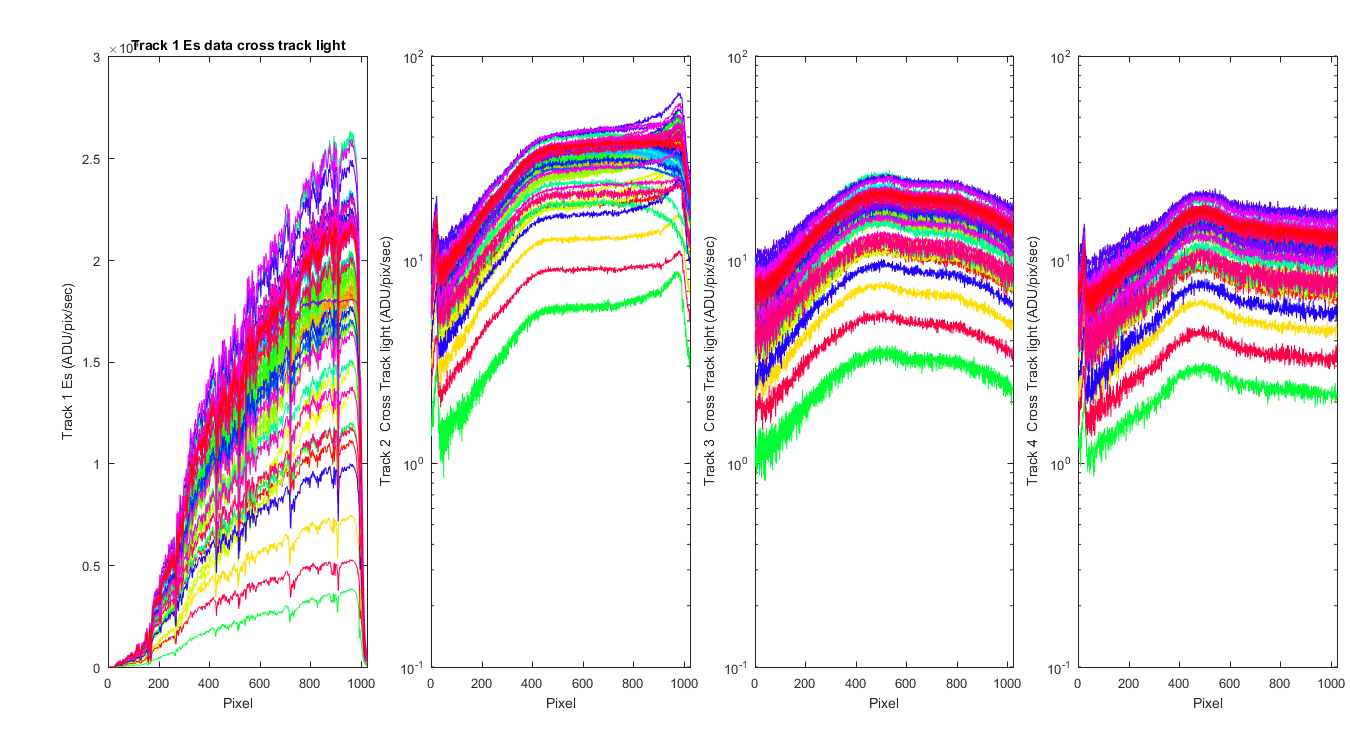

Figure 6

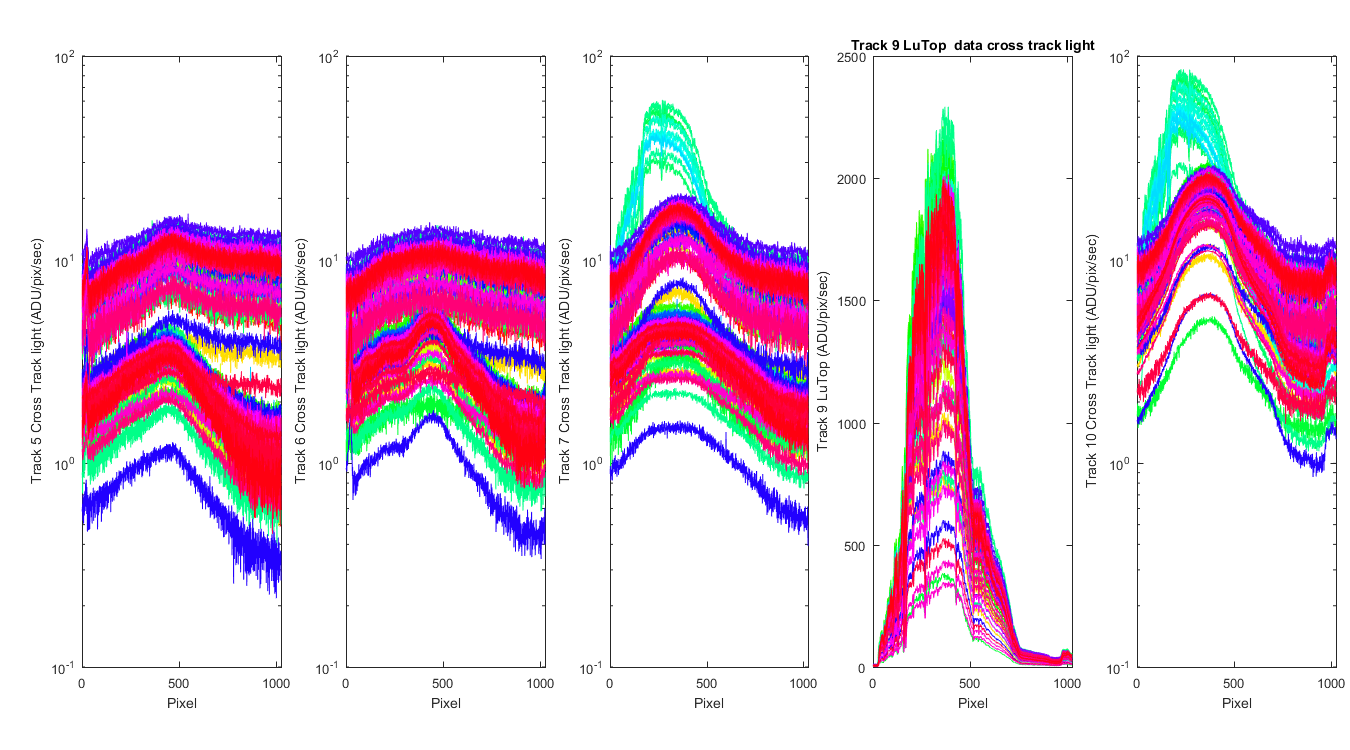

Figure 7


Figure 8


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\MOBY262\bs01
Date: 31-Oct-2017 13:50:22
Created from mr_pltcrosstrack_slc_(1)
