REVISION DATE: 02-Nov-2017 11:04:49
Looks at track 1 wavelength movement for in-water data. This is only for track 1 with Es data, I have also included the three Lus for some of the lines. For each Es the data are dark subtracted. There are 8 Fraunhofer lines I am monitoring for Es and 5 for Lu. I pull out the +- 20 pixels around the fruan line and subtract off the. minumum and divide buy the area to normalize the data. I then used the diff function to calculate the "Difference and approximate derivative" and find where the top of the fraunhofer line is on both sides. I then use these points to pull the fraunhofer line out and make it a peak rather than a valley. I then use the gaussian fit to find the sub-pixel peak location. I also added using the Matlab curve fitting functions, fit with the fittype as gauss1. This function returns goodenss of fit values, which the gaussfit does not. This method has some uncertainties but it works in an automated way. So I can apply this to all the files easily.
On 2 Nov 2017 Stephanie redid this using the new wavelengths from Ken.
% Kens new fraunline wavelengths using modtran - see PDFS in this dir and emails. FRAUNNUM = [ 1 2 3 4 5 6 7 8 ]; FRAUNSTR = ['L ';'K ' ;'G ' ;'F ' ;'b2 ';'D_2'; 'C ';'B ']; FRAUNLAM = [383.3 393.35 430.54 486.13 516.97 589.24 656.28 687.18 ]; FRAUNPIX = [ 127 156 266 426 515 720 907 993 ];
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19
Figure 20
Figure 21
Figure 22
Figure 23
Figure 24
----------------------------------------------------------------------

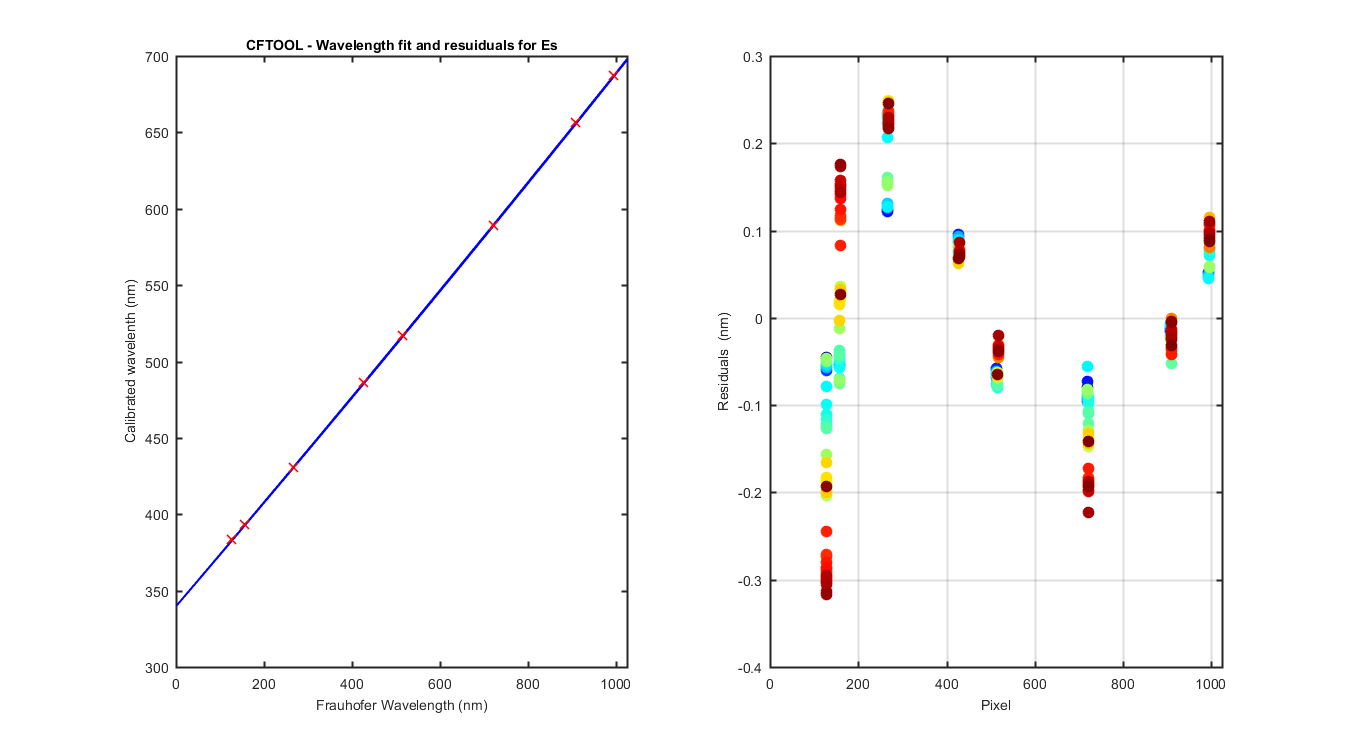

CFTOOL - Wavelength fit and resuiduals for Es
Date Sensor Coeff1 Coeff2 Coeff3 | max diff
11-Mar-2017 12.00 1.078771e-05 3.387440e-01 3.398696e+02 | 0.00
12-Mar-2017 12.00 1.077378e-05 3.387610e-01 3.398630e+02 | 0.01
13-Mar-2017 12.00 1.077954e-05 3.387548e-01 3.398655e+02 | 0.00
14-Mar-2017 12.00 1.077426e-05 3.387621e-01 3.398665e+02 | 0.00
15-Mar-2017 12.00 1.076646e-05 3.387733e-01 3.398657e+02 | 0.01
16-Mar-2017 12.00 1.076967e-05 3.387679e-01 3.398641e+02 | 0.01
17-Mar-2017 12.00 1.077859e-05 3.387570e-01 3.398659e+02 | 0.00
18-Mar-2017 12.00 1.077406e-05 3.387661e-01 3.398664e+02 | 0.01
19-Mar-2017 12.00 1.077128e-05 3.387688e-01 3.398666e+02 | 0.01
20-Mar-2017 12.00 1.077934e-05 3.387574e-01 3.398683e+02 | 0.00
21-Mar-2017 12.00 1.076604e-05 3.387744e-01 3.398619e+02 | 0.01
22-Mar-2017 12.00 1.075588e-05 3.387846e-01 3.398592e+02 | 0.01
24-Mar-2017 12.00 1.082947e-05 3.387006e-01 3.398820e+02 | 0.01
25-Mar-2017 12.00 1.077019e-05 3.387716e-01 3.398690e+02 | 0.01
26-Mar-2017 12.00 1.077670e-05 3.387605e-01 3.398715e+02 | 0.01
27-Mar-2017 12.00 1.078090e-05 3.387899e-01 3.399110e+02 | 0.08
28-Mar-2017 12.00 1.081234e-05 3.387484e-01 3.399276e+02 | 0.09
29-Mar-2017 12.00 1.080836e-05 3.387581e-01 3.399269e+02 | 0.09
30-Mar-2017 12.00 1.080060e-05 3.387655e-01 3.399203e+02 | 0.09
31-Mar-2017 12.00 1.079336e-05 3.387719e-01 3.399158e+02 | 0.08
01-Apr-2017 12.00 1.079537e-05 3.387695e-01 3.399169e+02 | 0.08
02-Apr-2017 12.00 1.078537e-05 3.387786e-01 3.399125e+02 | 0.08
03-Apr-2017 12.00 1.080400e-05 3.387611e-01 3.399178e+02 | 0.08
04-Apr-2017 12.00 1.077877e-05 3.387883e-01 3.399104e+02 | 0.08
05-Apr-2017 12.00 1.078893e-05 3.387767e-01 3.399081e+02 | 0.07
06-Apr-2017 12.00 1.079431e-05 3.387736e-01 3.399103e+02 | 0.08
07-Apr-2017 12.00 1.078504e-05 3.387797e-01 3.399066e+02 | 0.07
08-Apr-2017 12.00 1.079718e-05 3.387693e-01 3.399133e+02 | 0.08
09-Apr-2017 12.00 1.080135e-05 3.387645e-01 3.399167e+02 | 0.08
10-Apr-2017 12.00 1.080631e-05 3.387585e-01 3.399212e+02 | 0.09
11-Apr-2017 12.00 1.080895e-05 3.387565e-01 3.399212e+02 | 0.09
12-Apr-2017 12.00 1.080342e-05 3.387610e-01 3.399174e+02 | 0.08
13-Apr-2017 12.00 1.081754e-05 3.387240e-01 3.399320e+02 | 0.07
12-May-2017 12.00 1.090924e-05 3.384564e-01 3.396189e+02 | 0.42
13-May-2017 12.00 1.102995e-05 3.382927e-01 3.396108e+02 | 0.47
14-May-2017 12.00 1.113111e-05 3.381627e-01 3.395958e+02 | 0.52
15-May-2017 12.00 1.115530e-05 3.381241e-01 3.395909e+02 | 0.54
16-May-2017 12.00 1.115767e-05 3.381230e-01 3.395891e+02 | 0.54
17-May-2017 12.00 1.119482e-05 3.380707e-01 3.395855e+02 | 0.56
18-May-2017 12.00 1.120224e-05 3.380625e-01 3.395853e+02 | 0.56
19-May-2017 12.00 1.118603e-05 3.380836e-01 3.395850e+02 | 0.56
21-May-2017 12.00 1.102034e-05 3.382147e-01 3.395682e+02 | 0.60
23-May-2017 12.00 1.076343e-05 3.386986e-01 3.397096e+02 | 0.23
26-May-2017 12.00 1.077804e-05 3.386876e-01 3.397324e+02 | 0.21
27-May-2017 12.00 1.077727e-05 3.386883e-01 3.397293e+02 | 0.21
28-May-2017 12.00 1.077692e-05 3.386873e-01 3.397287e+02 | 0.21
30-May-2017 12.00 1.078708e-05 3.386784e-01 3.397315e+02 | 0.21
13-Jun-2017 12.00 1.139133e-05 3.378206e-01 3.395572e+02 | 0.67
14-Jun-2017 12.00 1.159826e-05 3.375442e-01 3.395390e+02 | 0.77
16-Jun-2017 12.00 1.162157e-05 3.375120e-01 3.395469e+02 | 0.78
17-Jun-2017 12.00 1.160925e-05 3.375272e-01 3.395410e+02 | 0.78
19-Jun-2017 12.00 1.161895e-05 3.375149e-01 3.395465e+02 | 0.78
20-Jun-2017 12.00 1.158099e-05 3.375680e-01 3.395366e+02 | 0.77
22-Jun-2017 12.00 1.156889e-05 3.375853e-01 3.395442e+02 | 0.76
23-Jun-2017 12.00 1.156096e-05 3.375963e-01 3.395462e+02 | 0.75
24-Jun-2017 12.00 1.155493e-05 3.376056e-01 3.395464e+02 | 0.75
25-Jun-2017 12.00 1.154391e-05 3.376201e-01 3.395404e+02 | 0.75
26-Jun-2017 12.00 1.155350e-05 3.376072e-01 3.395476e+02 | 0.74
27-Jun-2017 12.00 1.153636e-05 3.376287e-01 3.395452e+02 | 0.74
28-Jun-2017 12.00 1.143928e-05 3.377604e-01 3.395423e+02 | 0.70
29-Jun-2017 12.00 1.161235e-05 3.375218e-01 3.395428e+02 | 0.78
01-Jul-2017 12.00 1.194568e-05 3.370708e-01 3.395494e+02 | 0.92
02-Jul-2017 12.00 1.199806e-05 3.370039e-01 3.395534e+02 | 0.94
03-Jul-2017 12.00 1.204680e-05 3.369421e-01 3.395663e+02 | 0.95
05-Jul-2017 12.00 1.219635e-05 3.367659e-01 3.395762e+02 | 0.99
07-Jul-2017 12.00 1.221557e-05 3.367407e-01 3.395792e+02 | 0.99
08-Jul-2017 12.00 1.217468e-05 3.367636e-01 3.395774e+02 | 1.00
09-Jul-2017 12.00 1.216288e-05 3.368037e-01 3.395751e+02 | 0.98
11-Jul-2017 12.00 1.215025e-05 3.368236e-01 3.395698e+02 | 0.98
12-Jul-2017 12.00 1.214529e-05 3.368322e-01 3.395645e+02 | 0.98
13-Jul-2017 12.00 1.218477e-05 3.367833e-01 3.395688e+02 | 0.99
14-Jul-2017 12.00 1.213466e-05 3.368395e-01 3.395683e+02 | 0.97
15-Jul-2017 12.00 1.213825e-05 3.368361e-01 3.395690e+02 | 0.97
16-Jul-2017 12.00 1.196945e-05 3.370353e-01 3.395542e+02 | 0.93
17-Jul-2017 12.00 1.198935e-05 3.370094e-01 3.395589e+02 | 0.94
18-Jul-2017 12.00 1.181848e-05 3.372315e-01 3.395430e+02 | 0.88
19-Jul-2017 12.00 1.203875e-05 3.369579e-01 3.395597e+02 | 0.95
20-Jul-2017 12.00 1.212469e-05 3.368537e-01 3.395671e+02 | 0.97
21-Jul-2017 12.00 1.220758e-05 3.367579e-01 3.395724e+02 | 0.99
22-Jul-2017 12.00 1.218006e-05 3.367909e-01 3.395690e+02 | 0.99
23-Jul-2017 12.00 1.223161e-05 3.367267e-01 3.395759e+02 | 1.00
24-Jul-2017 12.00 1.219308e-05 3.367779e-01 3.395640e+02 | 0.99
25-Jul-2017 12.00 1.222668e-05 3.367331e-01 3.395740e+02 | 1.00
26-Jul-2017 12.00 1.221290e-05 3.367478e-01 3.395735e+02 | 1.00
27-Jul-2017 12.00 1.216529e-05 3.368059e-01 3.395679e+02 | 0.98
28-Jul-2017 12.00 1.210463e-05 3.368951e-01 3.395533e+02 | 0.97
30-Jul-2017 12.00 1.234934e-05 3.365847e-01 3.395838e+02 | 1.03
31-Jul-2017 12.00 1.232962e-05 3.366044e-01 3.395865e+02 | 1.03
01-Aug-2017 12.00 1.158225e-05 3.375642e-01 3.395421e+02 | 0.77
----------------------------------------------------------------------
----------------------------------------------------------------------

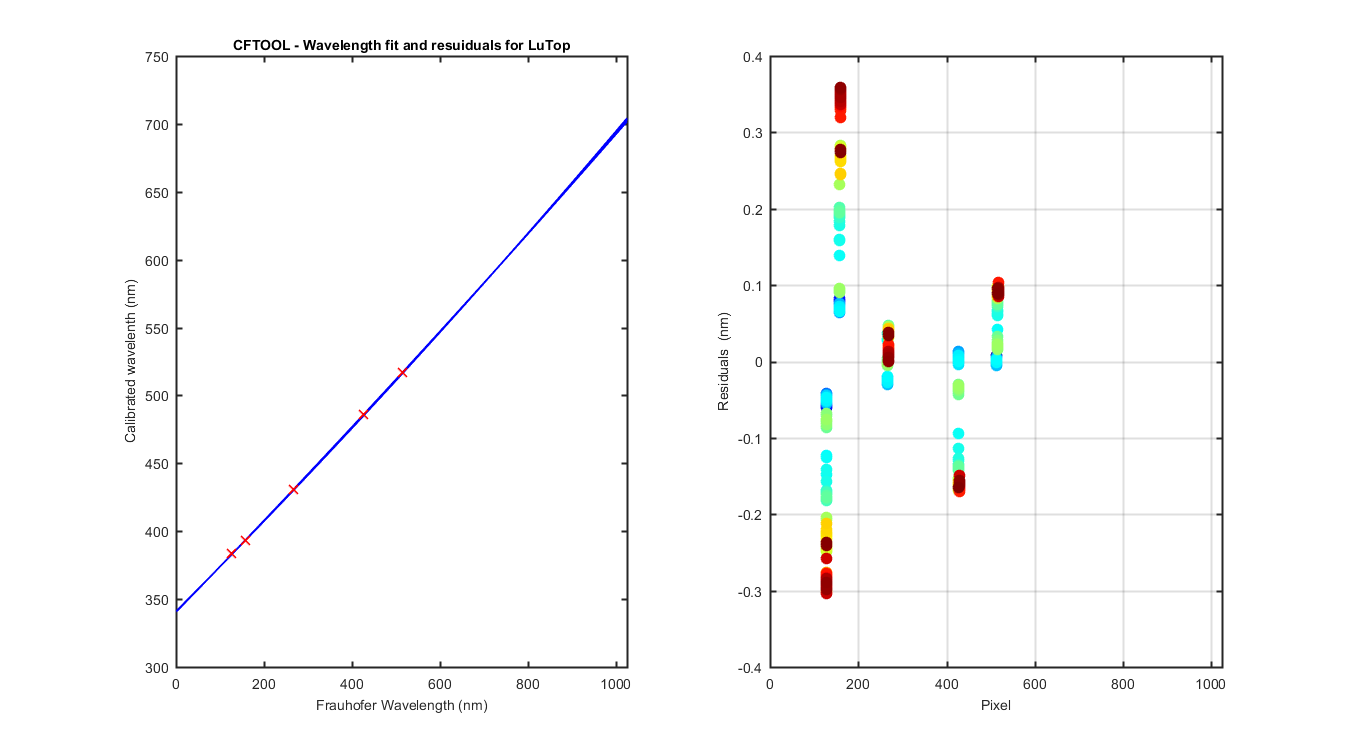

CFTOOL - Wavelength fit and resuiduals for LuTop
Date Sensor Coeff1 Coeff2 Coeff3 | max diff
10-Mar-2017 21.01 1.838746e-05 3.339461e-01 3.404441e+02 | 0.00
11-Mar-2017 21.01 1.826710e-05 3.340140e-01 3.404385e+02 | 0.06
12-Mar-2017 21.01 1.839960e-05 3.339434e-01 3.404440e+02 | 0.01
13-Mar-2017 21.01 1.825761e-05 3.340342e-01 3.404310e+02 | 0.06
14-Mar-2017 21.01 1.839689e-05 3.339521e-01 3.404428e+02 | 0.01
15-Mar-2017 21.01 1.838181e-05 3.339449e-01 3.404477e+02 | 0.00
16-Mar-2017 21.01 1.844267e-05 3.339269e-01 3.404446e+02 | 0.04
17-Mar-2017 21.01 1.836471e-05 3.339620e-01 3.404426e+02 | 0.01
18-Mar-2017 21.01 1.831435e-05 3.339959e-01 3.404399e+02 | 0.03
19-Mar-2017 21.01 1.828584e-05 3.340163e-01 3.404363e+02 | 0.04
20-Mar-2017 21.01 1.842486e-05 3.339329e-01 3.404454e+02 | 0.03
21-Mar-2017 21.01 1.837067e-05 3.339639e-01 3.404410e+02 | 0.00
22-Mar-2017 21.01 1.847046e-05 3.338943e-01 3.404497e+02 | 0.04
24-Mar-2017 21.01 1.855310e-05 3.338516e-01 3.404632e+02 | 0.10
25-Mar-2017 21.01 1.848126e-05 3.338957e-01 3.404541e+02 | 0.06
26-Mar-2017 21.01 1.840724e-05 3.339440e-01 3.404459e+02 | 0.02
27-Mar-2017 21.01 1.822840e-05 3.340894e-01 3.404701e+02 | 0.06
28-Mar-2017 21.01 1.820801e-05 3.341097e-01 3.404701e+02 | 0.06
29-Mar-2017 21.01 1.829261e-05 3.340517e-01 3.404803e+02 | 0.07
30-Mar-2017 21.01 1.828615e-05 3.340528e-01 3.404751e+02 | 0.06
31-Mar-2017 21.01 1.829754e-05 3.340403e-01 3.404750e+02 | 0.06
01-Apr-2017 21.01 1.833425e-05 3.340172e-01 3.404789e+02 | 0.06
02-Apr-2017 21.01 1.834818e-05 3.340041e-01 3.404785e+02 | 0.06
03-Apr-2017 21.01 1.820342e-05 3.341034e-01 3.404660e+02 | 0.06
04-Apr-2017 21.01 1.833546e-05 3.340199e-01 3.404737e+02 | 0.06
05-Apr-2017 21.01 1.832647e-05 3.340212e-01 3.404722e+02 | 0.05
06-Apr-2017 21.01 1.826365e-05 3.340651e-01 3.404694e+02 | 0.05
07-Apr-2017 21.01 1.820783e-05 3.340905e-01 3.404647e+02 | 0.05
08-Apr-2017 21.01 1.818658e-05 3.341090e-01 3.404639e+02 | 0.05
09-Apr-2017 21.01 1.836453e-05 3.339932e-01 3.404838e+02 | 0.06
10-Apr-2017 21.01 1.819949e-05 3.341063e-01 3.404686e+02 | 0.06
11-Apr-2017 21.01 1.825576e-05 3.340719e-01 3.404741e+02 | 0.06
12-Apr-2017 21.01 1.825934e-05 3.340578e-01 3.404742e+02 | 0.05
13-Apr-2017 21.01 1.830770e-05 3.340605e-01 3.404765e+02 | 0.07
12-May-2017 21.01 2.204904e-05 3.310586e-01 3.405873e+02 | 1.03
13-May-2017 21.01 2.286597e-05 3.303757e-01 3.406619e+02 | 1.26
14-May-2017 21.01 2.387926e-05 3.295908e-01 3.407492e+02 | 1.60
15-May-2017 21.01 2.399287e-05 3.294492e-01 3.407654e+02 | 1.59
16-May-2017 21.01 2.407514e-05 3.294031e-01 3.407700e+02 | 1.64
17-May-2017 21.01 2.427705e-05 3.292220e-01 3.407869e+02 | 1.68
18-May-2017 21.01 2.436661e-05 3.291610e-01 3.407952e+02 | 1.72
19-May-2017 21.01 2.433381e-05 3.291891e-01 3.407934e+02 | 1.71
21-May-2017 21.01 2.424991e-05 3.292455e-01 3.407885e+02 | 1.68
23-May-2017 21.01 1.925210e-05 3.331717e-01 3.404035e+02 | 0.21
26-May-2017 21.01 1.920454e-05 3.332396e-01 3.404090e+02 | 0.19
27-May-2017 21.01 1.915223e-05 3.332628e-01 3.404066e+02 | 0.19
28-May-2017 21.01 1.923578e-05 3.332178e-01 3.404096e+02 | 0.19
30-May-2017 21.01 1.918684e-05 3.332488e-01 3.404071e+02 | 0.19
13-Jun-2017 21.01 2.542064e-05 3.282847e-01 3.408933e+02 | 2.03
14-Jun-2017 21.01 2.665552e-05 3.272030e-01 3.410179e+02 | 2.34
16-Jun-2017 21.01 2.665121e-05 3.272220e-01 3.410120e+02 | 2.35
17-Jun-2017 21.01 2.657334e-05 3.272551e-01 3.410079e+02 | 2.30
19-Jun-2017 21.01 2.664277e-05 3.272189e-01 3.410124e+02 | 2.34
20-Jun-2017 21.01 2.648350e-05 3.273225e-01 3.410028e+02 | 2.27
22-Jun-2017 21.01 2.638976e-05 3.274281e-01 3.409918e+02 | 2.26
23-Jun-2017 21.01 2.631141e-05 3.275047e-01 3.409803e+02 | 2.25
24-Jun-2017 21.01 2.618200e-05 3.276139e-01 3.409622e+02 | 2.21
25-Jun-2017 21.01 2.640236e-05 3.274382e-01 3.409912e+02 | 2.29
26-Jun-2017 21.01 2.630749e-05 3.275285e-01 3.409784e+02 | 2.27
27-Jun-2017 21.01 2.623012e-05 3.275739e-01 3.409748e+02 | 2.23
28-Jun-2017 21.01 2.583338e-05 3.279375e-01 3.409337e+02 | 2.14
29-Jun-2017 21.01 2.662383e-05 3.272429e-01 3.410088e+02 | 2.34
01-Jul-2017 21.01 2.753332e-05 3.263726e-01 3.410848e+02 | 2.48
02-Jul-2017 21.01 2.738376e-05 3.264563e-01 3.410669e+02 | 2.39
03-Jul-2017 21.01 2.751738e-05 3.263654e-01 3.410794e+02 | 2.45
05-Jul-2017 21.01 2.744697e-05 3.263722e-01 3.410559e+02 | 2.36
07-Jul-2017 21.01 2.762399e-05 3.262255e-01 3.410810e+02 | 2.42
08-Jul-2017 21.01 2.762315e-05 3.262457e-01 3.410765e+02 | 2.43
09-Jul-2017 21.01 2.743094e-05 3.263781e-01 3.410637e+02 | 2.35
11-Jul-2017 21.01 2.744916e-05 3.263556e-01 3.410684e+02 | 2.35
12-Jul-2017 21.01 2.768266e-05 3.261971e-01 3.410915e+02 | 2.46
13-Jul-2017 21.01 2.754077e-05 3.263057e-01 3.410661e+02 | 2.40
14-Jul-2017 21.01 2.745912e-05 3.263672e-01 3.410658e+02 | 2.37
15-Jul-2017 21.01 2.746805e-05 3.263574e-01 3.410689e+02 | 2.38
16-Jul-2017 21.01 2.754420e-05 3.263524e-01 3.410866e+02 | 2.47
17-Jul-2017 21.01 2.751535e-05 3.263640e-01 3.410833e+02 | 2.45
18-Jul-2017 21.01 2.748138e-05 3.264753e-01 3.410890e+02 | 2.53
19-Jul-2017 21.01 2.736409e-05 3.264606e-01 3.410607e+02 | 2.36
20-Jul-2017 21.01 2.763943e-05 3.262333e-01 3.410885e+02 | 2.45
21-Jul-2017 21.01 2.761792e-05 3.262333e-01 3.410741e+02 | 2.41
22-Jul-2017 21.01 2.753052e-05 3.262952e-01 3.410680e+02 | 2.38
23-Jul-2017 21.01 2.753050e-05 3.262721e-01 3.410688e+02 | 2.35
24-Jul-2017 21.01 2.739770e-05 3.263823e-01 3.410503e+02 | 2.31
25-Jul-2017 21.01 2.711836e-05 3.266016e-01 3.410113e+02 | 2.20
26-Jul-2017 21.01 2.767179e-05 3.261908e-01 3.410838e+02 | 2.43
27-Jul-2017 21.01 2.730097e-05 3.264509e-01 3.410485e+02 | 2.28
28-Jul-2017 21.01 2.735043e-05 3.264225e-01 3.410537e+02 | 2.30
30-Jul-2017 21.01 2.746005e-05 3.263090e-01 3.410448e+02 | 2.29
31-Jul-2017 21.01 2.751793e-05 3.262680e-01 3.410559e+02 | 2.32
01-Aug-2017 21.01 2.642110e-05 3.273826e-01 3.409937e+02 | 2.25
----------------------------------------------------------------------
----------------------------------------------------------------------

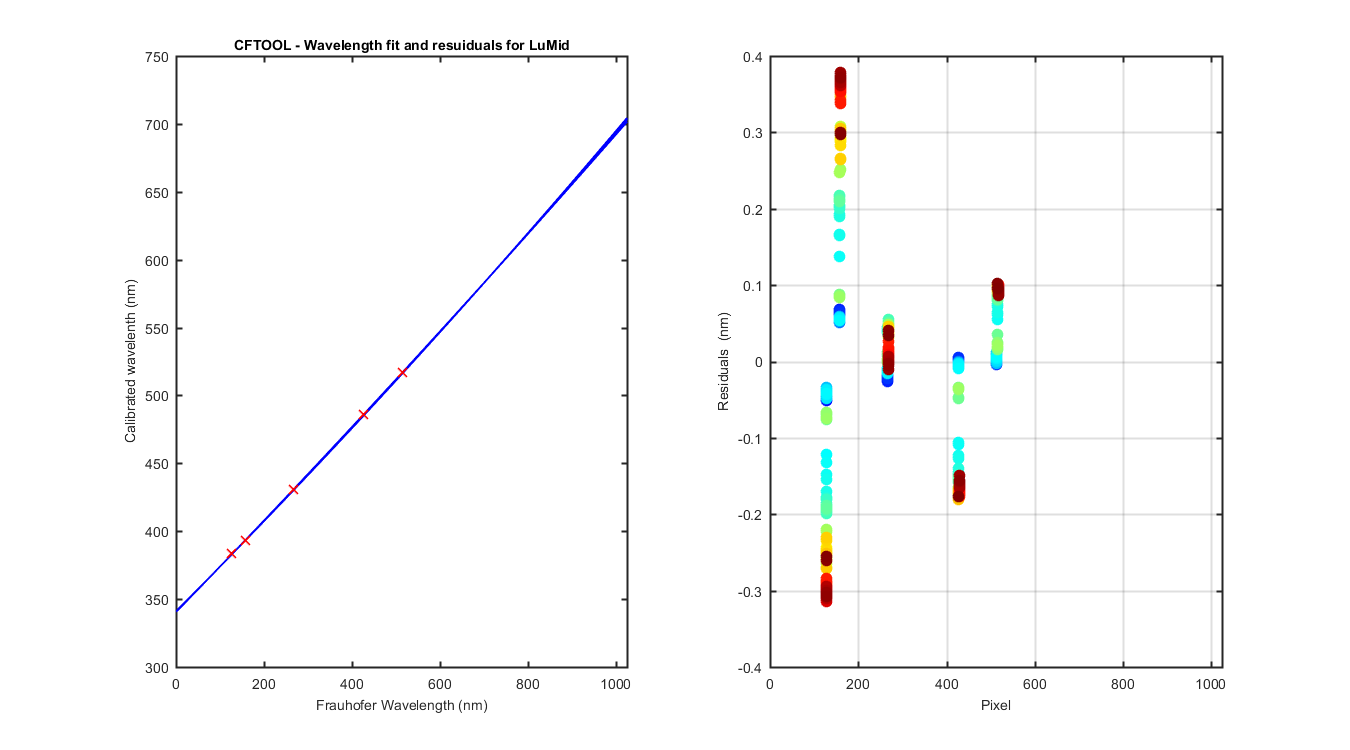

CFTOOL - Wavelength fit and resuiduals for LuMid
Date Sensor Coeff1 Coeff2 Coeff3 | max diff
10-Mar-2017 21.02 1.767508e-05 3.344489e-01 3.403828e+02 | 0.00
11-Mar-2017 21.02 1.785988e-05 3.343470e-01 3.403955e+02 | 0.10
12-Mar-2017 21.02 1.776137e-05 3.343946e-01 3.403894e+02 | 0.04
13-Mar-2017 21.02 1.772429e-05 3.344231e-01 3.403844e+02 | 0.03
14-Mar-2017 21.02 1.784135e-05 3.343458e-01 3.403967e+02 | 0.08
15-Mar-2017 21.02 1.768266e-05 3.344591e-01 3.403837e+02 | 0.02
16-Mar-2017 21.02 1.762173e-05 3.344821e-01 3.403790e+02 | 0.03
17-Mar-2017 21.02 1.772140e-05 3.344326e-01 3.403834e+02 | 0.03
18-Mar-2017 21.02 1.773180e-05 3.344281e-01 3.403849e+02 | 0.04
19-Mar-2017 21.02 1.765288e-05 3.344726e-01 3.403819e+02 | 0.01
20-Mar-2017 21.02 1.762941e-05 3.344865e-01 3.403786e+02 | 0.01
21-Mar-2017 21.02 1.767978e-05 3.344546e-01 3.403806e+02 | 0.01
22-Mar-2017 21.02 1.769047e-05 3.344382e-01 3.403828e+02 | 0.01
24-Mar-2017 21.02 1.781218e-05 3.343765e-01 3.403986e+02 | 0.09
25-Mar-2017 21.02 1.764955e-05 3.344758e-01 3.403841e+02 | 0.01
26-Mar-2017 21.02 1.765749e-05 3.344690e-01 3.403835e+02 | 0.01
27-Mar-2017 21.02 1.773351e-05 3.344507e-01 3.404288e+02 | 0.11
28-Mar-2017 21.02 1.801778e-05 3.342831e-01 3.404522e+02 | 0.26
29-Mar-2017 21.02 1.785985e-05 3.343695e-01 3.404448e+02 | 0.17
30-Mar-2017 21.02 1.788312e-05 3.343671e-01 3.404386e+02 | 0.19
31-Mar-2017 21.02 1.778710e-05 3.344383e-01 3.404249e+02 | 0.15
01-Apr-2017 21.02 1.788280e-05 3.343580e-01 3.404405e+02 | 0.18
02-Apr-2017 21.02 1.775953e-05 3.344308e-01 3.404283e+02 | 0.12
03-Apr-2017 21.02 1.787795e-05 3.343634e-01 3.404366e+02 | 0.18
04-Apr-2017 21.02 1.776885e-05 3.344273e-01 3.404257e+02 | 0.12
05-Apr-2017 21.02 1.783945e-05 3.343837e-01 3.404299e+02 | 0.15
06-Apr-2017 21.02 1.787323e-05 3.343610e-01 3.404333e+02 | 0.17
07-Apr-2017 21.02 1.773451e-05 3.344408e-01 3.404236e+02 | 0.09
08-Apr-2017 21.02 1.768381e-05 3.344858e-01 3.404185e+02 | 0.08
09-Apr-2017 21.02 1.779314e-05 3.344014e-01 3.404338e+02 | 0.13
10-Apr-2017 21.02 1.781331e-05 3.344060e-01 3.404322e+02 | 0.15
11-Apr-2017 21.02 1.785000e-05 3.343648e-01 3.404425e+02 | 0.16
12-Apr-2017 21.02 1.780827e-05 3.344068e-01 3.404316e+02 | 0.15
13-Apr-2017 21.02 1.785791e-05 3.343866e-01 3.404404e+02 | 0.19
12-May-2017 21.02 2.215582e-05 3.310013e-01 3.405801e+02 | 1.37
13-May-2017 21.02 2.346519e-05 3.300049e-01 3.406971e+02 | 1.83
14-May-2017 21.02 2.455733e-05 3.291632e-01 3.407925e+02 | 2.21
15-May-2017 21.02 2.496757e-05 3.288263e-01 3.408377e+02 | 2.34
16-May-2017 21.02 2.486036e-05 3.288957e-01 3.408269e+02 | 2.29
17-May-2017 21.02 2.519314e-05 3.286339e-01 3.408558e+02 | 2.40
18-May-2017 21.02 2.536564e-05 3.284924e-01 3.408797e+02 | 2.46
19-May-2017 21.02 2.528434e-05 3.285778e-01 3.408676e+02 | 2.45
21-May-2017 21.02 2.508427e-05 3.287046e-01 3.408517e+02 | 2.36
23-May-2017 21.02 1.899546e-05 3.333739e-01 3.403635e+02 | 0.26
26-May-2017 21.02 1.898900e-05 3.334376e-01 3.403662e+02 | 0.33
27-May-2017 21.02 1.888276e-05 3.334956e-01 3.403587e+02 | 0.27
28-May-2017 21.02 1.890830e-05 3.334679e-01 3.403618e+02 | 0.27
30-May-2017 21.02 1.887601e-05 3.335024e-01 3.403557e+02 | 0.26
13-Jun-2017 21.02 2.634228e-05 3.276809e-01 3.409709e+02 | 2.75
14-Jun-2017 21.02 2.745604e-05 3.266852e-01 3.410801e+02 | 3.00
16-Jun-2017 21.02 2.745775e-05 3.266835e-01 3.410797e+02 | 3.00
17-Jun-2017 21.02 2.756004e-05 3.266077e-01 3.410904e+02 | 3.04
19-Jun-2017 21.02 2.761355e-05 3.265882e-01 3.410916e+02 | 3.08
20-Jun-2017 21.02 2.755188e-05 3.266498e-01 3.410851e+02 | 3.07
22-Jun-2017 21.02 2.742856e-05 3.267618e-01 3.410768e+02 | 3.05
23-Jun-2017 21.02 2.731644e-05 3.268342e-01 3.410689e+02 | 3.00
24-Jun-2017 21.02 2.731701e-05 3.268360e-01 3.410691e+02 | 3.00
25-Jun-2017 21.02 2.736577e-05 3.268051e-01 3.410729e+02 | 3.02
26-Jun-2017 21.02 2.729609e-05 3.268675e-01 3.410657e+02 | 3.01
27-Jun-2017 21.02 2.715183e-05 3.269743e-01 3.410504e+02 | 2.95
28-Jun-2017 21.02 2.682620e-05 3.272973e-01 3.410153e+02 | 2.90
29-Jun-2017 21.02 2.759454e-05 3.265889e-01 3.410954e+02 | 3.07
01-Jul-2017 21.02 2.792201e-05 3.261410e-01 3.411015e+02 | 2.96
02-Jul-2017 21.02 2.812657e-05 3.259699e-01 3.411254e+02 | 3.02
03-Jul-2017 21.02 2.812134e-05 3.259782e-01 3.411201e+02 | 3.02
05-Jul-2017 21.02 2.823854e-05 3.258673e-01 3.411133e+02 | 3.02
07-Jul-2017 21.02 2.812702e-05 3.259201e-01 3.411062e+02 | 2.95
08-Jul-2017 21.02 2.811672e-05 3.259367e-01 3.411058e+02 | 2.96
09-Jul-2017 21.02 2.813803e-05 3.259329e-01 3.411108e+02 | 2.98
11-Jul-2017 21.02 2.803092e-05 3.260036e-01 3.410992e+02 | 2.93
12-Jul-2017 21.02 2.817757e-05 3.259074e-01 3.411105e+02 | 2.99
13-Jul-2017 21.02 2.805680e-05 3.259752e-01 3.410964e+02 | 2.92
14-Jul-2017 21.02 2.797544e-05 3.260650e-01 3.410884e+02 | 2.92
15-Jul-2017 21.02 2.822896e-05 3.258728e-01 3.411211e+02 | 3.02
16-Jul-2017 21.02 2.815024e-05 3.259688e-01 3.411259e+02 | 3.04
17-Jul-2017 21.02 2.816534e-05 3.259528e-01 3.411258e+02 | 3.04
18-Jul-2017 21.02 2.801109e-05 3.261299e-01 3.411255e+02 | 3.06
19-Jul-2017 21.02 2.804345e-05 3.260327e-01 3.411064e+02 | 2.98
20-Jul-2017 21.02 2.804230e-05 3.259997e-01 3.411027e+02 | 2.94
21-Jul-2017 21.02 2.792821e-05 3.260724e-01 3.410752e+02 | 2.87
22-Jul-2017 21.02 2.802613e-05 3.260061e-01 3.410896e+02 | 2.92
23-Jul-2017 21.02 2.806556e-05 3.259564e-01 3.410944e+02 | 2.91
24-Jul-2017 21.02 2.809083e-05 3.259418e-01 3.410968e+02 | 2.92
25-Jul-2017 21.02 2.797572e-05 3.260145e-01 3.410864e+02 | 2.87
26-Jul-2017 21.02 2.798618e-05 3.260444e-01 3.410810e+02 | 2.90
27-Jul-2017 21.02 2.810098e-05 3.259523e-01 3.411016e+02 | 2.95
28-Jul-2017 21.02 2.806626e-05 3.259688e-01 3.410997e+02 | 2.93
30-Jul-2017 21.02 2.803891e-05 3.259689e-01 3.410711e+02 | 2.87
31-Jul-2017 21.02 2.792162e-05 3.260435e-01 3.410657e+02 | 2.82
01-Aug-2017 21.02 2.741415e-05 3.267295e-01 3.410769e+02 | 3.00
----------------------------------------------------------------------
----------------------------------------------------------------------
CFTOOL - Wavelength fit and resuiduals for LuBot
Date Sensor Coeff1 Coeff2 Coeff3 | max diff
10-Mar-2017 21.03 1.799301e-05 3.342591e-01 3.403901e+02 | 0.00
11-Mar-2017 21.03 1.802176e-05 3.342378e-01 3.403946e+02 | 0.01
12-Mar-2017 21.03 1.809844e-05 3.341935e-01 3.403969e+02 | 0.05
13-Mar-2017 21.03 1.807083e-05 3.342163e-01 3.403939e+02 | 0.04
14-Mar-2017 21.03 1.810380e-05 3.341815e-01 3.404022e+02 | 0.05
15-Mar-2017 21.03 1.803466e-05 3.342345e-01 3.403959e+02 | 0.02
16-Mar-2017 21.03 1.808763e-05 3.342042e-01 3.403962e+02 | 0.05
17-Mar-2017 21.03 1.813477e-05 3.341691e-01 3.404014e+02 | 0.07
18-Mar-2017 21.03 1.803486e-05 3.342341e-01 3.403955e+02 | 0.02
19-Mar-2017 21.03 1.803886e-05 3.342357e-01 3.403944e+02 | 0.03
20-Mar-2017 21.03 1.806983e-05 3.342145e-01 3.403966e+02 | 0.04
21-Mar-2017 21.03 1.814216e-05 3.341683e-01 3.404012e+02 | 0.07
22-Mar-2017 21.03 1.810899e-05 3.341832e-01 3.403981e+02 | 0.05
24-Mar-2017 21.03 1.805682e-05 3.342197e-01 3.404043e+02 | 0.04
25-Mar-2017 21.03 1.811334e-05 3.341849e-01 3.404038e+02 | 0.06
26-Mar-2017 21.03 1.807123e-05 3.342134e-01 3.403991e+02 | 0.04
27-Mar-2017 21.03 1.781916e-05 3.344080e-01 3.404210e+02 | 0.06
28-Mar-2017 21.03 1.788076e-05 3.343661e-01 3.404311e+02 | 0.07
29-Mar-2017 21.03 1.789867e-05 3.343561e-01 3.404349e+02 | 0.07
30-Mar-2017 21.03 1.790102e-05 3.343528e-01 3.404298e+02 | 0.06
31-Mar-2017 21.03 1.788985e-05 3.343599e-01 3.404269e+02 | 0.06
01-Apr-2017 21.03 1.786044e-05 3.343849e-01 3.404222e+02 | 0.06
02-Apr-2017 21.03 1.783689e-05 3.343923e-01 3.404194e+02 | 0.06
03-Apr-2017 21.03 1.781588e-05 3.344048e-01 3.404201e+02 | 0.06
04-Apr-2017 21.03 1.785669e-05 3.343715e-01 3.404216e+02 | 0.05
05-Apr-2017 21.03 1.788259e-05 3.343634e-01 3.404199e+02 | 0.05
06-Apr-2017 21.03 1.784303e-05 3.343925e-01 3.404171e+02 | 0.06
07-Apr-2017 21.03 1.782580e-05 3.343904e-01 3.404174e+02 | 0.05
08-Apr-2017 21.03 1.775053e-05 3.344529e-01 3.404113e+02 | 0.06
09-Apr-2017 21.03 1.789522e-05 3.343617e-01 3.404253e+02 | 0.06
10-Apr-2017 21.03 1.789617e-05 3.343543e-01 3.404295e+02 | 0.06
11-Apr-2017 21.03 1.779961e-05 3.344137e-01 3.404223e+02 | 0.06
12-Apr-2017 21.03 1.779060e-05 3.344201e-01 3.404176e+02 | 0.06
13-Apr-2017 21.03 1.794798e-05 3.343348e-01 3.404350e+02 | 0.08
12-May-2017 21.03 2.377126e-05 3.298754e-01 3.407128e+02 | 1.89
13-May-2017 21.03 2.479820e-05 3.290204e-01 3.408154e+02 | 2.20
14-May-2017 21.03 2.580278e-05 3.281975e-01 3.409136e+02 | 2.51
15-May-2017 21.03 2.620037e-05 3.278782e-01 3.409533e+02 | 2.64
16-May-2017 21.03 2.608446e-05 3.279541e-01 3.409428e+02 | 2.58
17-May-2017 21.03 2.652132e-05 3.276173e-01 3.409829e+02 | 2.73
18-May-2017 21.03 2.649961e-05 3.276244e-01 3.409816e+02 | 2.72
19-May-2017 21.03 2.646078e-05 3.276720e-01 3.409745e+02 | 2.72
21-May-2017 21.03 2.634319e-05 3.277422e-01 3.409690e+02 | 2.66
23-May-2017 21.03 2.019128e-05 3.326025e-01 3.404343e+02 | 0.65
26-May-2017 21.03 1.981917e-05 3.328826e-01 3.404129e+02 | 0.53
27-May-2017 21.03 1.977983e-05 3.329031e-01 3.404093e+02 | 0.50
28-May-2017 21.03 1.989907e-05 3.328172e-01 3.404197e+02 | 0.55
30-May-2017 21.03 1.971162e-05 3.329435e-01 3.404034e+02 | 0.47
13-Jun-2017 21.03 2.732582e-05 3.269115e-01 3.410622e+02 | 2.93
14-Jun-2017 21.03 2.803838e-05 3.261947e-01 3.411279e+02 | 3.01
16-Jun-2017 21.03 2.808965e-05 3.261511e-01 3.411353e+02 | 3.03
17-Jun-2017 21.03 2.798522e-05 3.262182e-01 3.411238e+02 | 2.98
19-Jun-2017 21.03 2.810184e-05 3.261489e-01 3.411346e+02 | 3.04
20-Jun-2017 21.03 2.801670e-05 3.262113e-01 3.411285e+02 | 3.01
22-Jun-2017 21.03 2.792728e-05 3.263090e-01 3.411213e+02 | 3.01
23-Jun-2017 21.03 2.781269e-05 3.263830e-01 3.411129e+02 | 2.95
24-Jun-2017 21.03 2.782484e-05 3.263726e-01 3.411168e+02 | 2.96
25-Jun-2017 21.03 2.780683e-05 3.264005e-01 3.411086e+02 | 2.96
26-Jun-2017 21.03 2.774981e-05 3.264575e-01 3.411011e+02 | 2.95
27-Jun-2017 21.03 2.775743e-05 3.264525e-01 3.411053e+02 | 2.96
28-Jun-2017 21.03 2.747965e-05 3.267356e-01 3.410769e+02 | 2.93
29-Jun-2017 21.03 2.802733e-05 3.261991e-01 3.411282e+02 | 3.01
01-Jul-2017 21.03 2.800208e-05 3.260247e-01 3.410867e+02 | 2.76
02-Jul-2017 21.03 2.816268e-05 3.259264e-01 3.410916e+02 | 2.83
03-Jul-2017 21.03 2.854980e-05 3.256664e-01 3.411201e+02 | 3.00
05-Jul-2017 21.03 2.806010e-05 3.259457e-01 3.410646e+02 | 2.72
07-Jul-2017 21.03 2.798492e-05 3.259930e-01 3.410541e+02 | 2.68
08-Jul-2017 21.03 2.802807e-05 3.259643e-01 3.410629e+02 | 2.70
09-Jul-2017 21.03 2.807291e-05 3.259468e-01 3.410706e+02 | 2.74
11-Jul-2017 21.03 2.803935e-05 3.259692e-01 3.410663e+02 | 2.72
12-Jul-2017 21.03 2.803593e-05 3.259706e-01 3.410629e+02 | 2.72
13-Jul-2017 21.03 2.804660e-05 3.259555e-01 3.410595e+02 | 2.71
14-Jul-2017 21.03 2.793292e-05 3.260443e-01 3.410570e+02 | 2.68
15-Jul-2017 21.03 2.815642e-05 3.258848e-01 3.410828e+02 | 2.77
16-Jul-2017 21.03 2.820051e-05 3.258843e-01 3.411046e+02 | 2.84
17-Jul-2017 21.03 2.816537e-05 3.259052e-01 3.410984e+02 | 2.82
18-Jul-2017 21.03 2.821642e-05 3.259344e-01 3.411210e+02 | 2.93
19-Jul-2017 21.03 2.798554e-05 3.260258e-01 3.410722e+02 | 2.73
20-Jul-2017 21.03 2.793375e-05 3.260377e-01 3.410580e+02 | 2.67
21-Jul-2017 21.03 2.792907e-05 3.260301e-01 3.410436e+02 | 2.65
22-Jul-2017 21.03 2.799171e-05 3.259939e-01 3.410531e+02 | 2.68
23-Jul-2017 21.03 2.782944e-05 3.260929e-01 3.410317e+02 | 2.59
24-Jul-2017 21.03 2.779004e-05 3.261202e-01 3.410302e+02 | 2.58
25-Jul-2017 21.03 2.796588e-05 3.259927e-01 3.410494e+02 | 2.65
26-Jul-2017 21.03 2.799217e-05 3.259929e-01 3.410520e+02 | 2.68
27-Jul-2017 21.03 2.801380e-05 3.259731e-01 3.410612e+02 | 2.69
28-Jul-2017 21.03 2.781463e-05 3.261094e-01 3.410404e+02 | 2.60
30-Jul-2017 21.03 2.775800e-05 3.261187e-01 3.410109e+02 | 2.52
31-Jul-2017 21.03 2.780297e-05 3.260866e-01 3.410190e+02 | 2.55
01-Aug-2017 21.03 2.794283e-05 3.262685e-01 3.411206e+02 | 2.98
----------------------------------------------------------------------
pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\MOBY262\bs01
