plt_darks_dayX_ - BS01

REVISION DATE: 24-Jul-2017 10:35:00

The files below are the background collected during the lastest in-water tests, these are from an automated program . backgrounds where collected in groups of 3. 3 backgrounds, 5 lites (not shown), 3 backgrounds and then the process is repeated a second time. See the file numbering below.


File numbers for the data sets collected
1  Background
2  Background
3  Background
4  Signal - Es/Lu tracks only
5  Signal - Es/Lu tracks only
6  Signal - Es/Lu tracks only
7  Signal - Es/Lu tracks only
8  Signal - Es/Lu tracks only
9  Background
10 Background
11 Background
%--------------------------------
12 Background
13 Background
14 Background
15 Signal - Lu Tracks
16 Signal - Lu Tracks
17 Signal - Lu Tracks
18 Signal - Lu Tracks
19 Signal - Lu Tracks
20 Background
21 Background
22 Background

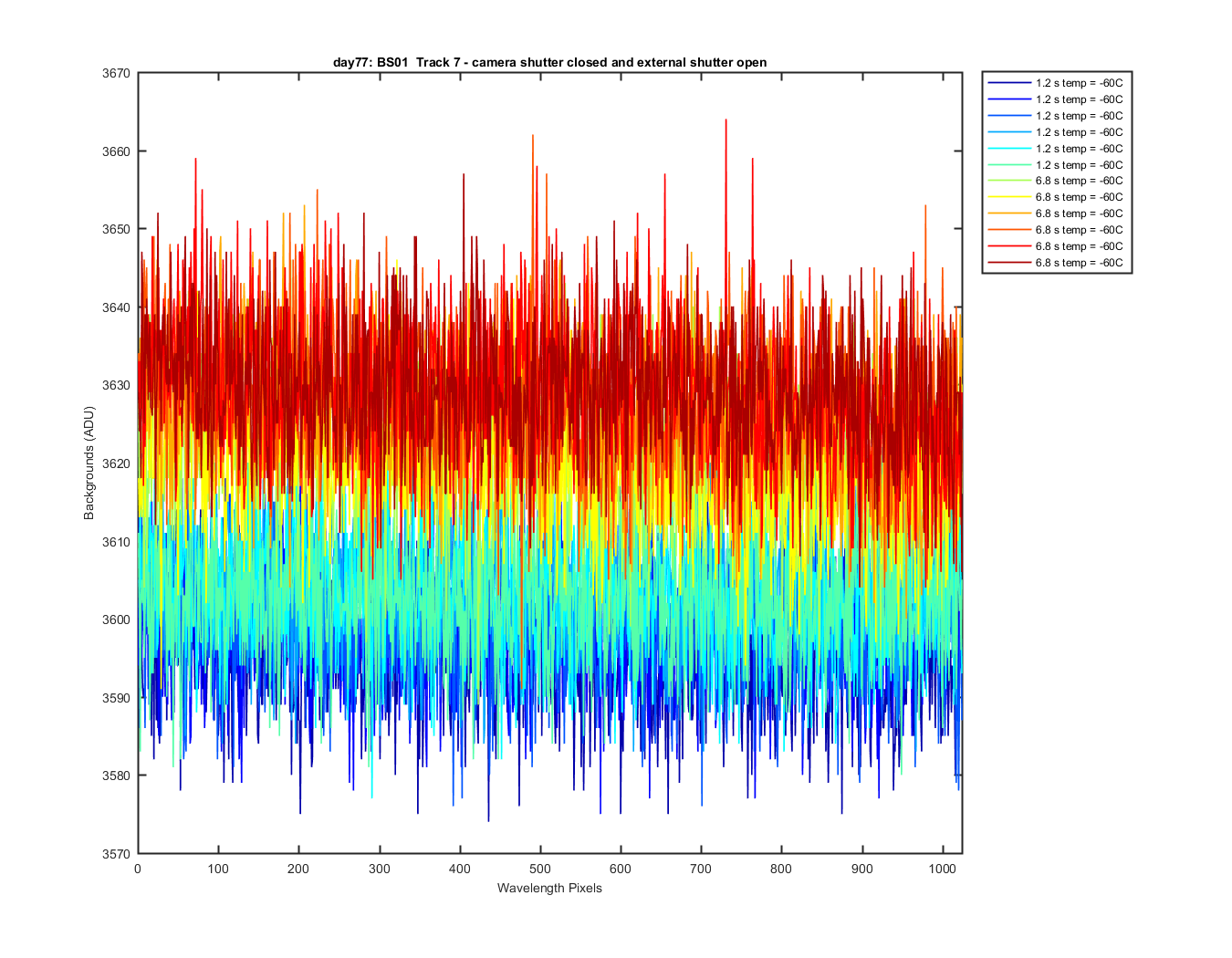

Track 7 all the background files.

Figure 1

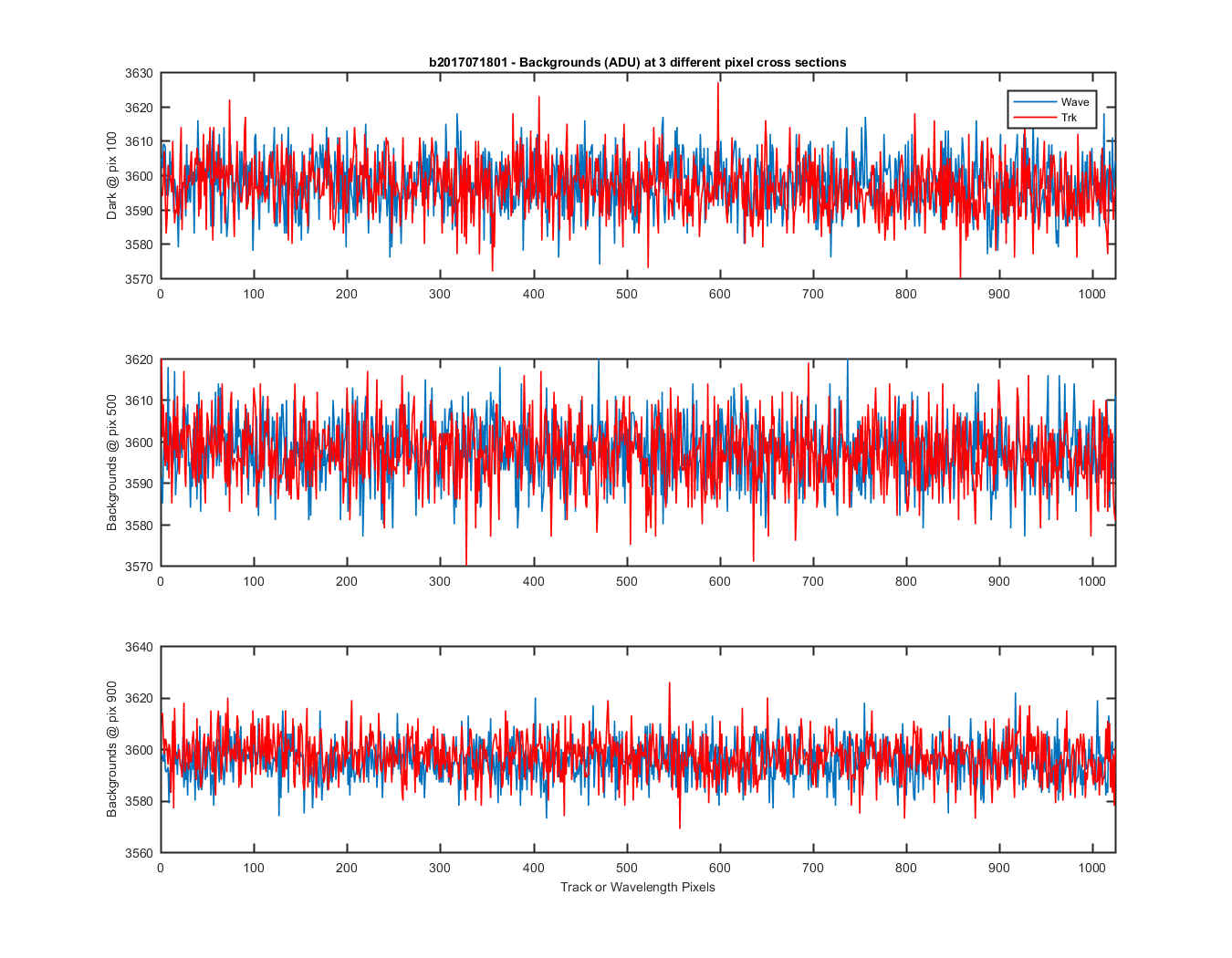

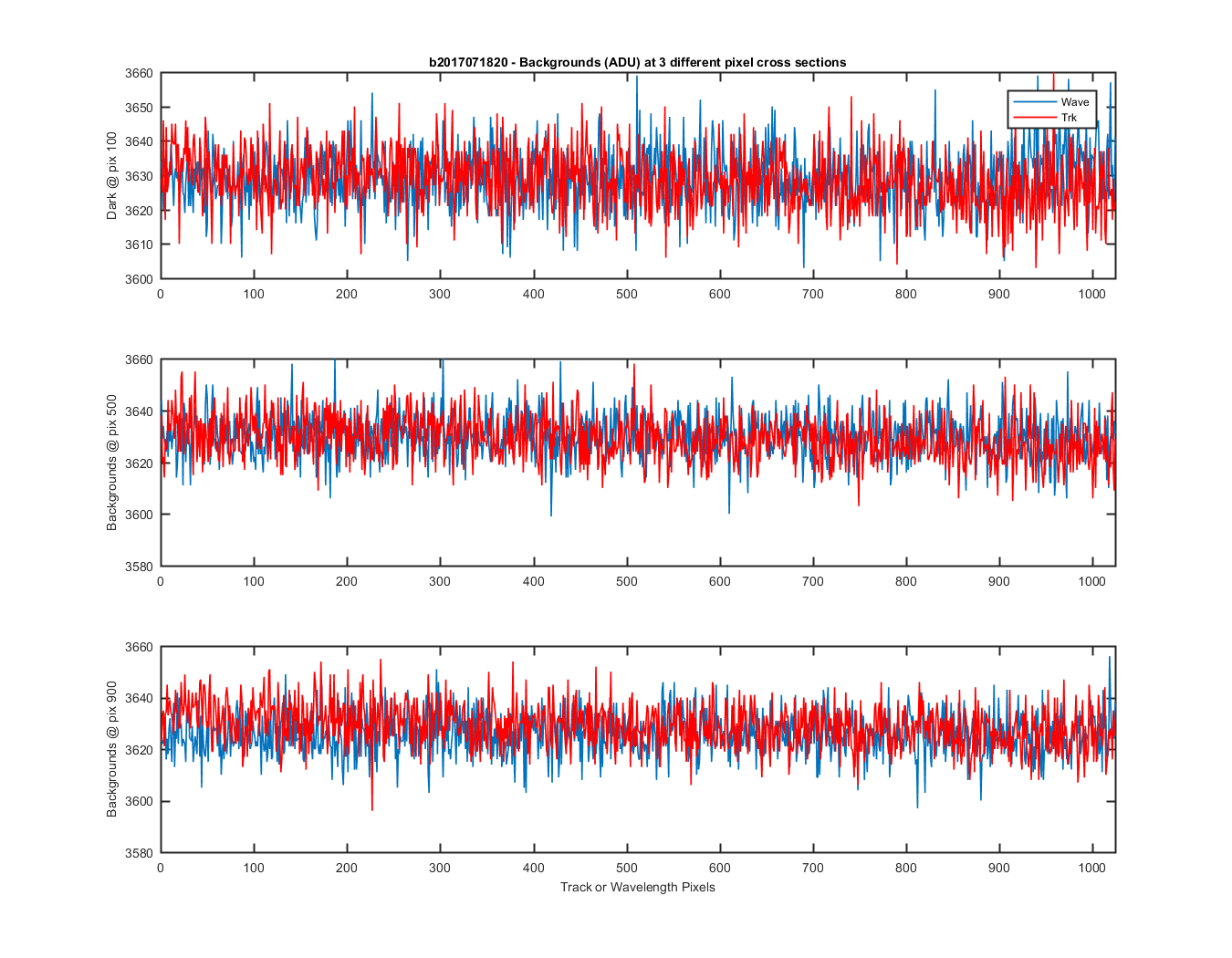

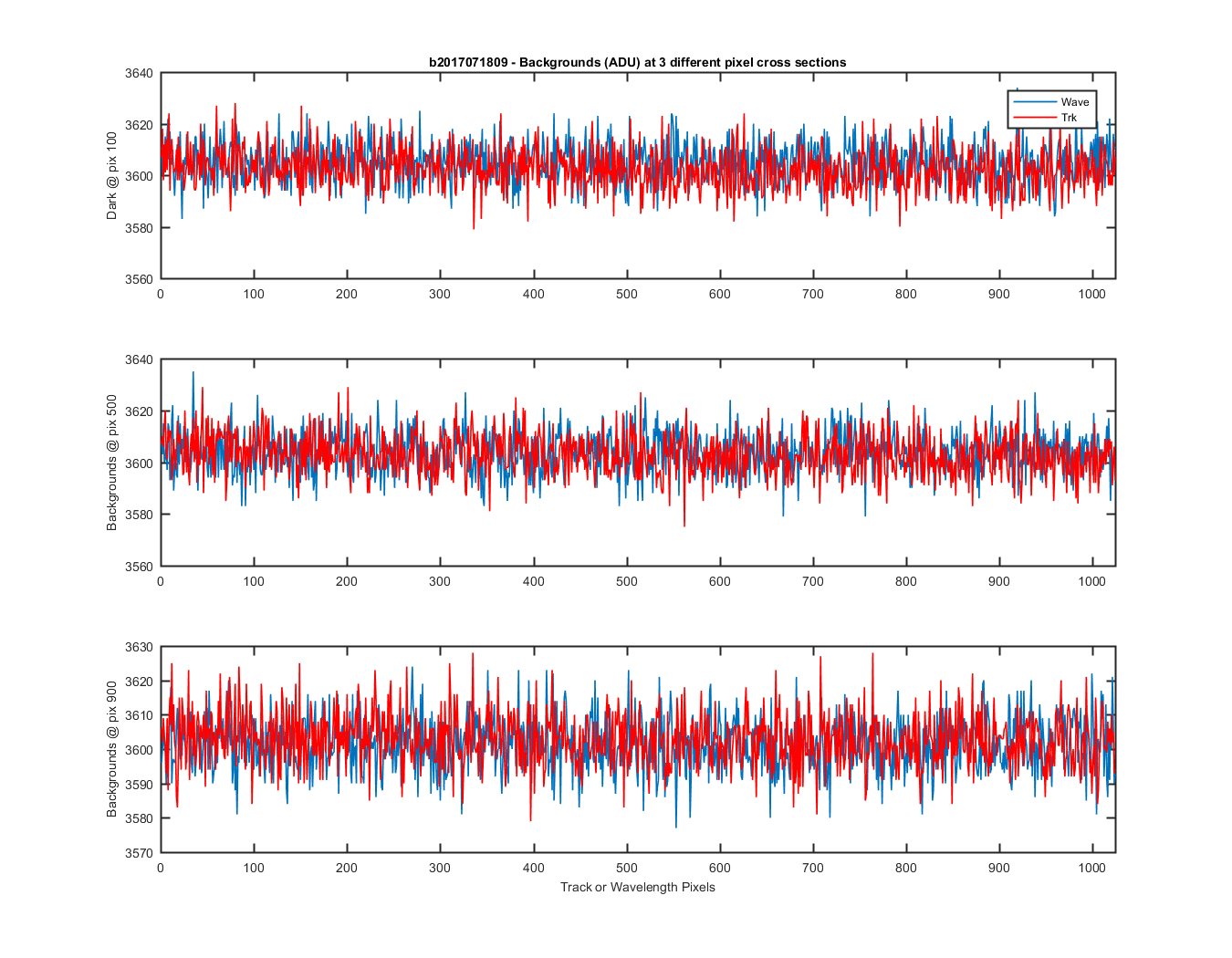

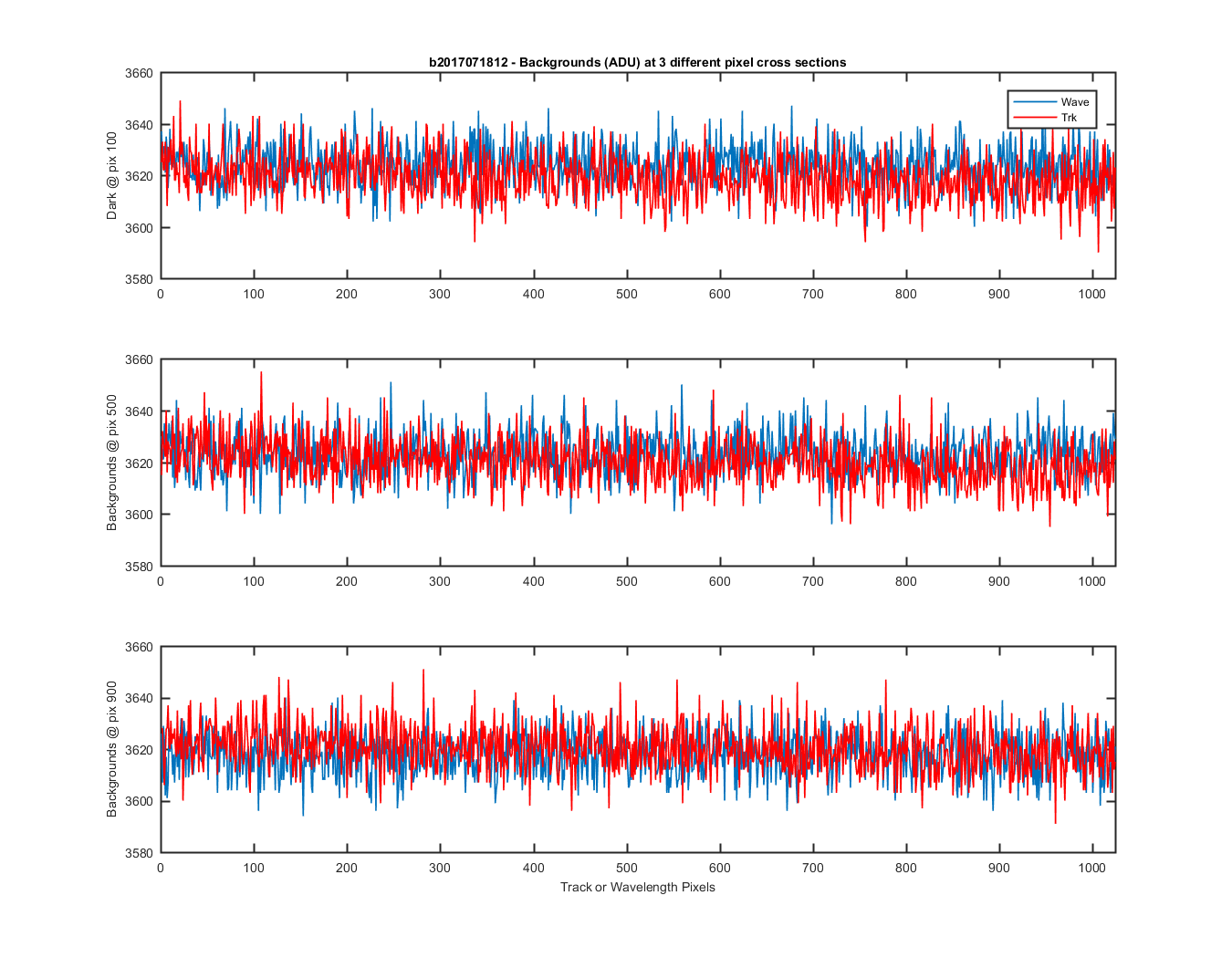

Backgrounds showing for pixel x in the track and wavelength direction (every third dark file)

Figure 2


Figure 3


Figure 4


Figure 5

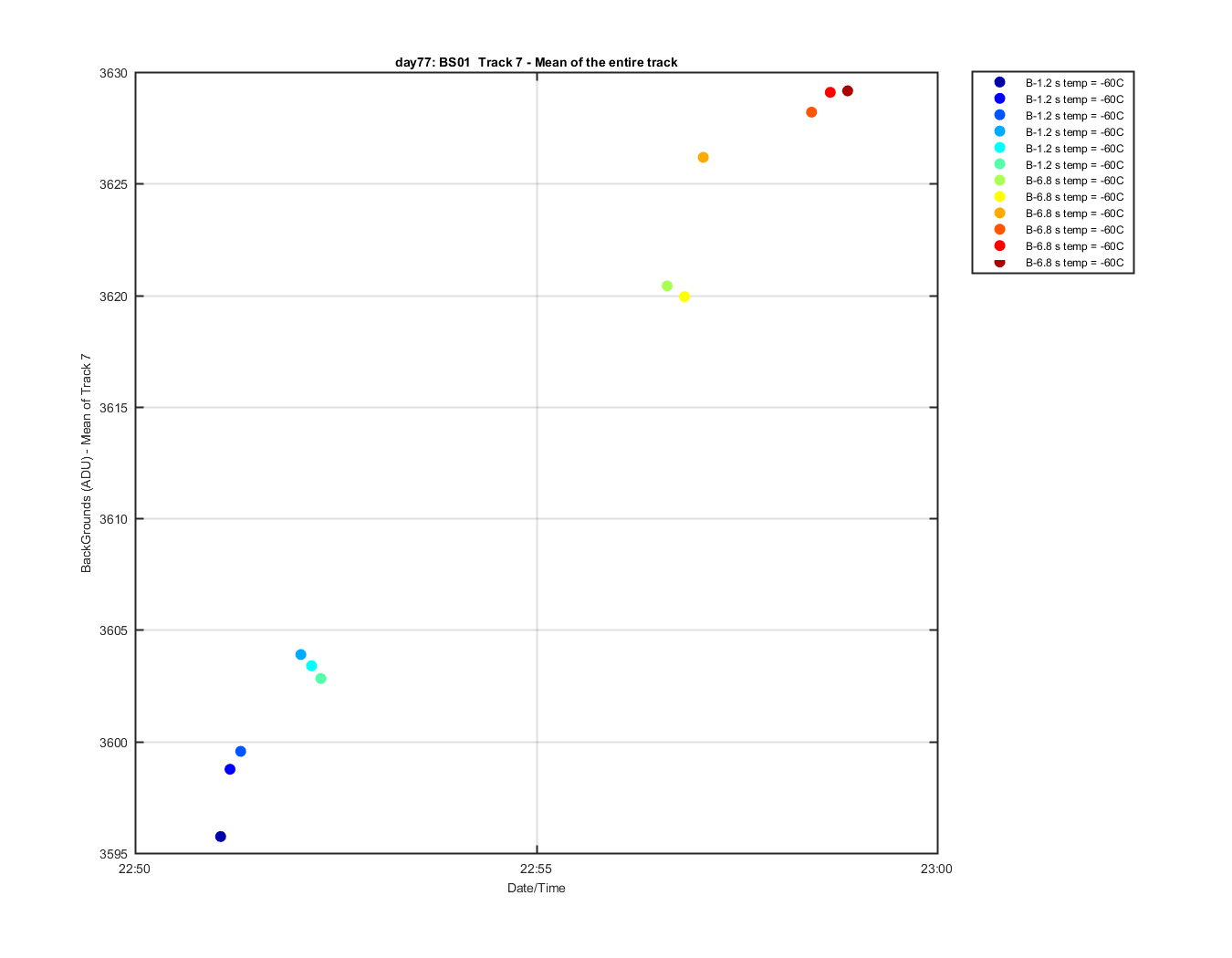

track 7 mean for every third file against time

Figure 6

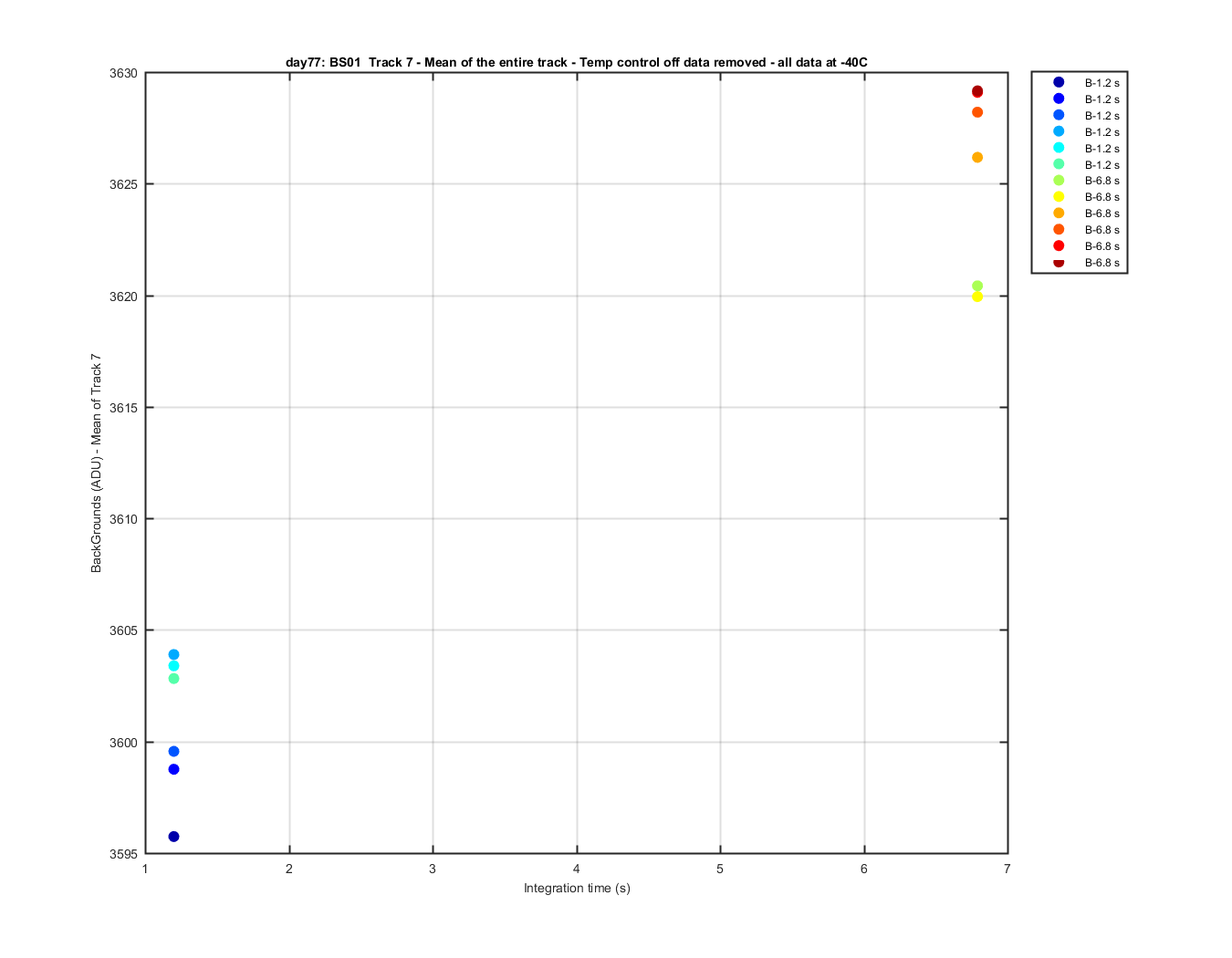

The same data verses int time

Figure 7

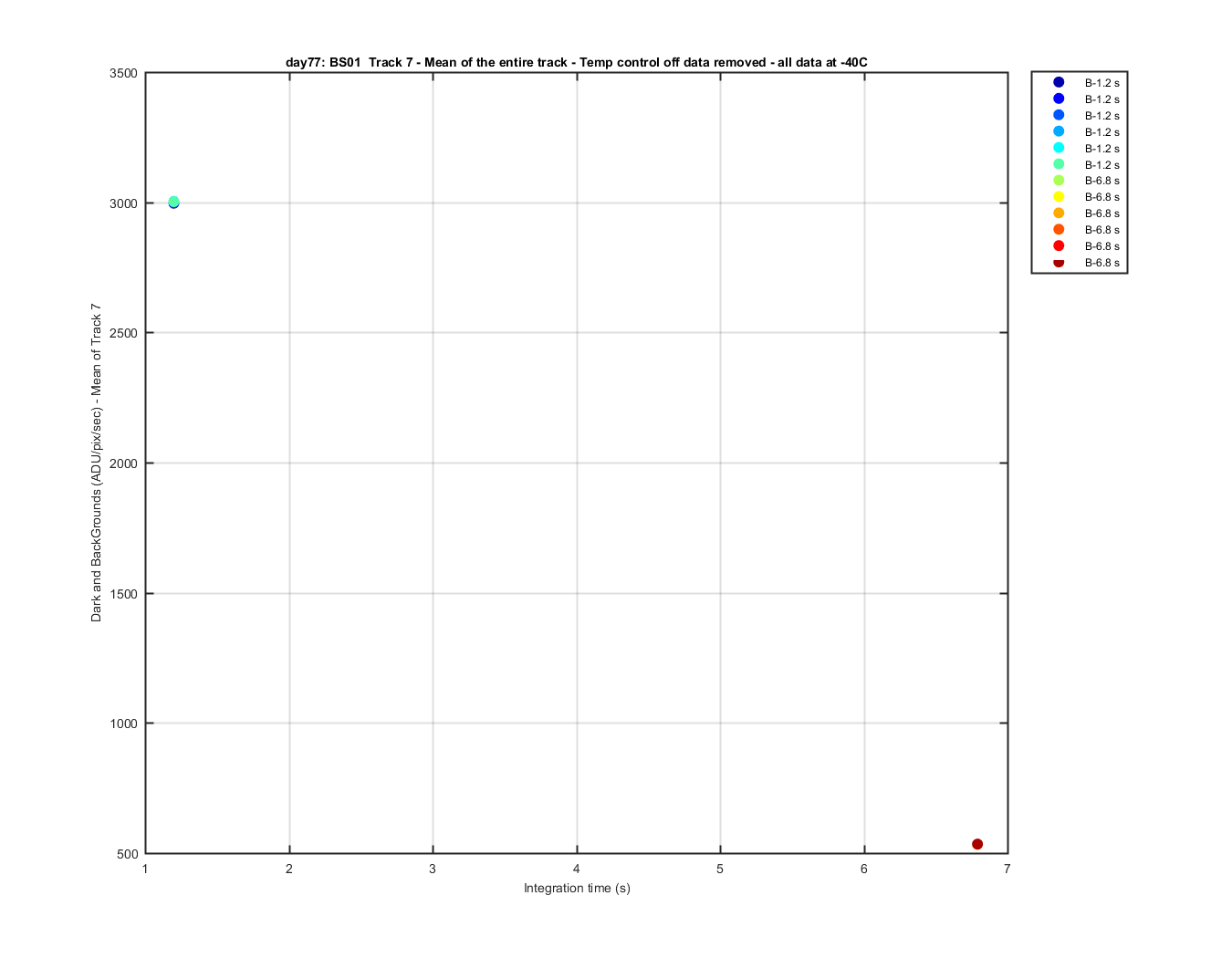

The same data divided by int time

Figure 8

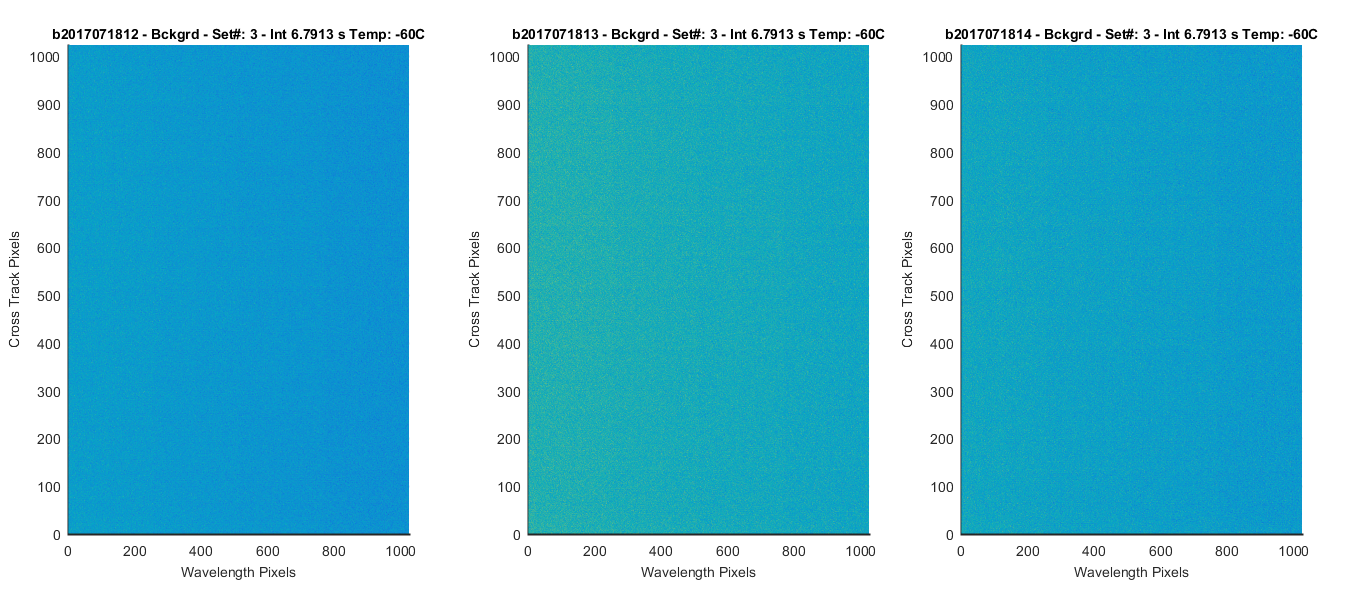

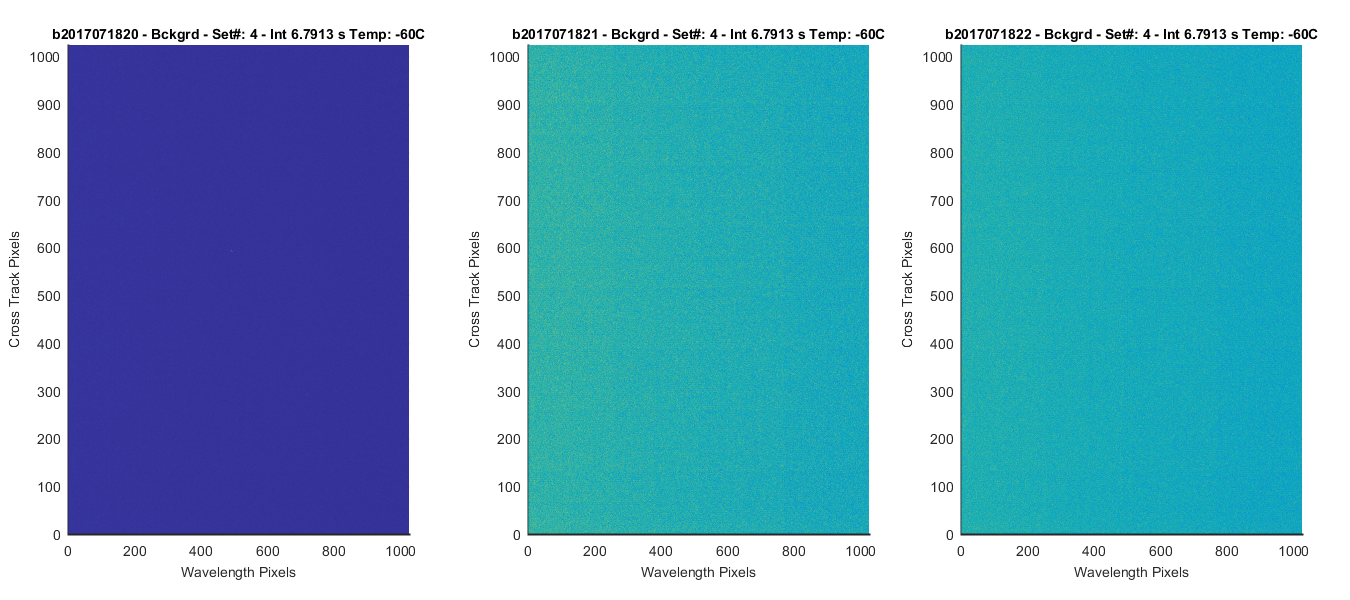

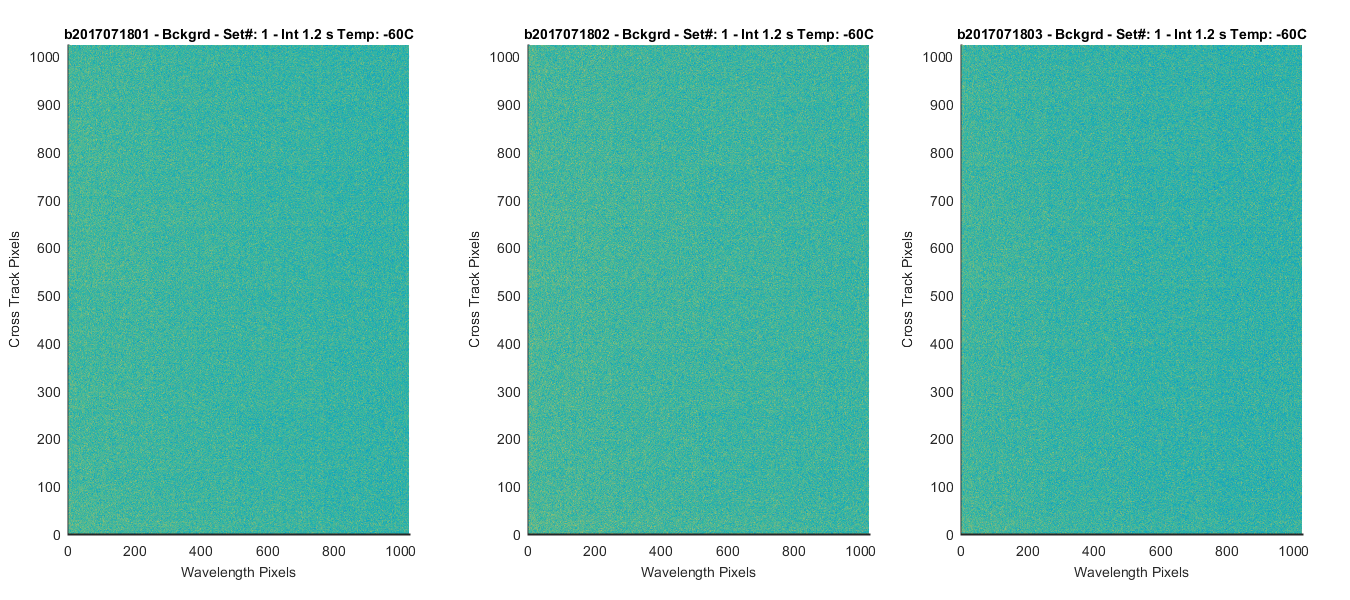

Images of the background repeats for this data set. All the darks had the temp control flag on.

Figure 1


Figure 2


Figure 3


Figure 4


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\MOBY262\bs01
Date: 24-Jul-2017 10:35:00
Created from plt_darks_dayX_(1)
