REVISION DATE: 02-Aug-2017 11:24:43
The files below are the background collected during the lastest in-water tests, these are from an automated program . backgrounds where collected in groups of 3. 3 backgrounds, 5 lites (not shown), 3 backgrounds and then the process is repeated a second time. See the file numbering below.
File numbers for the data sets collected 1 Background 2 Background 3 Background 4 Signal - Es/Lu tracks only 5 Signal - Es/Lu tracks only 6 Signal - Es/Lu tracks only 7 Signal - Es/Lu tracks only 8 Signal - Es/Lu tracks only 9 Background 10 Background 11 Background %-------------------------------- 12 Background 13 Background 14 Background 15 Signal - Lu Tracks 16 Signal - Lu Tracks 17 Signal - Lu Tracks 18 Signal - Lu Tracks 19 Signal - Lu Tracks 20 Background 21 Background 22 Background

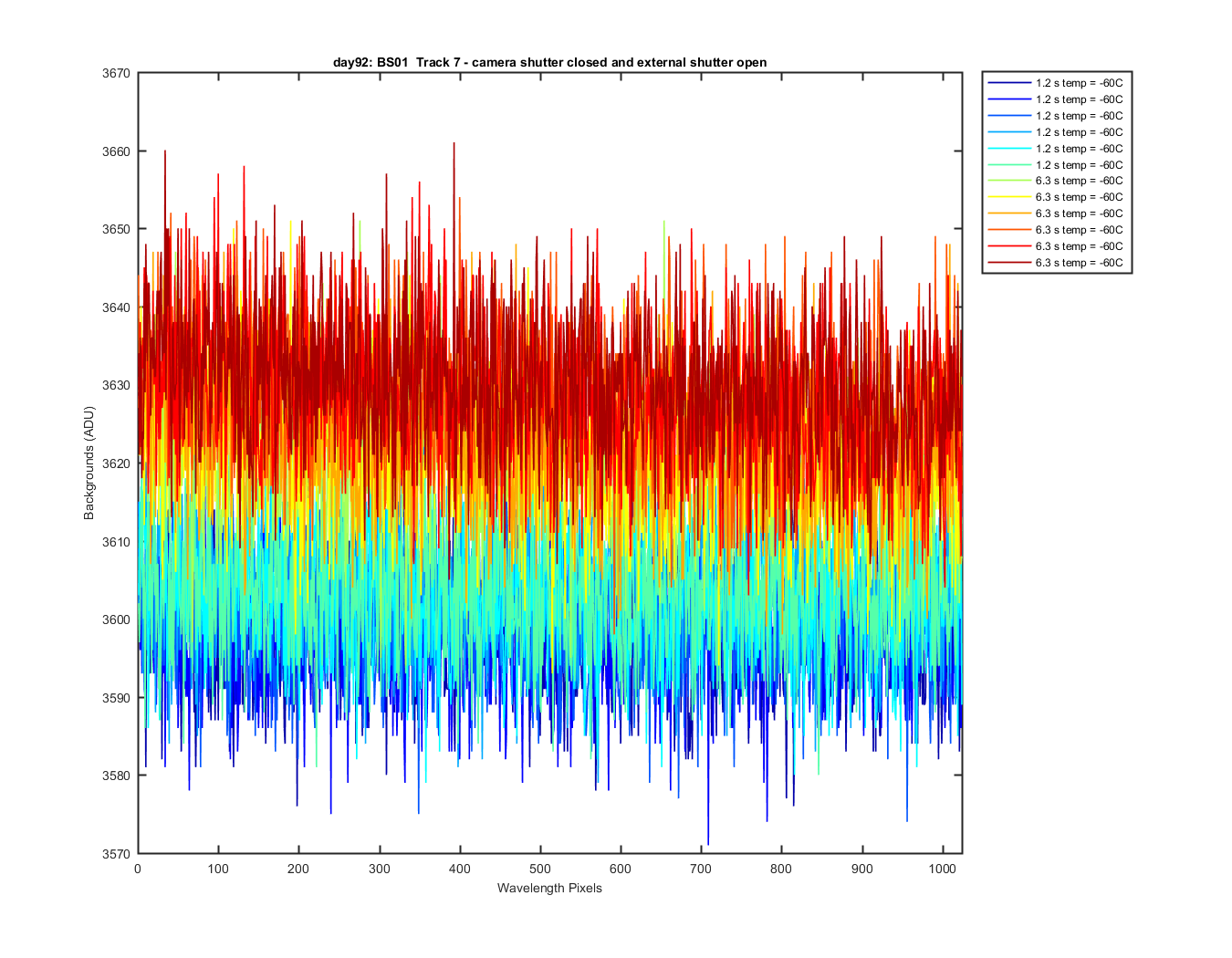

Track 7 all the background files.
Figure 1

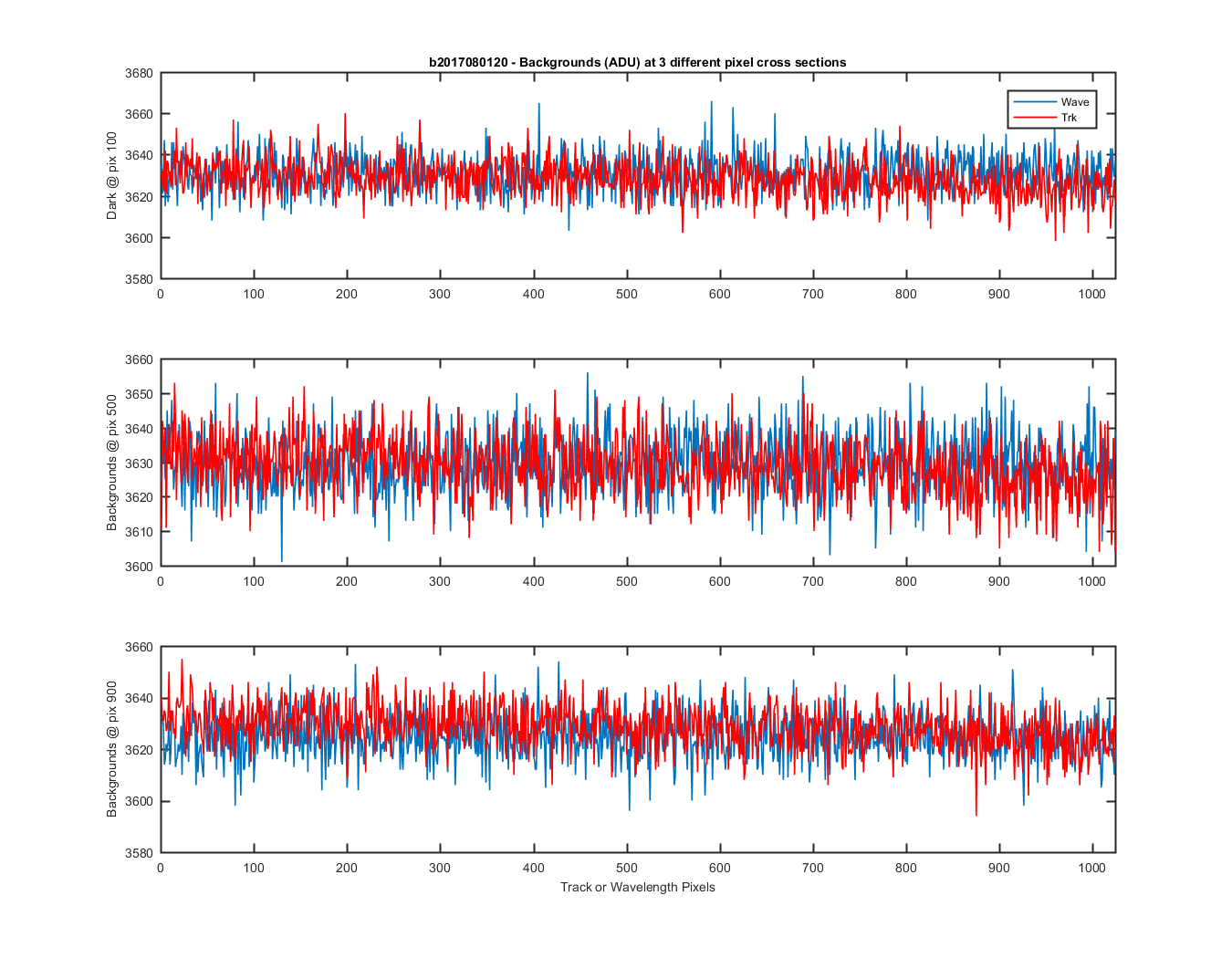

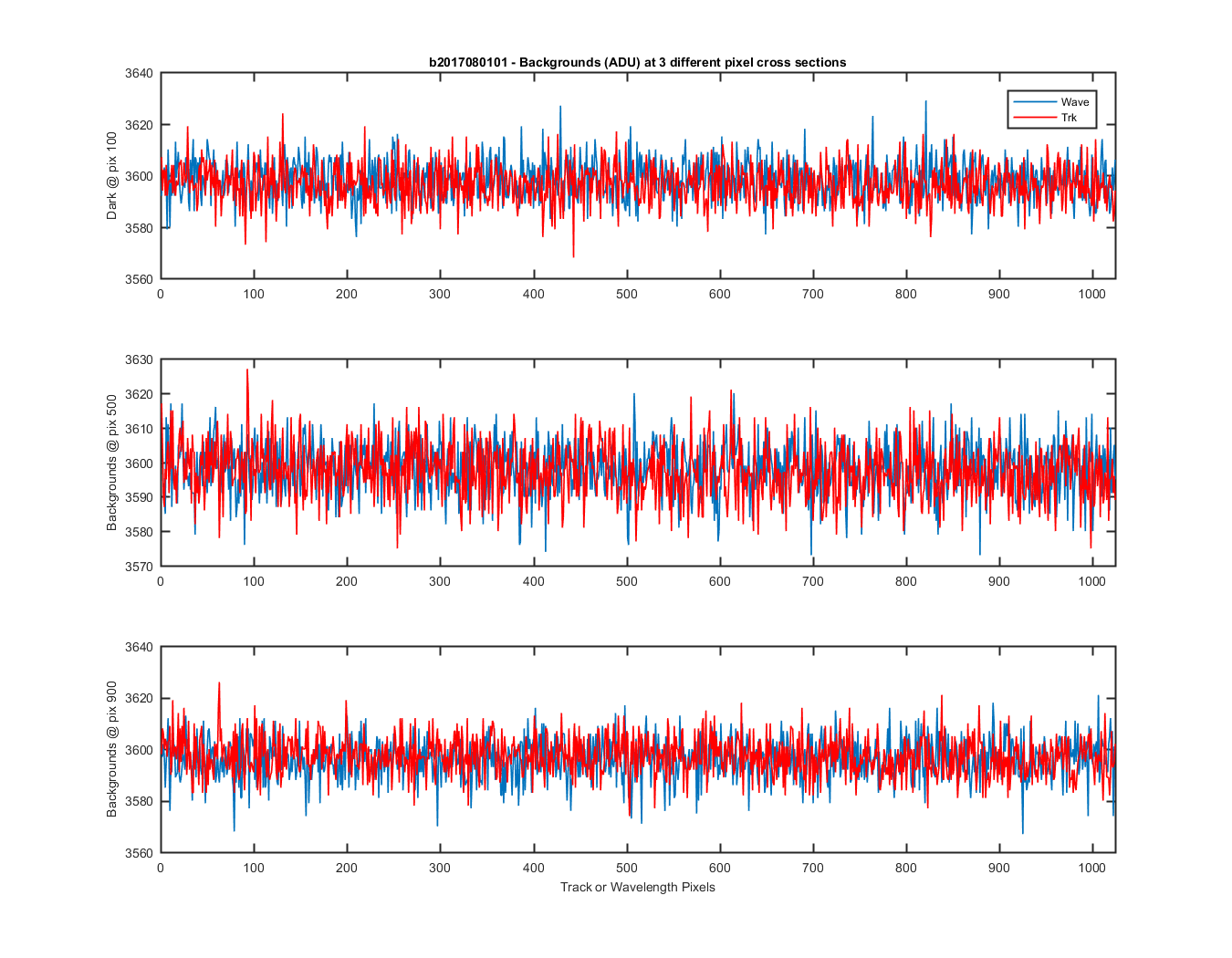

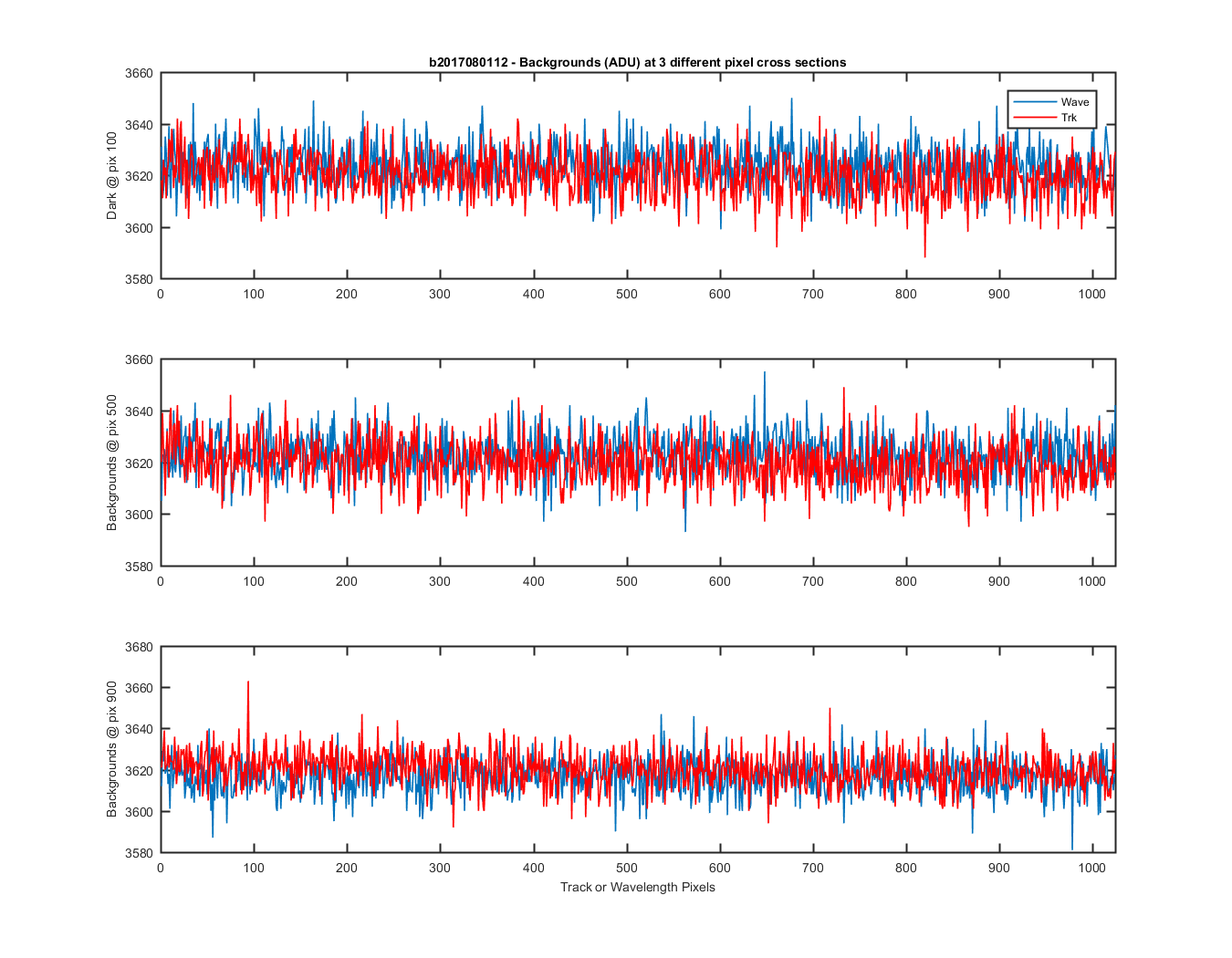

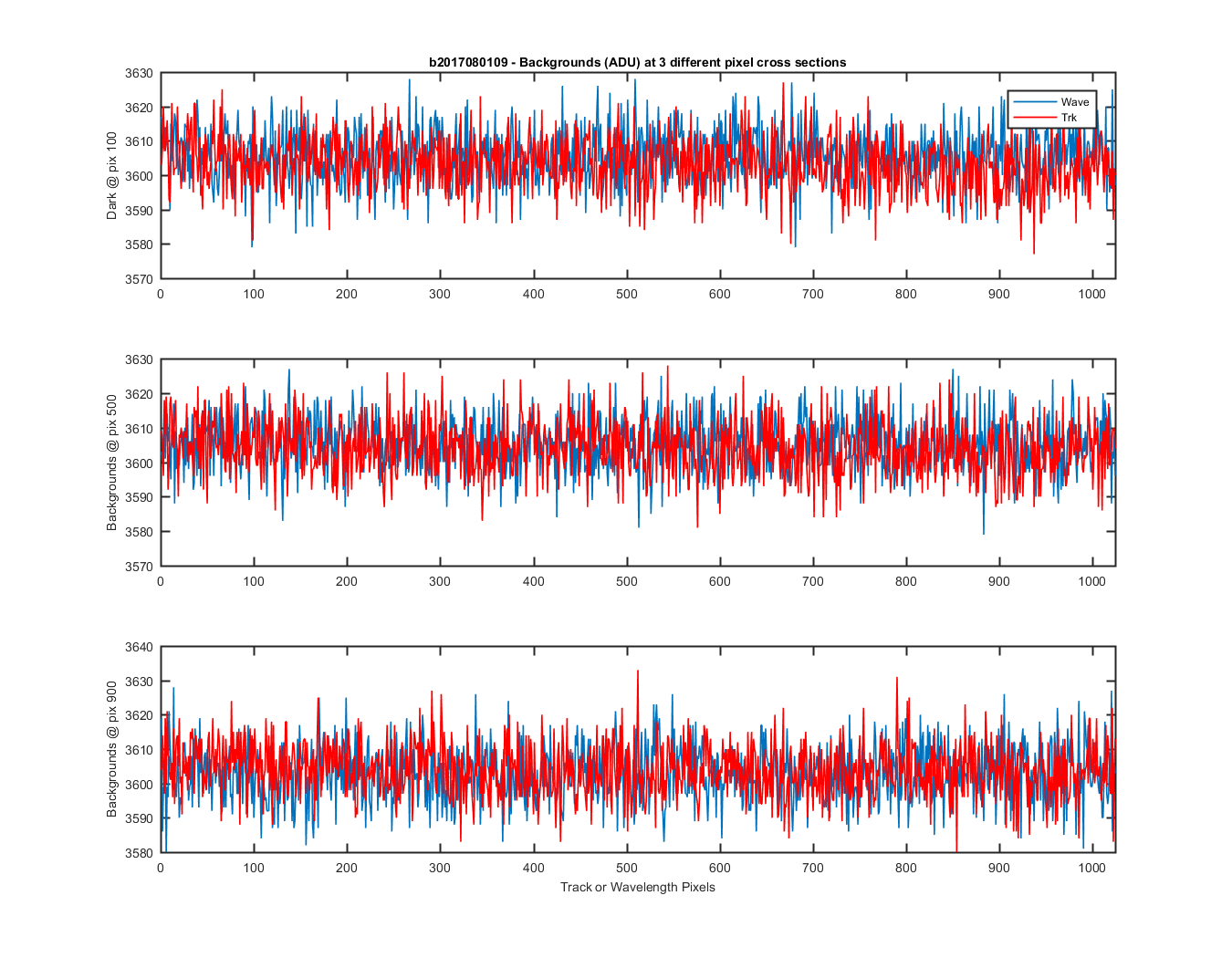

Backgrounds showing for pixel x in the track and wavelength direction (every third dark file)
Figure 2
Figure 3
Figure 4
Figure 5

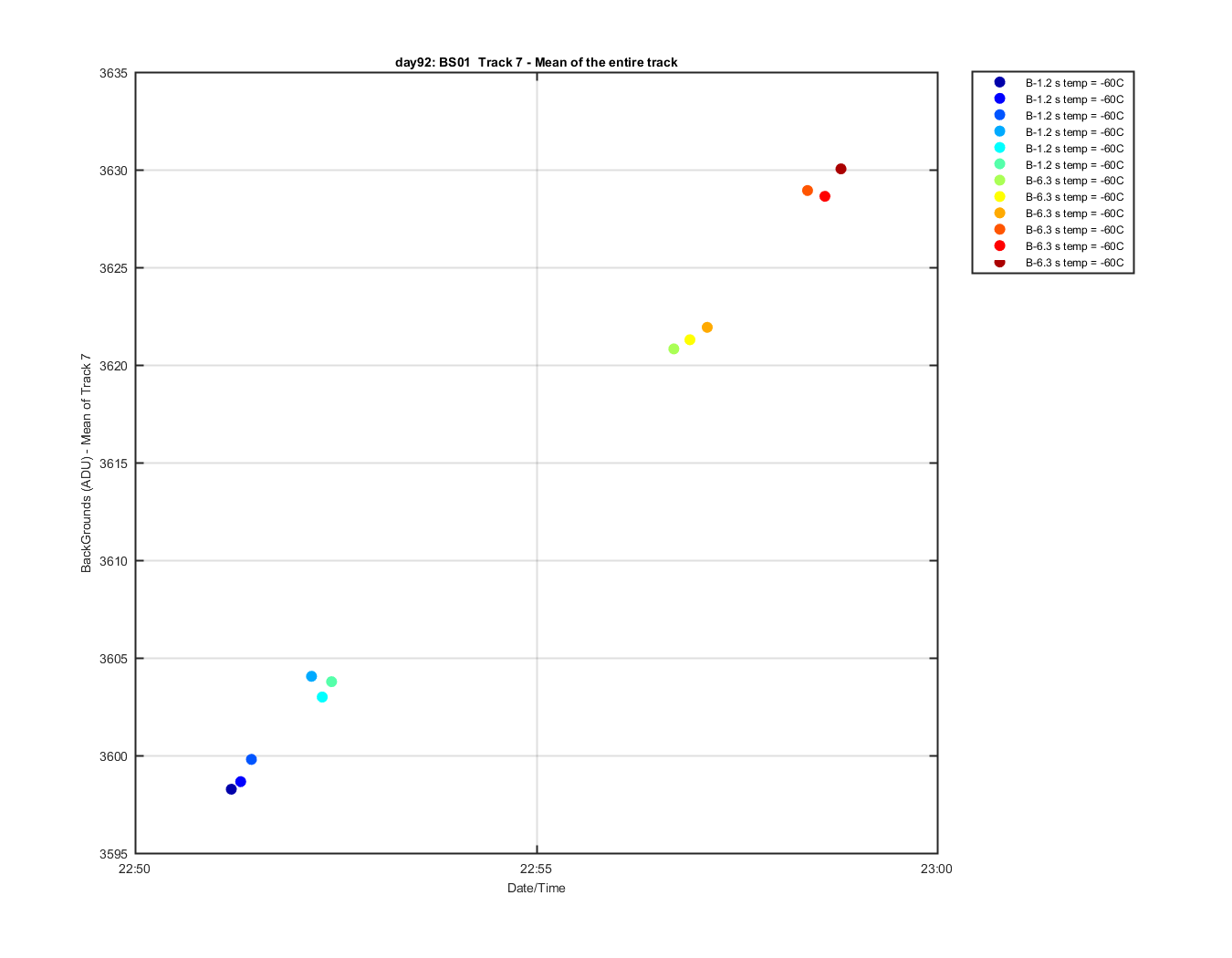

track 7 mean for every third file against time
Figure 6

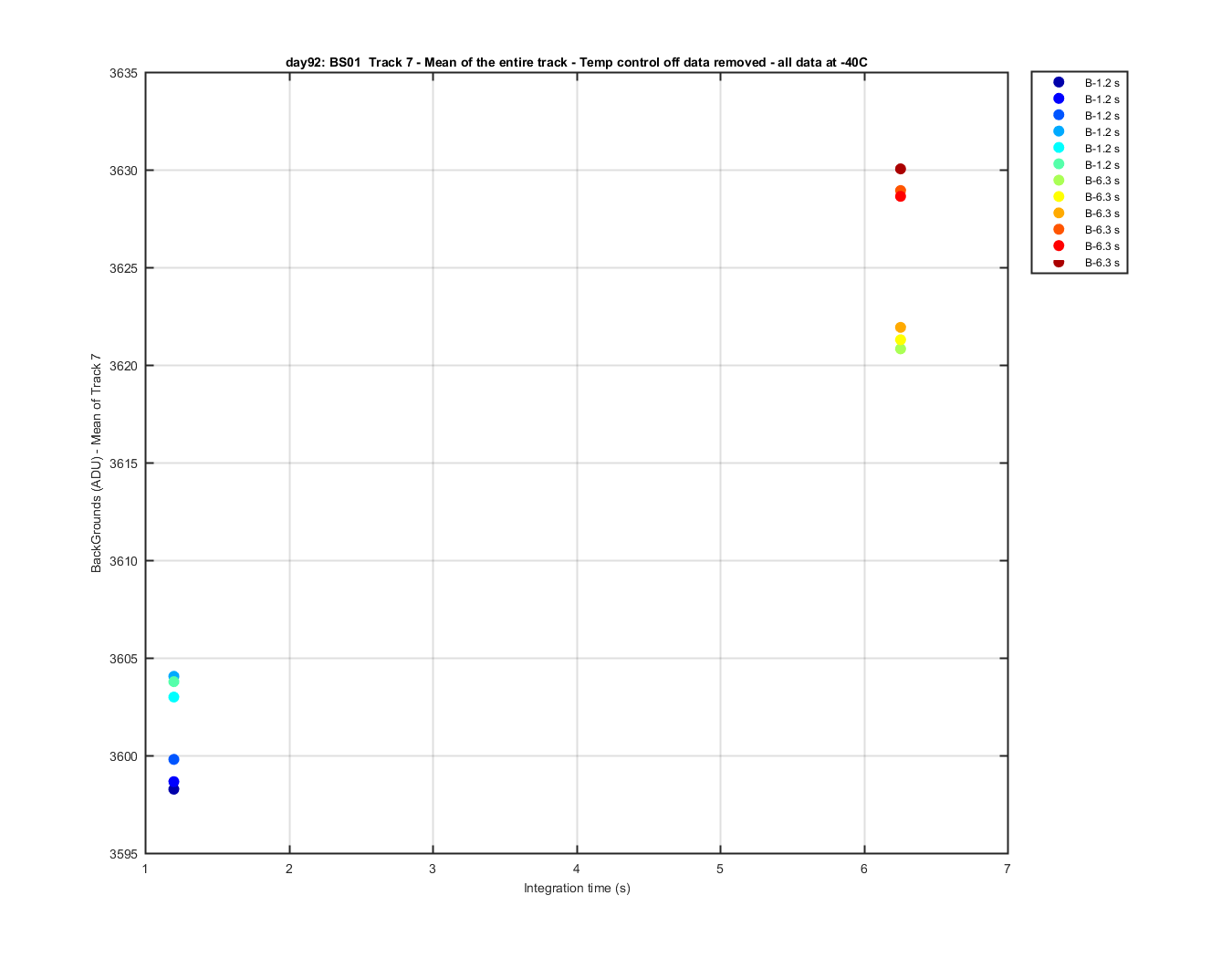

The same data verses int time
Figure 7

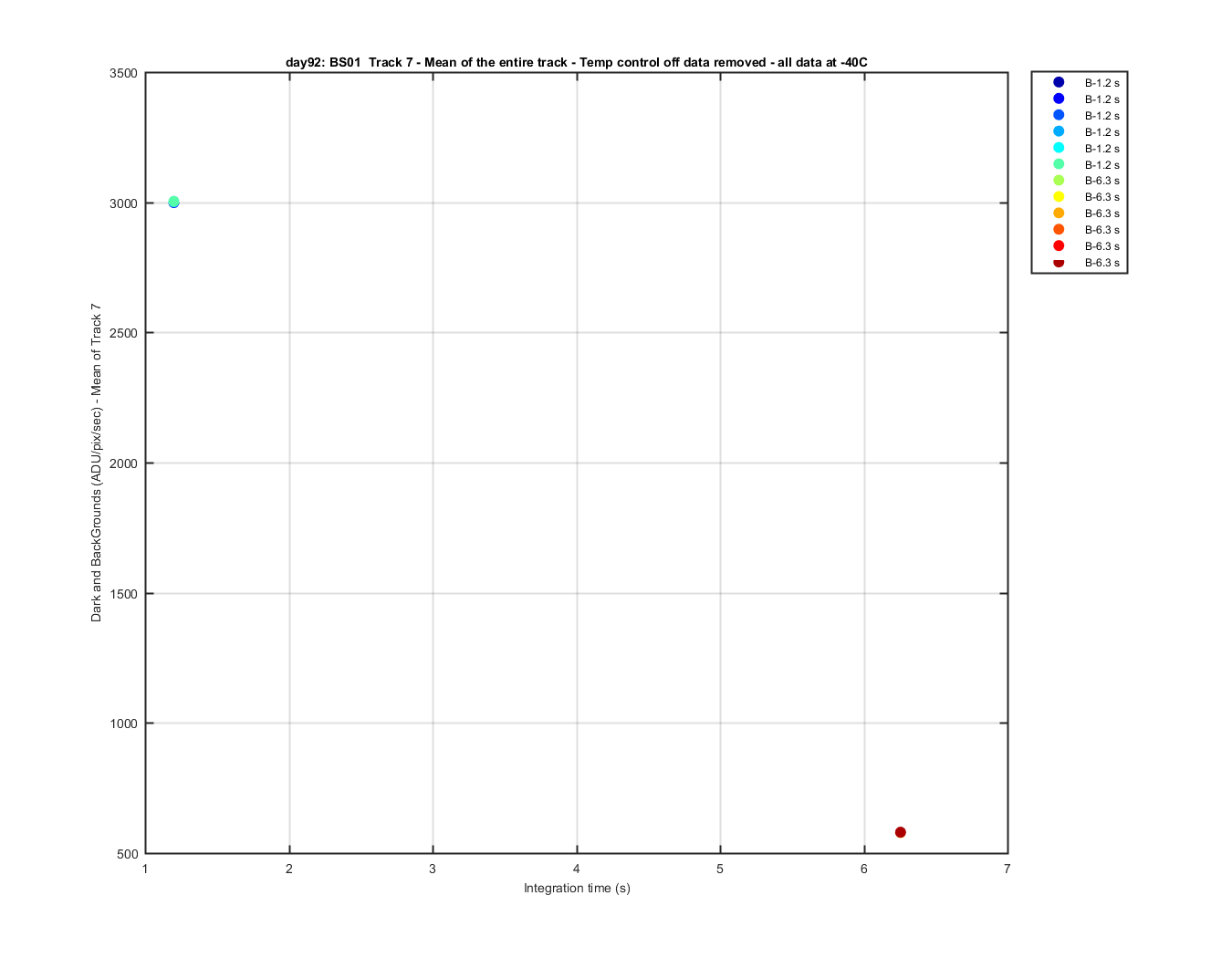

The same data divided by int time
Figure 8

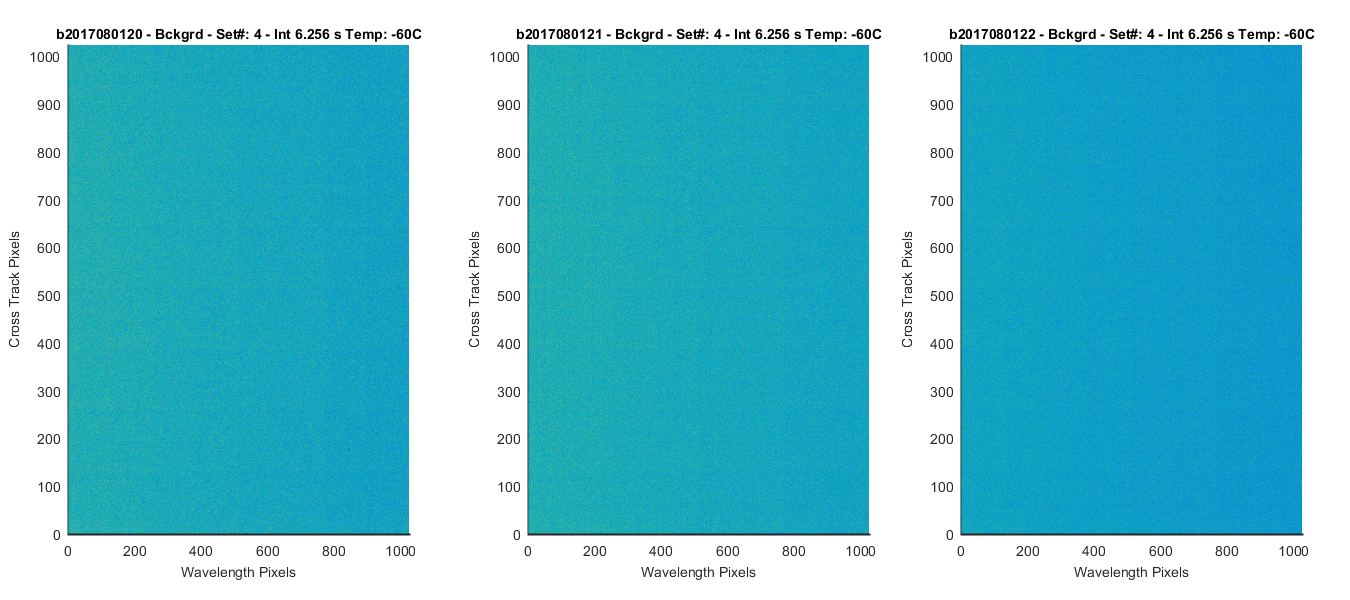

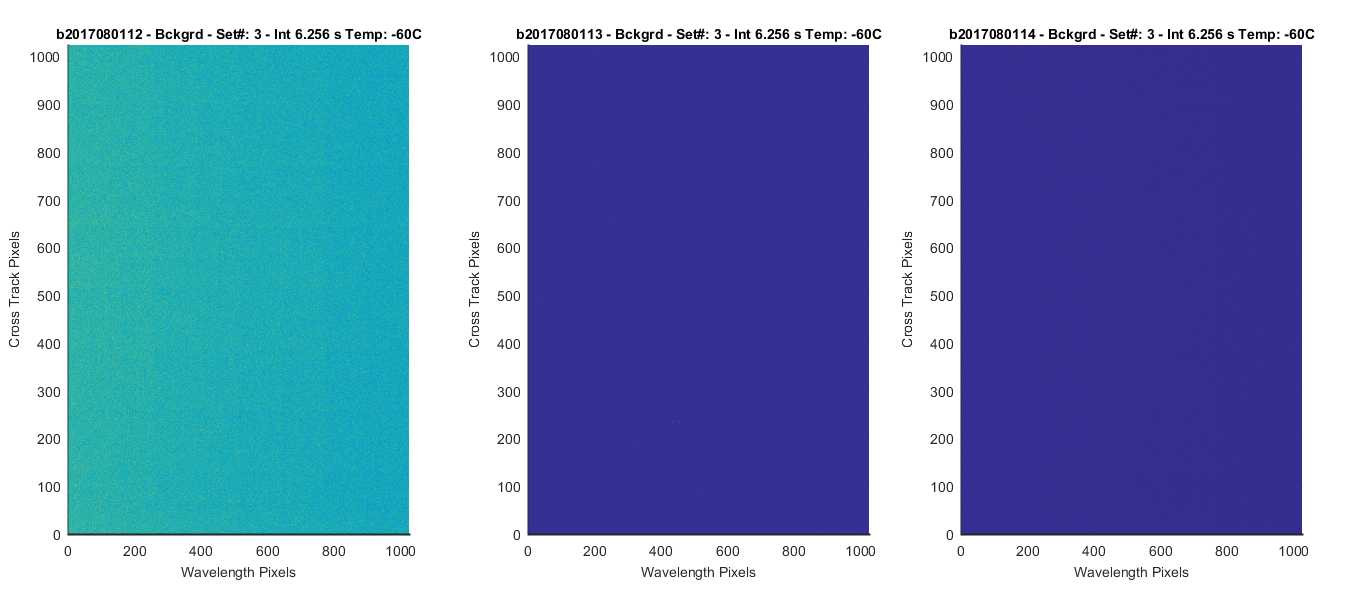

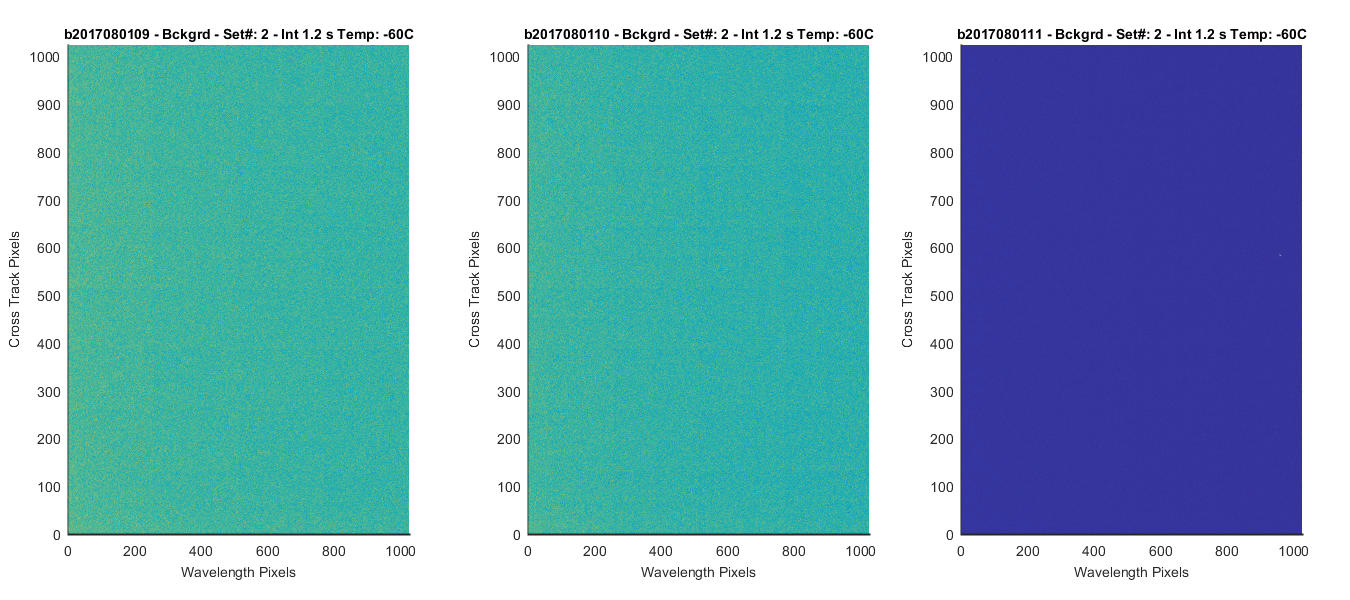

Images of the background repeats for this data set. All the darks had the temp control flag on.
Figure 1
Figure 2
Figure 3
Figure 4
