This is similar to the track shift idea. But in this case the tracks did not shift but the system response did. I moved the system response by up to 2 pixels in both directions to see the affects on the Es and Lu data.

Starting track definitions....
TRACKS = [ 1 9 11 13];
LEDGE = [1 582 726 872];
REDGE = [73 658 803 951];

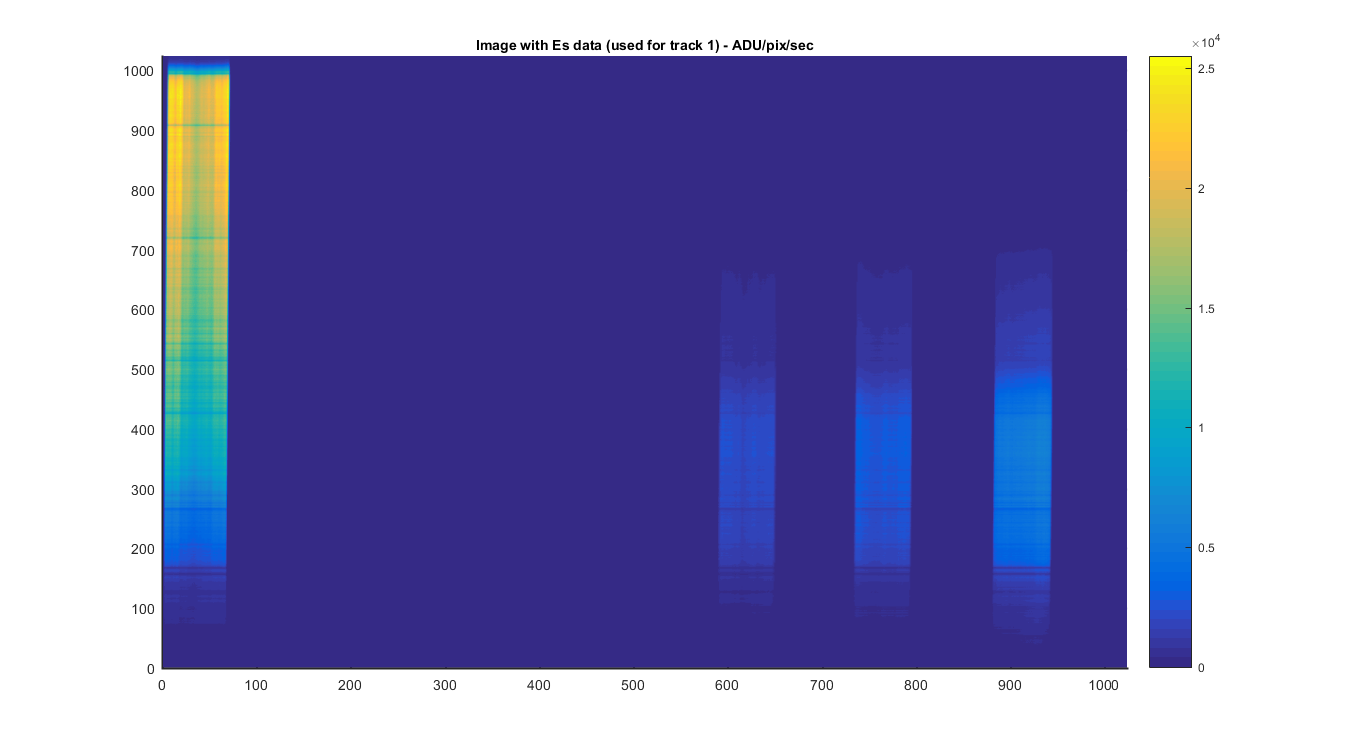

Image used for the Es track shifting fun. The data are dark subtracted and divied by int time.

Figure 1

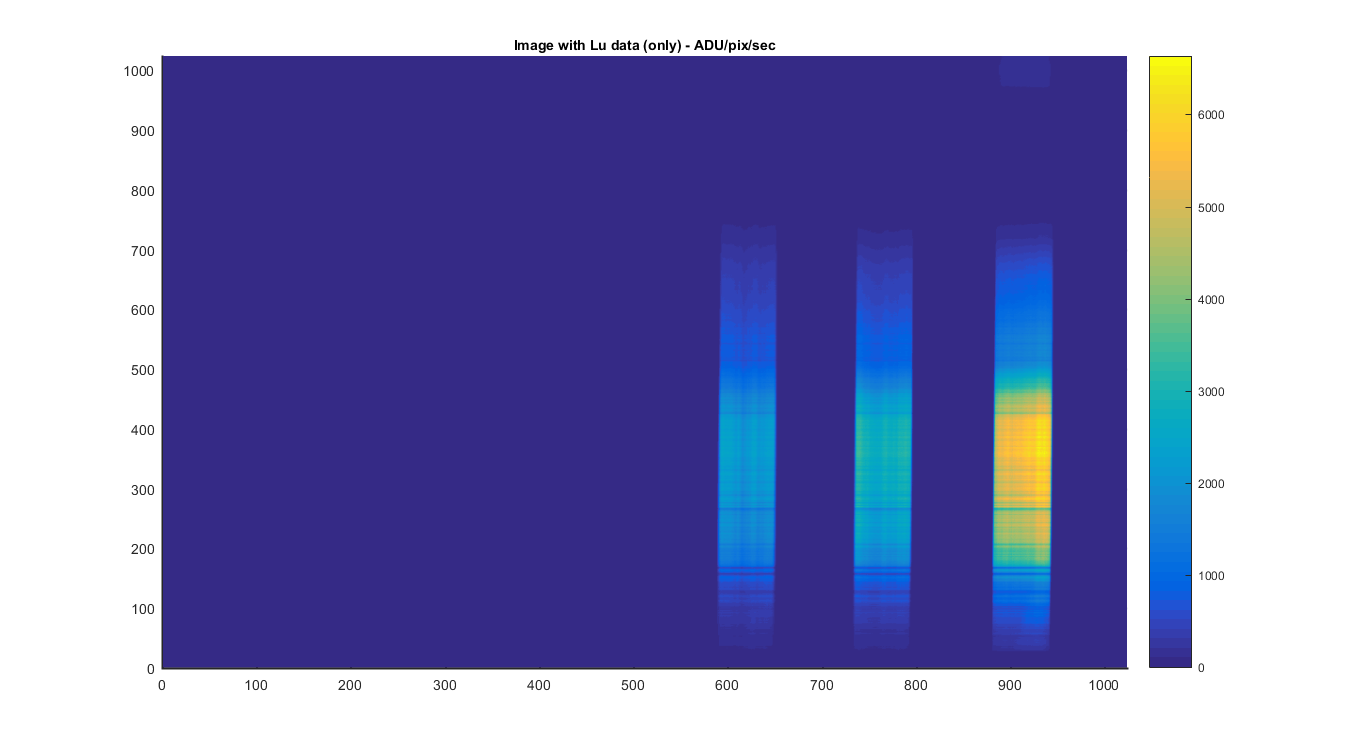

The image used for the 3 Lu Tracks. No Es data are collected on this data set so the Lu data have a higher ADU. The data are dark subtracted and divied by int time.

Figure 2

Es system response so you can see the shape

Figure 3

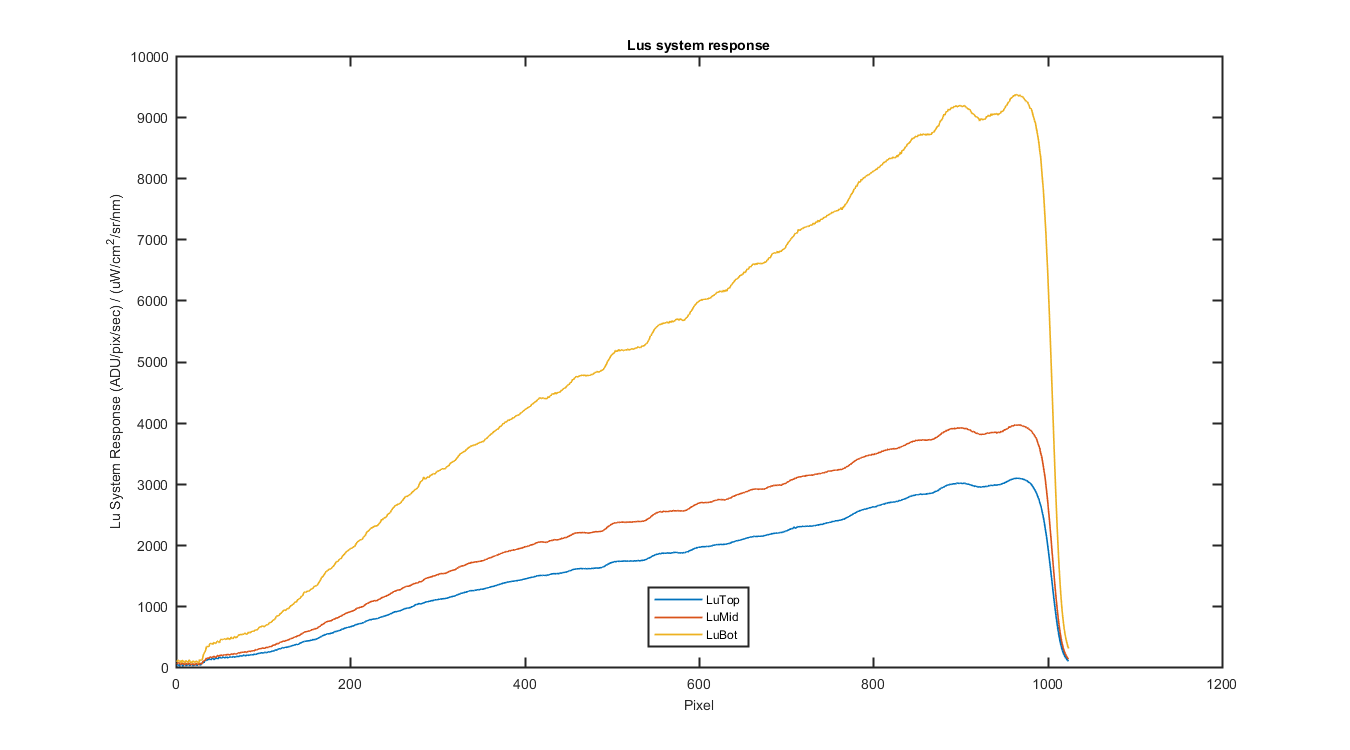

Lu system responses so you can see the shape

Figure 4

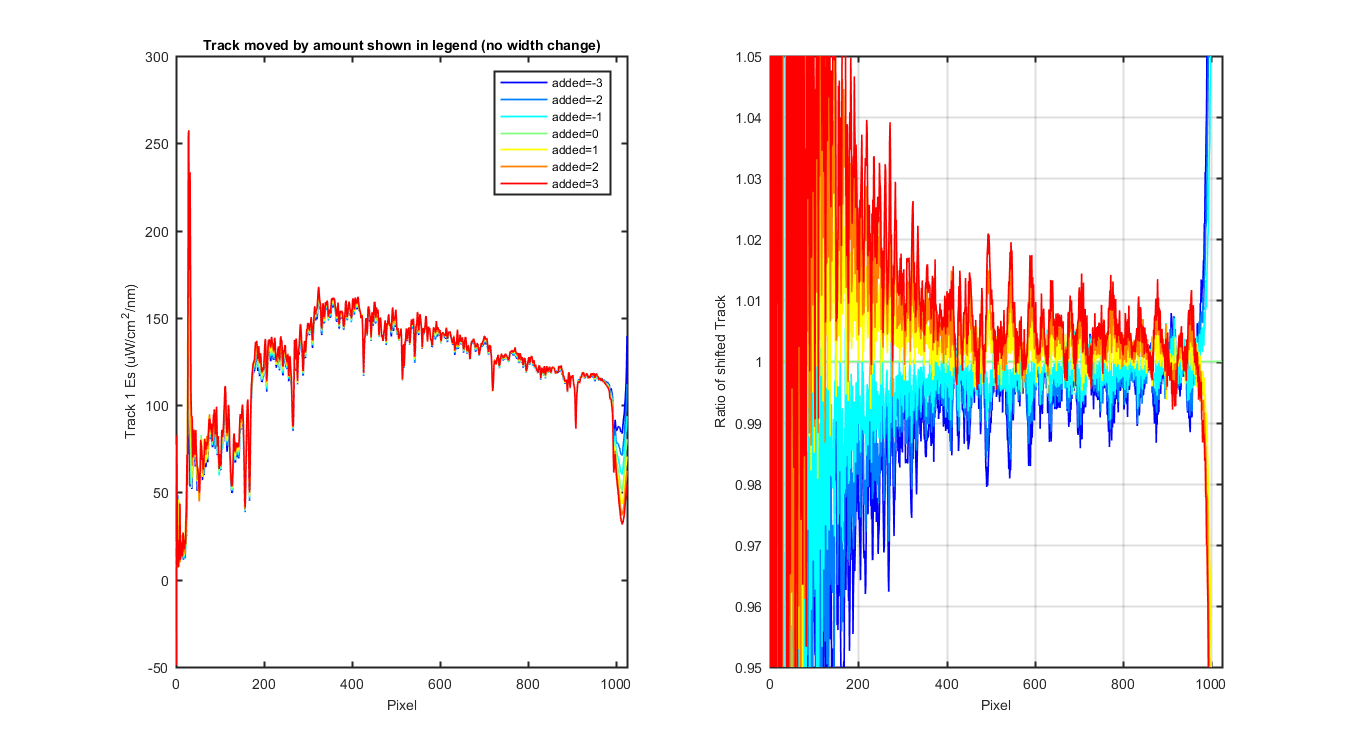

TRACK 1 ES DATA
Left panel is each track spectrally in Engineering units. The right panel is the spectral ratio relative to the "normal" system response position or add = 0.

Figure 5

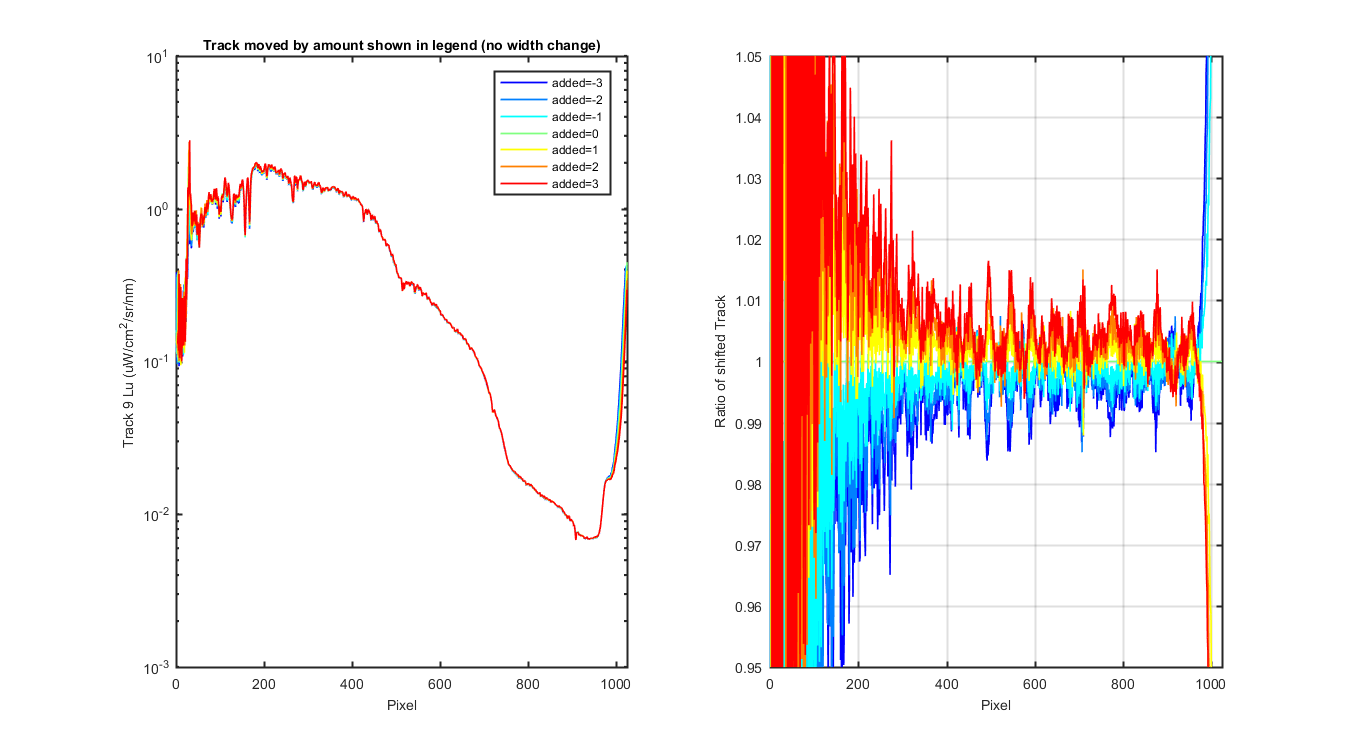

TRACK 9 LuTop DATA
Left panel is each track spectrally in Engineering units The right panel is the spectral ratio relative to the "normal" system response position or add = 0.

Figure 6

TRACK 11 LuMid DATA
Left panel is each track spectrally in Engineering units The right panel is the spectral ratio relative to the "normal" system response position or add = 0.

Figure 7

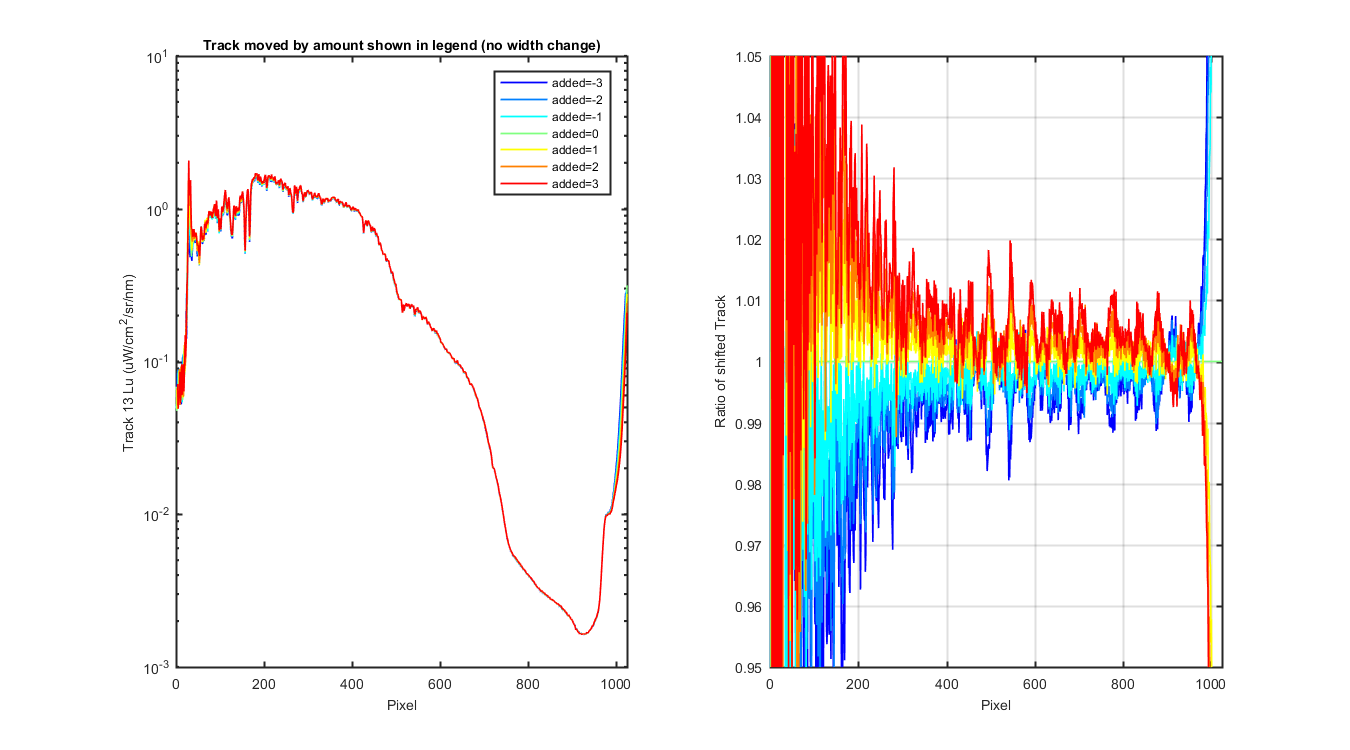

TRACK 13 LuBot DATA
Left panel is each track spectrally in Engineering units The right panel is the spectral ratio relative to the "normal" system response position or add = 0.

Figure 8
