plt_trkedges_ - BS01

REVISION DATE: 31-Oct-2017 14:08:59

To look at track movement I created an algo that found the left and right track position at 50% of the max height. But this could also be used to show the curvicure of the tracks edges and movements for the whole track not just a few pixels. So for only one files the s*04.fits file I calculated the track positions for Track 1, 9 , 11 and 13. I threw out the low signal level data since the algo does not work when the signal is really low.

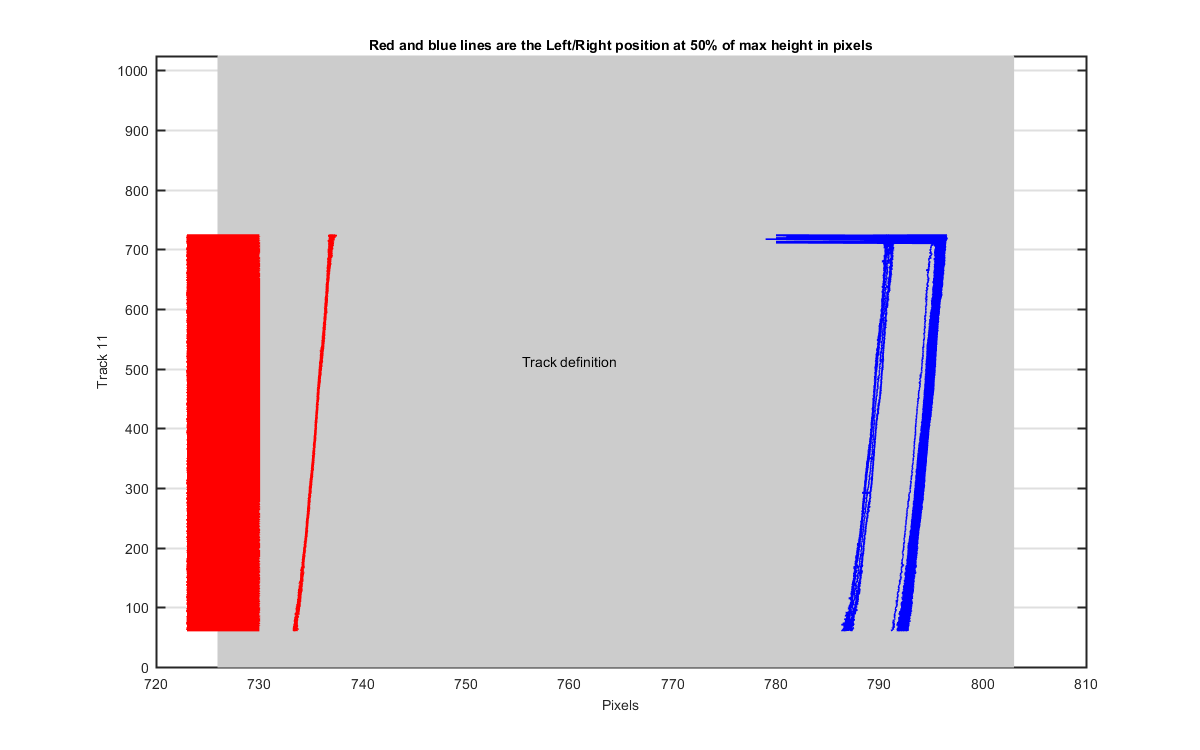

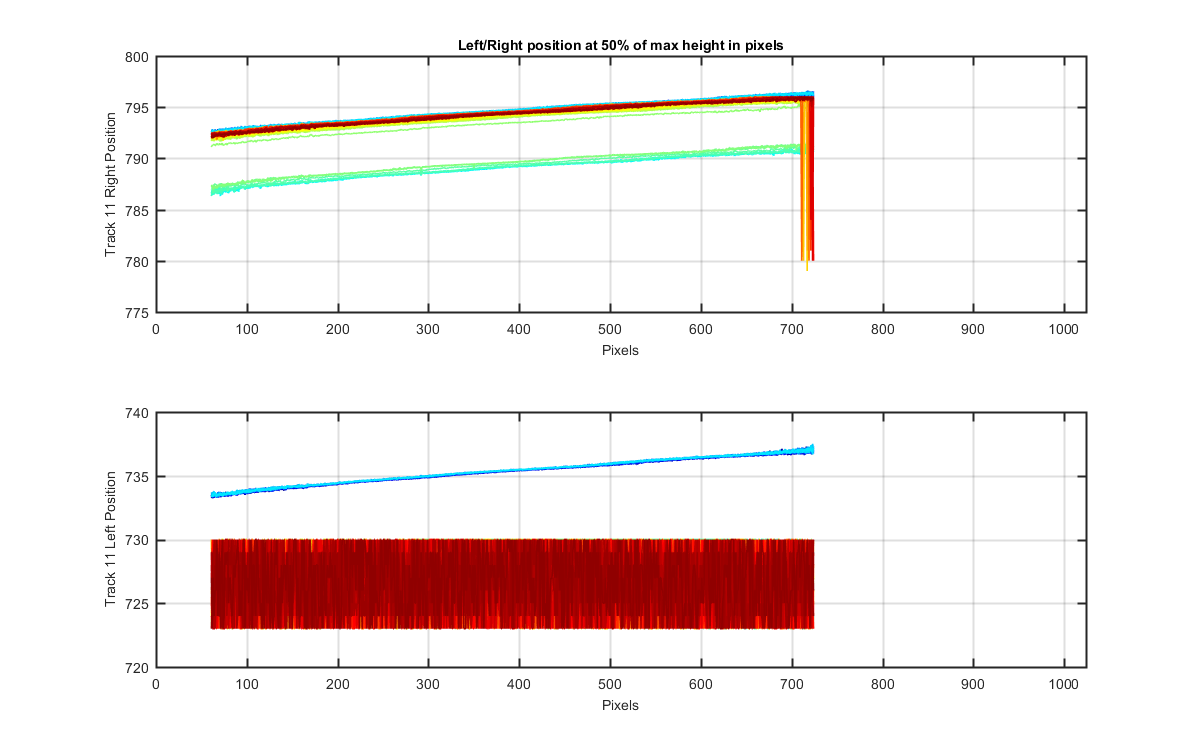

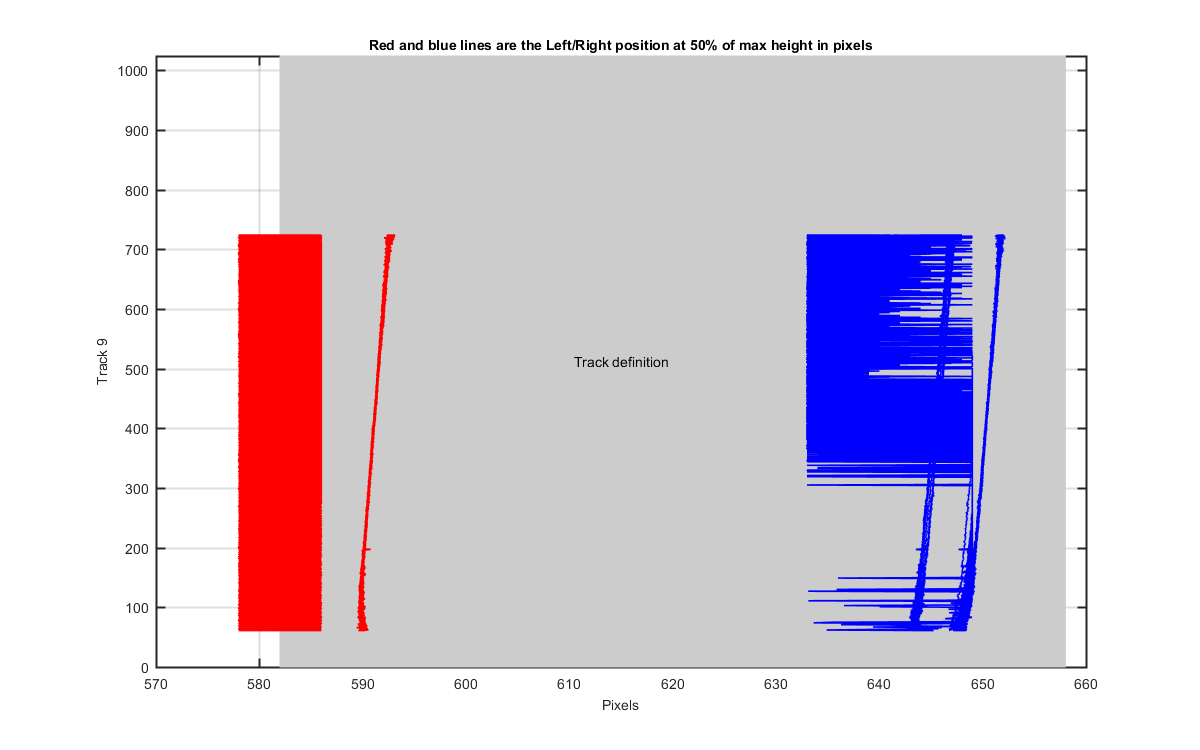

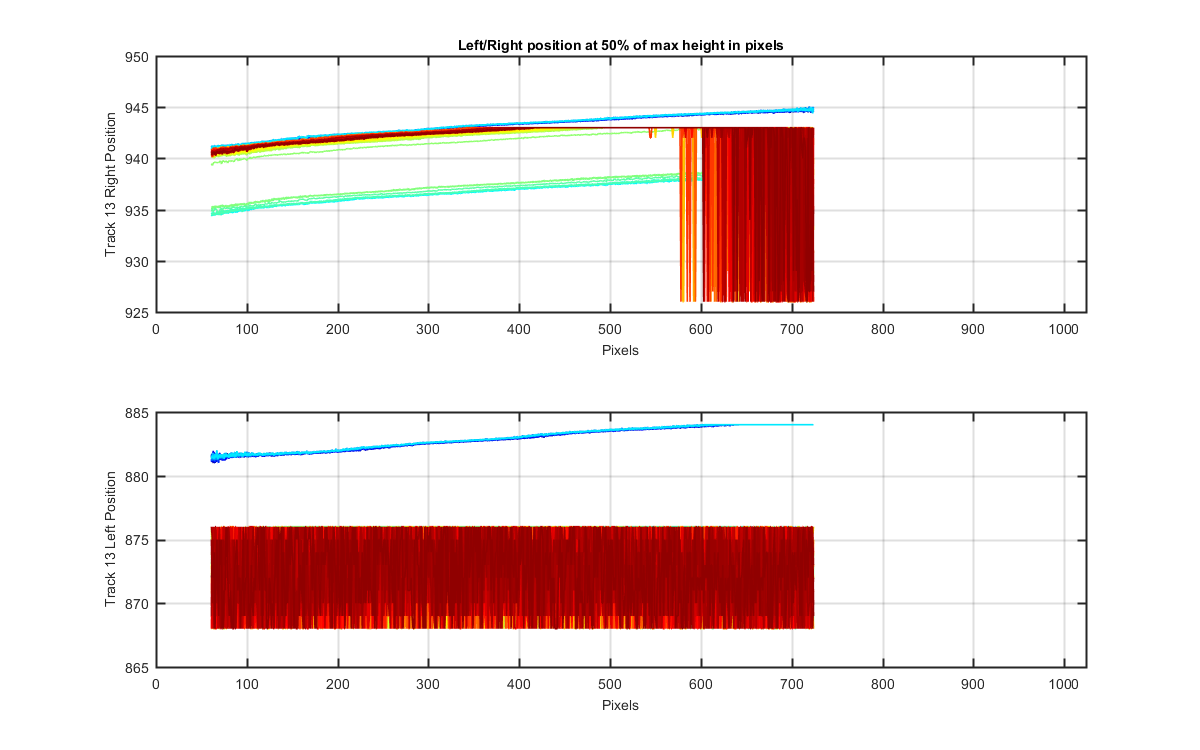

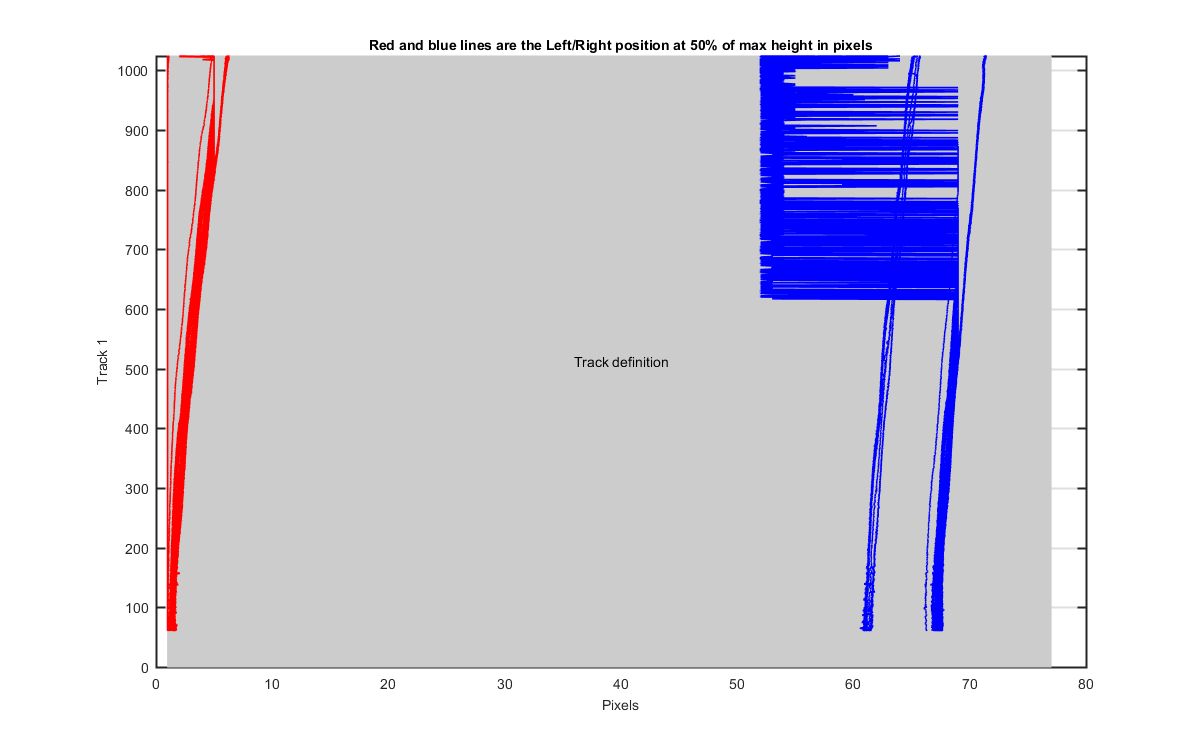

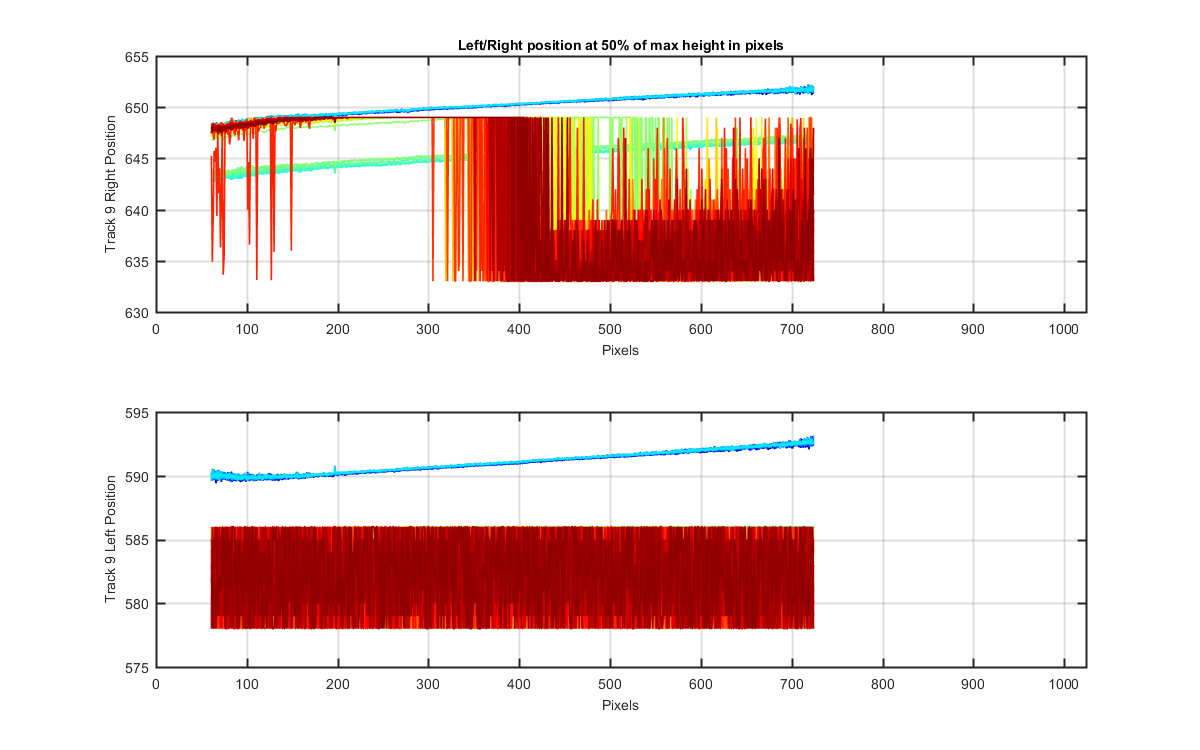

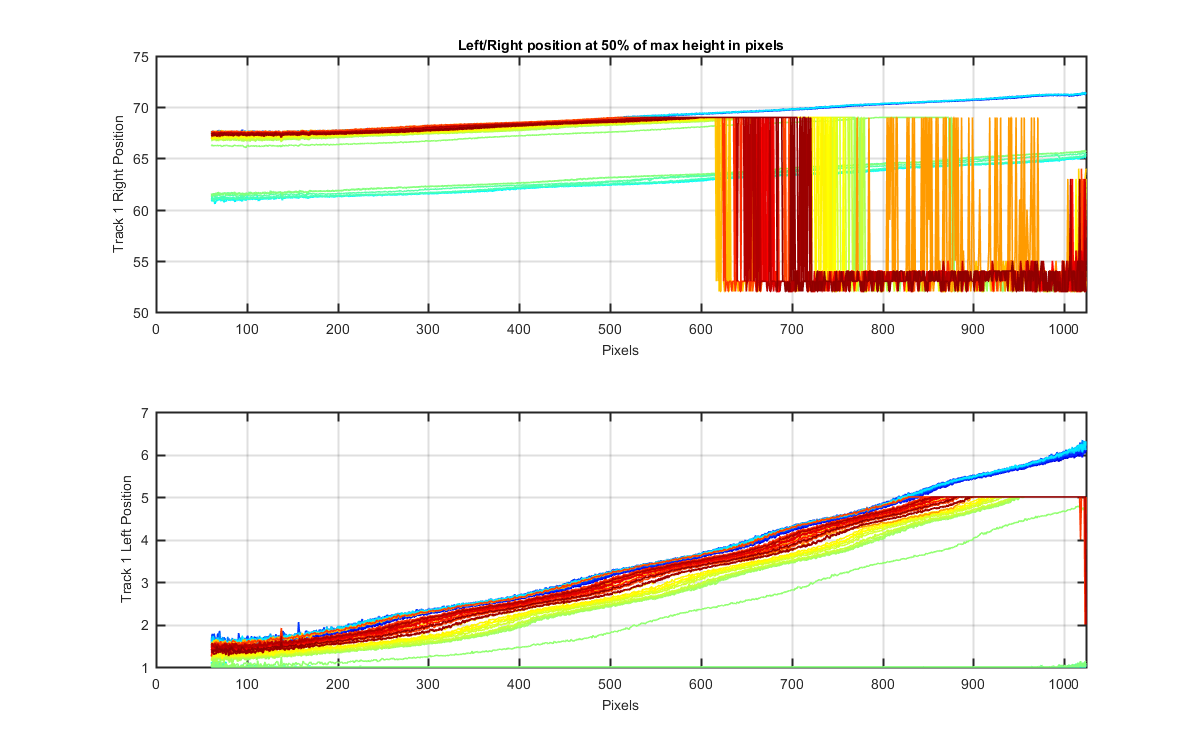

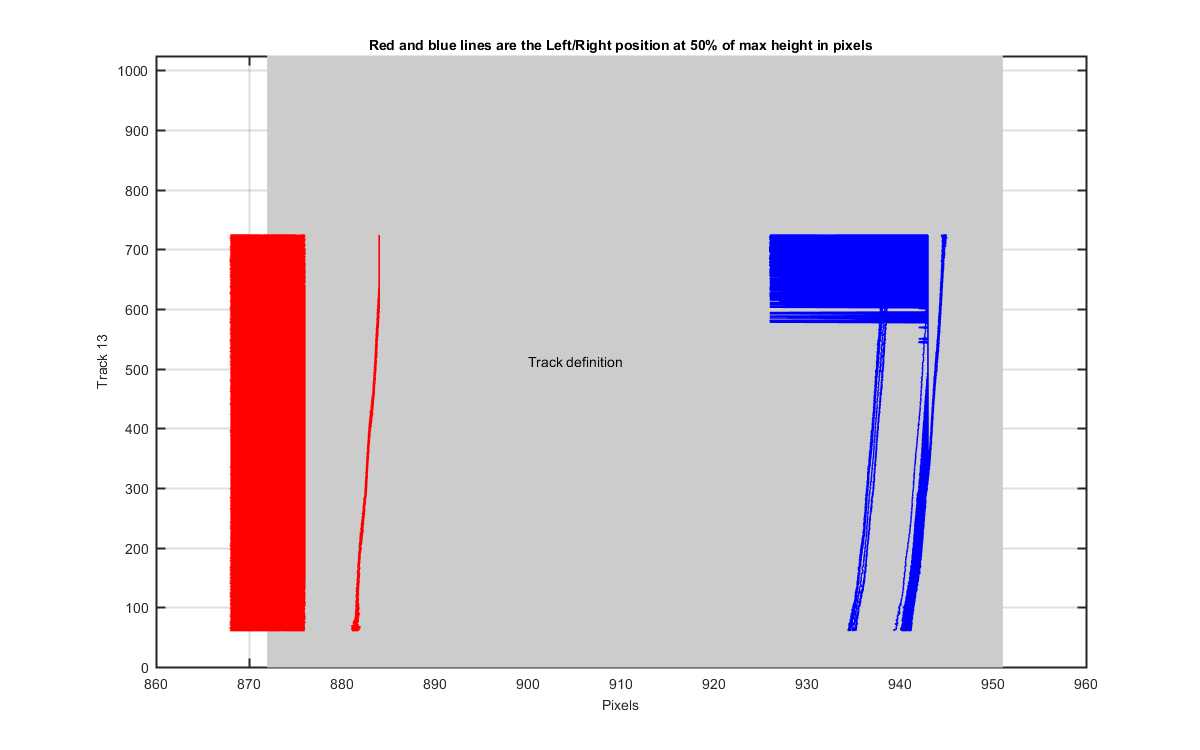

Thre first 4 graphs show the track in relation to the defined track. The second 4 show the left and right edge positions in separate graphs so you can see the curvicure easier.


Figure 1


Figure 2


Figure 3


Figure 4


Figure 5


Figure 6


Figure 7


Figure 8


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\MOBY262\bs01
Date: 31-Oct-2017 14:08:59
Created from plt_trkedges_(1)
