REVISION DATE: 29-Jan-2018 16:22:10

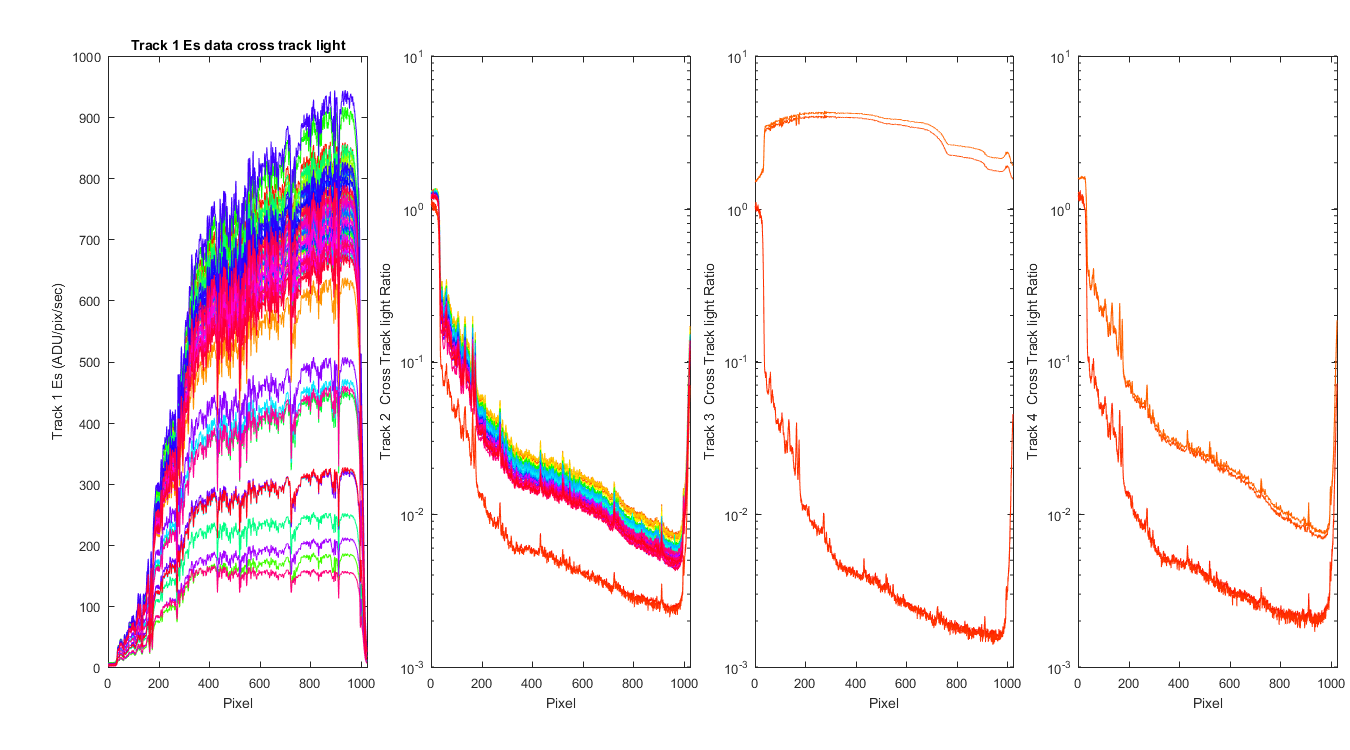

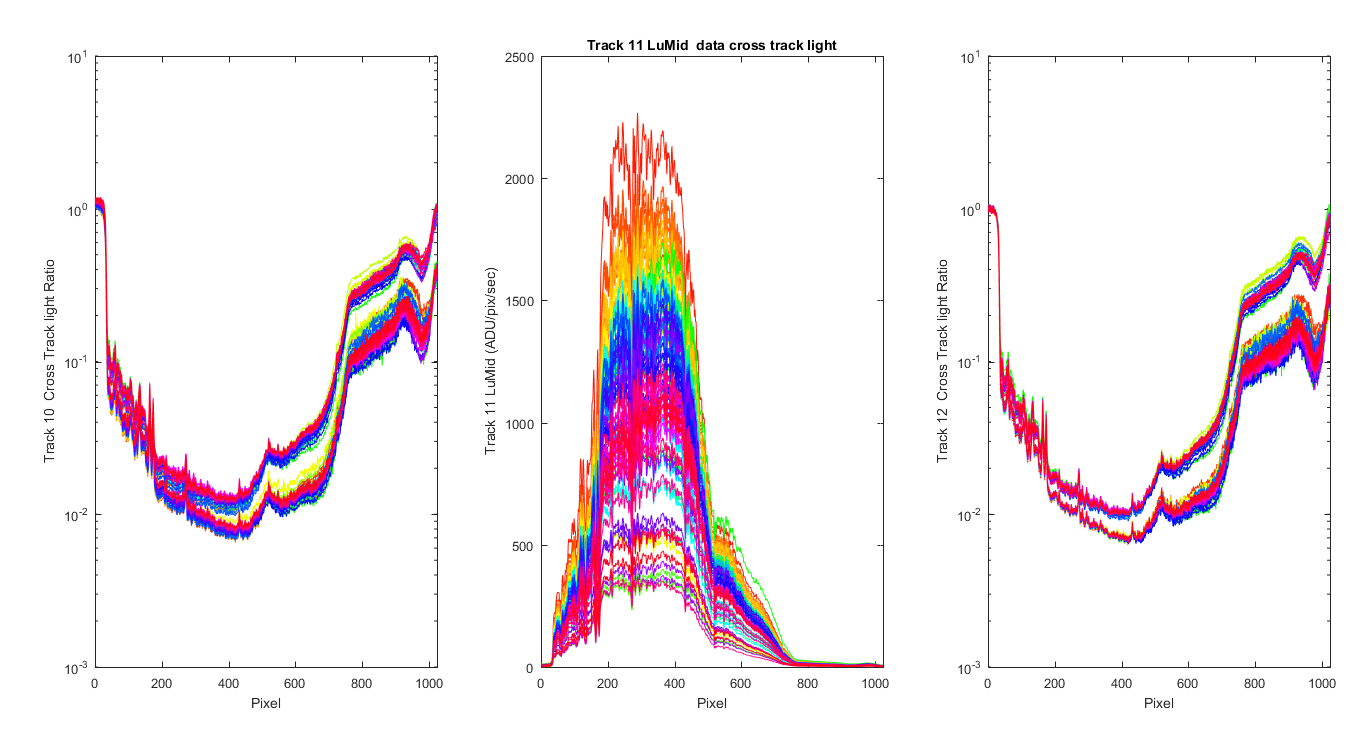

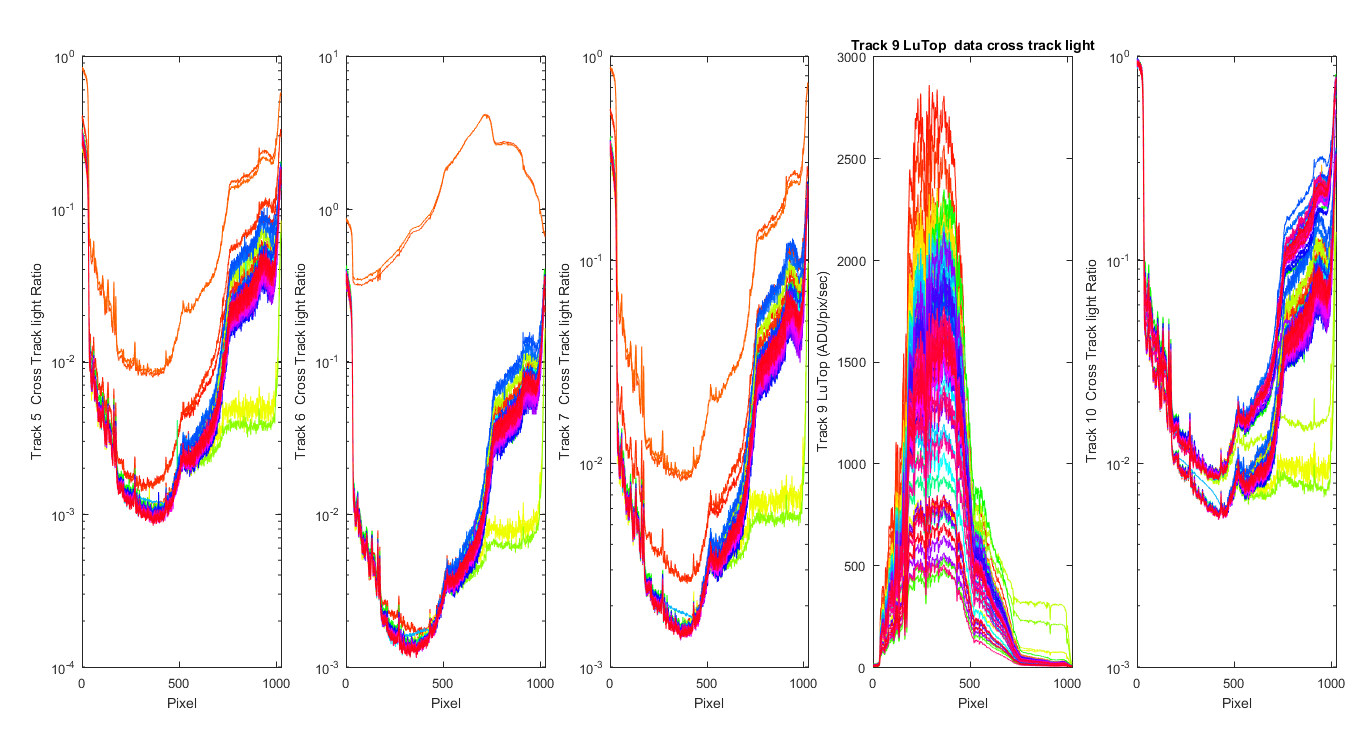

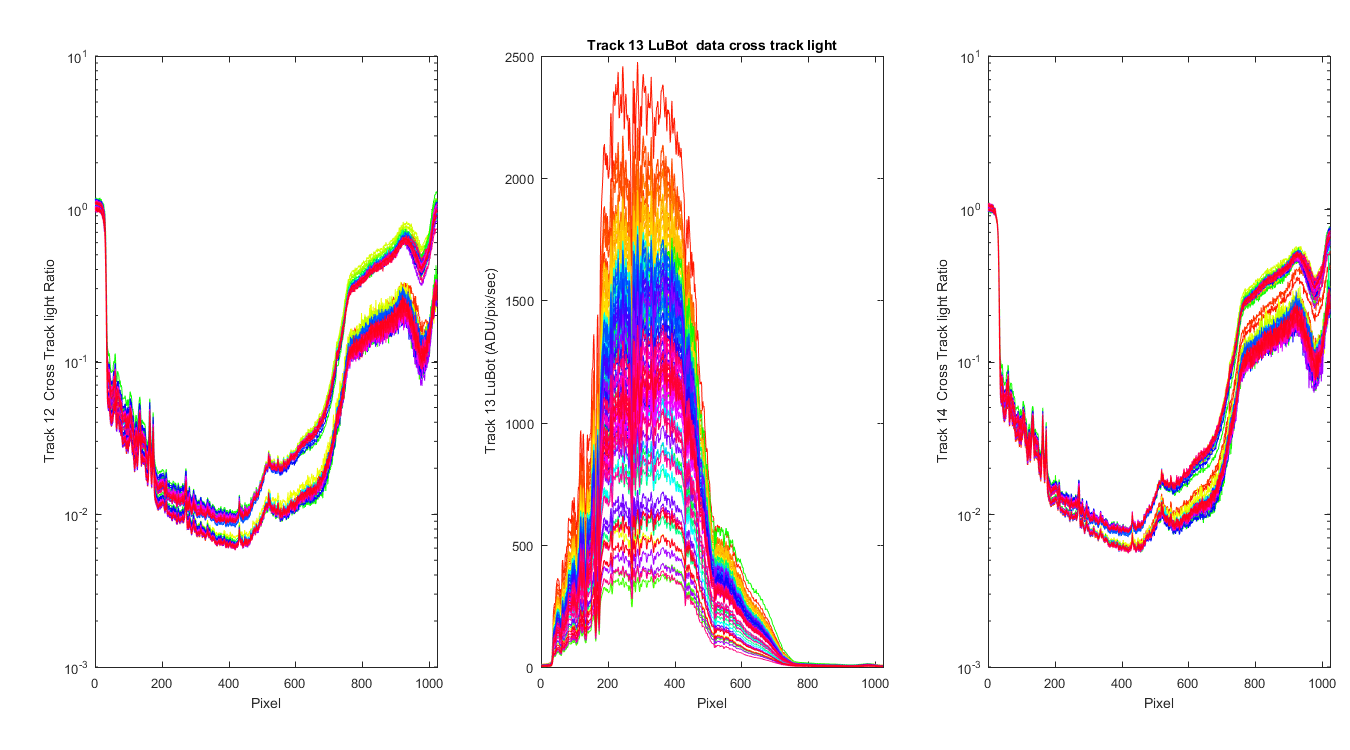

This show the cross track light got all the files for track 1, 9, 11 and 13. The first 4 graphs show the ratio. For Track 1 three tracks (2,3 and 4) are shown. That ratio is the track 2 ,3 or 4 Net data divided but the illuminated tracks net data. For Track 9 there are three tracks on the left (track 6, 7 and 8) and the one track on the right Track 10. For Track 11 and 13 there are only one track on either side of each track.

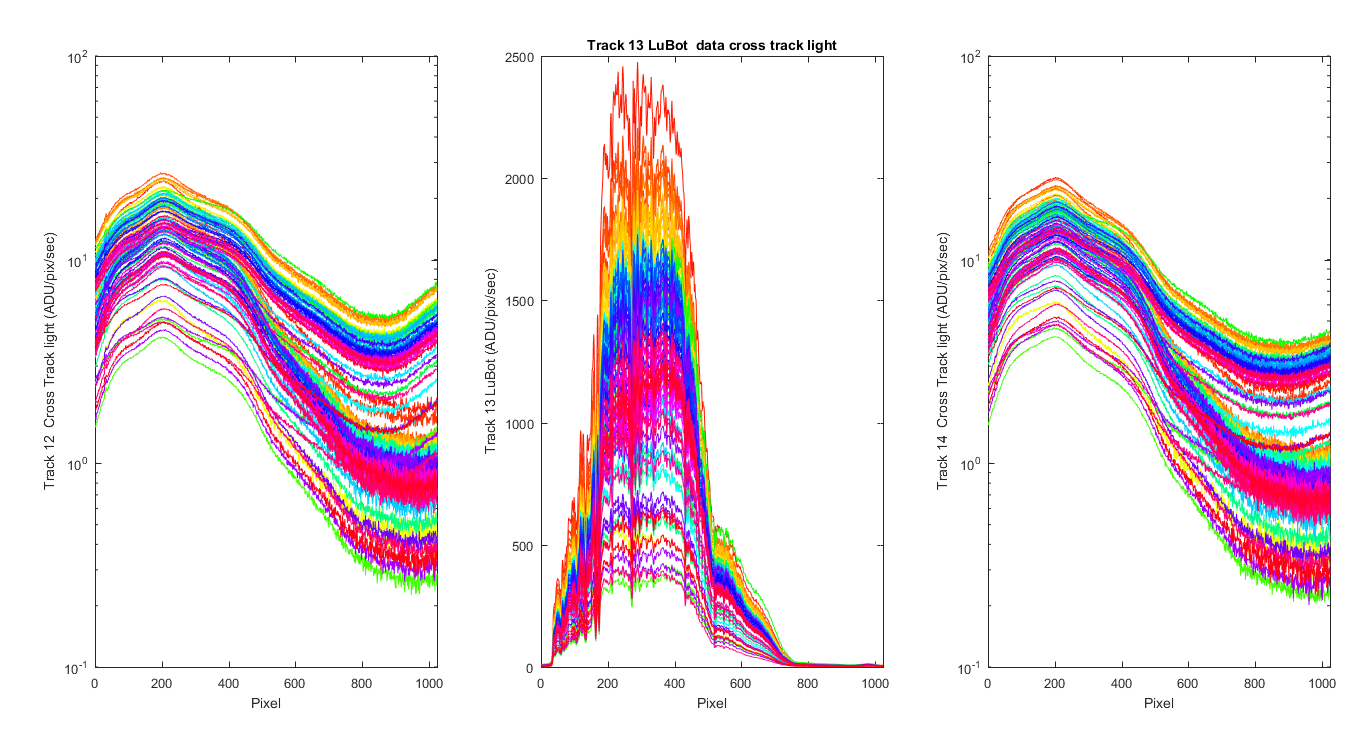

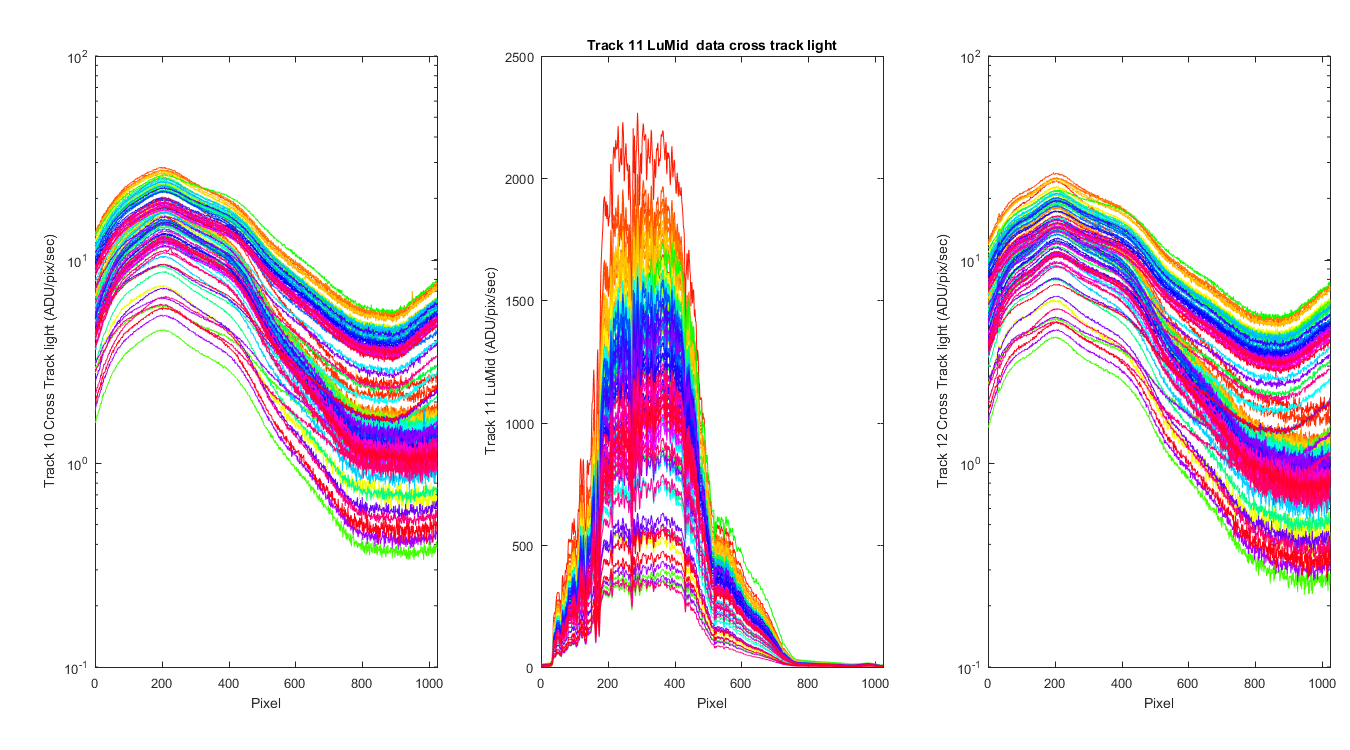

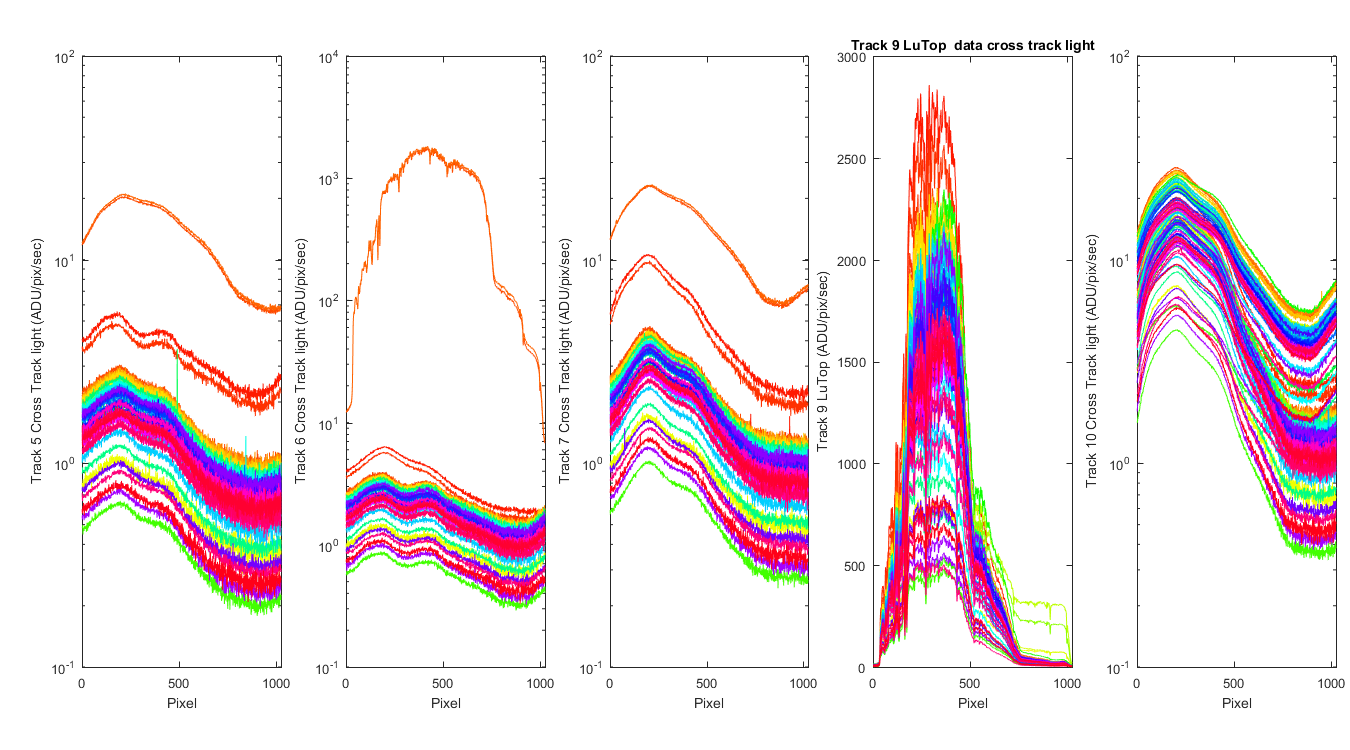

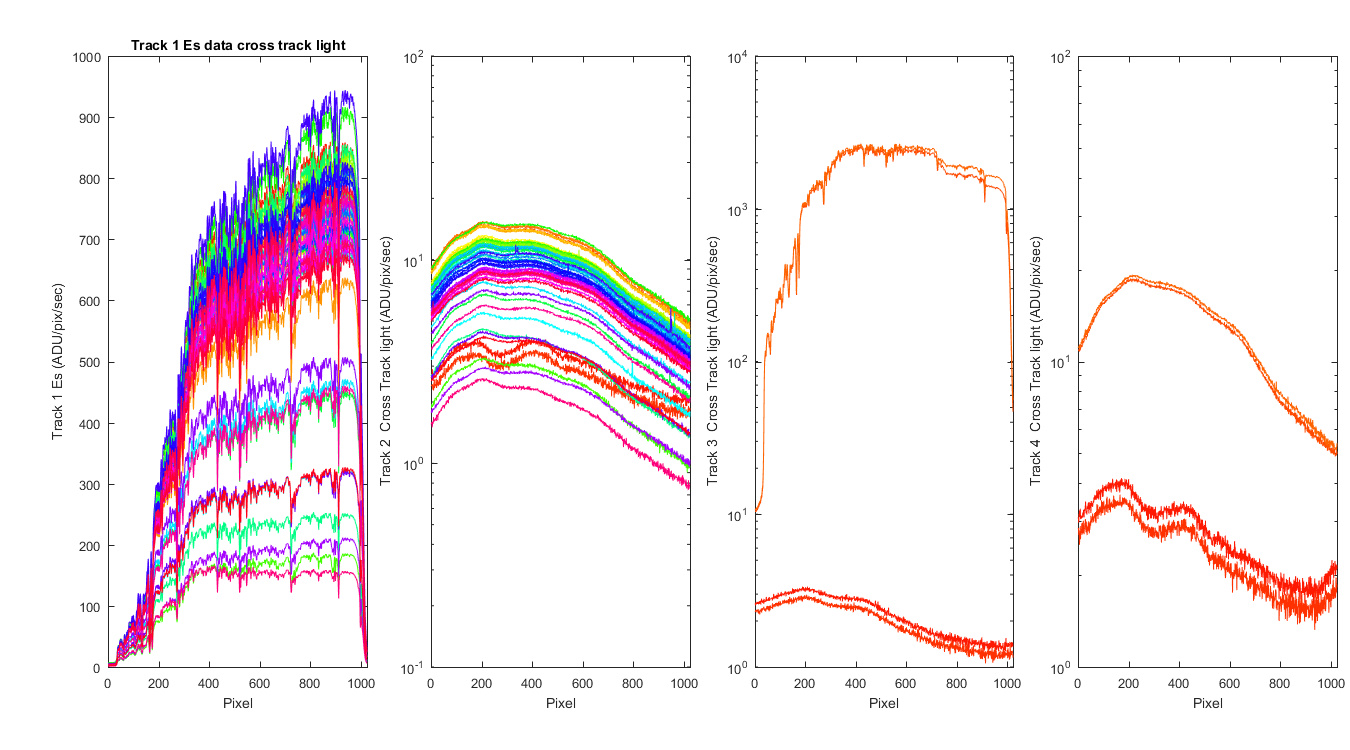

The second 4 graphs show the cross track light in ADU/pix/sec. All the Data set types (Es/Lu and Lu only) are shown on the same graphs. There are differences between the two data set types.

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8
