s2017101419_img

REVISION DATE: 16-Oct-2017 15:25:17

Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.

Table caption: Andor Ikon Camera data, NOT divided by intgration time (no darks are subtractd)
Previous HOME RAW HTML
Filename Type Rotaton
(deg)
Wavelength (nm)(deg) Total Exposure Time Acquisition mode Temperature Gain Baseline Clamp file creation date Pre Amplifier Gain Readout mode Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
s2017101419_img Signal NaN NaN 12.505 Single Scan -60 0 F 2017-10-14T00:20:06 4 Image 42233 5763.51 102.12

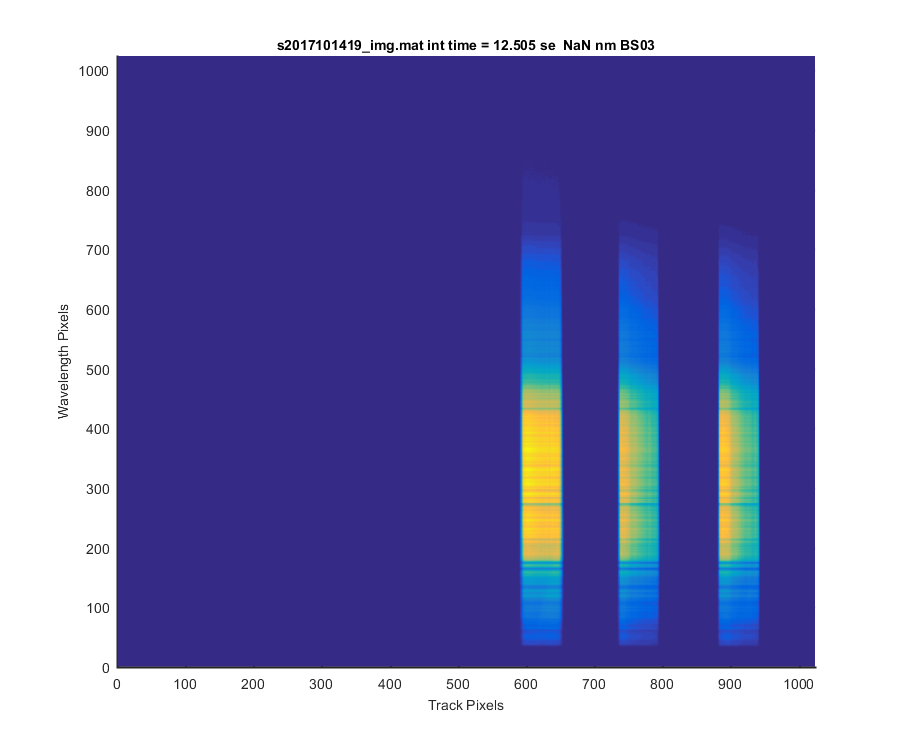

Figure 1

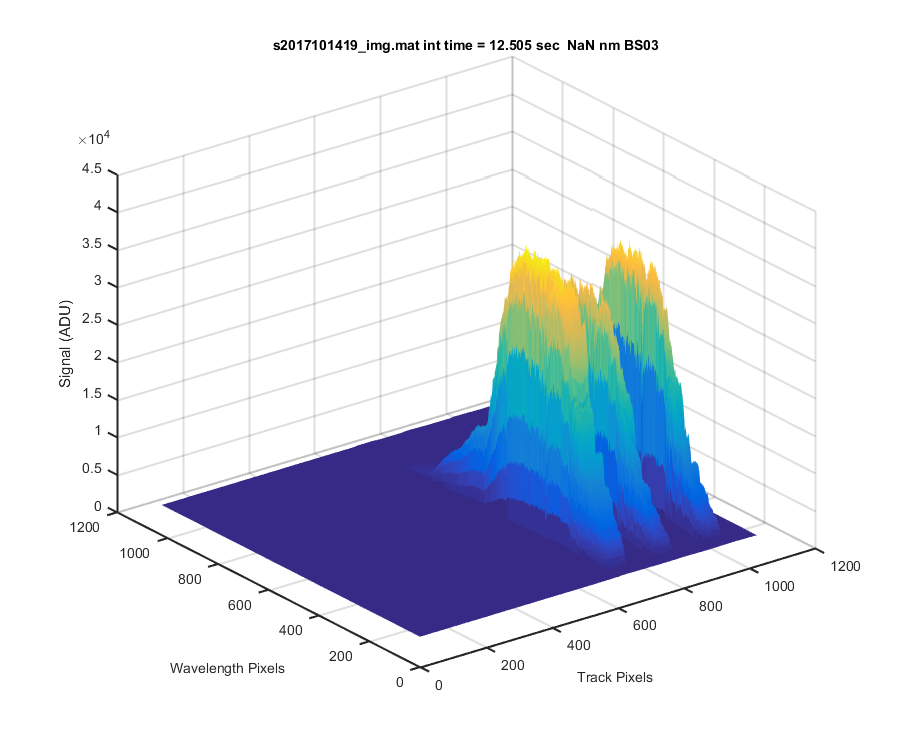

Figure 2

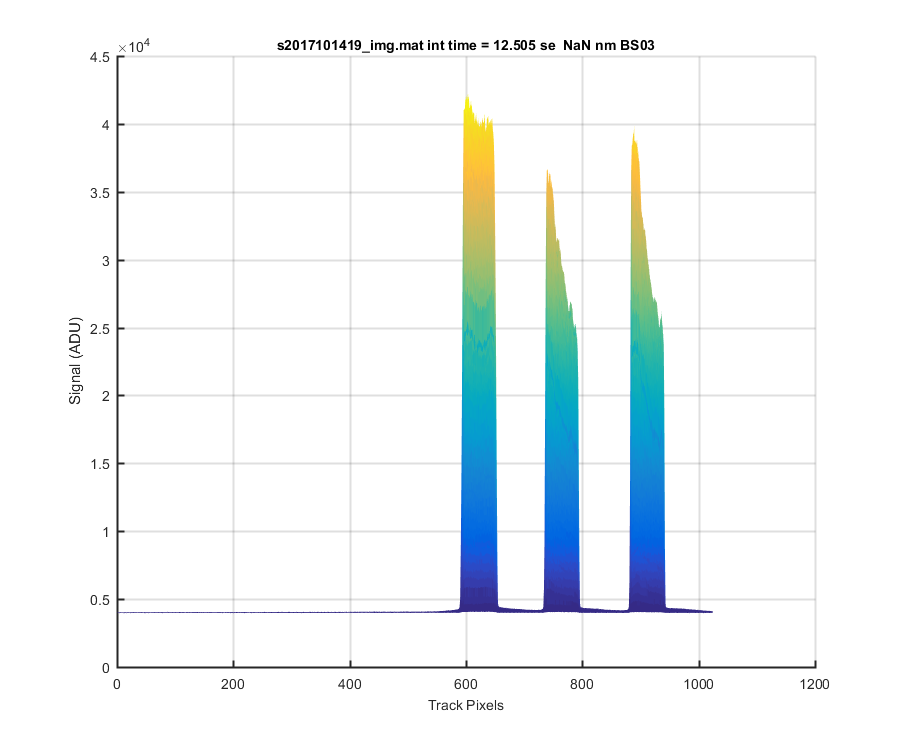

Figure 3

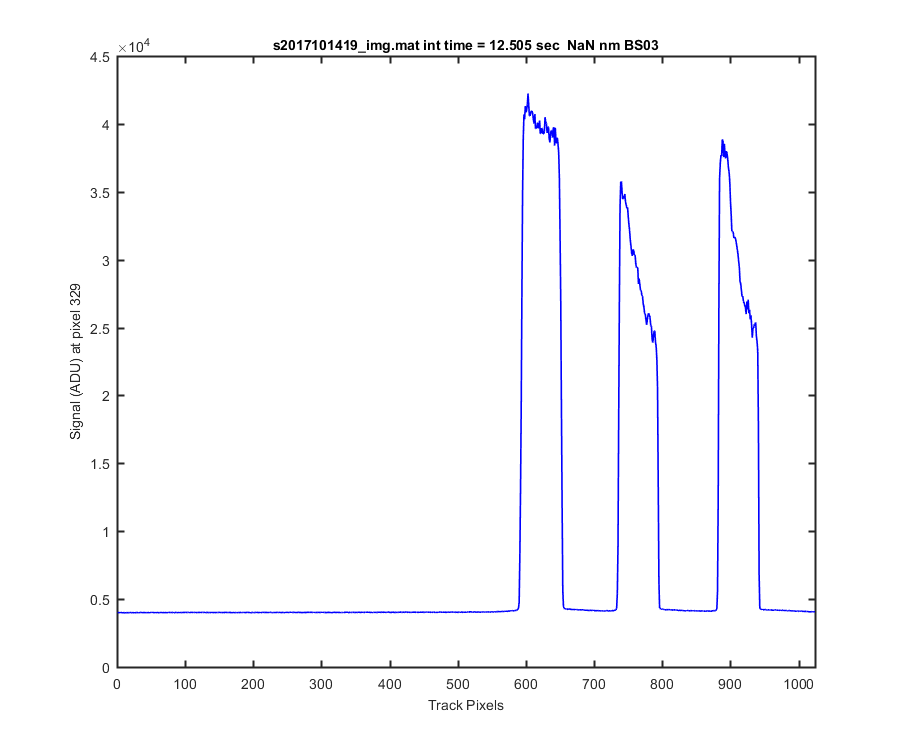

Figure 4


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\MOBY263\bs03\day10
Date: 16-Oct-2017 15:25:17
Created from mkhtml_(1)
