s2017102104_img

REVISION DATE: 23-Oct-2017 16:42:42

Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.

Table caption: Andor Ikon Camera data, NOT divided by intgration time (no darks are subtractd)
Previous HOME NEXT
Filename Type Rotaton
(deg)
Wavelength (nm)(deg) Total Exposure Time Acquisition mode Temperature Gain Baseline Clamp file creation date Pre Amplifier Gain Readout mode Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
s2017102104_img Signal NaN NaN 12.6283 Single Scan -60 0 F 2017-10-21T00:10:57 4 Image 44502 8838.29 97.42

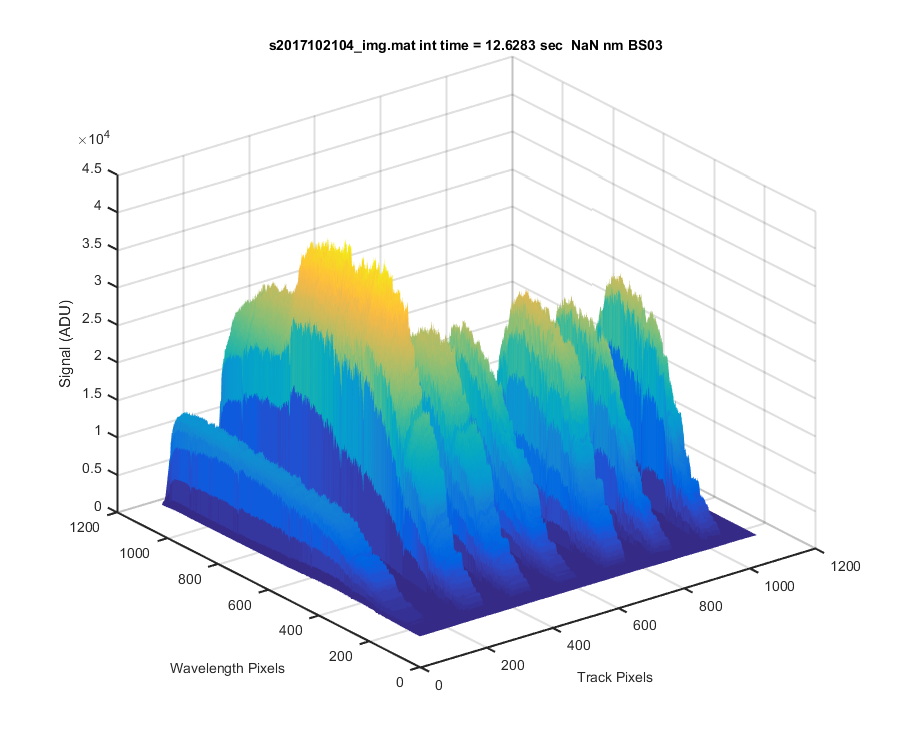

Figure 1

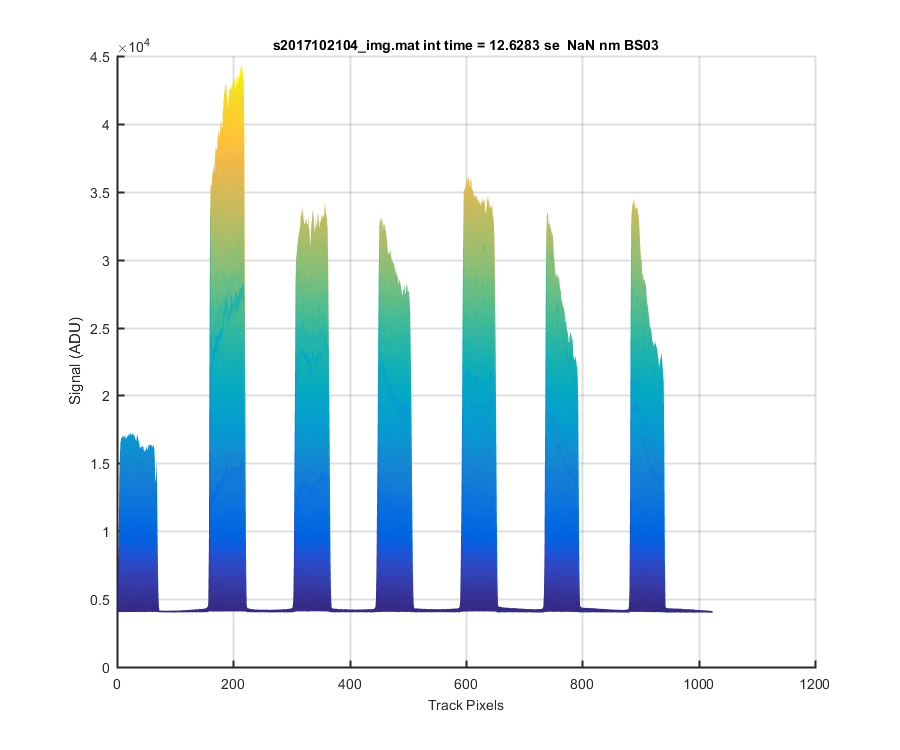

Figure 2

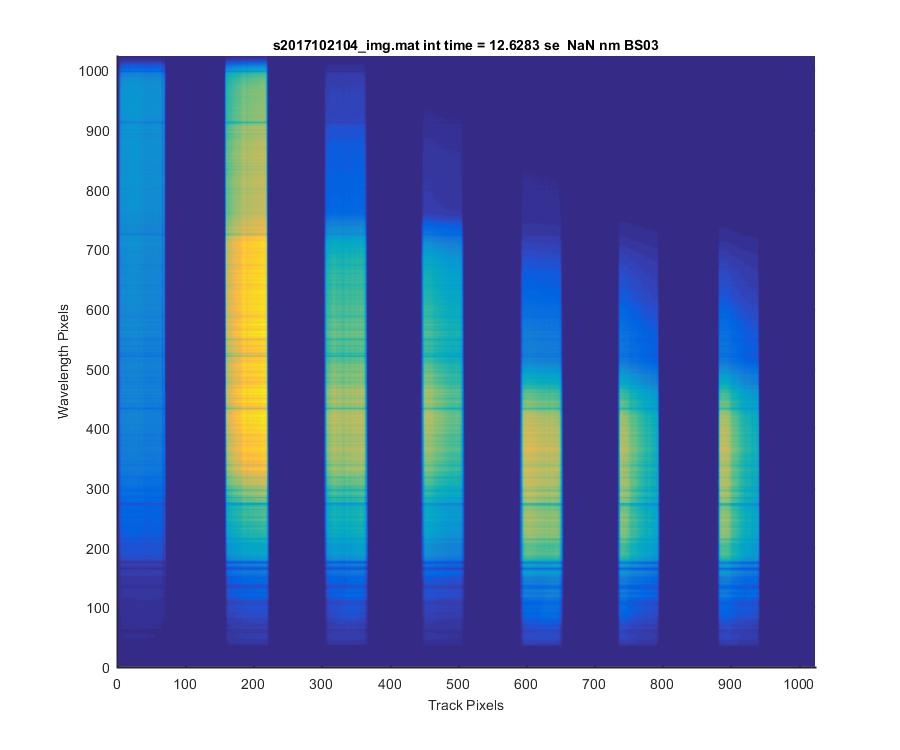

Figure 3

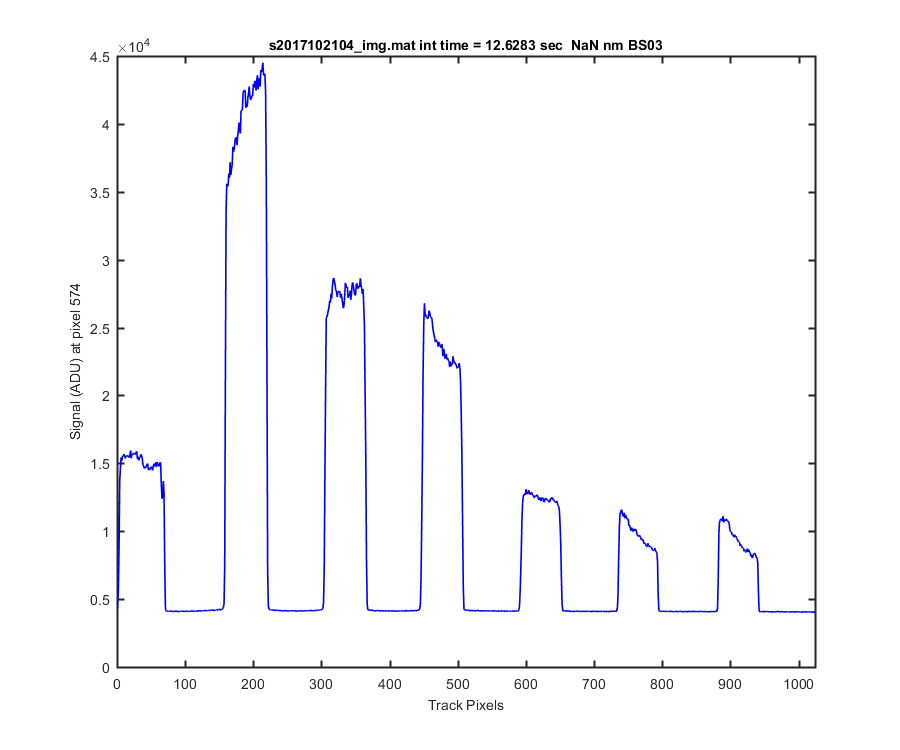

Figure 4


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\MOBY263\bs03\day17
Date: 23-Oct-2017 16:42:43
Created from mkhtml_(1)
