REVISION DATE: 07-May-2018 13:23:34
Looks at track 1 wavelength movement for in-water data. This is only for track 1 with Es data, I have also included the three Lus for some of the lines. For each Es the data are dark subtracted. There are 8 Fraunhofer lines I am monitoring for Es and 5 for Lu. I pull out the +- 20 pixels around the fruan line and subtract off the. minumum and divide buy the area to normalize the data. I then used the diff function to calculate the "Difference and approximate derivative" and find where the top of the fraunhofer line is on both sides. I then use these points to pull the fraunhofer line out and make it a peak rather than a valley. I then use the gaussian fit to find the sub-pixel peak location. I also added using the Matlab curve fitting functions, fit with the fittype as gauss1. This function returns goodenss of fit values, which the gaussfit does not. This method has some uncertainties but it works in an automated way. So I can apply this to all the files easily.

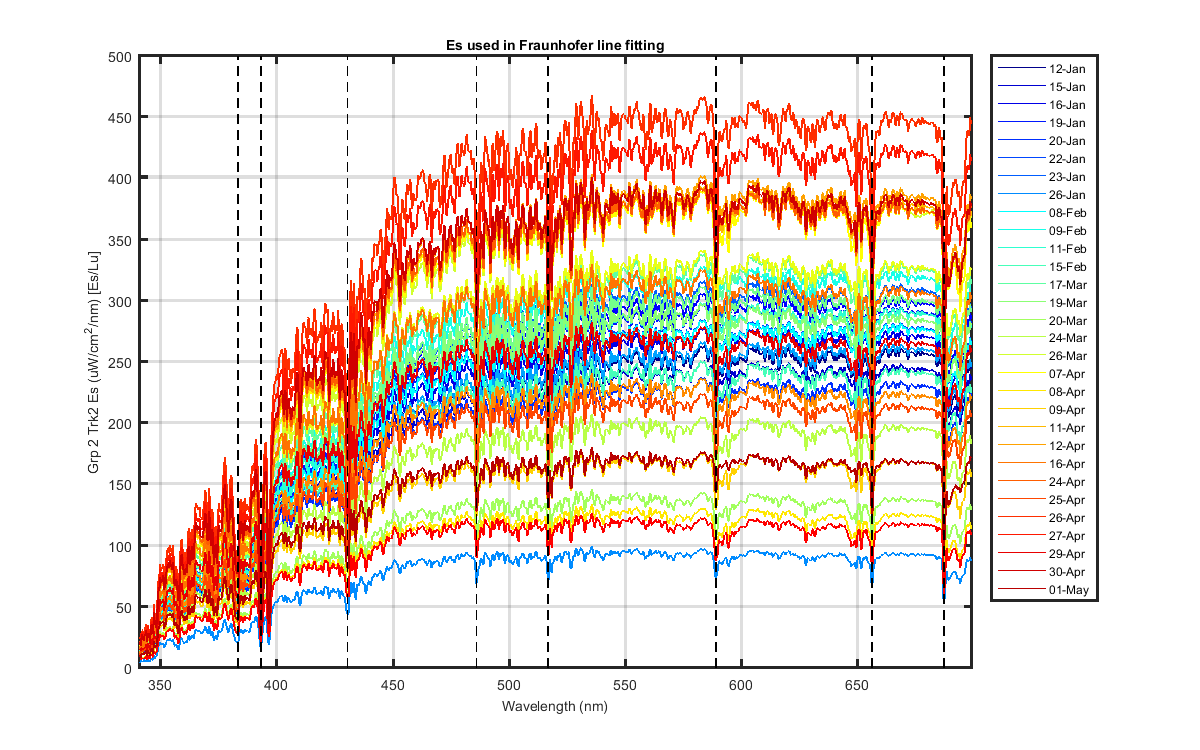

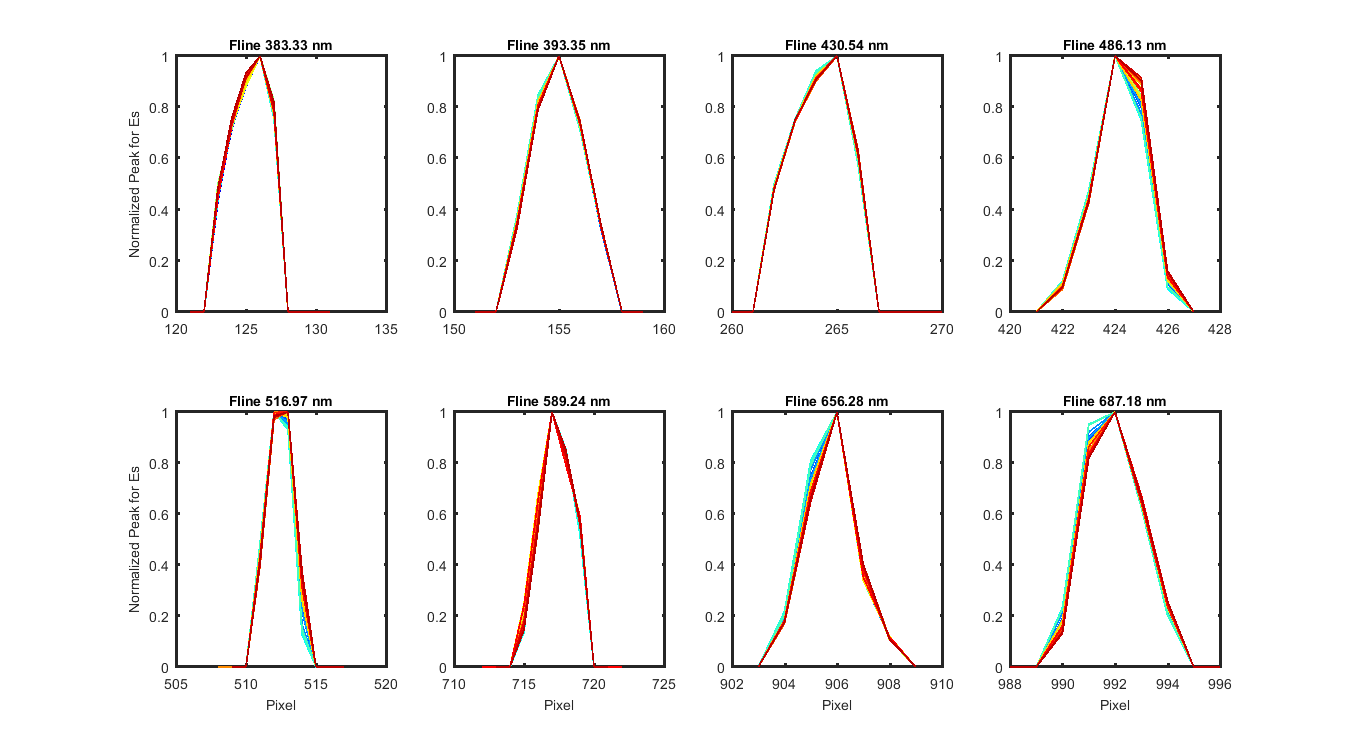

Figure 1

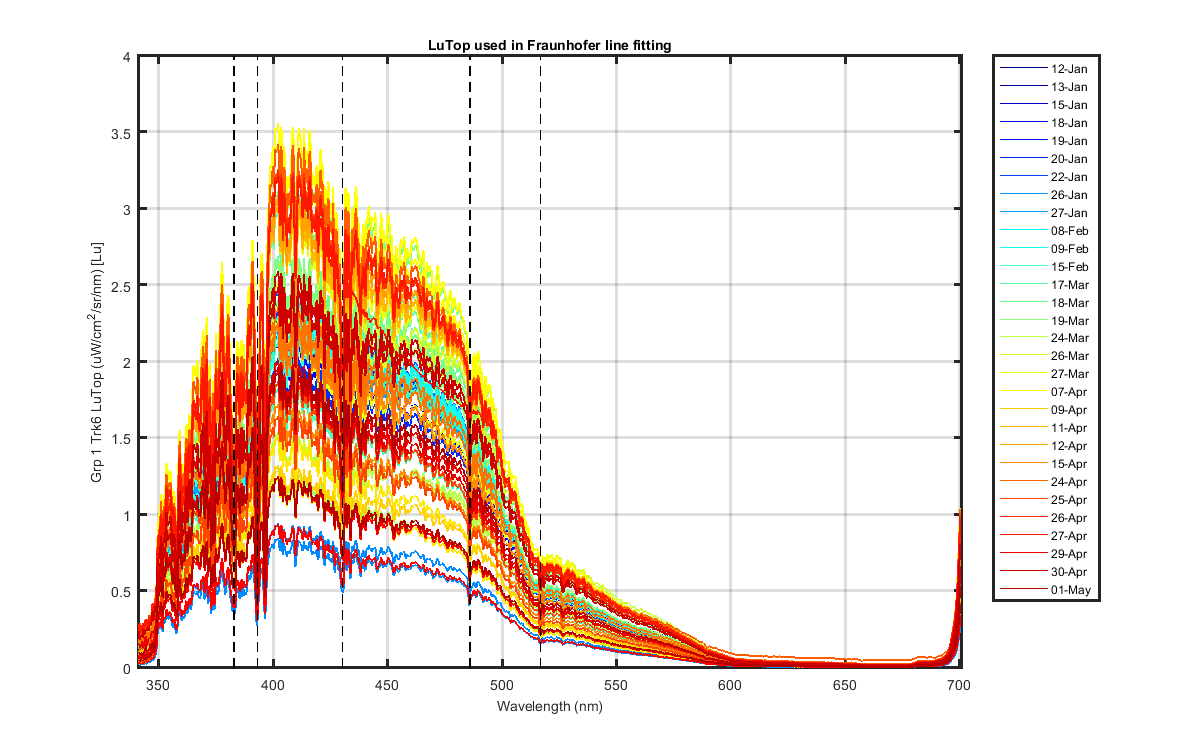

Figure 2

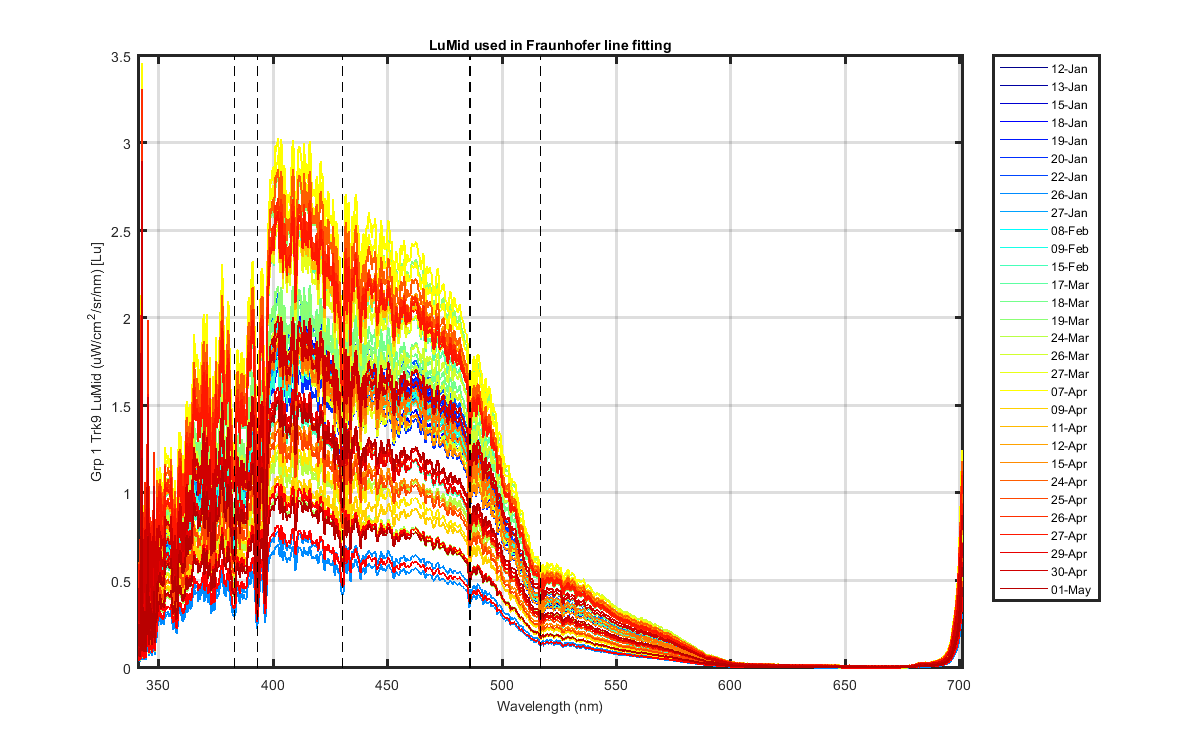

Figure 3

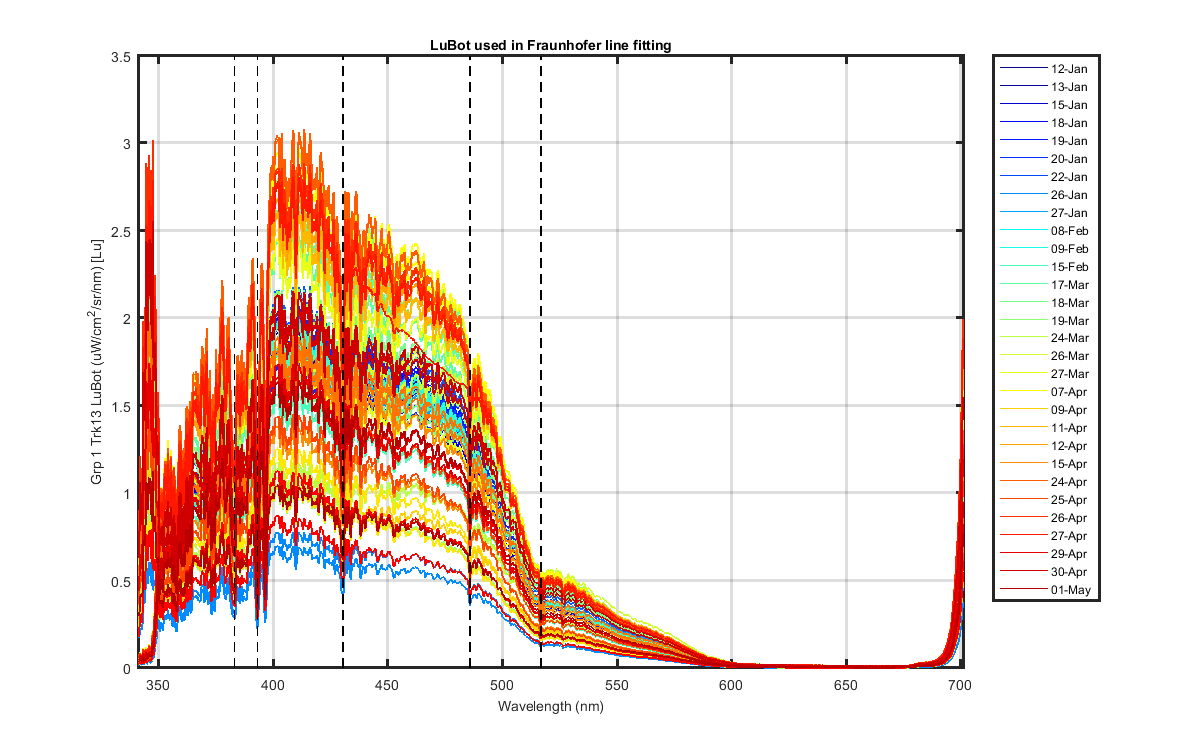

Figure 4
Figure 5

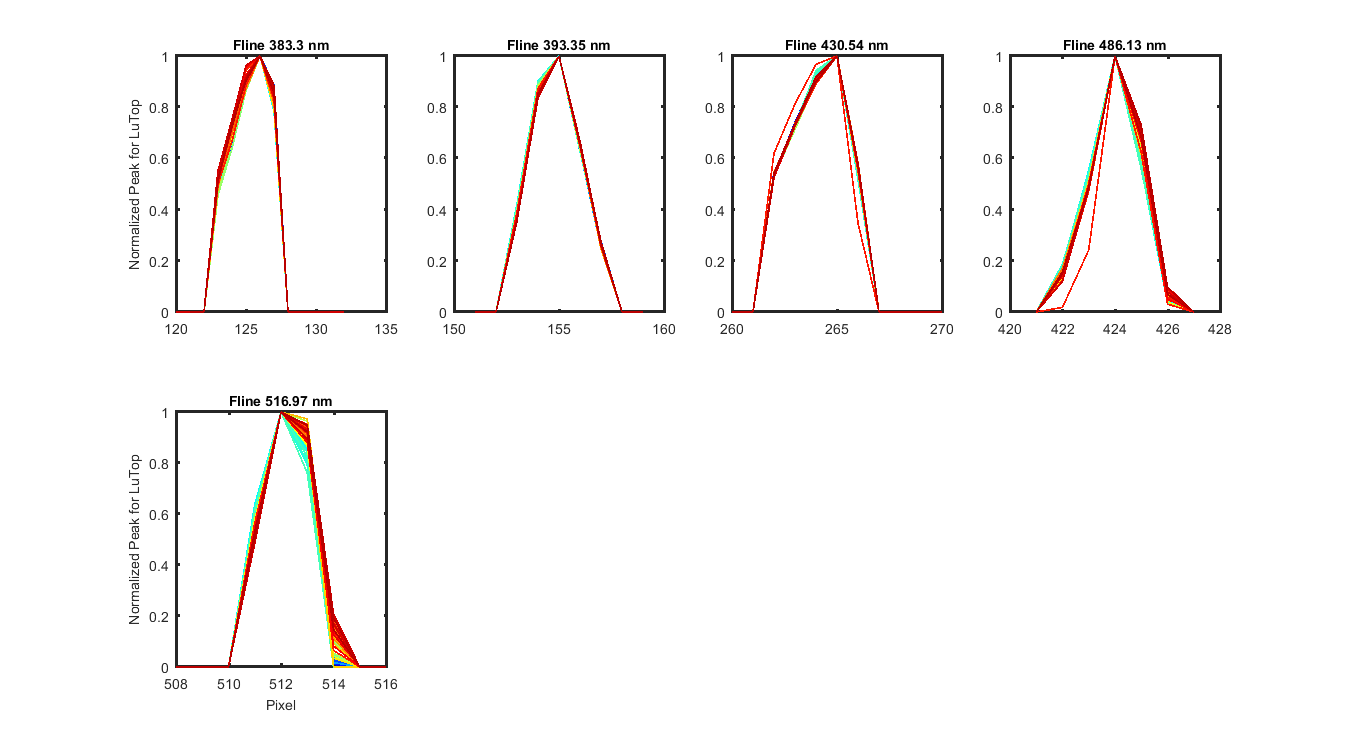

Figure 6

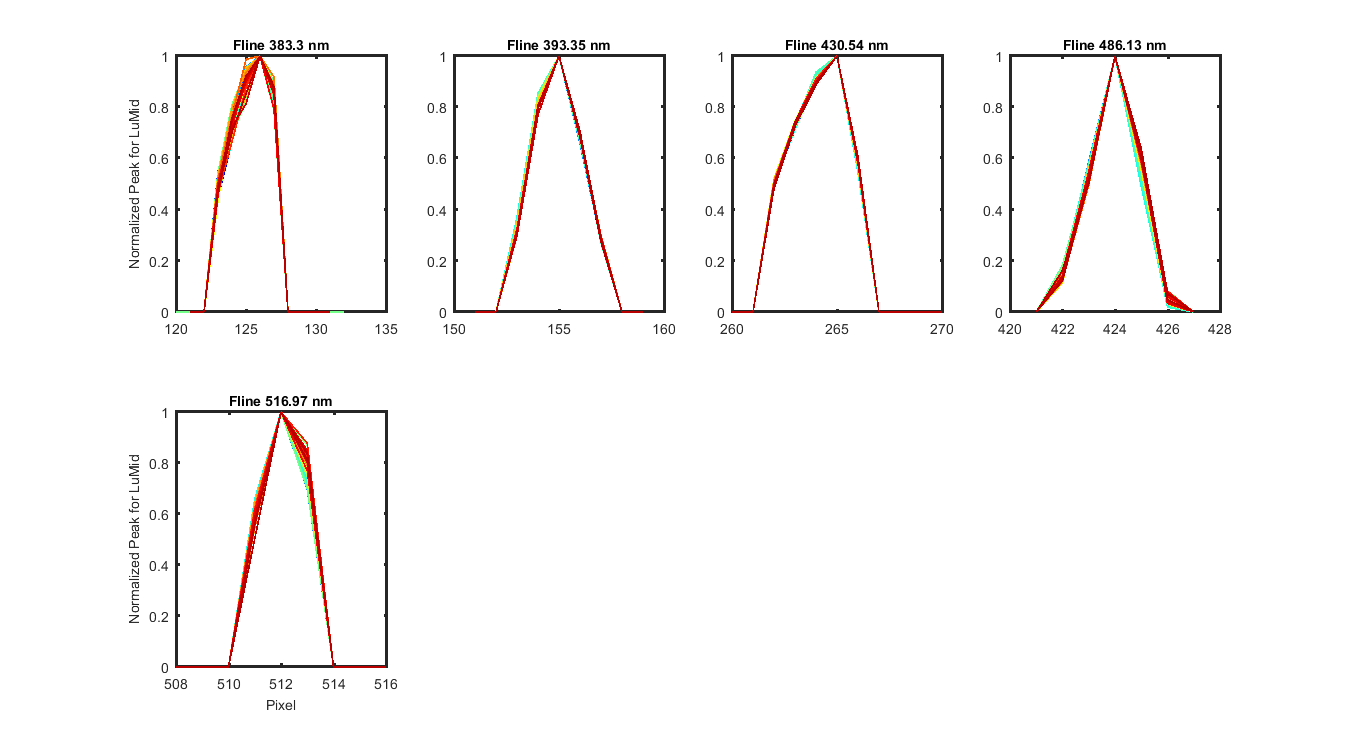

Figure 7

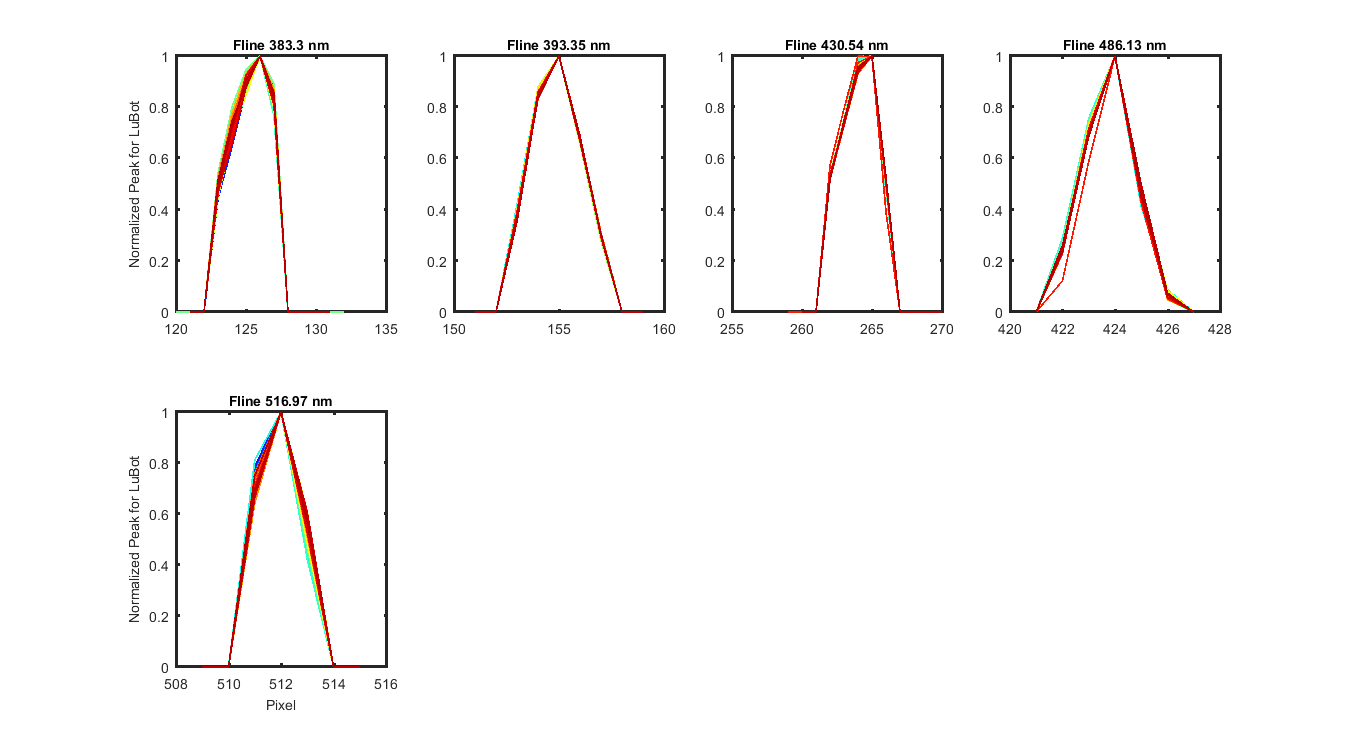

Figure 8

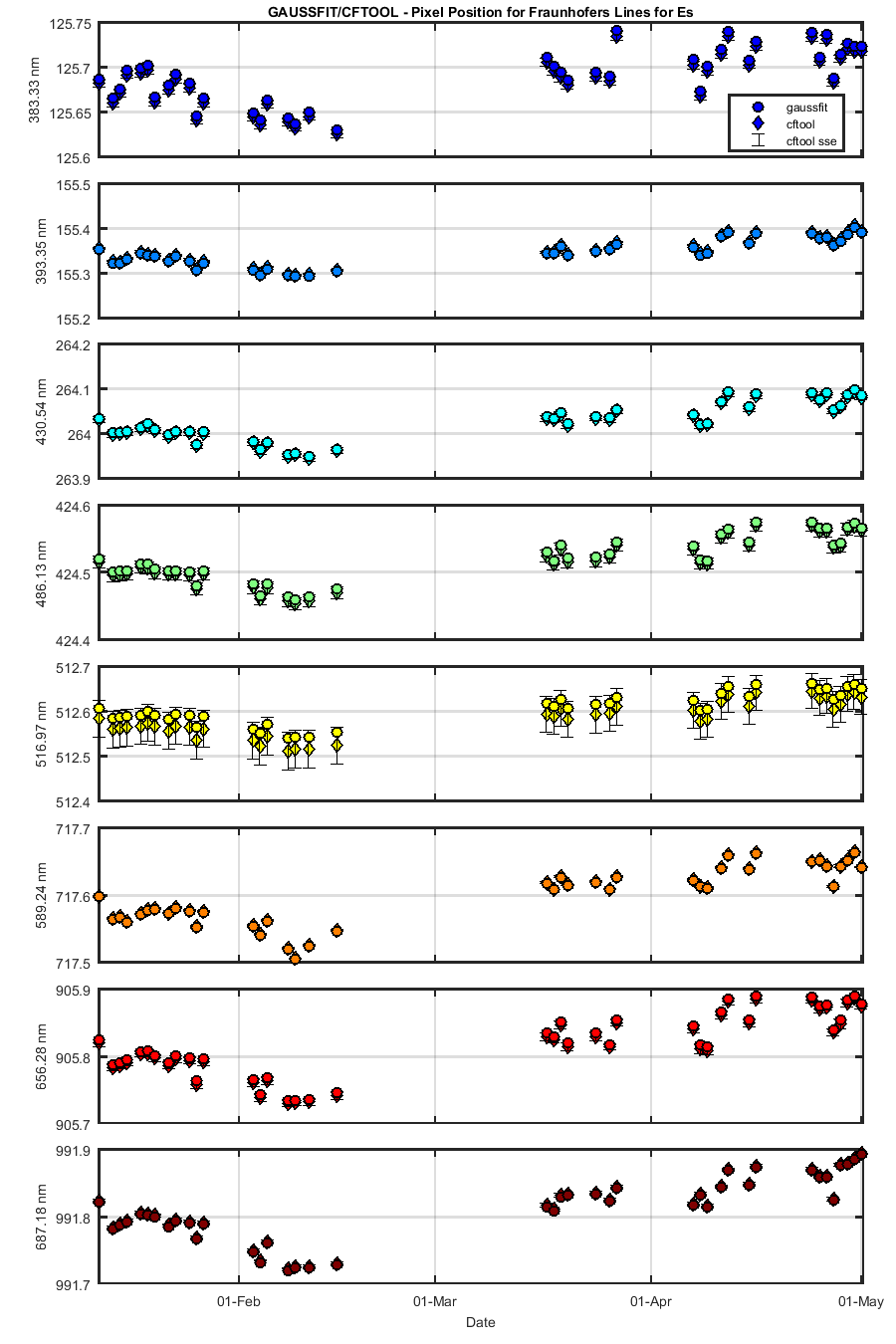

Figure 9
Figure 10

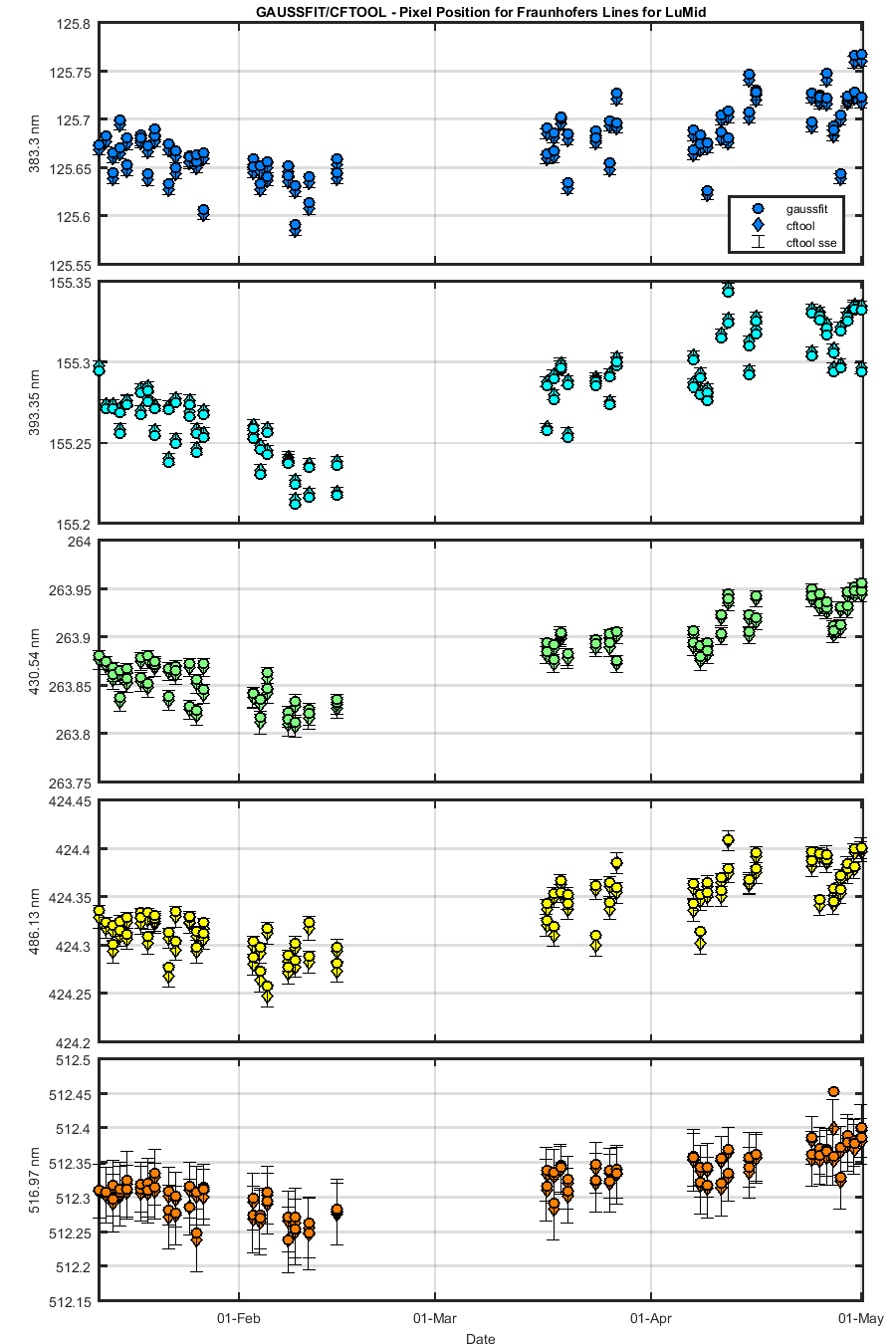

Figure 11

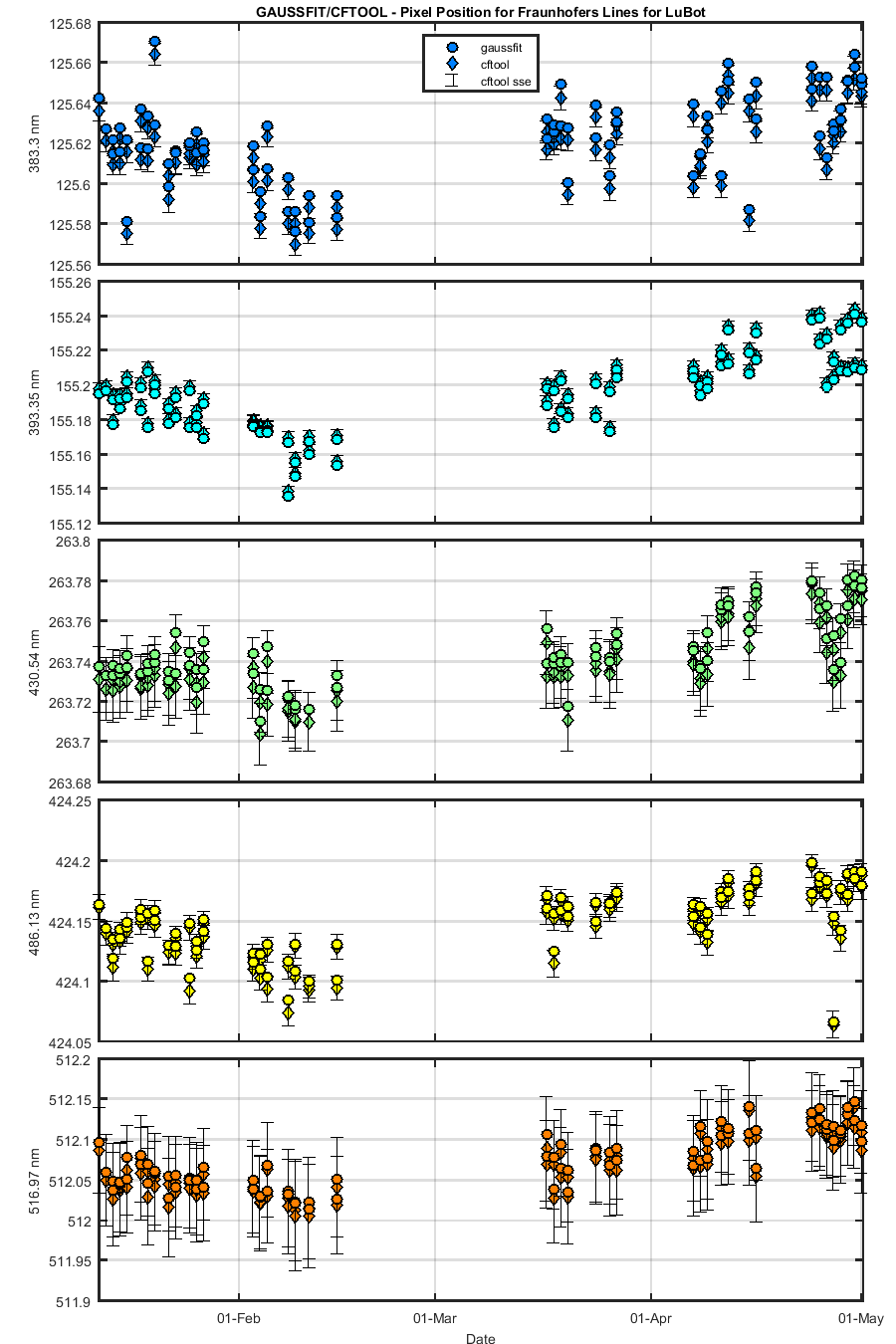

Figure 12

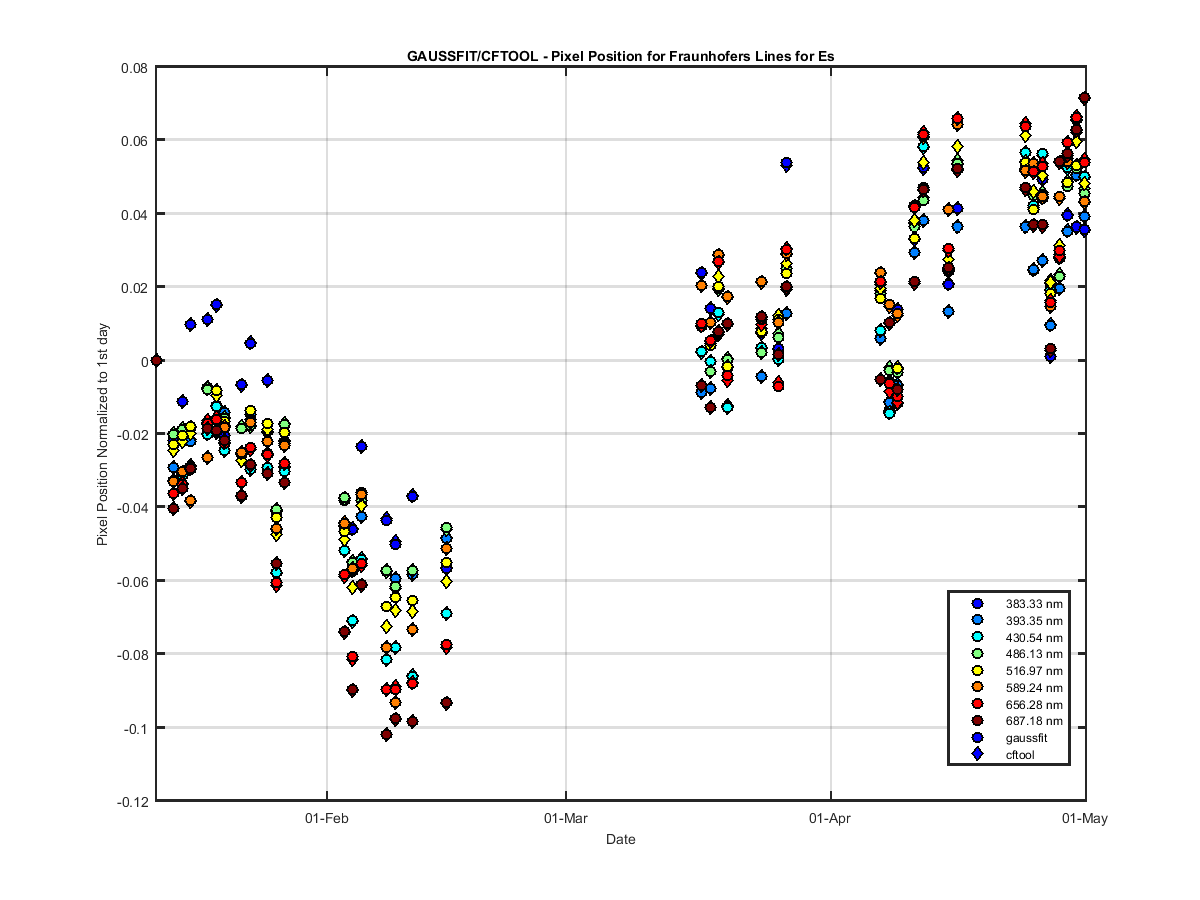

Figure 13

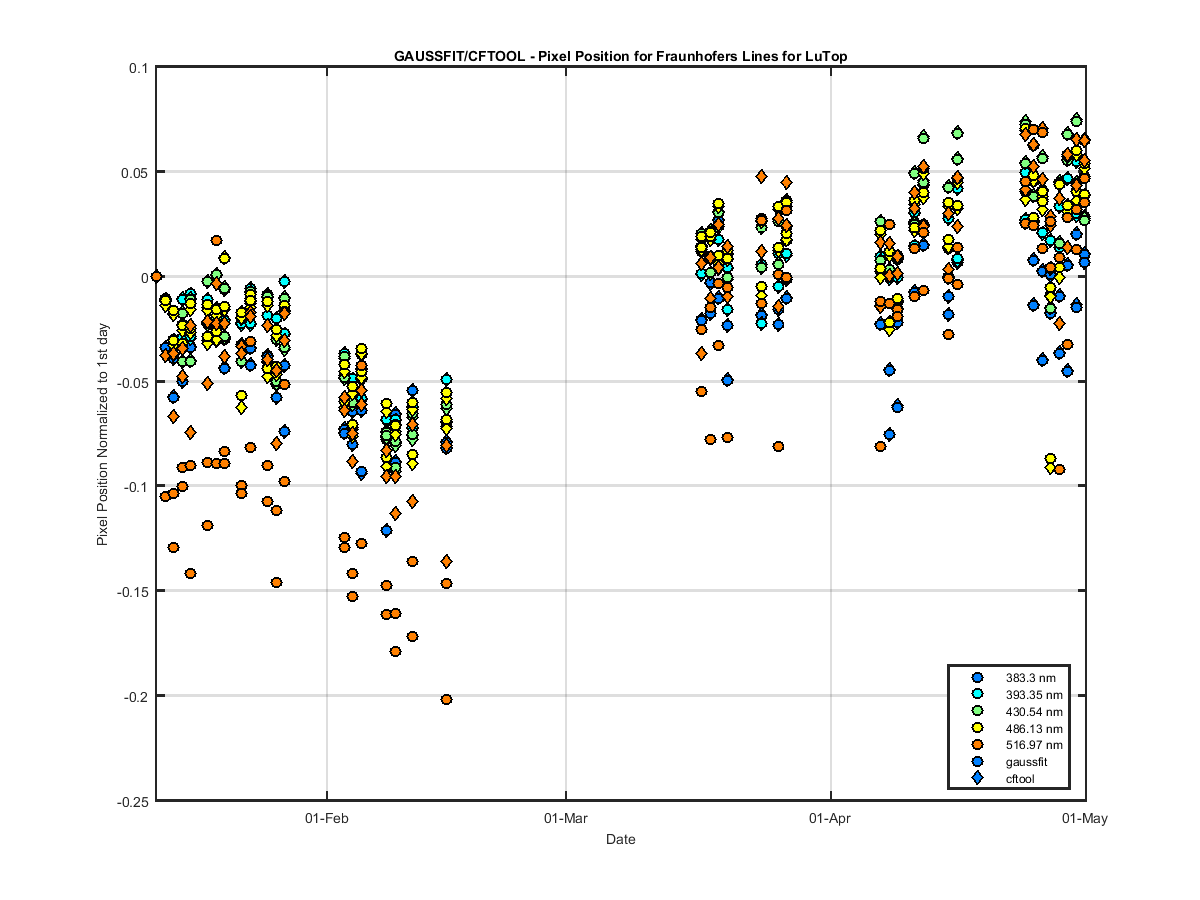

Figure 14

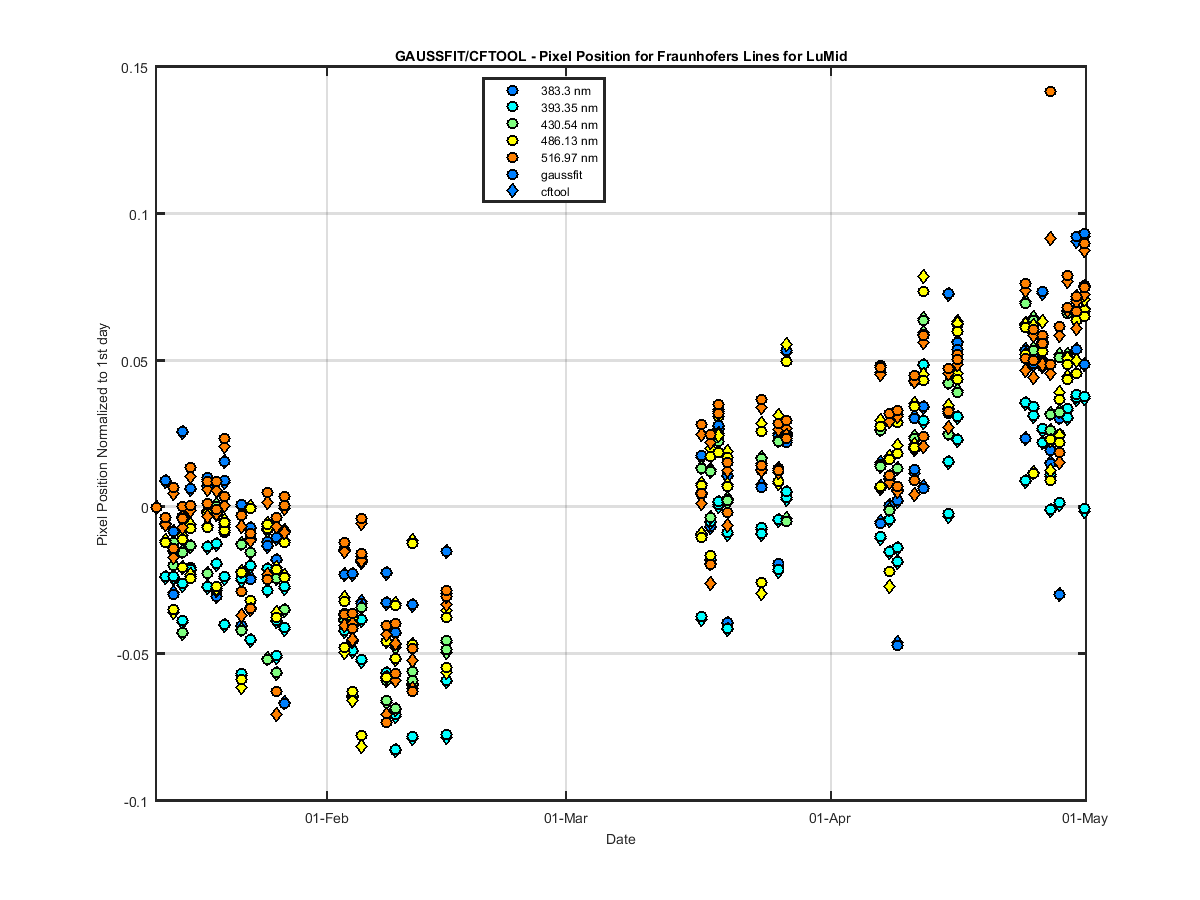

Figure 15

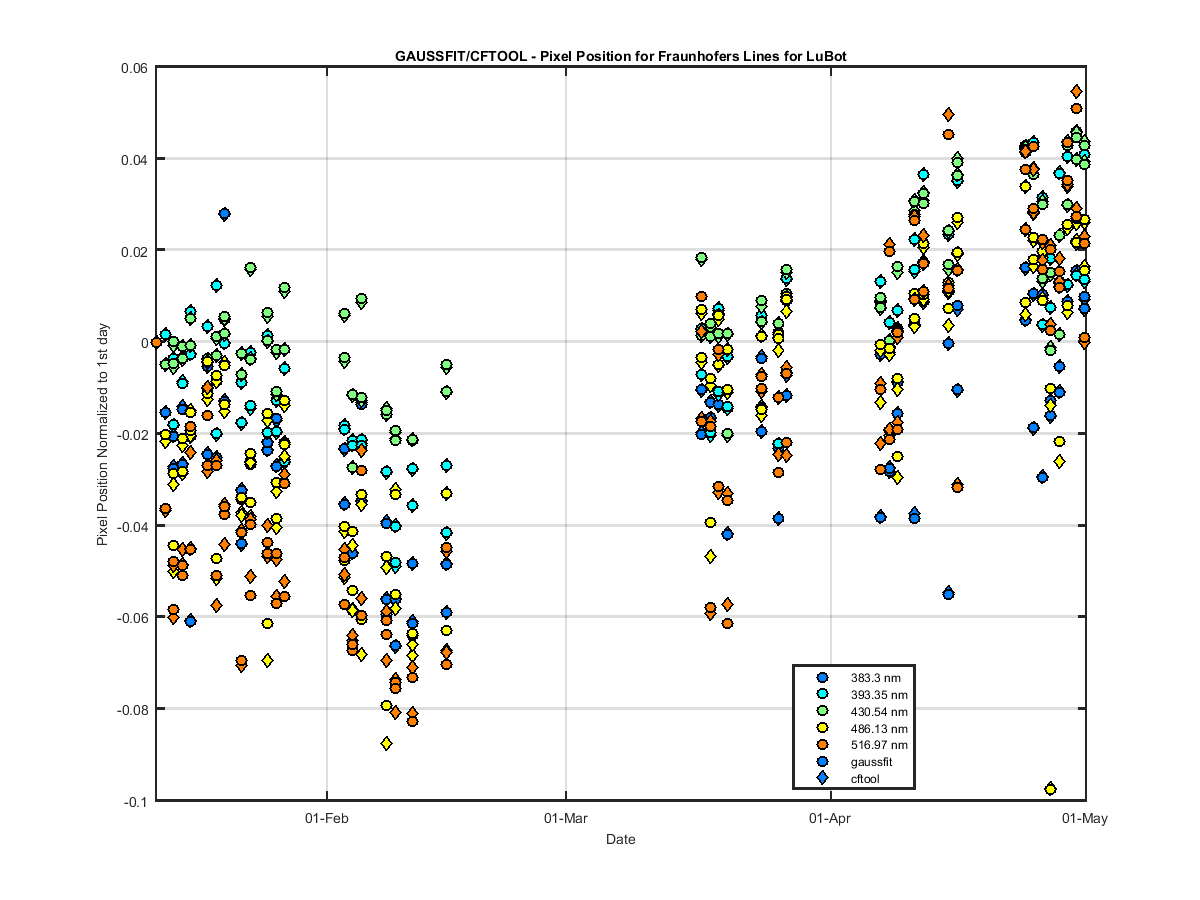

Figure 16

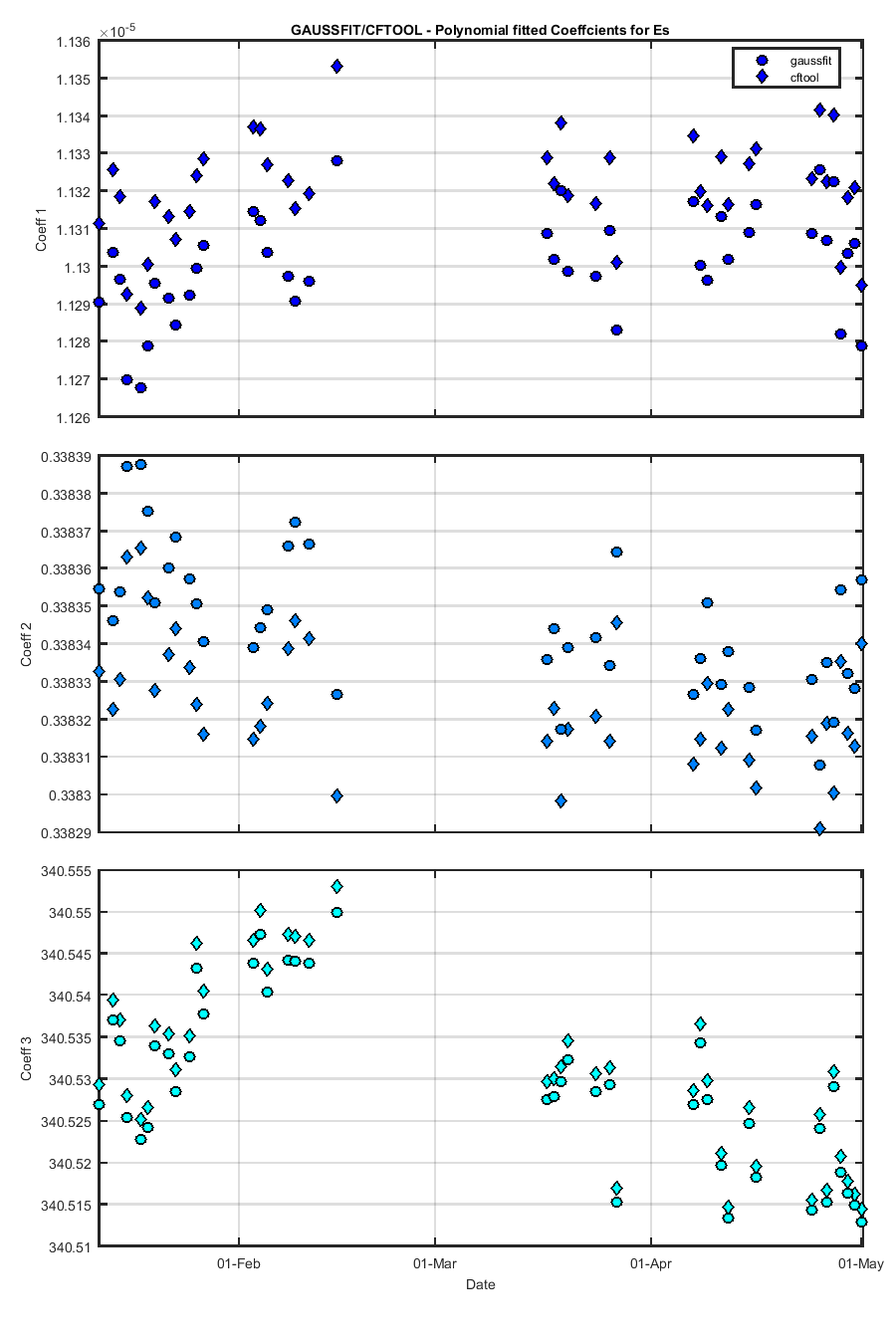

Figure 17

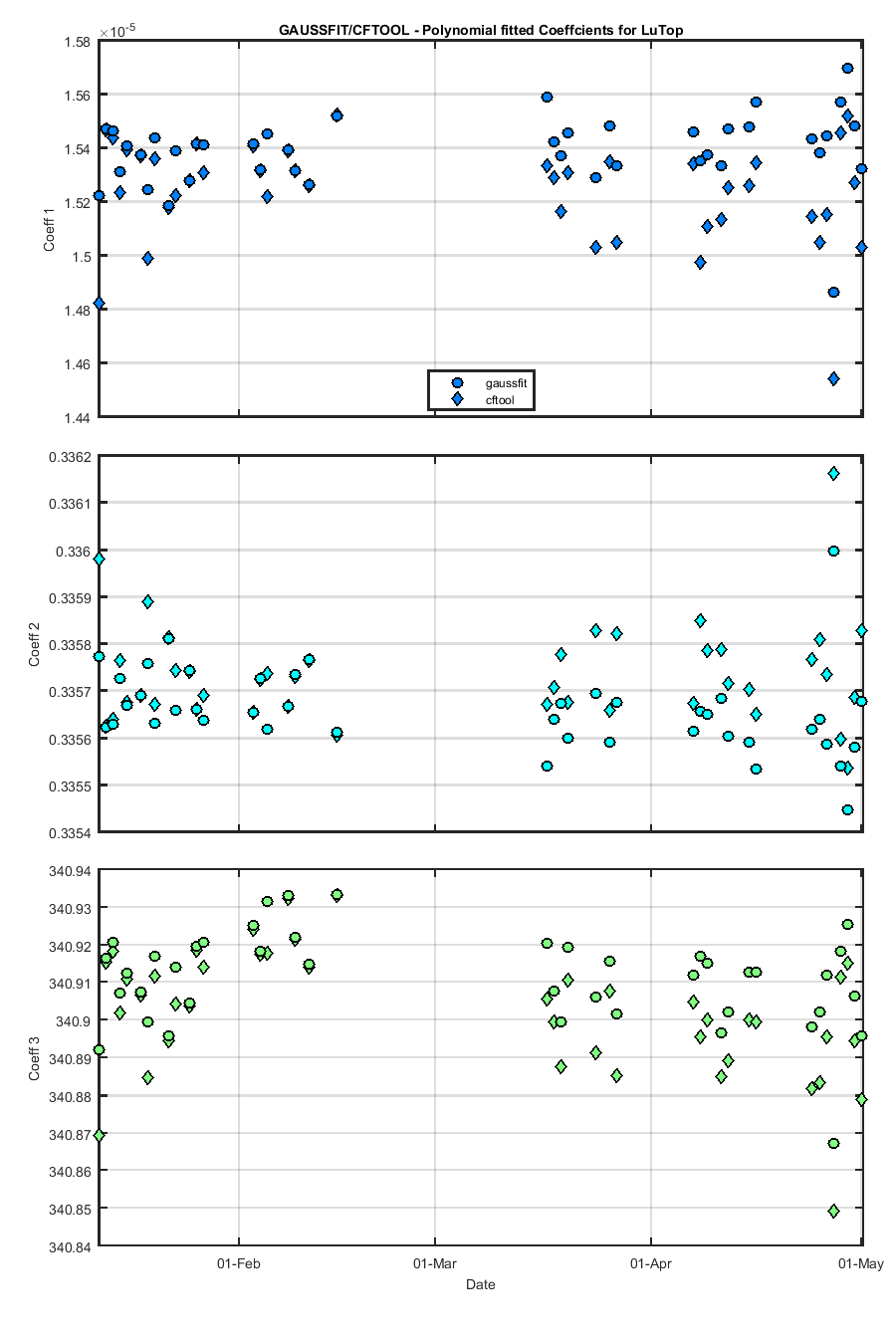

Figure 18
Figure 19
Figure 20
Figure 21
Figure 22
Figure 23
Figure 24
----------------------------------------------------------------------

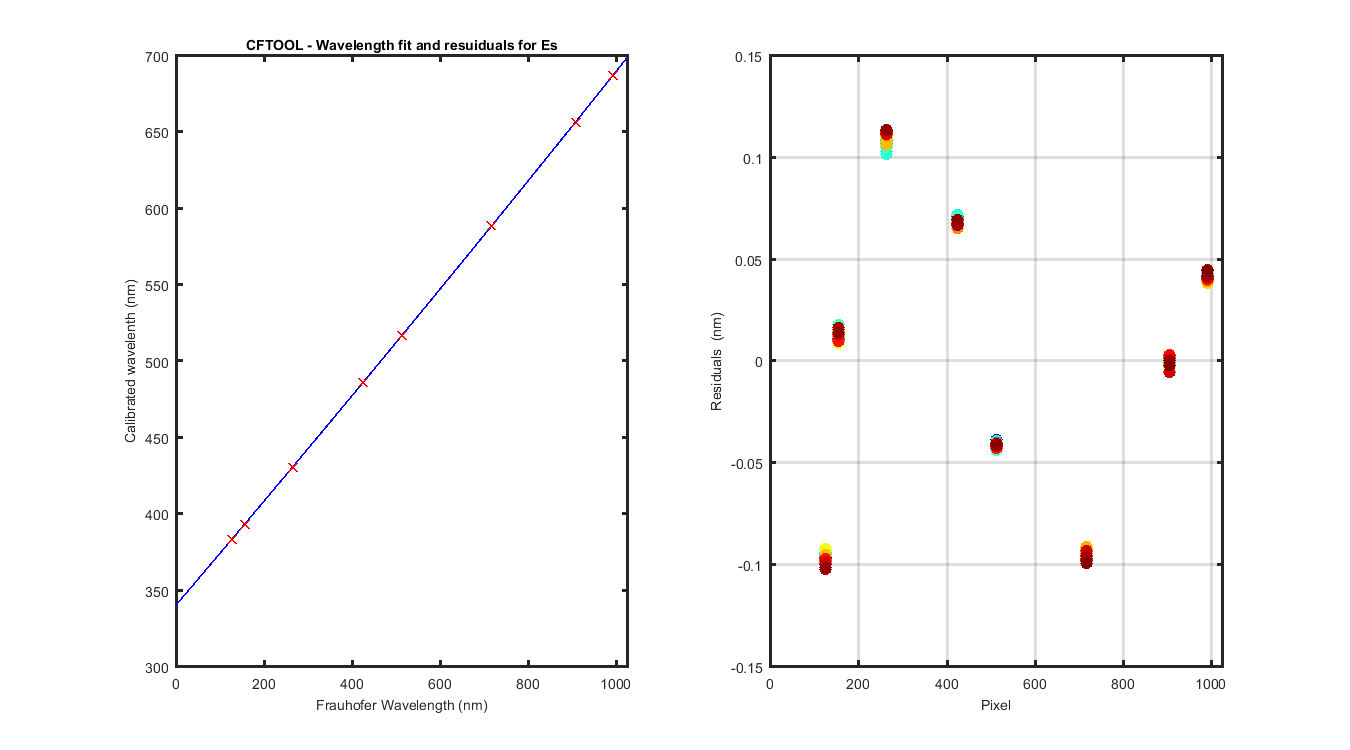

CFTOOL - Wavelength fit and resuiduals for Es
Date Sensor Coeff1 Coeff2 Coeff3 | max diff
12-Jan-2018 12.00 1.129058e-05 3.383547e-01 3.405270e+02 | 0.00
14-Jan-2018 12.00 1.130389e-05 3.383461e-01 3.405371e+02 | 0.02
15-Jan-2018 12.00 1.129672e-05 3.383539e-01 3.405346e+02 | 0.01
16-Jan-2018 12.00 1.127002e-05 3.383873e-01 3.405254e+02 | 0.01
18-Jan-2018 12.00 1.126780e-05 3.383878e-01 3.405228e+02 | 0.01
19-Jan-2018 12.00 1.127900e-05 3.383753e-01 3.405242e+02 | 0.01
20-Jan-2018 12.00 1.129549e-05 3.383509e-01 3.405340e+02 | 0.01
22-Jan-2018 12.00 1.129150e-05 3.383604e-01 3.405330e+02 | 0.01
23-Jan-2018 12.00 1.128440e-05 3.383685e-01 3.405285e+02 | 0.01
25-Jan-2018 12.00 1.129254e-05 3.383574e-01 3.405327e+02 | 0.01
26-Jan-2018 12.00 1.129950e-05 3.383506e-01 3.405432e+02 | 0.02
27-Jan-2018 12.00 1.130559e-05 3.383406e-01 3.405378e+02 | 0.01
03-Feb-2018 12.00 1.131464e-05 3.383390e-01 3.405439e+02 | 0.03
04-Feb-2018 12.00 1.131227e-05 3.383443e-01 3.405473e+02 | 0.03
05-Feb-2018 12.00 1.130390e-05 3.383492e-01 3.405405e+02 | 0.02
08-Feb-2018 12.00 1.129742e-05 3.383661e-01 3.405443e+02 | 0.04
09-Feb-2018 12.00 1.129087e-05 3.383724e-01 3.405441e+02 | 0.04
11-Feb-2018 12.00 1.129601e-05 3.383665e-01 3.405439e+02 | 0.03
15-Feb-2018 12.00 1.132808e-05 3.383267e-01 3.405500e+02 | 0.03
17-Mar-2018 12.00 1.130879e-05 3.383358e-01 3.405276e+02 | 0.00
18-Mar-2018 12.00 1.130192e-05 3.383442e-01 3.405279e+02 | 0.00
19-Mar-2018 12.00 1.132010e-05 3.383173e-01 3.405298e+02 | 0.01
20-Mar-2018 12.00 1.129884e-05 3.383391e-01 3.405323e+02 | 0.01
24-Mar-2018 12.00 1.129752e-05 3.383417e-01 3.405285e+02 | 0.00
26-Mar-2018 12.00 1.130960e-05 3.383344e-01 3.405293e+02 | 0.00
27-Mar-2018 12.00 1.128306e-05 3.383645e-01 3.405153e+02 | 0.01
07-Apr-2018 12.00 1.131723e-05 3.383266e-01 3.405269e+02 | 0.01
08-Apr-2018 12.00 1.130027e-05 3.383362e-01 3.405343e+02 | 0.01
09-Apr-2018 12.00 1.129647e-05 3.383509e-01 3.405276e+02 | 0.00
11-Apr-2018 12.00 1.131331e-05 3.383292e-01 3.405197e+02 | 0.01
12-Apr-2018 12.00 1.130181e-05 3.383380e-01 3.405133e+02 | 0.02
15-Apr-2018 12.00 1.130919e-05 3.383286e-01 3.405247e+02 | 0.01
16-Apr-2018 12.00 1.131660e-05 3.383172e-01 3.405182e+02 | 0.02
24-Apr-2018 12.00 1.130880e-05 3.383306e-01 3.405143e+02 | 0.02
25-Apr-2018 12.00 1.132581e-05 3.383078e-01 3.405241e+02 | 0.02
26-Apr-2018 12.00 1.130708e-05 3.383351e-01 3.405153e+02 | 0.02
27-Apr-2018 12.00 1.132253e-05 3.383192e-01 3.405291e+02 | 0.01
28-Apr-2018 12.00 1.128222e-05 3.383545e-01 3.405188e+02 | 0.02
29-Apr-2018 12.00 1.130345e-05 3.383321e-01 3.405164e+02 | 0.02
30-Apr-2018 12.00 1.130624e-05 3.383282e-01 3.405149e+02 | 0.02
01-May-2018 12.00 1.127896e-05 3.383571e-01 3.405129e+02 | 0.02
----------------------------------------------------------------------
----------------------------------------------------------------------

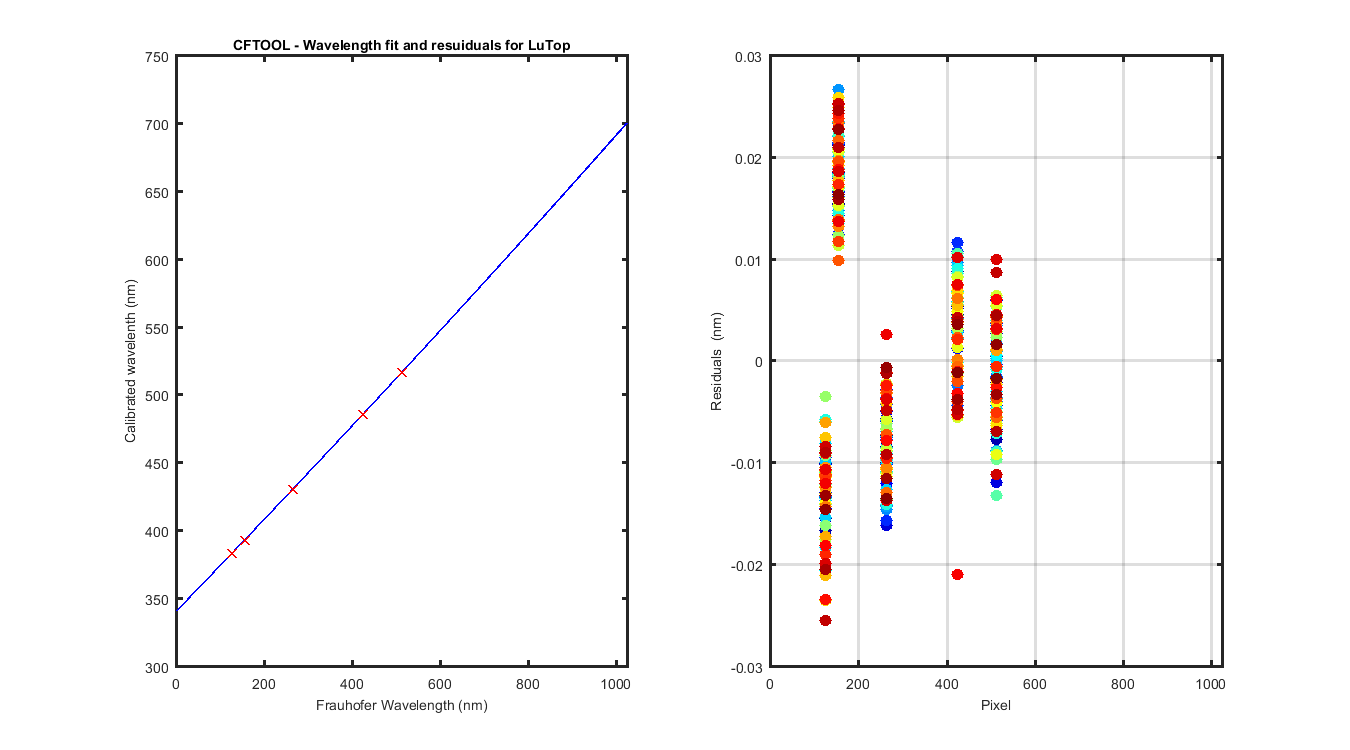

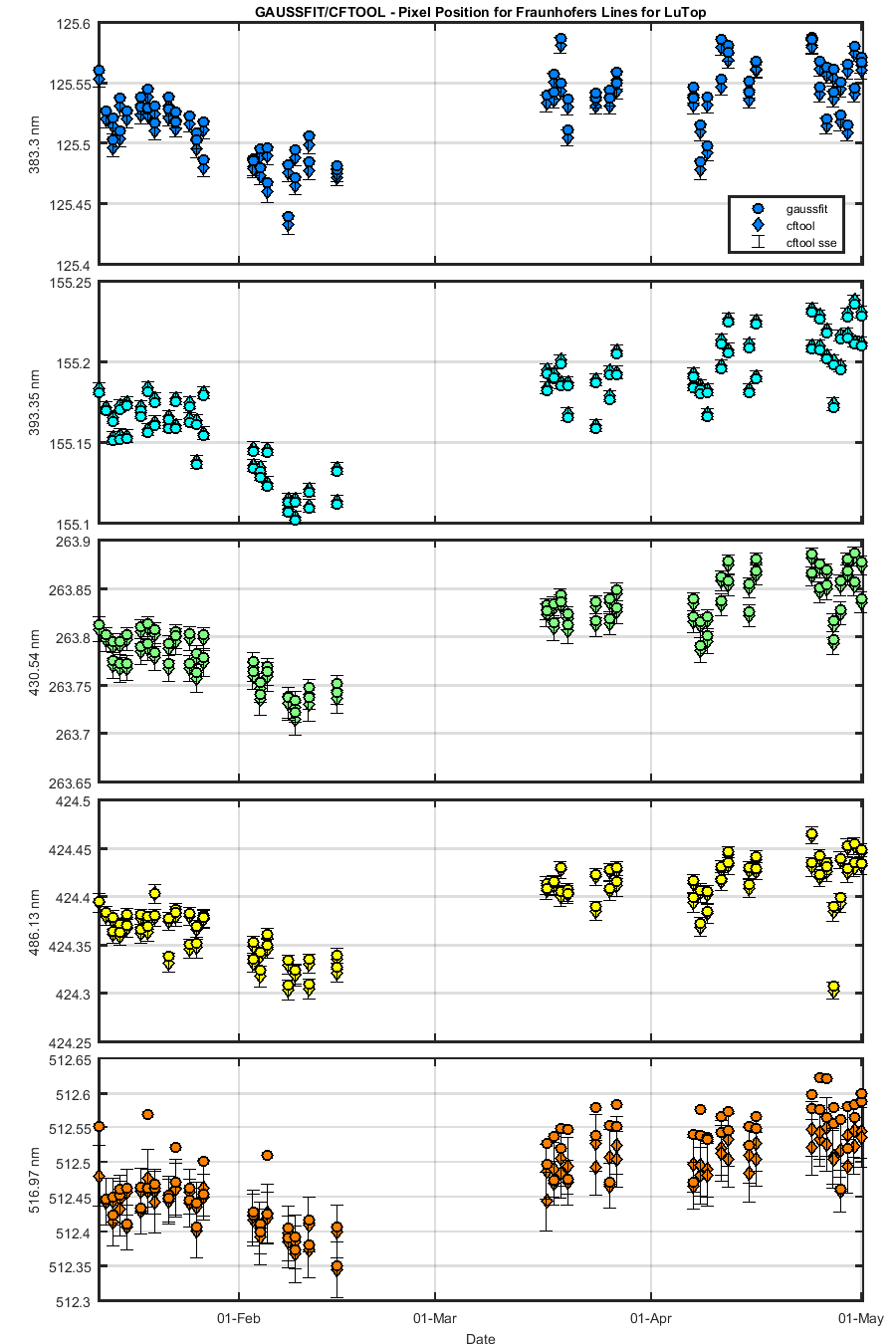

CFTOOL - Wavelength fit and resuiduals for LuTop
Date Sensor Coeff1 Coeff2 Coeff3 | max diff
12-Jan-2018 21.01 1.522388e-05 3.357733e-01 3.408924e+02 | 0.00
13-Jan-2018 21.01 1.547204e-05 3.356241e-01 3.409166e+02 | 0.13
14-Jan-2018 21.01 1.546326e-05 3.356293e-01 3.409208e+02 | 0.13
15-Jan-2018 21.01 1.531357e-05 3.357262e-01 3.409072e+02 | 0.06
16-Jan-2018 21.01 1.540781e-05 3.356707e-01 3.409127e+02 | 0.11
18-Jan-2018 21.01 1.537526e-05 3.356914e-01 3.409077e+02 | 0.09
19-Jan-2018 21.01 1.524804e-05 3.357584e-01 3.408997e+02 | 0.02
20-Jan-2018 21.01 1.544070e-05 3.356321e-01 3.409172e+02 | 0.11
22-Jan-2018 21.01 1.518601e-05 3.358114e-01 3.408959e+02 | 0.01
23-Jan-2018 21.01 1.539109e-05 3.356585e-01 3.409143e+02 | 0.08
25-Jan-2018 21.01 1.528125e-05 3.357429e-01 3.409046e+02 | 0.04
26-Jan-2018 21.01 1.541676e-05 3.356622e-01 3.409196e+02 | 0.12
27-Jan-2018 21.01 1.541448e-05 3.356376e-01 3.409209e+02 | 0.09
03-Feb-2018 21.01 1.541592e-05 3.356542e-01 3.409253e+02 | 0.11
04-Feb-2018 21.01 1.532097e-05 3.357279e-01 3.409184e+02 | 0.08
05-Feb-2018 21.01 1.545350e-05 3.356185e-01 3.409317e+02 | 0.12
08-Feb-2018 21.01 1.539260e-05 3.356685e-01 3.409333e+02 | 0.11
09-Feb-2018 21.01 1.531584e-05 3.357353e-01 3.409222e+02 | 0.09
11-Feb-2018 21.01 1.526536e-05 3.357677e-01 3.409150e+02 | 0.06
15-Feb-2018 21.01 1.551910e-05 3.356127e-01 3.409336e+02 | 0.19
17-Mar-2018 21.01 1.558900e-05 3.355410e-01 3.409206e+02 | 0.17
18-Mar-2018 21.01 1.542329e-05 3.356404e-01 3.409078e+02 | 0.09
19-Mar-2018 21.01 1.537069e-05 3.356746e-01 3.408998e+02 | 0.06
20-Mar-2018 21.01 1.545613e-05 3.356008e-01 3.409195e+02 | 0.09
24-Mar-2018 21.01 1.528914e-05 3.356960e-01 3.409063e+02 | 0.01
26-Mar-2018 21.01 1.548157e-05 3.355907e-01 3.409159e+02 | 0.11
27-Mar-2018 21.01 1.533581e-05 3.356764e-01 3.409019e+02 | 0.03
07-Apr-2018 21.01 1.545957e-05 3.356150e-01 3.409121e+02 | 0.10
08-Apr-2018 21.01 1.535494e-05 3.356567e-01 3.409171e+02 | 0.04
09-Apr-2018 21.01 1.537439e-05 3.356503e-01 3.409154e+02 | 0.05
11-Apr-2018 21.01 1.533625e-05 3.356850e-01 3.408968e+02 | 0.03
12-Apr-2018 21.01 1.547187e-05 3.356032e-01 3.409022e+02 | 0.10
15-Apr-2018 21.01 1.548102e-05 3.355919e-01 3.409129e+02 | 0.10
16-Apr-2018 21.01 1.557192e-05 3.355352e-01 3.409128e+02 | 0.14
24-Apr-2018 21.01 1.543355e-05 3.356196e-01 3.408984e+02 | 0.07
25-Apr-2018 21.01 1.538256e-05 3.356393e-01 3.409022e+02 | 0.04
26-Apr-2018 21.01 1.544626e-05 3.355877e-01 3.409122e+02 | 0.06
27-Apr-2018 21.01 1.486534e-05 3.359987e-01 3.408675e+02 | 0.17
28-Apr-2018 21.01 1.557317e-05 3.355407e-01 3.409185e+02 | 0.15
29-Apr-2018 21.01 1.569652e-05 3.354467e-01 3.409256e+02 | 0.19
30-Apr-2018 21.01 1.548180e-05 3.355810e-01 3.409065e+02 | 0.09
01-May-2018 21.01 1.532322e-05 3.356777e-01 3.408959e+02 | 0.02
----------------------------------------------------------------------
----------------------------------------------------------------------

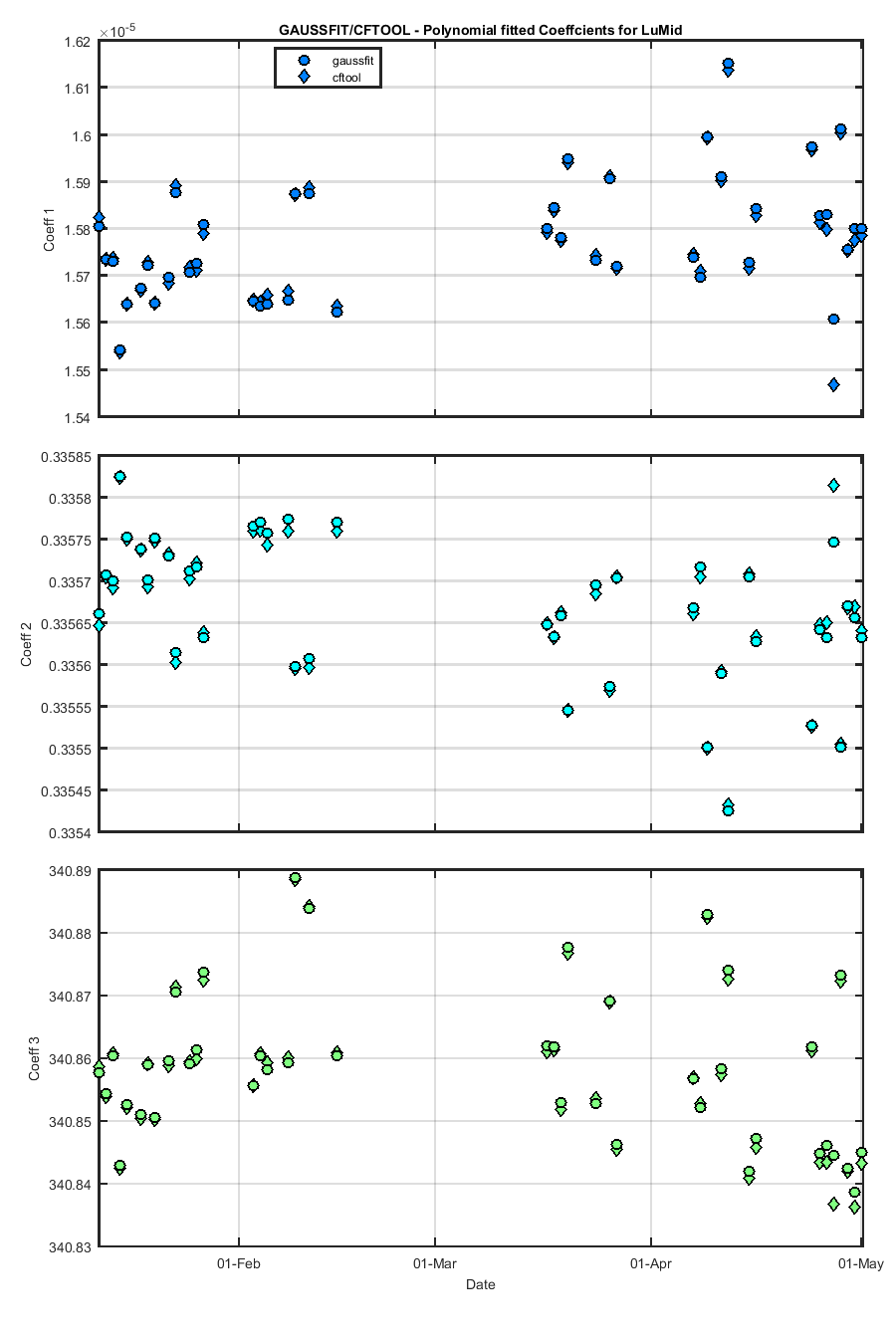

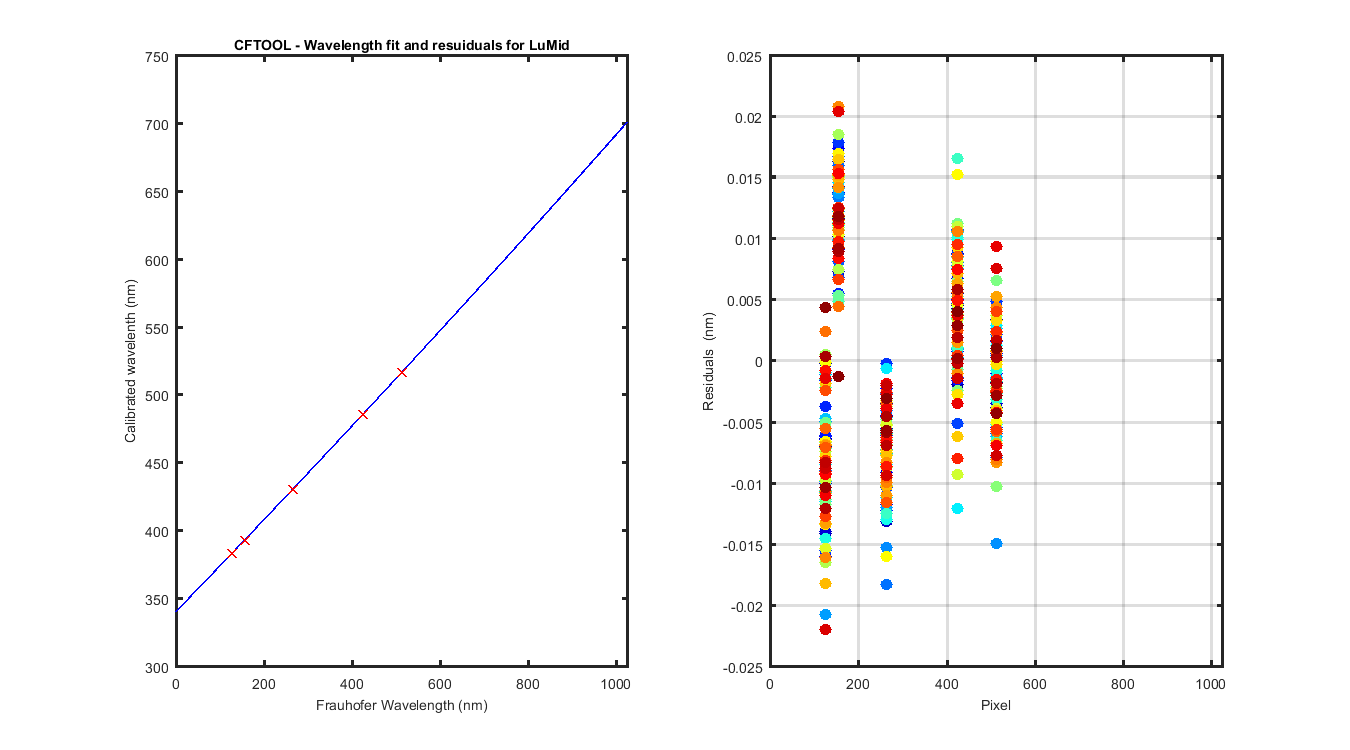

CFTOOL - Wavelength fit and resuiduals for LuMid
Date Sensor Coeff1 Coeff2 Coeff3 | max diff
12-Jan-2018 21.02 1.580452e-05 3.356619e-01 3.408577e+02 | 0.00
13-Jan-2018 21.02 1.573528e-05 3.357077e-01 3.408543e+02 | 0.03
14-Jan-2018 21.02 1.573153e-05 3.357007e-01 3.408604e+02 | 0.03
15-Jan-2018 21.02 1.554224e-05 3.358257e-01 3.408430e+02 | 0.12
16-Jan-2018 21.02 1.564056e-05 3.357531e-01 3.408526e+02 | 0.08
18-Jan-2018 21.02 1.567397e-05 3.357391e-01 3.408510e+02 | 0.06
19-Jan-2018 21.02 1.572316e-05 3.357015e-01 3.408589e+02 | 0.04
20-Jan-2018 21.02 1.564212e-05 3.357513e-01 3.408506e+02 | 0.09
22-Jan-2018 21.02 1.569668e-05 3.357306e-01 3.408597e+02 | 0.04
23-Jan-2018 21.02 1.587729e-05 3.356149e-01 3.408705e+02 | 0.04
25-Jan-2018 21.02 1.570858e-05 3.357121e-01 3.408591e+02 | 0.05
26-Jan-2018 21.02 1.572741e-05 3.357172e-01 3.408613e+02 | 0.02
27-Jan-2018 21.02 1.580959e-05 3.356325e-01 3.408737e+02 | 0.02
03-Feb-2018 21.02 1.564577e-05 3.357662e-01 3.408556e+02 | 0.06
04-Feb-2018 21.02 1.563692e-05 3.357707e-01 3.408603e+02 | 0.06
05-Feb-2018 21.02 1.564008e-05 3.357582e-01 3.408582e+02 | 0.07
08-Feb-2018 21.02 1.564807e-05 3.357745e-01 3.408593e+02 | 0.05
09-Feb-2018 21.02 1.587615e-05 3.355981e-01 3.408888e+02 | 0.04
11-Feb-2018 21.02 1.587546e-05 3.356075e-01 3.408839e+02 | 0.04
15-Feb-2018 21.02 1.562224e-05 3.357710e-01 3.408604e+02 | 0.08
17-Mar-2018 21.02 1.580050e-05 3.356485e-01 3.408619e+02 | 0.01
18-Mar-2018 21.02 1.584633e-05 3.356338e-01 3.408618e+02 | 0.02
19-Mar-2018 21.02 1.578267e-05 3.356593e-01 3.408530e+02 | 0.03
20-Mar-2018 21.02 1.594876e-05 3.355454e-01 3.408776e+02 | 0.05
24-Mar-2018 21.02 1.573243e-05 3.356957e-01 3.408528e+02 | 0.05
26-Mar-2018 21.02 1.590586e-05 3.355748e-01 3.408690e+02 | 0.03
27-Mar-2018 21.02 1.572093e-05 3.357038e-01 3.408463e+02 | 0.06
07-Apr-2018 21.02 1.574035e-05 3.356683e-01 3.408568e+02 | 0.06
08-Apr-2018 21.02 1.569824e-05 3.357170e-01 3.408521e+02 | 0.06
09-Apr-2018 21.02 1.599522e-05 3.355017e-01 3.408829e+02 | 0.06
11-Apr-2018 21.02 1.591137e-05 3.355900e-01 3.408584e+02 | 0.04
12-Apr-2018 21.02 1.615174e-05 3.354253e-01 3.408741e+02 | 0.14
15-Apr-2018 21.02 1.572905e-05 3.357048e-01 3.408420e+02 | 0.05
16-Apr-2018 21.02 1.584270e-05 3.356279e-01 3.408473e+02 | 0.02
24-Apr-2018 21.02 1.597398e-05 3.355275e-01 3.408618e+02 | 0.04
25-Apr-2018 21.02 1.582917e-05 3.356422e-01 3.408449e+02 | 0.02
26-Apr-2018 21.02 1.583020e-05 3.356332e-01 3.408460e+02 | 0.02
27-Apr-2018 21.02 1.560743e-05 3.357472e-01 3.408446e+02 | 0.13
28-Apr-2018 21.02 1.601369e-05 3.355023e-01 3.408732e+02 | 0.07
29-Apr-2018 21.02 1.575556e-05 3.356705e-01 3.408425e+02 | 0.06
30-Apr-2018 21.02 1.580160e-05 3.356565e-01 3.408387e+02 | 0.03
01-May-2018 21.02 1.580193e-05 3.356332e-01 3.408451e+02 | 0.04
----------------------------------------------------------------------
----------------------------------------------------------------------

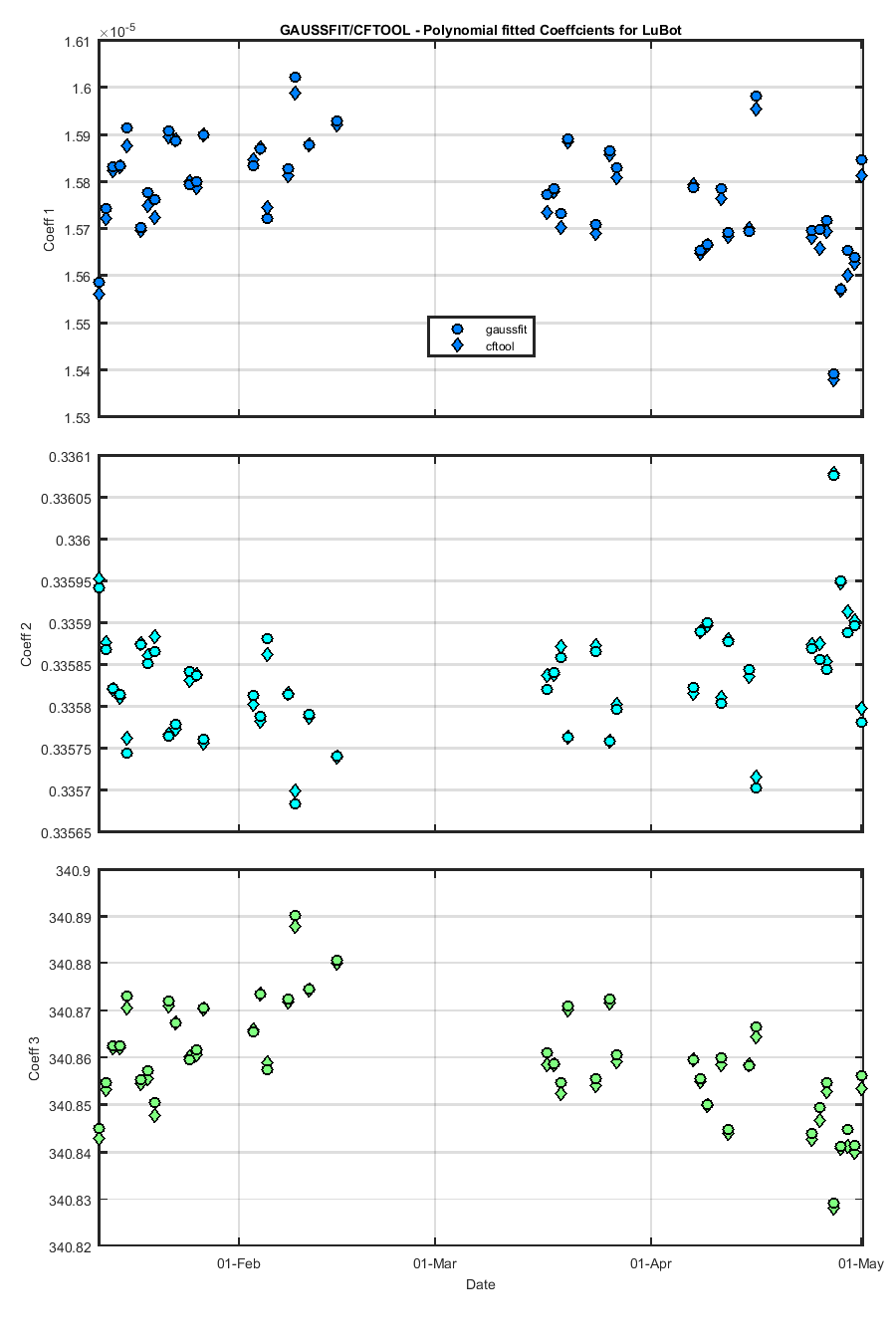

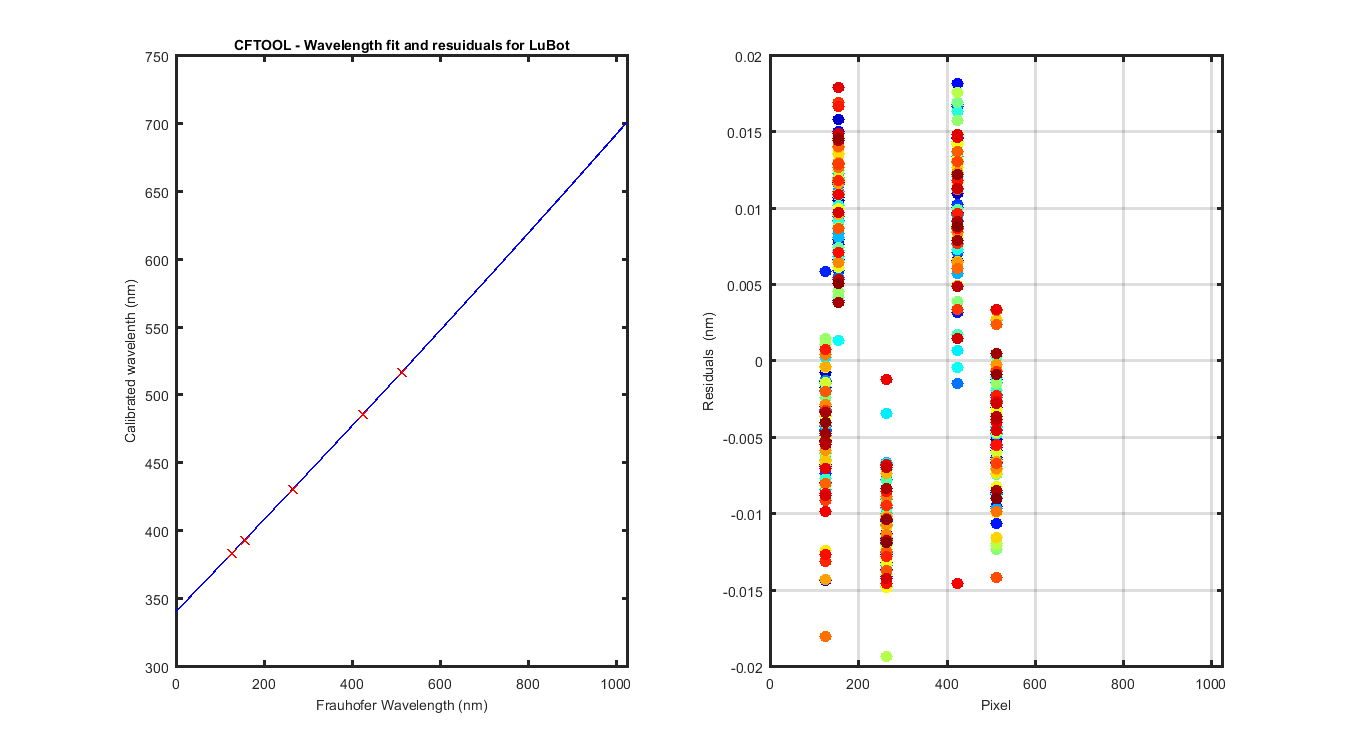

CFTOOL - Wavelength fit and resuiduals for LuBot
Date Sensor Coeff1 Coeff2 Coeff3 | max diff
12-Jan-2018 21.03 1.558654e-05 3.359420e-01 3.408451e+02 | 0.00
13-Jan-2018 21.03 1.574317e-05 3.358687e-01 3.408548e+02 | 0.10
14-Jan-2018 21.03 1.583249e-05 3.358223e-01 3.408626e+02 | 0.15
15-Jan-2018 21.03 1.583399e-05 3.358143e-01 3.408626e+02 | 0.15
16-Jan-2018 21.03 1.591584e-05 3.357446e-01 3.408733e+02 | 0.17
18-Jan-2018 21.03 1.570384e-05 3.358747e-01 3.408555e+02 | 0.06
19-Jan-2018 21.03 1.577661e-05 3.358515e-01 3.408574e+02 | 0.12
20-Jan-2018 21.03 1.576277e-05 3.358665e-01 3.408505e+02 | 0.11
22-Jan-2018 21.03 1.590882e-05 3.357652e-01 3.408722e+02 | 0.18
23-Jan-2018 21.03 1.588662e-05 3.357792e-01 3.408675e+02 | 0.17
25-Jan-2018 21.03 1.579362e-05 3.358423e-01 3.408598e+02 | 0.13
26-Jan-2018 21.03 1.580075e-05 3.358370e-01 3.408617e+02 | 0.13
27-Jan-2018 21.03 1.589948e-05 3.357609e-01 3.408707e+02 | 0.17
03-Feb-2018 21.03 1.583334e-05 3.358139e-01 3.408655e+02 | 0.15
04-Feb-2018 21.03 1.586955e-05 3.357892e-01 3.408736e+02 | 0.17
05-Feb-2018 21.03 1.572226e-05 3.358819e-01 3.408575e+02 | 0.09
08-Feb-2018 21.03 1.582862e-05 3.358148e-01 3.408725e+02 | 0.15
09-Feb-2018 21.03 1.602310e-05 3.356840e-01 3.408905e+02 | 0.24
11-Feb-2018 21.03 1.587925e-05 3.357914e-01 3.408747e+02 | 0.18
15-Feb-2018 21.03 1.592941e-05 3.357407e-01 3.408809e+02 | 0.19
17-Mar-2018 21.03 1.577344e-05 3.358209e-01 3.408612e+02 | 0.09
18-Mar-2018 21.03 1.578597e-05 3.358416e-01 3.408589e+02 | 0.12
19-Mar-2018 21.03 1.573326e-05 3.358588e-01 3.408549e+02 | 0.08
20-Mar-2018 21.03 1.589102e-05 3.357636e-01 3.408710e+02 | 0.16
24-Mar-2018 21.03 1.570897e-05 3.358666e-01 3.408556e+02 | 0.06
26-Mar-2018 21.03 1.586545e-05 3.357584e-01 3.408726e+02 | 0.13
27-Mar-2018 21.03 1.582974e-05 3.357966e-01 3.408608e+02 | 0.12
07-Apr-2018 21.03 1.578885e-05 3.358227e-01 3.408598e+02 | 0.10
08-Apr-2018 21.03 1.565372e-05 3.358897e-01 3.408557e+02 | 0.03
09-Apr-2018 21.03 1.566789e-05 3.359008e-01 3.408501e+02 | 0.05
11-Apr-2018 21.03 1.578498e-05 3.358042e-01 3.408600e+02 | 0.08
12-Apr-2018 21.03 1.569337e-05 3.358784e-01 3.408449e+02 | 0.05
15-Apr-2018 21.03 1.569471e-05 3.358450e-01 3.408585e+02 | 0.03
16-Apr-2018 21.03 1.598176e-05 3.357032e-01 3.408668e+02 | 0.19
24-Apr-2018 21.03 1.569661e-05 3.358700e-01 3.408439e+02 | 0.04
25-Apr-2018 21.03 1.569986e-05 3.358570e-01 3.408496e+02 | 0.04
26-Apr-2018 21.03 1.571772e-05 3.358451e-01 3.408548e+02 | 0.05
27-Apr-2018 21.03 1.539307e-05 3.360764e-01 3.408292e+02 | 0.08
28-Apr-2018 21.03 1.557220e-05 3.359509e-01 3.408413e+02 | 0.01
29-Apr-2018 21.03 1.565527e-05 3.358888e-01 3.408448e+02 | 0.02
30-Apr-2018 21.03 1.563979e-05 3.358972e-01 3.408415e+02 | 0.01
01-May-2018 21.03 1.584626e-05 3.357817e-01 3.408563e+02 | 0.12
----------------------------------------------------------------------
pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\MOBY264\bs04
