plt_darks_dayX_ - BS04

REVISION DATE: 12-Jan-2018 13:24:54

The files below are the background collected during the lastest in-water tests, these are from an automated program . backgrounds where collected in groups of 3. 3 backgrounds, 5 lites (not shown), 3 backgrounds and then the process is repeated a second time. See the file numbering below.


File numbers for the data sets collected, except for day 01 which only collected the Es/Lu data set
 1  Dark
 2  Dark
 3  Dark
 4  Background
 5  Background
 6  Background
 7  Signal - Lu tracks only
 8  Signal - Lu tracks only
 9  Signal - Lu tracks only
 10 Signal - Lu tracks only
 11 Signal - Lu tracks only
 12 Background
 13 Background
 14 Background
 15 Dark
 16 Dark
 17 Dark
 %--------------------------------
 18 Dark
 19 Dark
 20 Dark
 21 Background
 22 Background
 23 Background
 24 Signal - Es/Lu Tracks
 25 Signal - Es/Lu Tracks
 26 Signal - Es/Lu Tracks
 27 Signal - Es/Lu Tracks
 28 Signal - Es/Lu Tracks
 29 Background
 30 Background
 31 Background
 32 Dark
 33 Dark
 34 Dark

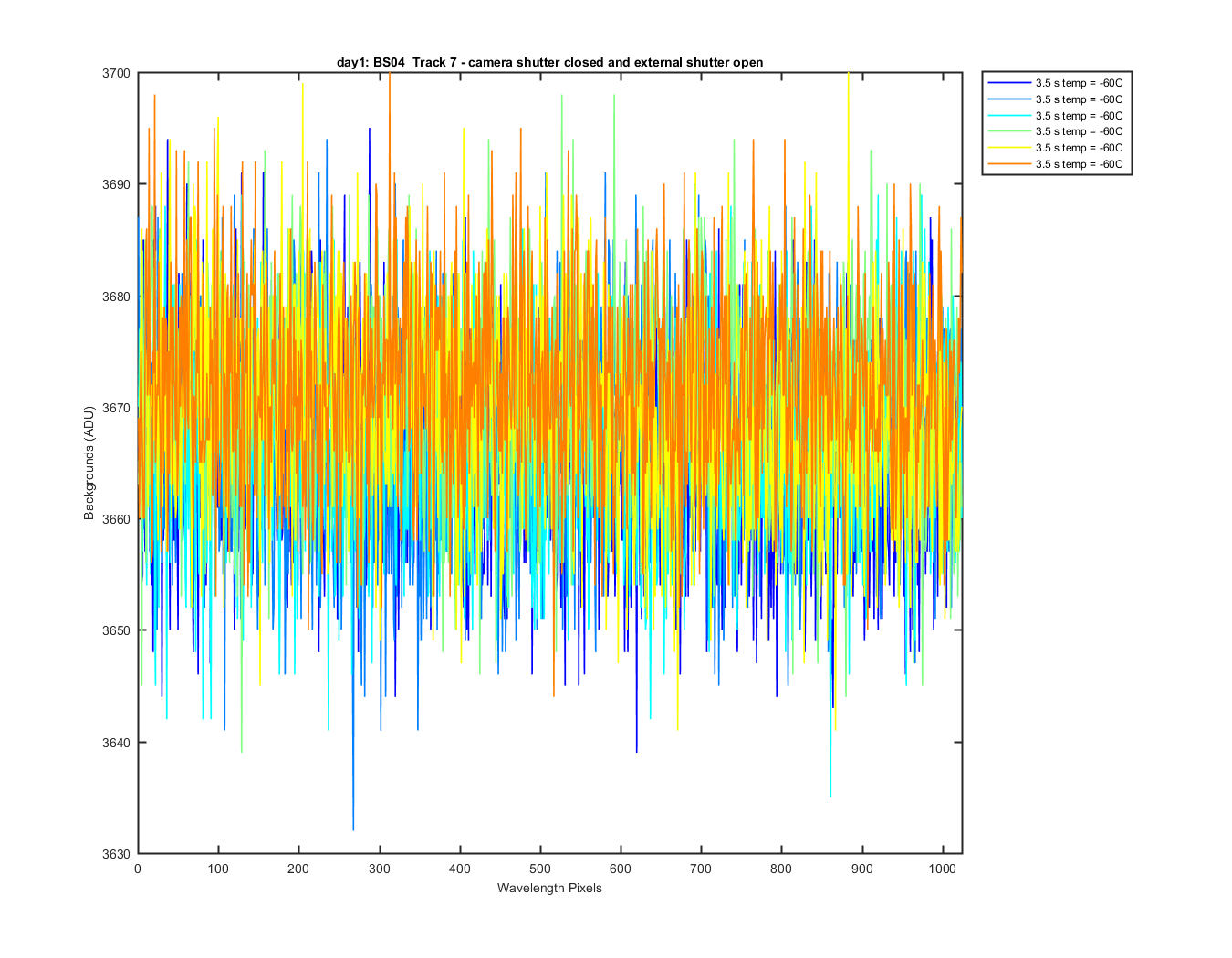

Track 7 all the background files.

Figure 1

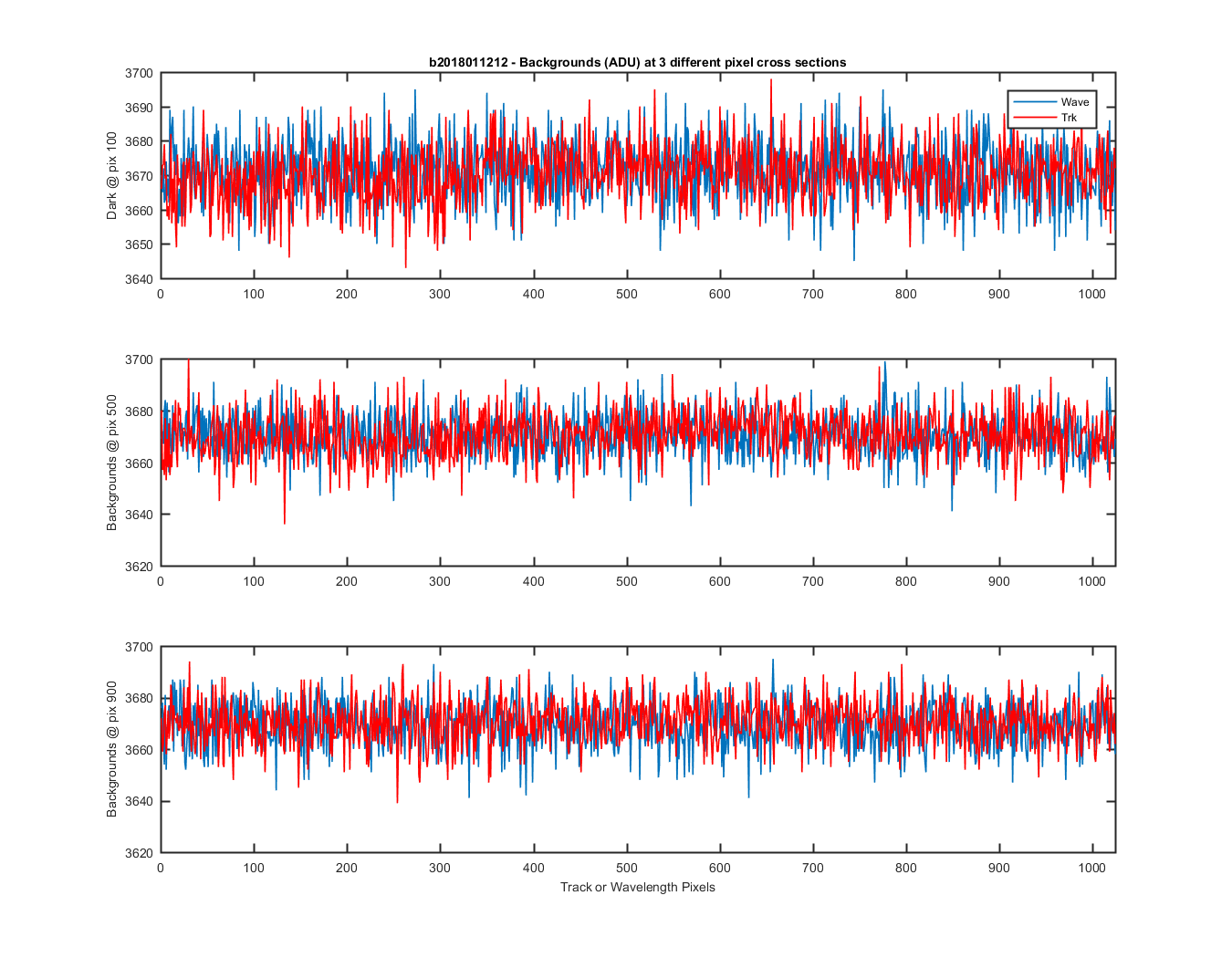

Track 7 all the background files.

Figure 2

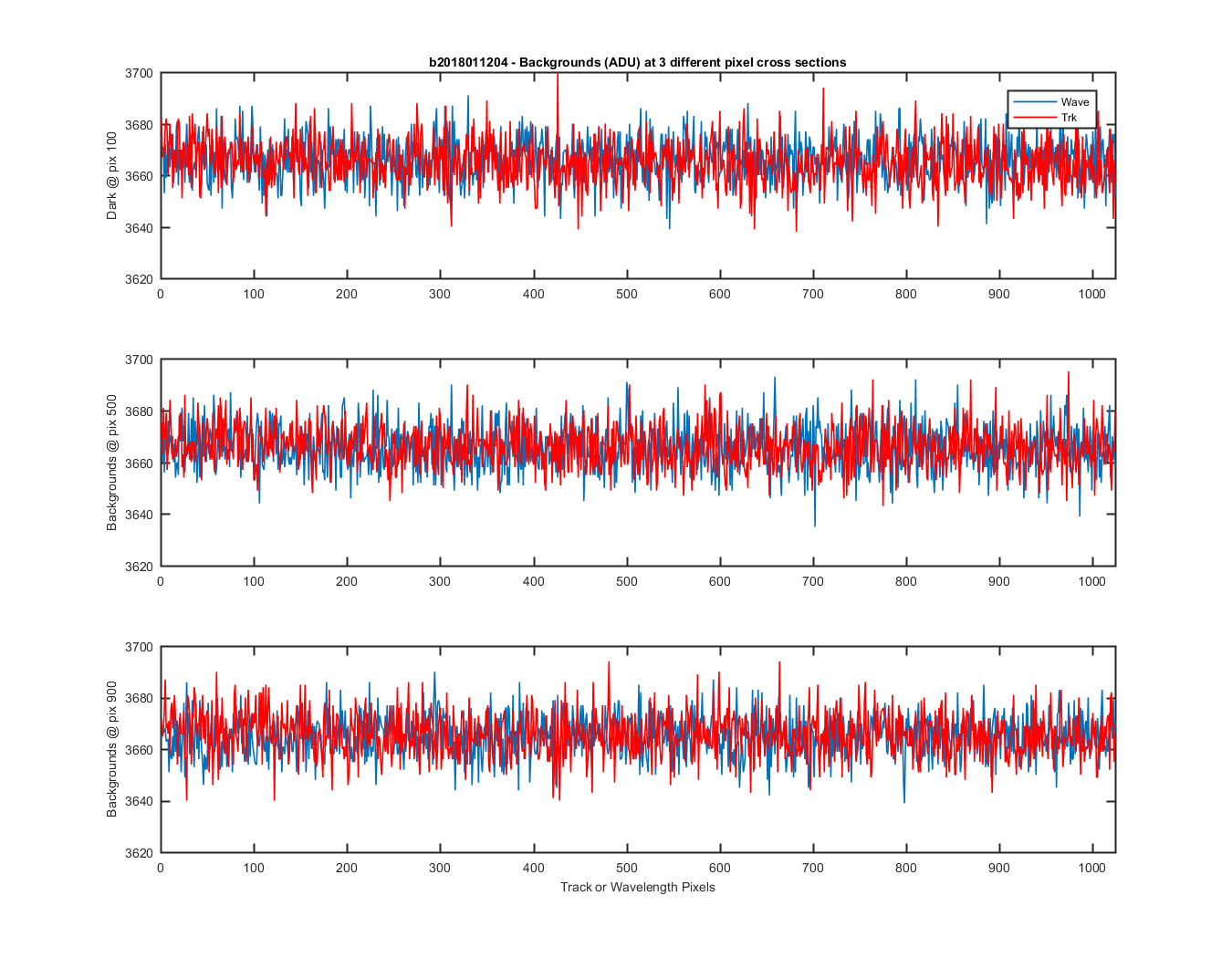

Track 7 all the background files.

Figure 3


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\MOBY264\bs04
Date: 12-Jan-2018 13:24:54
Created from plt_darks_dayX_(1)
