d2018032717_img

REVISION DATE: 03-Apr-2018 10:54:48

Andor Ikon Camera data. None of the data had been divided by integration time. Some of the graphs do have the darks subtracted.

Table caption: Andor Ikon Camera data, NOT divided by intgration time (no darks are subtractd)
Previous HOME NEXT
Filename Type Rotaton
(deg)
Wavelength (nm)(deg) Total Exposure Time Acquisition mode Temperature Gain Baseline Clamp file creation date Pre Amplifier Gain Readout mode Matrix Max (ADU) Matrix Mean (ADU) Matrix % std
d2018032717_img Dark NaN NaN 24.4542 Single Scan -60 0 F 2018-03-27T00:20:04 4 Image 3733 3671.46 0.26

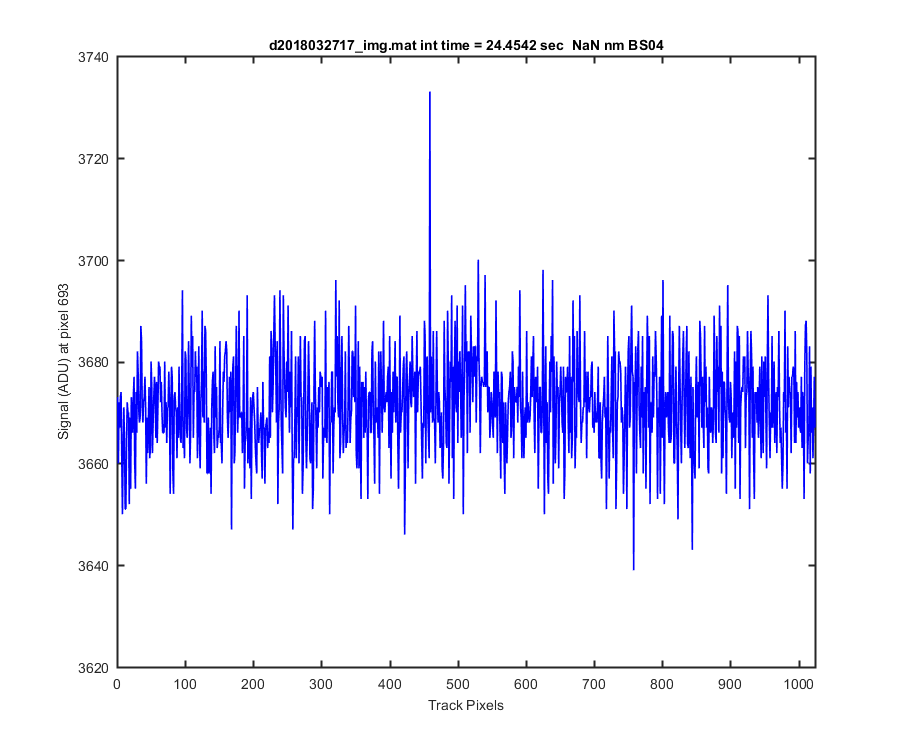

Figure 1

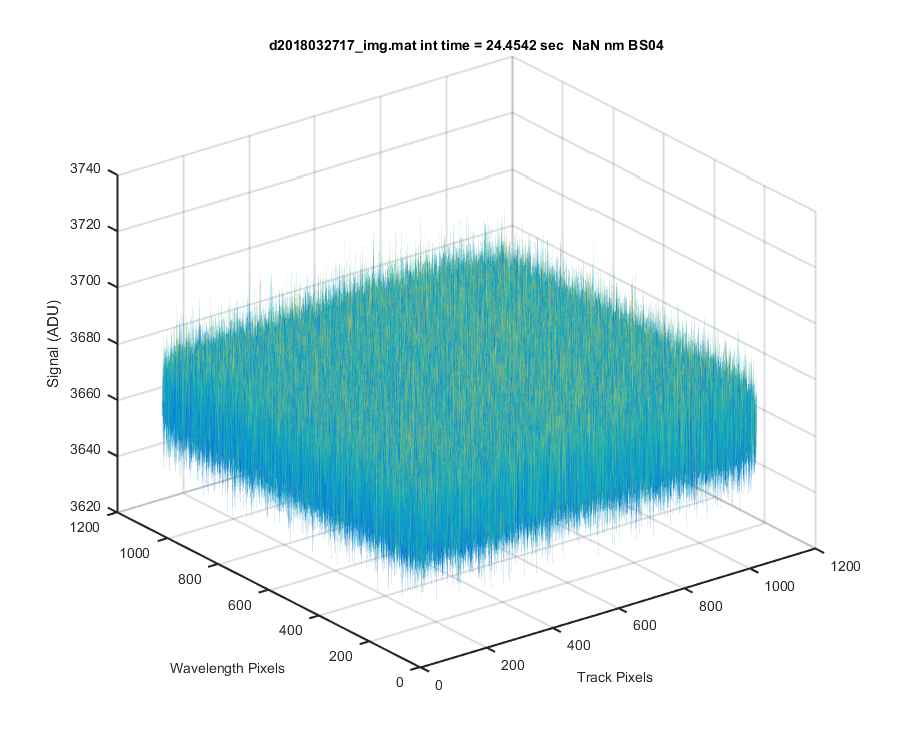

Figure 2


pwd: E:\zflora\mldata\mobyrefresh\characterizations\intial\MOBY264\bs04\day46
Date: 03-Apr-2018 10:54:48
