REVISION DATE: 16-Jan-2020 12:16:27

Below are my graphs of the BIP file with only channel 7 illuminated. The file contains 10 images of the white light source. Over all it looks really stable and track definition looks good. See each graph below for more detail.

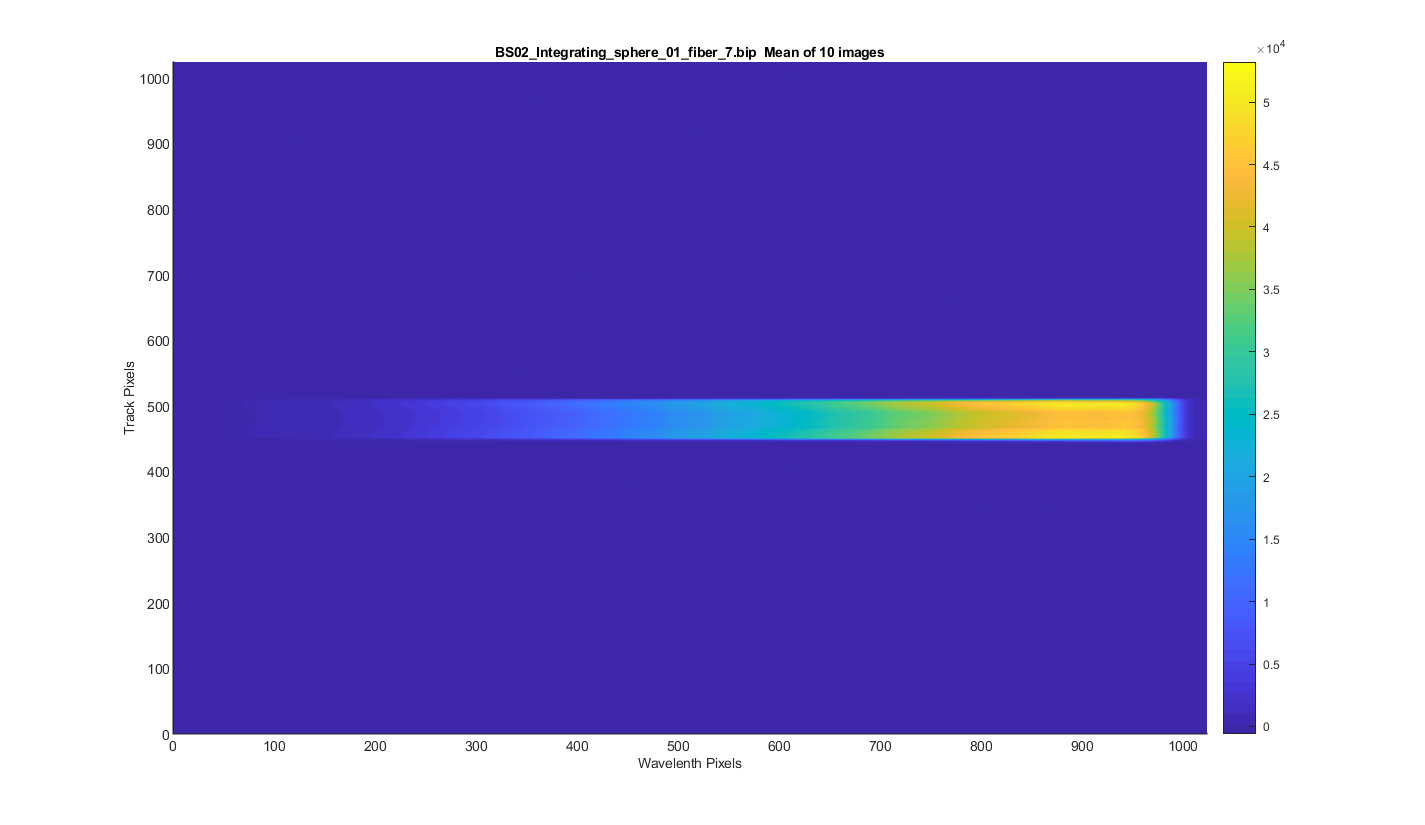

Figure 1 I took the 10 images and meaned them to get the surface plot below.

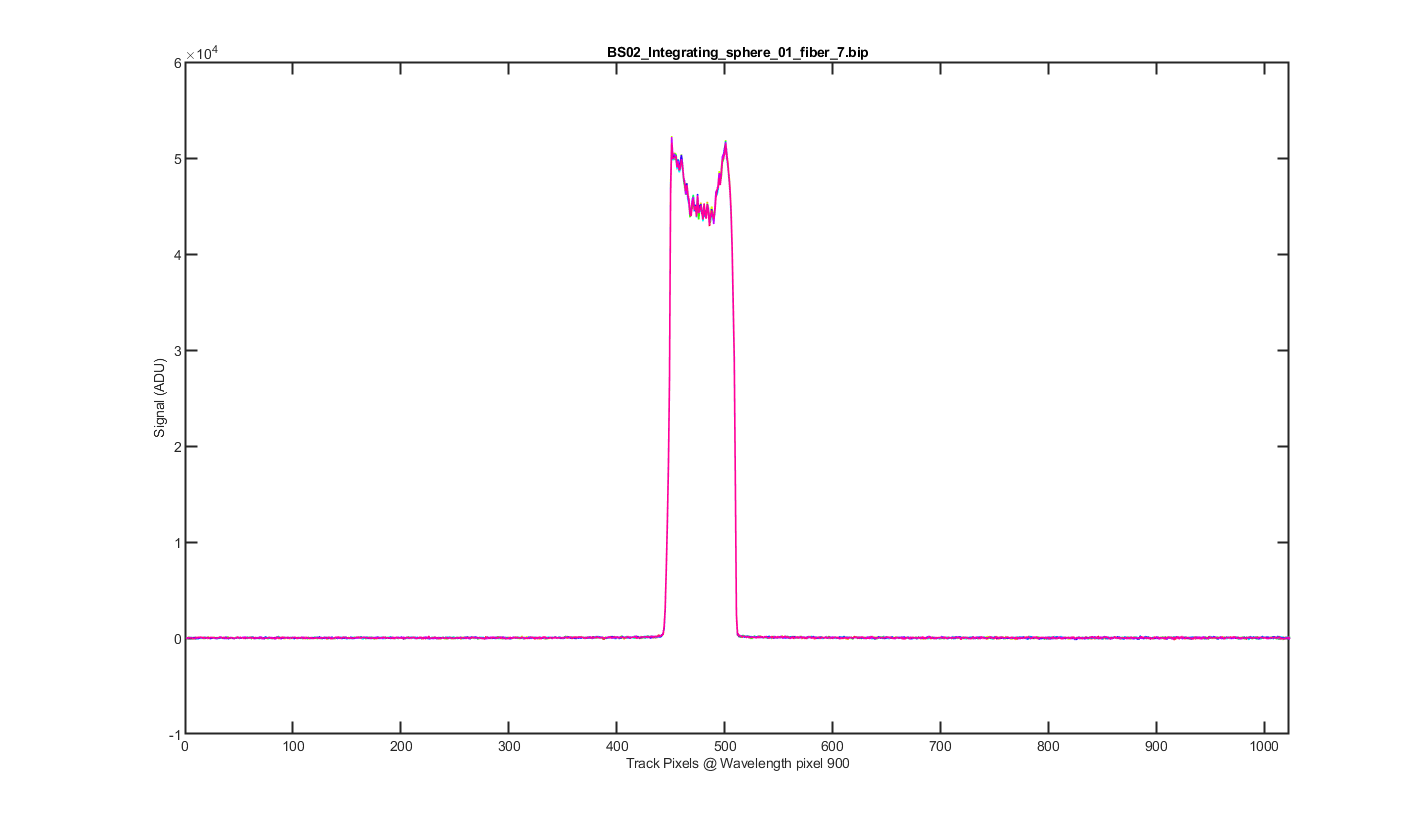

Figure 2 This is a cross section through the tracks at wavelength pixel 900, with one line for each of the 10 images.

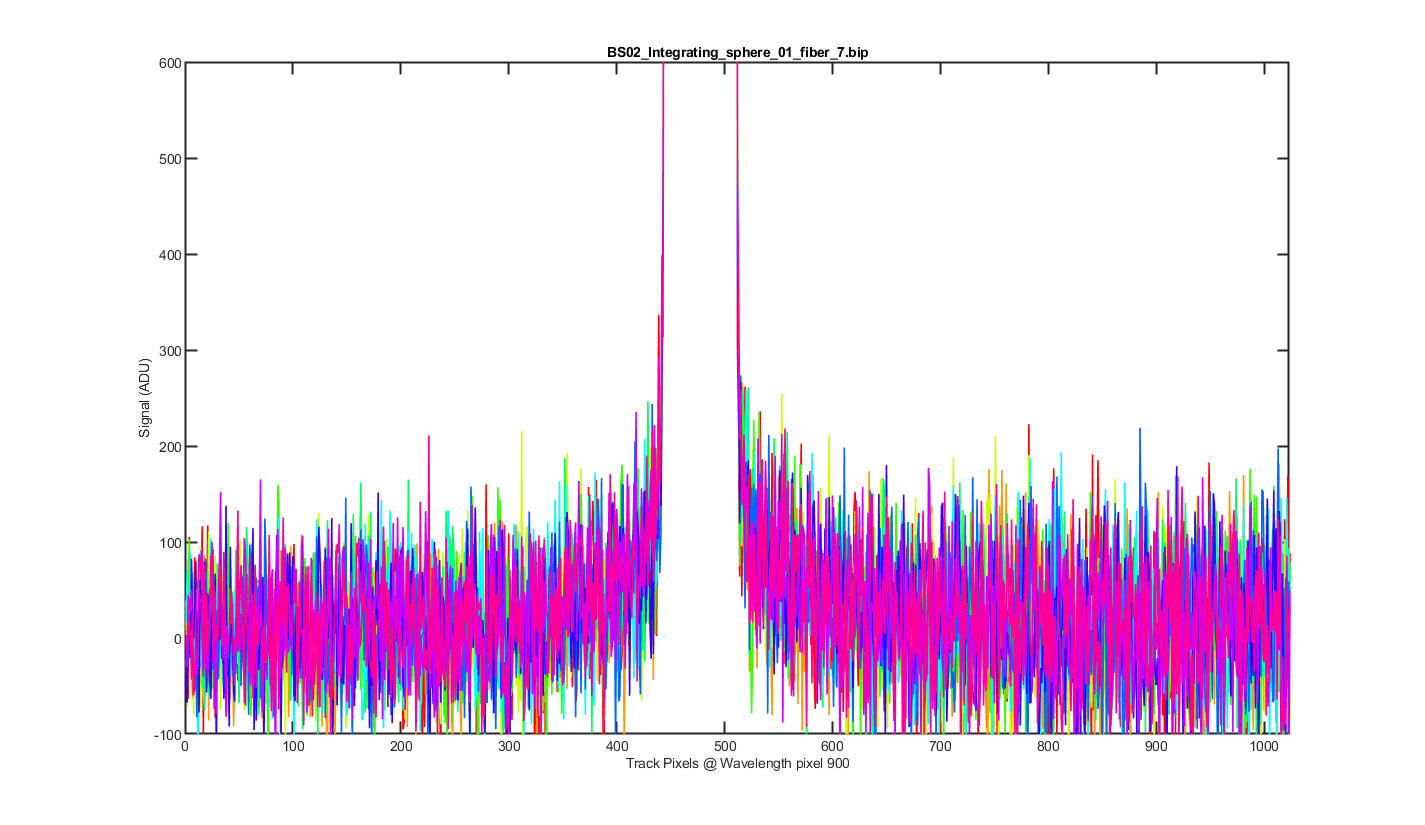

Figure 3 Same as the previous graph but zoomed into the bottom to see the level of the darks between the tracks.

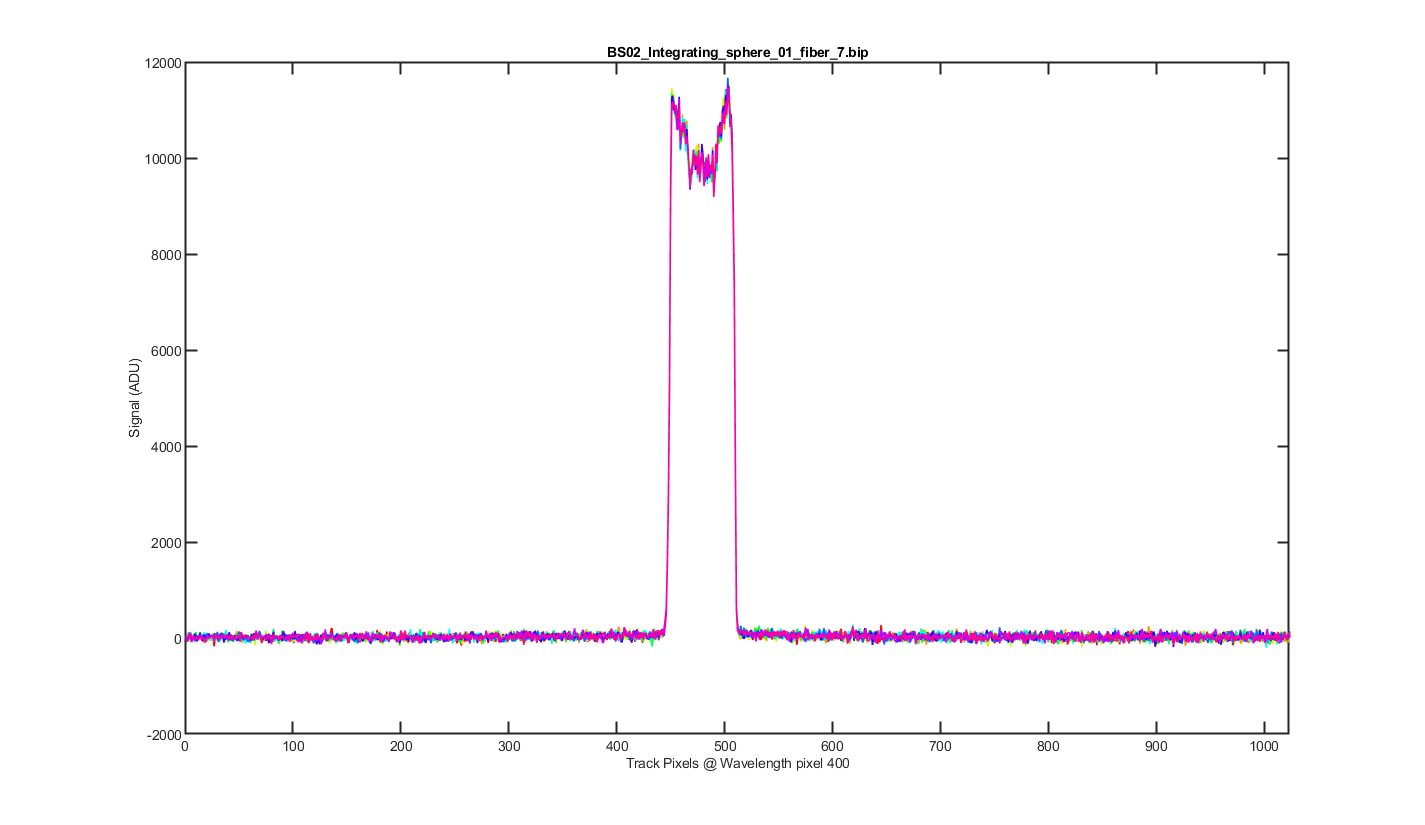

Figure 4 Same as figure 2 but for Wavelength pixel 400.

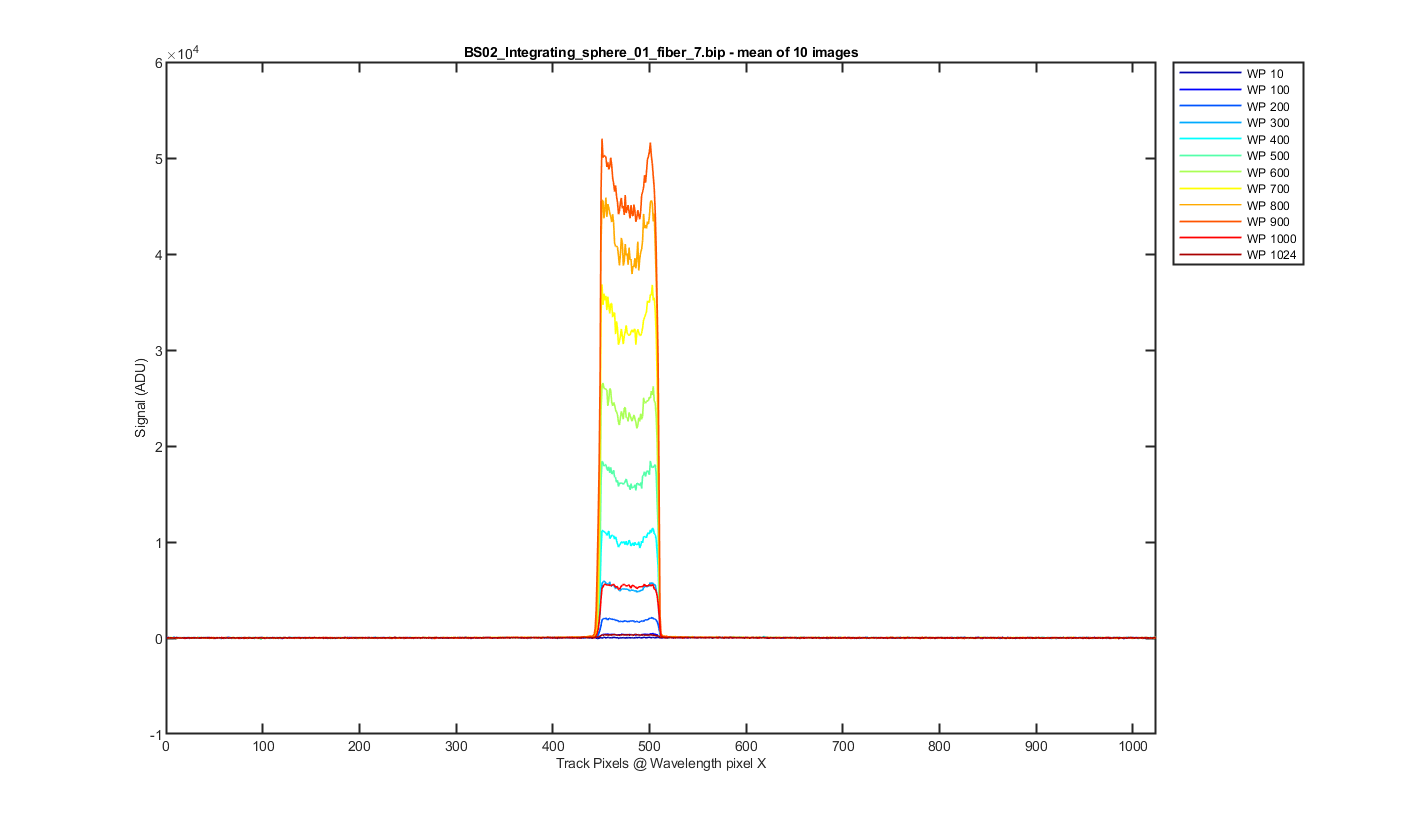

Figure 5 Again this is the mean image with slices thought the image at different wavelength pixels.

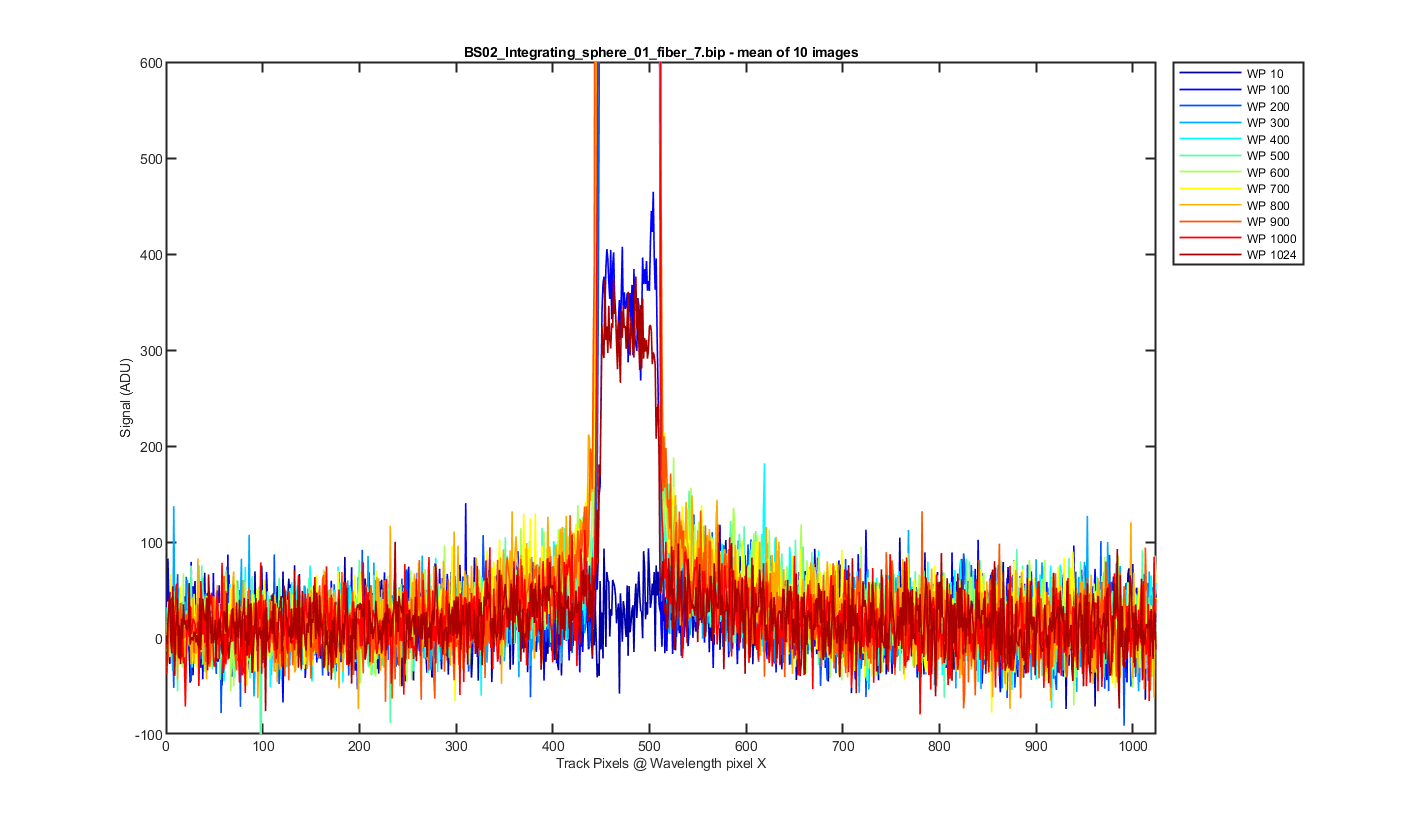

Figure 6 Same as figure 5 but zoomed to the bottom so you can see the darks between the tracks.

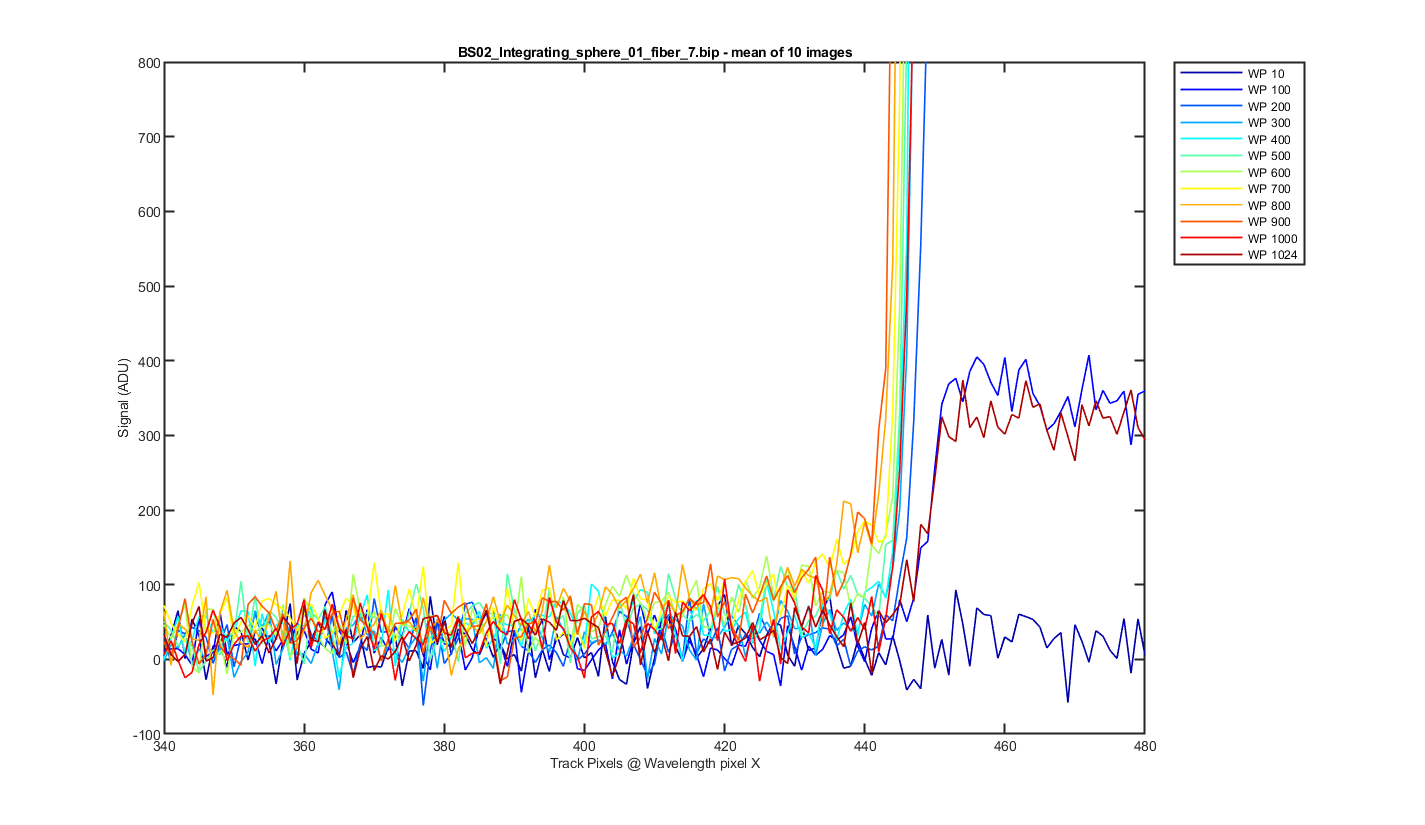

Figure 7 Same as figure 6 but zoomed to the dark space to the left of track 7

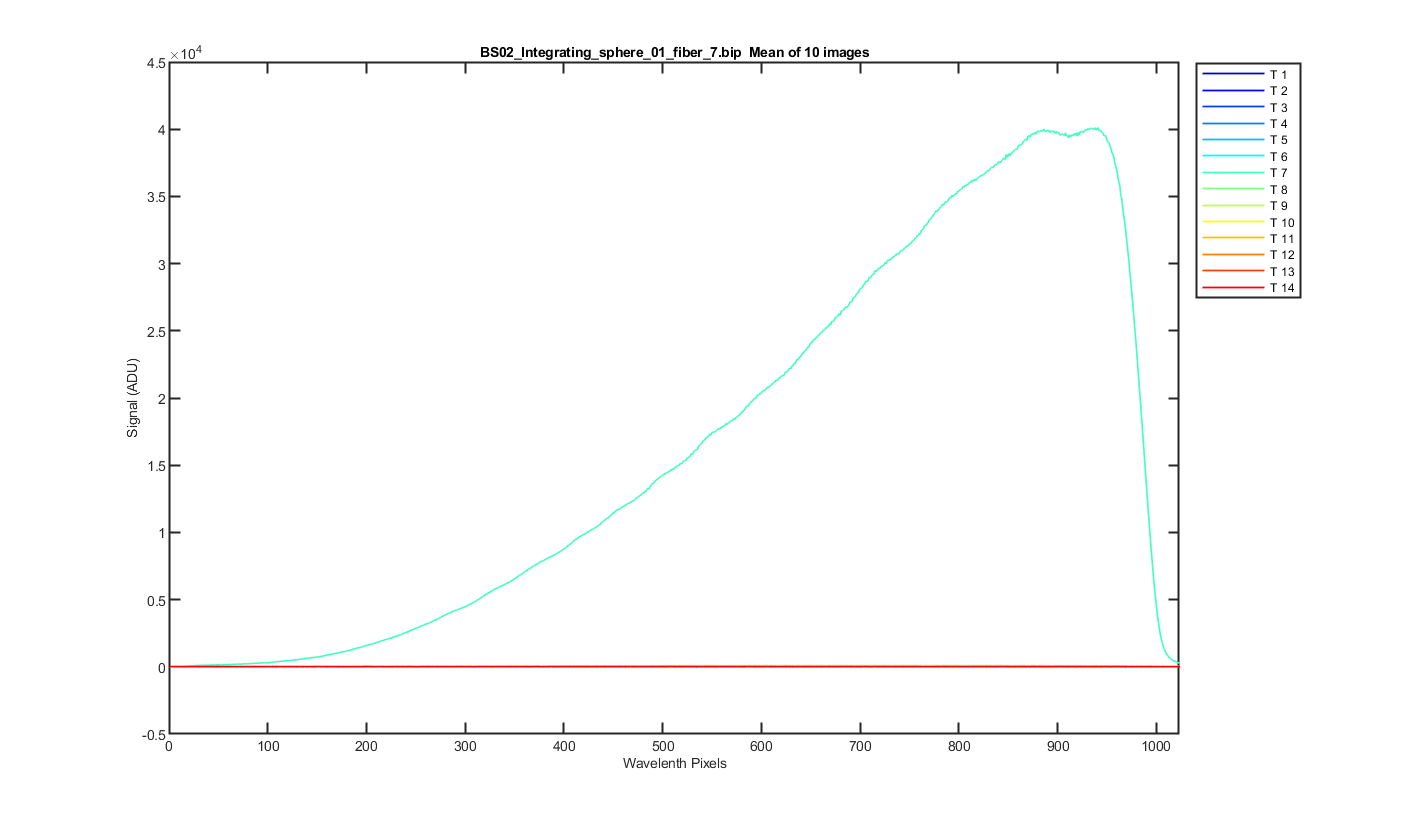

Figure 8 All the tracks with track 7 being the only one with light on it.

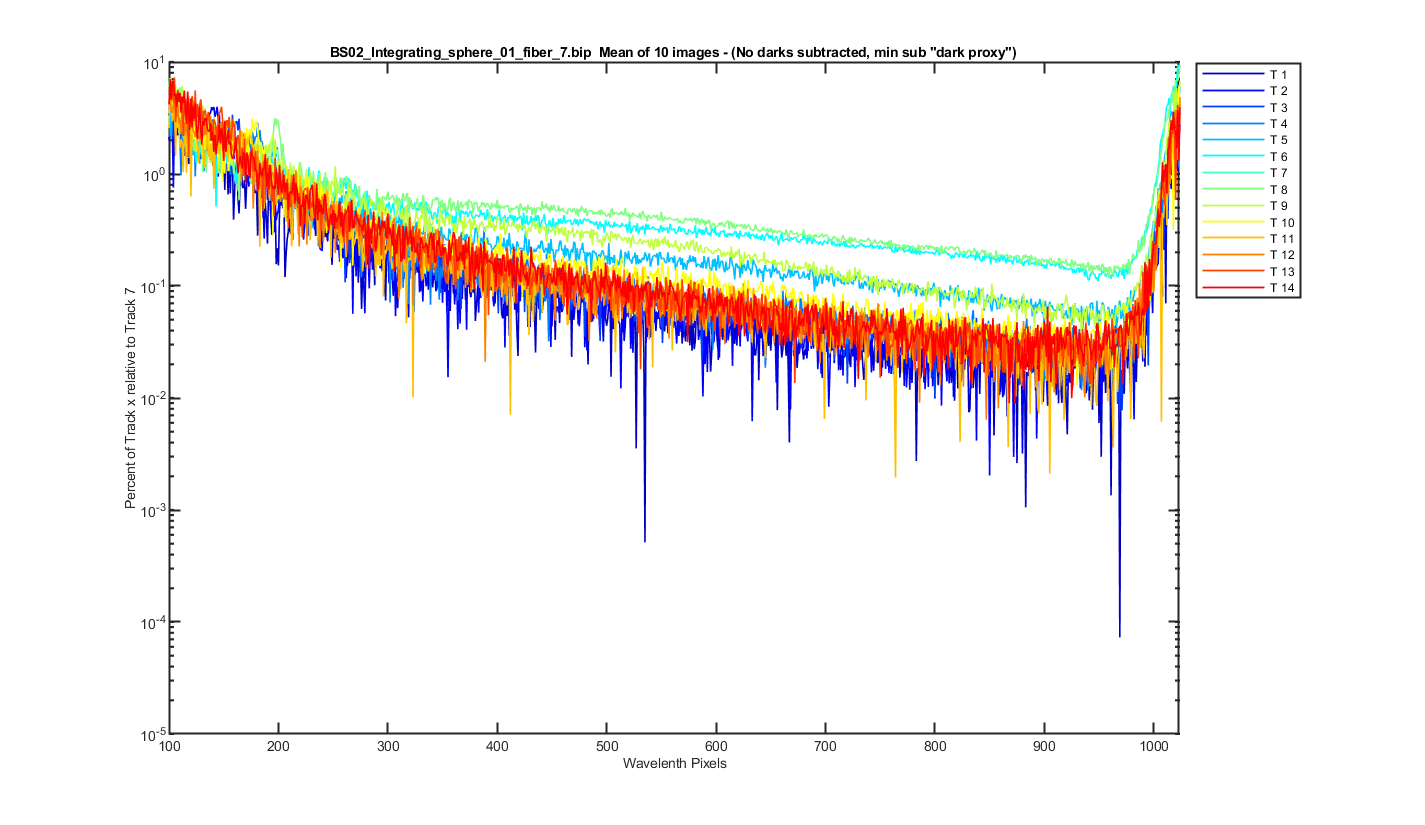

Figure 9 Because there are no darks I subtracted the min value from each track and then ratioed each track to track 7 so get an idea of the cross track light
