plt_20160426_channel7_ - BS04

REVISION DATE: 29-Apr-2016 16:53:58

Below are my graphs of the BIP file with only channel 7 illuminated. The file contains 10 images of the white light source. Over all it looks really stable and track definition looks good. See each graph below for more detail.

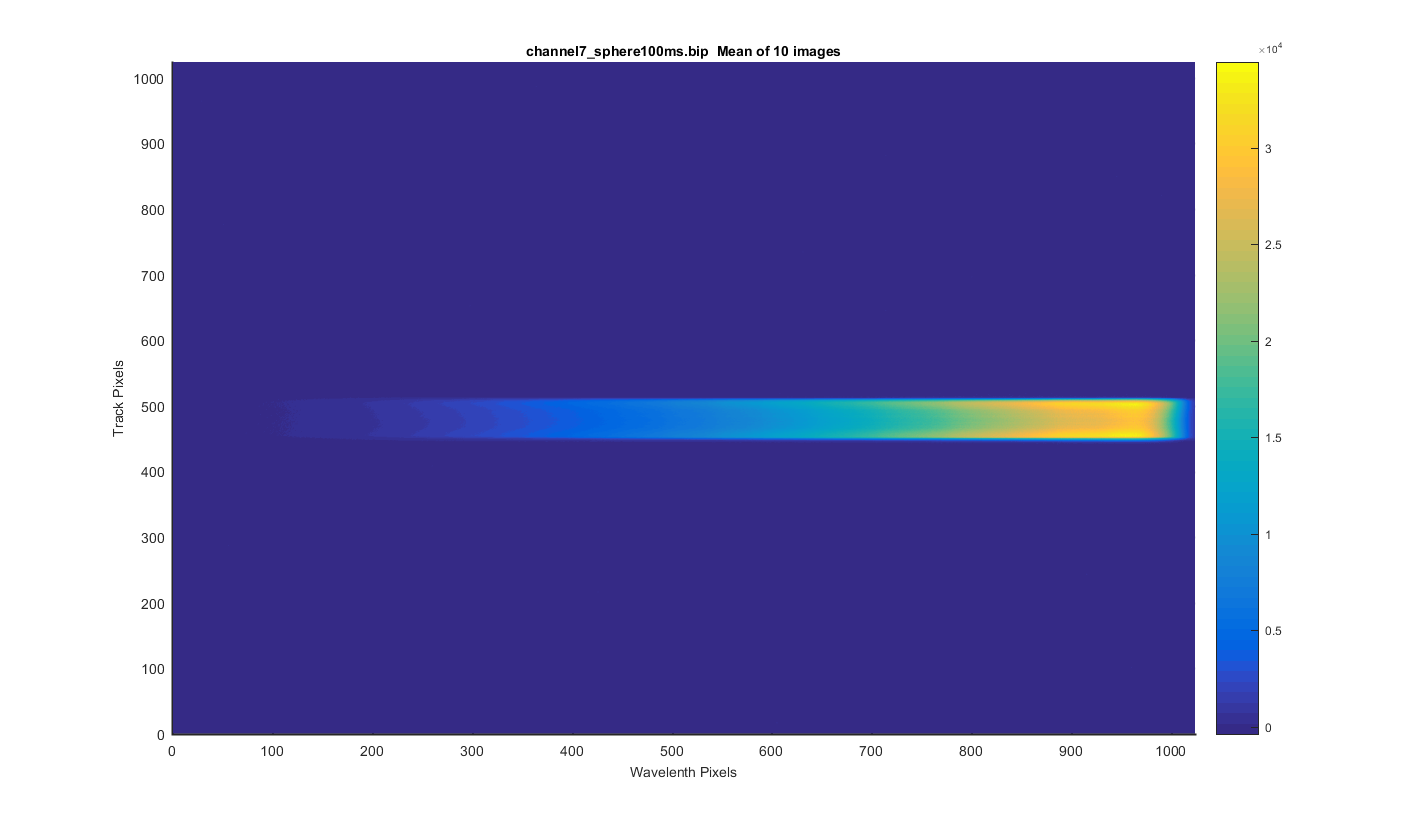

I took the 10 images and meaned them to get the surface plot below.

Figure 1

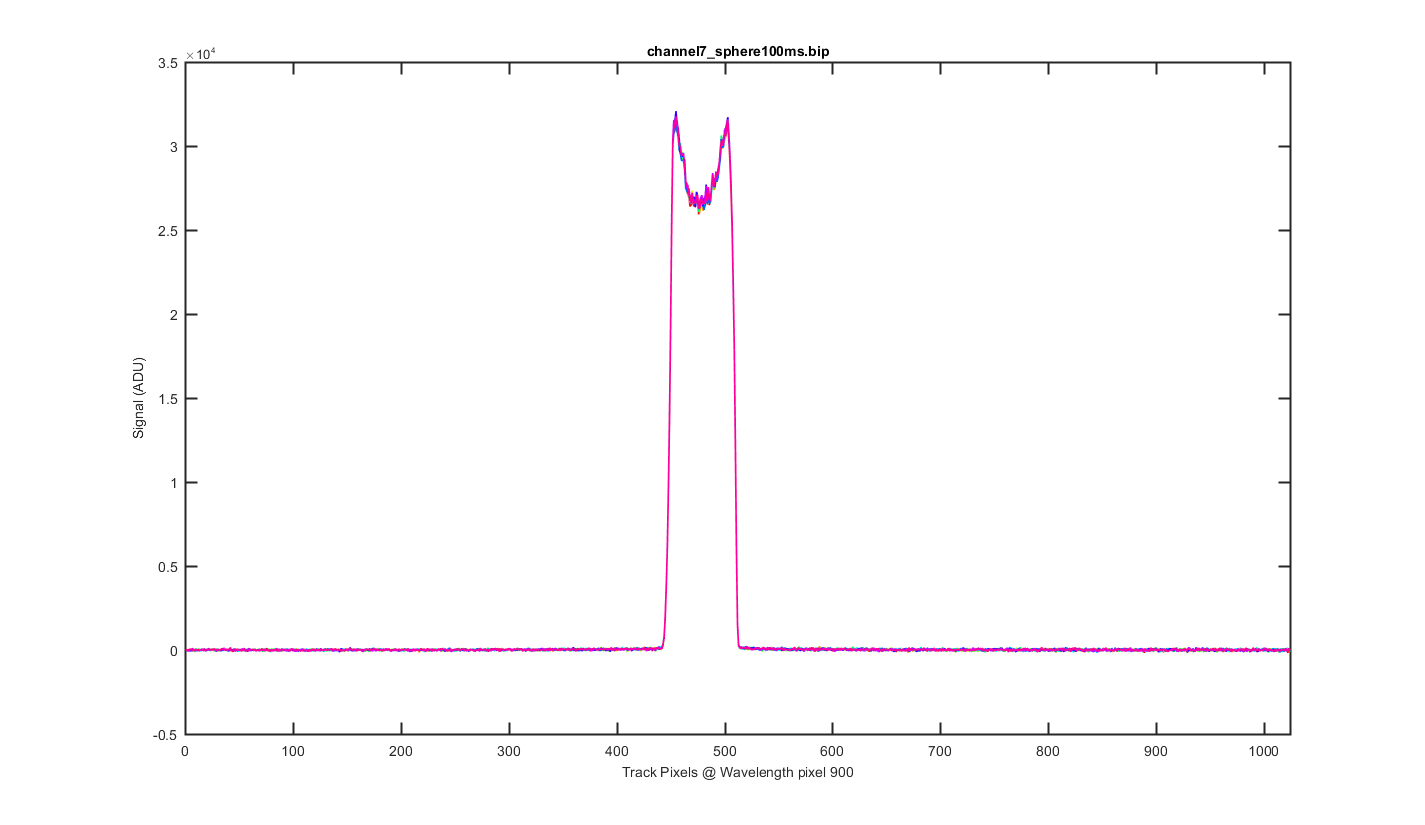

This is a cross section through the tracks at wavelength pixel 900, with one line for each of the 10 images.

Figure 2


Same as the previous graph but zoomed into the bottom to see the level of the darks between the tracks.

Figure 3

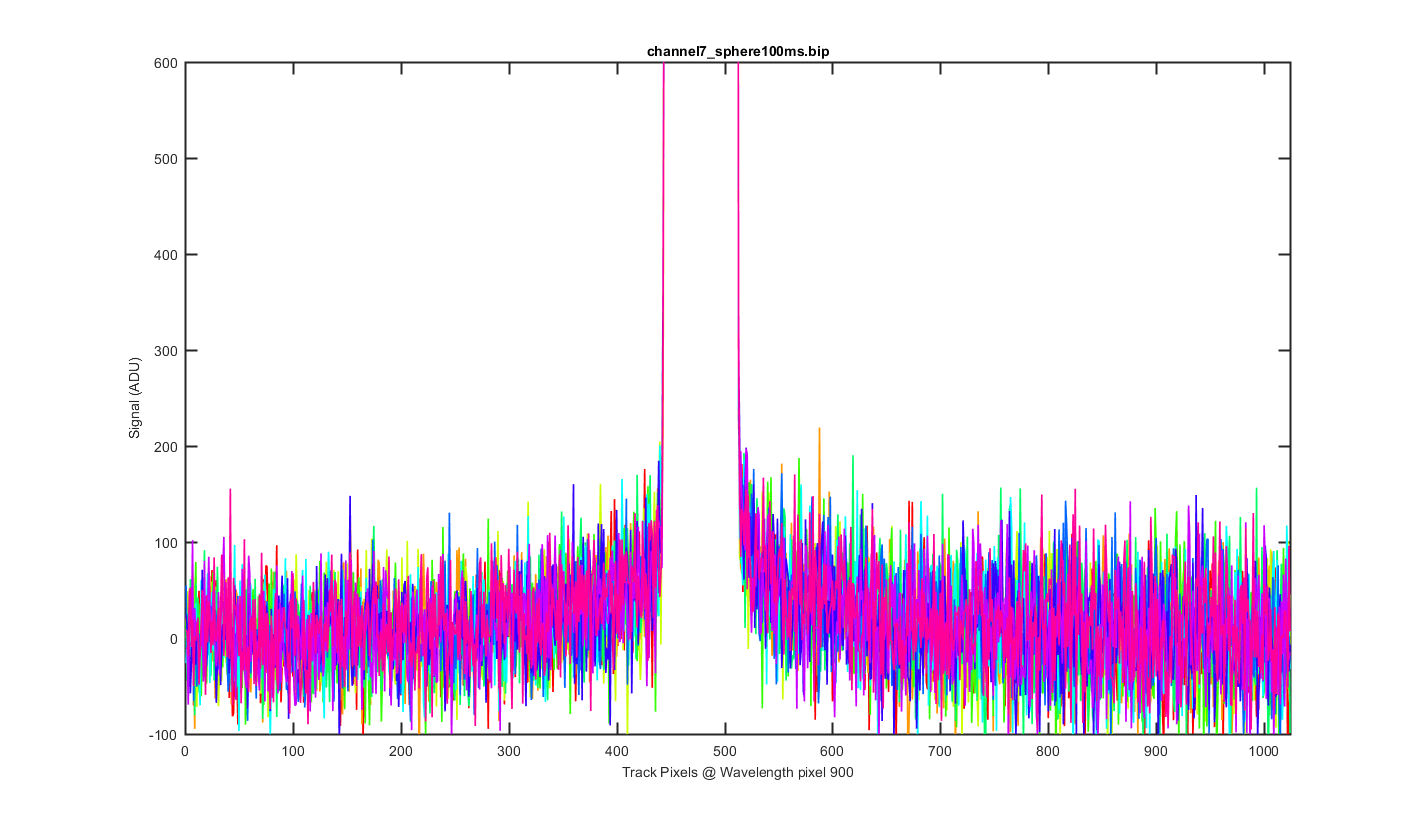

Same as figure 2 but for Wavelength pixel 400.

Figure 4

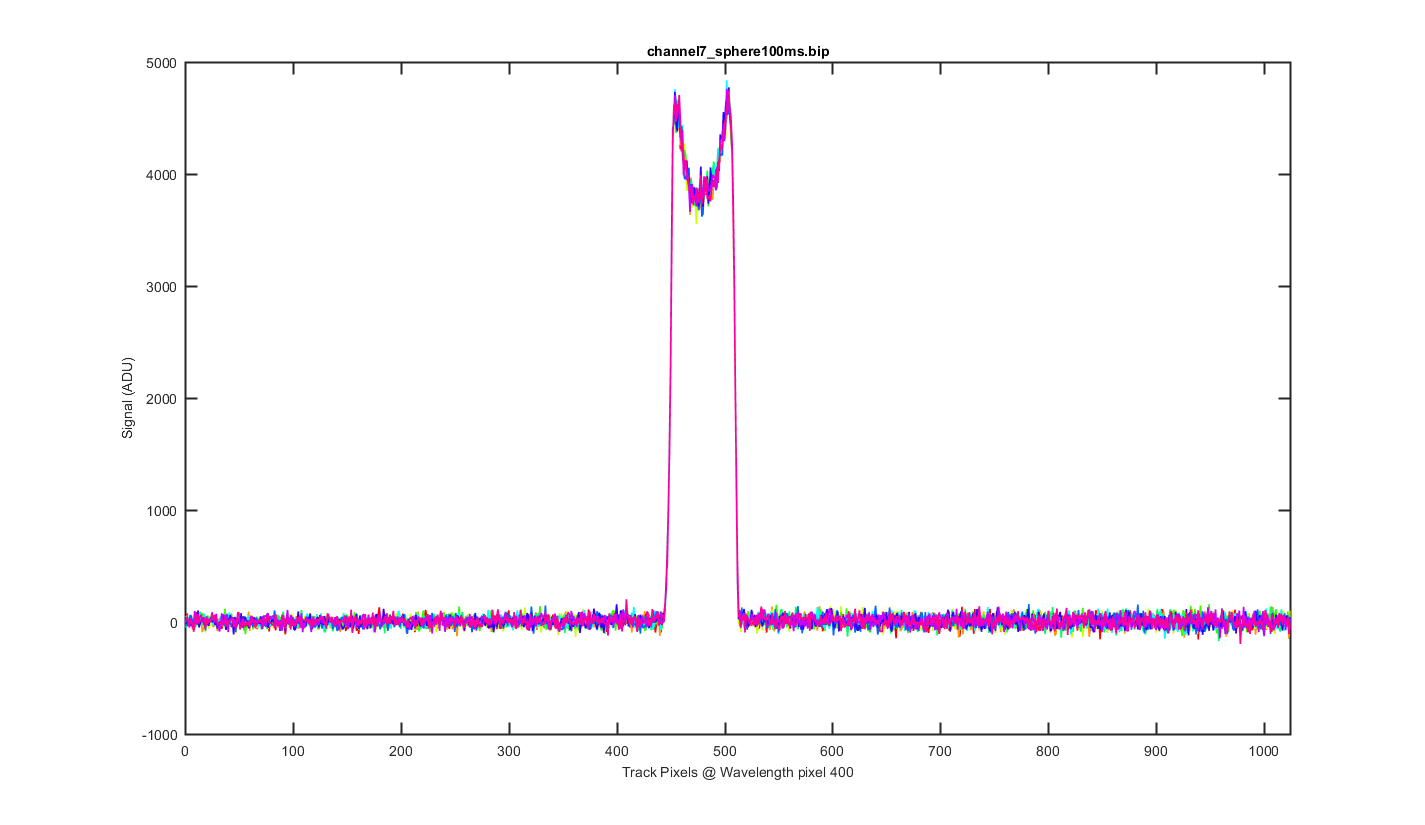

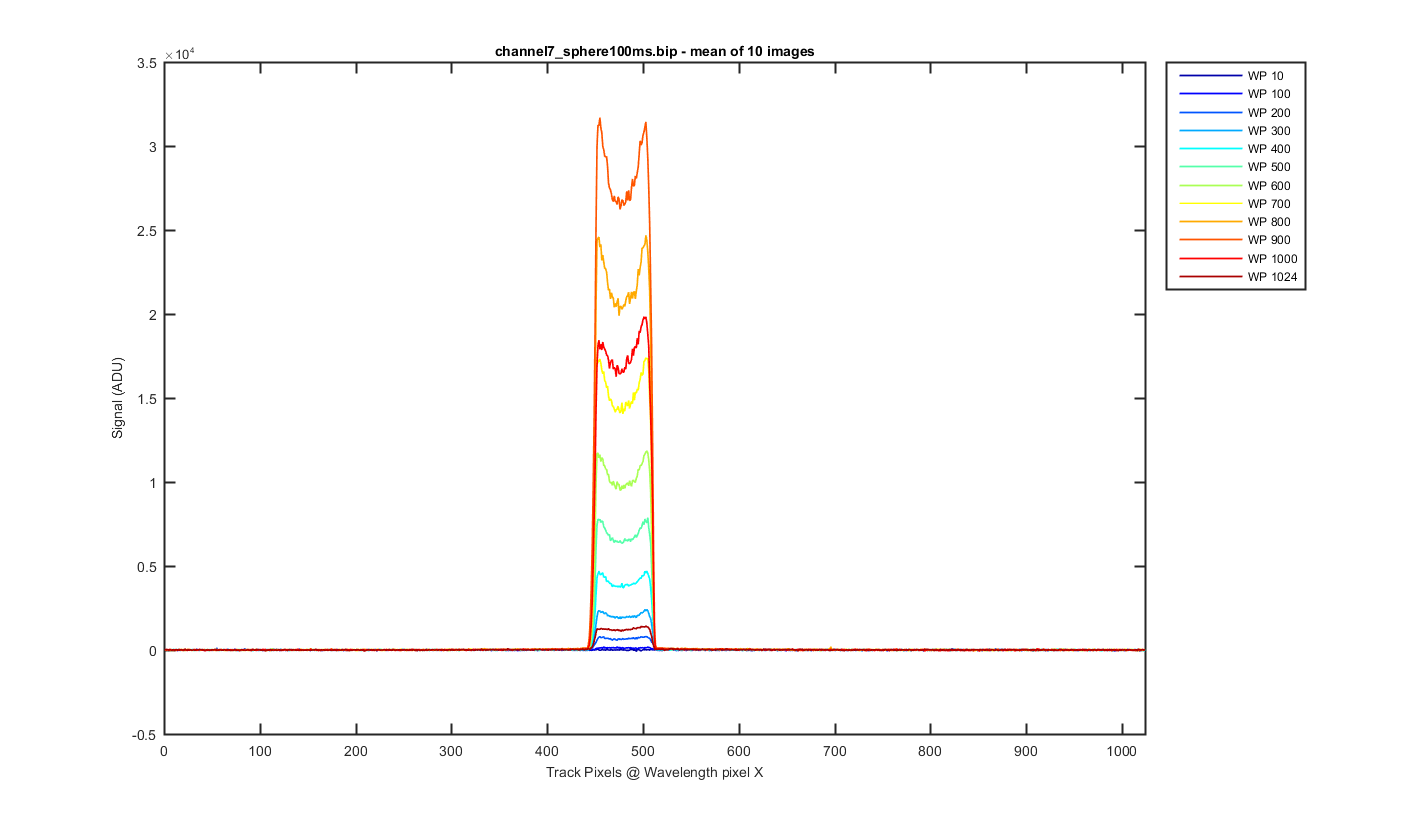

Again this is the mean image with slices thought the image at different wavelength pixels.

Figure 5

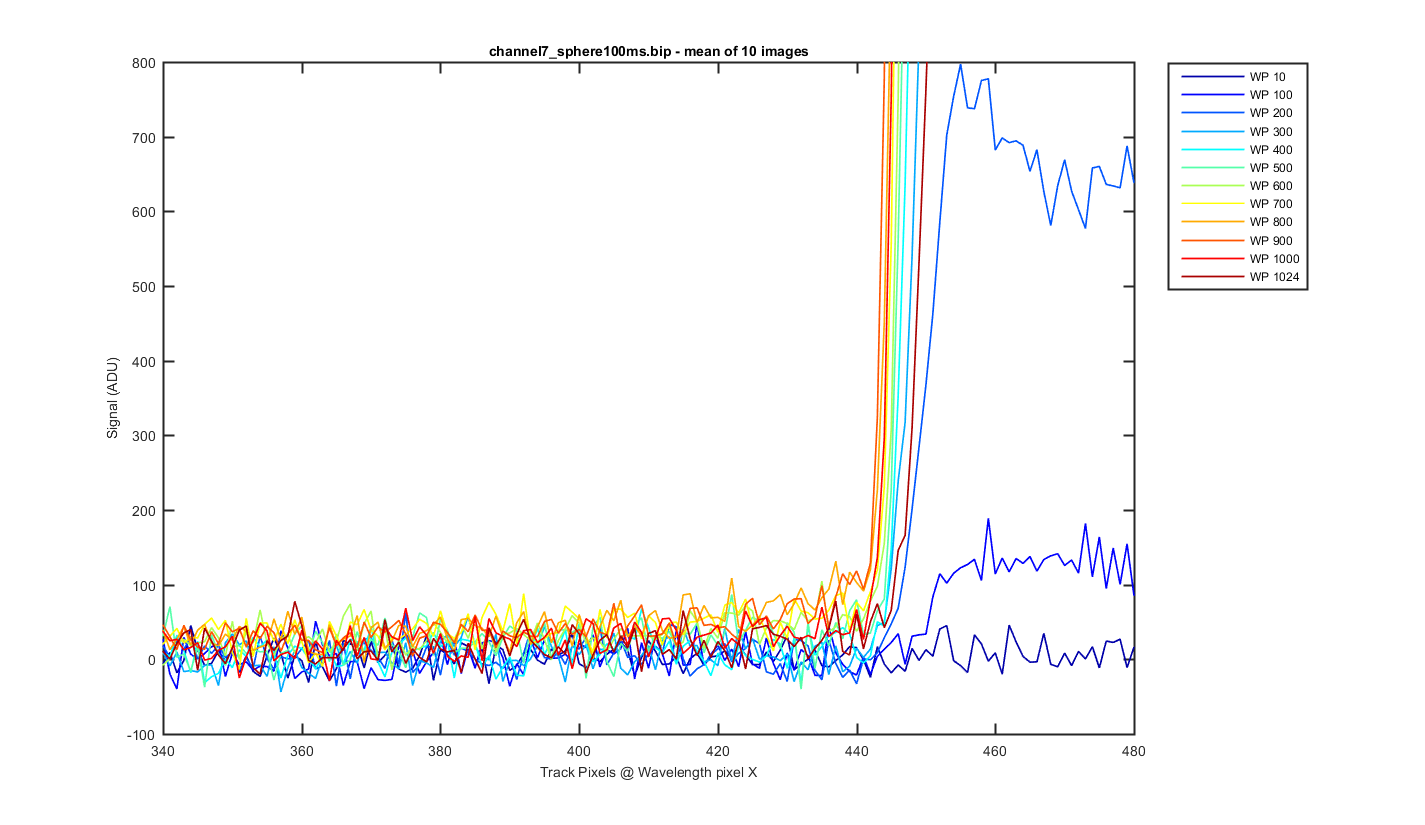

Same as figure 5 but zoomed to the bottom so you can see the darks between the tracks.

Figure 6

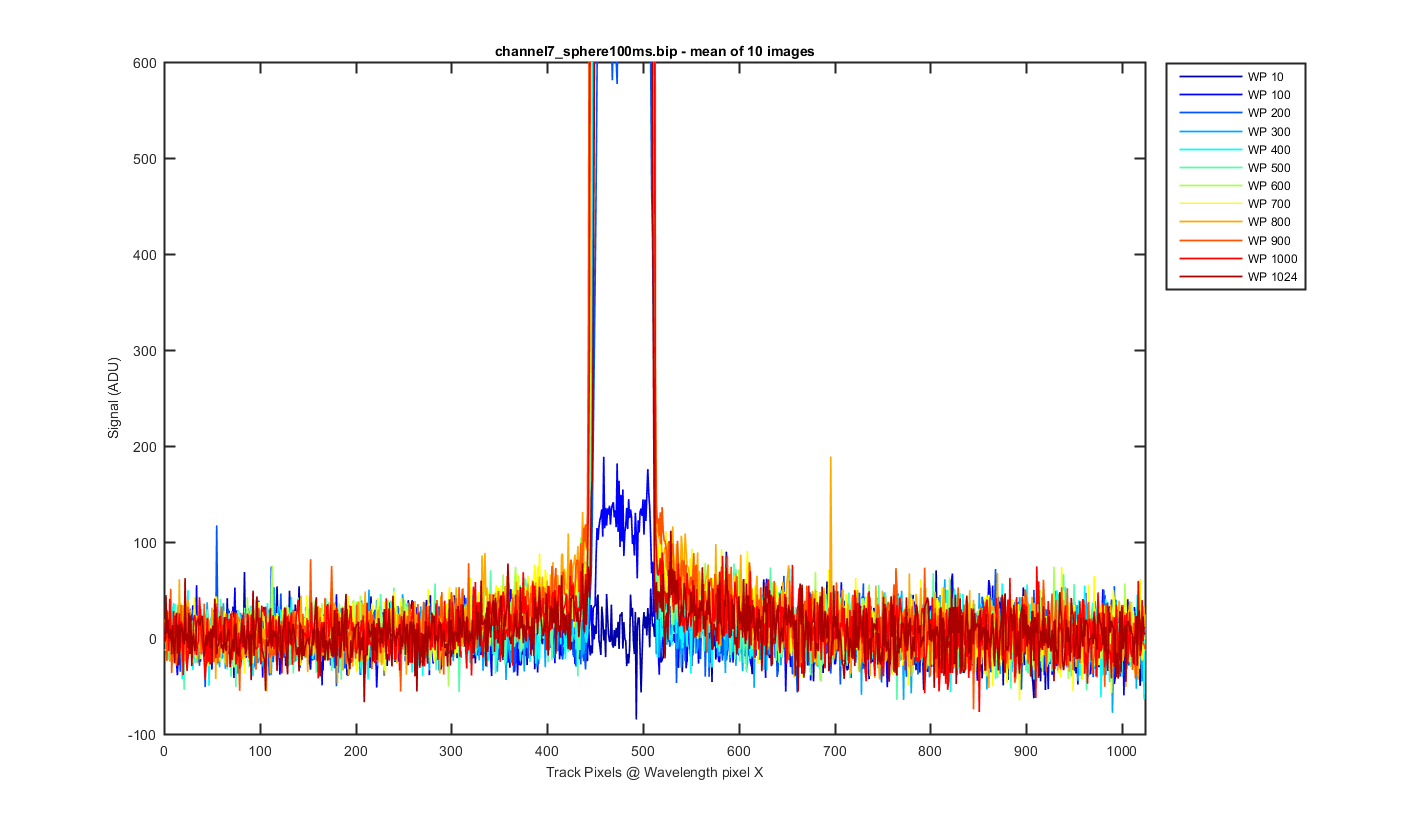

Same as figure 6 but zoomed to the dark space to the left of track 7

Figure 7

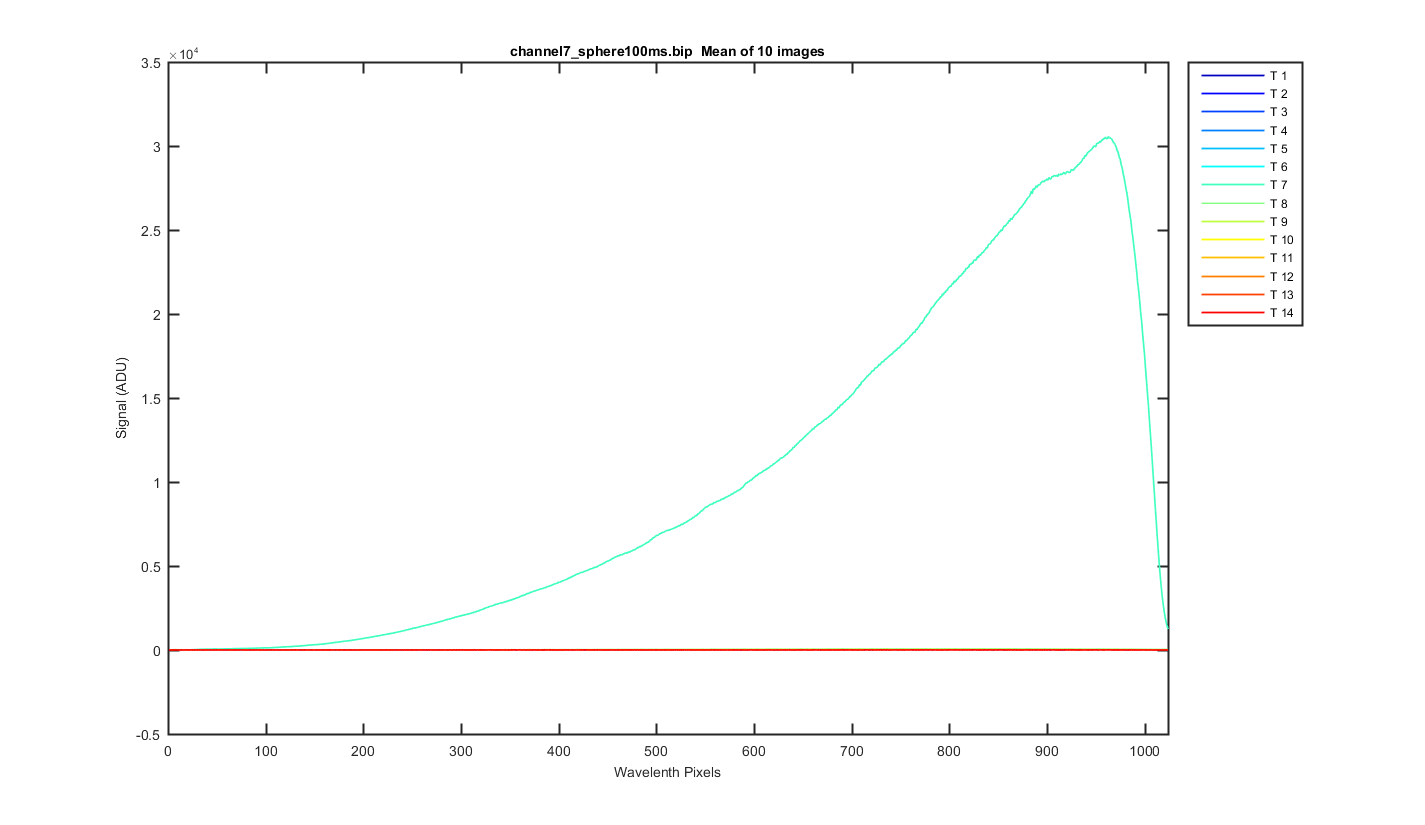

All the tracks with track 7 being the only one with light on it.

Figure 8

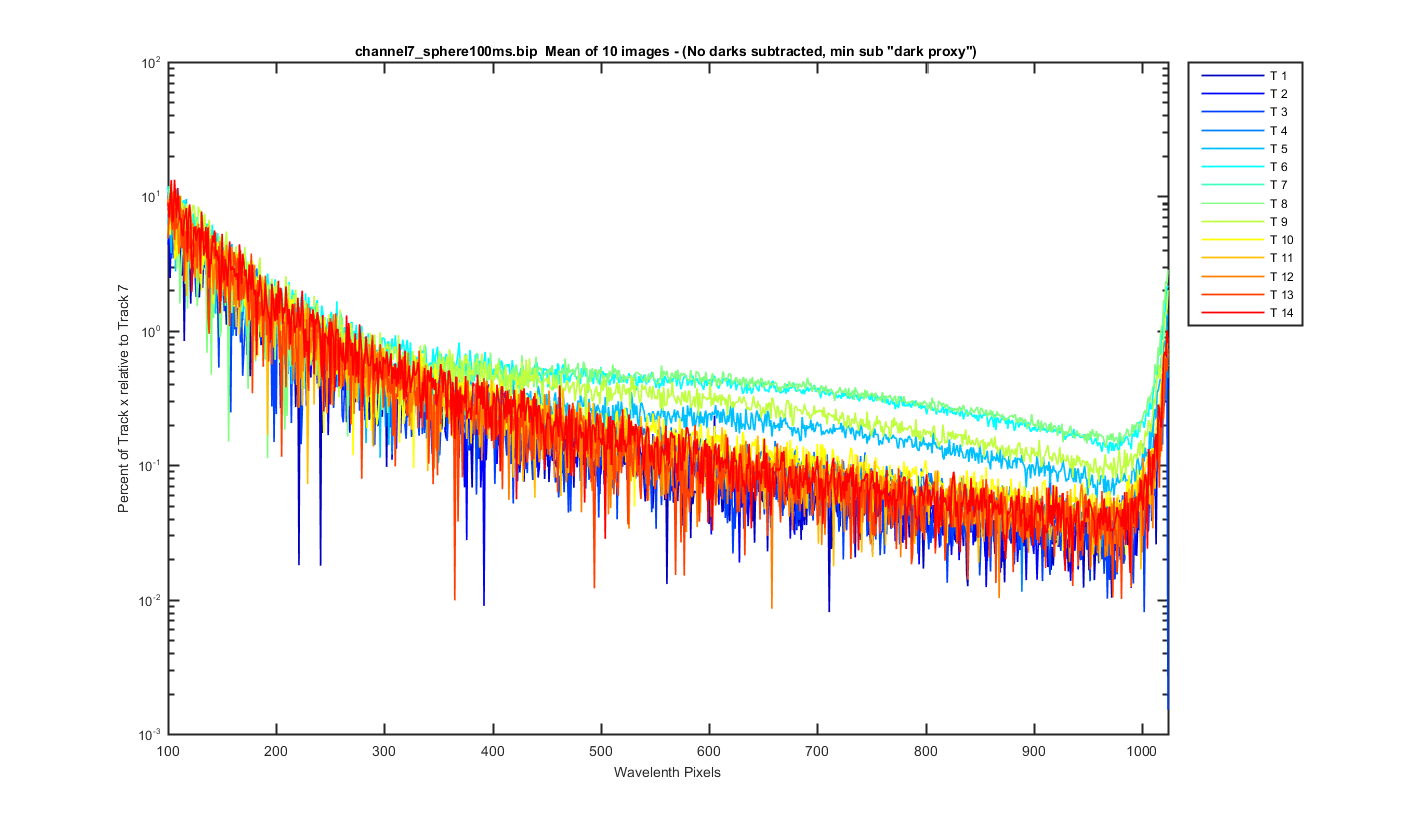

Because there are no darks I subtracted the min value from each track and then ratioed each track to track 7 so get an idea of the cross track light

Figure 9

pwd: E:\zflora\mldata\mobyrefresh\characterizations\configs\bs04cfg001\20160426
Date: 29-Apr-2016 16:53:58
Created from plt_20160426_channel7_(1)
