REVISION DATE: 21-Jun-2019 16:18:48

The sphere data with all the fibers illuminated. The file contains 10 images of the sphere source. All the data are dark subtracted. See each graph below for more detail.

At the very bottom are the track data in linear and log and the signal to noise ratio calculated for each track.

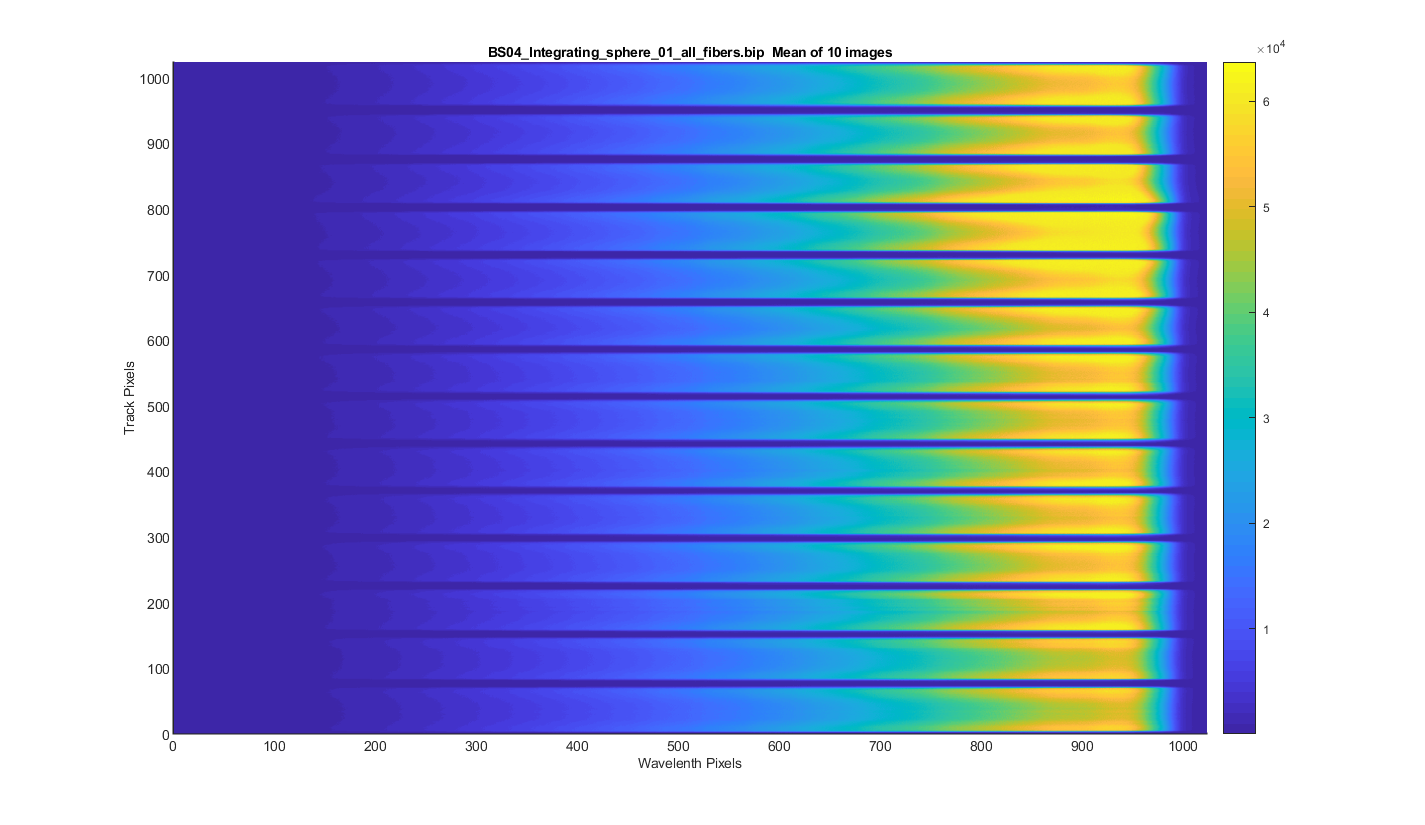

Figure 1 I took the 10 images and meaned them to get the surface plot below.

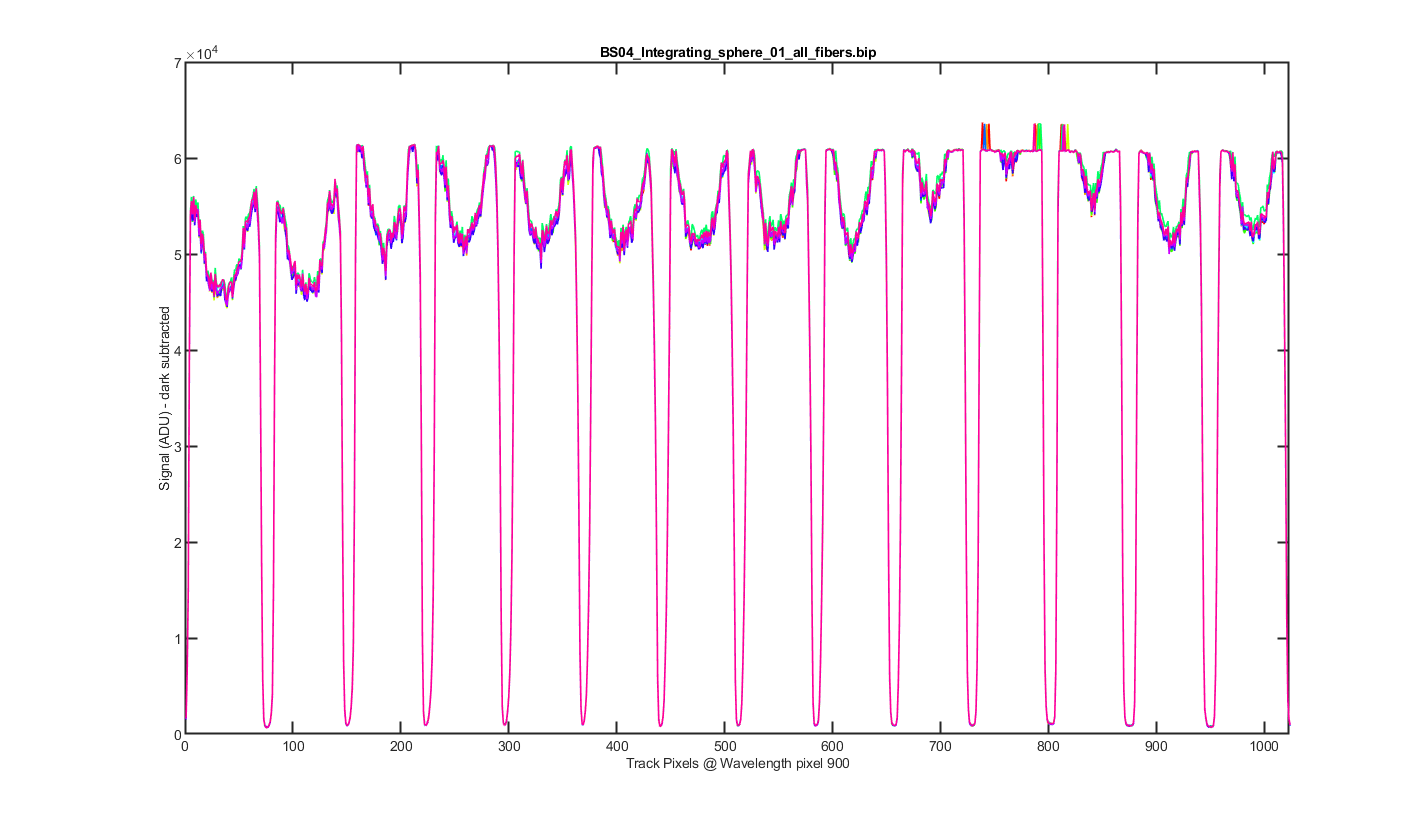

Figure 2 This is a cross section through the tracks at wavelength pixel 900, with one line for each of the 10 images. The tracks and their shapes look really stable.

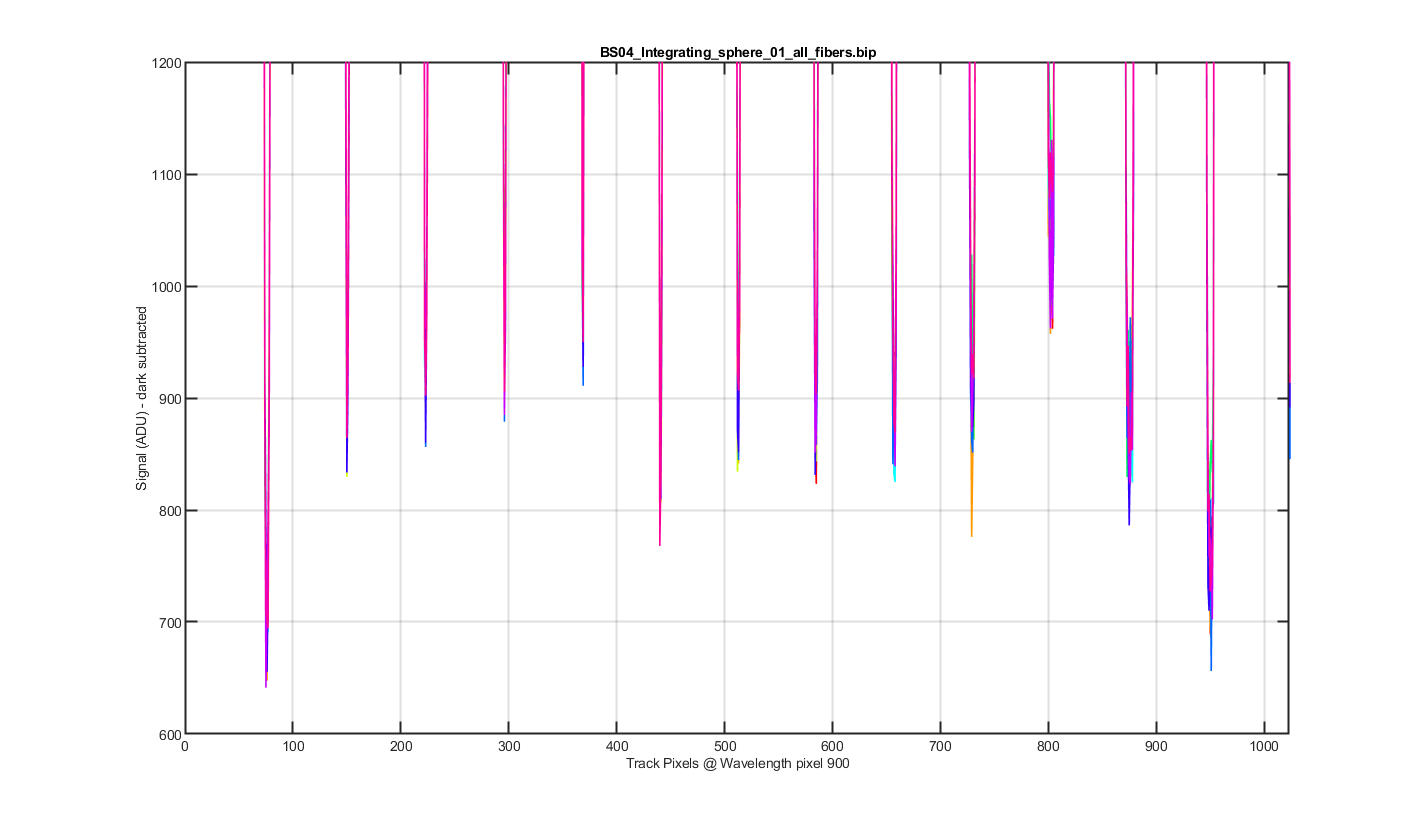

Figure 3 Same as the previous graph but zoomed into the bottom to see the level of the darks between the tracks.

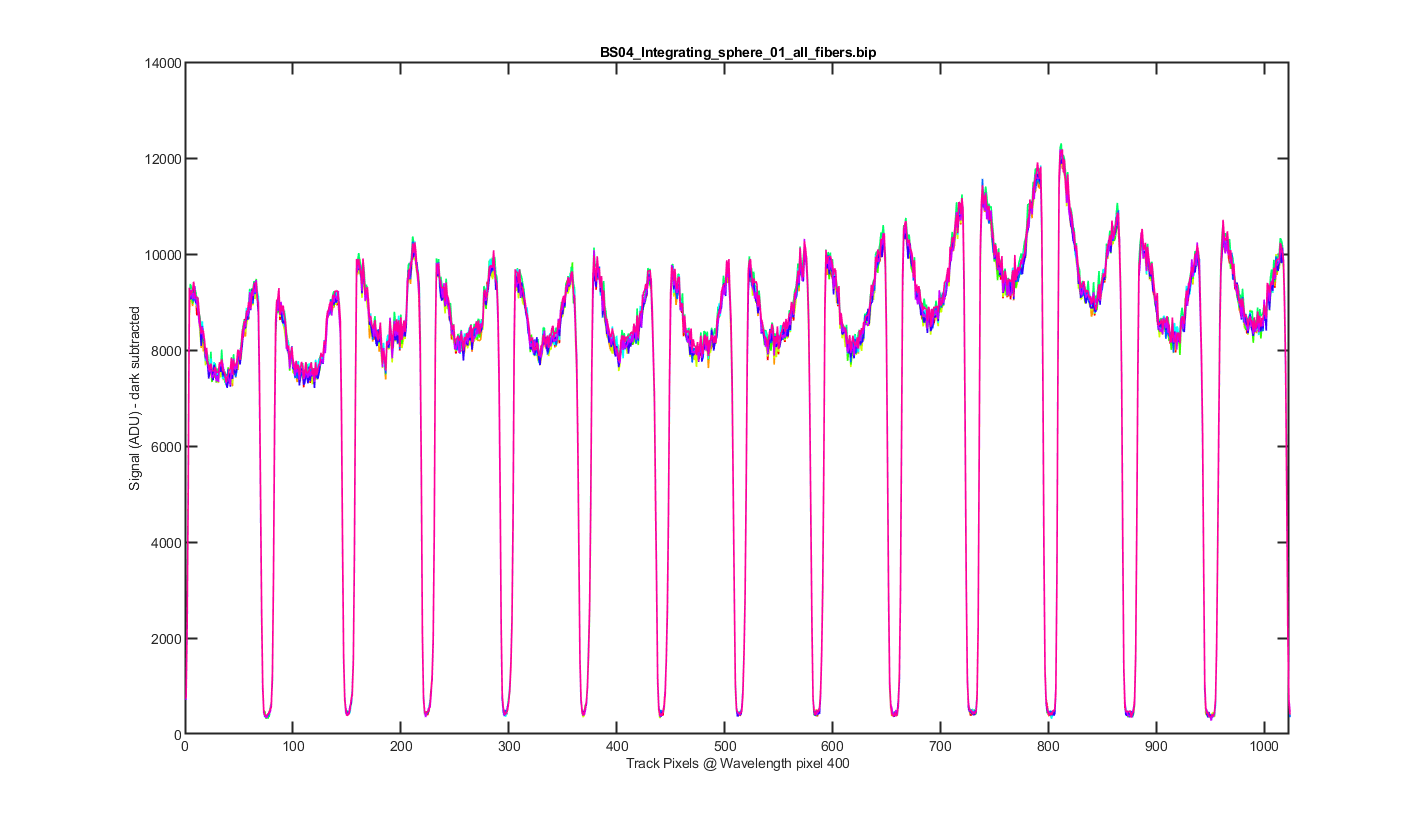

Figure 4 Same as figure 2 but for Wavelength pixel 400.

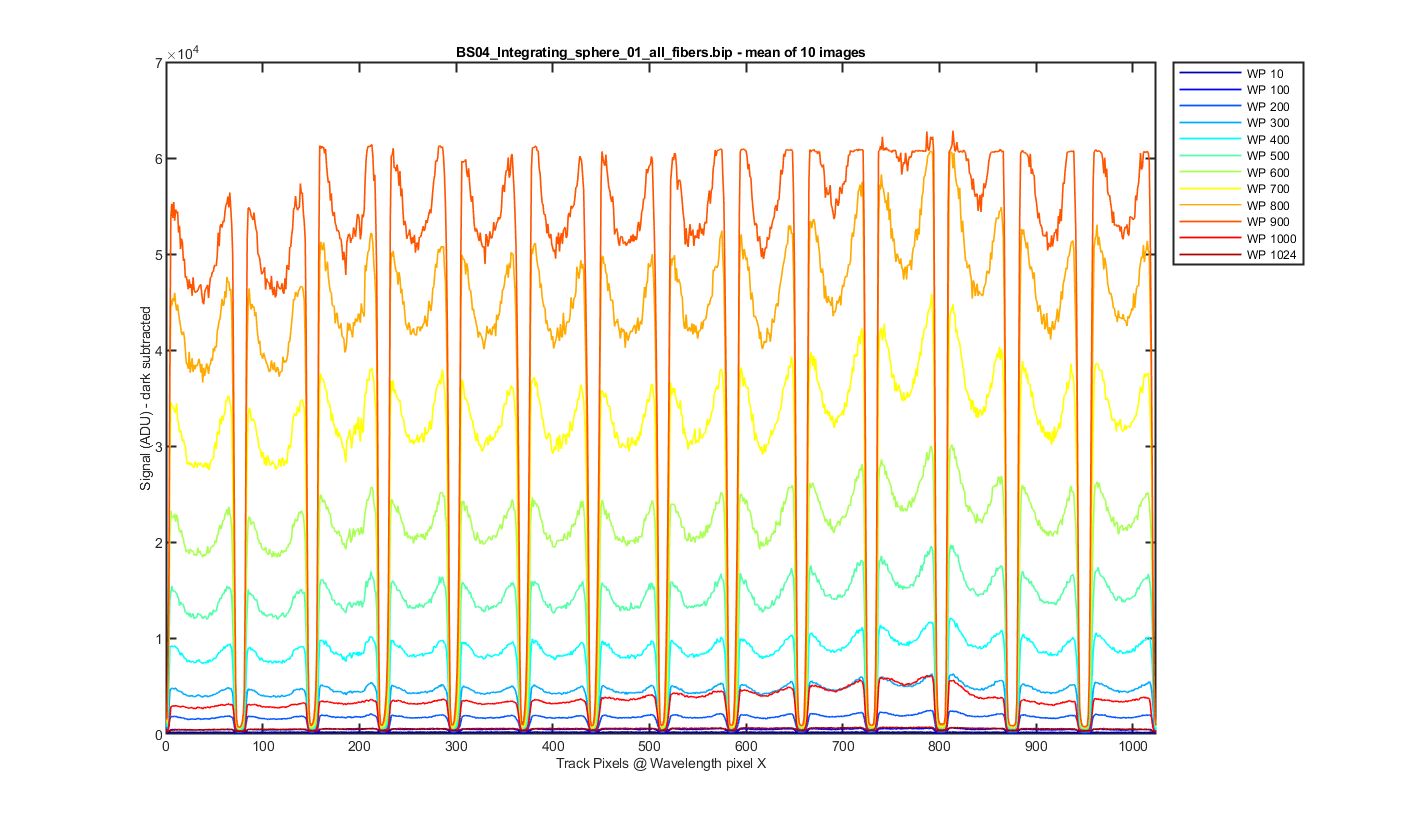

Figure 5 Again this is the mean image with slices thought the image at different wavelength pixels.

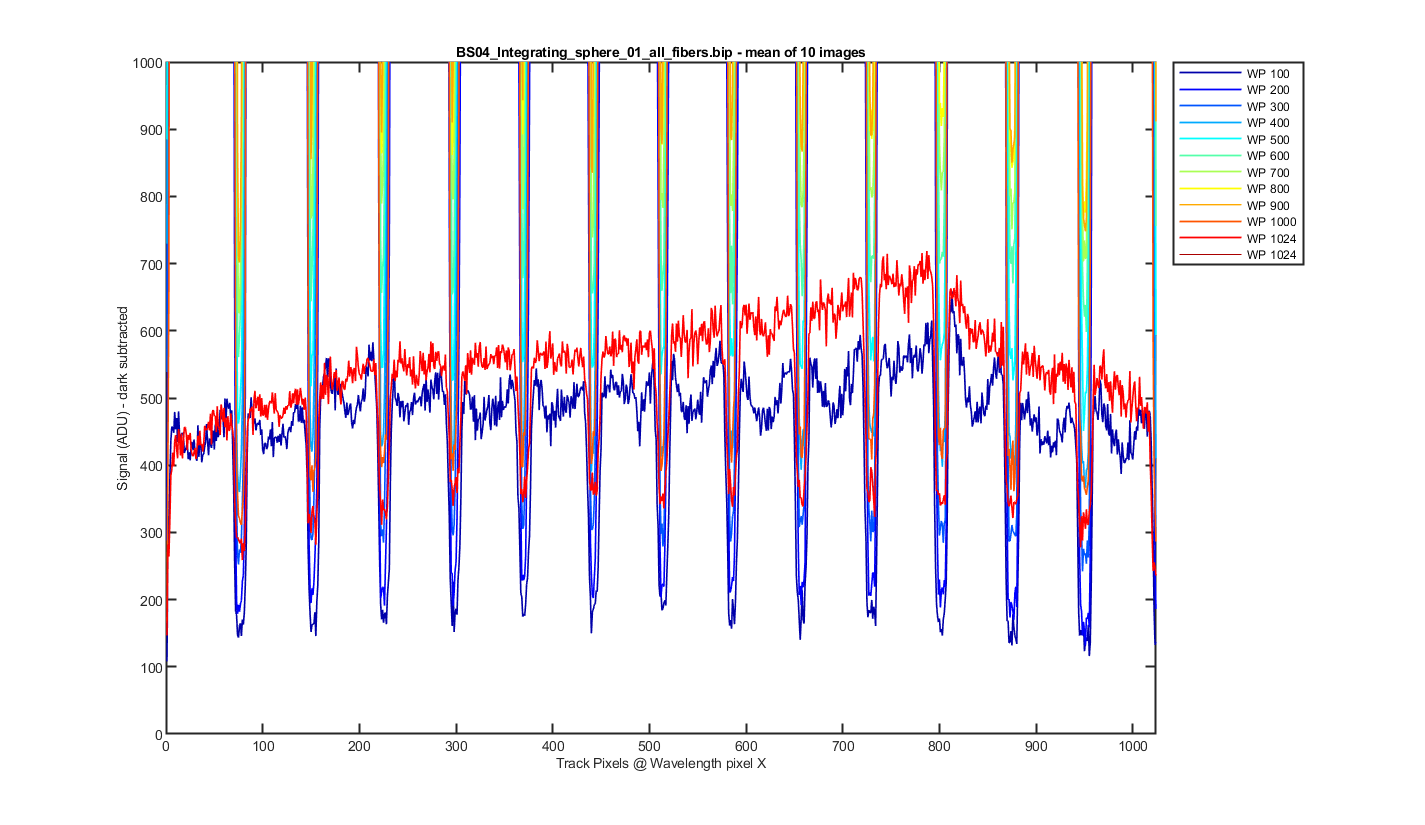

Figure 6 Same as figure 5 but zoomed to the bottom so you can see the darks between the tracks.

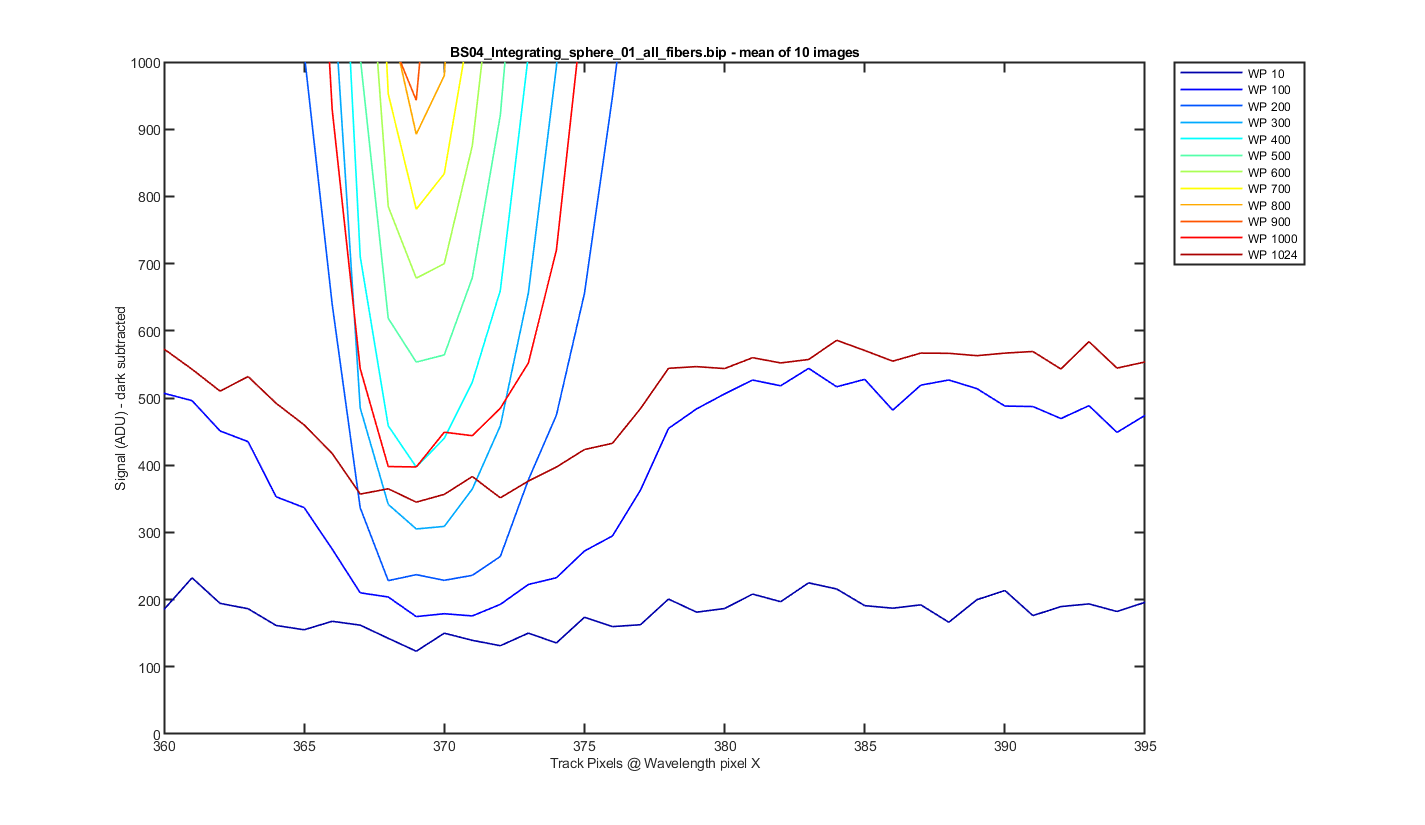

Figure 7 Same as figure 6 but zoomed to the dark space between track 5 and 6

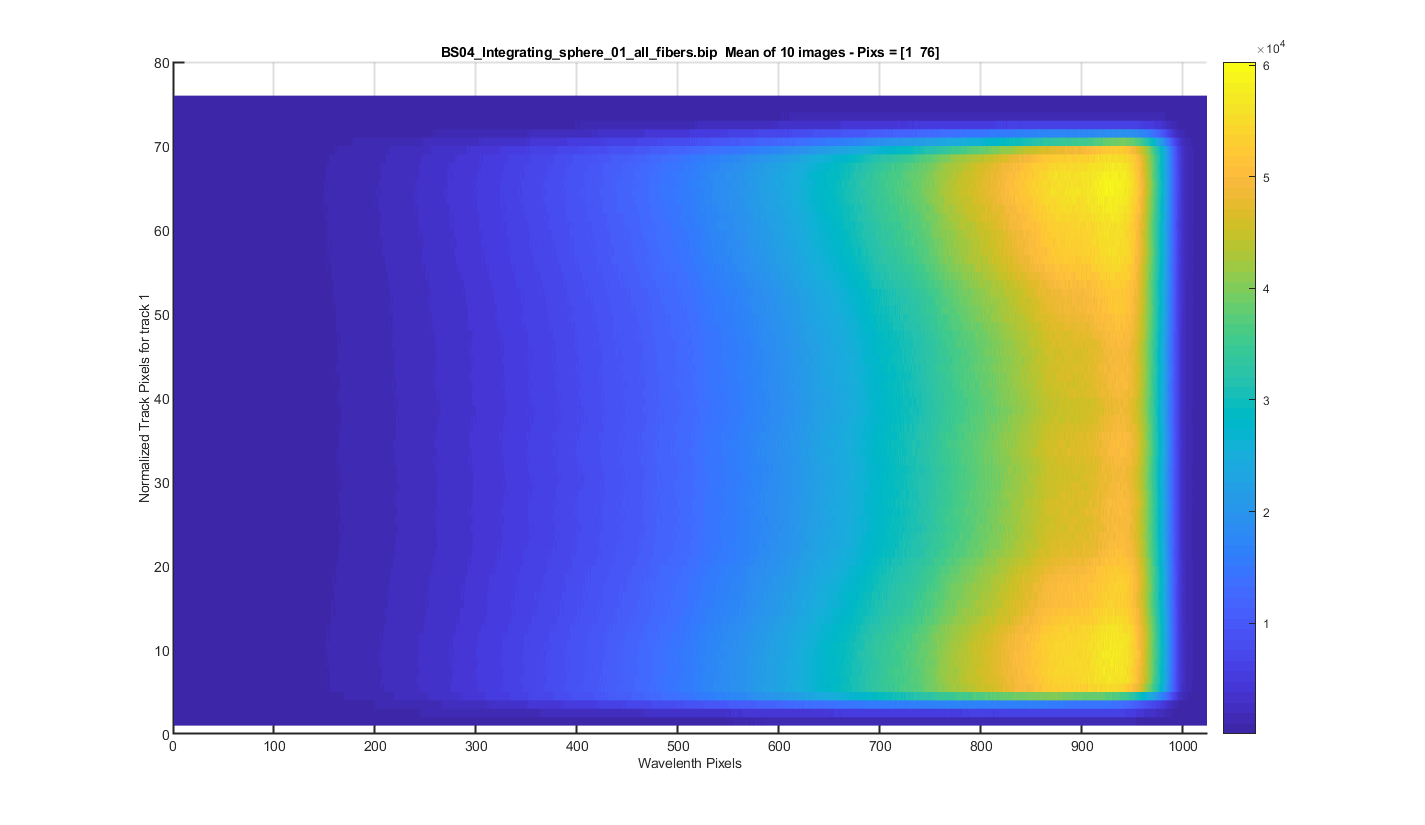

Figure 8 TRACK 1: The meaned image surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

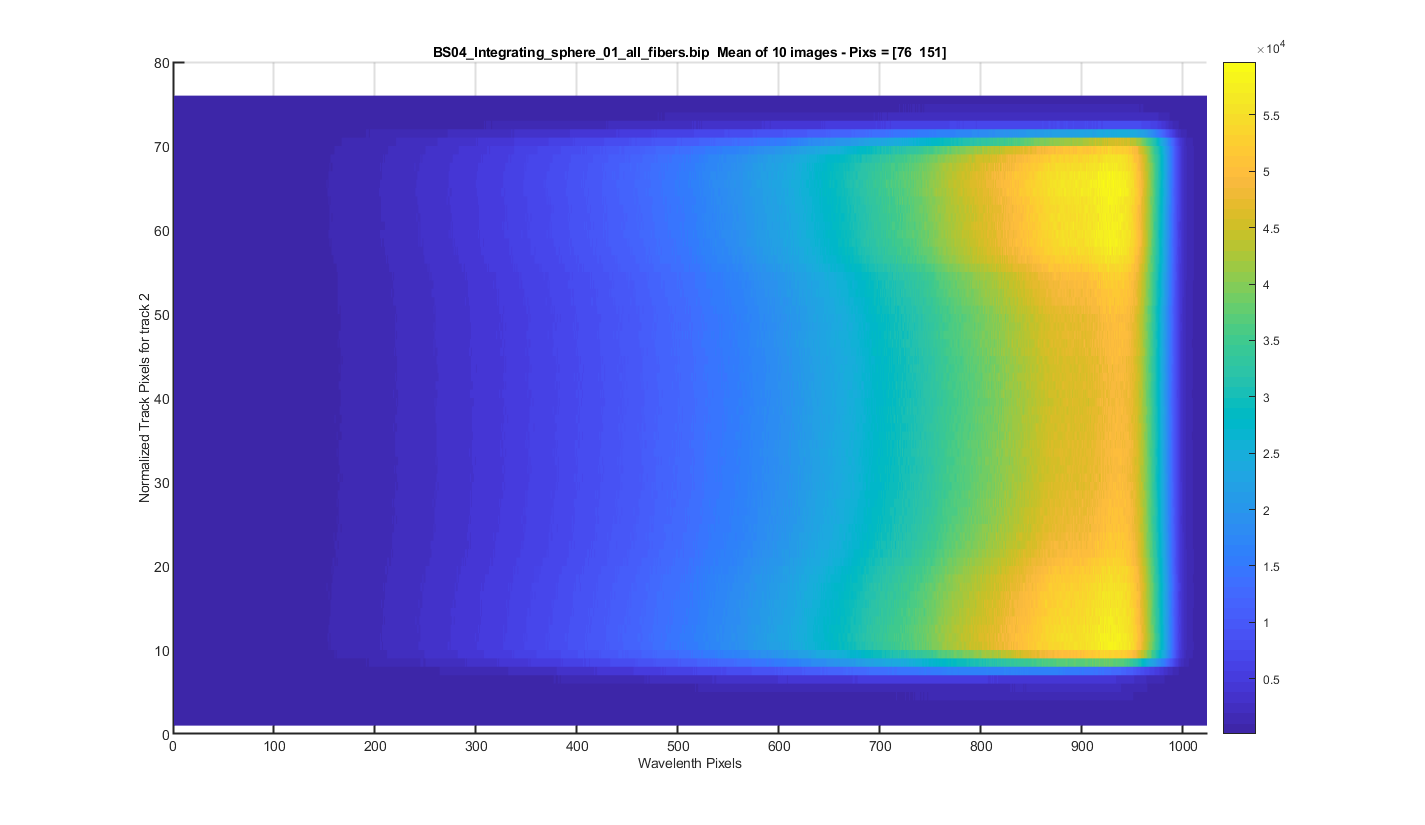

Figure 9 TRACK 2: The meaned image surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

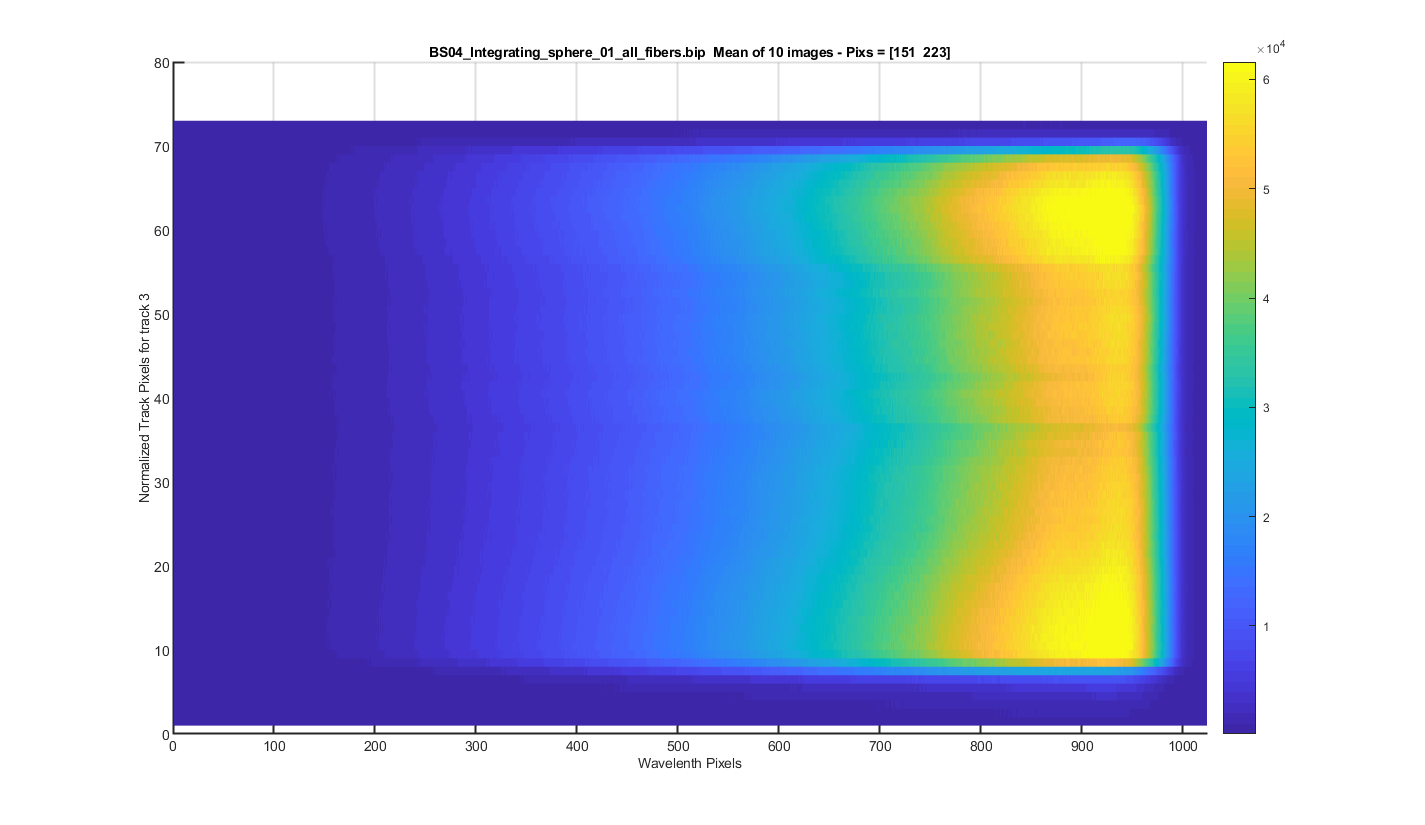

Figure 10 TRACK 3: The meaned image surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

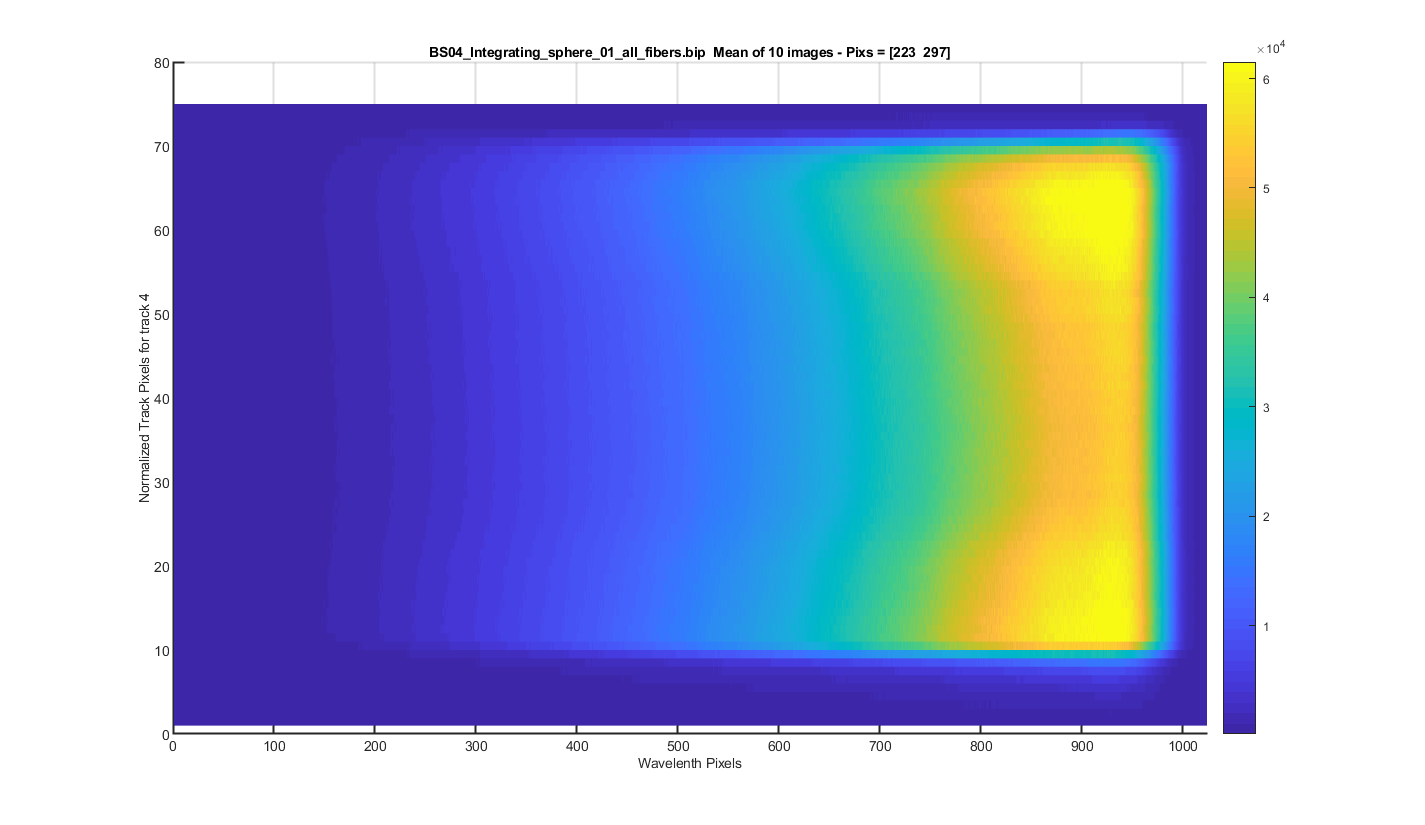

Figure 11 TRACK 4: The meaned image surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

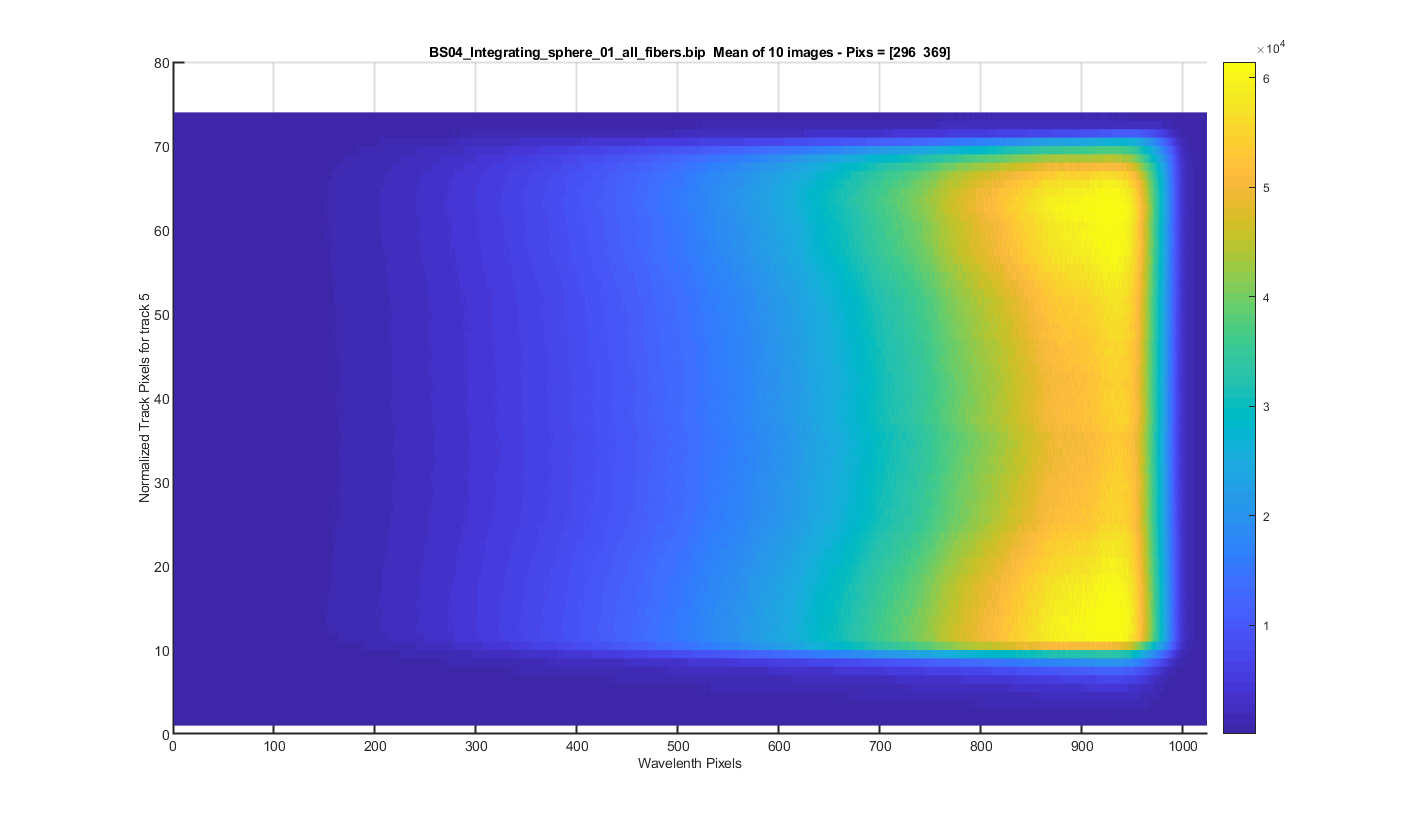

Figure 12 TRACK 5: The meaned image surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

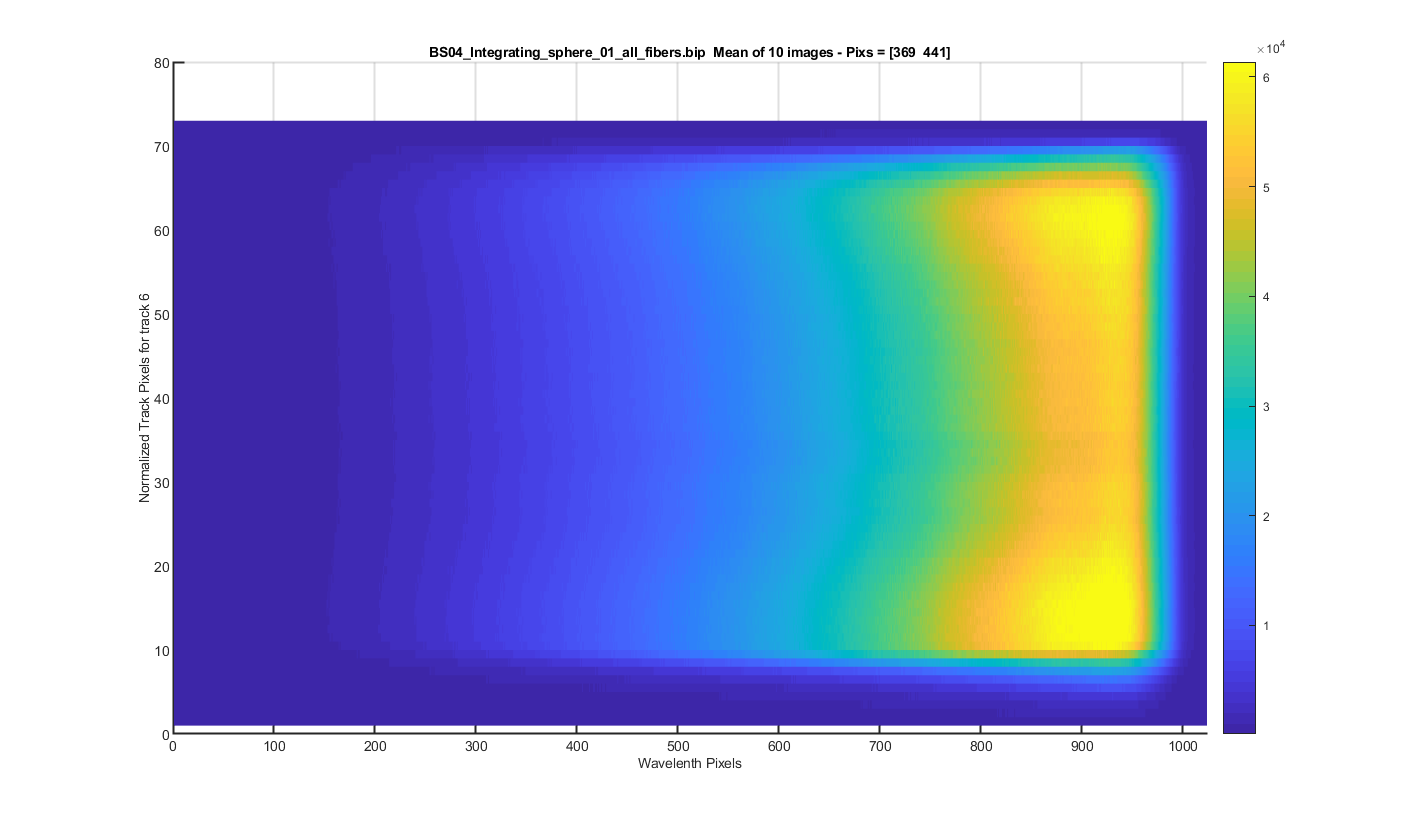

Figure 13 TRACK 6: The meaned image surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

Figure 14 TRACK 7: The meaned image surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

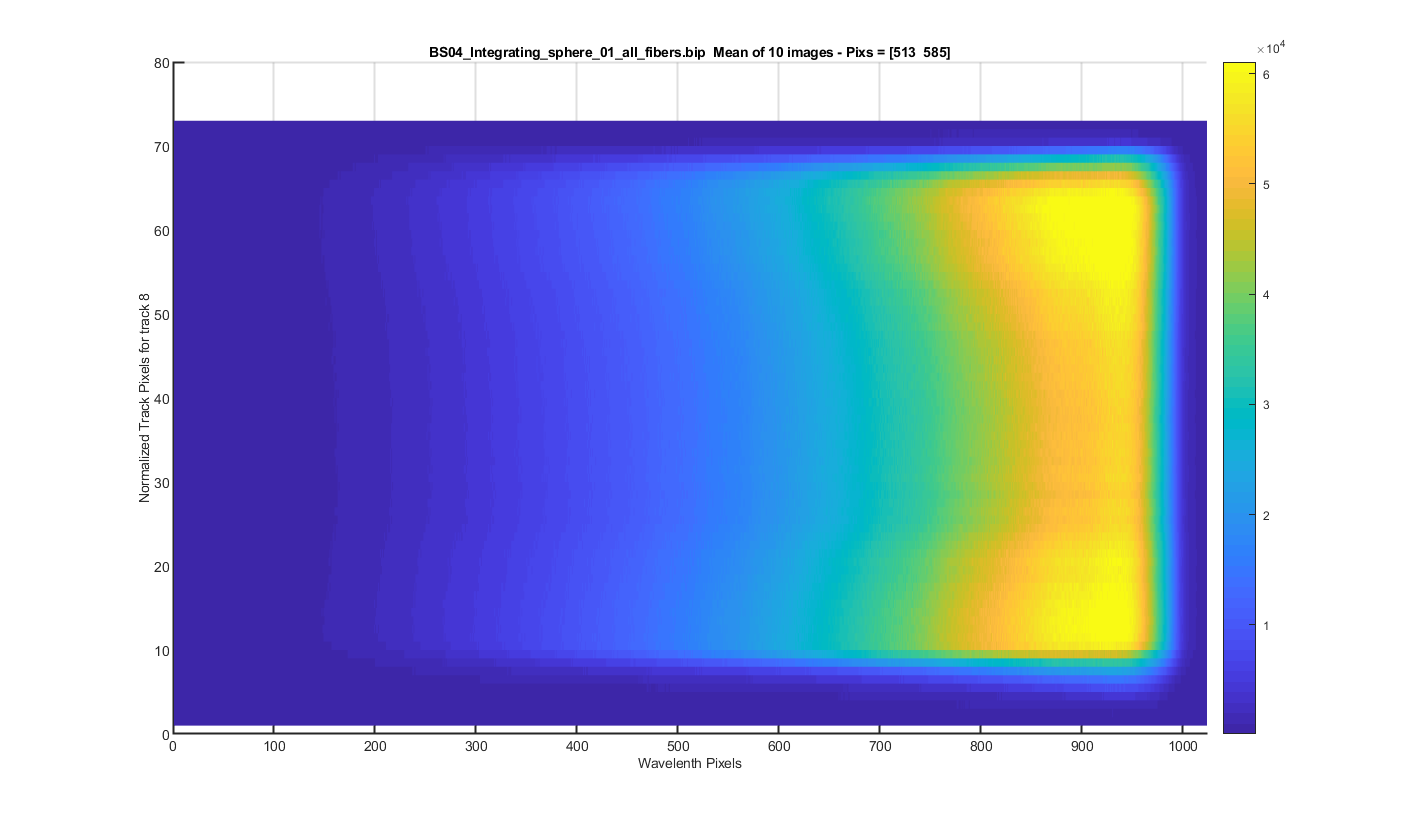

Figure 15 TRACK 8: The meaned image surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

Figure 16 TRACK 9: The meaned image surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

Figure 17 TRACK 10: The meaned image surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

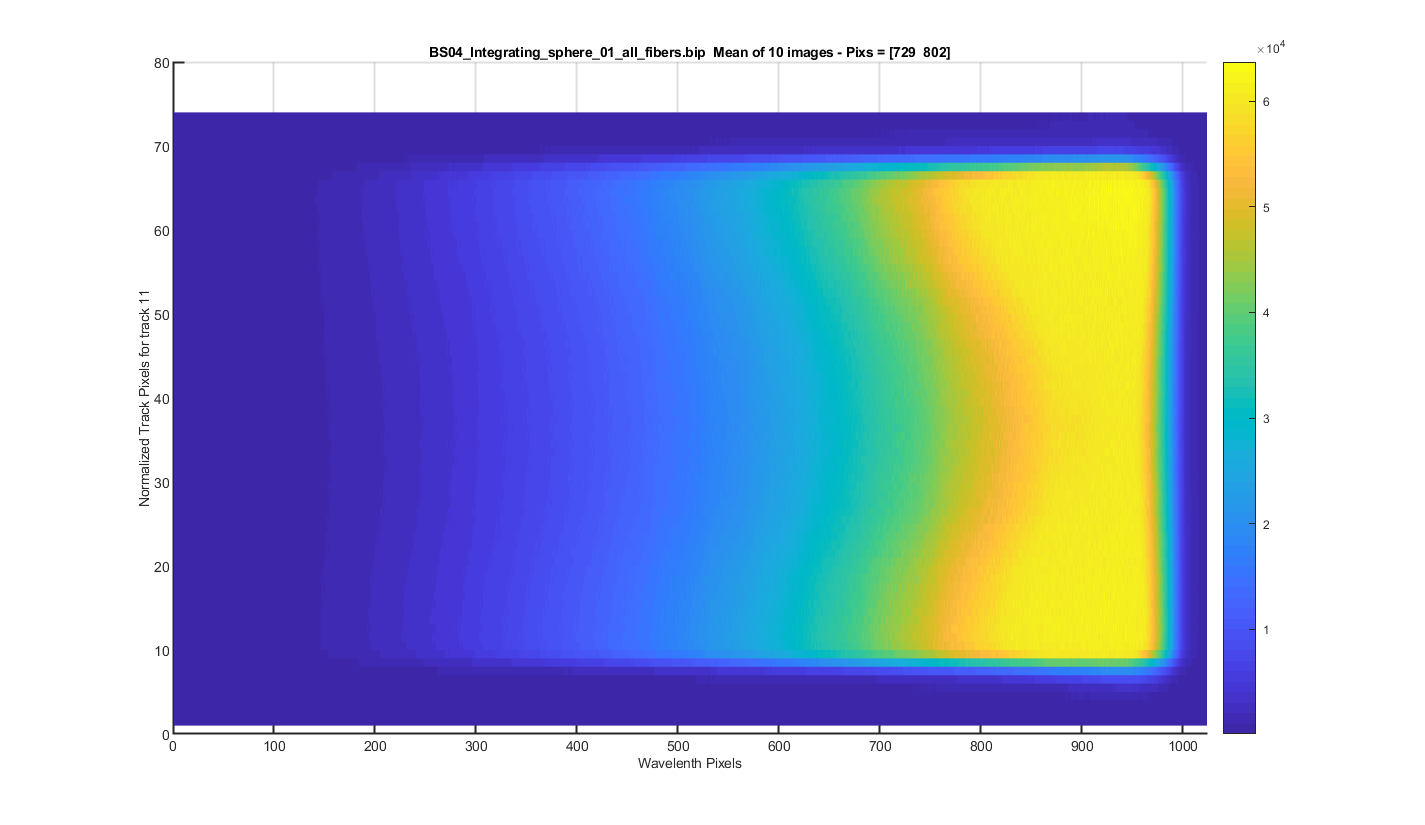

Figure 18 TRACK 11: The meaned image surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

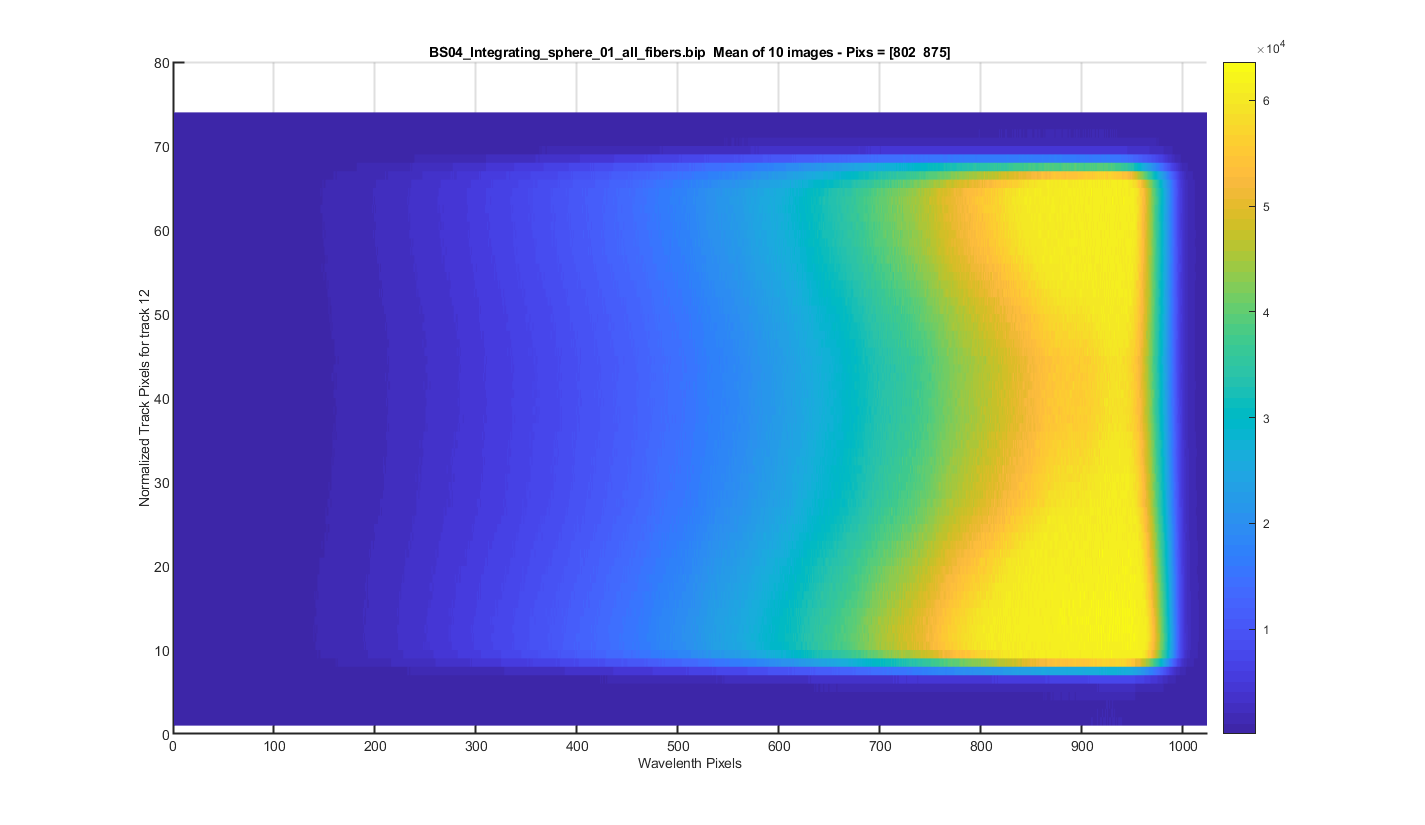

Figure 19 TRACK 12: The meaned image surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

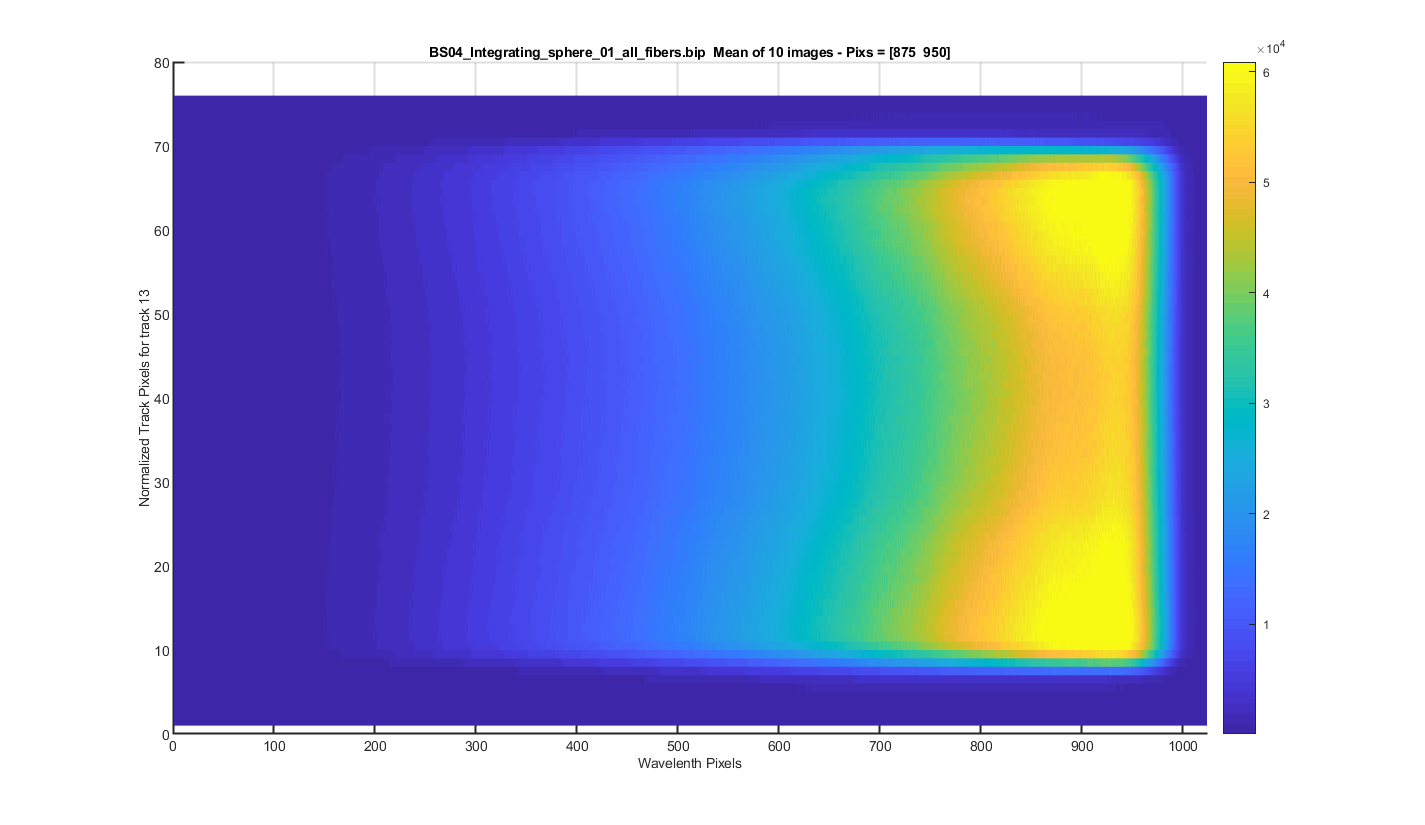

Figure 20 TRACK 13: The meaned image surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

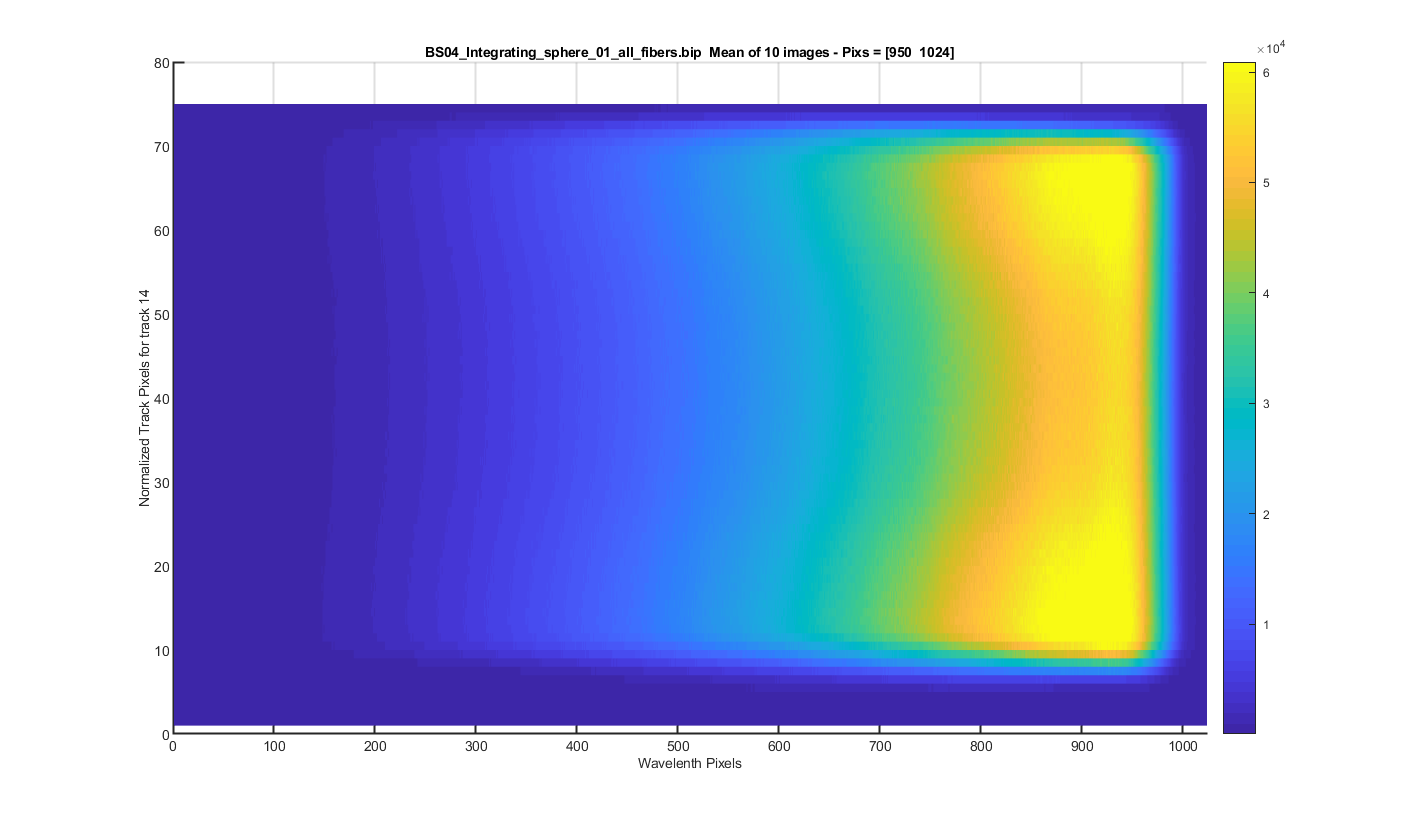

Figure 21 TRACK 14: The meaned image surface plot but for only one track so you can see each track zoomed in. The y-axis is the relative pixel for that track. The title contains the real pixels. I clicked to get these track positions so this will need to be refined in the future.

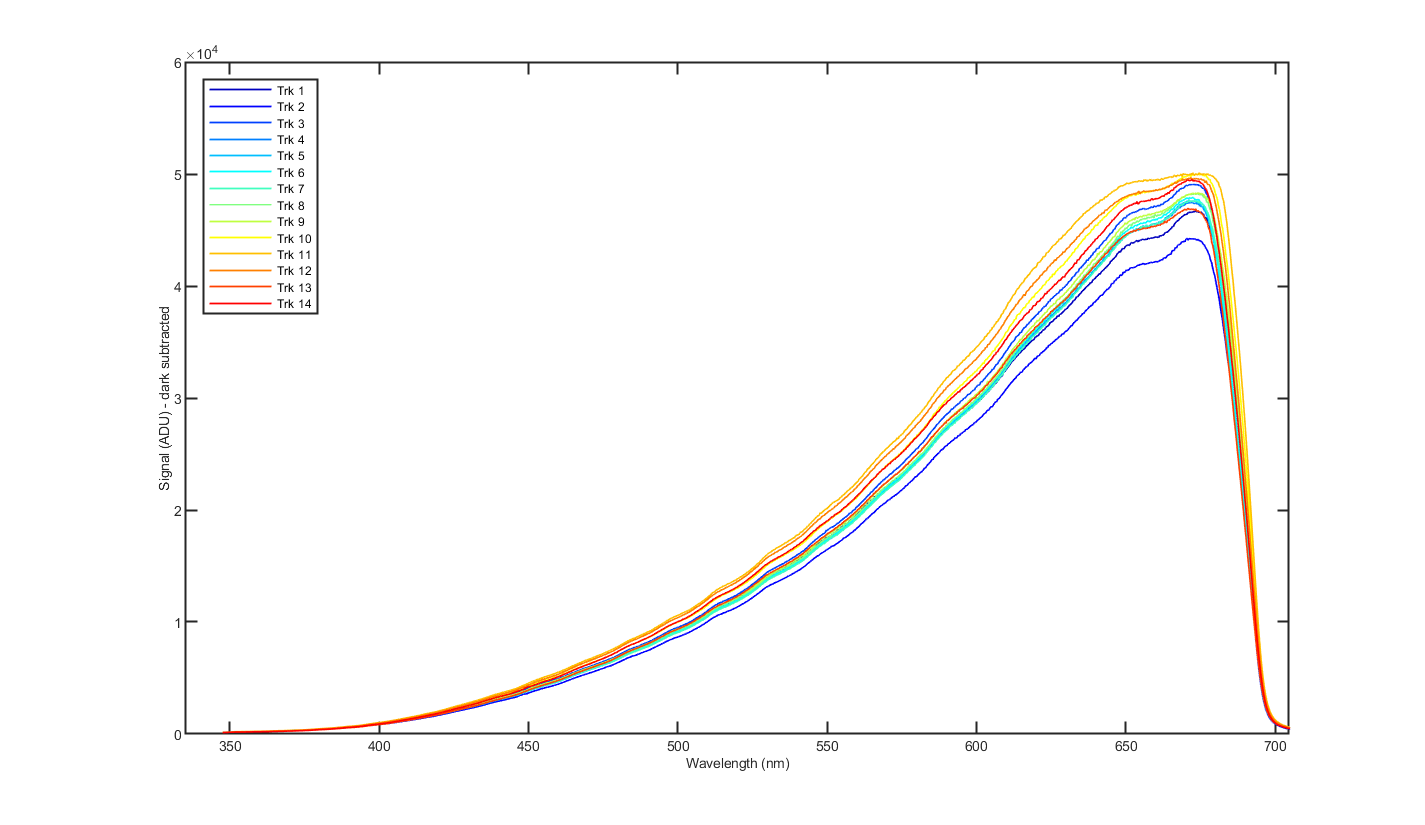

Figure 22 Signal in ADU but dark subtracted

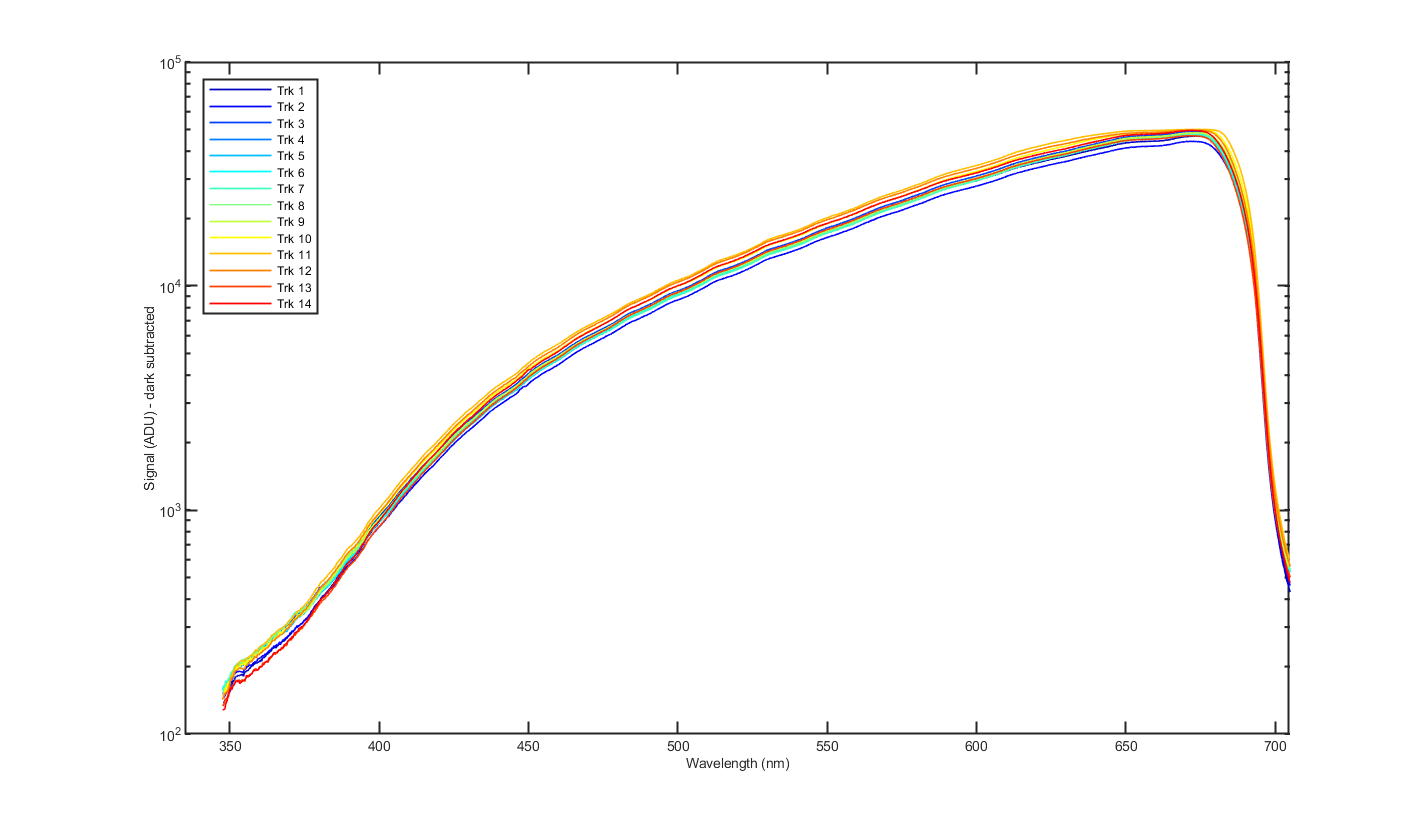

Figure 23 Signal in ADU but dark subtracted - log scale

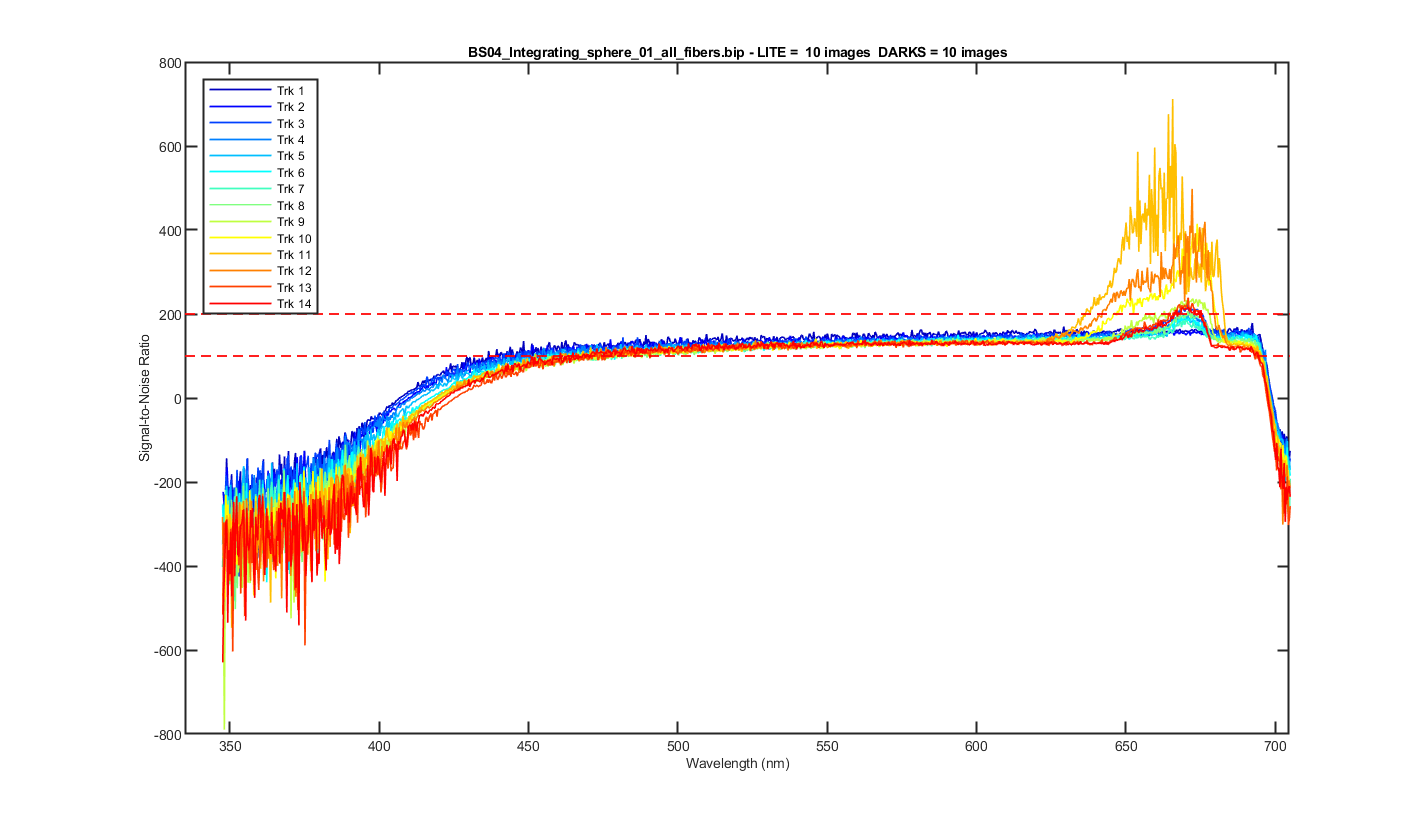

Figure 24 Signal to Noise Ratio for each track
