plt_20160401_dark100ms_ - RS1

REVISION DATE: 07-Apr-2016 12:50:21


Email from Mike Kehoe on 4 Dec 2015 11:09 am:

Greetings All,

Casey has finished his testing of RS1.  Please find the pre-delivery report attached.  Test data is available at the usual site:

-Mike

Below are my graphs of the dark_sphere_100ms.bip file. The file contains 30 dark images at 0.1 sec Note some graphs are dark corrected and some are not so check the axis labels to know what you are looking at.


I removed all the data greater than 5300 and less than 1900 and then meaned all 30 images to get the surface below.

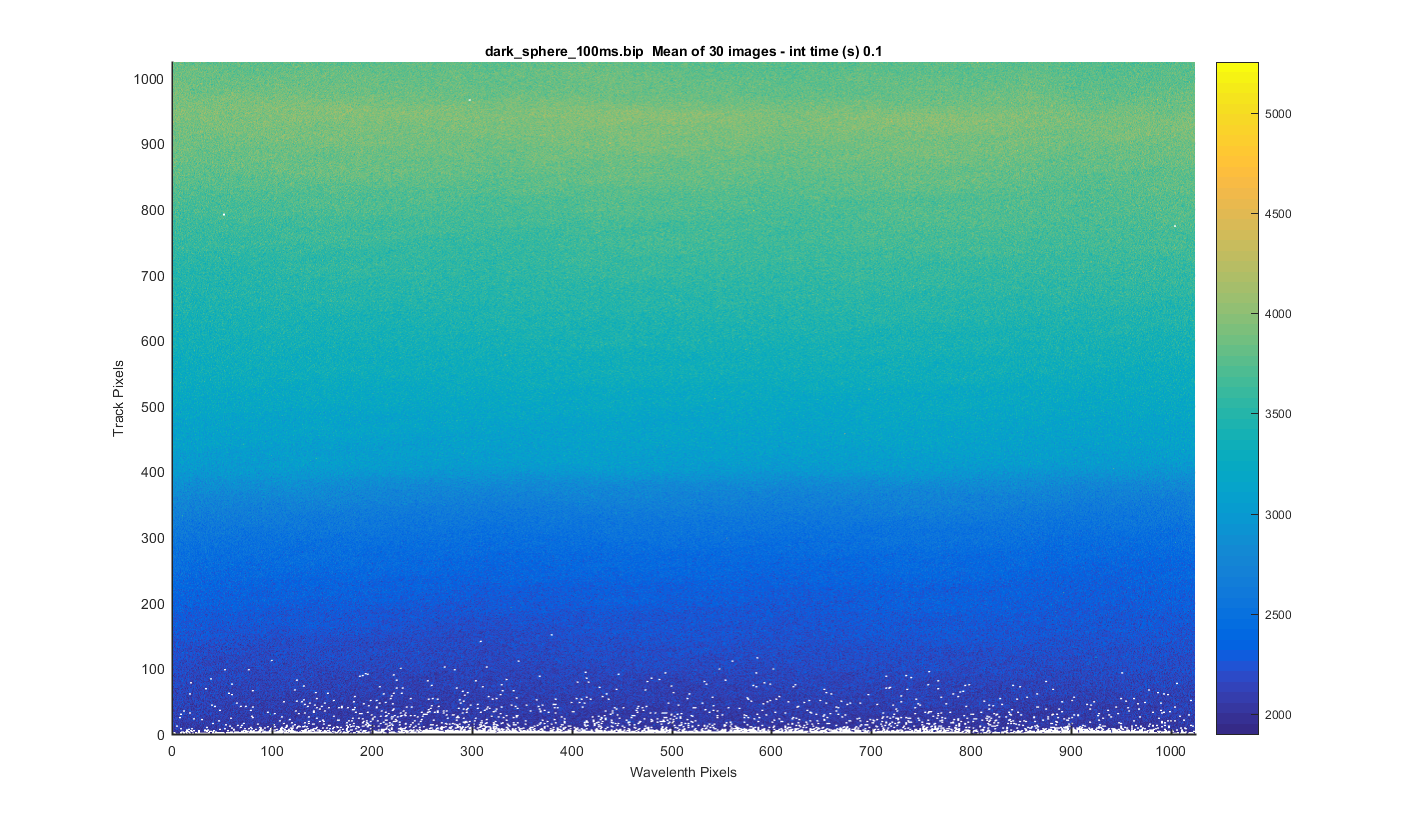

Figure 1


This is a cross section through the tracks at a number of wavelength pixels, from the mean image. Interesting shape, the BS1 darks look the similar.

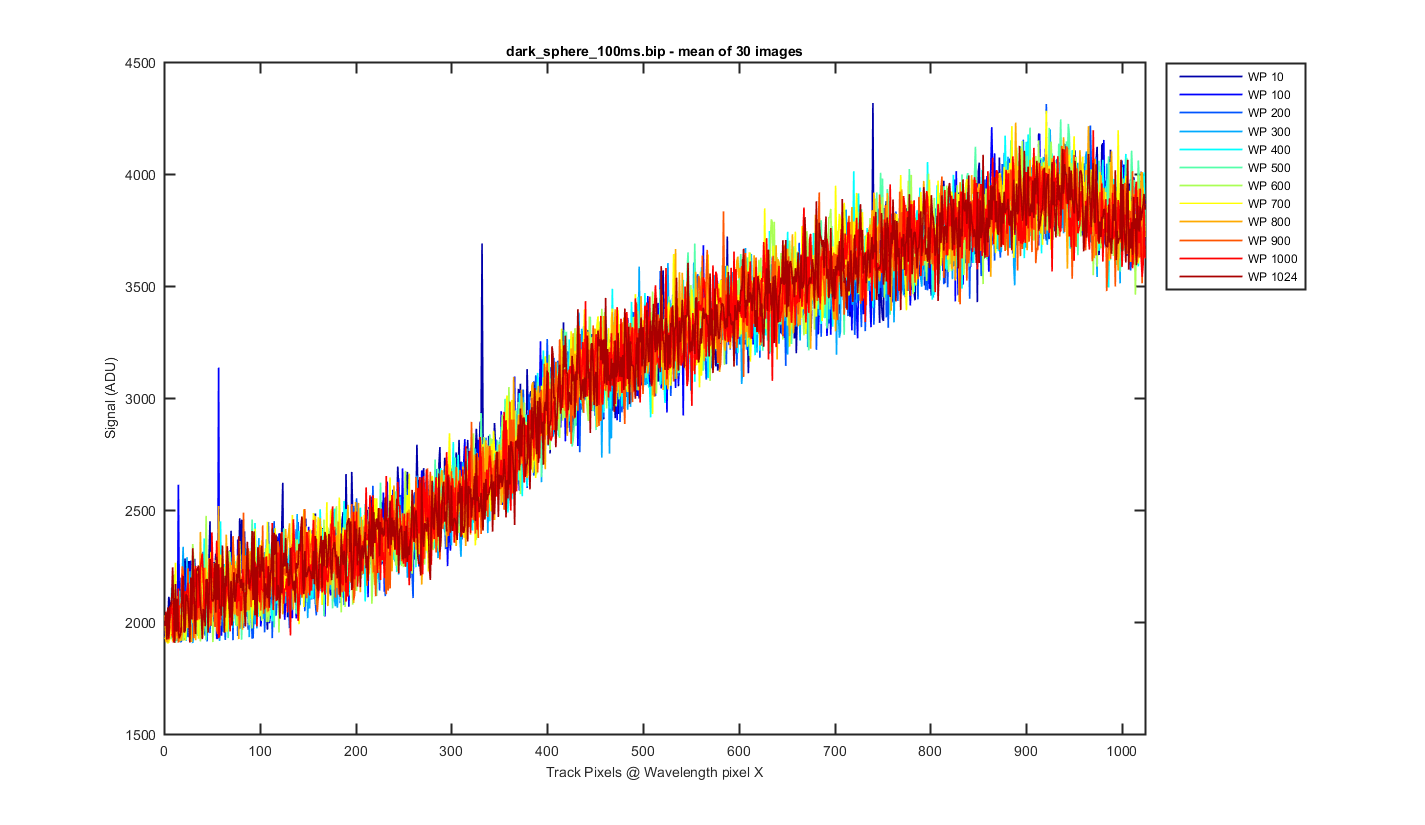

Figure 2


The darks for each track from the mean dark image.

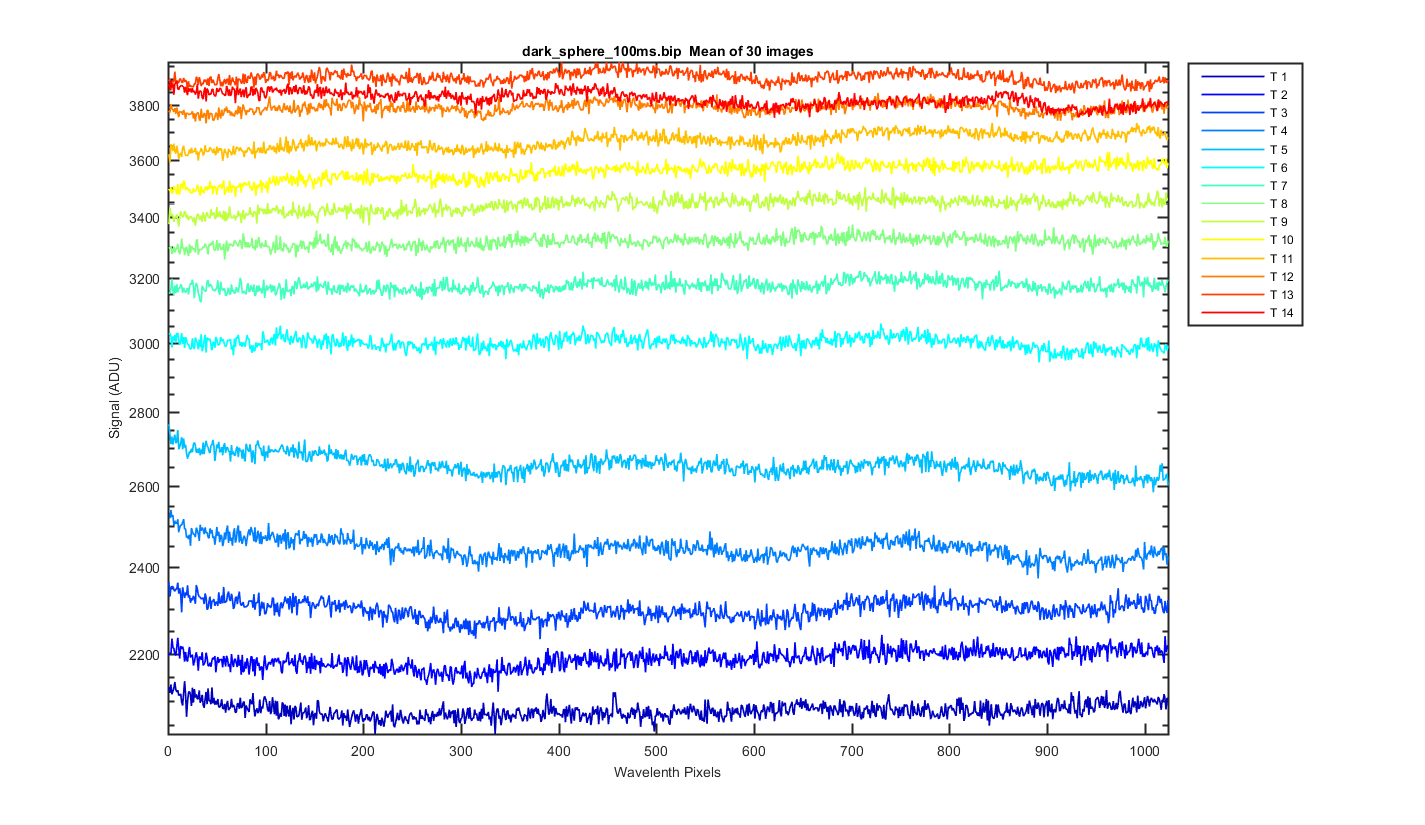

Figure 3


The darks for each track from the 30 dark images (so there are 30 for each track).

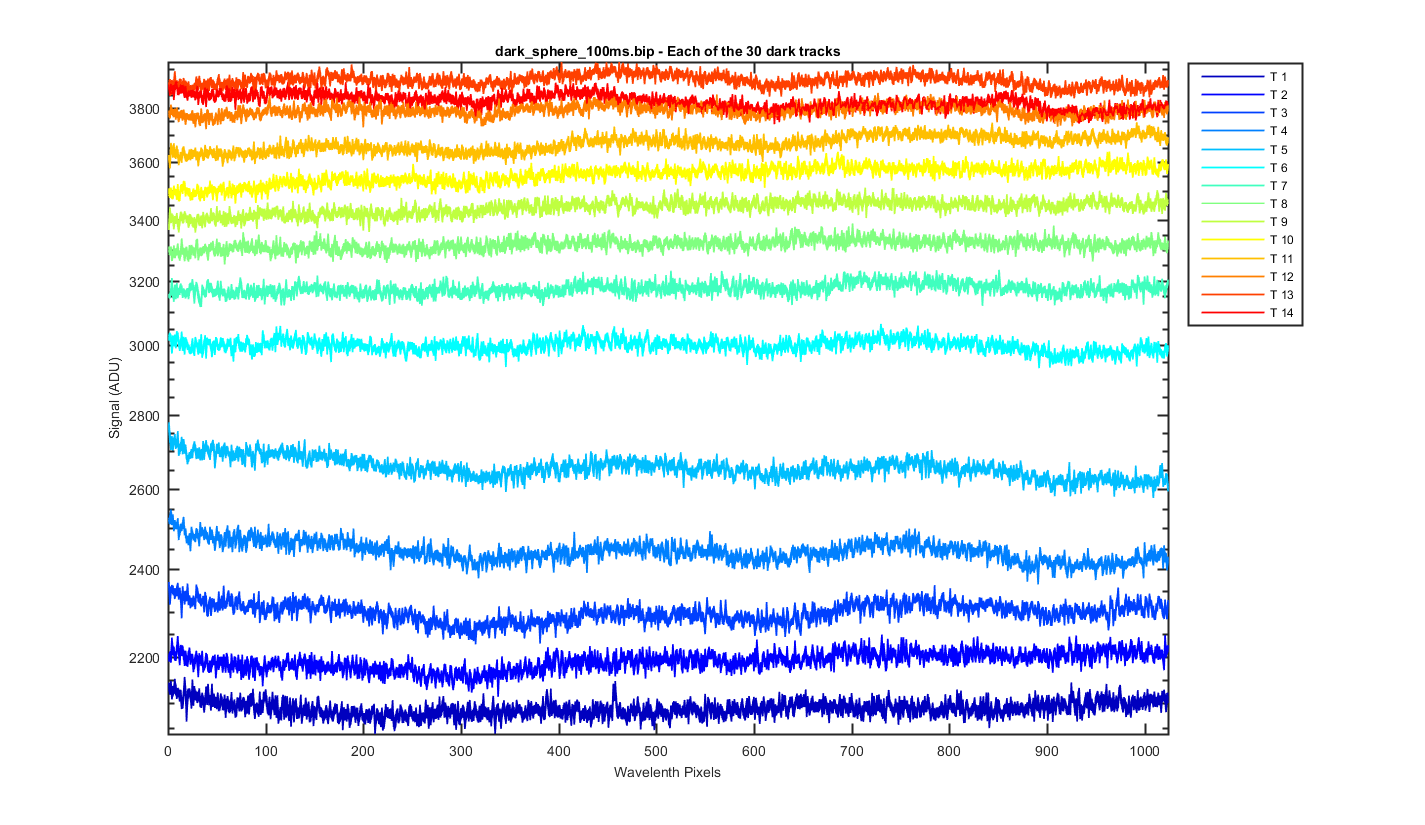

Figure 4

pwd: E:\zflora\mldata\mobyrefresh\characterizations\configs\rs1cfg001\20160401
Date: 07-Apr-2016 12:50:21
Created from plt_20160401_dark100ms_(1)
