REVISION DATE: 17-Oct-2019 15:10:50

The Heilum wave cal data.

Below are my graphs of the helium data. The file contains 10 images of the helium lamp source. All the data are dark subtracted. See each graph below for more detail.

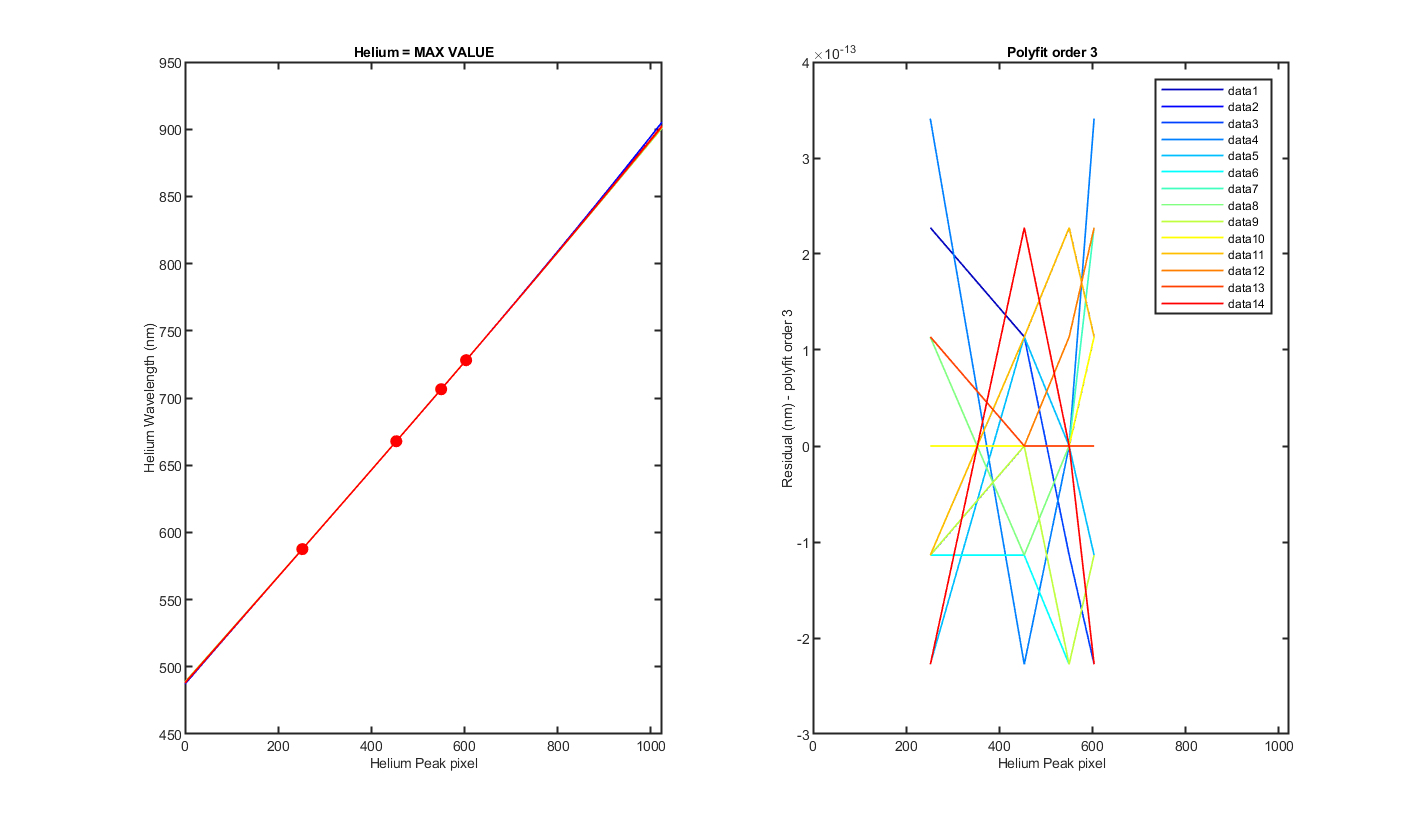

Track Wavelength fits:
P(1,:) = [3.828786e-09  7.751748e-06     0.3910461      488.4811]
P(2,:) = [2.453971e-08 -1.870049e-05     0.4016803      487.1604]
P(3,:) = [6.946842e-09   3.77914e-06     0.3924864      488.3621]
P(4,:) = [4.790401e-09  6.626247e-06     0.3912898      488.5511]
P(5,:) = [6.776549e-09  3.978472e-06     0.3923928      488.4194]
P(6,:) = [4.935907e-09  6.399447e-06      0.391385      488.5803]
P(7,:) = [3.27769e-09  8.552756e-06     0.3904983      488.7092]
P(8,:) = [1.856823e-09  1.043317e-05      0.389733      488.8049]
P(9,:) = [4.650645e-09  6.750348e-06      0.391279      488.5755]
P(10,:) = [7.555786e-09   2.97266e-06     0.3928566      488.3453]
P(11,:) = [5.785557e-09  5.330276e-06     0.3918997       488.458]
P(12,:) = [6.910265e-09  3.859191e-06       0.39253      488.3366]
P(13,:) = [8.073549e-09  2.227248e-06     0.3933248      488.1919]
P(14,:) = [1.171282e-08 -2.621199e-06     0.3954396      487.8728]

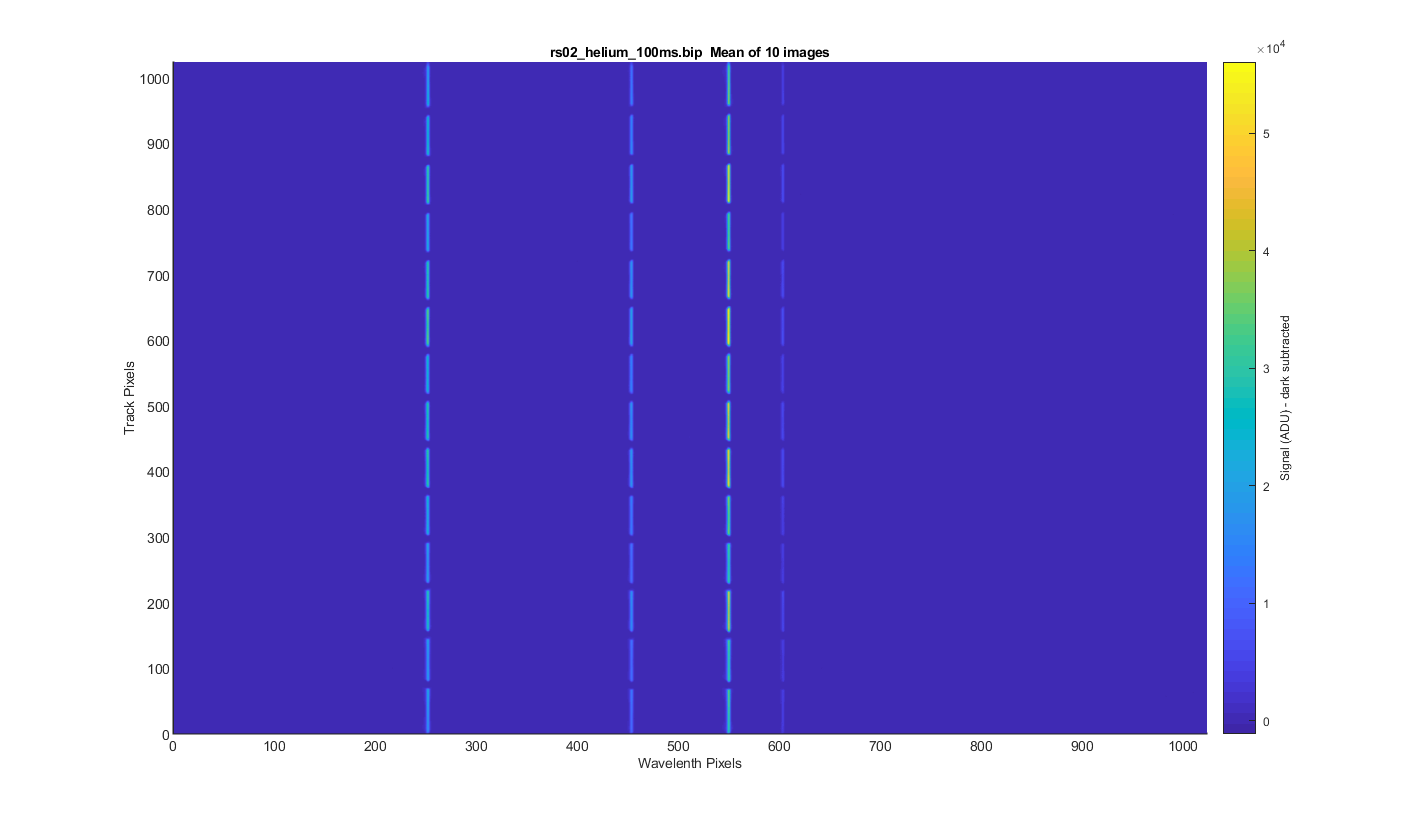

Figure 1 Resonon took dark scans for the two int times taken. So I meaned all the dark images for the 1s data and subtracted it from the data before processing. I Then took the 10 images and meaned them to get the surface plot below.

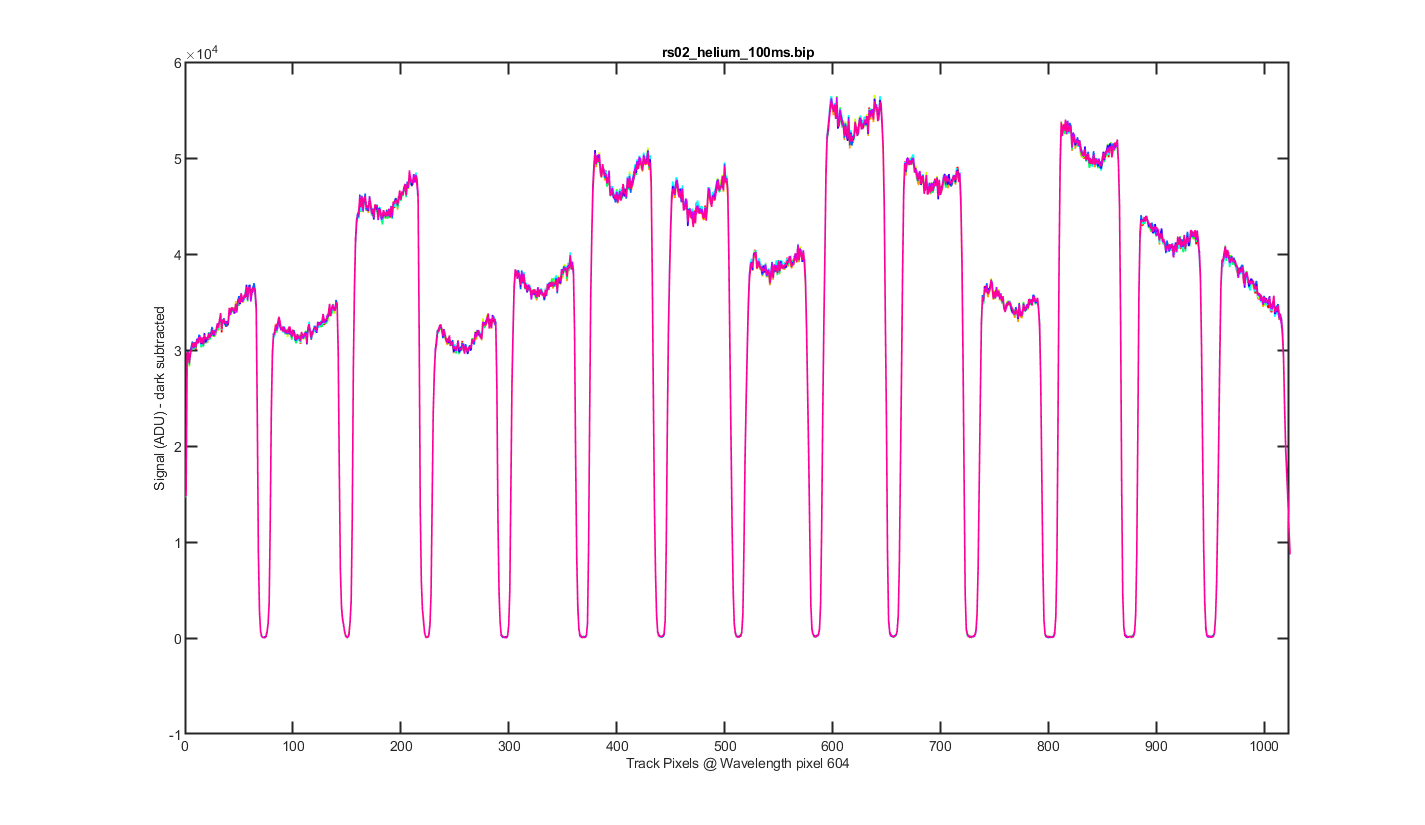

Figure 2 This is a cross section through the tracks at wavelength pixel 694, with one line for each of the 10 images. The tracks and their shapes look really stable.

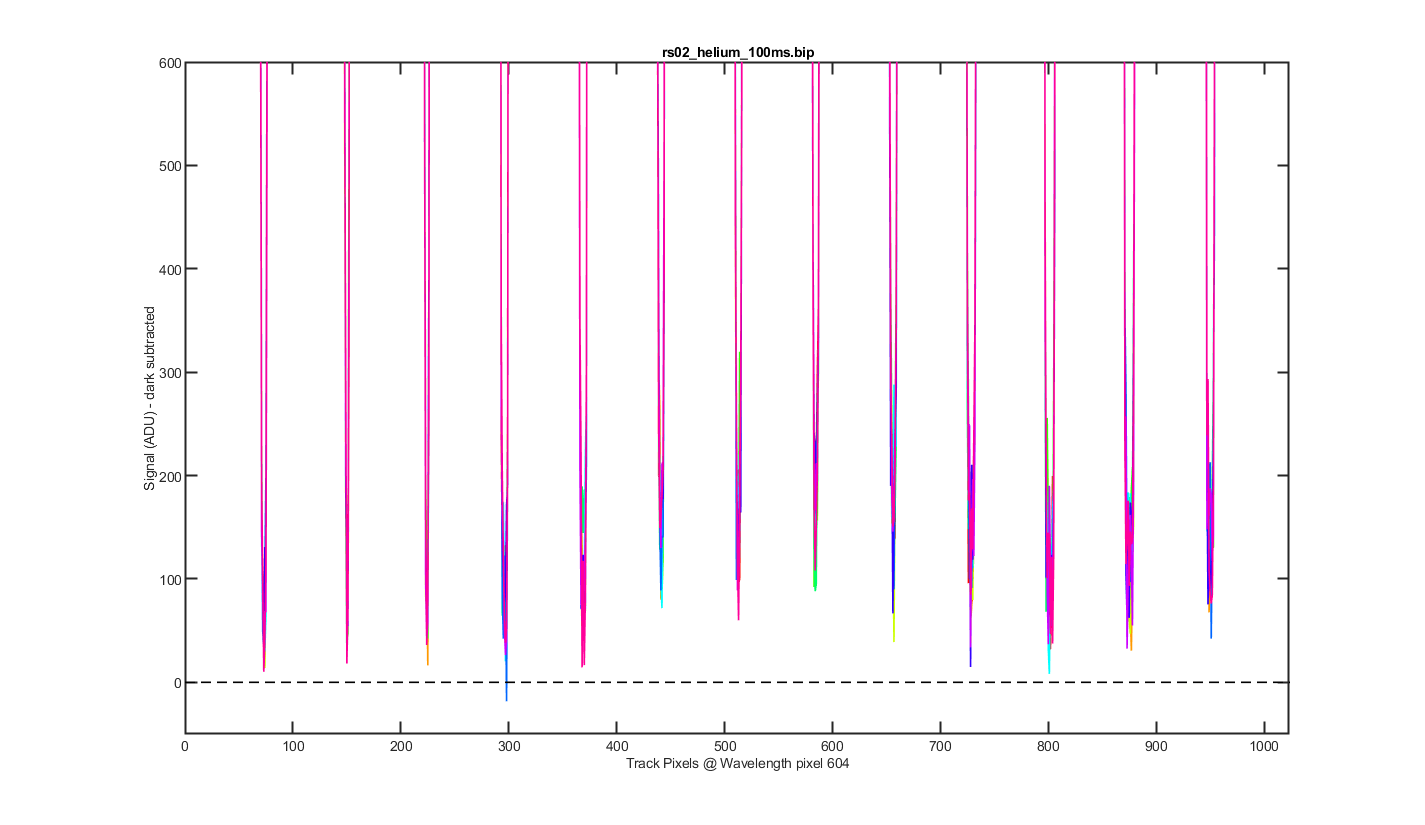

Figure 3 Same as the previous graph but zoomed into the bottom to see the level of the darks between the tracks.

Figure 4 Same as figure 2 but for Wavelength pixel 920.

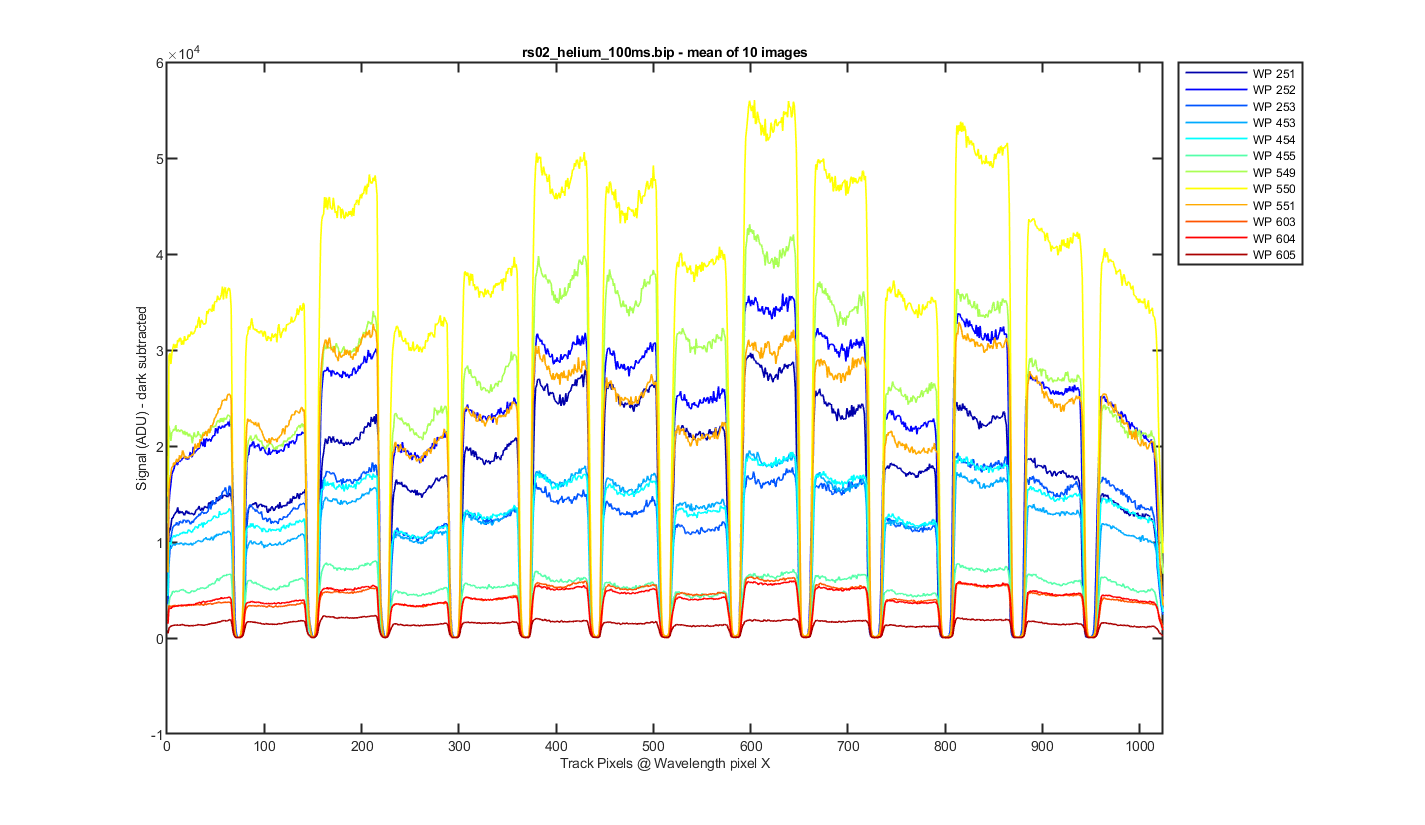

Figure 5 Again this is the mean image with slices thought the image at different wavelength pixels. The pixels choosen are where the helium peaks are and +- pixel pixel around them.

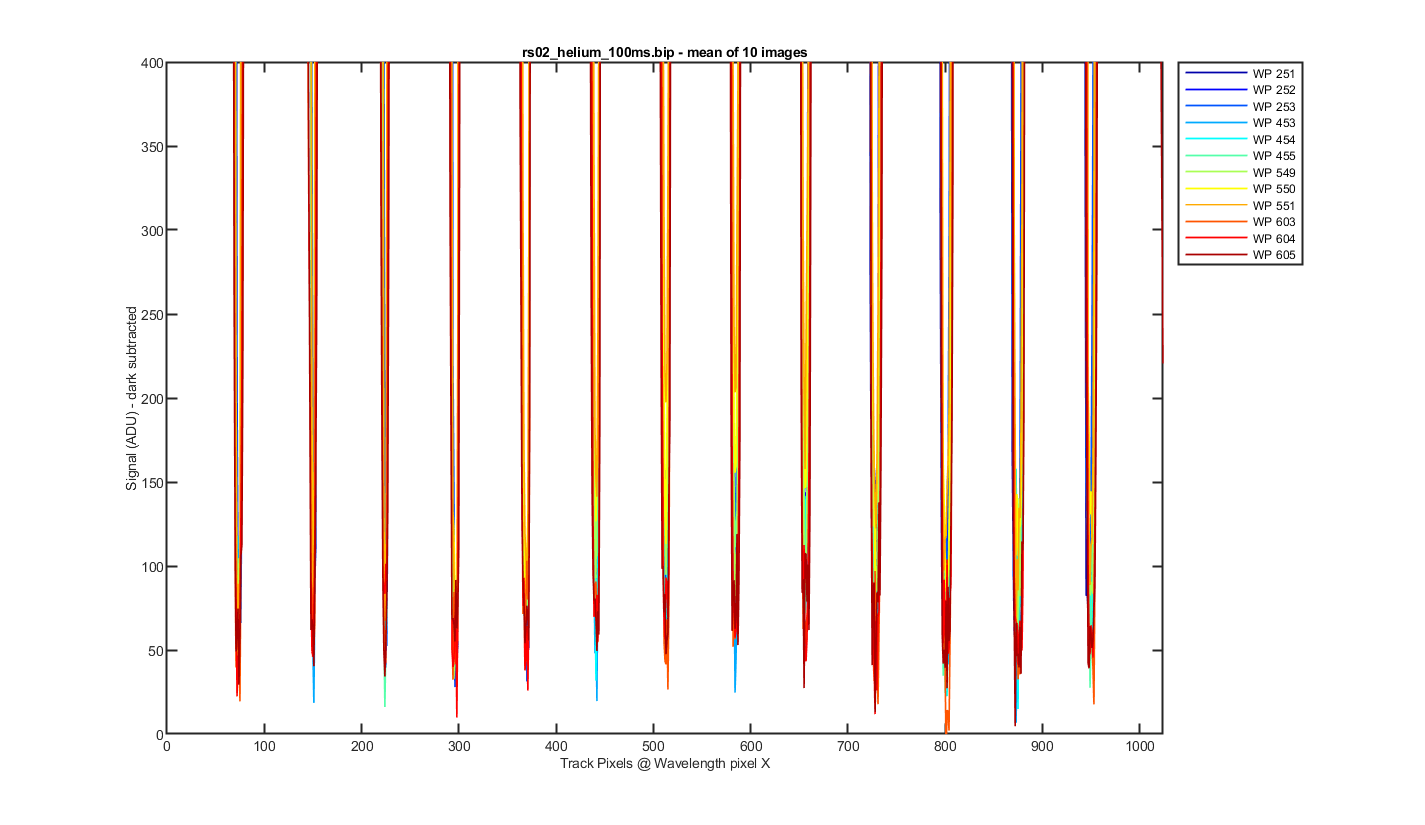

Figure 6 Same as figure 5 but zoomed to the bottom so you can see the darks between the tracks.

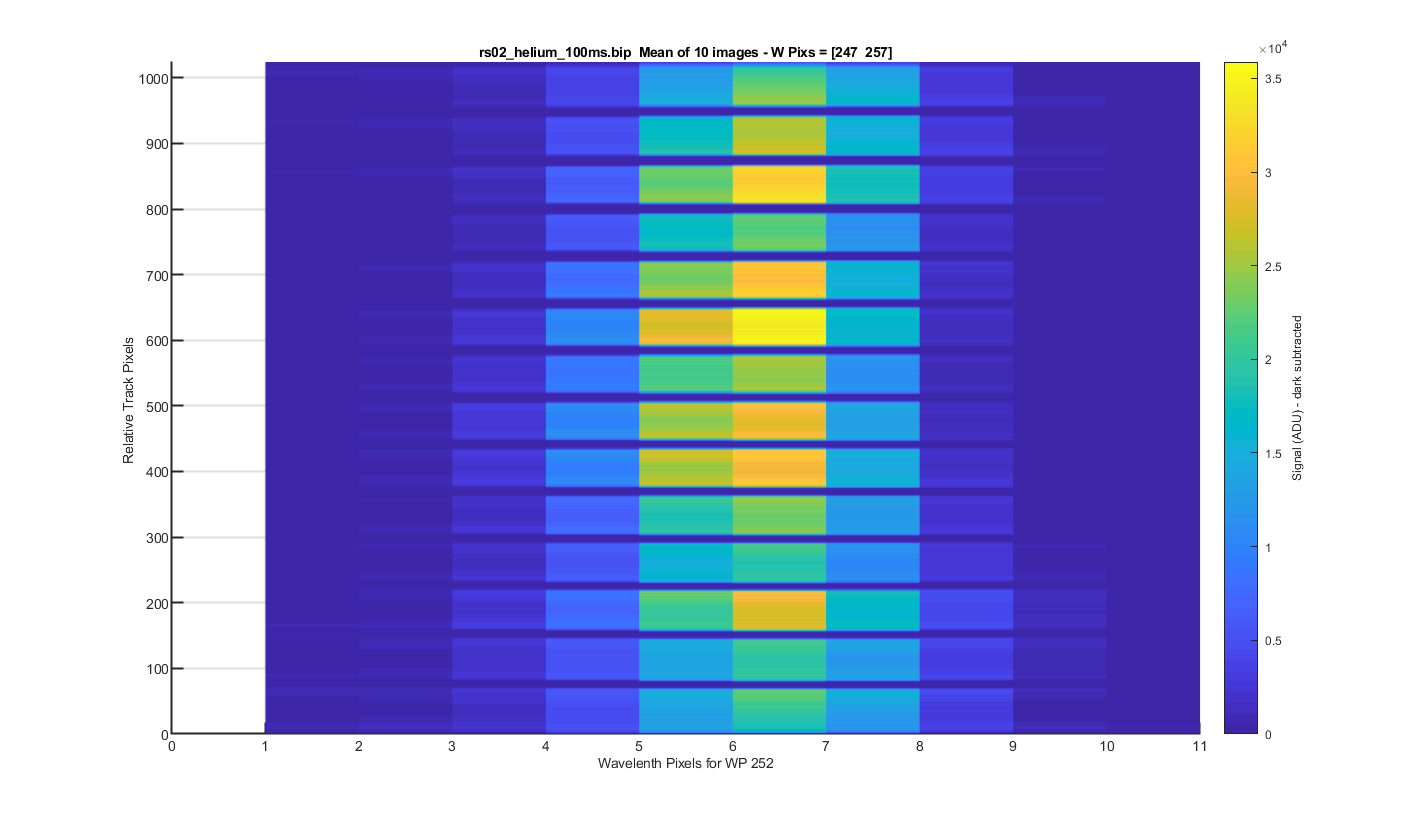

Figure 7 Helium Peak 1 (at pix 252): The same surface plot but showing how individual helium peaks line up from track to track.

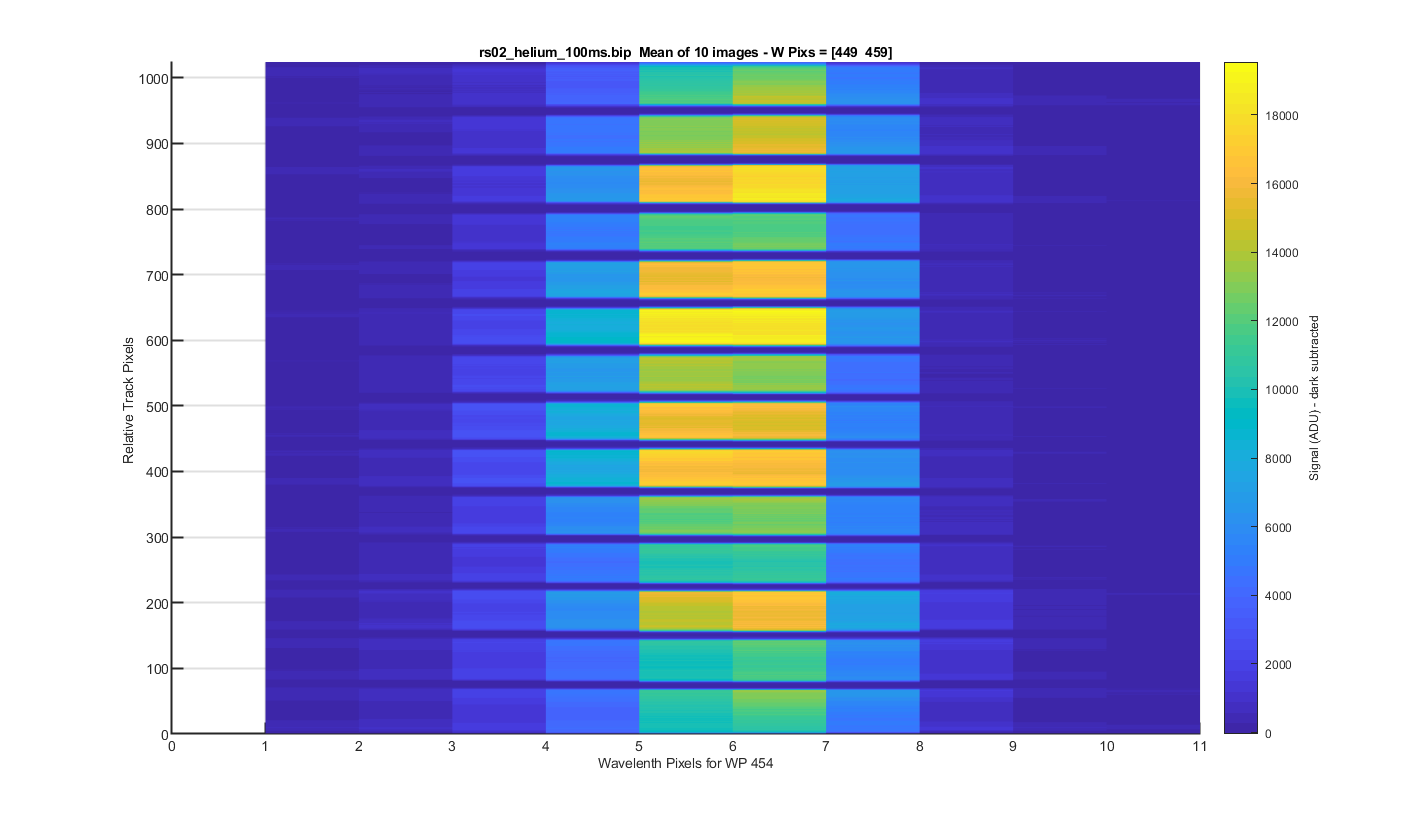

Figure 8 Helium Peak 2 (at pix 454): The same surface plot but showing how individual helium peaks line up from track to track.

Figure 9 Helium Peak 3 (at pix 550): The same surface plot but showing how individual helium peaks line up from track to track.

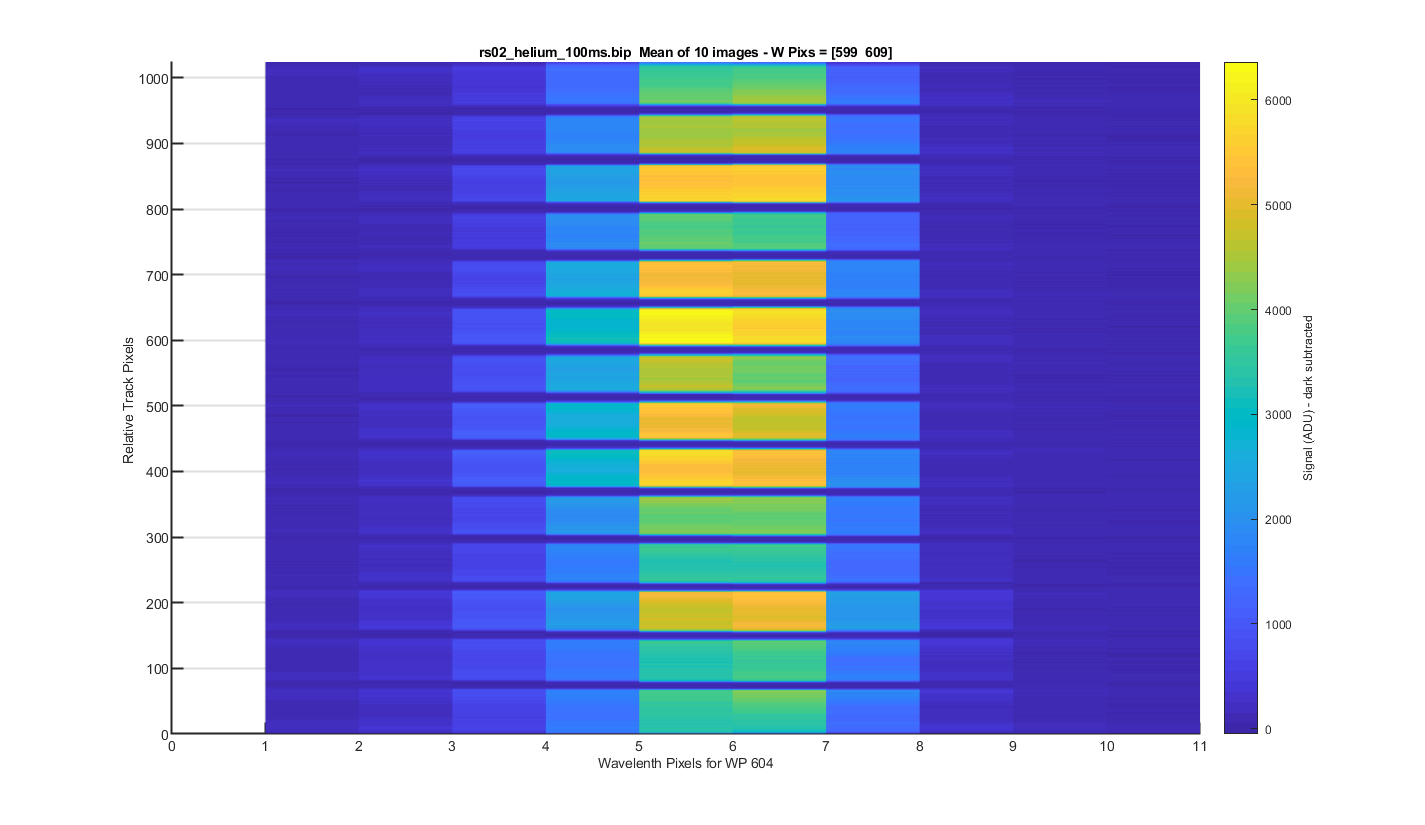

Figure 10 Helium Peak 4 (at pix 604): The same surface plot but showing how individual helium peaks line up from track to track.

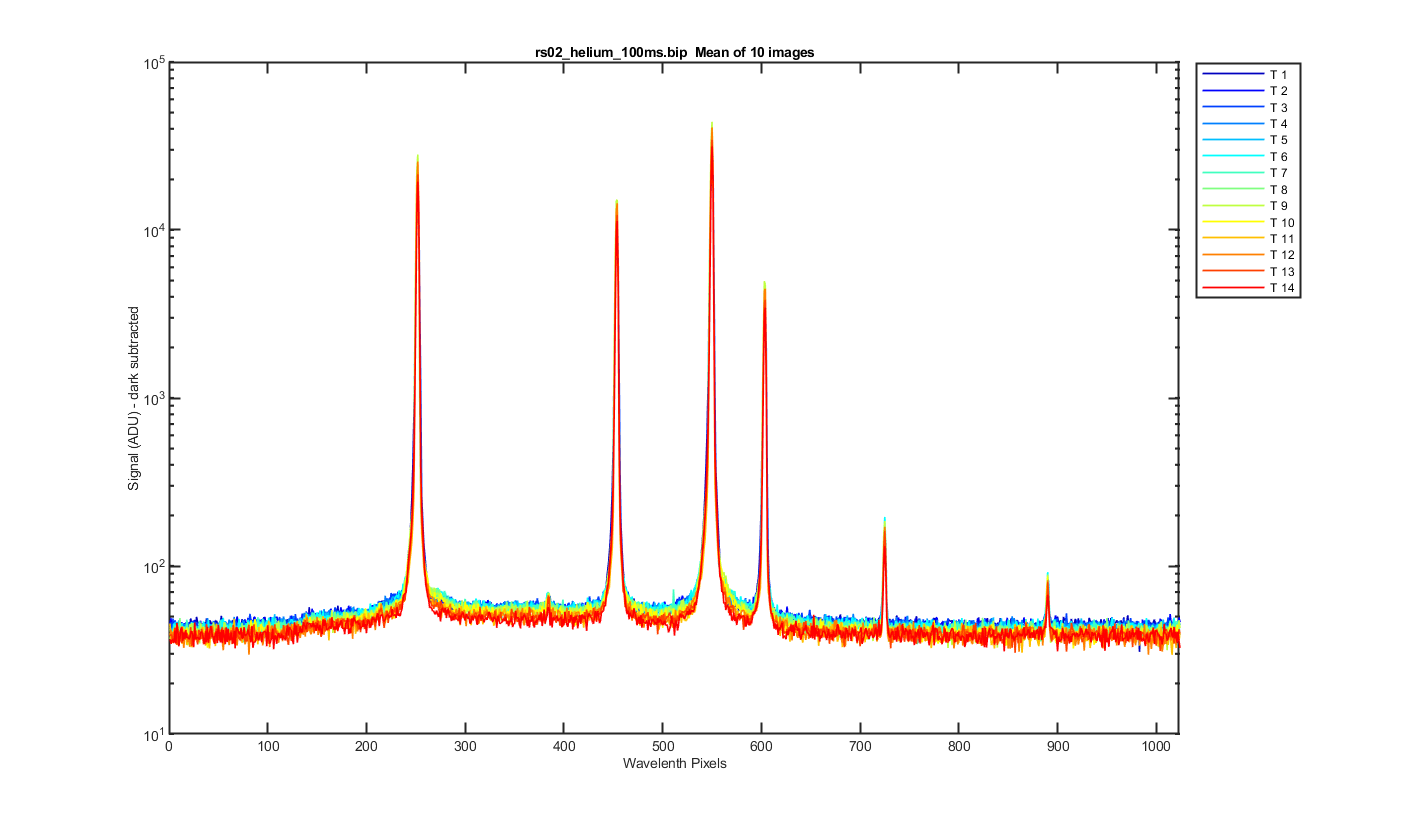

Figure 11 Mean image binned by track, the x-axis is wavelength pixels.

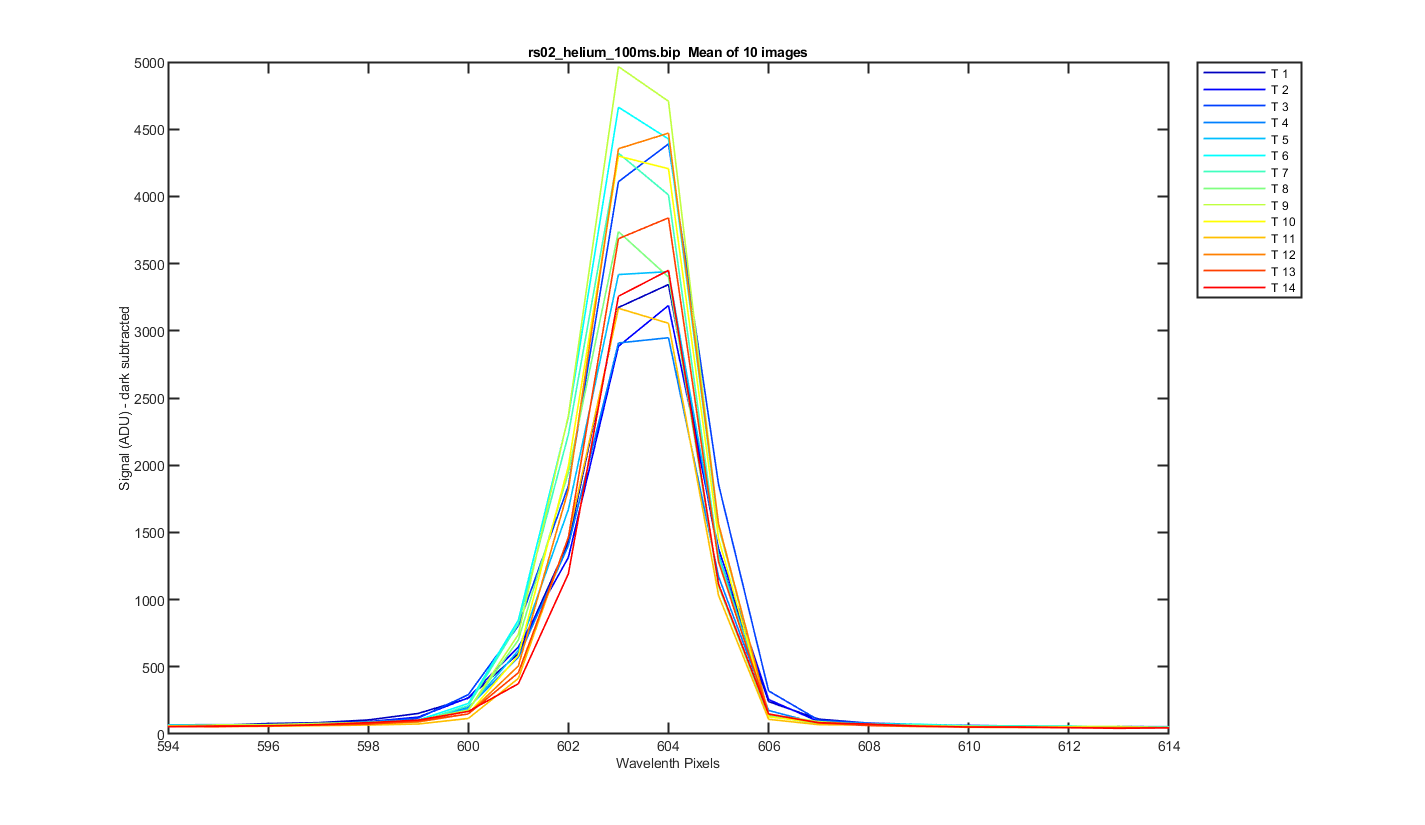

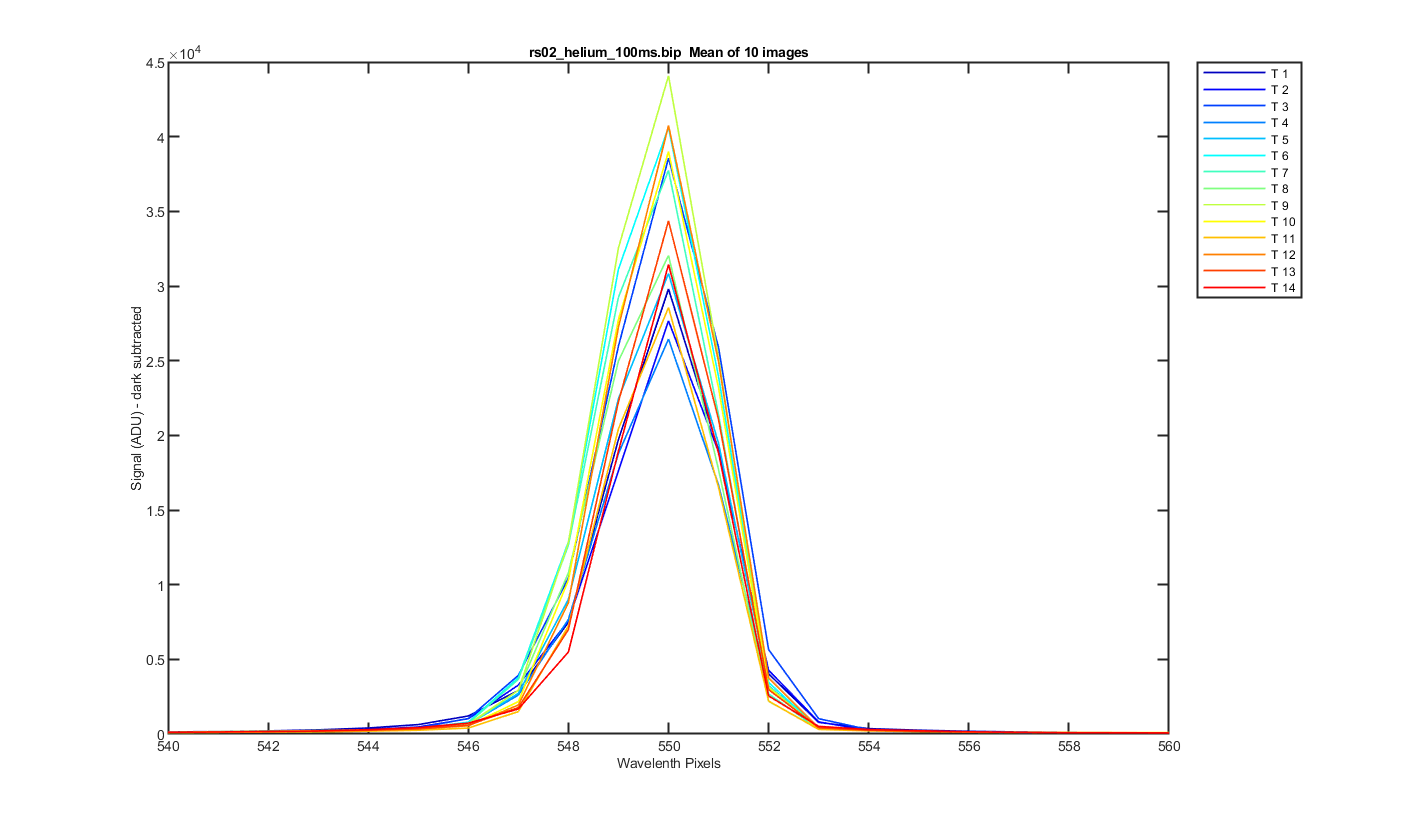

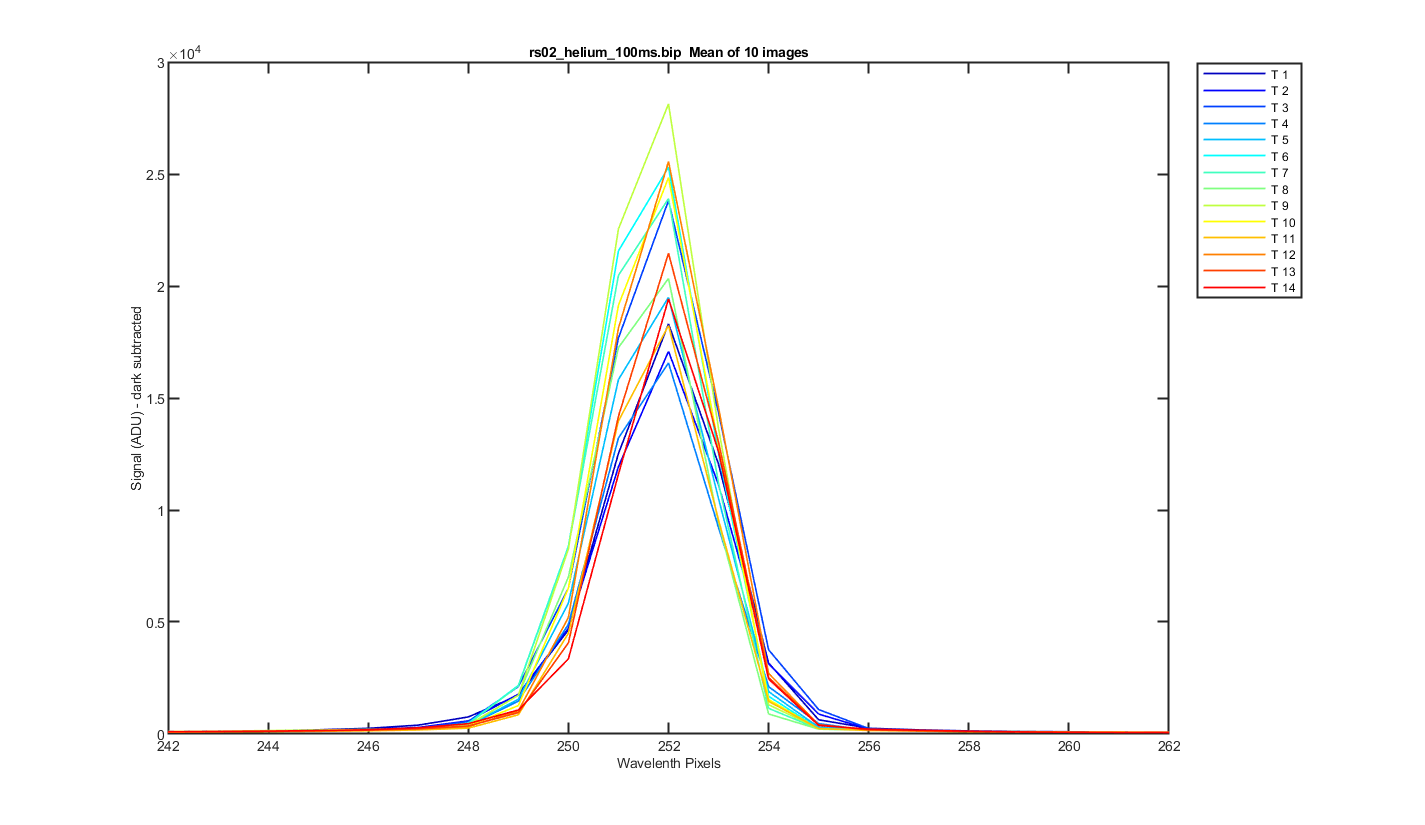

Figure 12 Close up of one of the helium peaks

Figure 13 Close up of one of the helium peaks

Figure 14 Close up of one of the helium peaks

Figure 15 Close up of one of the helium peaks

Figure 16 Close up of one of the helium peaks

  Track = The Resonon Track number
Lwave = Laser Wavelength
Lpix1 = Laser Pixel found using the max value of the track
Lpix2 = Laser Pixel found using mygaussfit to fit the laser peak
