REVISION DATE: 09-Aug-2016 15:37:26


Email from Mike Kehoe on 8/2/2016 3:51 PM:

Greetings All,

Casey finished assembly and testing of RS3 last week, before heading to Asia on other business. Please find attached the report on RS3.
The data is at the usual site:  MOBY Red file dated 7/28/16.  The system is ready so ship, so please let me know when you are ready to receive it.

-Mike

Below are my graphs of the mobyred_dark_100ms.bip file. The file contains 10 dark images at 1e-05 sec Note some graphs are dark corrected and some are not so check the axis labels to know what you are looking at.

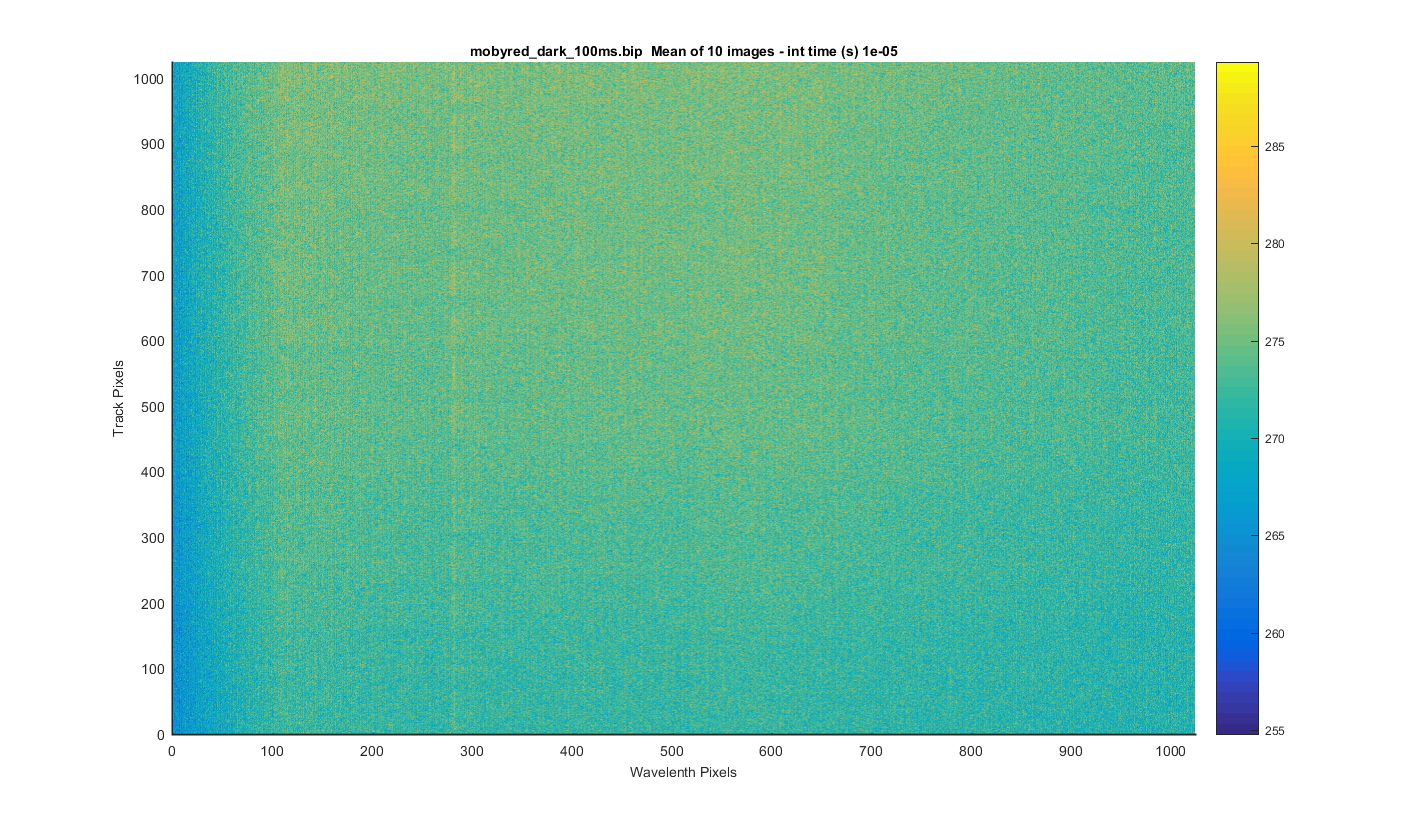

I meaned all 10 images to get the surface below. Seems to be a decrease on the UV end.

Figure 1

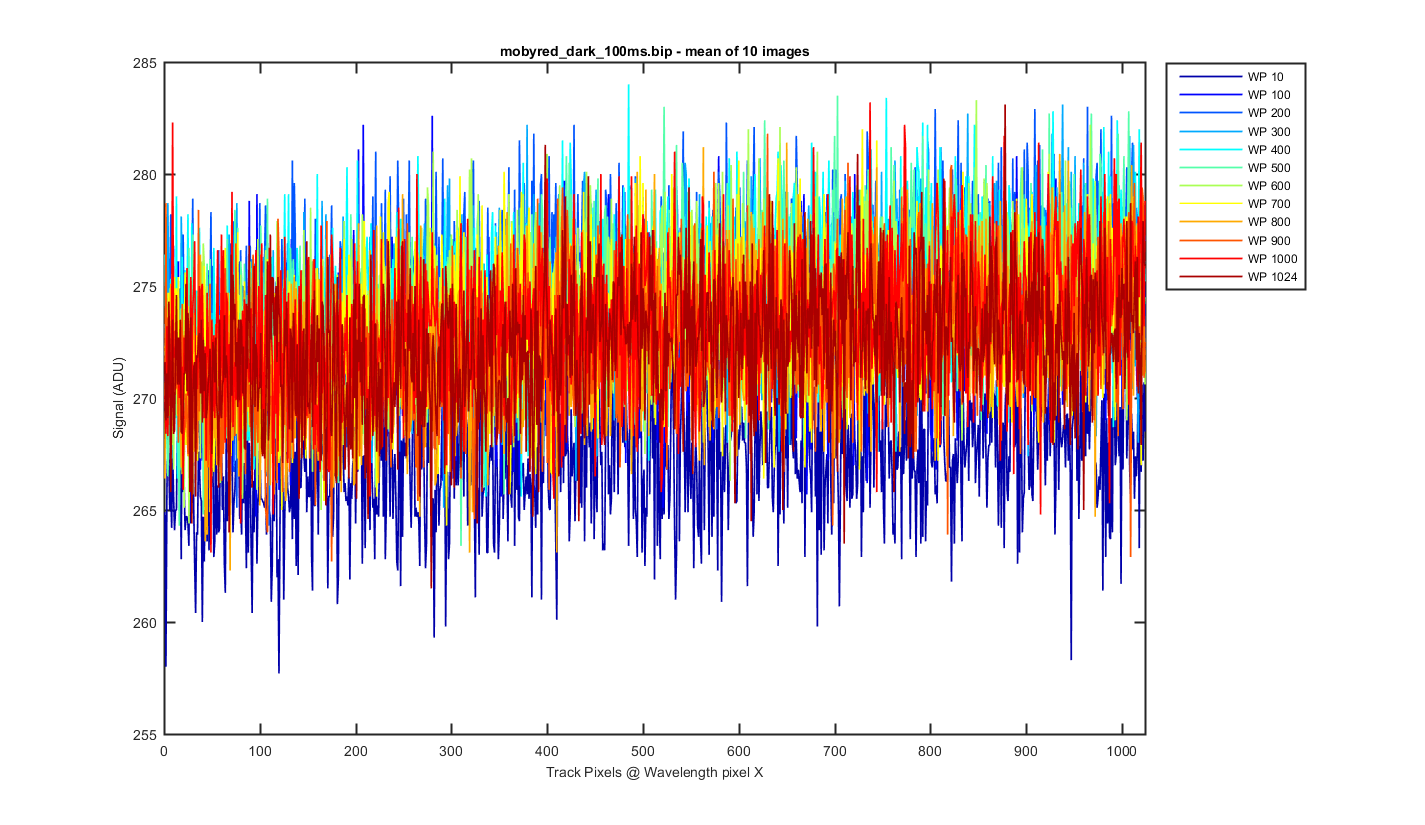

This is a cross section through the tracks at a number of wavelength pixels, from the mean image. I dont see the same "shape" you see in the blue spec darks.

Figure 2

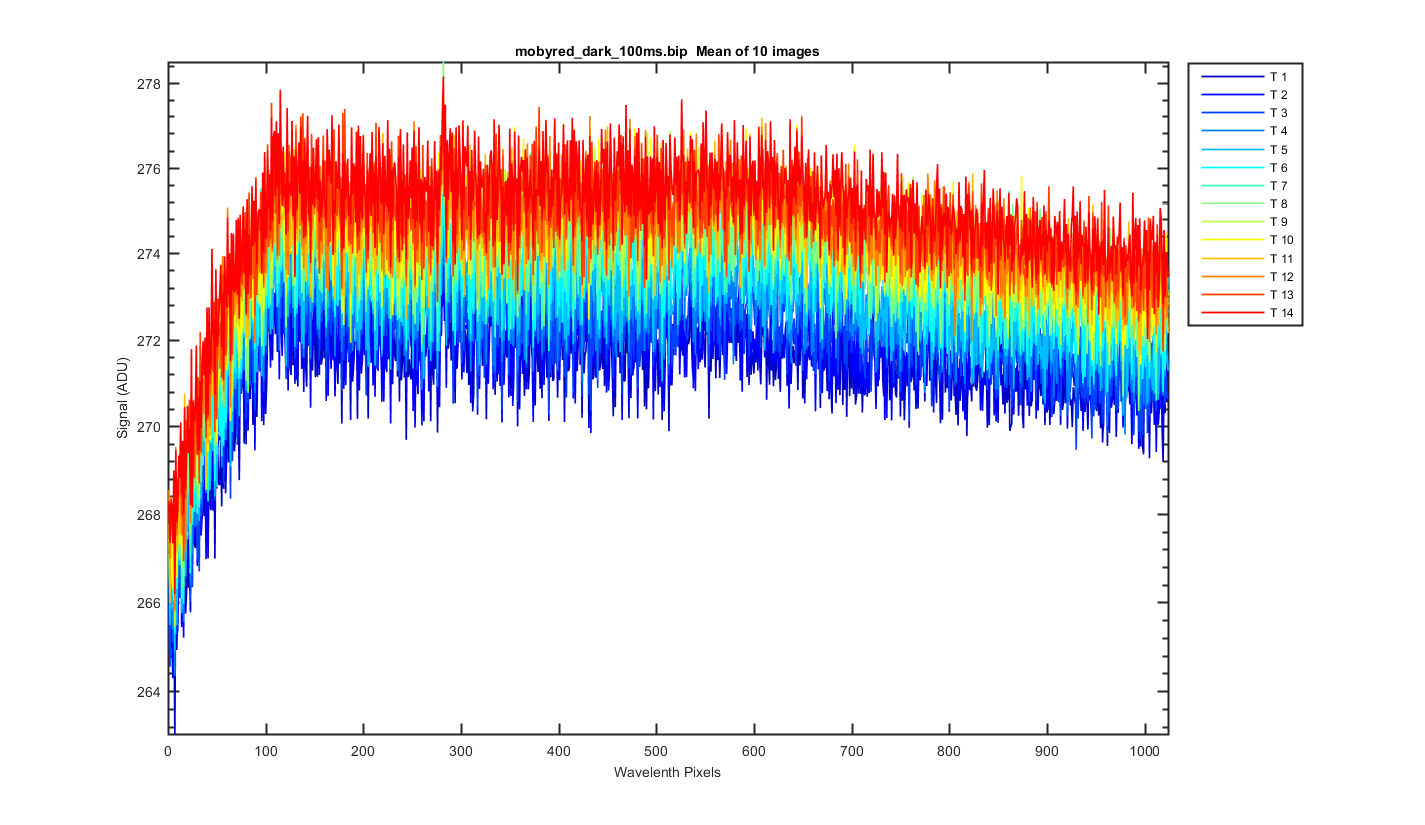

The darks for each track from the mean dark image.

Figure 3

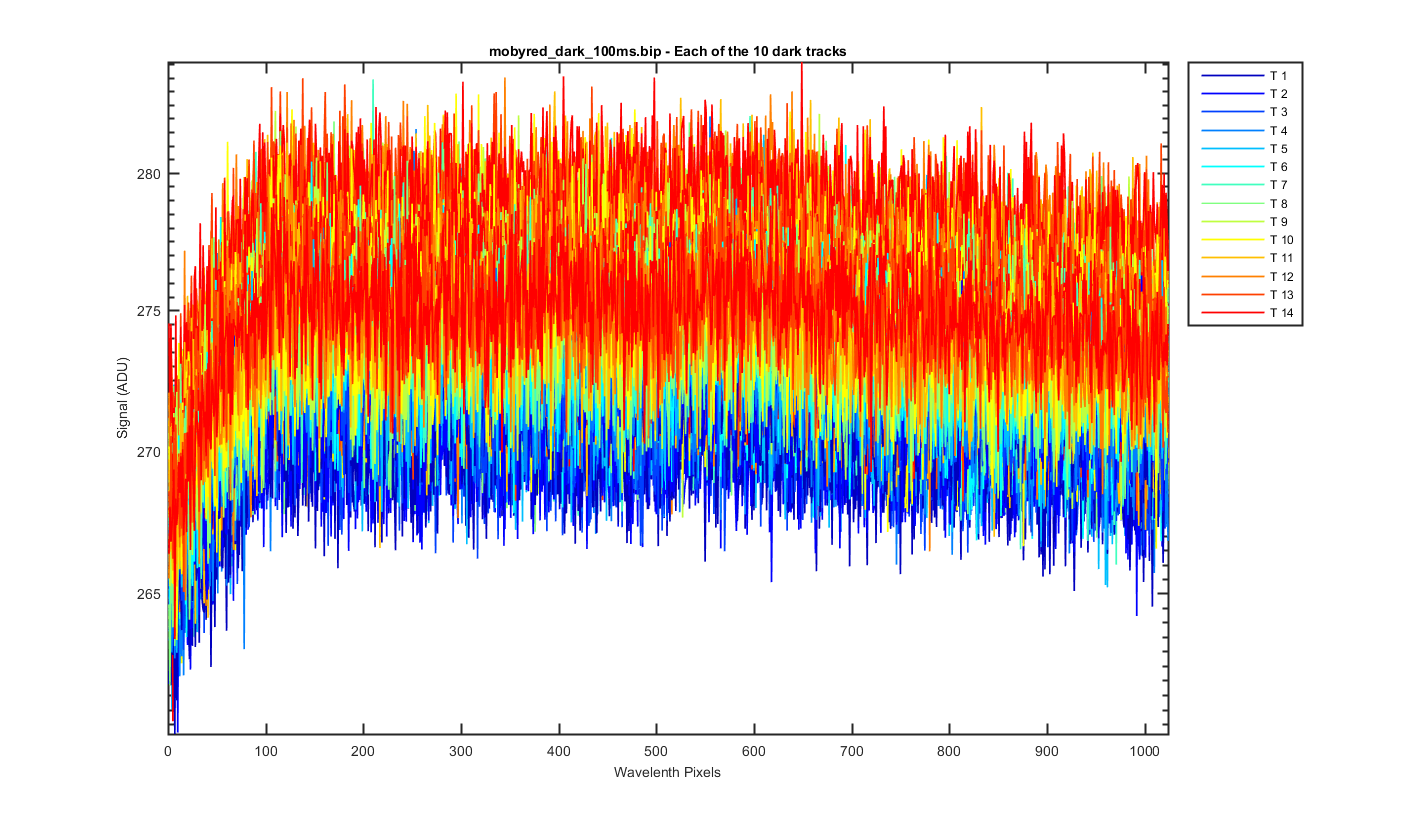

The darks for each track from the 10 dark images (so there are 10 for each track).

Figure 4
