REVISION DATE: 12-Sep-2016 15:57:50


Email from Mike Kehoe on 9/12/2016 10:01 AM:

Greetings All,

Casey finished assembly and testing of RS4 last week. Please find attached the pre-delivery report.
The data is at the usual site:  resonon.com/share; user: xxxxx; pwd: xxxxx  file:  MOBY Red file dated 9/8/16.
The system is ready so ship, so please let me know when you are ready to receive it.

We should be receiving another fiber bundle later this week and will begin the next build at that time.

-Mike

Below are my graphs of the mobyred_dark.bip file. The file contains 20 dark images at 0.1 sec Note some graphs are dark corrected and some are not so check the axis labels to know what you are looking at.

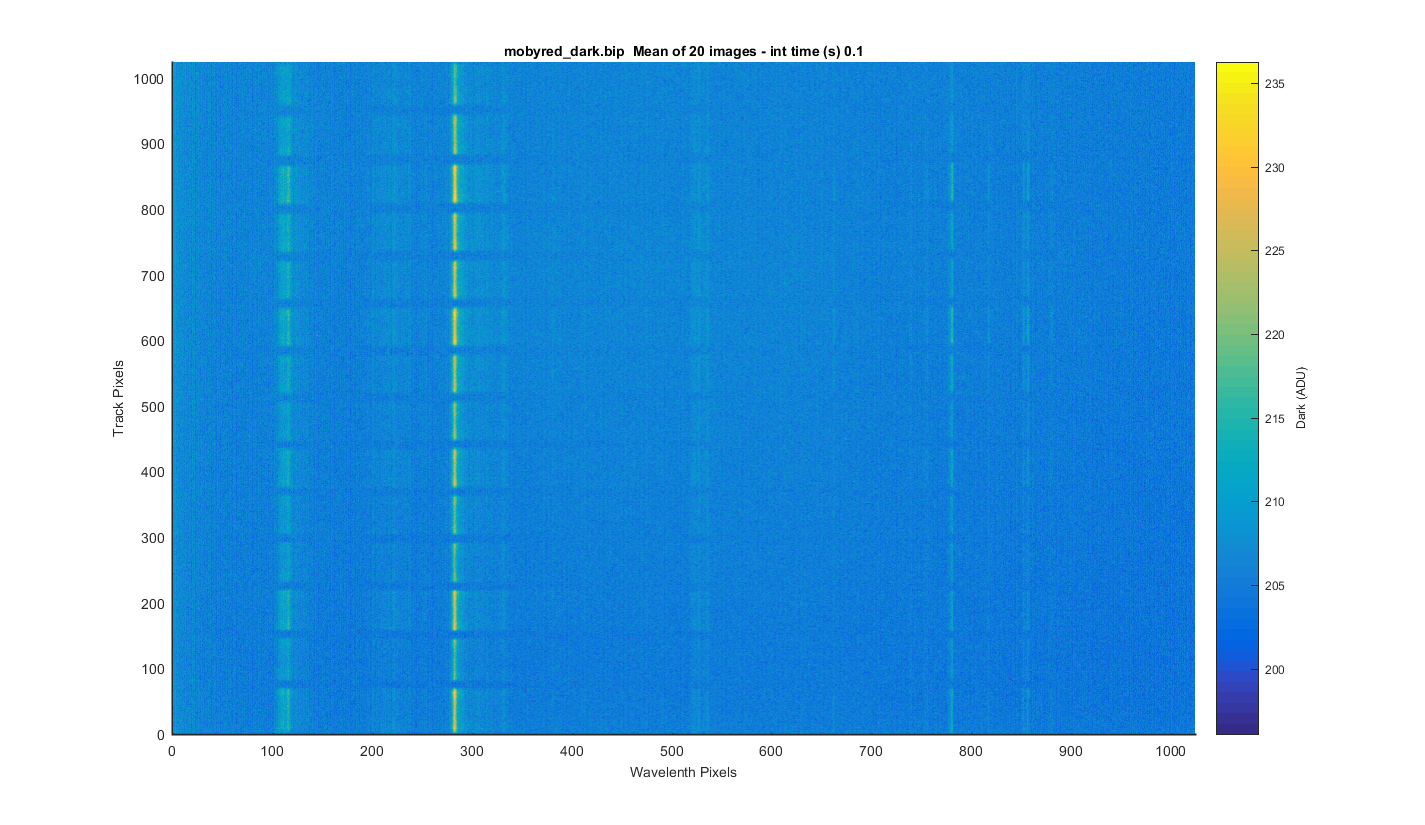

I meaned all 20 images to get the surface below. Why are there helium lines in the darks??

Figure 1

In individual dark image, I checked them all and they all had these lines in them.

Figure 2

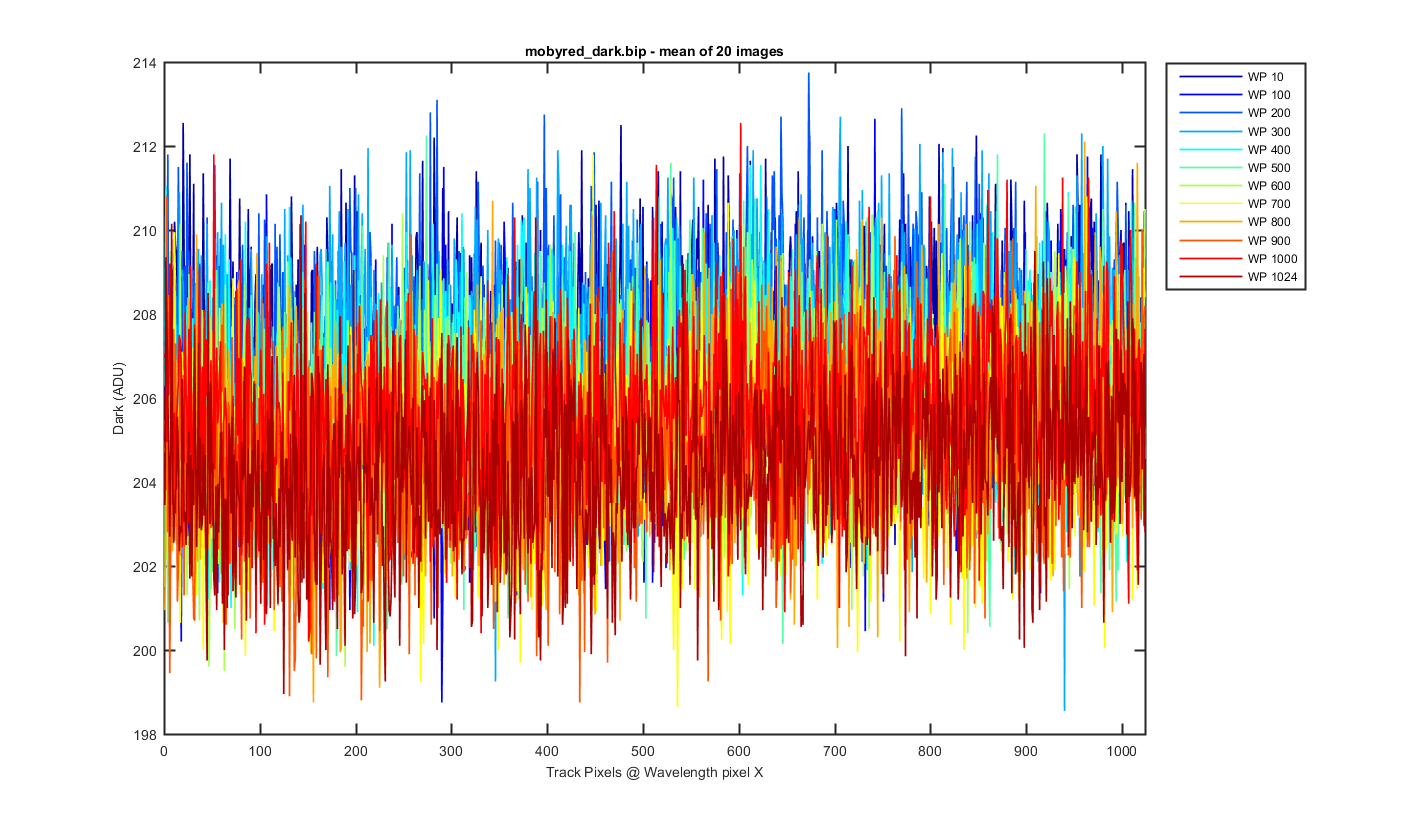

This is a cross section through the tracks at a number of wavelength pixels, from the mean image. We did not seem to hit pixels with the peaks.

Figure 3

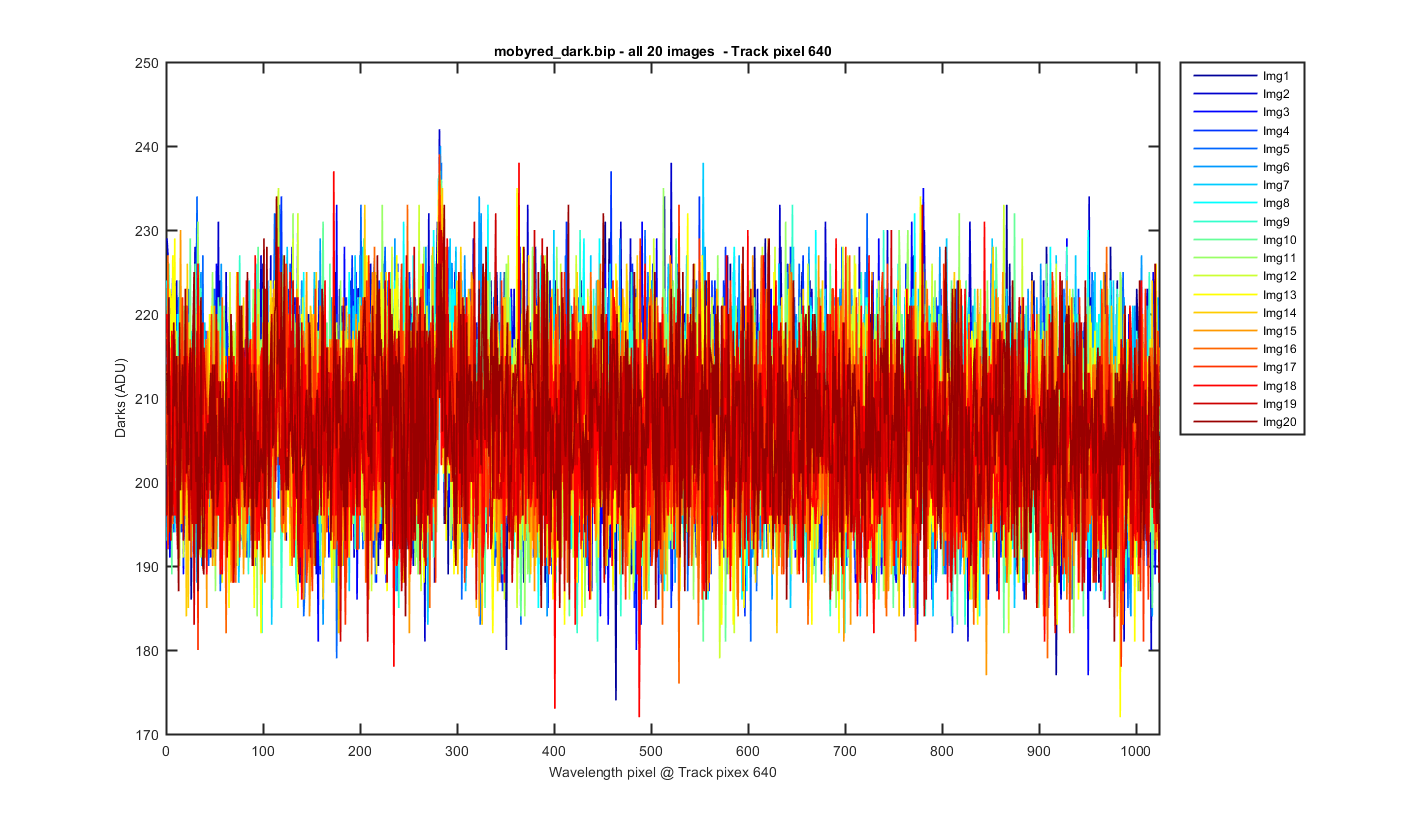

Data showing a track pixel at pixel 640 for all 20 dark images, the helium lines in the darks are REALLY small.

Figure 4

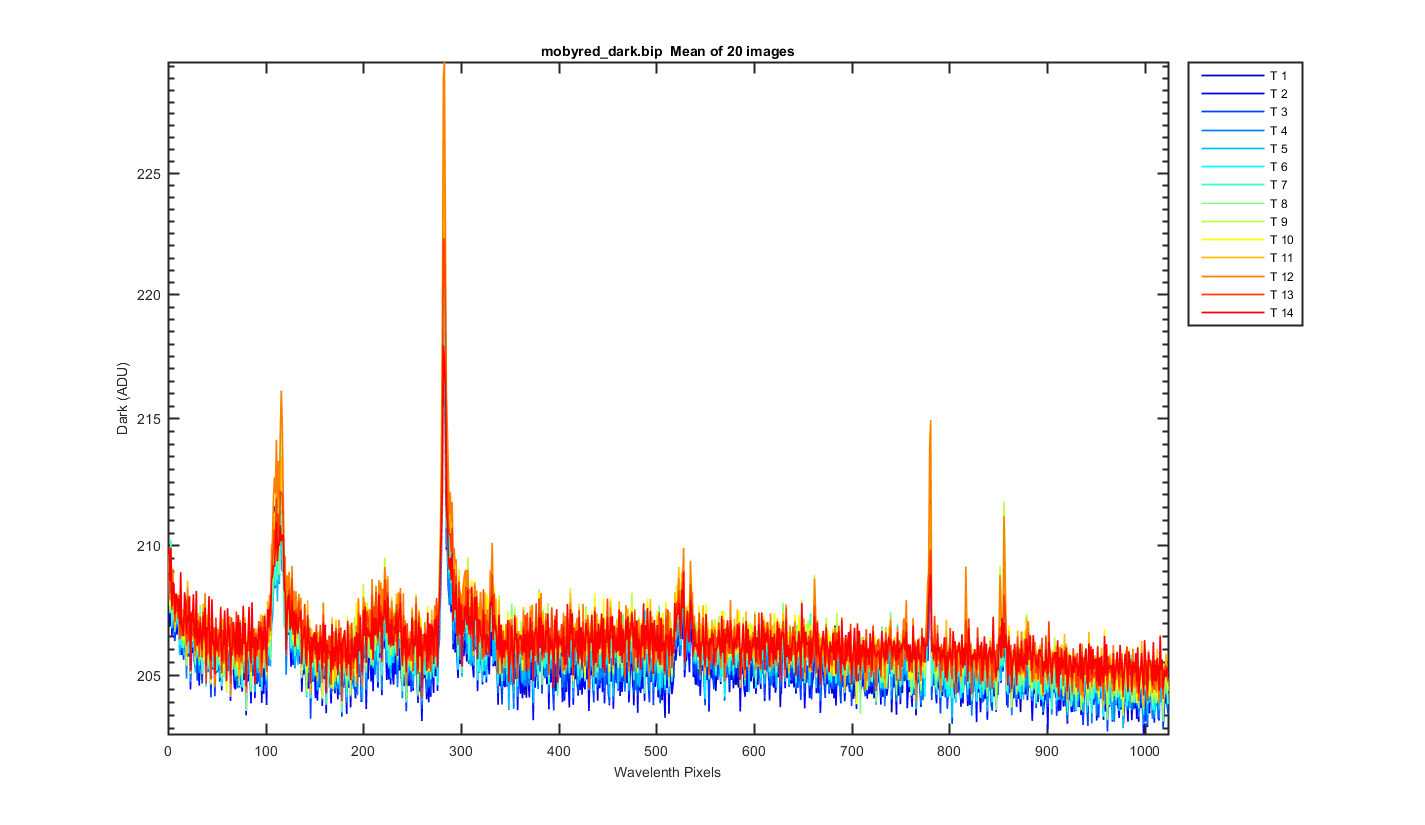

The darks for each track from the mean dark image. When the tracks are summed up the helium lines really stand out,

Figure 5

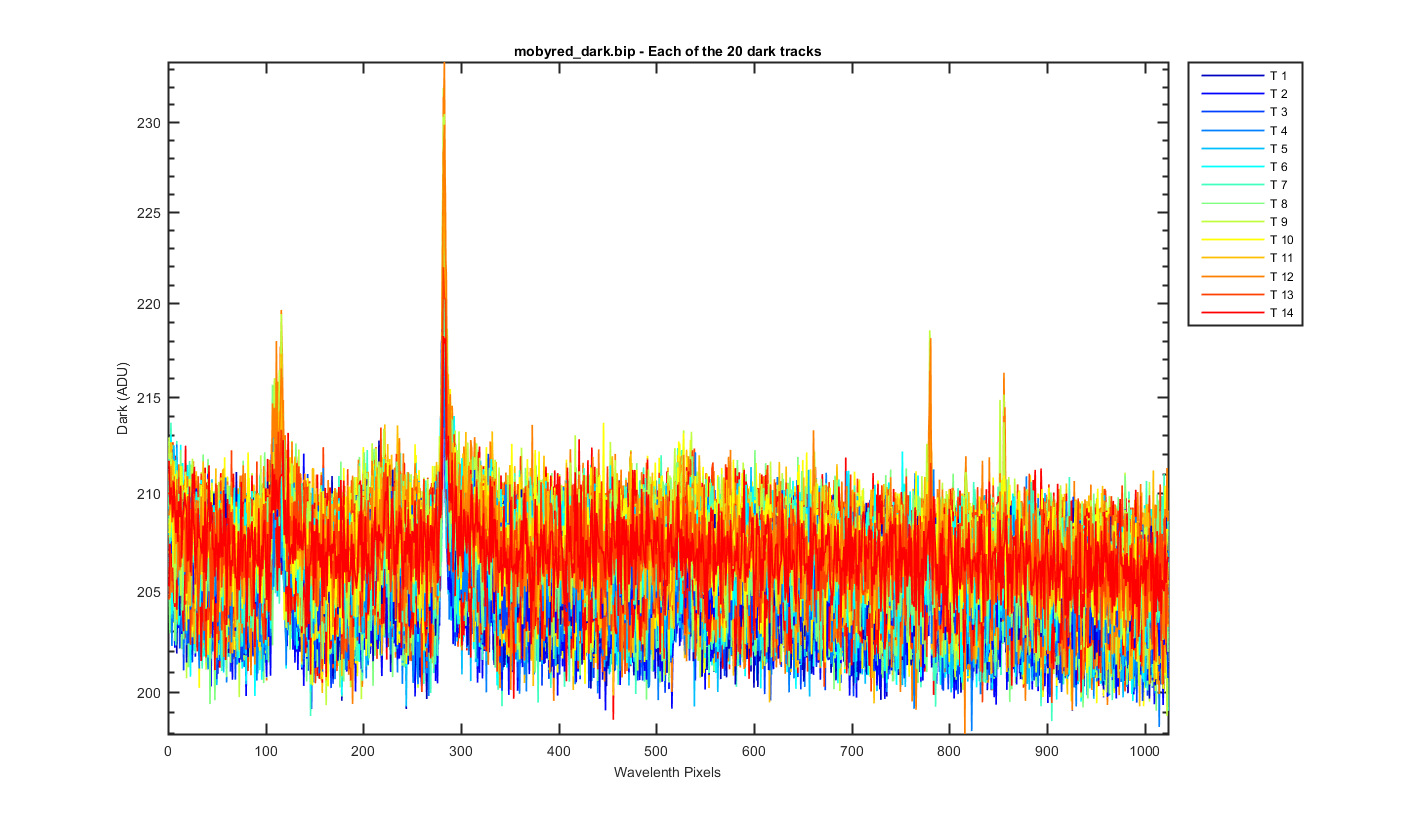

The darks for each track from the 20 dark images (so there are 20 for each track).

Figure 6
