REVISION DATE: 03-Apr-2018 17:10:36
CONFIG 09 25-Jan-18 to 06-Feb-18
In Line PSBS custom made by Mark, perhaps not well aligned, S/N 1. Config09: 25_Jan-2018 to 06-Feb-2018. PD2 is connected to the through channel and PD1 is connected to the PDBS & Fold Mirror Channel. FISH Fibers, SIRCUS Sphere, monitor with a Si PD and the SEI. *E1 = Day 1: 25-Jan-2018 22/30/22 degC, Humidity Control OFF. Fibers coupling to PDs changed -- now fibers are next to PD (Gershun tube removed). *E2 = Day 2 Run 1: 26-Jan-2018 run 1, Chamber OFF (needed to change Labview GPIB). *E3 = Day 2 Run 2: 26-Jan-2018 run 2, 22/30/22degC, Humidity Control OFF. *E4 = Day 3: 29-Jan-2018, 22degC, 30/10/30% RH. *E5 = Day 4: 30-Jan-2018, 22/30/22degC, 30% RH. *E6 = Day 5: 31-Jan-2018, 22/30/22degC, 30% RH. *E7 = Day 6: 01-Feb-2018 run 1, 22/30/22degC, 30% RH; Chamber has been on overnight at 22degC 30%RH *E8 = Day 7: 01-Feb-2018 run 2, 22/30/22degC, 40% RH; Set profile to repeat and run overnight (I stopped in the AM in the first level of the third profile). *E9 = Day 8: 02-Feb-2018, 22degC, 20% RH *E10 = Day 9: 05-Feb-2018, 22degC, 30% RH. Start leaving door cracked open overnight when not running so RH won't creep up so much. *E11 = Day 10: 06-Feb-2018, 22degC, 30% RH.

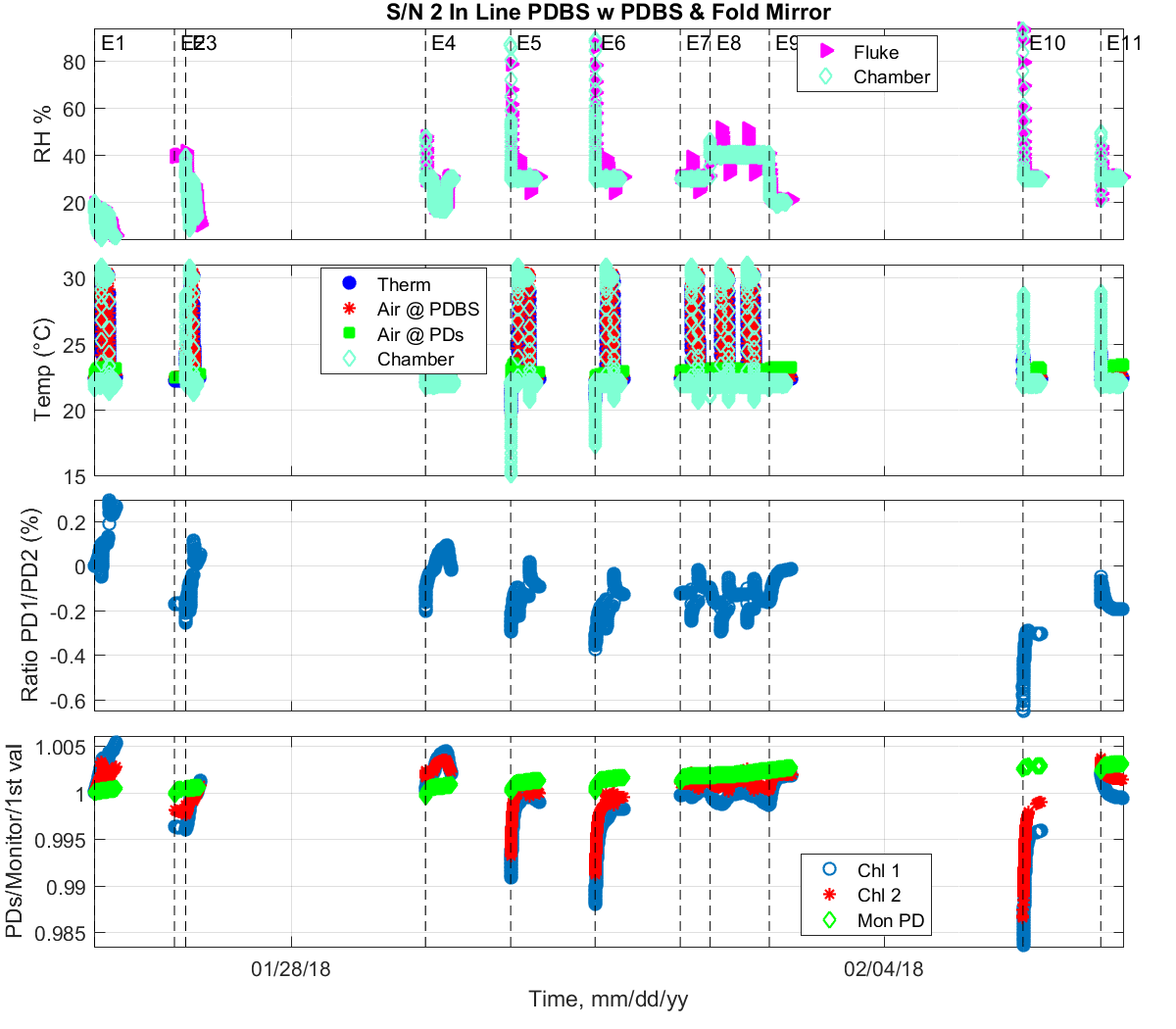

Figure 1: All data in this Configuration to date. PD signals are normalized to the monitor. Ratio PD1/PD2, Monitor, and normalized Signals all normalized to the initial value.

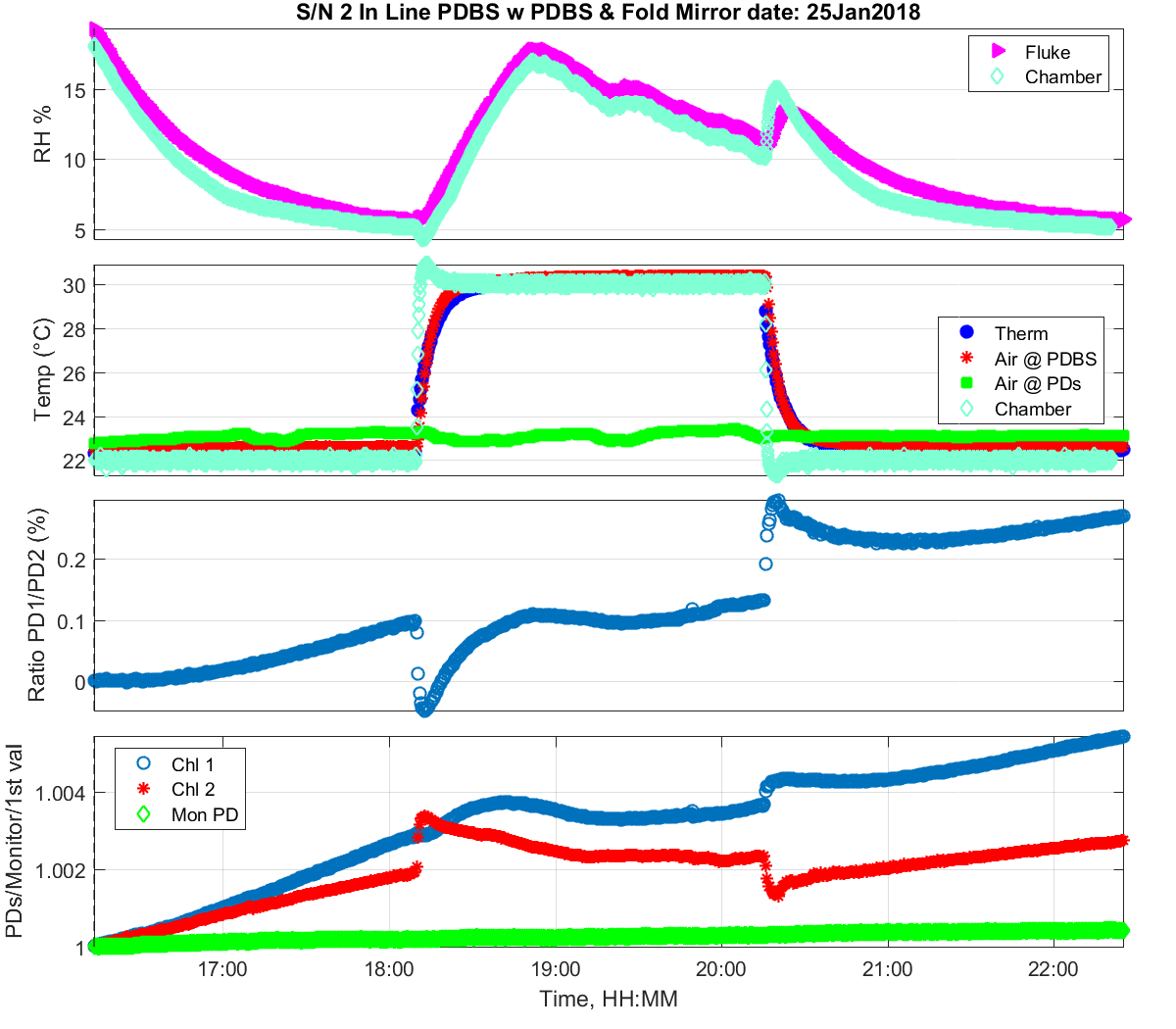

Figure 2: Zoomed in look at Day 1

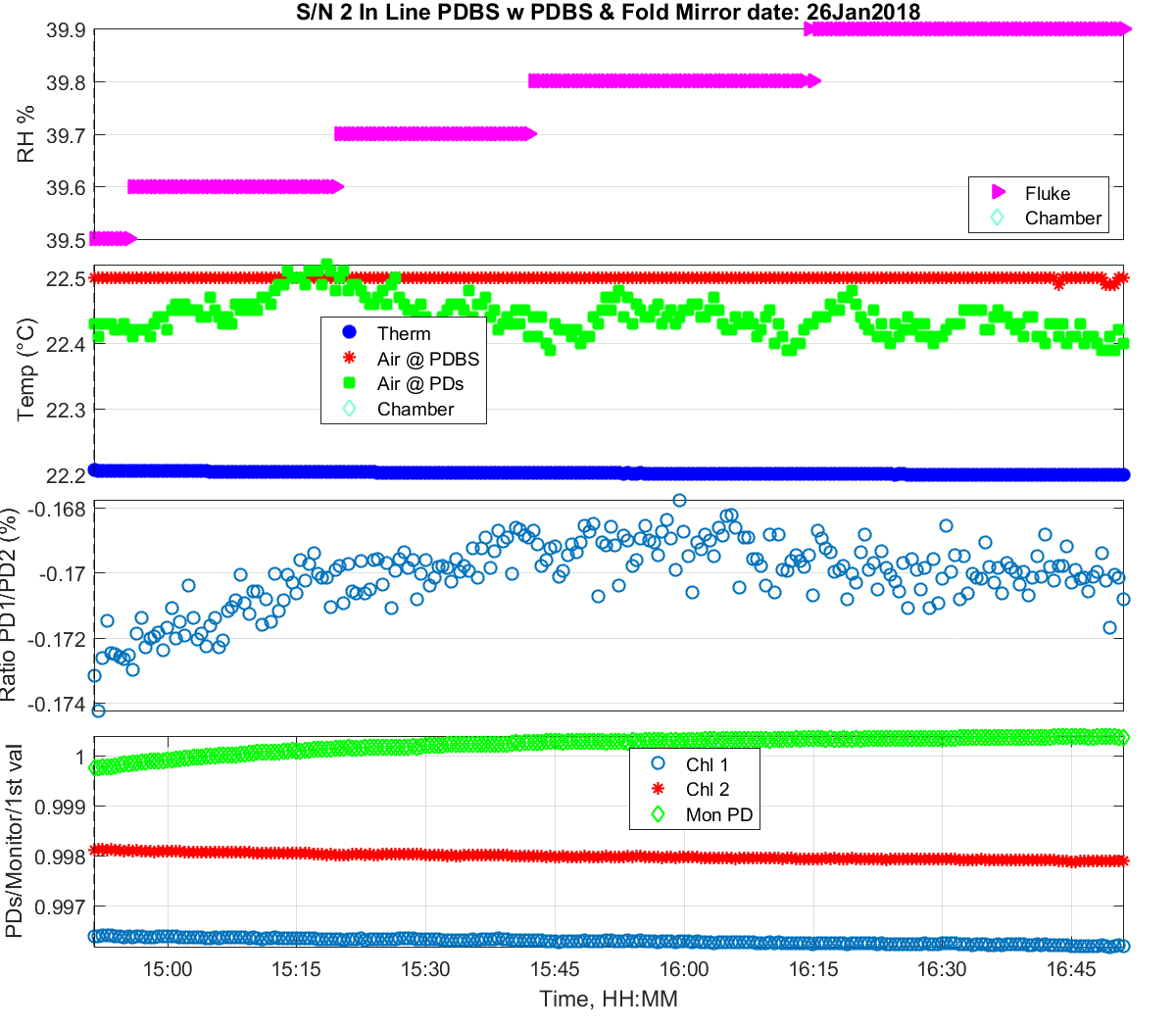

Figure 3: Zoomed in look at Day 2 Run 1

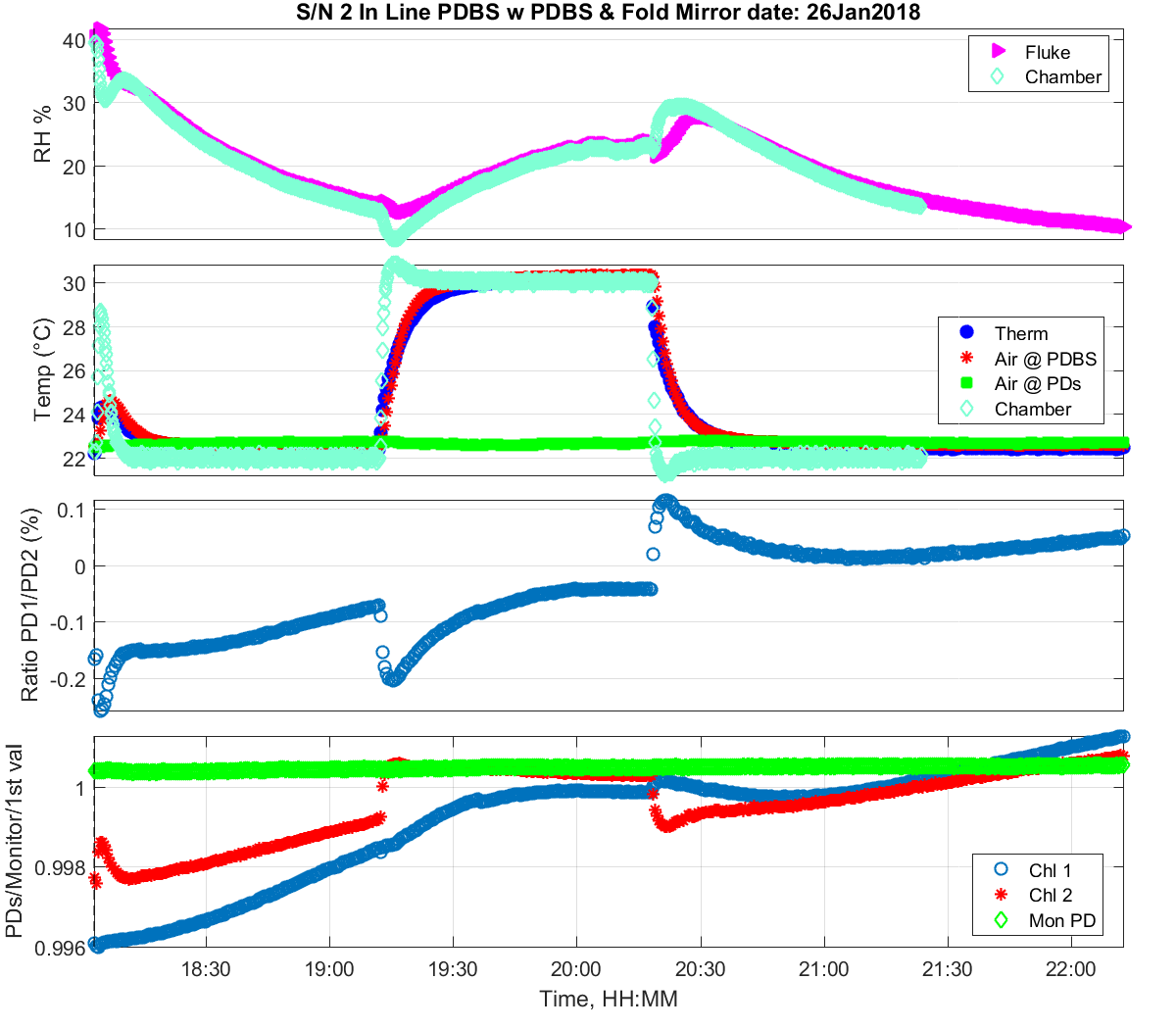

Figure 4: Zoomed in look at Day 2 Run 2

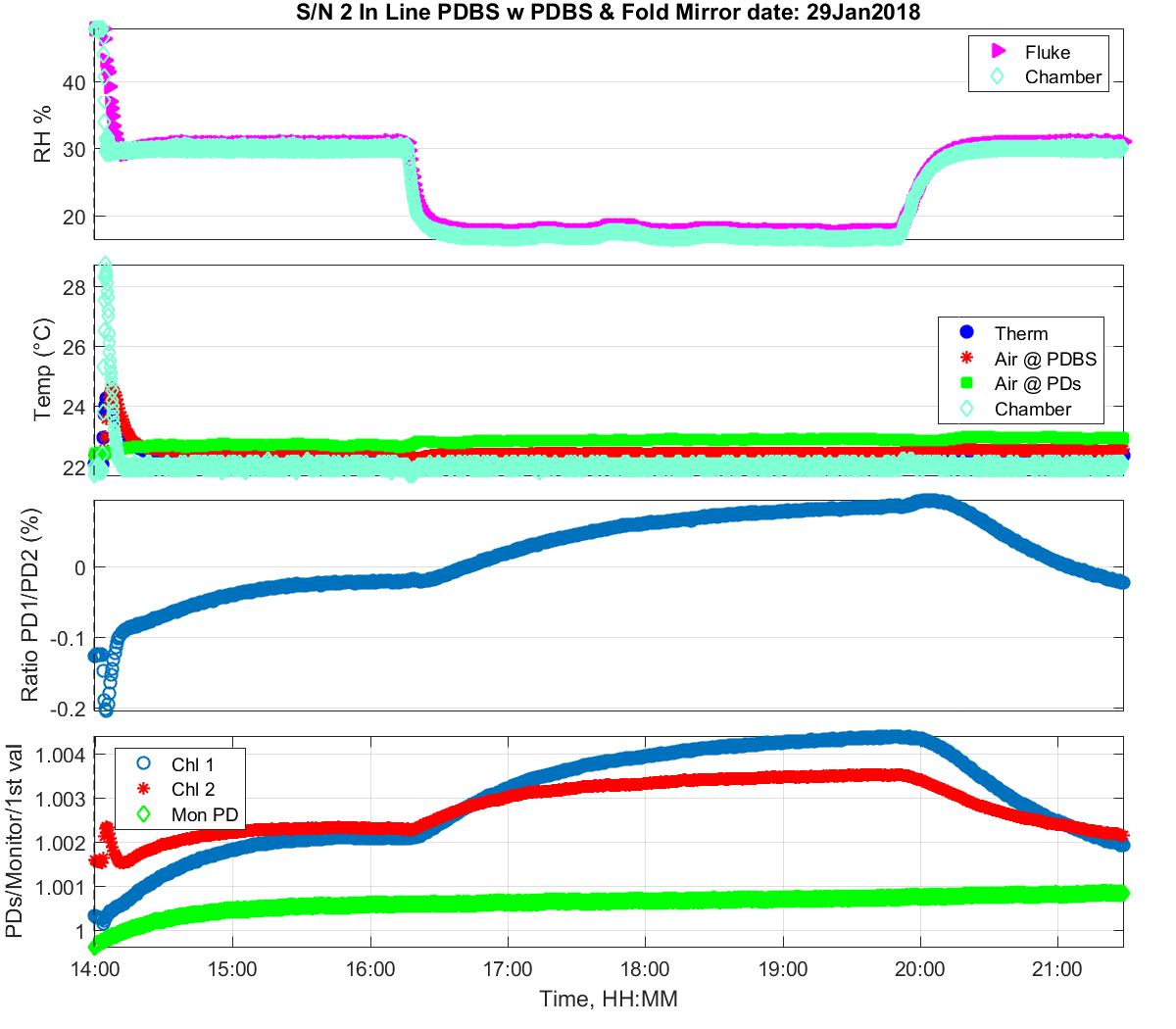

Figure 5: Zoomed in look at Day 3

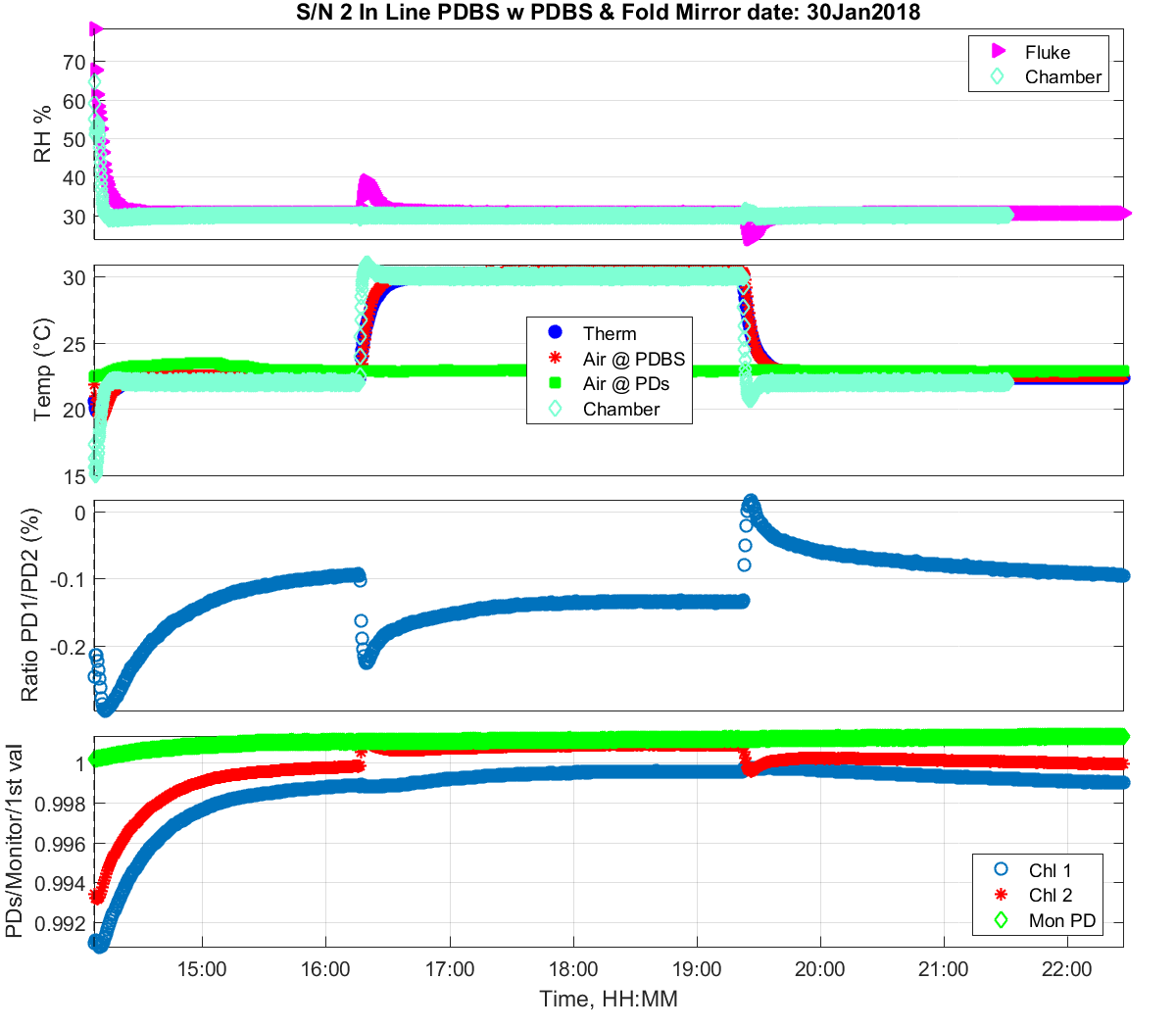

Figure 6: Zoomed in look at Day 4

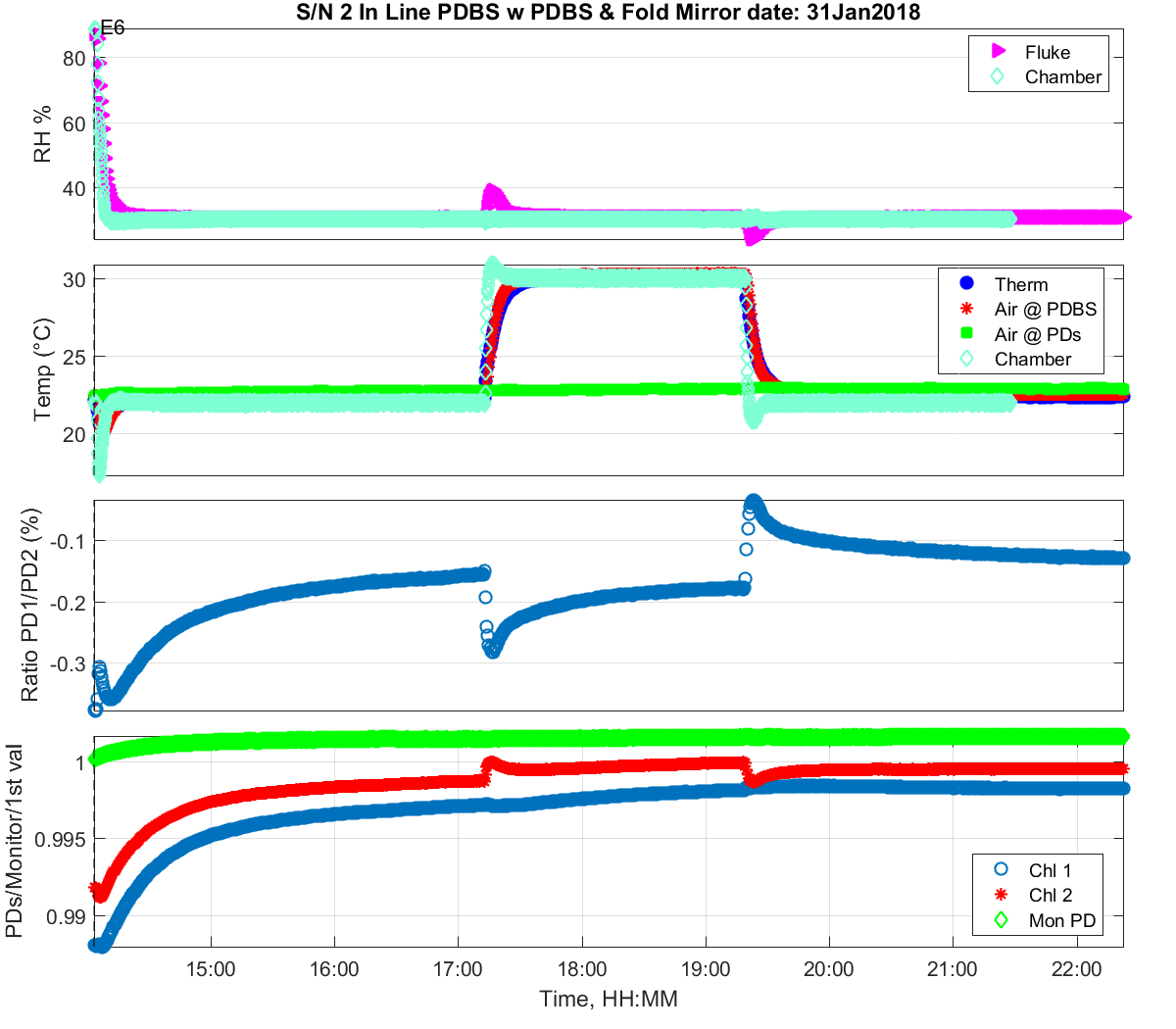

Figure 7: Zoomed in look at Day 5
Figure 8: Zoomed in look at Day 6

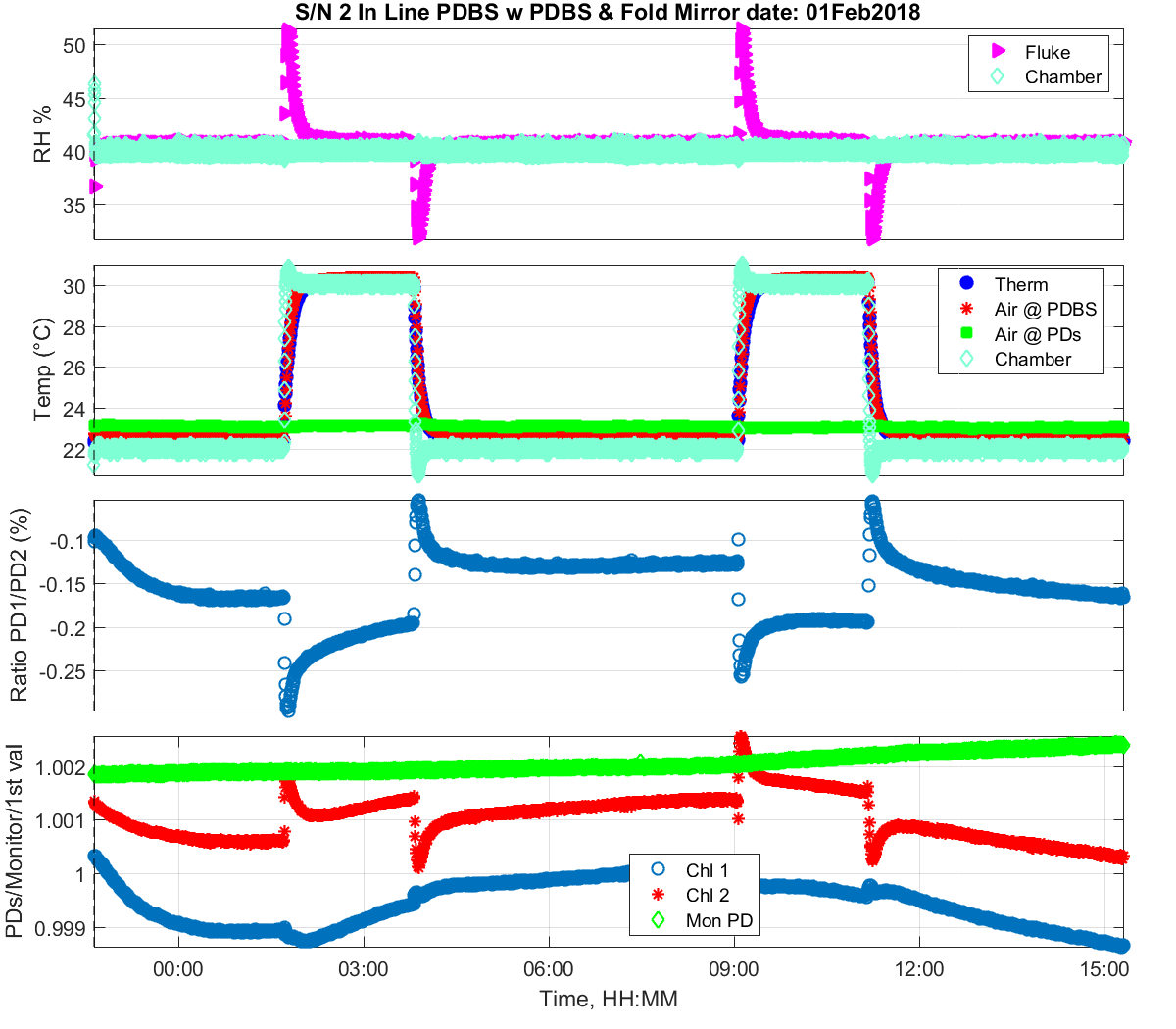

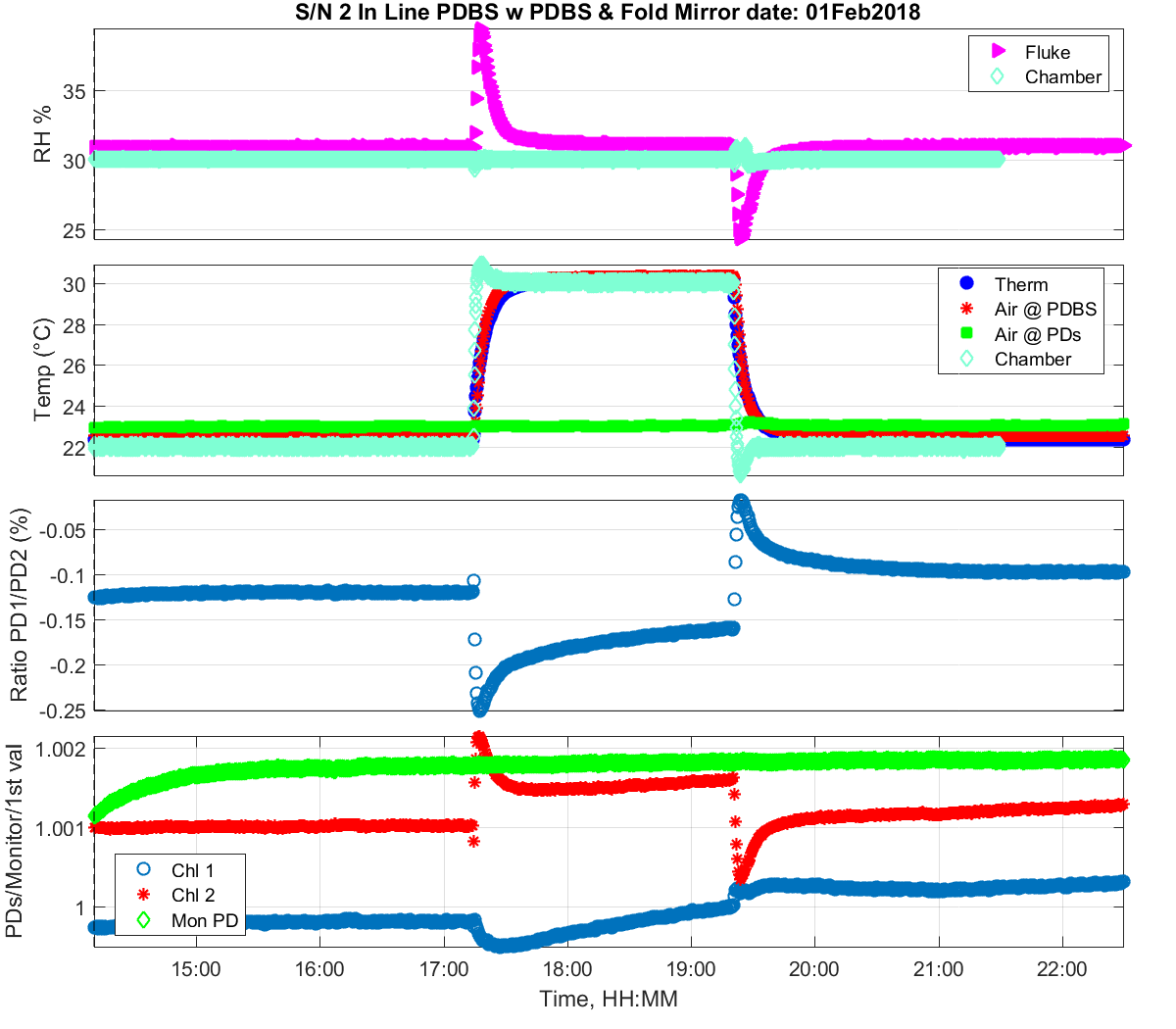

Figure 9: Zoomed in look at Day 7

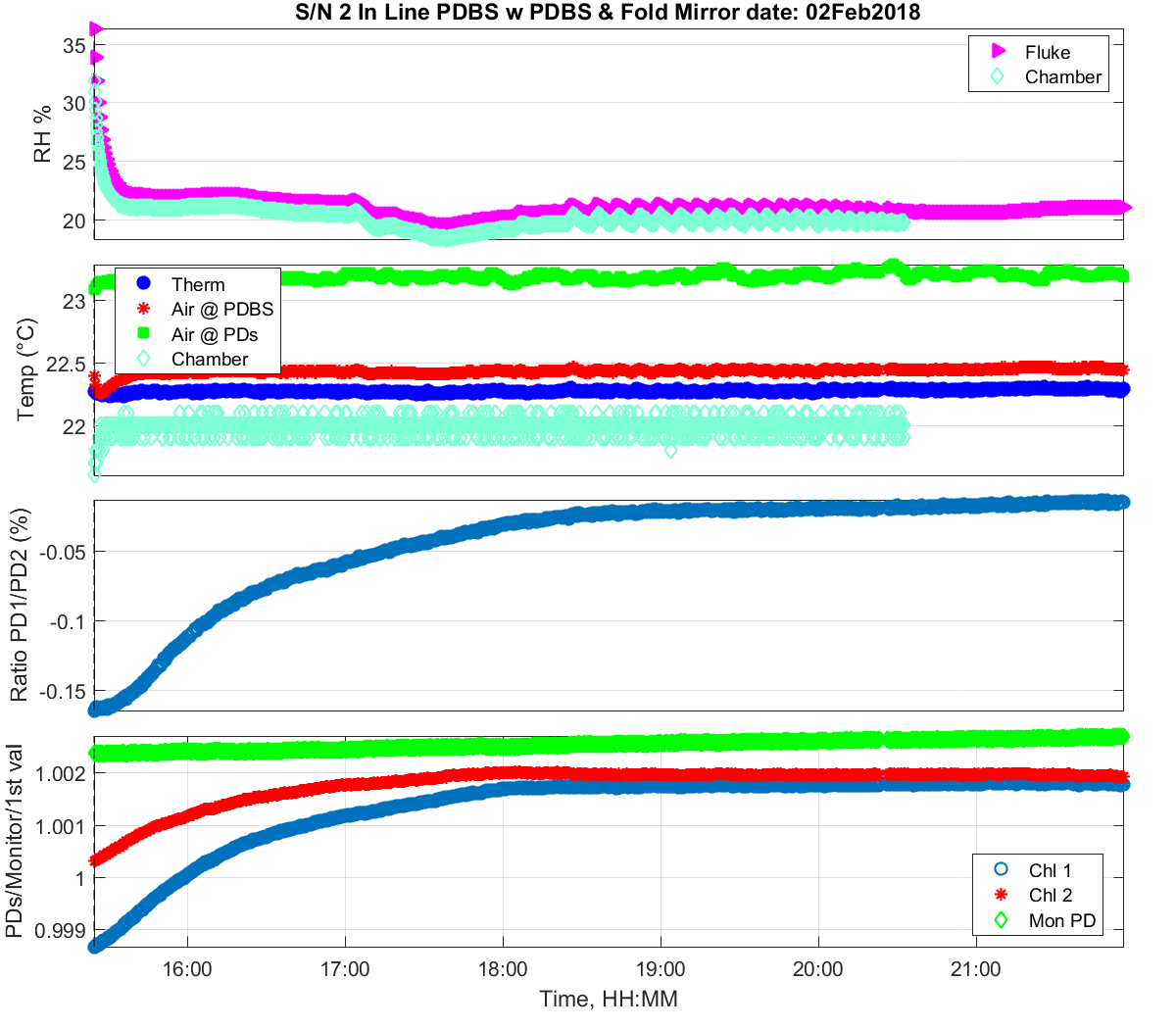

Figure 10: Zoomed in look at Day 8

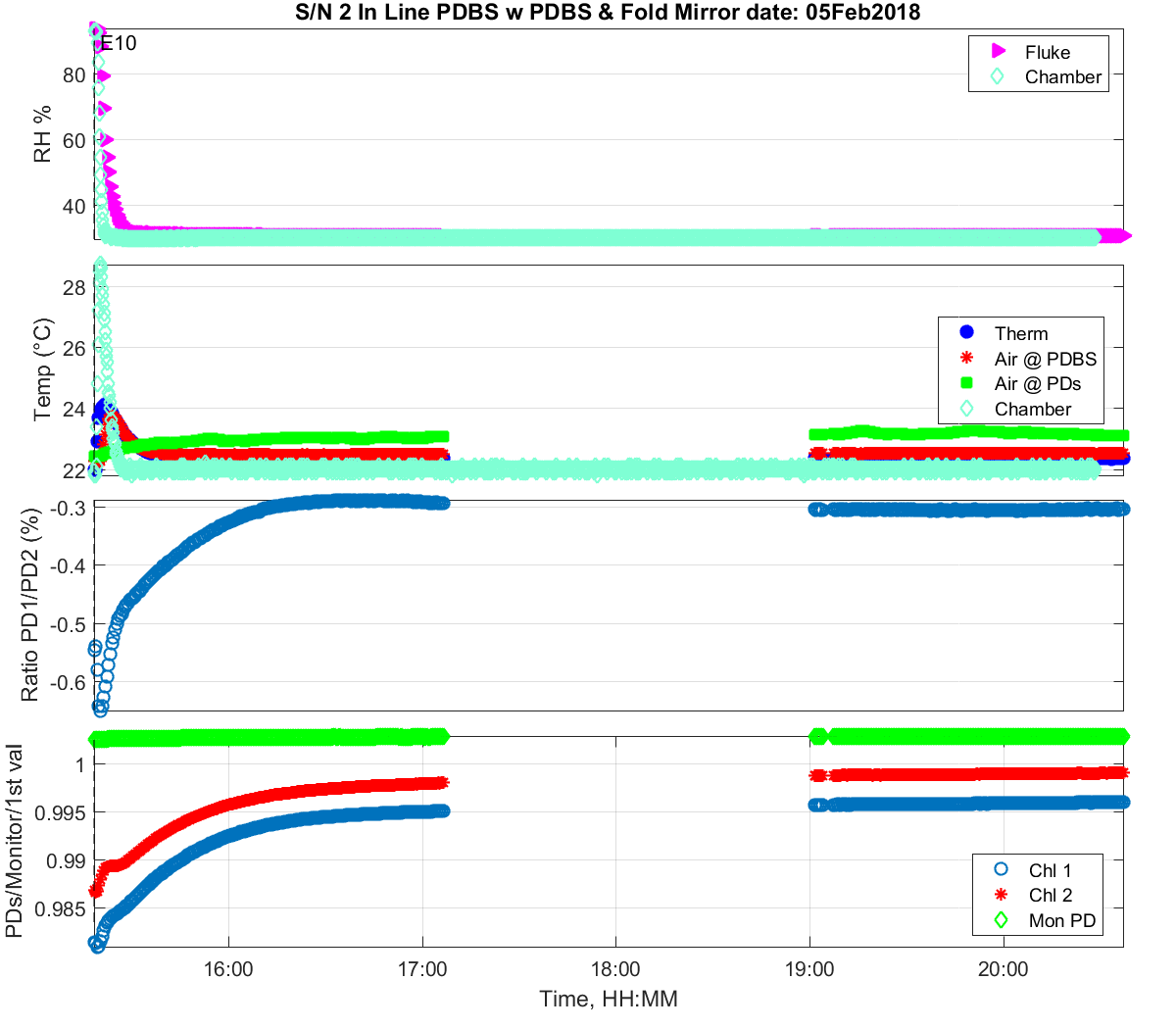

Figure 11: Zoomed in look at Day 9

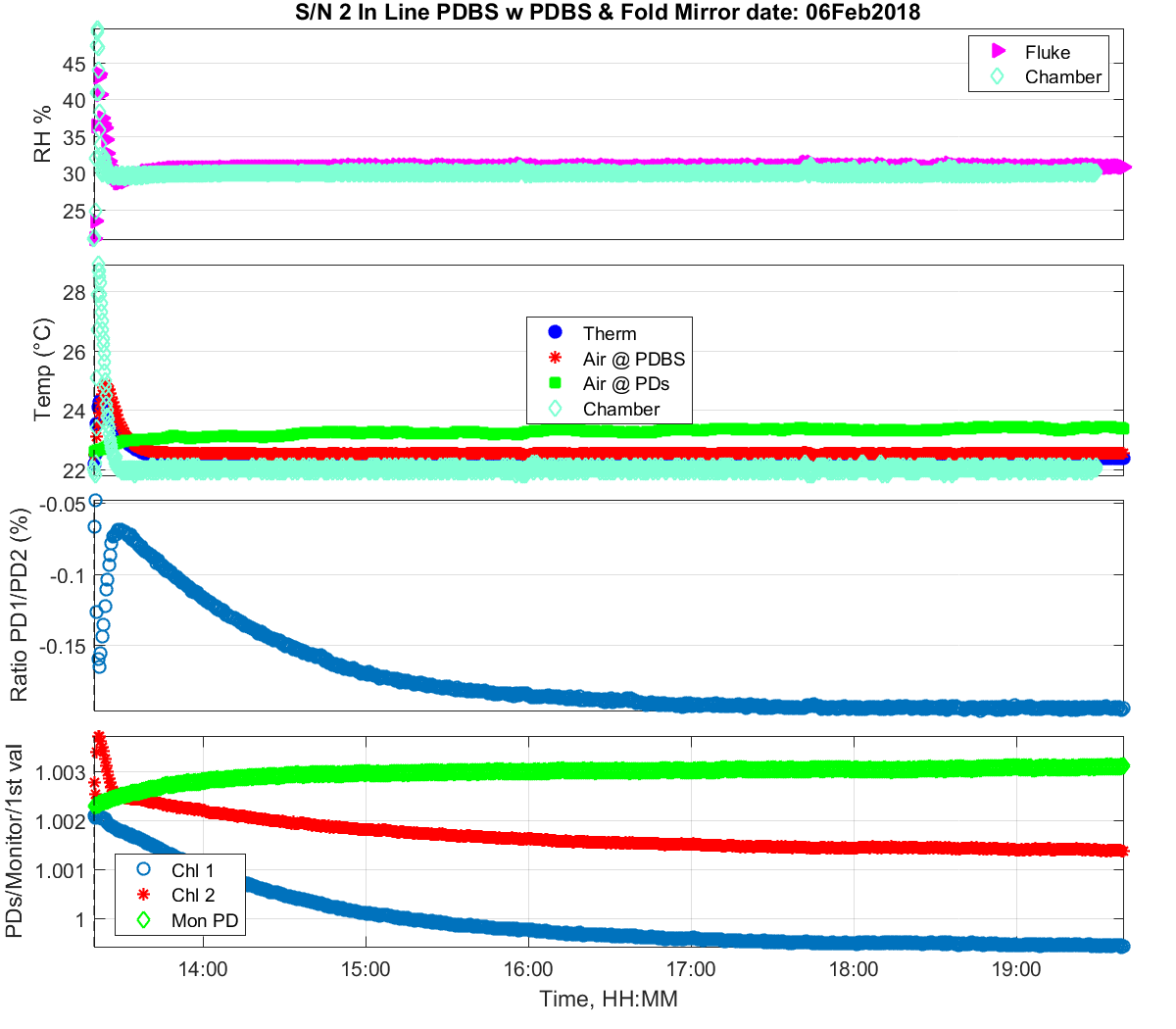

Figure 12: Zoomed in look at Day 10
