S/N 2 In Line PDBS w/o PDBS

REVISION DATE: 20-Feb-2018 16:55:57

In Line PSBS custom made by Mark, aligned on laser bench Pier 35, S/N 2. Test to eliminate PDBS and Fold mirror as source of instability Config10: 13_Feb-2018 to present. We took out the PDBS and the fold mirror. PD2 is connected to the through channel and PD1 has a 9V battery. FISH Fibers, SIRCUS Sphere, monitor with Si PD and SEI.

* 13-Feb-2018 22degC, 30% RH, no SEI today; chamber humidity went out of control and then recovered.

* 14-Feb-2018 22degC, 30% RH; Labview crashed in the middle, creating data gap.

* 15-Feb-2018 30degC, 30% RH; humidity control went out of spec at 19:38 then recovered; logging programs were finished by then.

* 16-Feb-2018 20degC, 30% RH; (forgot I really wanted 22deg C).

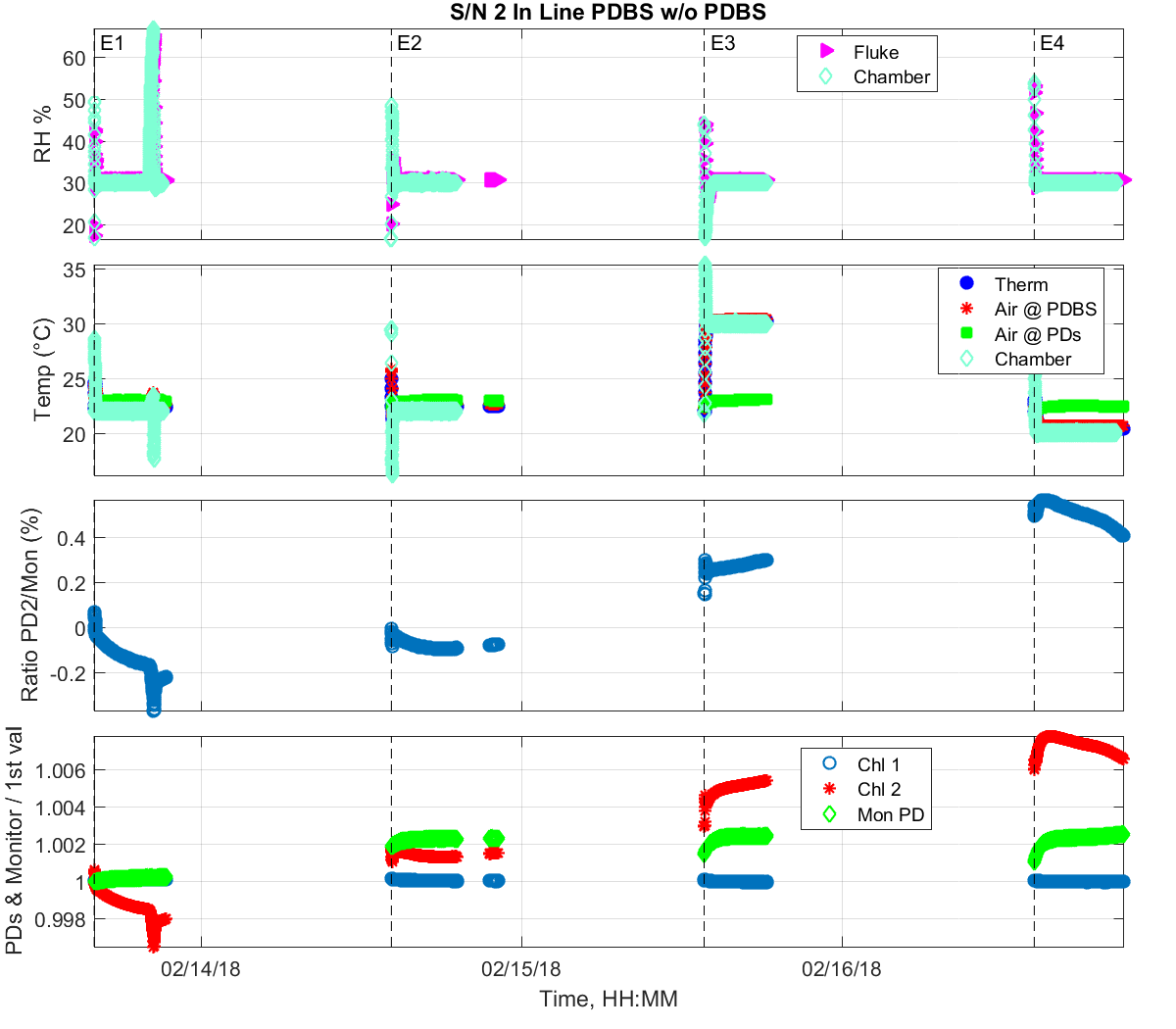

Figure 1: All data in this Configuration to date

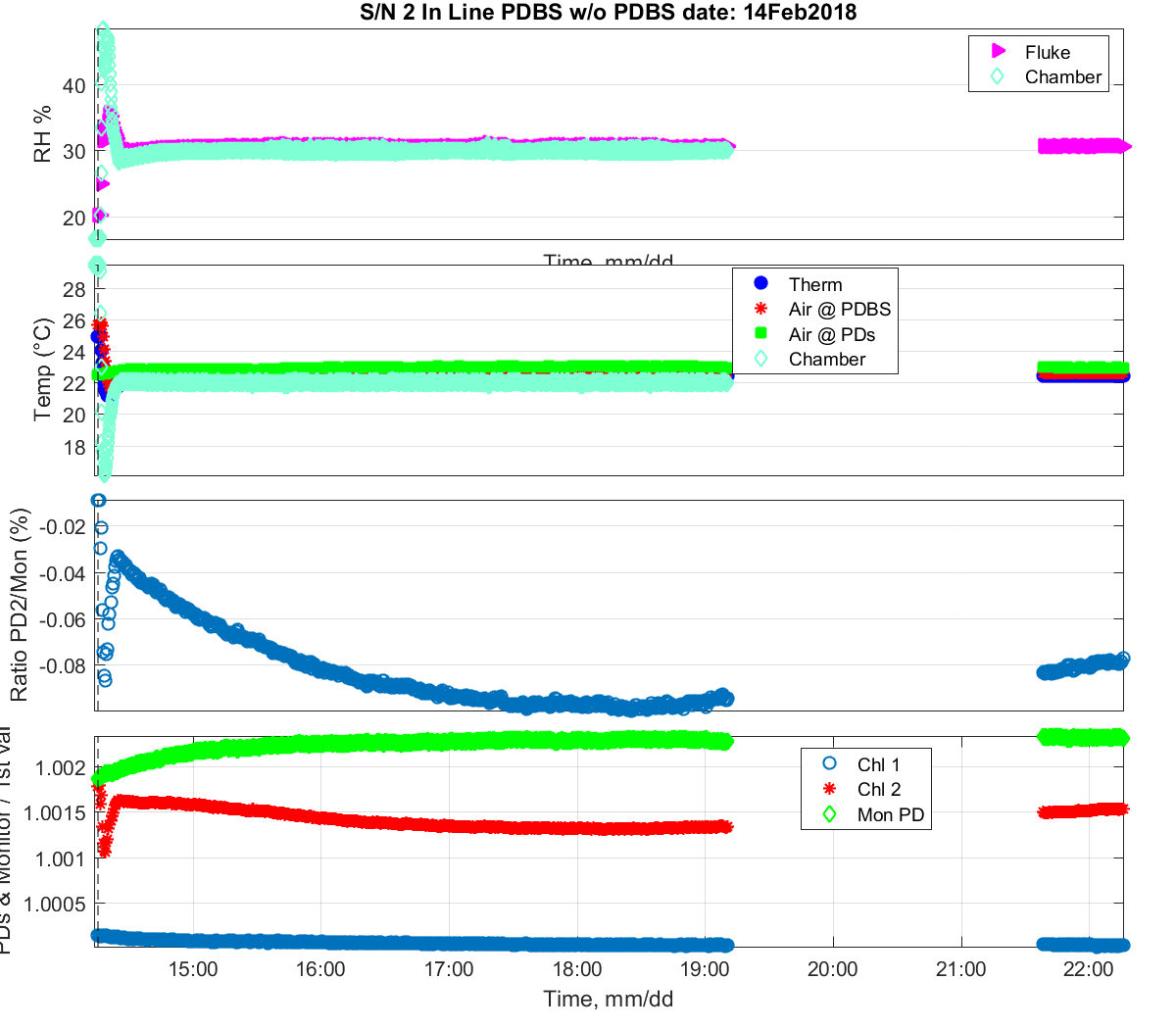

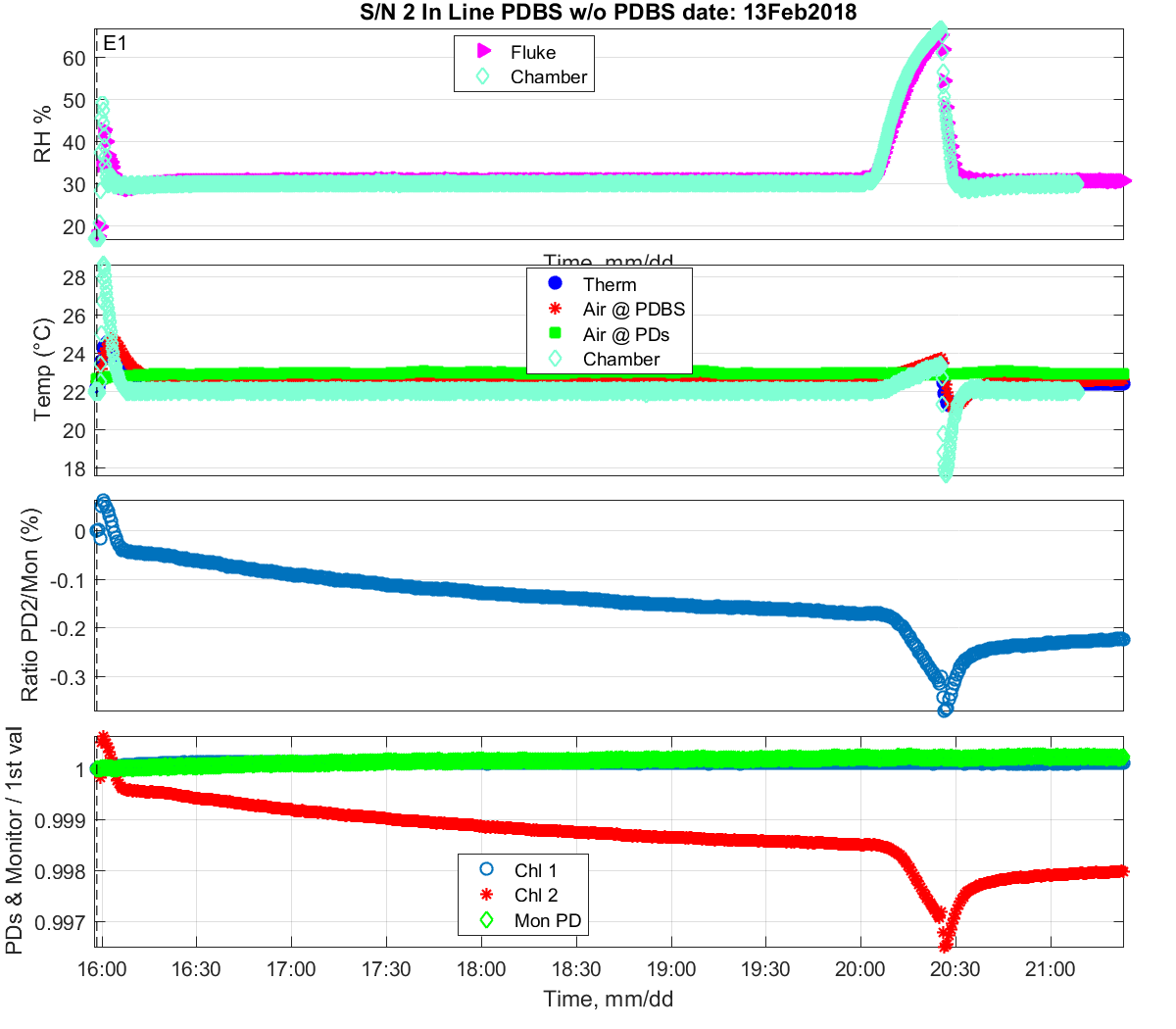

Figure 2: Zoomed in look at Day 1


Figure 3: Zoomed in look at Day 2

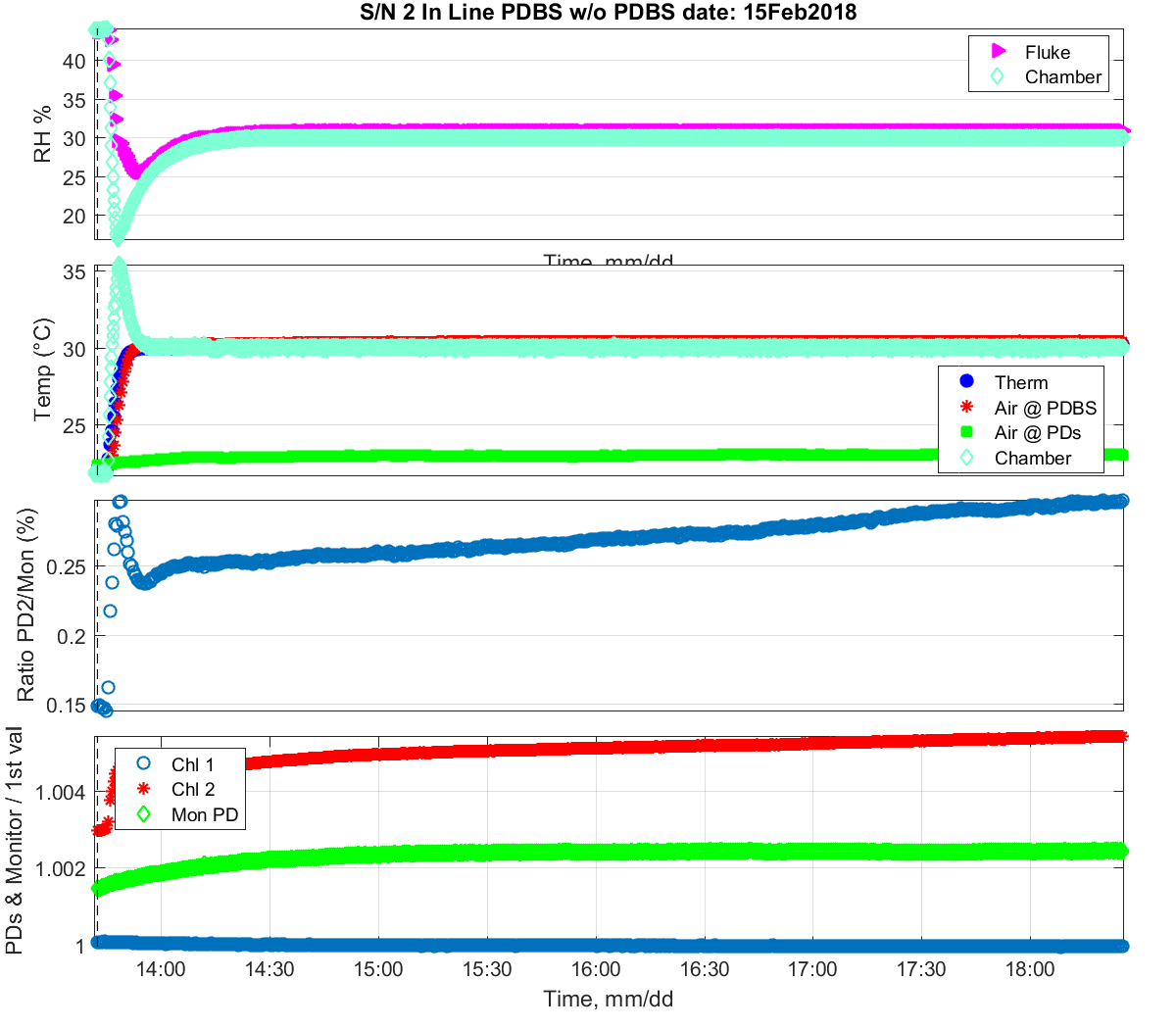

Figure 4: Zoomed in look at Day 3

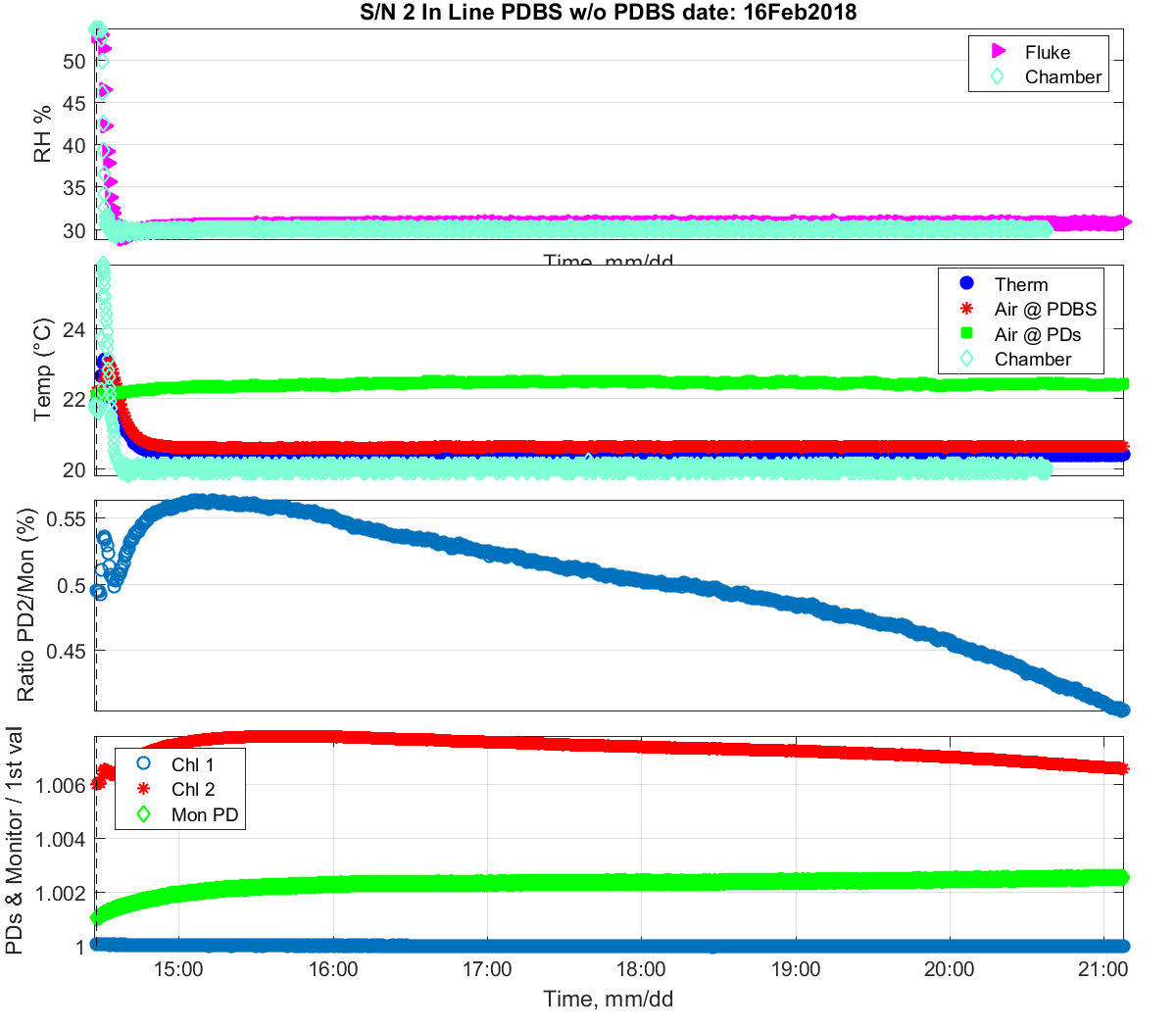

Figure 5: Zoomed in look at Day 4


pwd: \\elwood.nist.gov\68_PML\685\internal\Restricted\Johnson\MOBY-AHAB\fiber splitter tests\Config10
Date: 20-Feb-2018 16:55:57
Created from plt_output_panels_Config10_(1)
