REVISION DATE: 03-Apr-2018 16:49:29
CONFIG 12: 23-Mar-2018 to 28-Mar-2018
In Line PSBS custom made by Mark, aligned on laser bench Pier 35, S/N 2. Test of temperature/humidity stability of Collet Fiber Connector. The collet output fiber labeled ORANGE is on the output of the through PDBS; input fiber still FISH #31. We took out the PDBS and the fold mirror. PD2 is connected to the through channel and PD1 has a 9V battery. FISH Fibers, SIRCUS Sphere, Yuqin Zong's white LED source, monitor with Si PD and SEI. * E1 = Day 1: 23-Mar-2018 22degC, meant for 22/30/22 at 30%RH but forgot to turn on humidity control so this is just 22deg C. * E2 = Day 2: 26-Mar-2018 22/30/22degC, 30% RH; also took darks afterwards. * E3 = Day 3: 27-Mar-2018 22/30/22degC, 30% RH; darks before and after; FLUKE chl 2 moved close to Chamber temp/RH sensors. * E4 = Day 4: 28-Mar-2018 22degC, 30%/40%/30% RH; FLUKE chl 2 moved back to near PDBS.

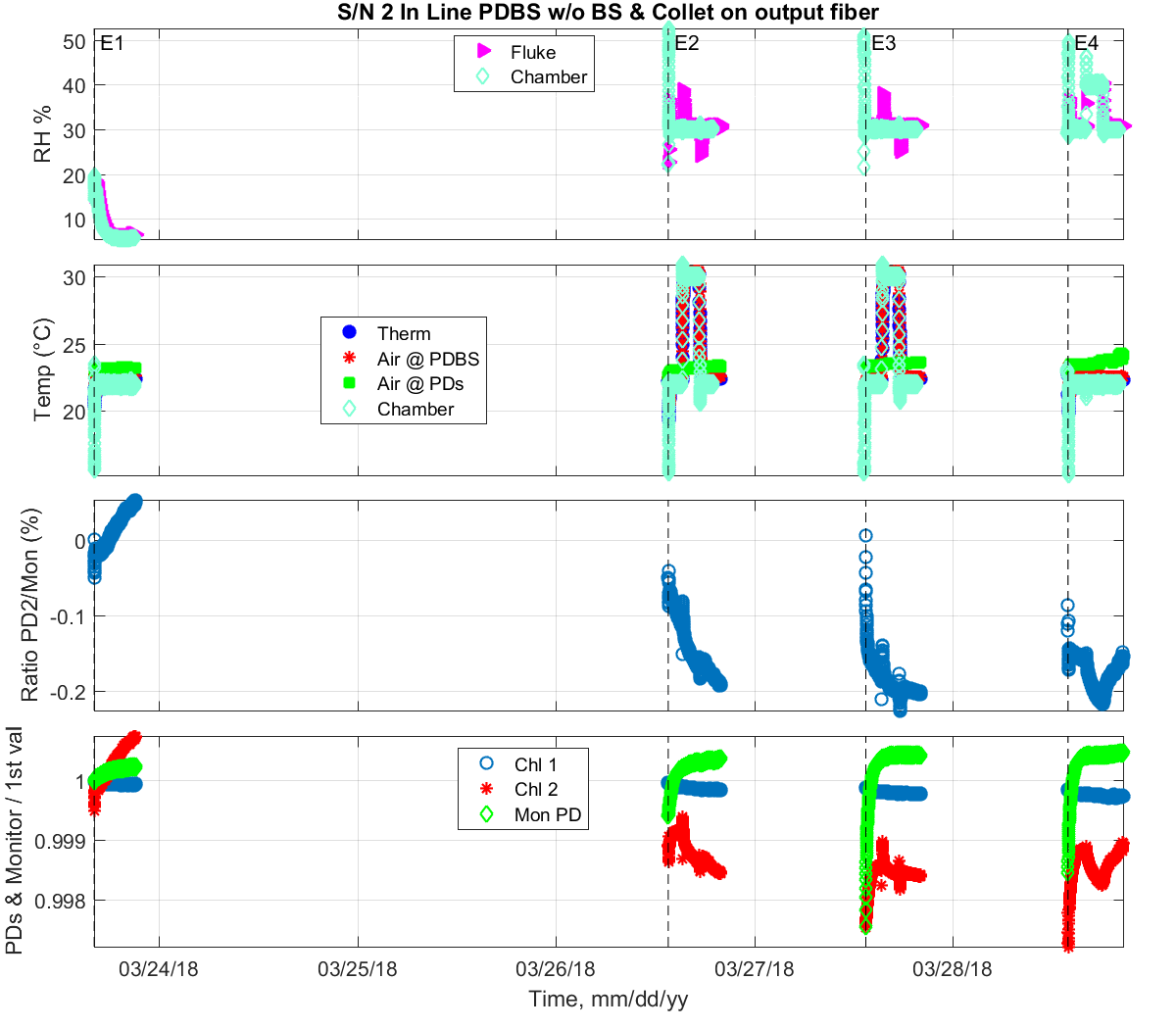

Figure 1: All data in this Configuration to date. PD signals are normalized to the monitor. Ratio PD1/Mon, Monitor, and normalized Signals all normalized to the initial value.

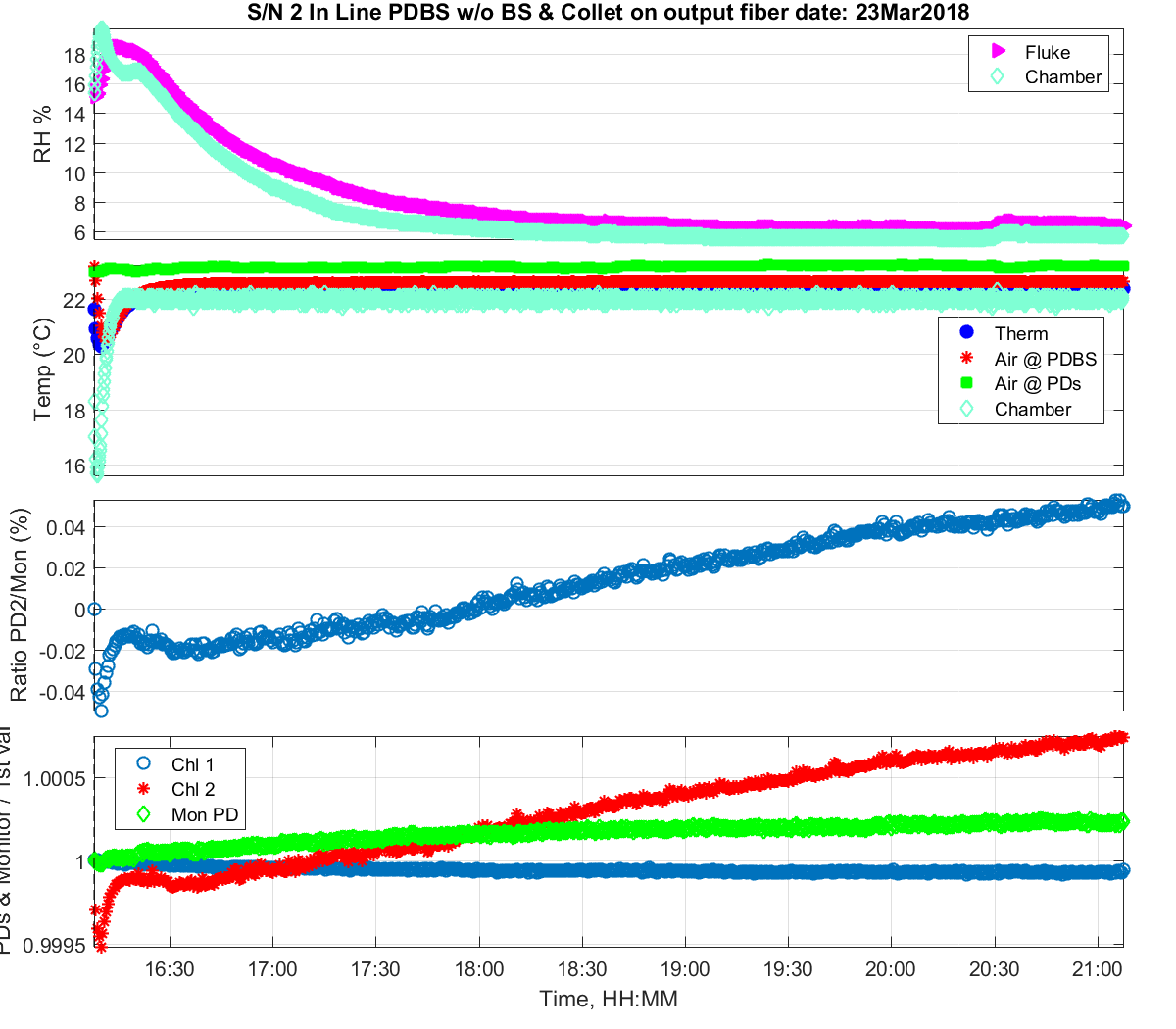

Figure 2: Zoomed in look at Day 1

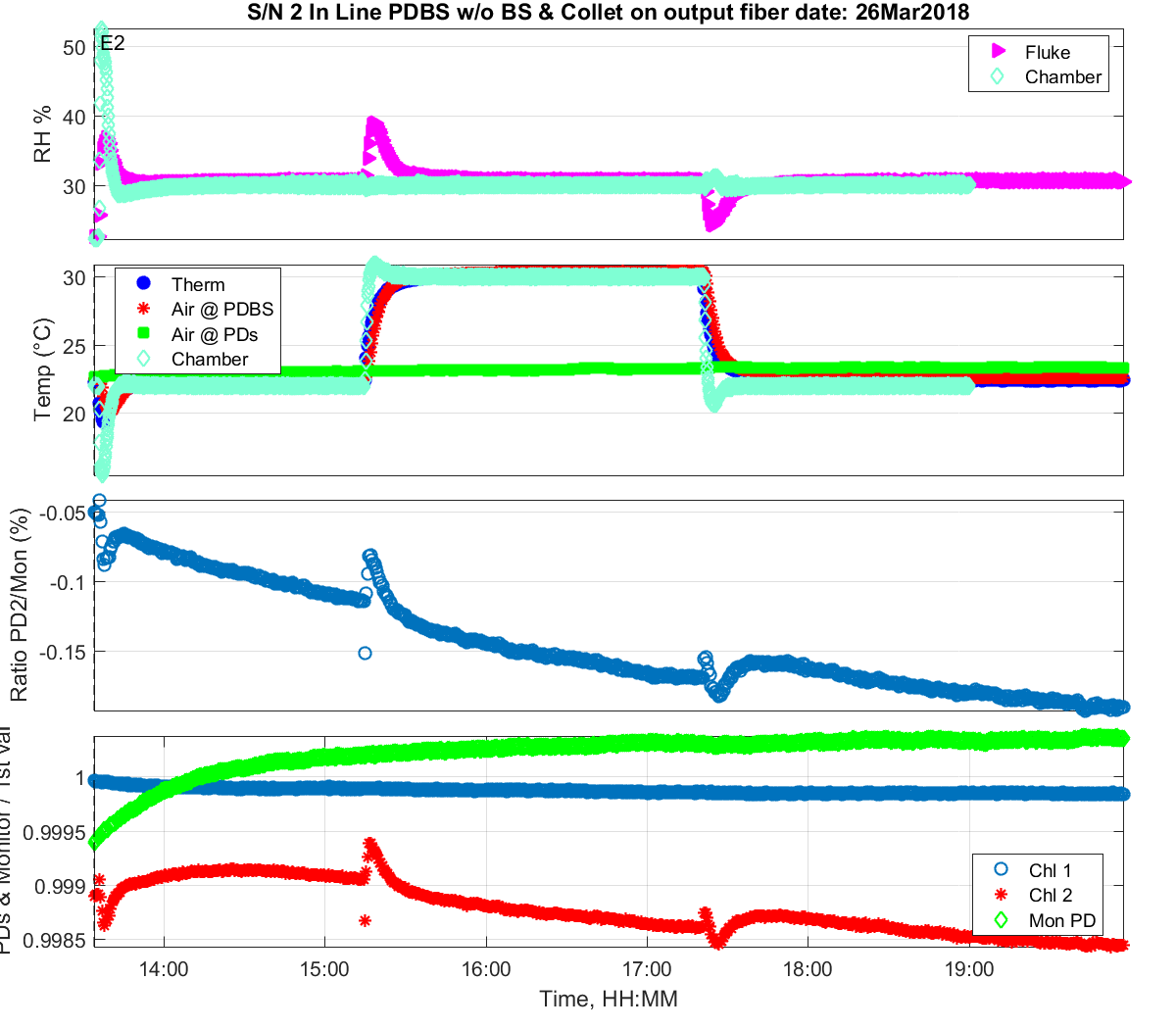

Figure 3: Zoomed in look at Day 2

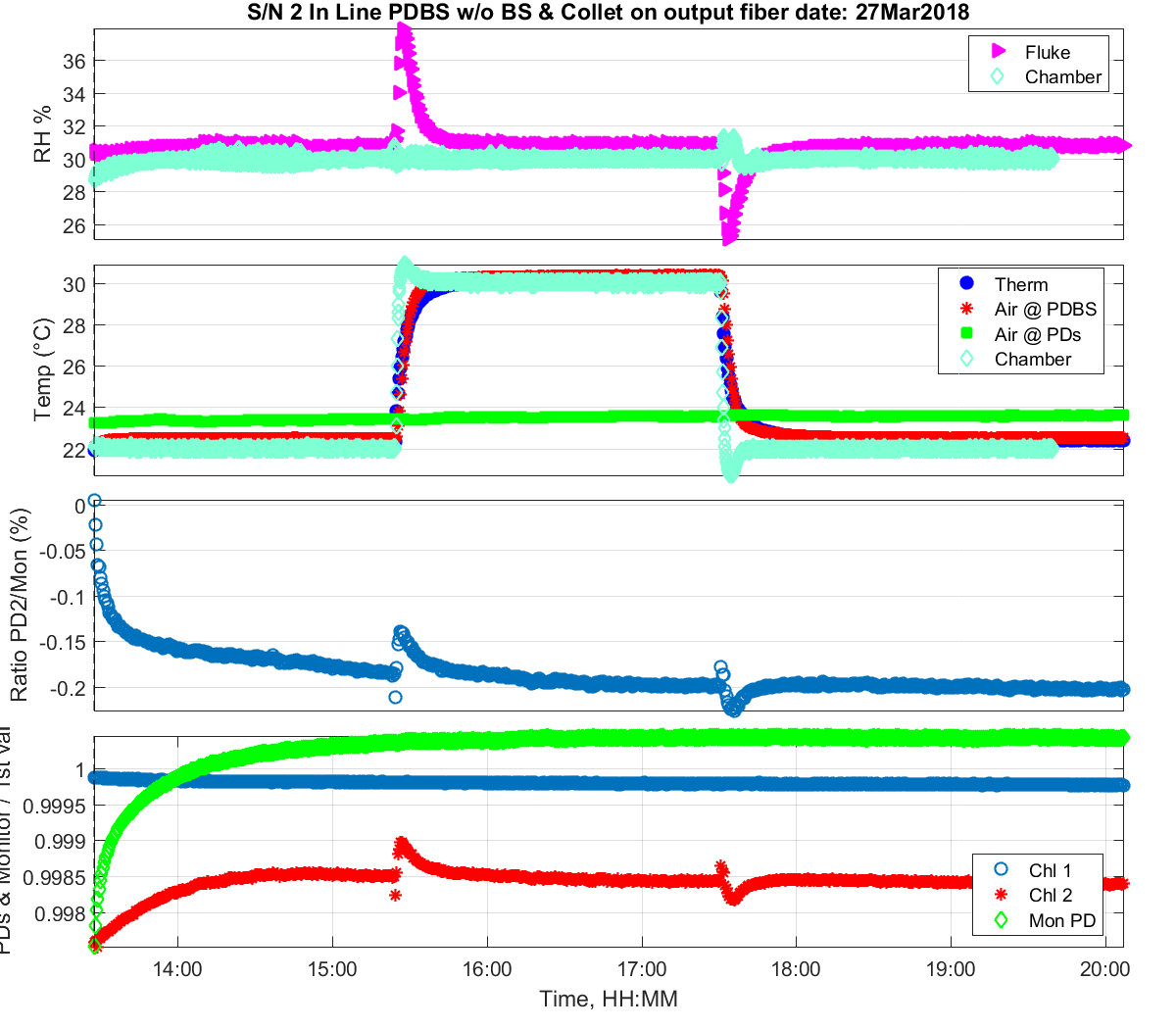

Figure 4: Zoomed in look at Day 3

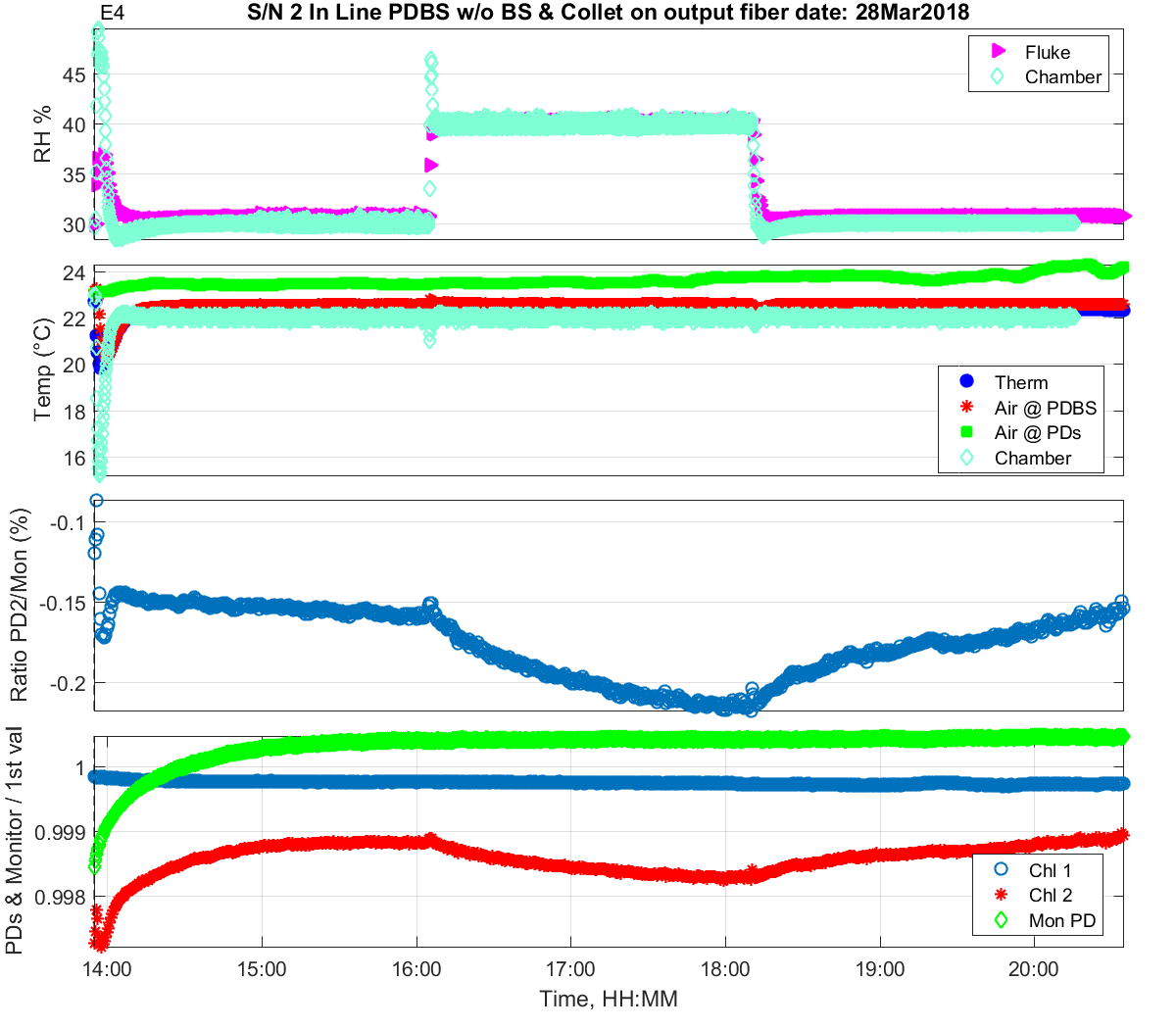

Figure 5: Zoomed in look at Day 4
