REVISION DATE: 24-Apr-2018 16:41:06
CONFIG 15: 23-Apr-2018 to Present
In Line PSBS custom made by Mark, aligned on laser bench Pier 35, S/N 1. New PDBS in S/N 1. Lenses are from first S/N 1. Through Output Fiber (PD2): Collet Fiber on one end, FC on the other; Collet marked "DO NOT TWIST"; fiber labeled with orange electrical tape. This is the same fiber as Config13. 90deg/fold Output Fiber (PD1): FC on both ends; this is FISH #7. Input Fiber: Collet Fiber on one end, FC on the other. Collet marked "DO NOT TWIST"; fiber labeled with green electrical tape. SIRCUS Sphere, Yuqin Zong's white LED source, monitor with Si PD and SEI. PD1 is on gain 8 and PD2 is on gain 7 * E1 = Day 1: 23-Apr-2018 ambient, chamber off door held open 3", darks after LED run * E2 = Day 2: 24-Apr-2018 22/30/22degC, 30%RH with darks before & after.

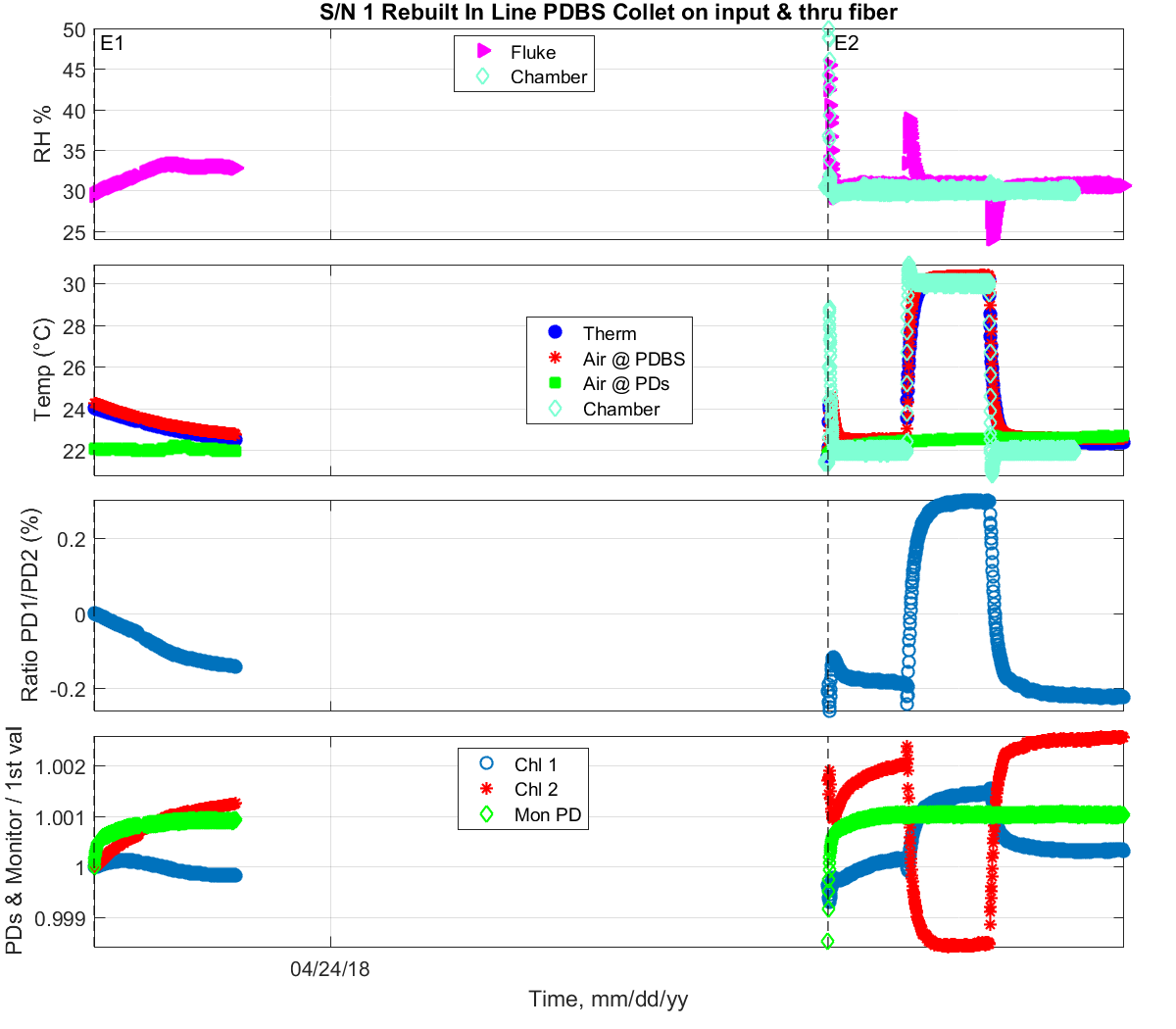

Figure 1: All data in this Configuration to date. PD signals are all normalized to the initial value.

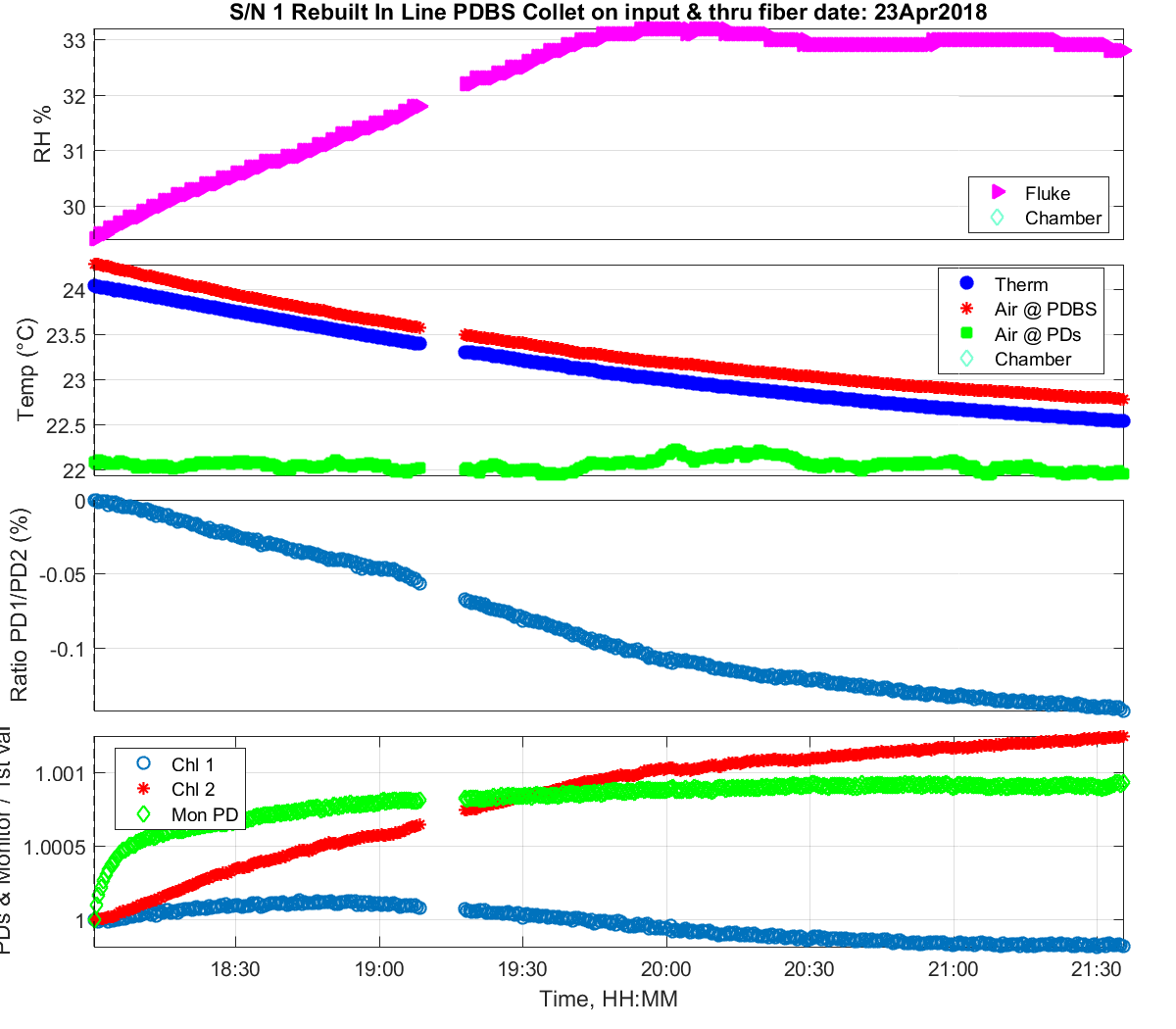

Figure 2: Zoomed in look at Day 1

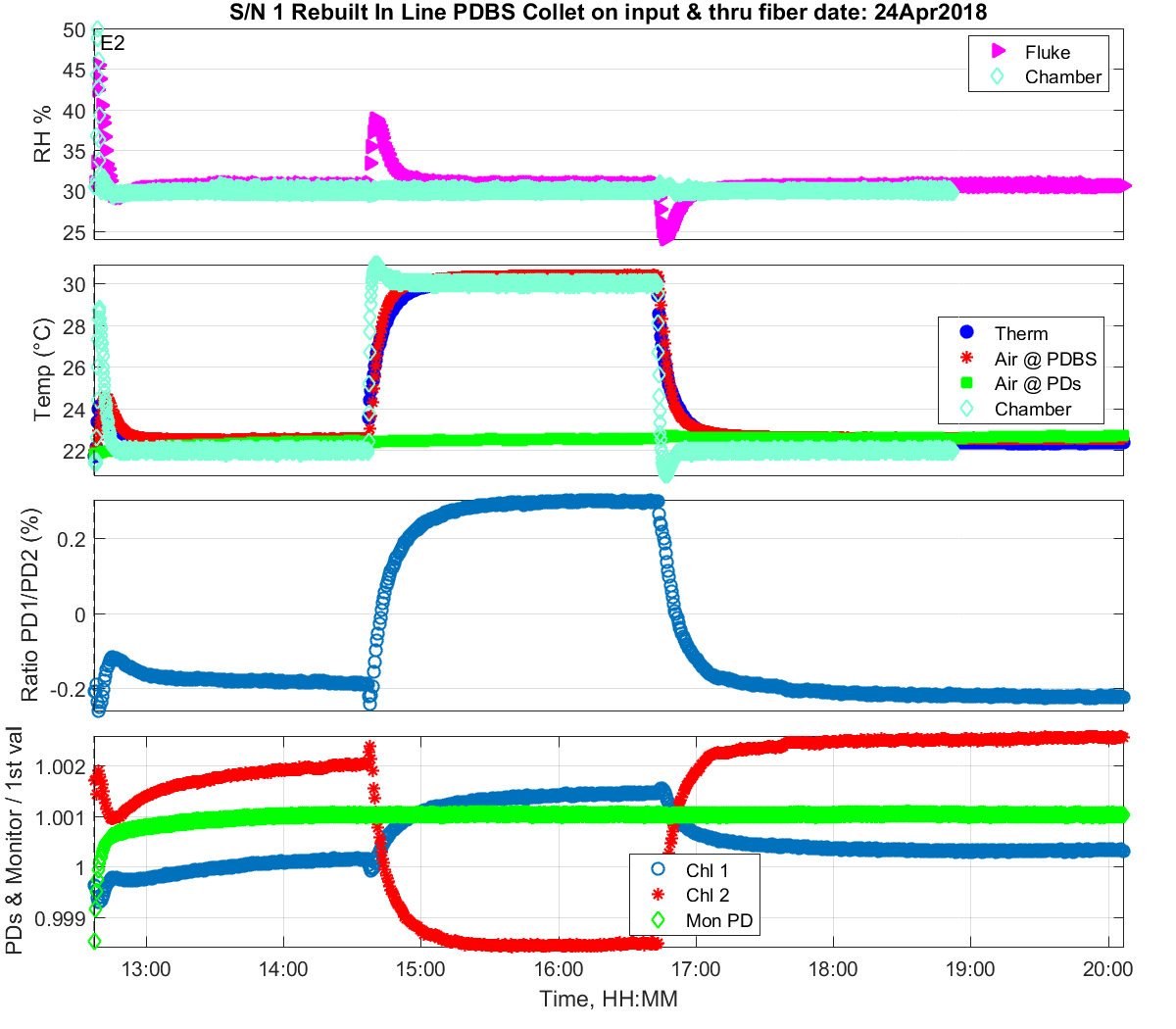

Figure 3: Zoomed in look at Day 2
