This is the NIST 2008_01 LuMOS matrices created using the NIST laser Jun 2008. The data looked really good. There were NO data jumps (where the ADUs jumped around with in one scan) but there were a few sine waves in the darks and light (which were removed). I interpolated the main reflection peak, the 2nd reflectionn peak and the double bump/ cliff. I did not interpolate the large bump this time. I want to see if this has any effect, I.E. is all the work needed really necessary. A background laser data set was created and used to remove features before the main peak and delta shapes interpolation. Then the individual features were put back into the laser data in the correct position.

Below are graphs showing the results of the interpolated data.

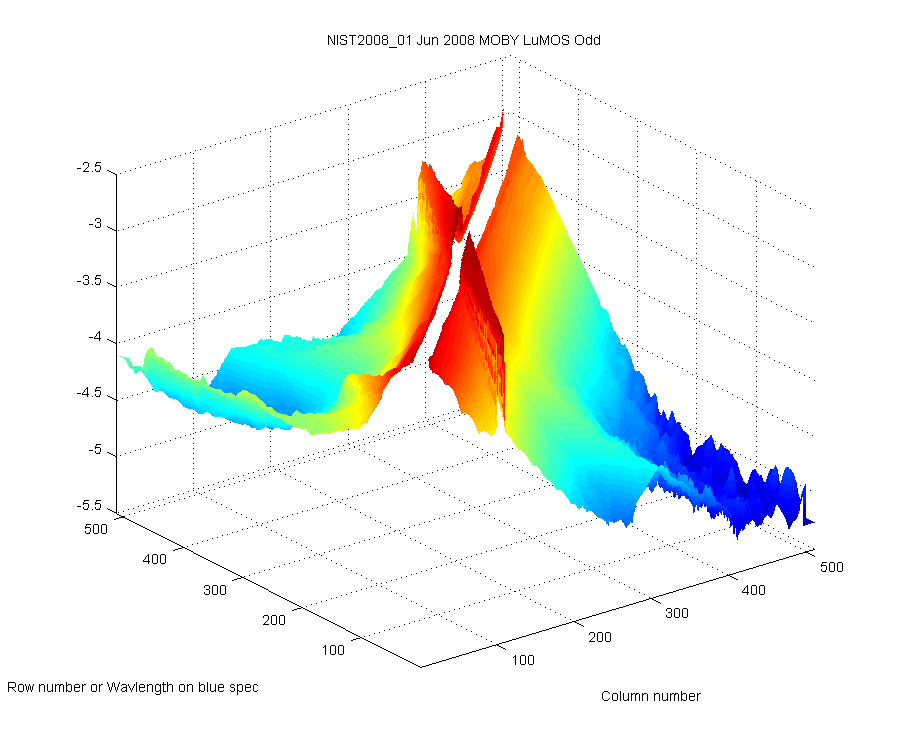

Figure 1

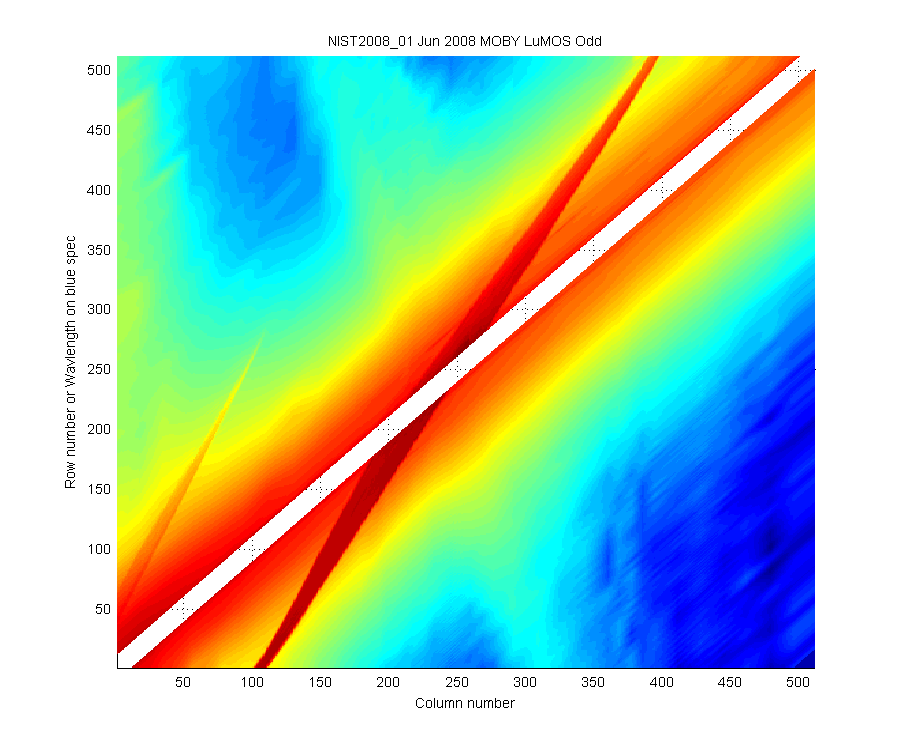

Figure 2

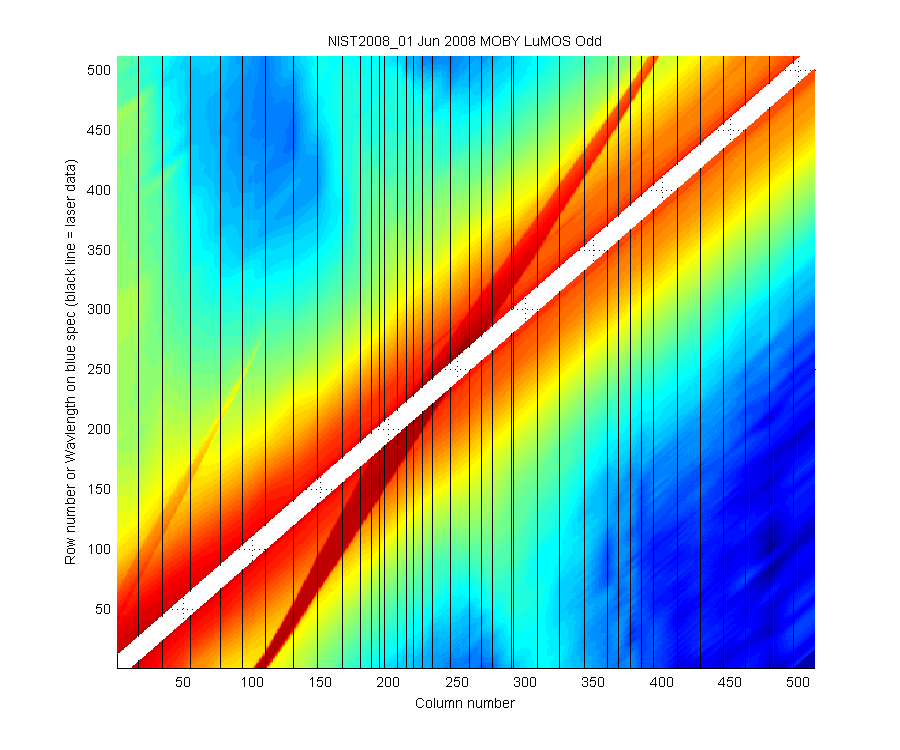

Figure 3
