This is the NIST 2008_01 LuMOS matrices created using the NIST laser Jun 2008. The data looked really good. There were some data jumps (where the ADUs jumped around with in one scan) and some sine waves in the darks and light (which were removed). I interpolated the main reflection peak, the 2nd reflectionn peak and the half of the large bump. A background laser data set was created and used to remove features before the main peak and delta shapes interpolation. Then the individual features were put back into the laser data in the correct position.

Below are graphs showing the results of the interpolated data.

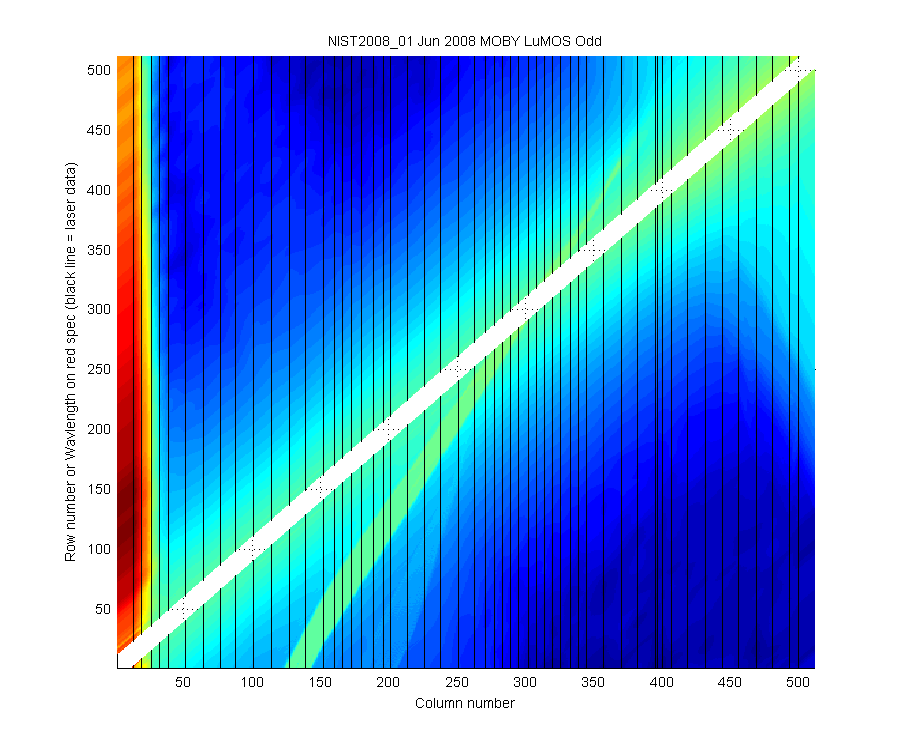

Figure 1

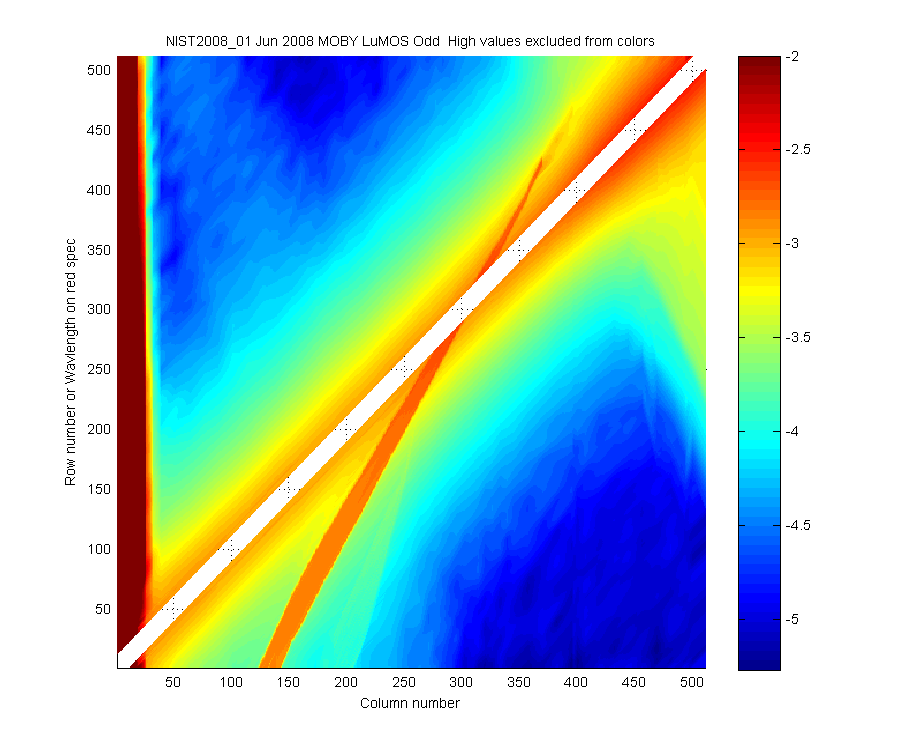

Figure 2

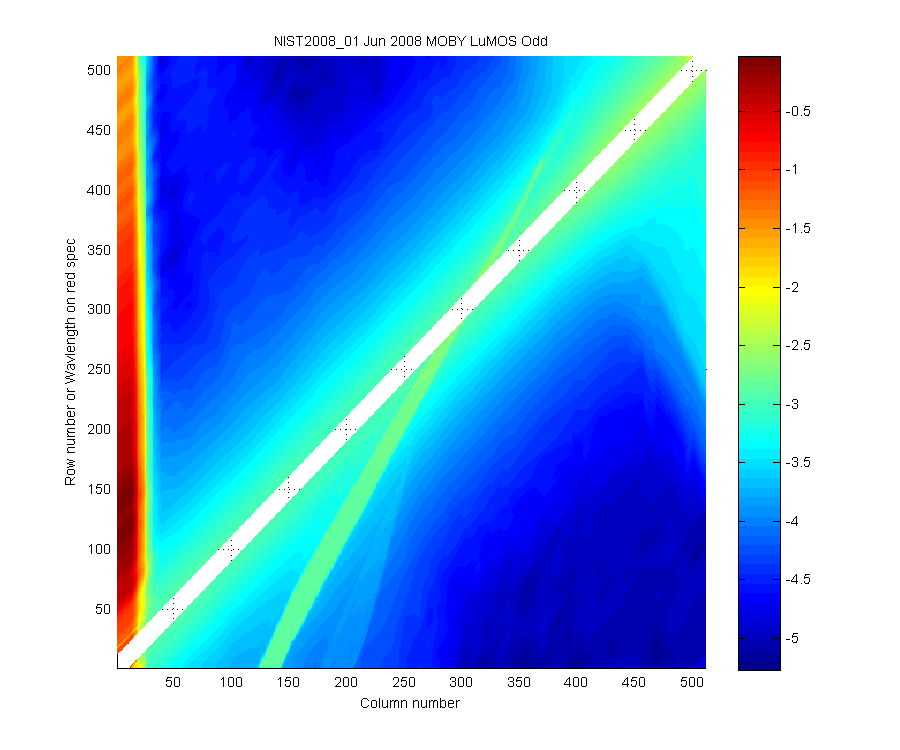

Figure 3

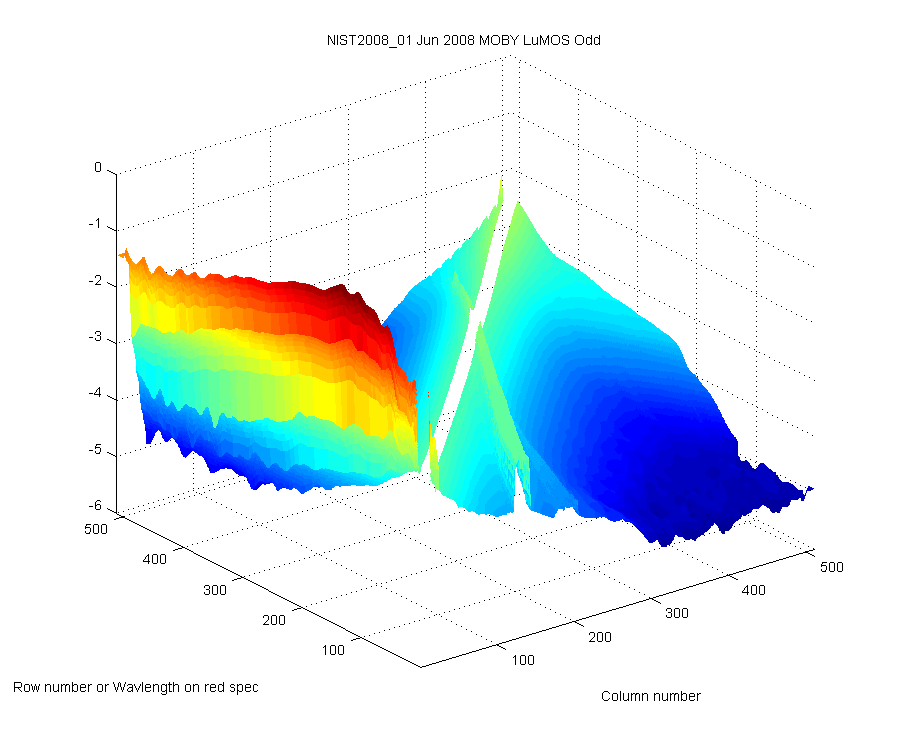

Figure 4

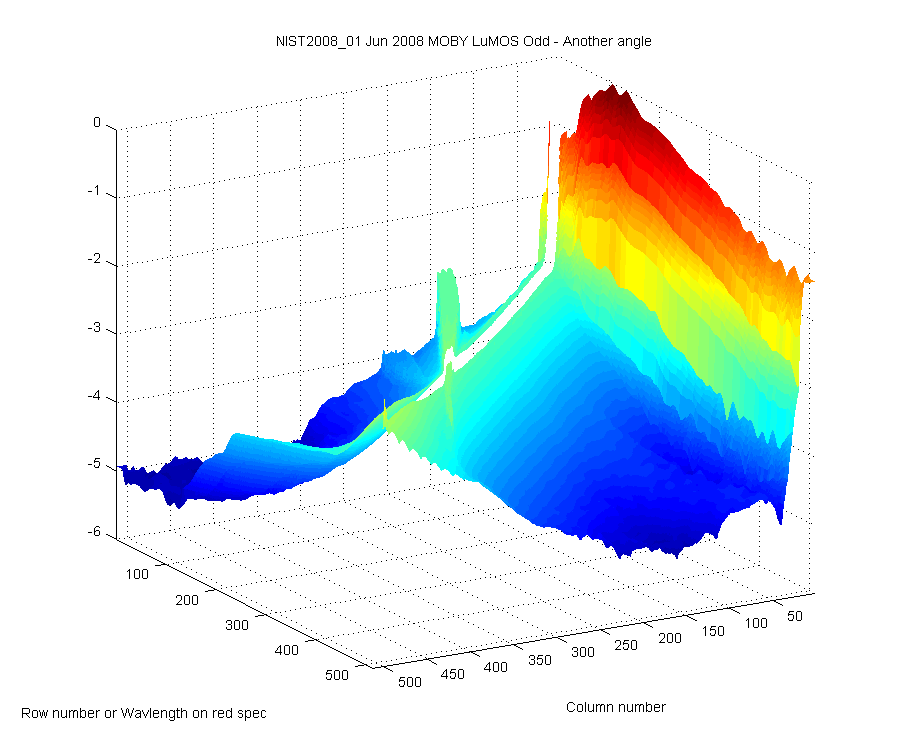

Figure 5
