This shows the fixed laser data for the wavelength with a the noise/data jump problem. For details of each laser wavelengths problems see 1.03a - 1.03p. In many cases the problem was solved by removing scans. In other cases I need to use a scan with the problem so I had to fix the problem by moving sections of the lights or darks up or down. I then compared to Laser data from Mike if I could find it. Below are the results. If the before and after are the same it is because I solve the problem just by removing scans (ie I did not need to shift the lite or dark values.

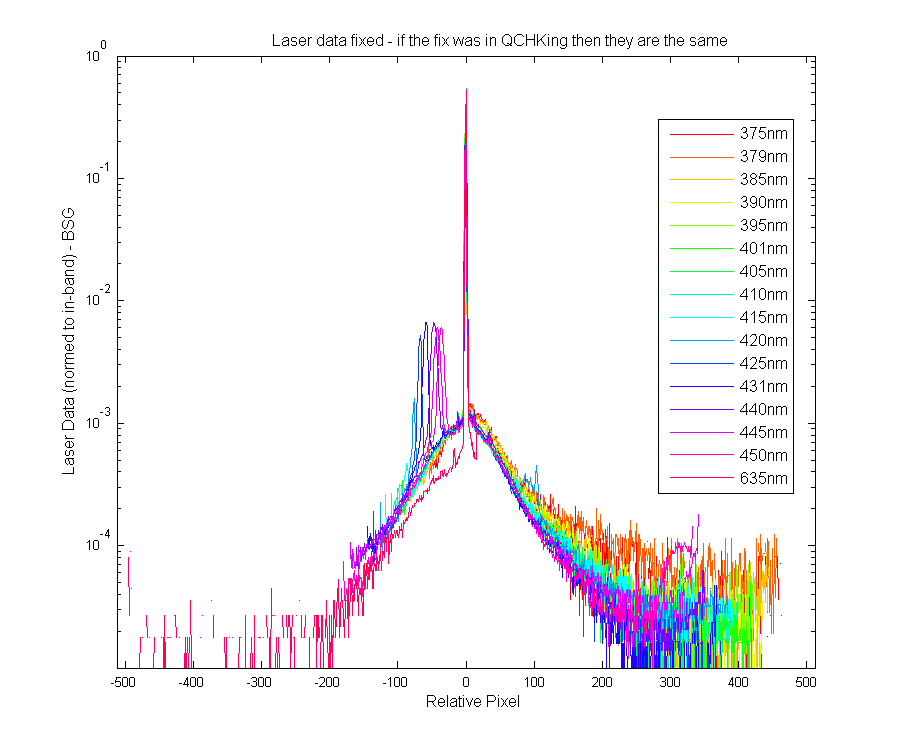

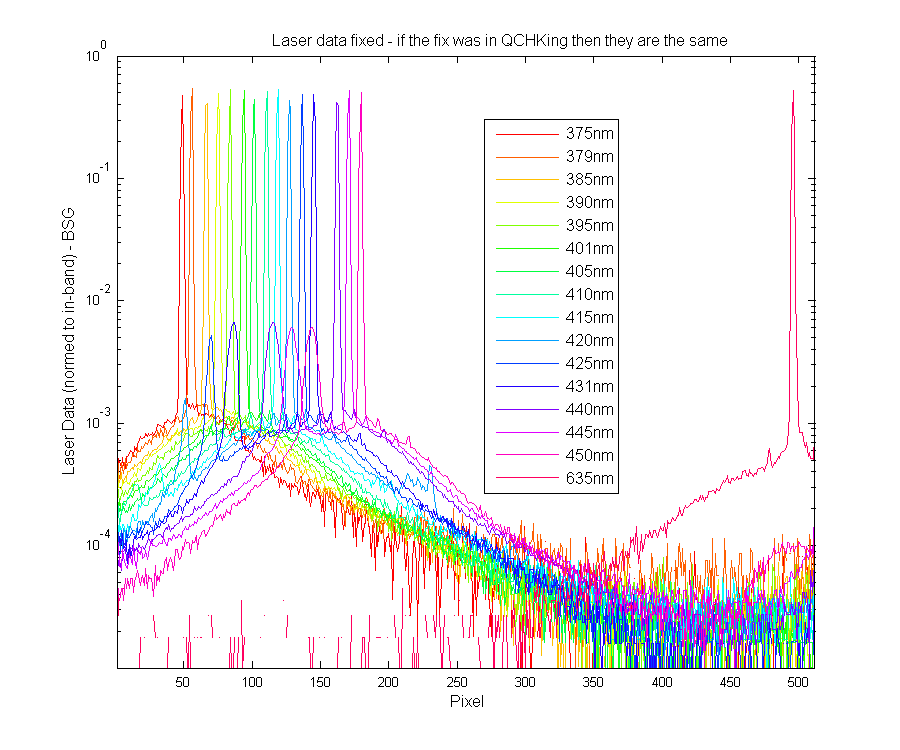

Fixed laser data, comparing out-of-band shape.

Figure 1

Fixed laser data.

Figure 2

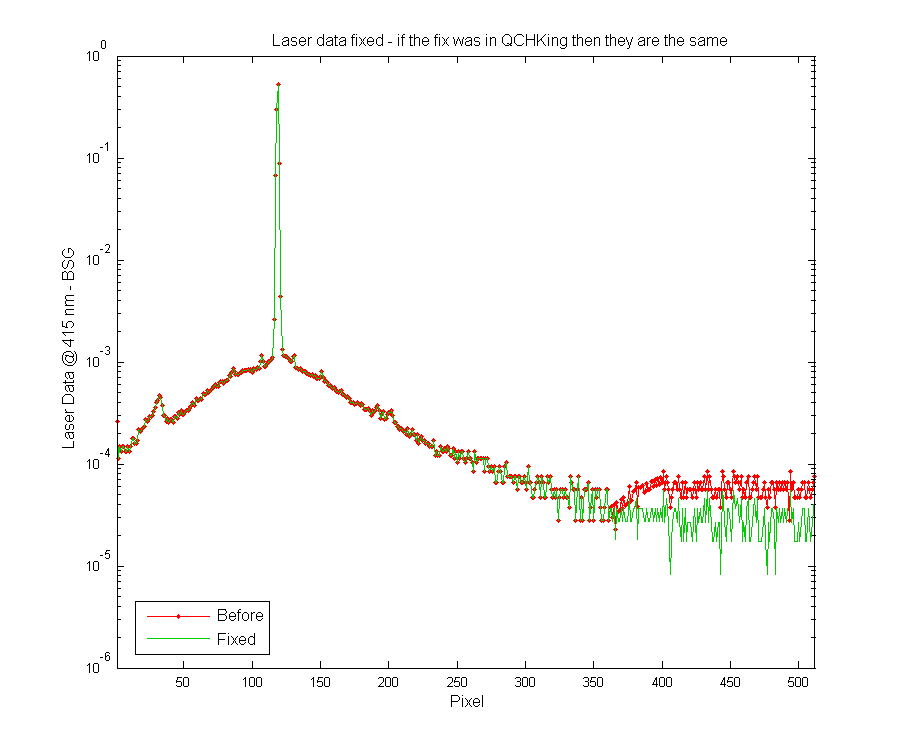

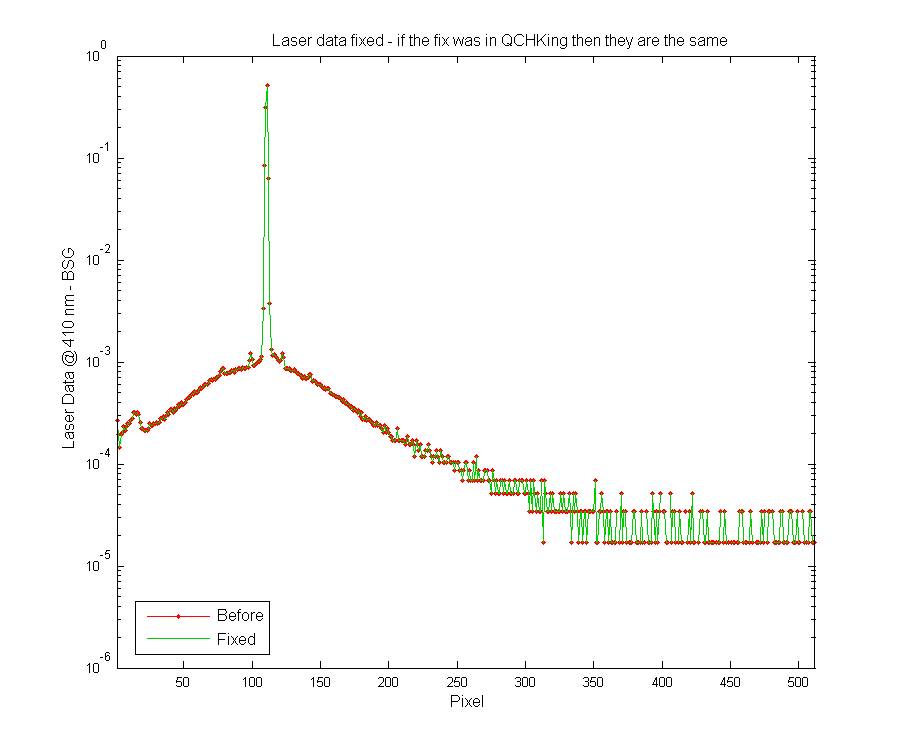

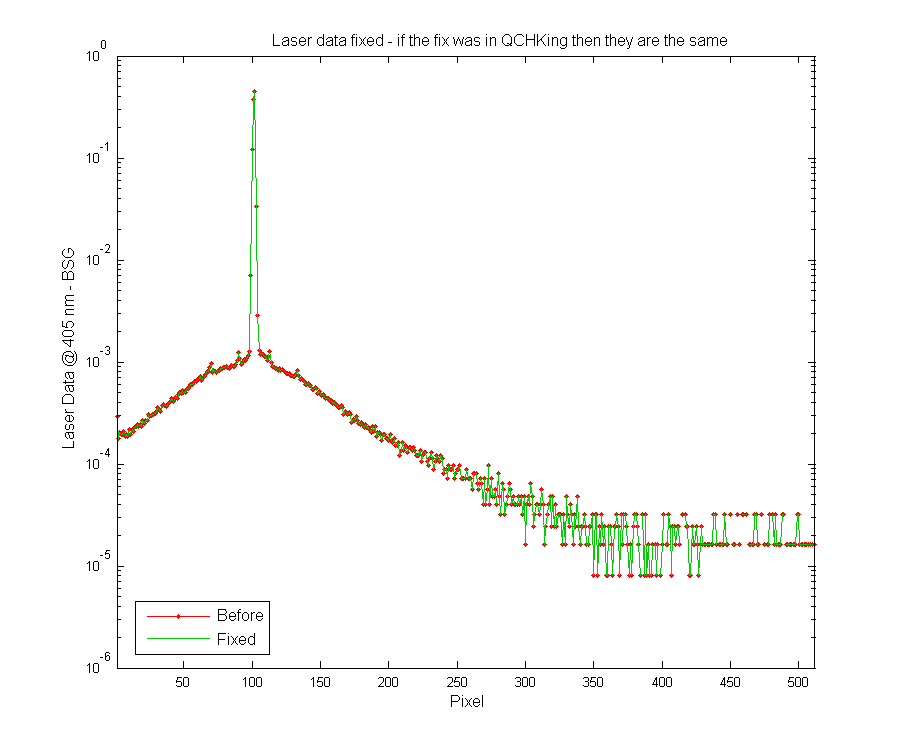

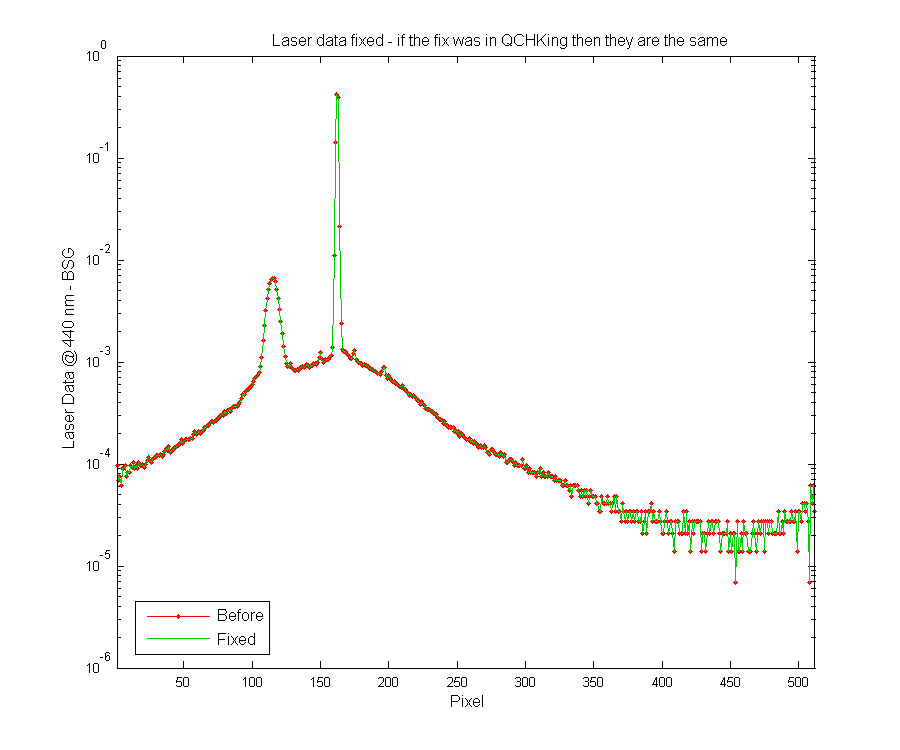

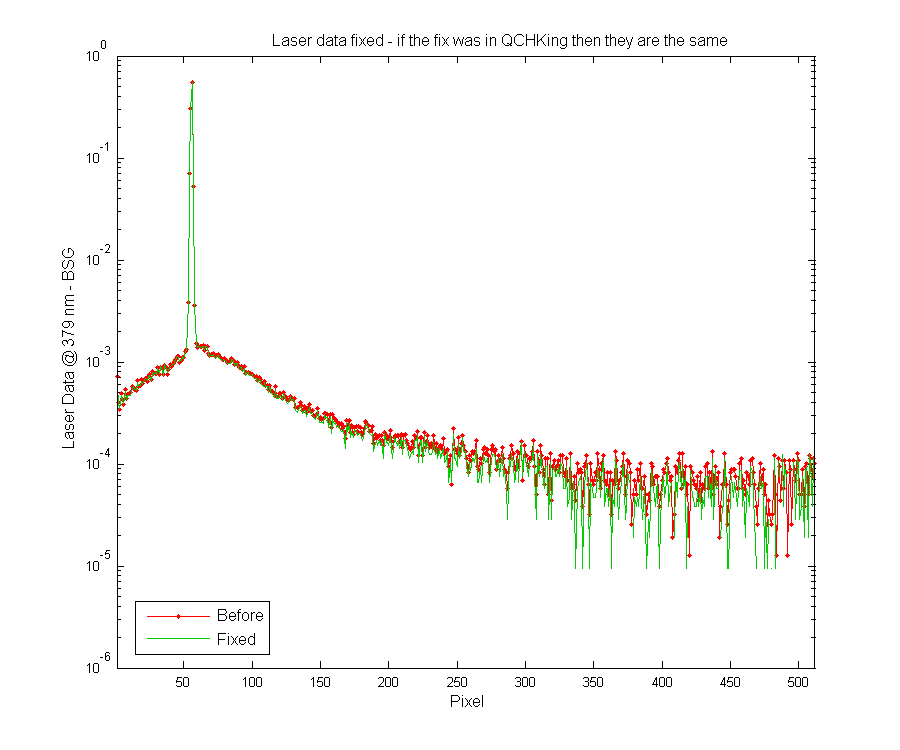

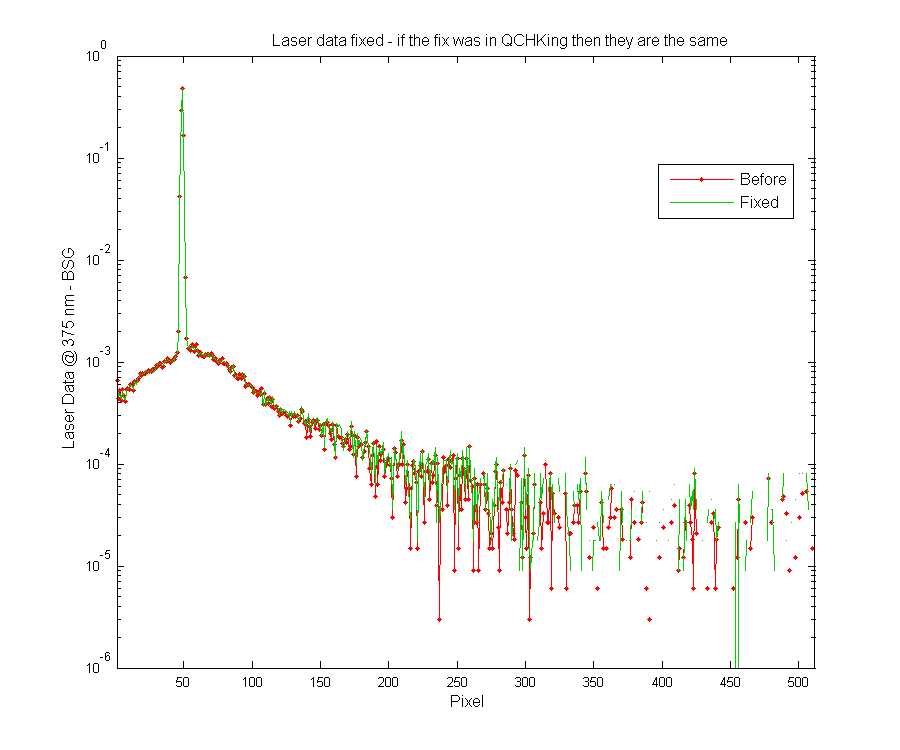

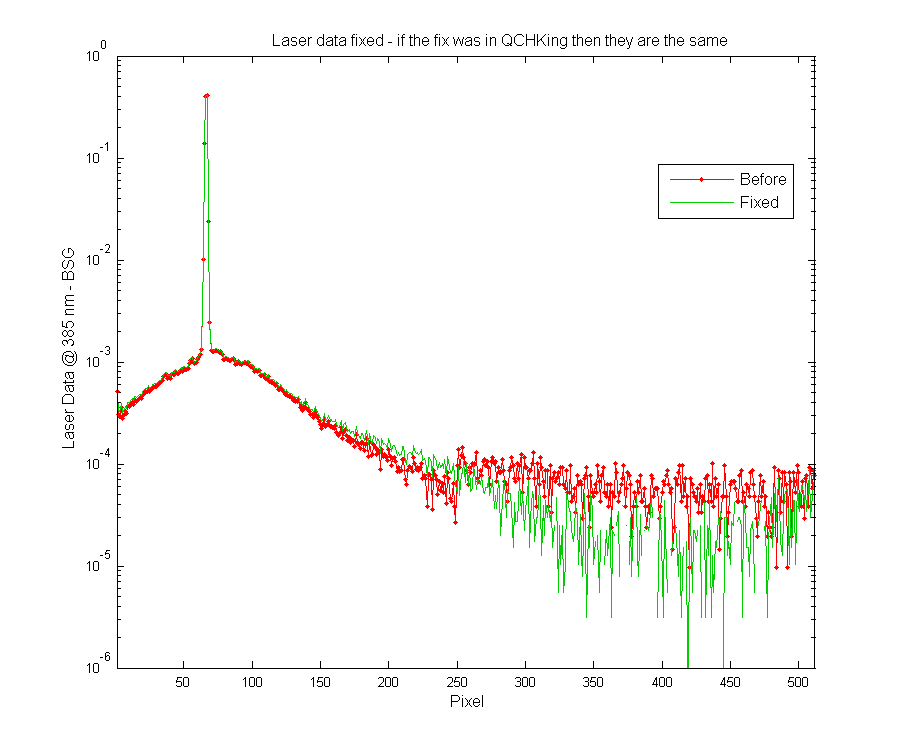

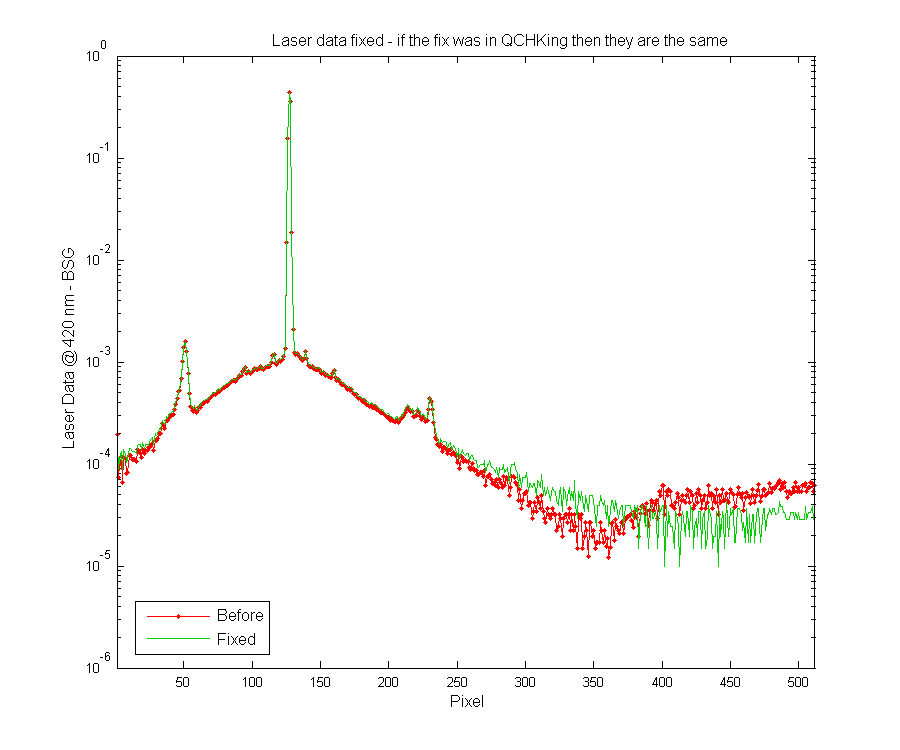

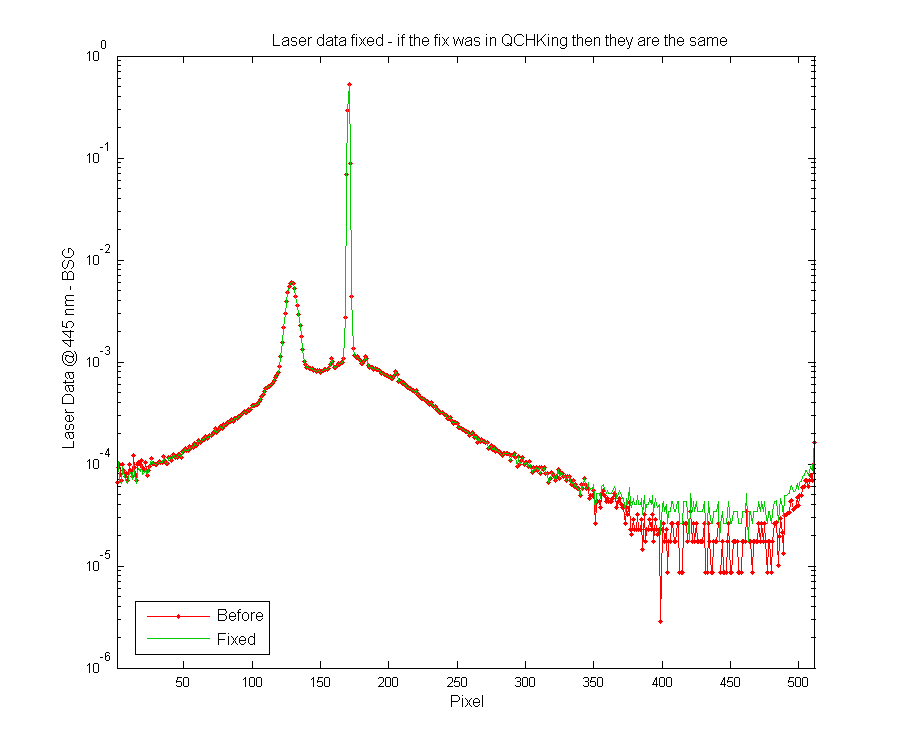

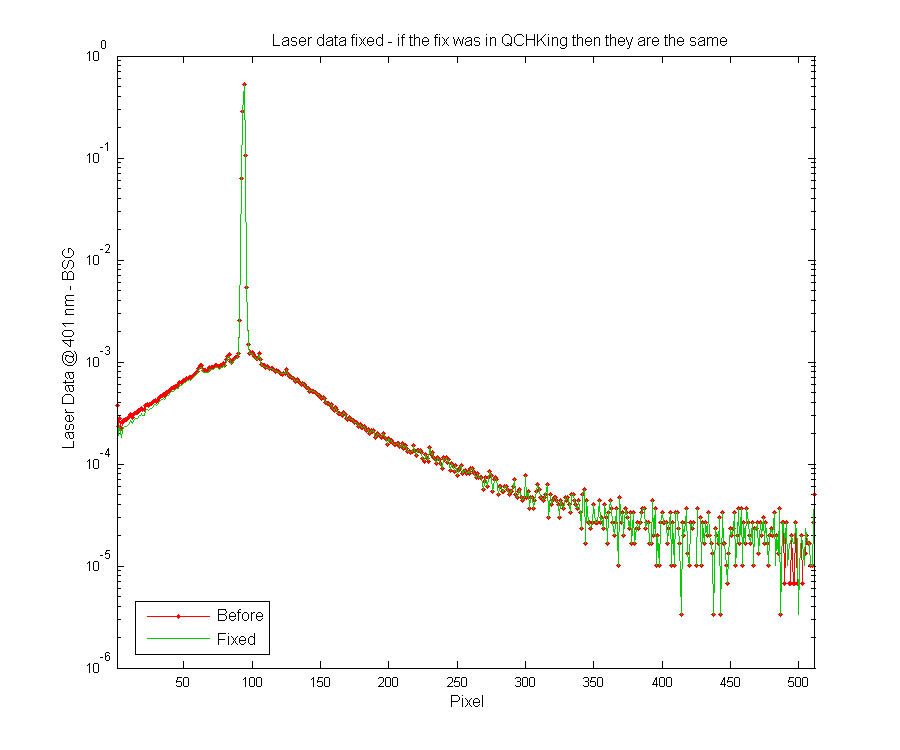

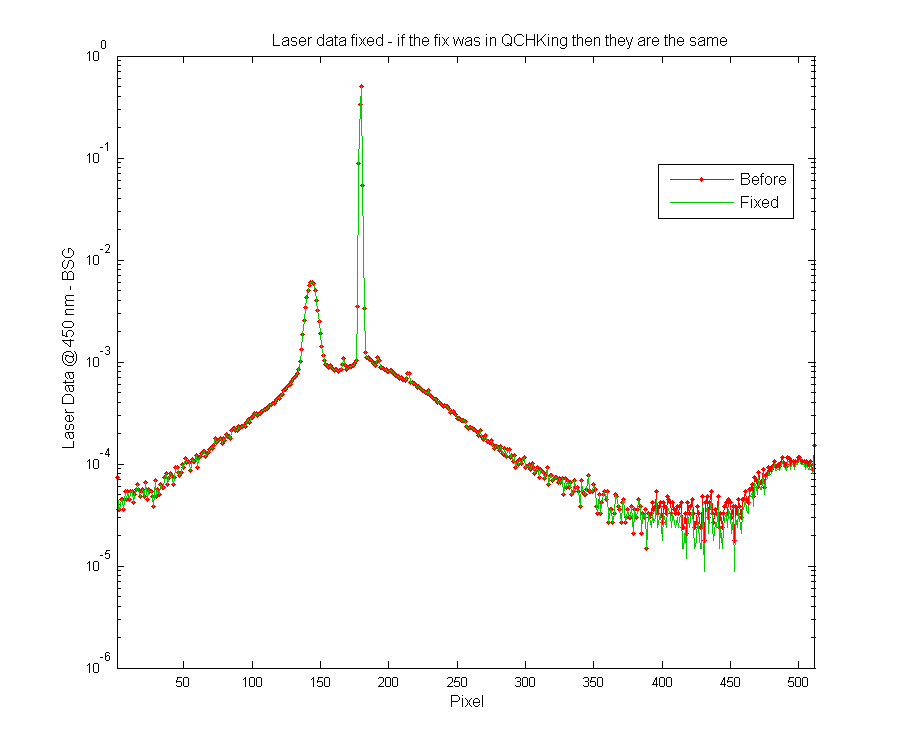

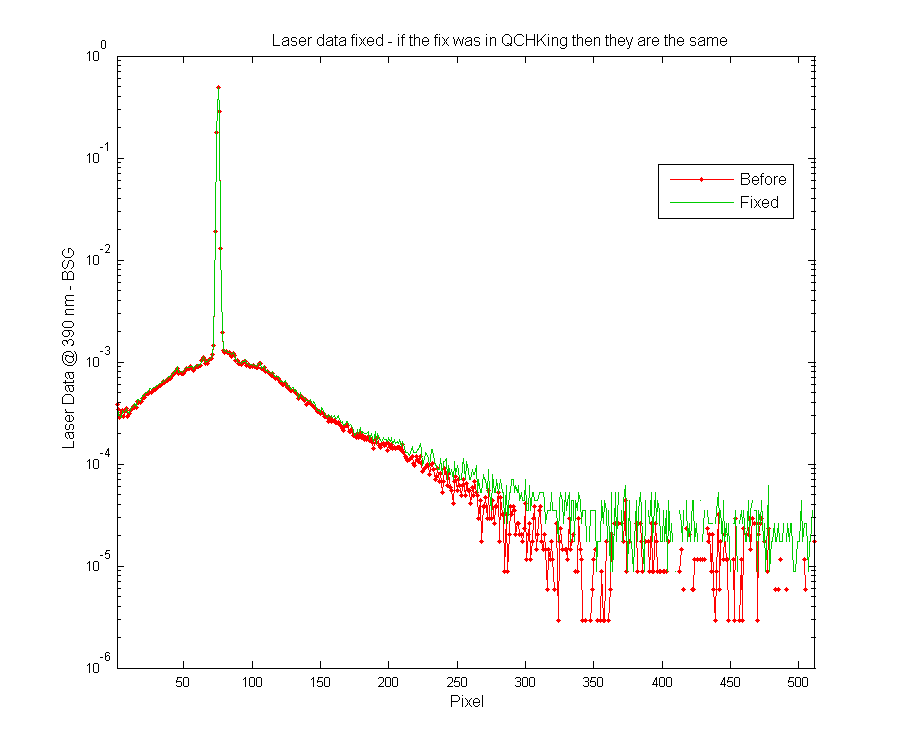

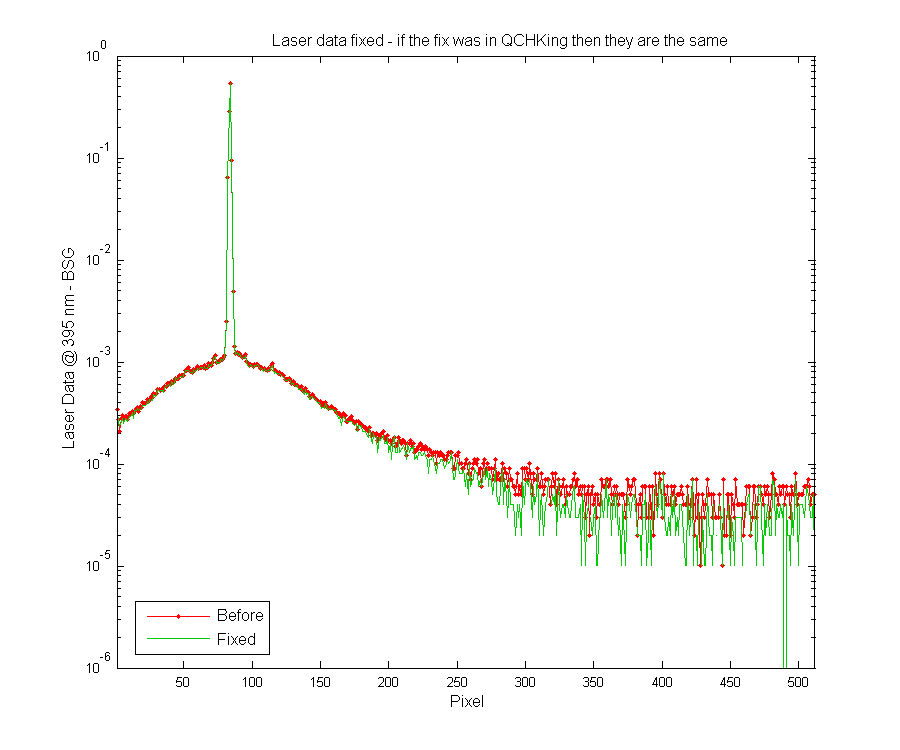

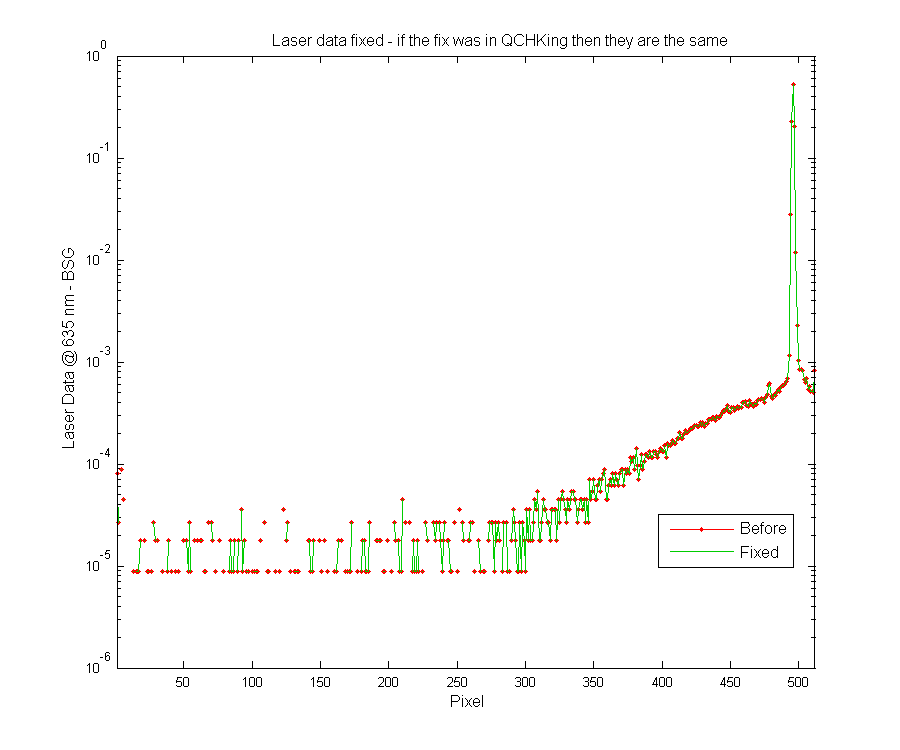

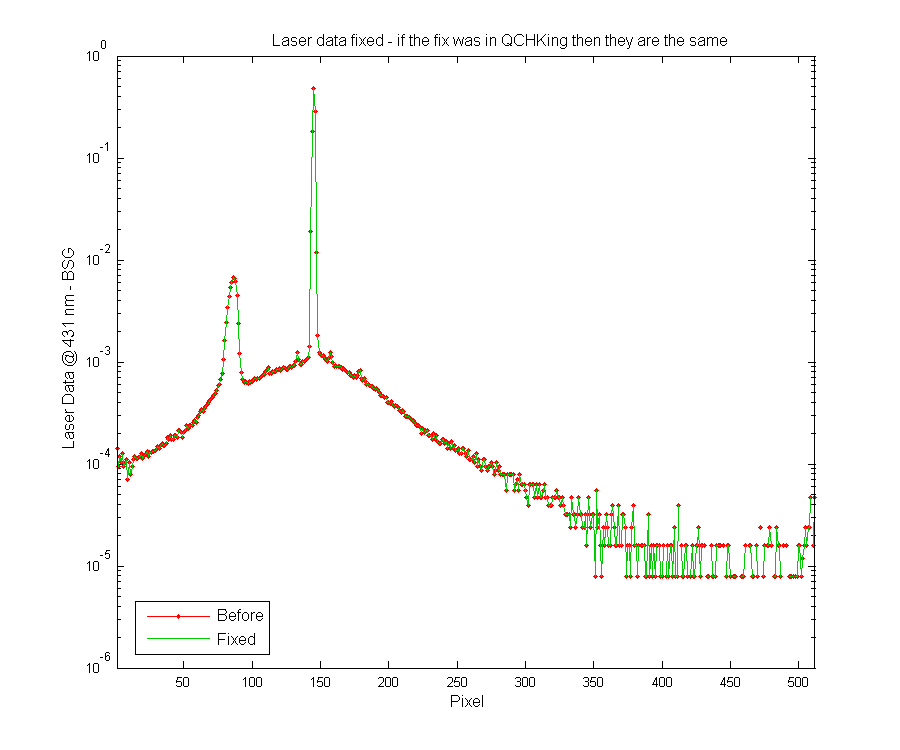

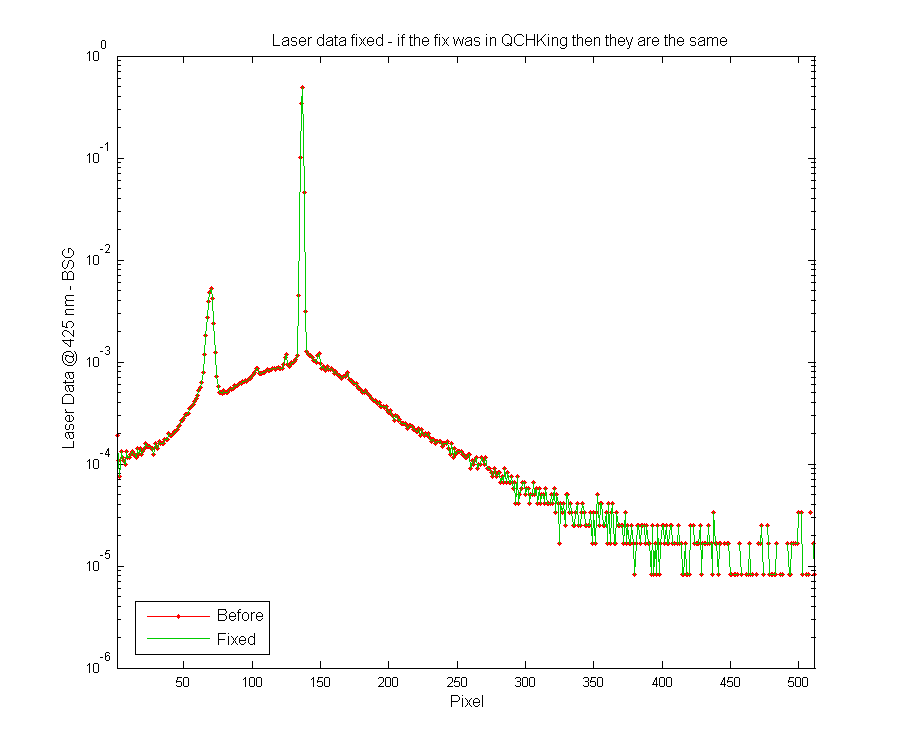

The following graphs show the before and after for each LuTop BSG data set.

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Figure 9

Figure 10

Figure 11

Figure 12

Figure 13

Figure 14

Figure 15

Figure 16

Figure 17

Figure 18
