FILENAME: dt0703.mld   DAY: 2   WAVELENGTH: 445 nm

Mike sent me some of this MOBY245 laser data he took during precals. This data looks AWESOME, no jumps or noise. I am picking the closest laser data to try and get and handle on the background level.

Solution: Fixed the VR2 dark scan bumps on the red side. And added data back in for the UV side of dark scan VR 6..

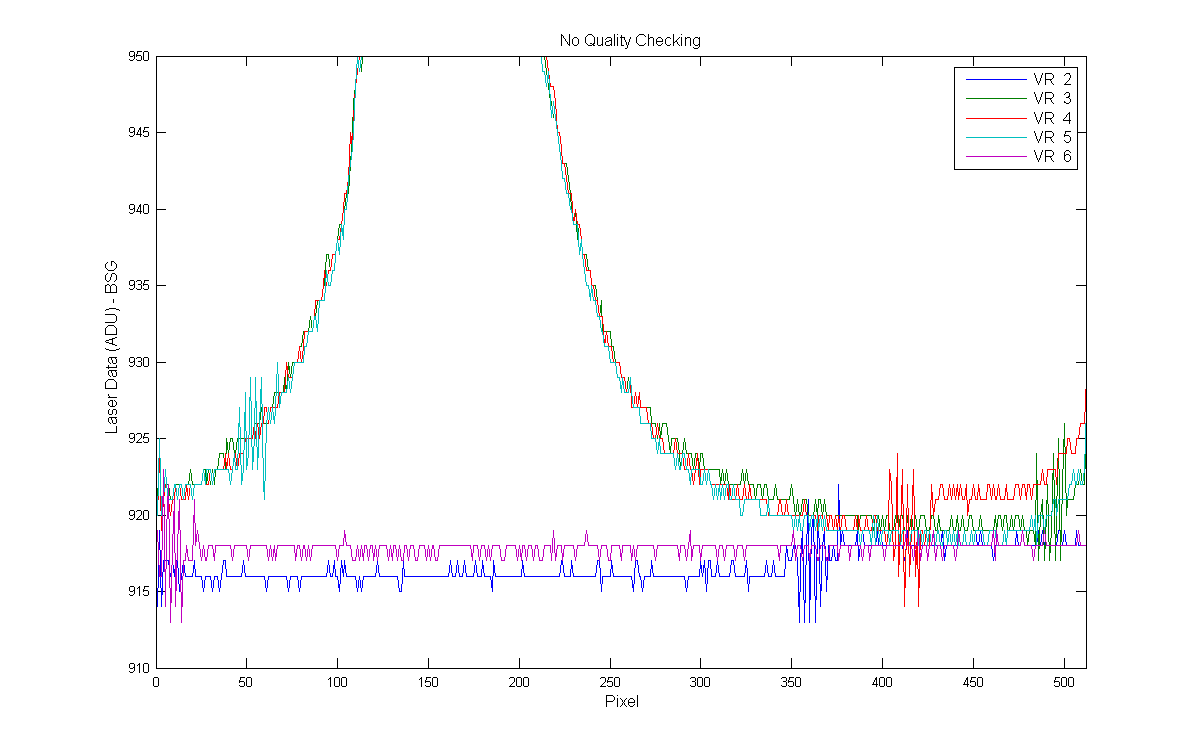

Raw data in ADU, no initial quality checking applied.

Figure 1

Raw data in ADU, with initial quality checking applied (spiked removed), bad scans are still shown. A negative 1 in the legend means that scan is marked bad and not used.

Figure 2

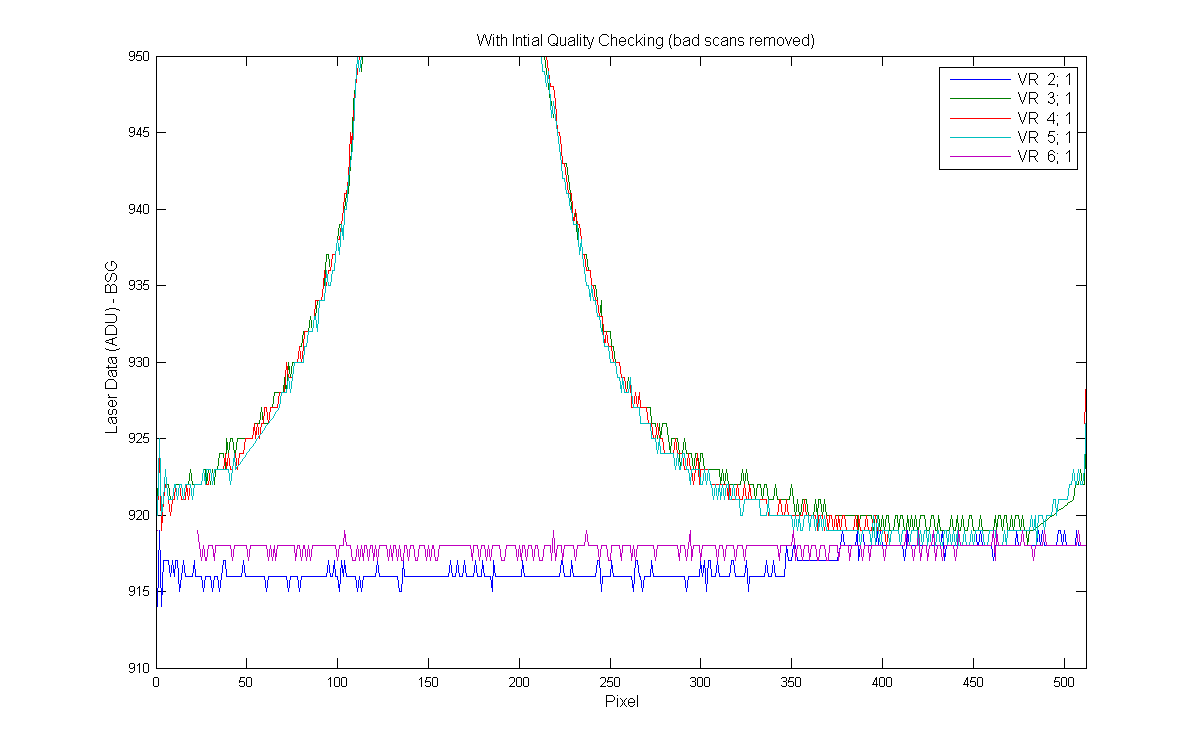

Raw data in ADU, with initial quality checking applied, bad scans are removed. There should be no negative ones in the legend. There are the scans used to create the Net signal.

Figure 3

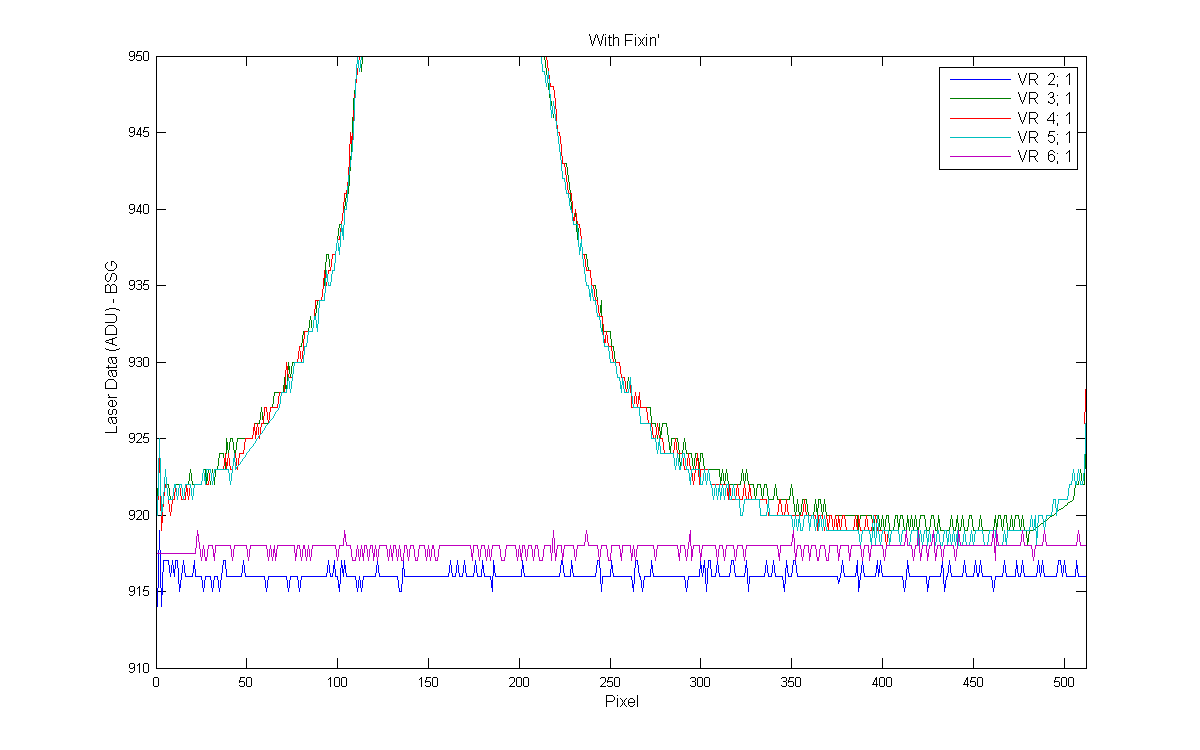

Fixed data, addition changes applied

Figure 4

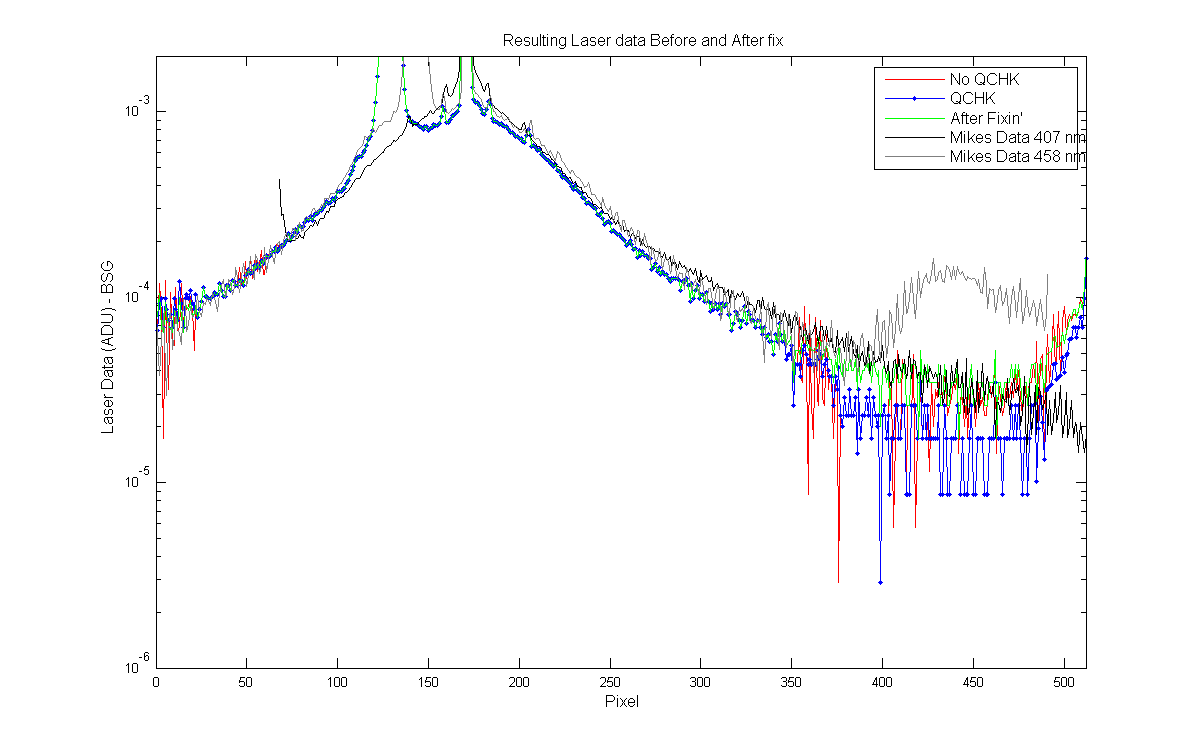

Processed Laser data raw (fig 1), before (Fig 3) and after "Fix" (more scans remvoed or fixed)

Figure 5

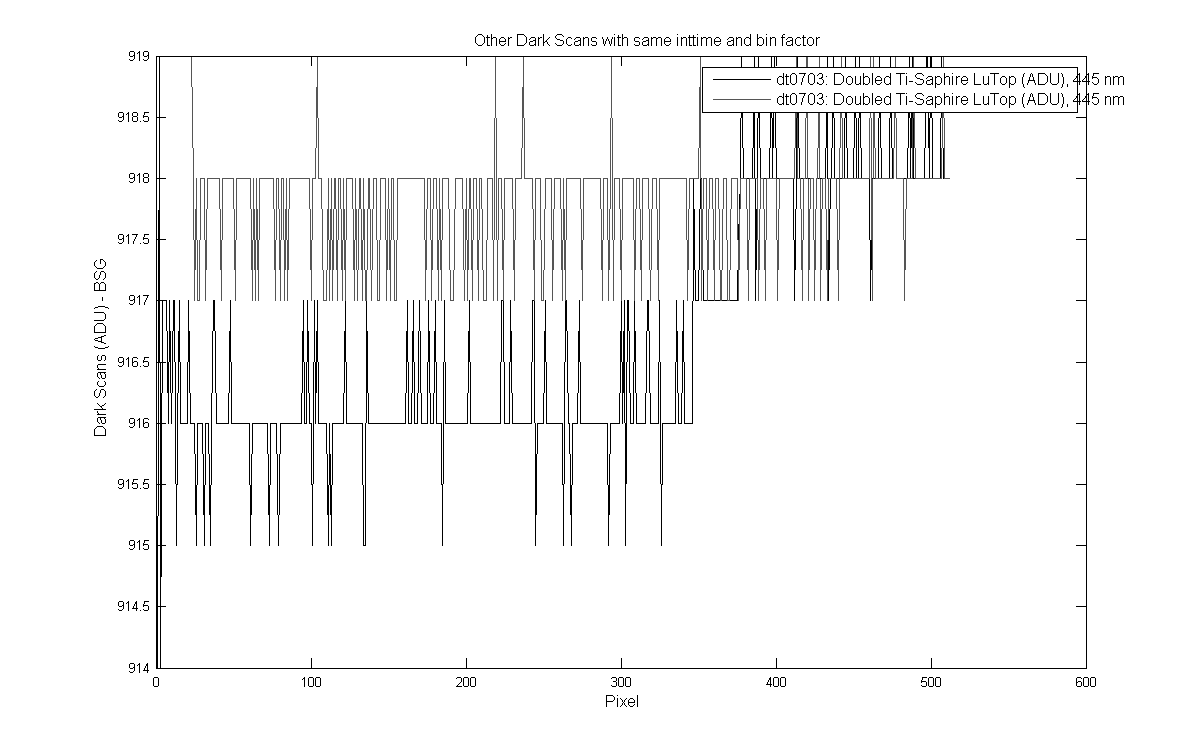

Other dark scans, to get an idea of what other darks at same int and bin look like.

Figure 6
